R577 系列 VDDC POWER 維修 SOP

R577 系列 VDDC POWER 維修 SOP. 確認 PWM INPUT POWER. Phase1 Input Power . 確認 PWM INPUT POWER. Phase2 Input Power . 確認 PWM INPUT POWER. Phase3 Input Power . 確認 Phase Number of Operation Setting. MODE PIN (26) : Connect this Pin to GND for three phase operation .

fineen
Download Presentation

R577 系列 VDDC POWER 維修 SOP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

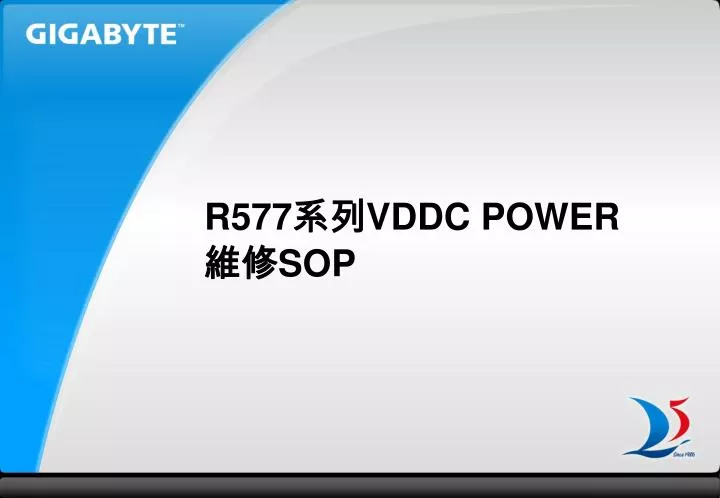

  1. R577系列VDDC POWER 維修SOP

  2. 確認 PWMINPUTPOWER Phase1 Input Power

  3. 確認 PWMINPUTPOWER Phase2 Input Power

  4. 確認 PWMINPUTPOWER Phase3 Input Power

  5. 確認 PhaseNumber of Operation Setting MODE PIN (26) : Connect this Pin to GND for three phase operation

  6. 確認 Operation Frequency Setting RT PIN (9) : Operation Frequency Setting Fosc = 10000 / Rrt (KHZ) 故 10000/33(Kohm) = 303 KHZ

  7. 確認 PWMChip Enable & High Temperature Warning Output • EN (6) : Chip Enable & High Temperature Warning Output • High : Enable • Low : Disable

  8. 確認 PWMChip High Temperature Warning Output HOT_INT : Low Enable (High Temperature Warning )  From GPIO_5 inform GPU

  9. 確認 PWMChip Enable 12V External Power need to connect J1000 Pin5 : Low action Q1008 / Q1012 not action Power Sequence : 12V_EXT 12V_BUS 3.3V_BUS VDDC_EN

  10. 確認 PWMChip Enable Protection R261 / R255 / R276 : Thermistor If around High temperature LM358 action Q219/Q217 action VDDC_EN disable Fan_thermal low -> Fan duty to 100%

  11. 確認 PWMChip Enable Protection (CTF) Normal : GPIO_19_CTF  low / Q213  action / Q210  not action CTF action : GPIO_19_CTF pin  high / Q213  not action / Q210  action

  12. Q&A
