i s 1 1 a addressing modes
I S 11A ADDRESSING MODES
  • MAPA GENERAL
  • MODOS DE DIRECCIONAMIENTO
  • EJEMPLOS DE MODOS DE DIRECCIONAMIENTO EN LOS PROCESADORES INTEL 80X86
  • BIBLIOGRAFIA

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES

mapa general

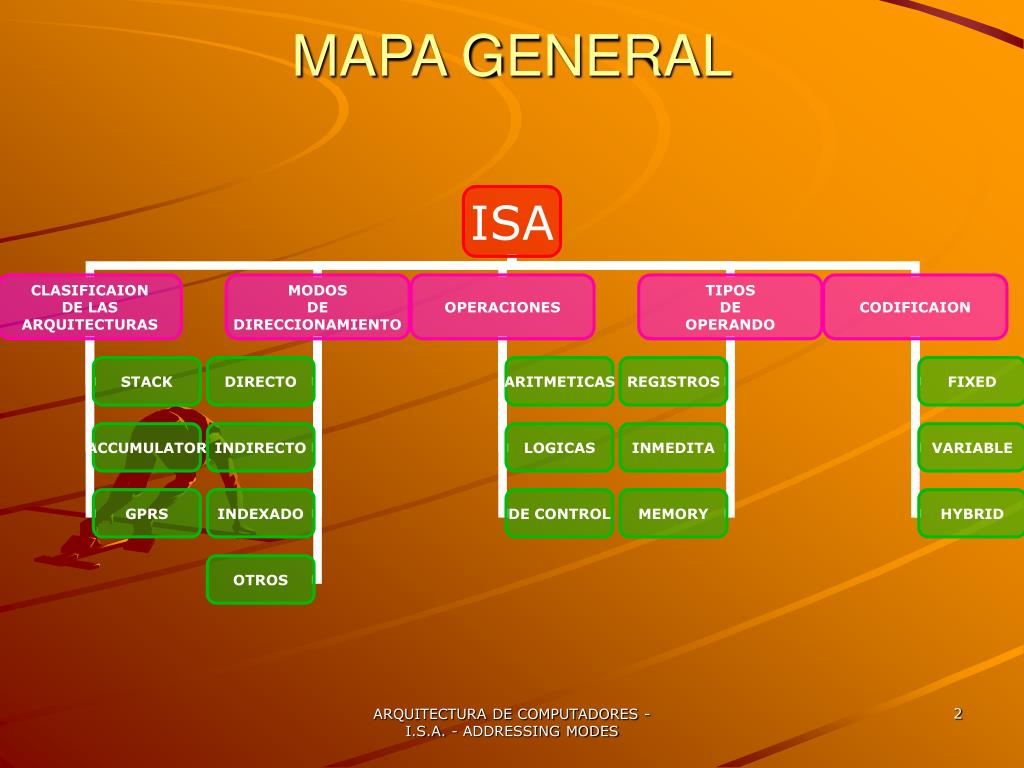

MAPA GENERAL

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES

dependencia del modo de direccionamiento gprs architecture
DEPENDENCIA DEL MODO DE DIRECCIONAMIENTO GPRS ARCHITECTURE
  • El modo de direccionamiento puede ser especificado por
    • Una constante
    • Un registro
    • Una posición de memoria (PC RELATIVE ADDRESSING).

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES

diferentes modos de direccionamiento
DIFERENTES MODOS DE DIRECCIONAMIENTO

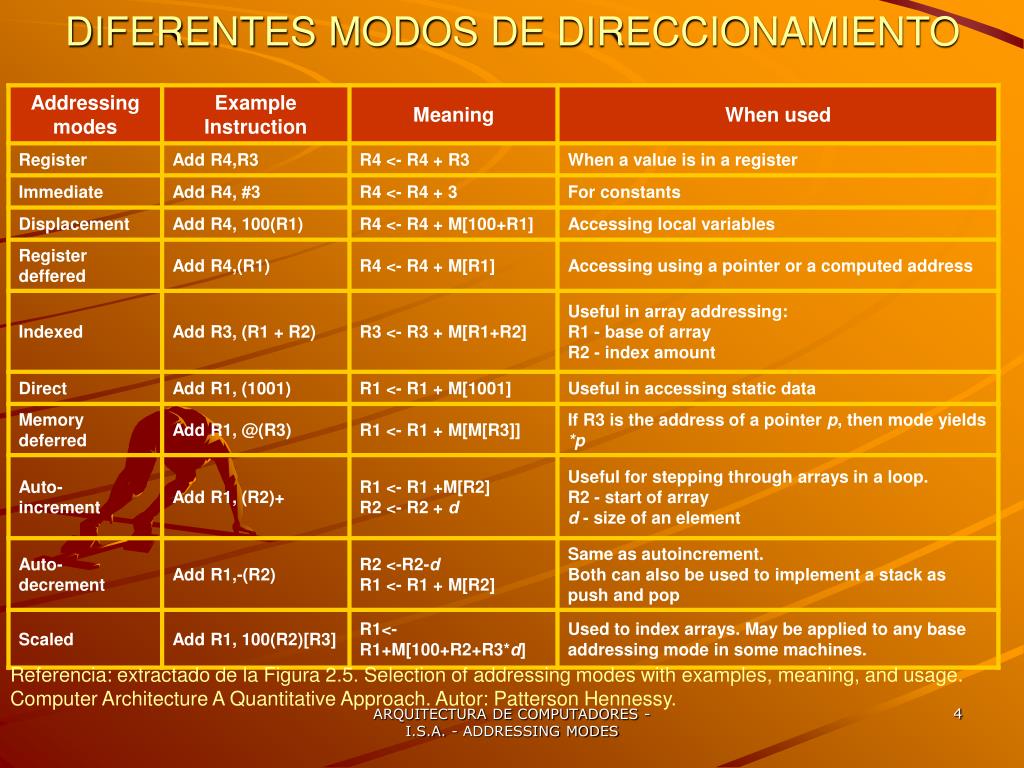

Referencia: extractado de la Figura 2.5. Selection of addressing modes with examples, meaning, and usage. Computer Architecture A Quantitative Approach. Autor: Patterson Hennessy.

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES

ejemplos en la arquitectura 80x86
EJEMPLOS EN LA ARQUITECTURA 80X86
  • Se presentan a continuación algunos ejemplos sobre la arquitectura 80x86 de INTEL y referenciadas a los modelos genéricos de direccionamiento.

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES

direct addressing mode
DIRECT ADDRESSING MODE

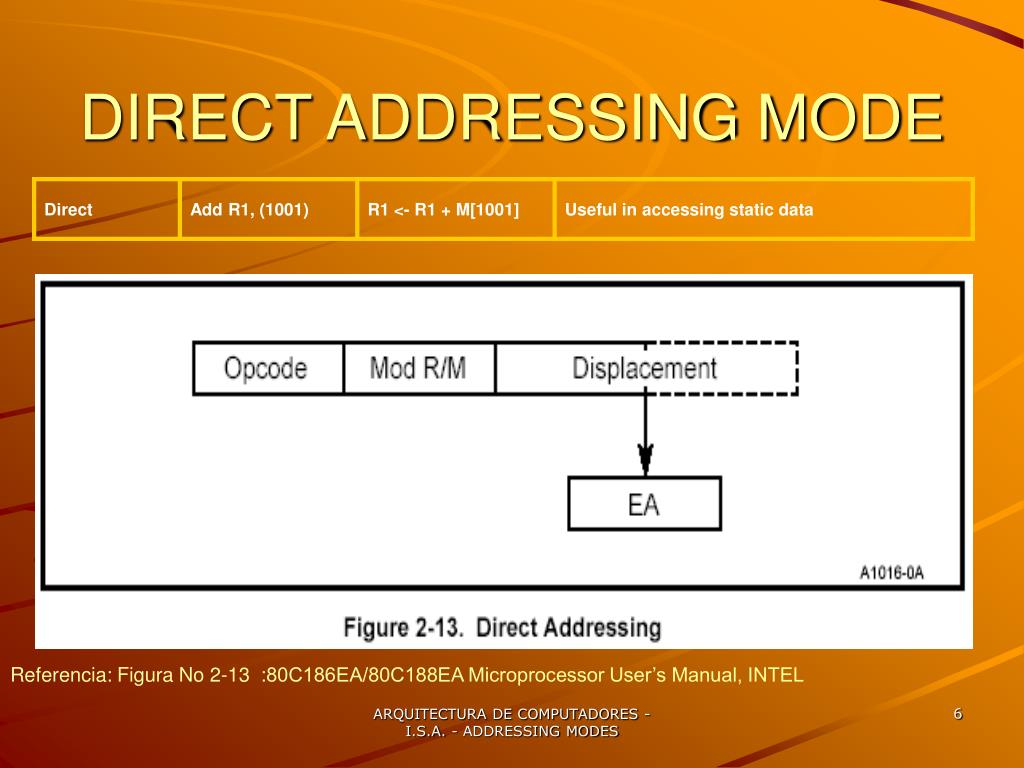

Referencia: Figura No 2-13 :80C186EA/80C188EA Microprocessor User’s Manual, INTEL

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES

register indirect addressing mode
REGISTER INDIRECT ADDRESSING MODE

Referencia: Figura No 2-14 :80C186EA/80C188EA Microprocessor User’s Manual, INTEL

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES

based addressing mode
BASED ADDRESSING MODE

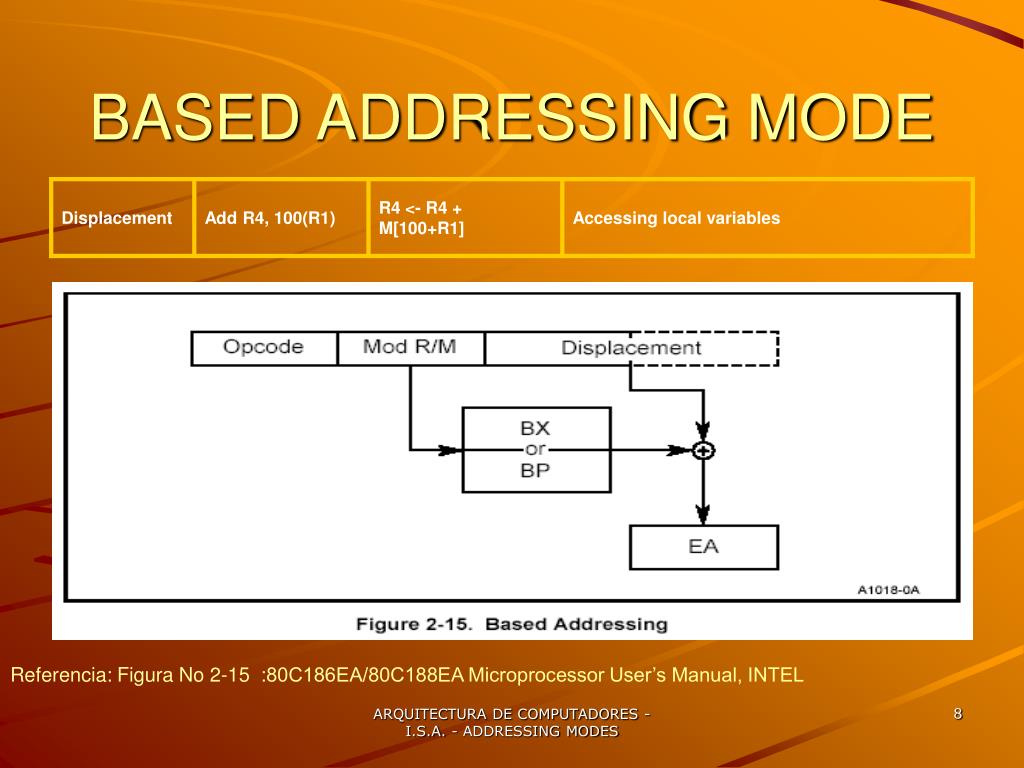

Referencia: Figura No 2-15 :80C186EA/80C188EA Microprocessor User’s Manual, INTEL

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES

indexed addressing mode
INDEXED ADDRESSING MODE

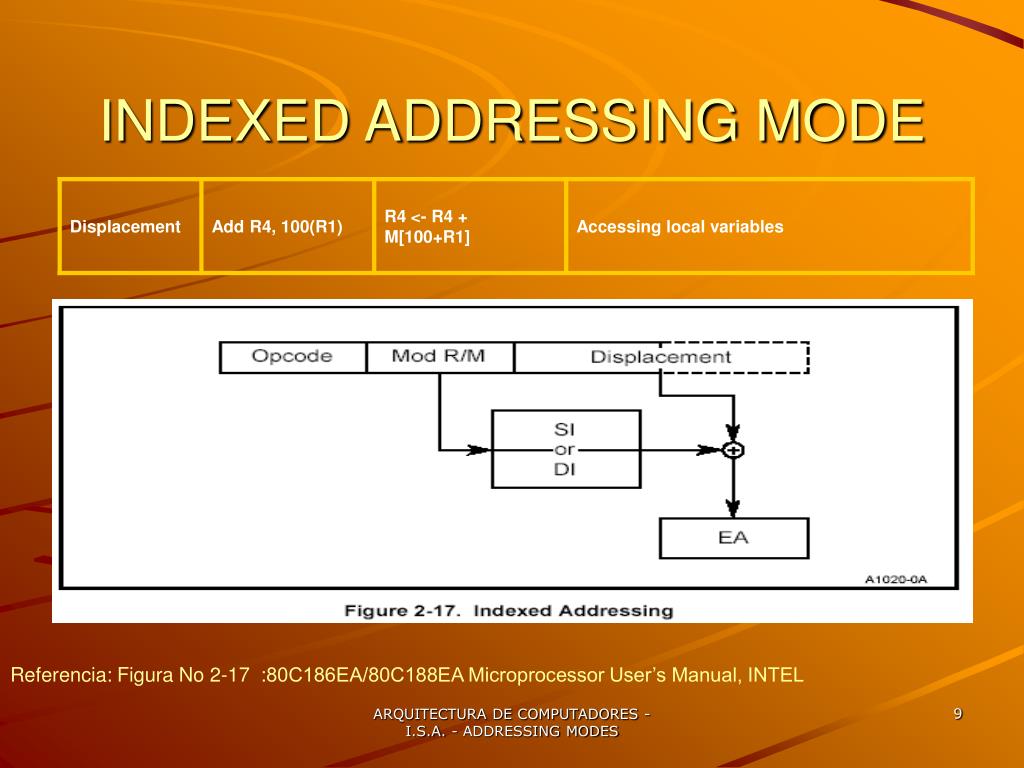

Referencia: Figura No 2-17 :80C186EA/80C188EA Microprocessor User’s Manual, INTEL

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES

based index addressing mode
BASED INDEX ADDRESSING MODE

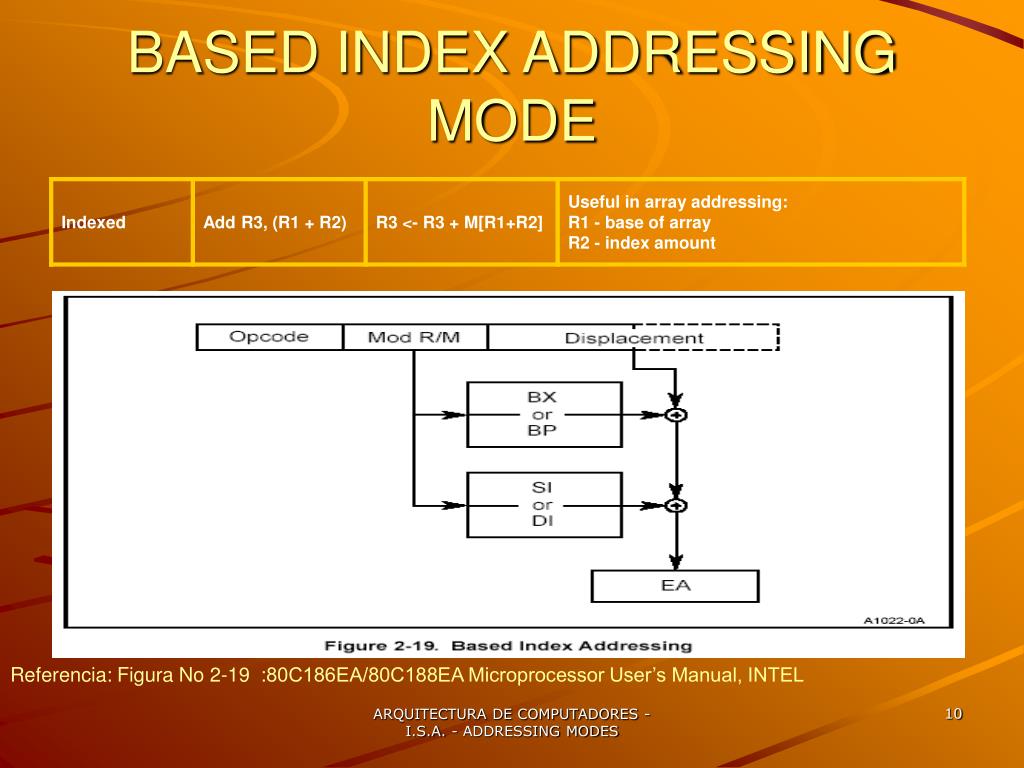

Referencia: Figura No 2-19 :80C186EA/80C188EA Microprocessor User’s Manual, INTEL

ARQUITECTURA DE COMPUTADORES - I.S.A. - ADDRESSING MODES
