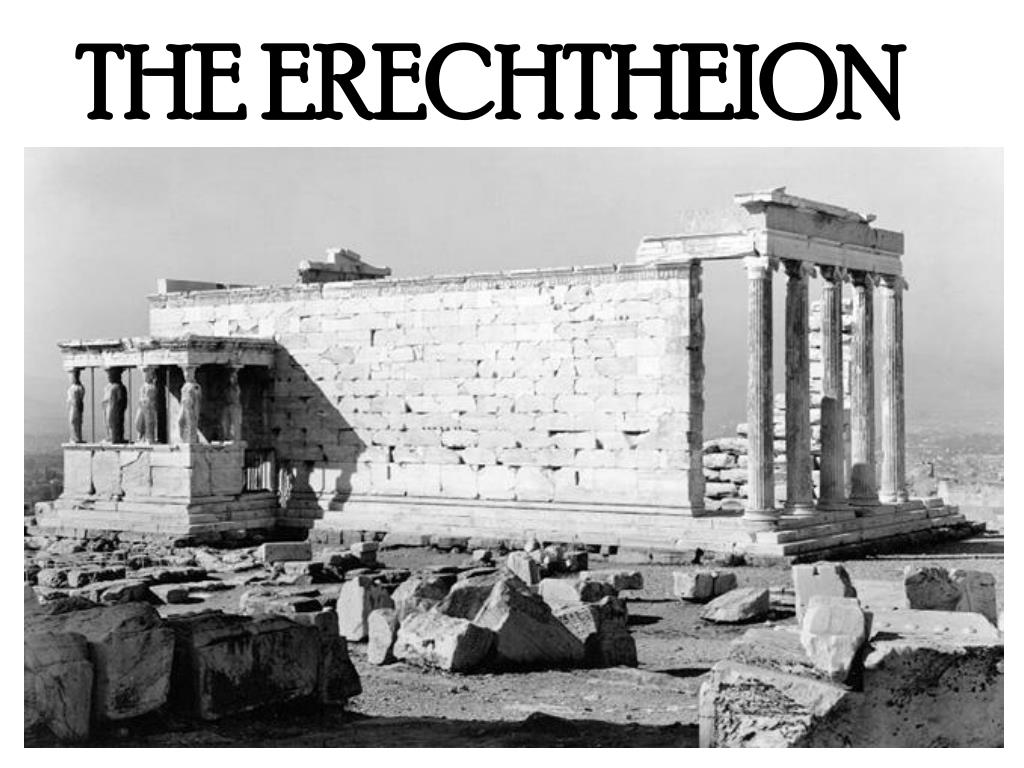

  1. THE ERECHTHEION

  2. THE BASICS

  3. THE BASICS • it was built between 421 and 406BC. • unusual and complex temple on the north side of the Acropolis. • made from Pentelic marble. • it is an irregular Ionic temple. • Doric order not used because of political problems with the Dorians at time of construction. • the architect is probably designed by Philokles • could also be Mnesicles. • built to house the wooden statue • Athena Polias. • a lot of care and money was put into this elegant and decorative temple.

  4. THE HISTORY • the Erechtheion was named either after... • Erechthonios – a legendary, early Athenian king who had the form of a snake • or after Erechthonios’ grandson Erechtheus. • during Erechthonios’ reign a statue of Athena Polias fell to earth and this statue was placed in the Erechtheion.

  5. PROBLEMS FACED, #1 • the architect faced many problems in creating the temple: • the Erechtheion was placed well over to the north side of the Acropolis where the ground sloped away to both the north and west. So … • the two main cellas had to be built on different levels. 1 2

  6. PROBLEMS FACED, #2 • another problem the architect faced was: • because the ground was dotted with small shrines and sacred spots the architect couldn’t demolish, cover up, level, or build terraces over the site. So … • the sites had to be incorporated within, around, and even under the temple.

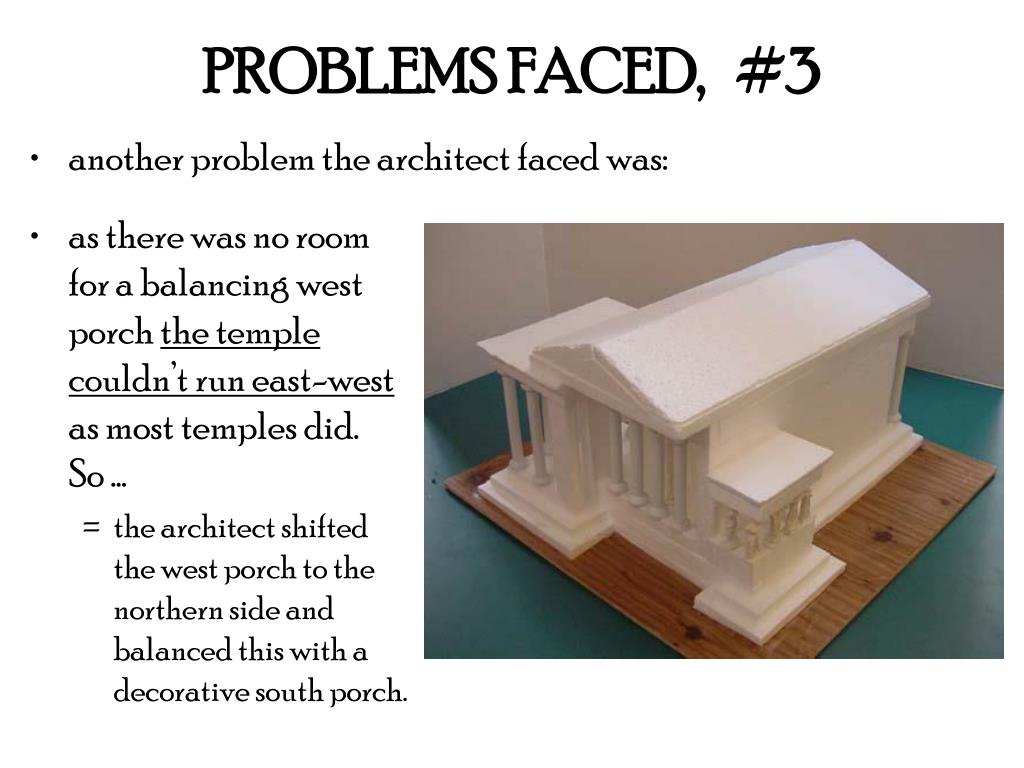

  7. PROBLEMS FACED, #3 • another problem the architect faced was: • as there was no room for a balancing west porch the temple couldn’t run east-west as most temples did. So … • the architect shifted the west porch to the northern side and balanced this with a decorative south porch.

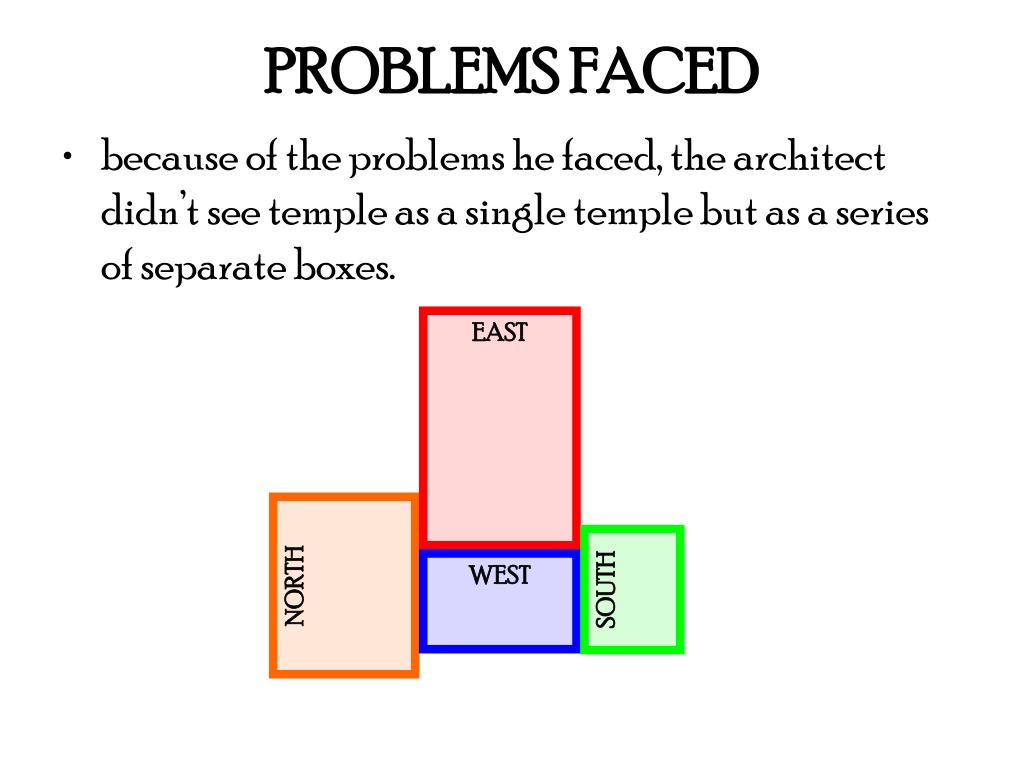

  8. PROBLEMS FACED • because of the problems he faced, the architect didn’t see temple as a single temple but as a series of separate boxes. EAST NORTH SOUTH WEST

  9. THE EXTERIOR DESIGN • the temple is designed so that there are: • four sets of columnar supports, • three structural units each with its own roof, • four different levels. 1 3 1 4 4 2 3 3 2 2 1

  10. THE INTERIOR DESIGN • we don’t know how the interior looked because it has been virtually destroyed. • it could have looked like this….. • or this …… • the main central building is spilt into two parts, the eastern and western cellas.

  11. EAST • entry to the cella was by a wide doorway and two windows gave access to the cella. • probably contained the cult statue of Athene Polias. • there are two altars in the main room, • one to Boutes, • one to Hephaistos. • the east porch is Ionic Hexastyle. • another two rooms ran lengthwise down the cella.

  12. WEST • probably held the cistern with the salt sea of Poseidon. • this appeared when the god hit the ground with his spear during his contest with Athene. • the lower level of this wall has a doorway leading to the shrine of Kekrops. • at the western end there were four Ionic half-columns elevated in the wall because of the slope. • bronze grilles are behind these 4 Ionic half-columns. 1 2 3 4

  13. SOUTH • this southern porch is best known part of the Erechtheion, • because the roof is held up by 6 korai (maidens) that we now call the Karyatids. • the Karyatids support an architrave. • the architrave is decorated with: • rosettes, • dentils, • a flat roof, • there was no frieze above their heads. • no external access to the porch, it could only be reached by stairs from the west cella. • the shrine of the first King of Athens, King Kekrops (said to be half-man/half-snake), was set back from the porch.

  14. NORTH • essentially the north is a balancing porch. • OR awestern porch rotated to the north side. • 4 Ionic columns stand along the north façade with two more on the side. • the coffered roof had a hole in it to allow light in because it was here that a thunderbolt from Zeus was said to have struck. • this porch gave access to the western cella through a large doorway. • the porch juts out to the west: • a door here which allows access to the shrine of Pandrosos where an olive tree stood, the gift of Athene to Athens when she the competition against Poseidon.

  15. DECORATION • the Ionic columns were highly decorated with gilding and glass beads and they had elaborate bases and capitals. • the porches had coffered marble ceilings while the cellae had wooden ones. • a frieze of Pentelic marble was pegged against dark entablature of Eleusinian limestone. • the subject of these friezes were probably to do with foundation myths of Athens. • cellas had coffered wooden ceilings with each porch having a coffered marble ceiling.

  16. SIGHTS HOUSED IN THE TEMPLE • statue of Athena Polias • tomb of Erechtheus • Kekrops’ tomb • sacred olive tree • Poseidon’s trident marks and the salt spring • altar of Hephaistos • altar of Boutes • thrones of priests • Caryatid porch • sanctuary of Pandrosos.

  17. THE ERECHTHEION
