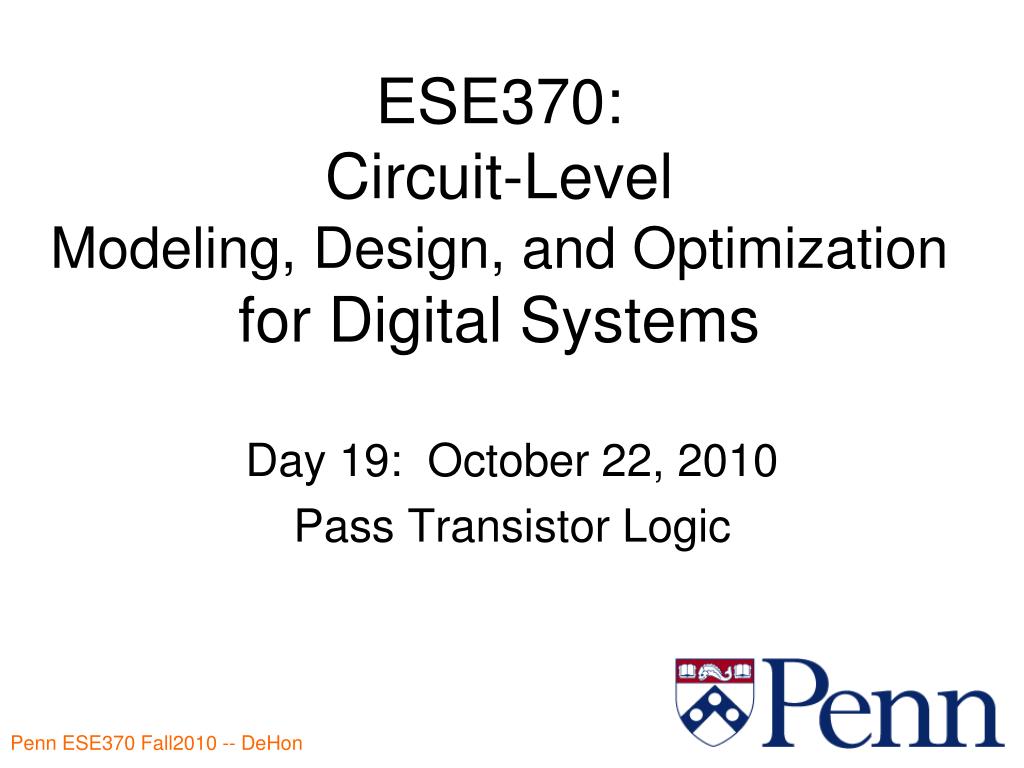

### ESE370:Circuit-Level Modeling, Design, and Optimization for Digital Systems

Day 19: October 22, 2010

Pass Transistor Logic

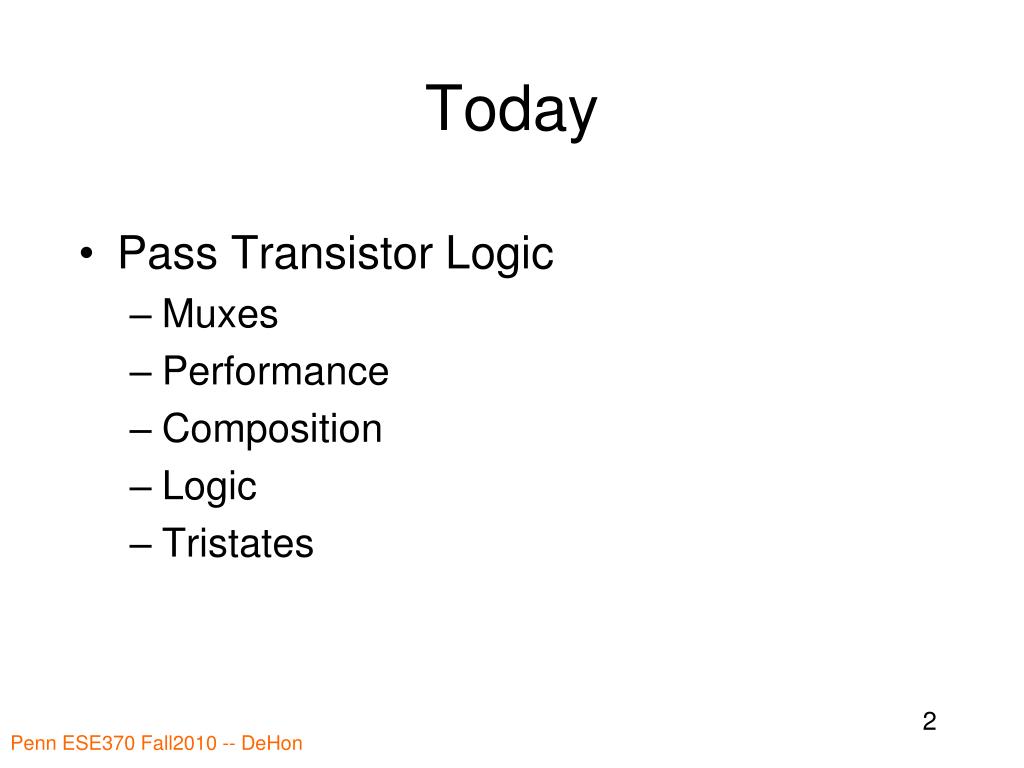

Today
• Pass Transistor Logic
• Muxes
• Performance
• Composition
• Logic
• Tristates

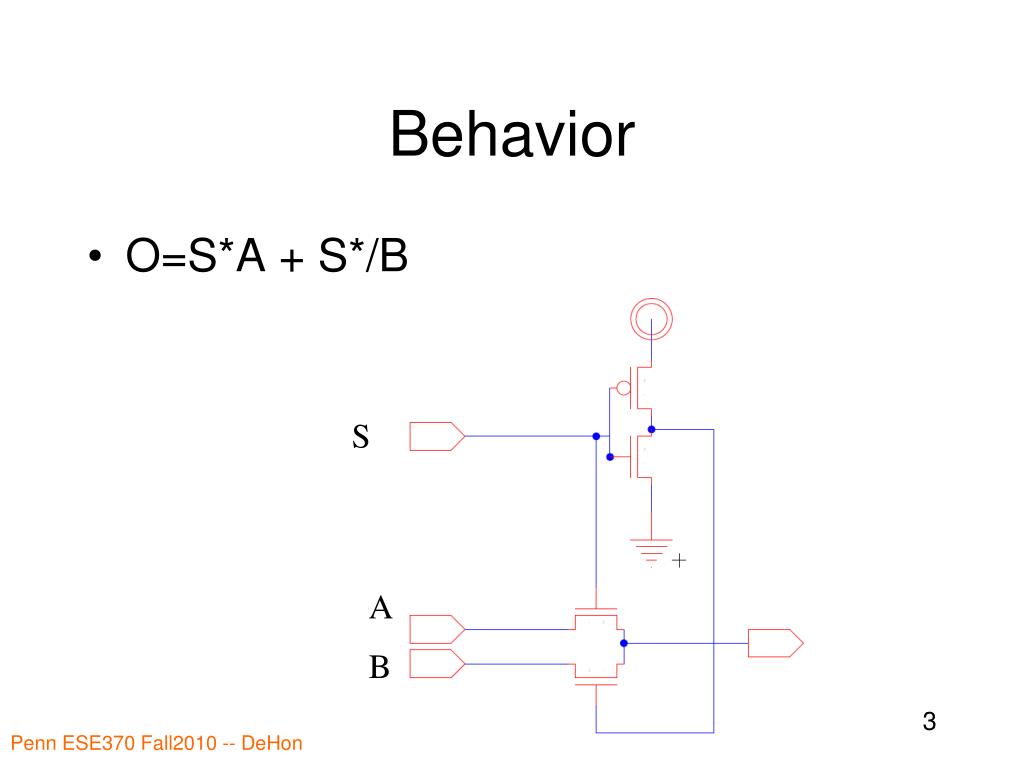

Behavior
• O=S*A + S*/B

S

A

B

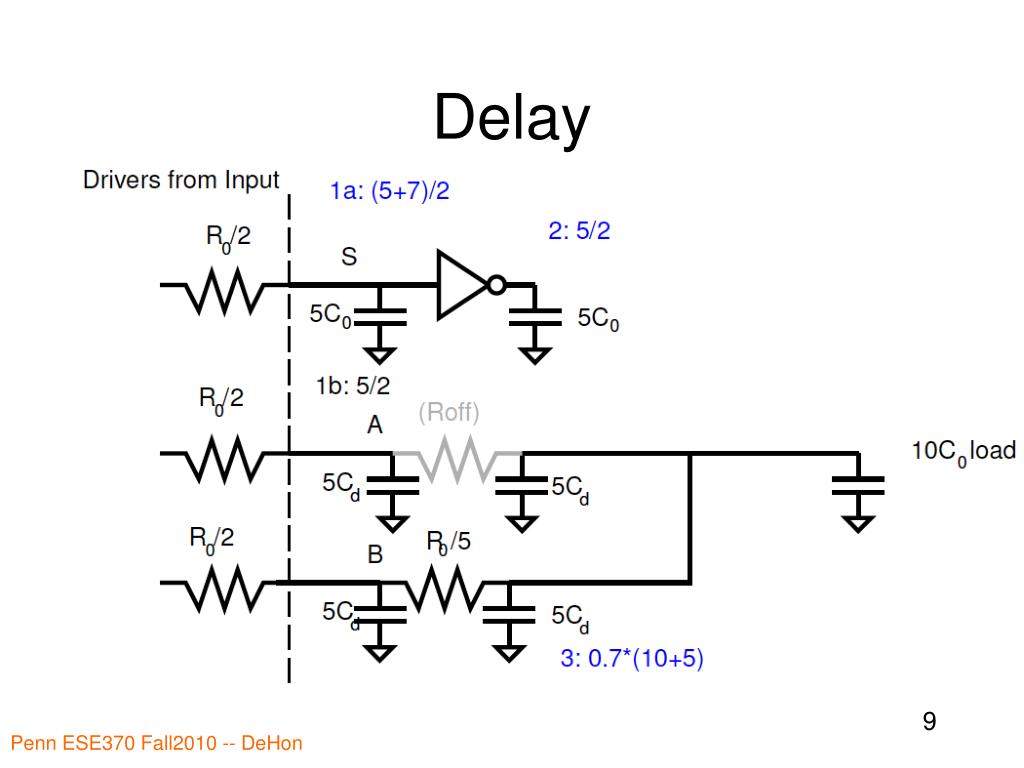

Delay

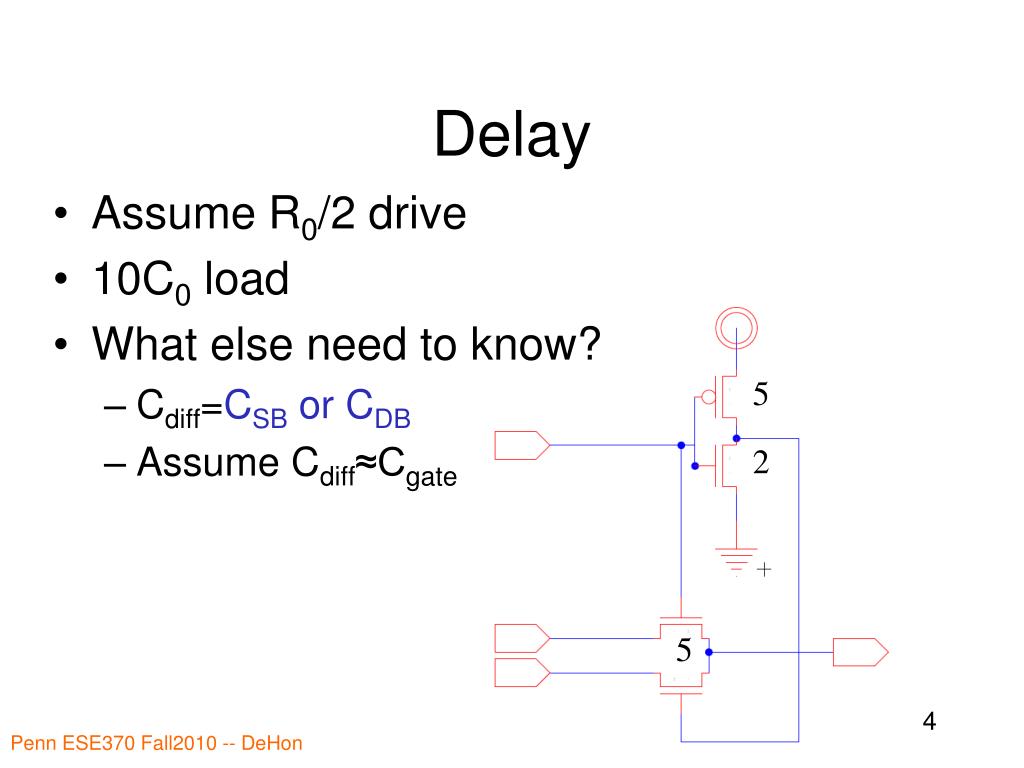

• Assume R0/2 drive
• What else need to know?
• Cdiff=CSB or CDB
• Assume Cdiff≈Cgate

5

2

5

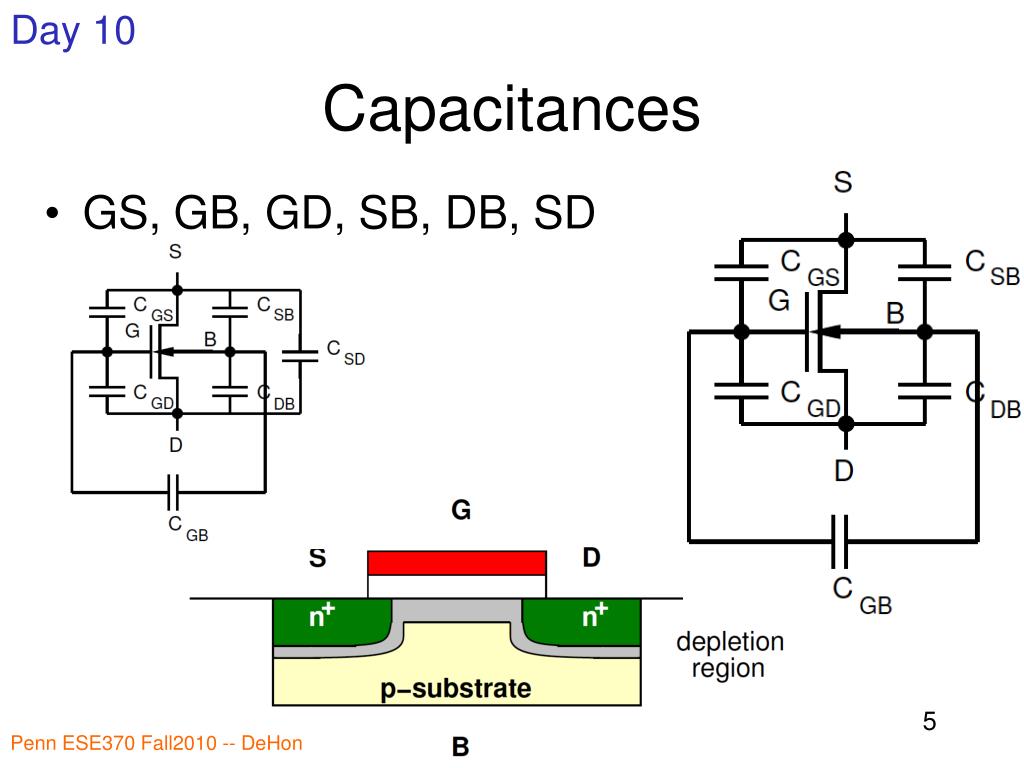

Day 10Capacitances
• GS, GB, GD, SB, DB, SD
Day 10Contact Capacitance
• n+ contacts are formed by doping = diffusion
• Depletion under contact
• Contact-Body capacitance
• Depletion around perimeter of contact
• Also contact-Body capacitance

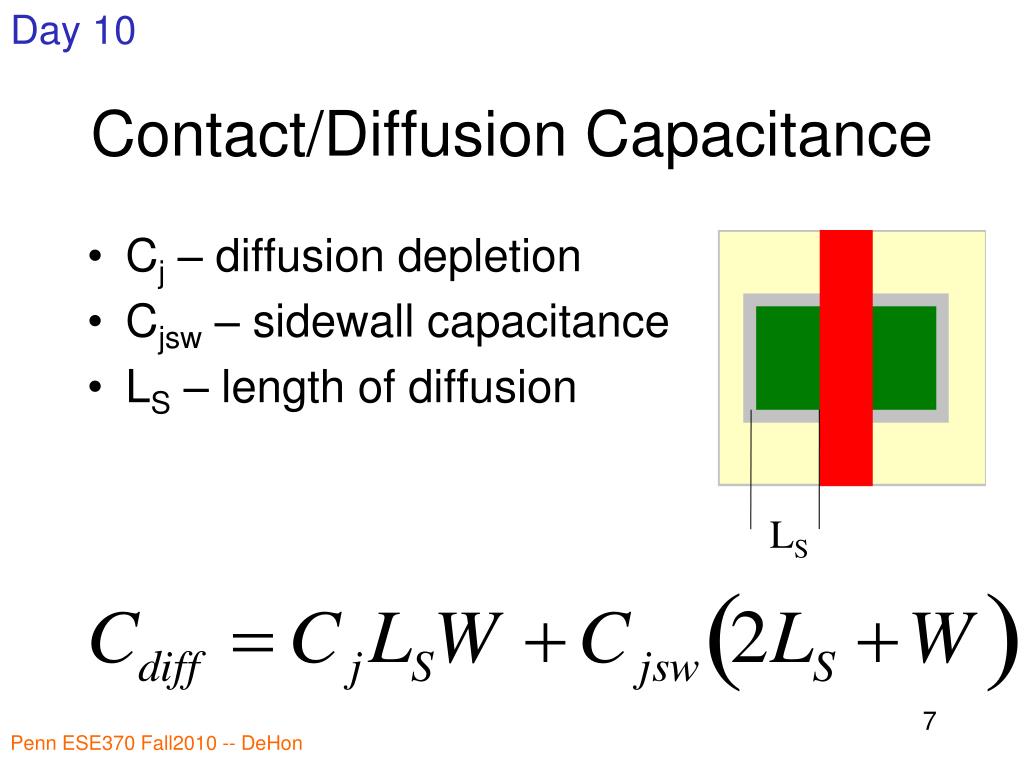

Day 10Contact/Diffusion Capacitance
• Cj – diffusion depletion
• Cjsw – sidewall capacitance
• LS – length of diffusion

LS

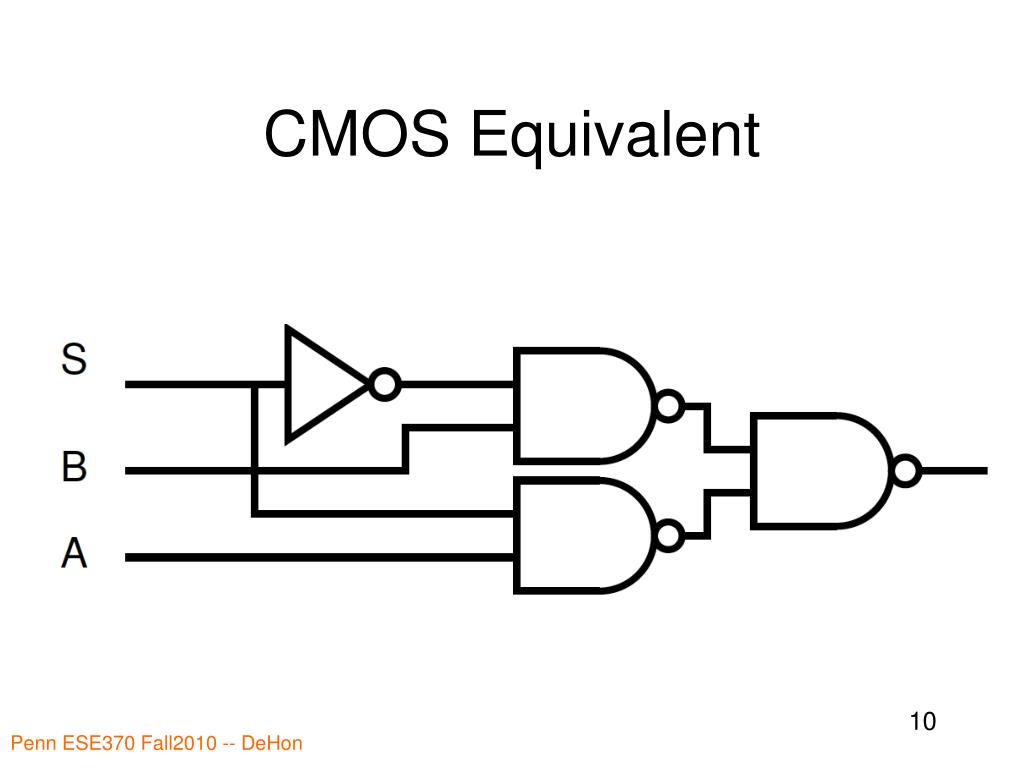

CMOS Delay
• O=S*A + S*/B

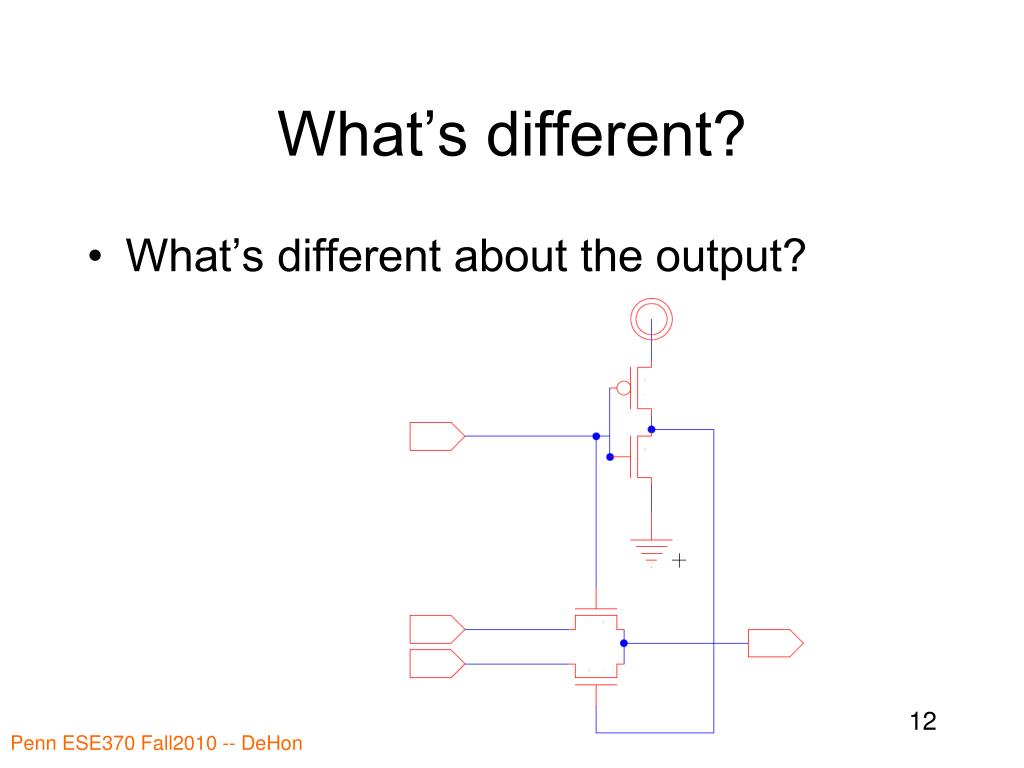

What’s different?
• What’s different about the output?

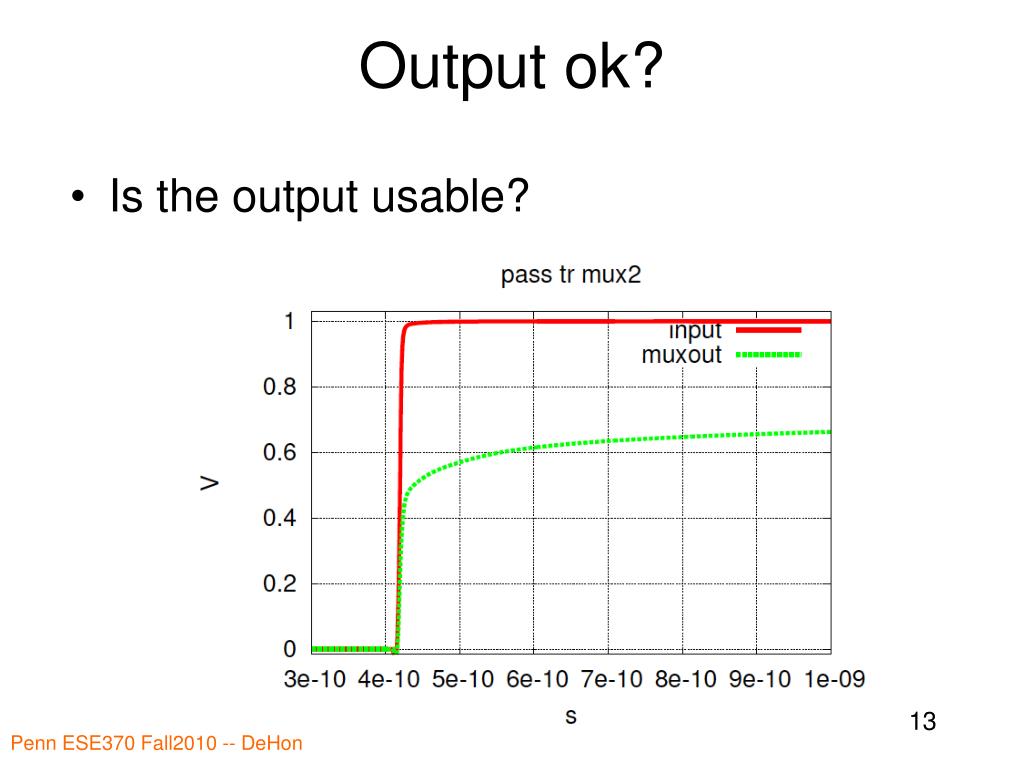

Output ok?
• Is the output usable?

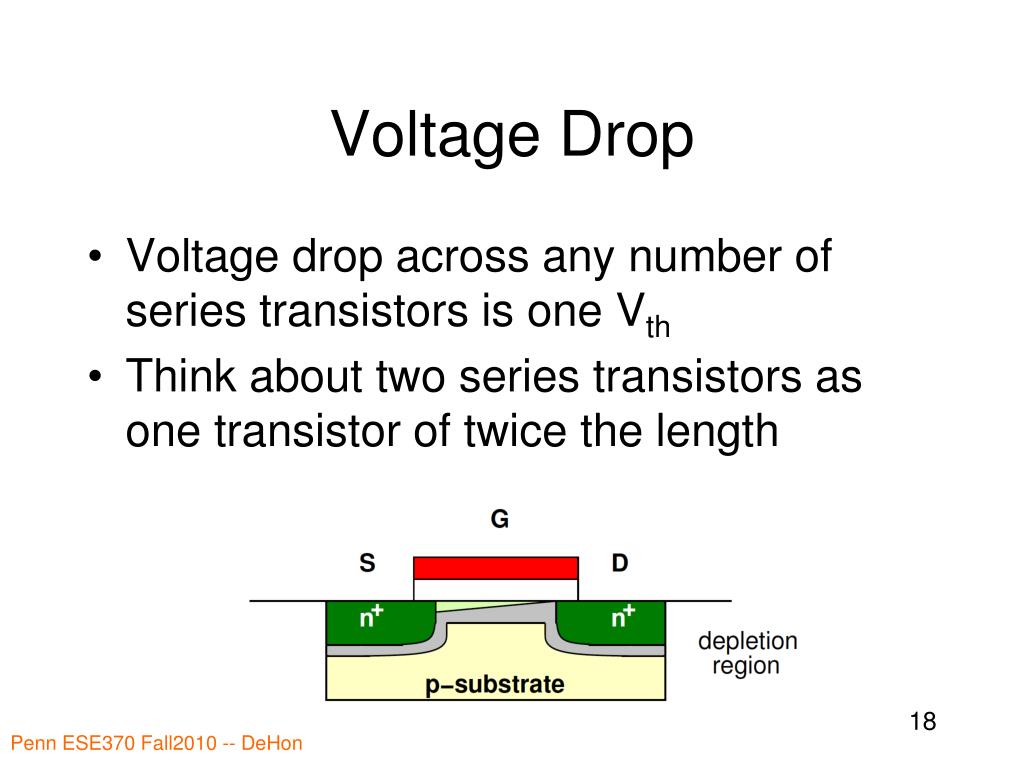

Voltage Drop
• Voltage drop across any number of series transistors is one Vth
• Think about two series transistors as one transistor of twice the length

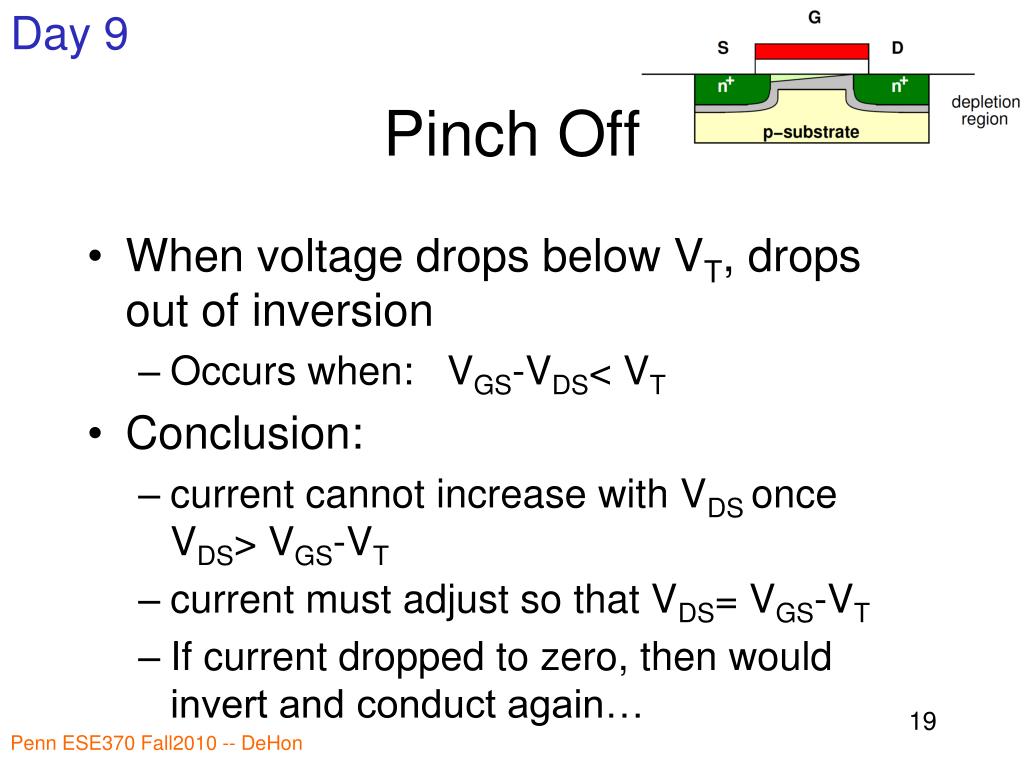

Day 9Pinch Off
• When voltage drops below VT, drops out of inversion
• Occurs when: VGS-VDS< VT
• Conclusion:
• current cannot increase with VDS once VDS> VGS-VT
• current must adjust so that VDS= VGS-VT
• If current dropped to zero, then would invert and conduct again…
Performance?

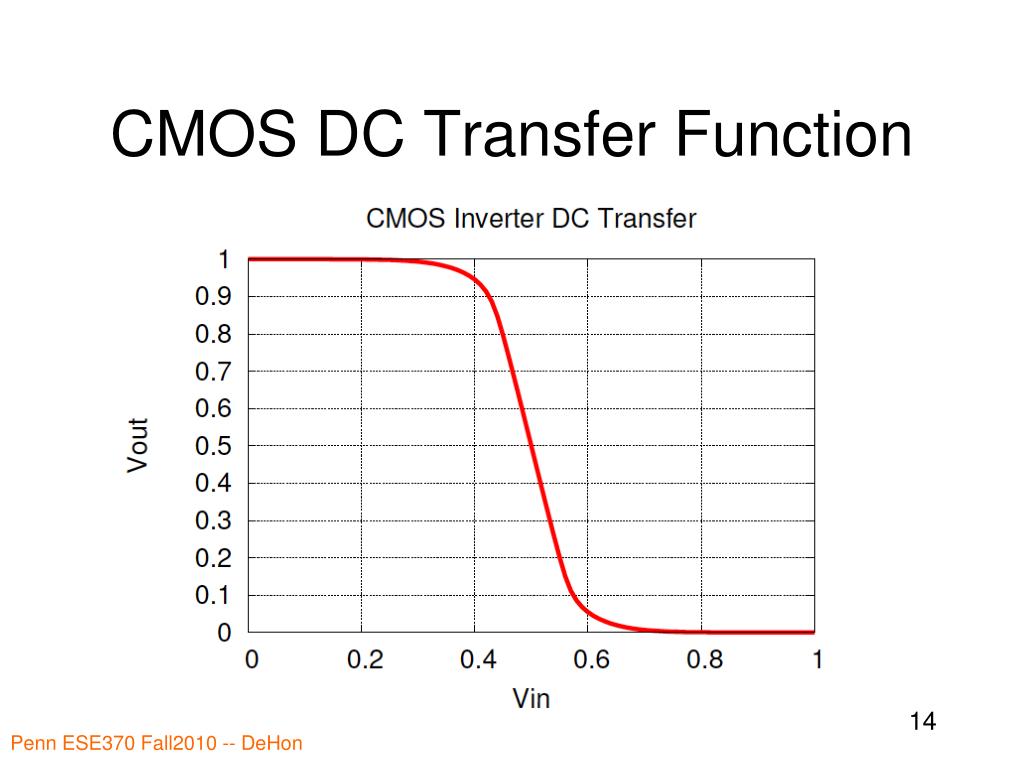

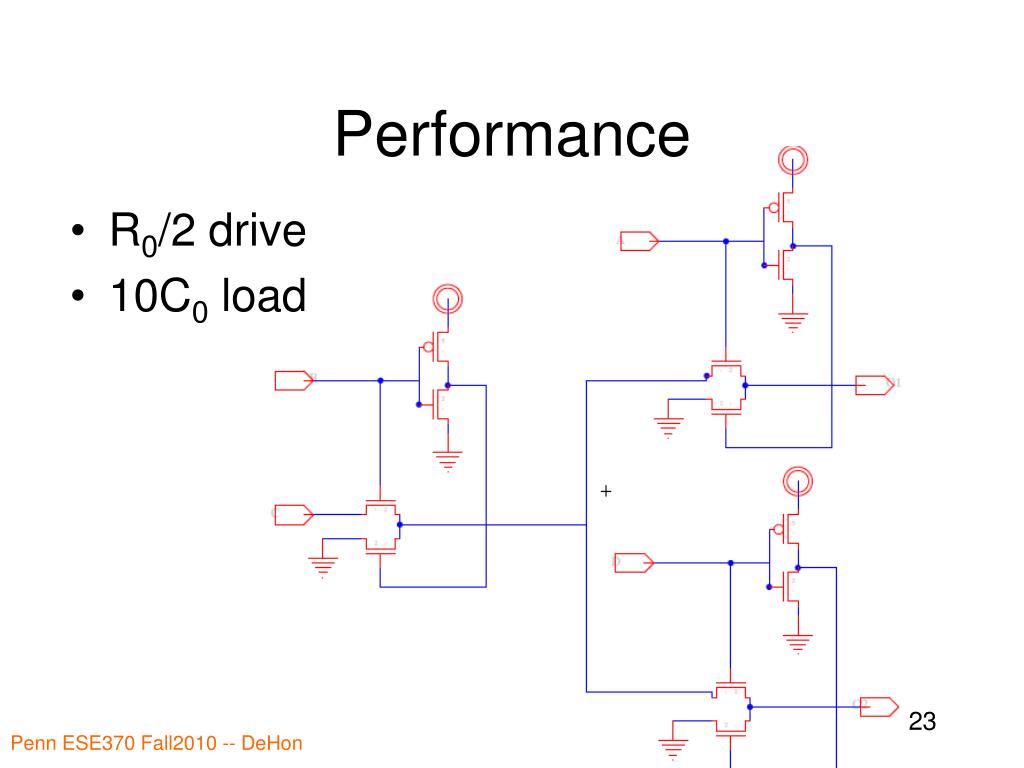

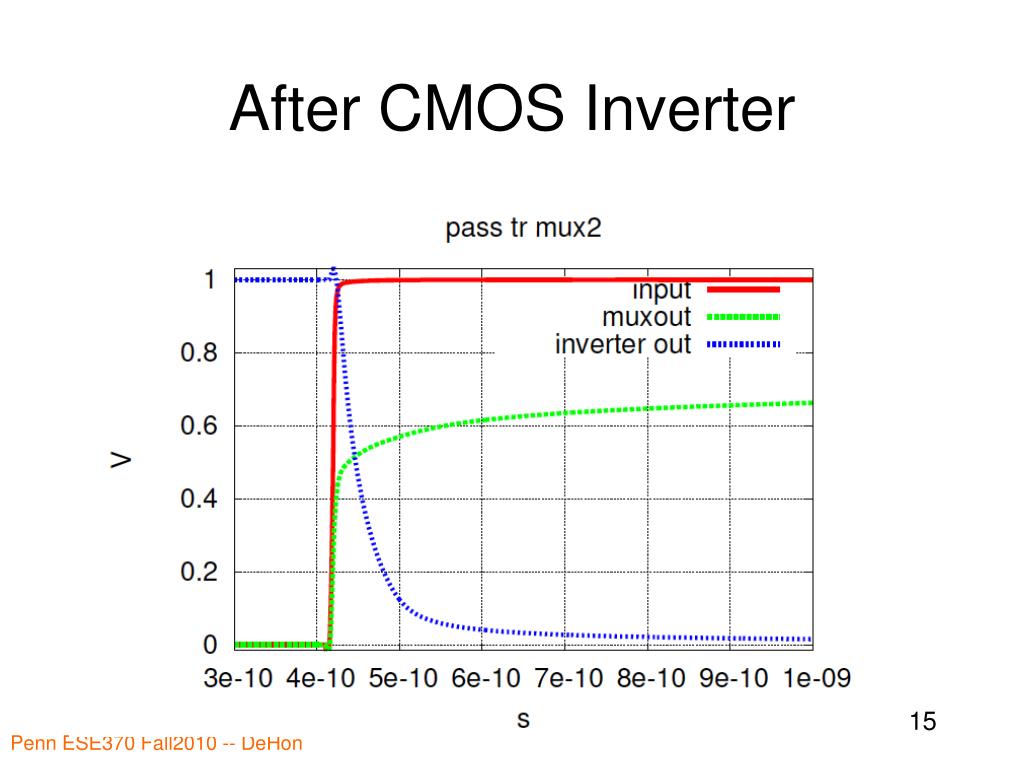

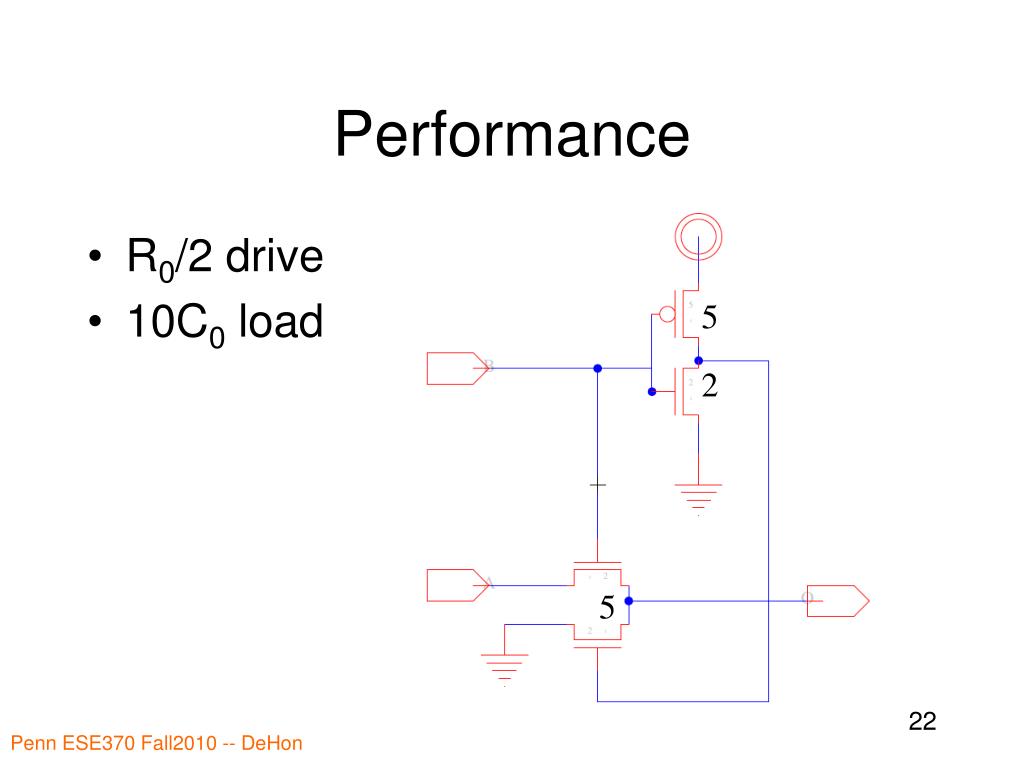

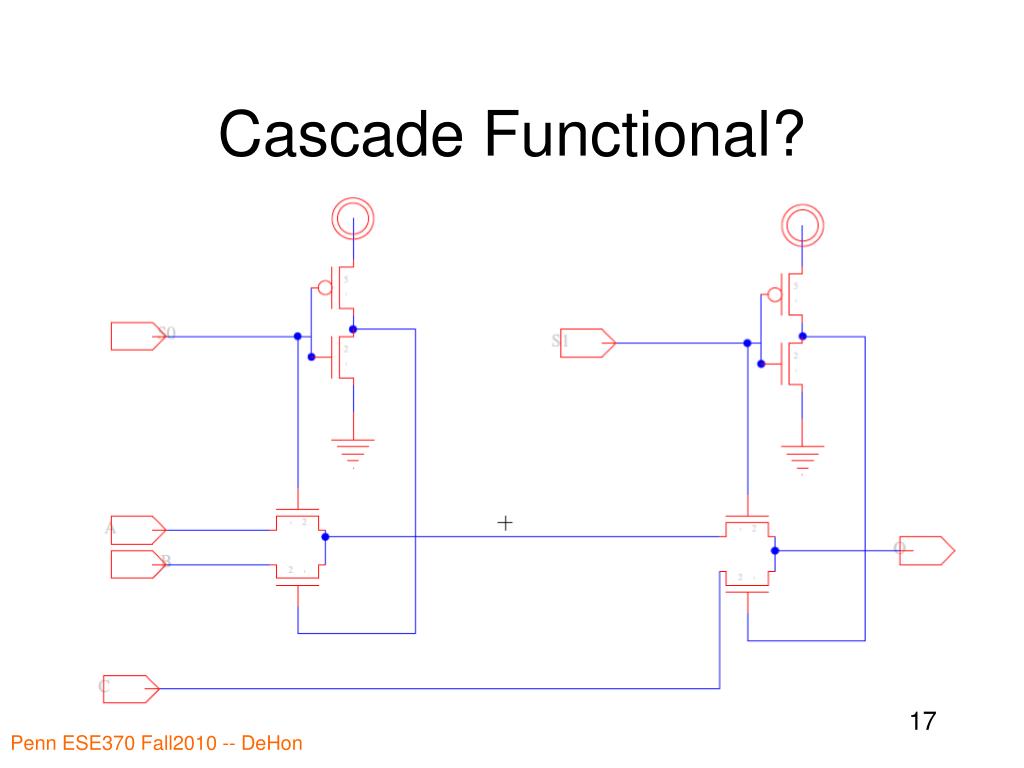

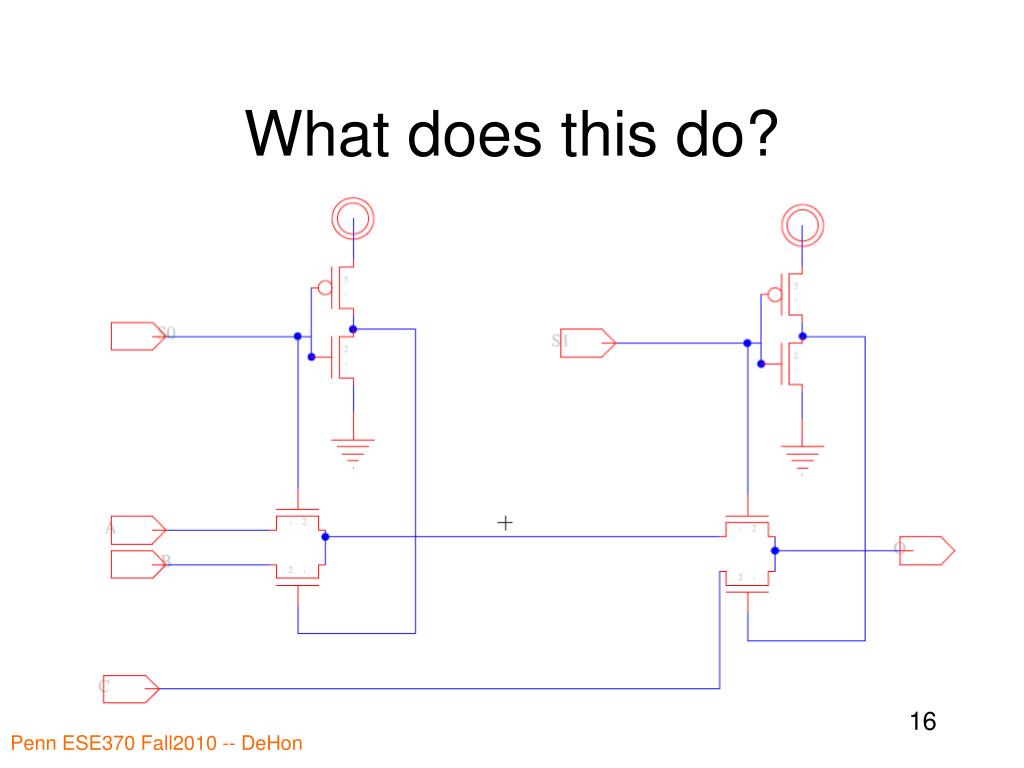

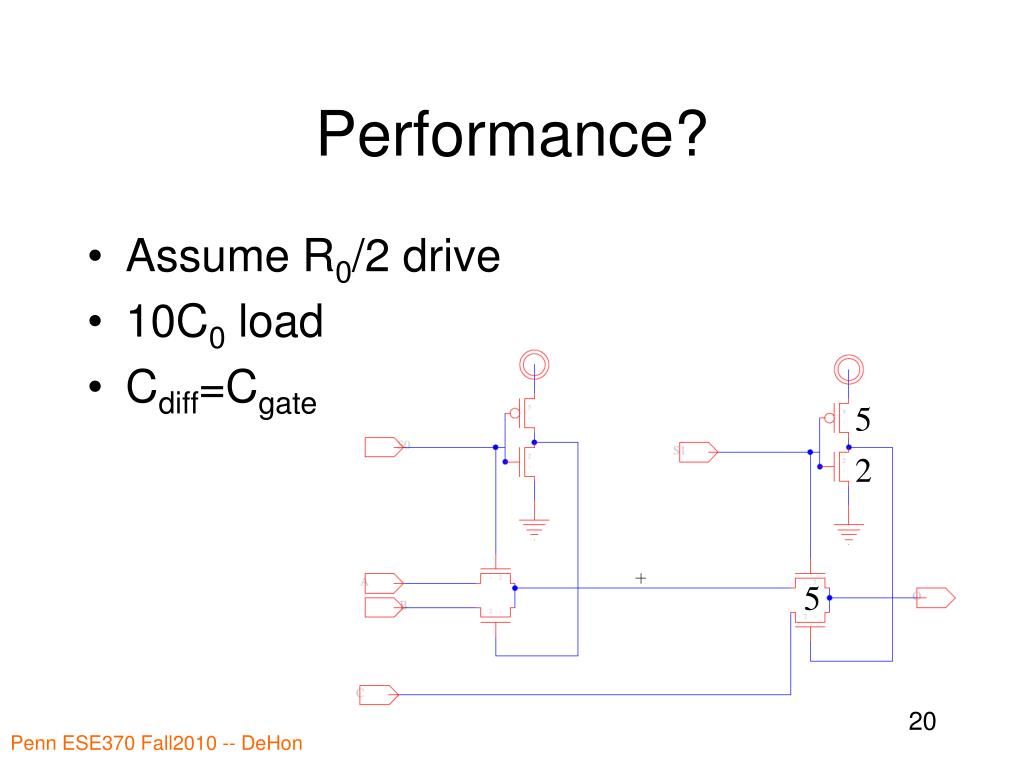

• Assume R0/2 drive
• Cdiff=Cgate

5

2

5

Performance
• R0/2 drive

5

2

5

Performance
• R0/2 drive

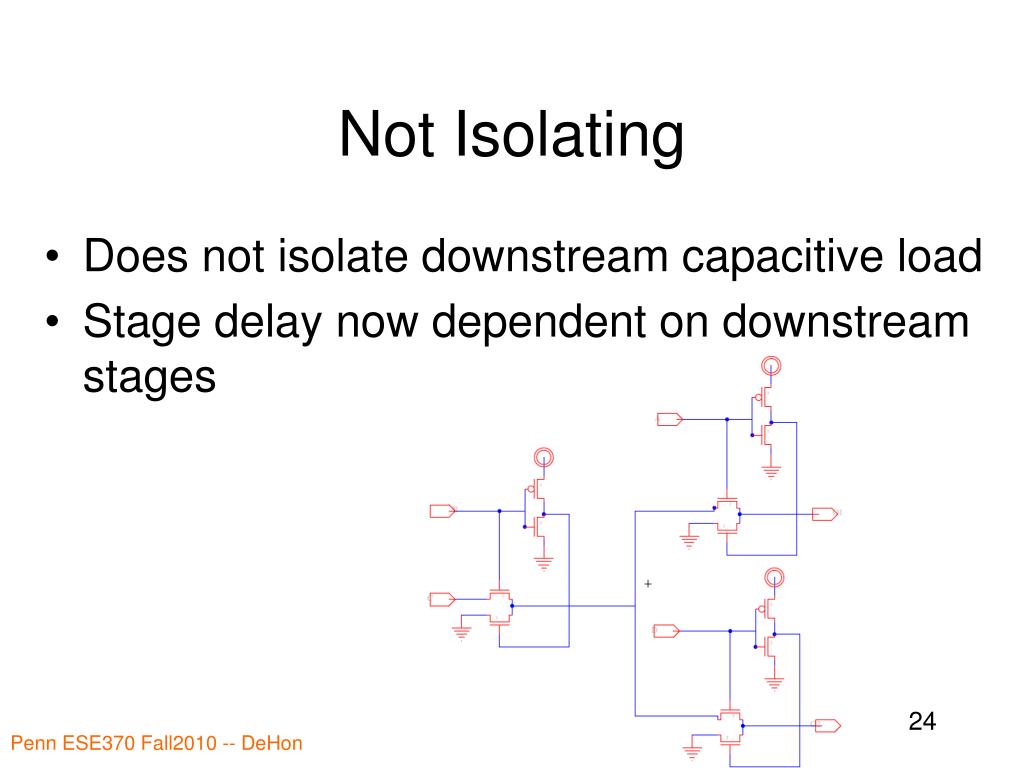

Not Isolating
• Does not isolate downstream capacitive load
• Stage delay now dependent on downstream stages

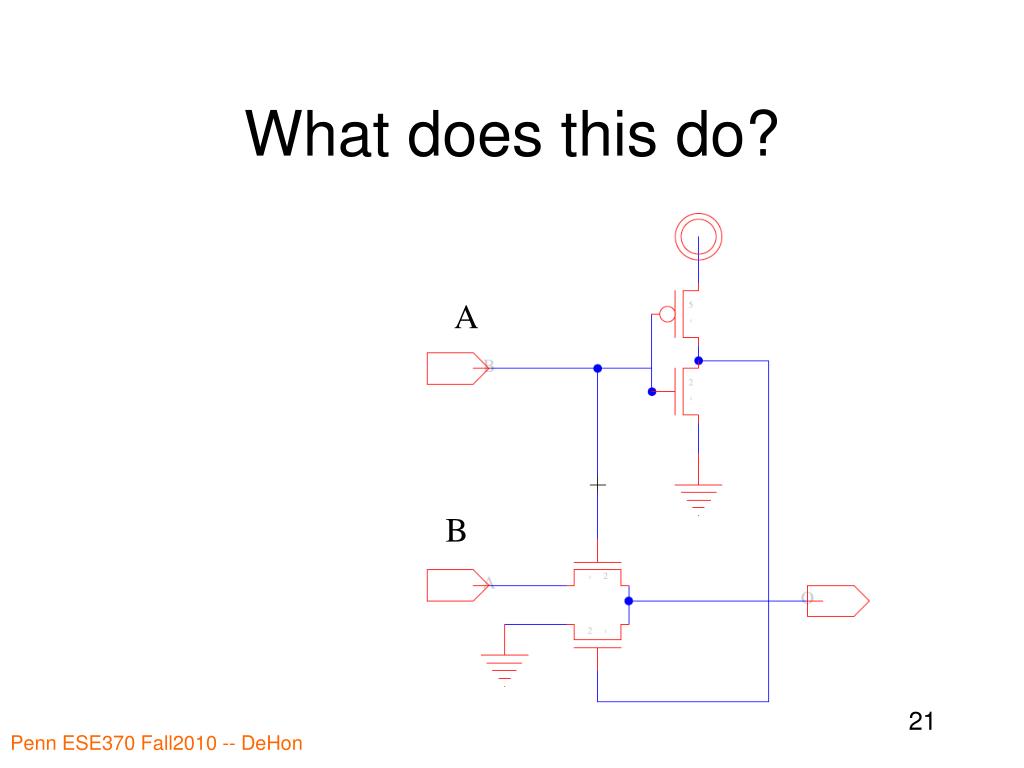

### Class Ended Here

Power Implications

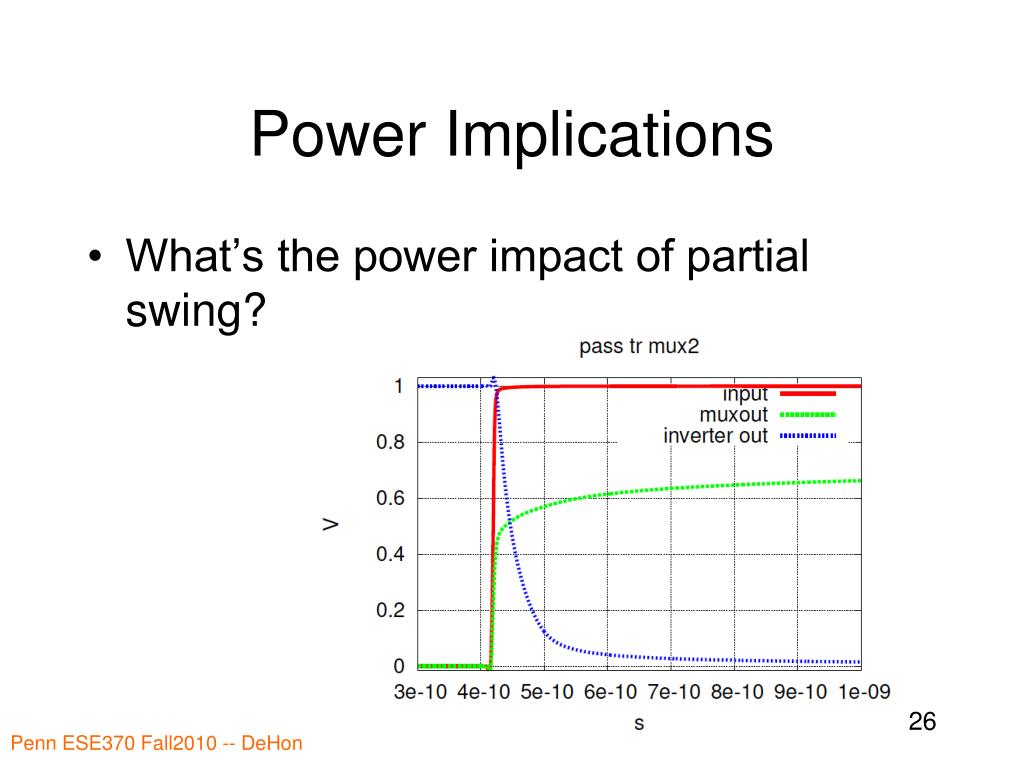

• What’s the power impact of partial swing?
Back to Rail
• How make it go to rail?

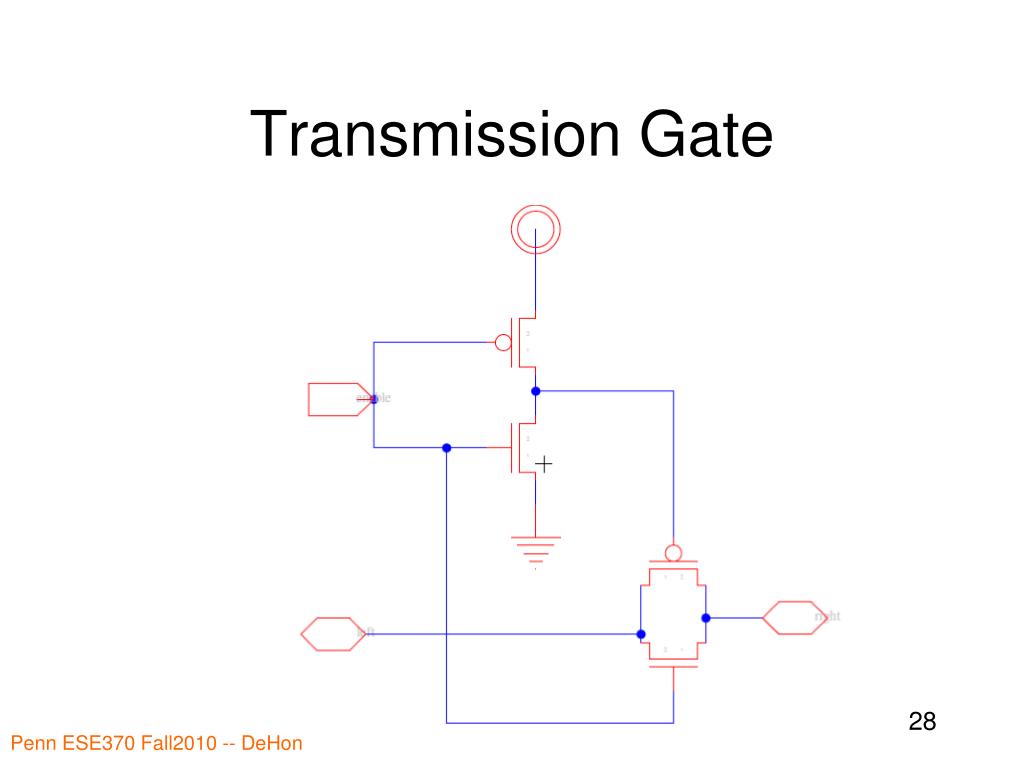

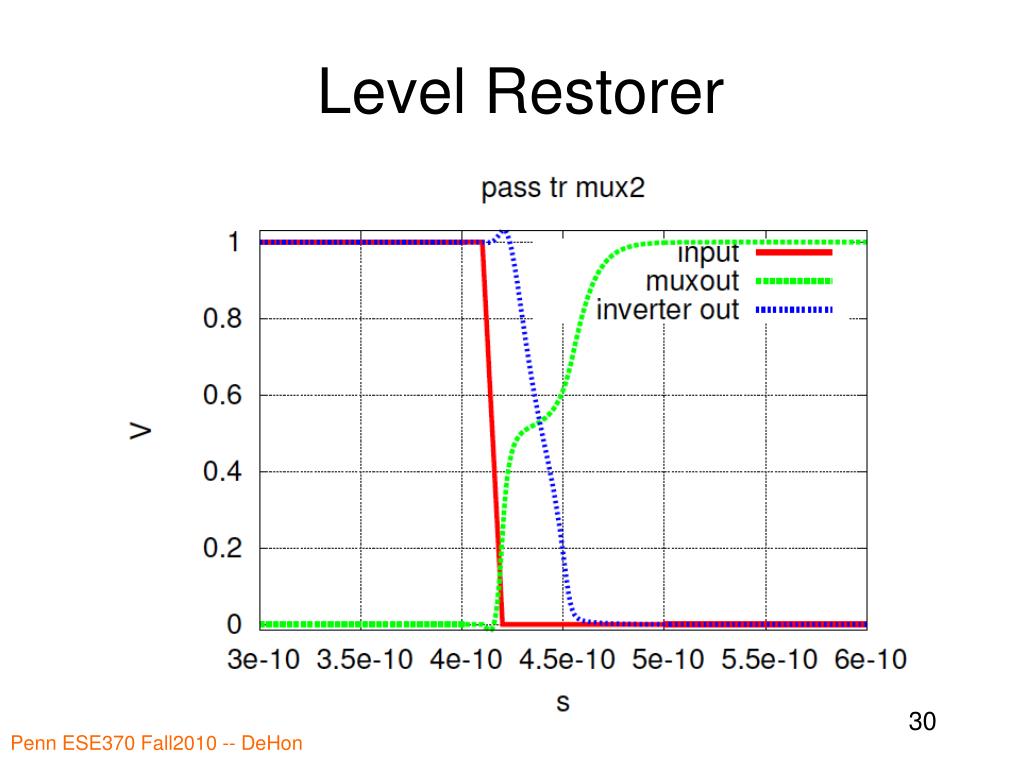

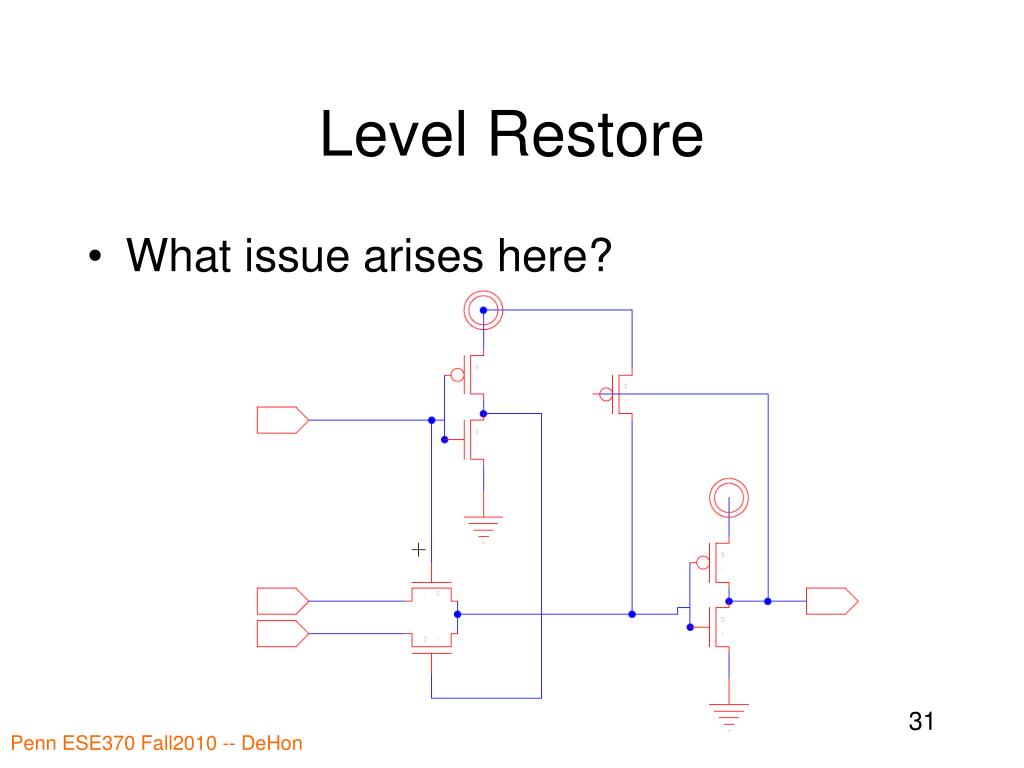

Level Restore
• What issue arises here?
Level Restore
• What issue arises here?

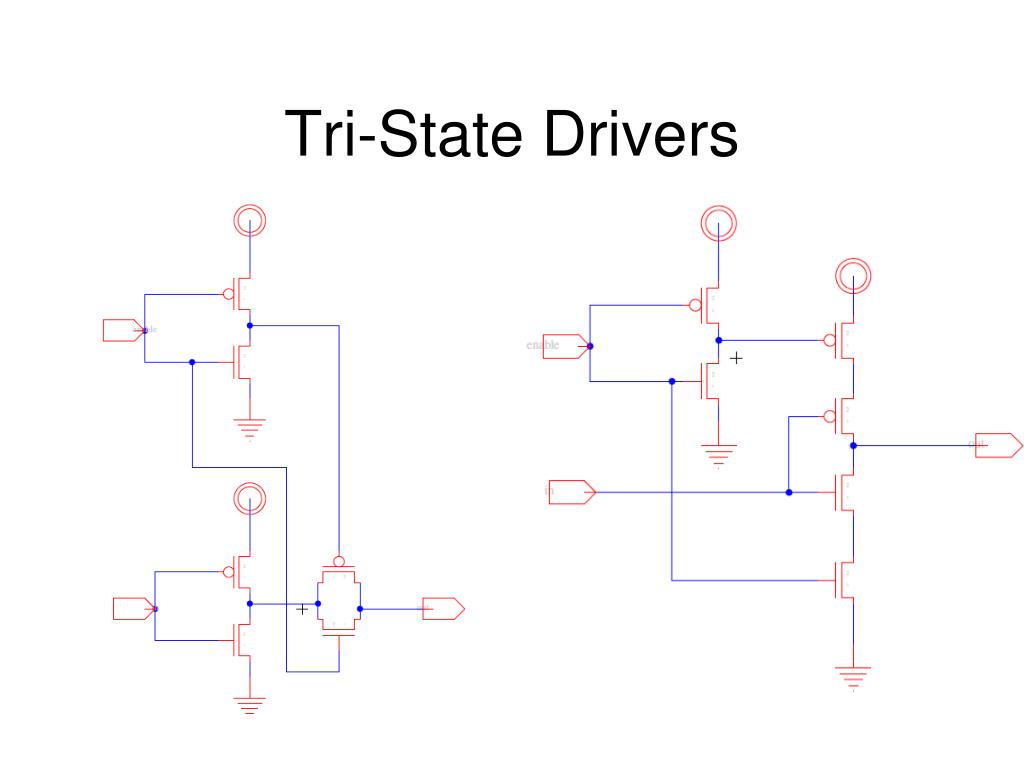

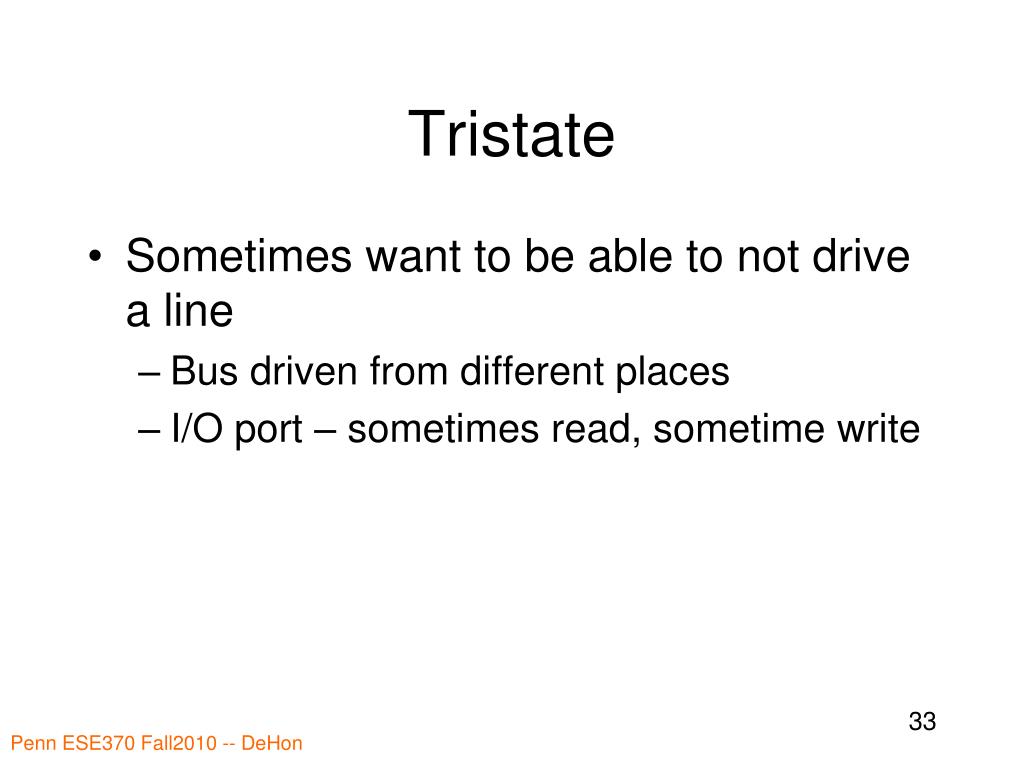

Tristate
• Sometimes want to be able to not drive a line
• Bus driven from different places
• I/O port – sometimes read, sometime write

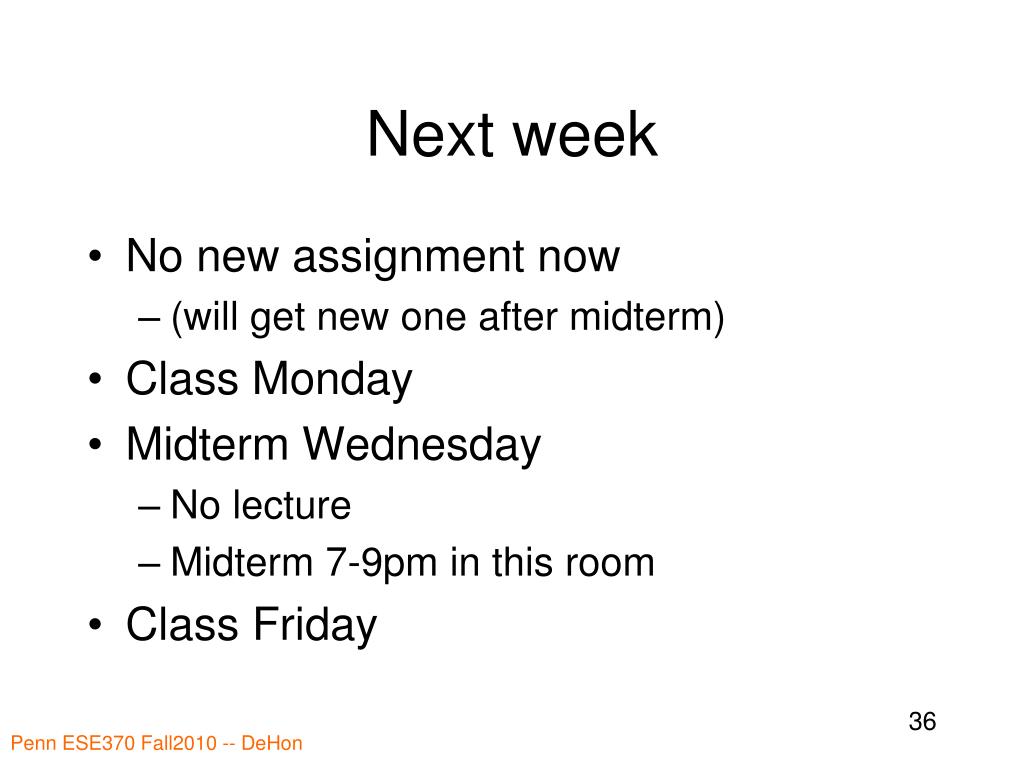

Next week
• No new assignment now
• (will get new one after midterm)
• Class Monday
• Midterm Wednesday
• No lecture
• Midterm 7-9pm in this room
• Class Friday

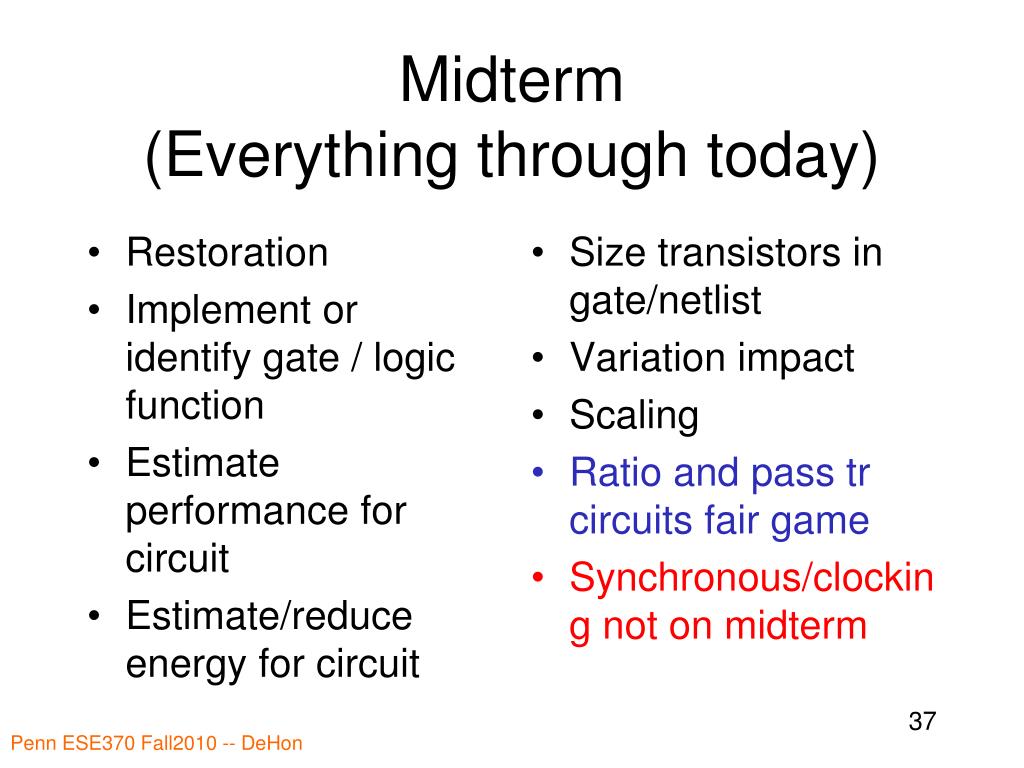

Midterm(Everything through today)
• Restoration
• Implement or identify gate / logic function
• Estimate performance for circuit
• Estimate/reduce energy for circuit
• Size transistors in gate/netlist
• Variation impact
• Scaling
• Ratio and pass tr circuits fair game
• Synchronous/clocking not on midterm

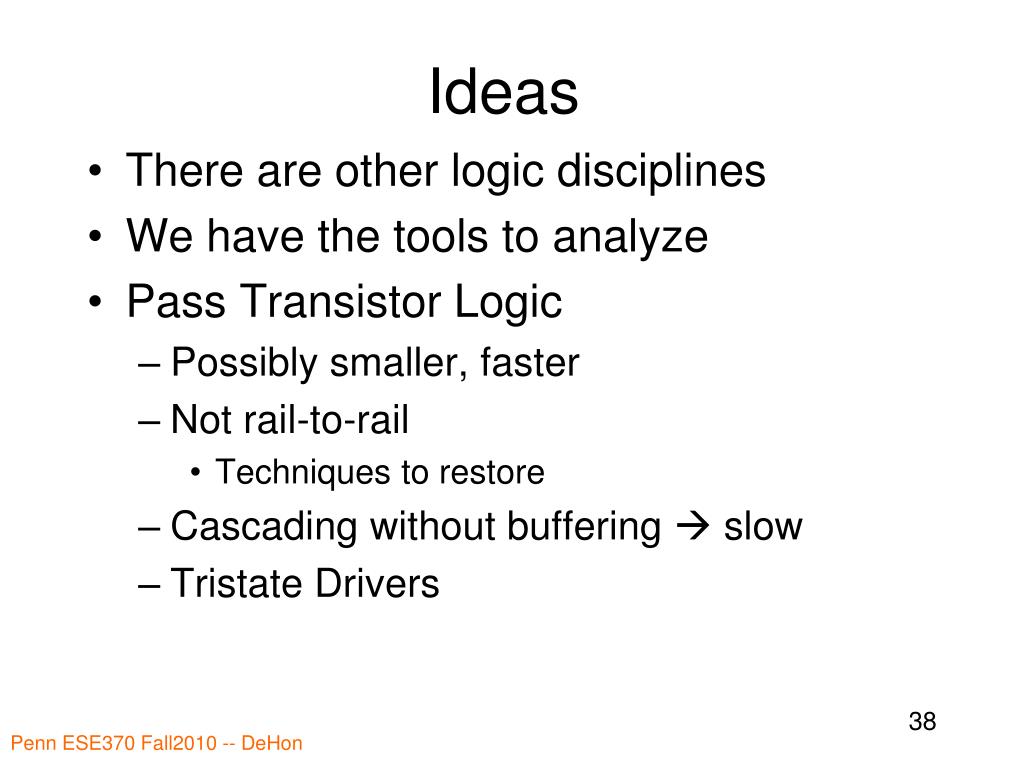

Ideas
• There are other logic disciplines
• We have the tools to analyze
• Pass Transistor Logic
• Possibly smaller, faster
• Not rail-to-rail
• Techniques to restore
• Cascading without buffering  slow
• Tristate Drivers
