  1. Load Bank 負載測試器 RGR 高壓接地電阻器

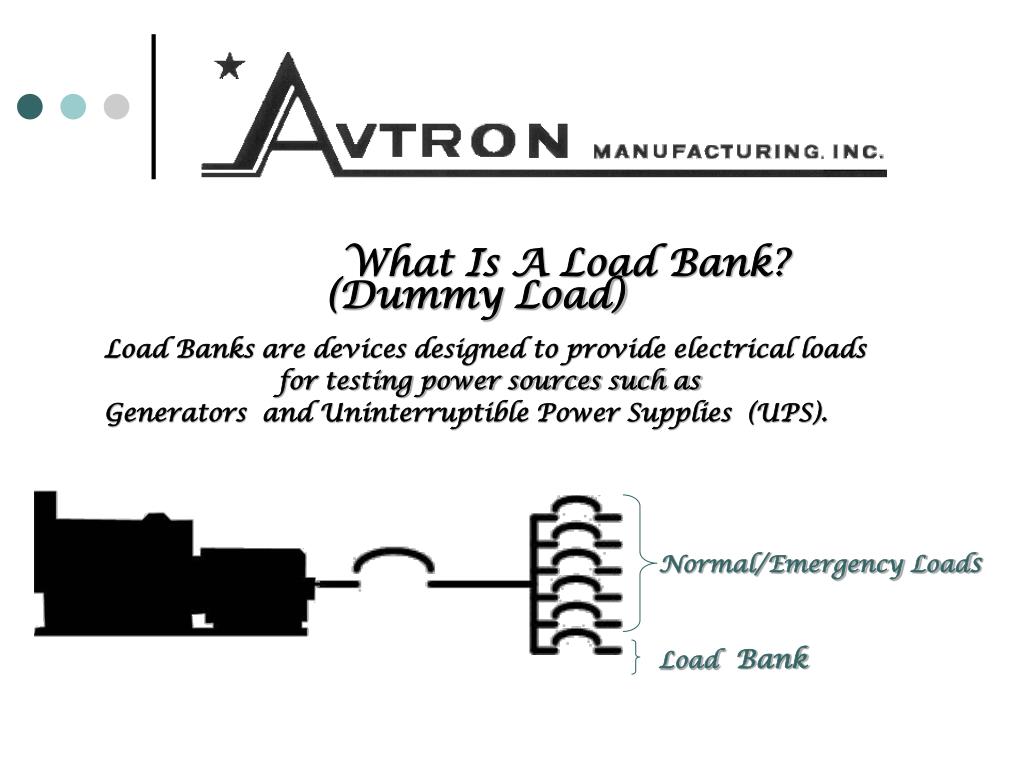

  2. What Is A Load Bank? (Dummy Load) Load Banks are devices designed to provide electrical loads for testing power sources such as Generators and Uninterruptible Power Supplies (UPS). Normal/Emergency Loads Load Bank

  3. Why Are Load Banks Necessary? Maintain reliability of the Emergency Power System by testing of the engine generator (s) under load.

  4. Testing With A Load Bank Will Help Insure   

  5.    That When You Have A Power Failure  

  6.    Your Engine Generator Will Deliver The Power It Is Required To Do!

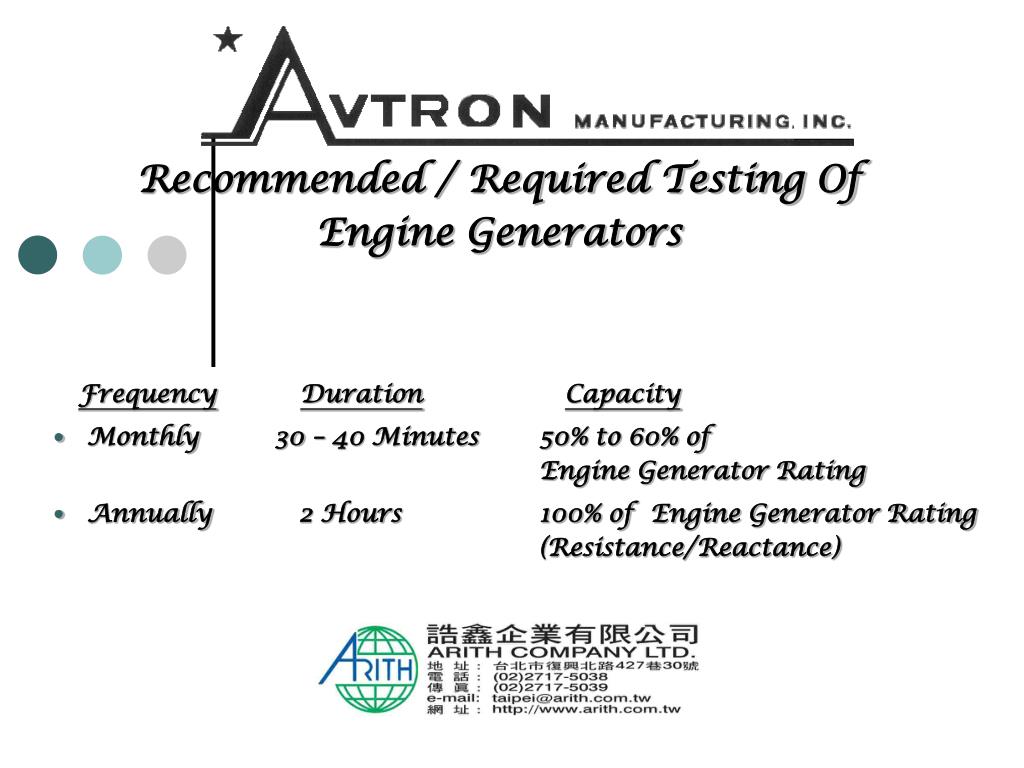

  7. Recommended / Required Testing Of Engine Generators Frequency Duration Capacity  Monthly 30 – 40 Minutes 50% to 60% of Engine Generator Rating  Annually 2 Hours 100% of Engine Generator Rating (Resistance/Reactance)

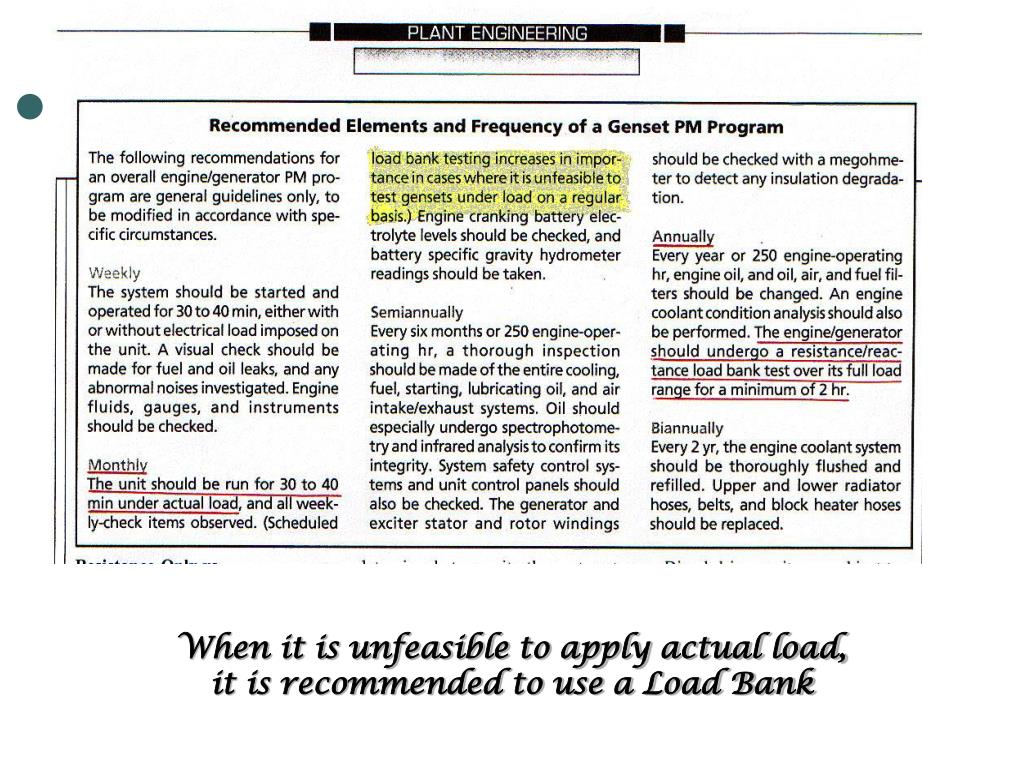

  8. When it is unfeasible to apply actual load, it is recommended to use a Load Bank

  9. Hospital & Health Care Facilities

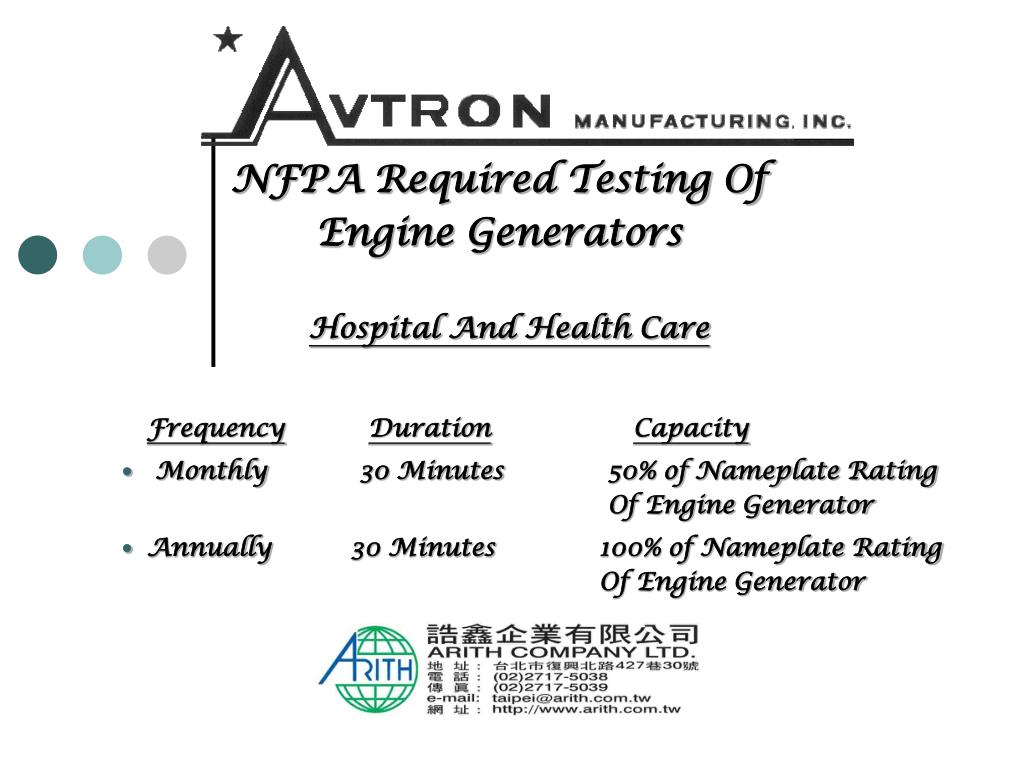

  10. NFPA Required Testing Of Engine Generators Hospital And Health Care Frequency Duration Capacity  Monthly 30 Minutes 50% of Nameplate Rating Of Engine Generator  Annually 30 Minutes 100% of Nameplate Rating Of Engine Generator

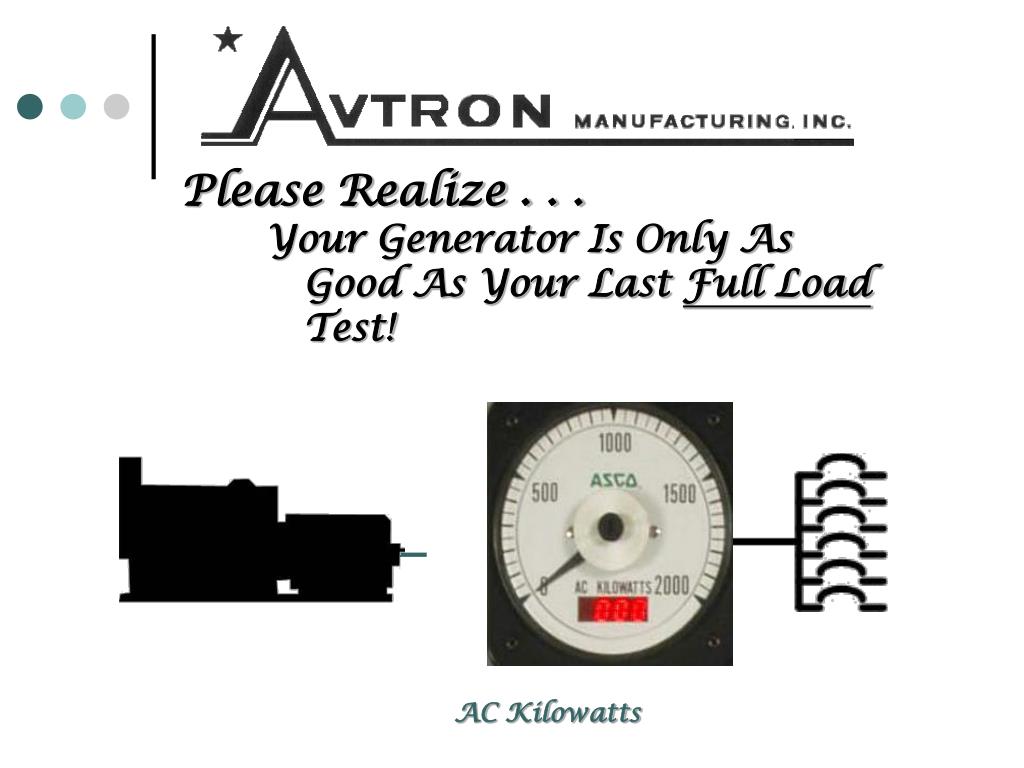

  11. Please Realize . . . Your Generator Is Only As Good As Your Last Full Load Test! AC Kilowatts

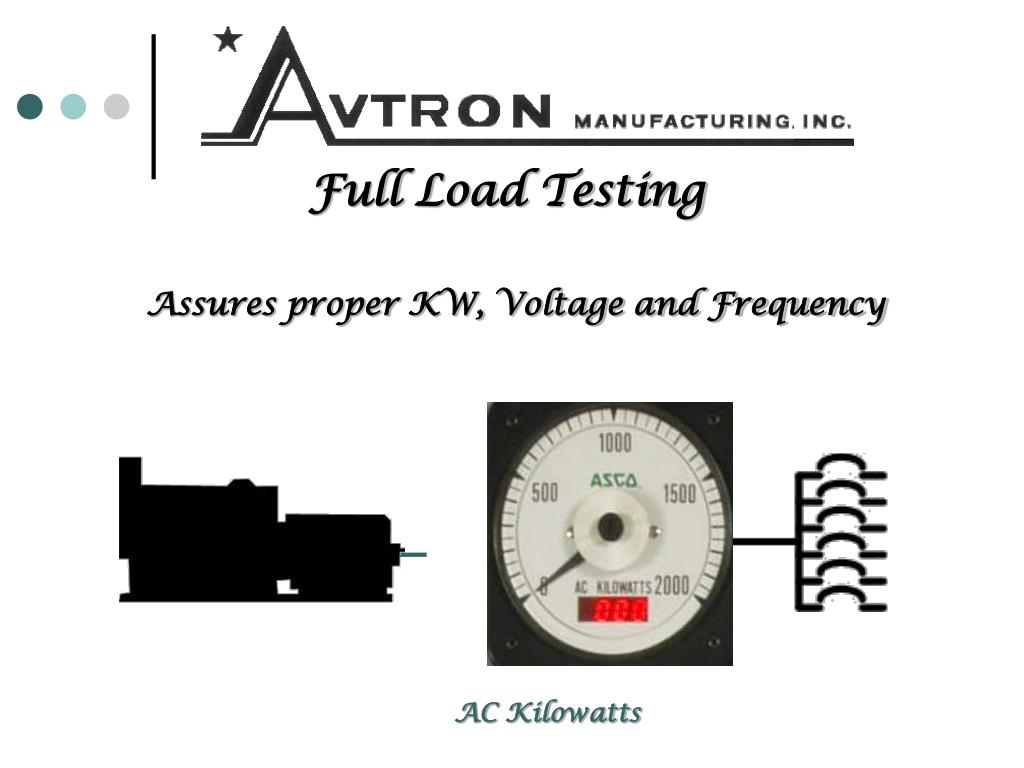

  12. Full Load Testing Assures proper KW, Voltage and Frequency AC Kilowatts

  13. Full Load Testing Confirms the Reliability ofcomponents such asFuel & Cooling Systems

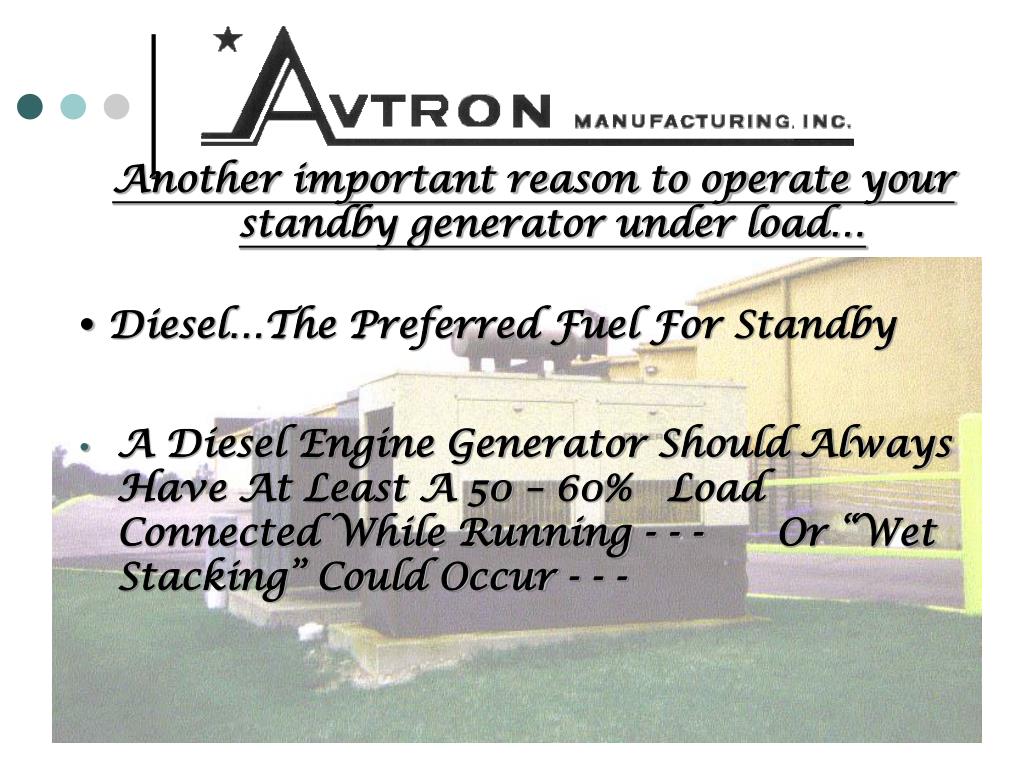

  14. Another important reason to operate your standby generator under load…  Diesel…The Preferred Fuel For Standby • A Diesel Engine Generator Should Always Have At Least A 50 – 60% Load Connected While Running - - - Or “Wet Stacking” Could Occur - - -

  15. Unburned Fuel Causes Carbon Build Up Excessive Oil Consumption Reduced Horsepower….Reduced Efficiency Premature Failure “Wet Stacking”

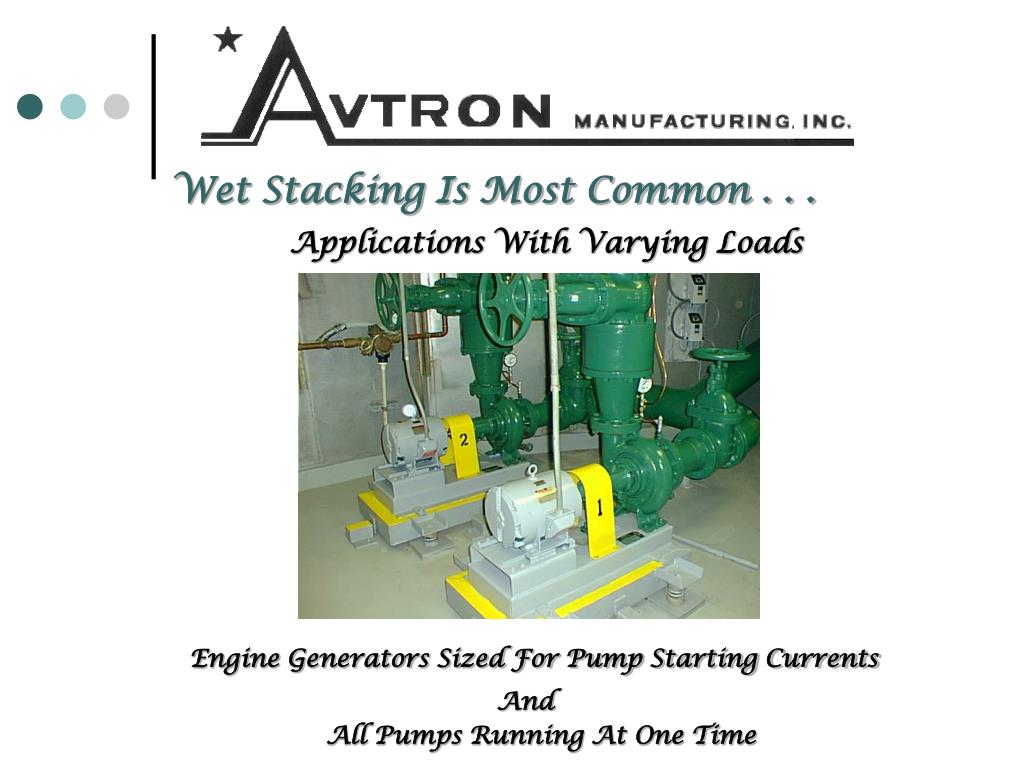

  16. Wet Stacking Is Most Common . . . Applications With Varying Loads Engine Generators Sized For Pump Starting Currents And All Pumps Running At One Time

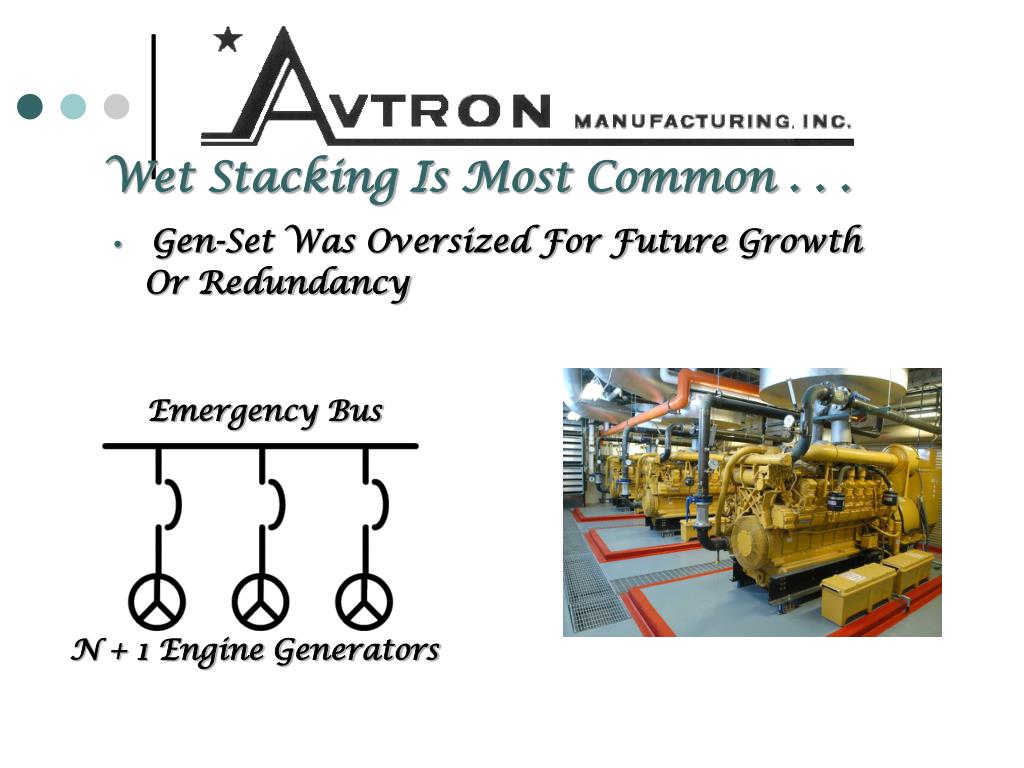

  17. Wet Stacking Is Most Common . . . • Gen-Set Was Oversized For Future Growth Or Redundancy Emergency Bus N + 1 Engine Generators

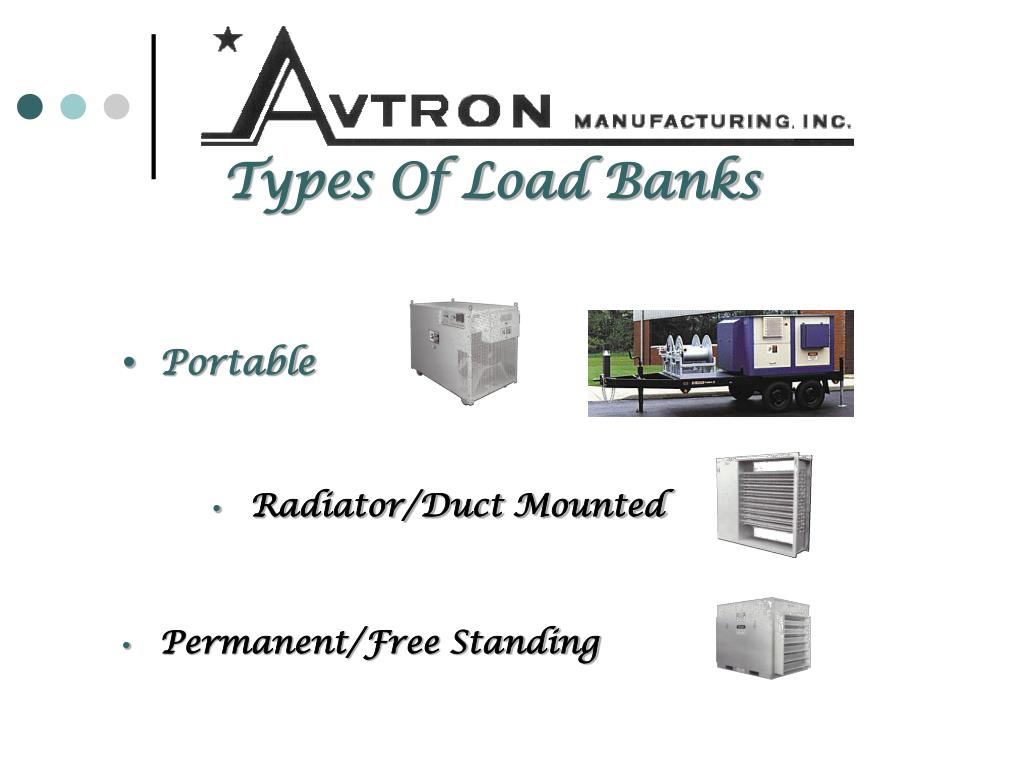

  18. Types Of Load Banks Radiator/Duct Mounted • Portable • Permanent/Free Standing

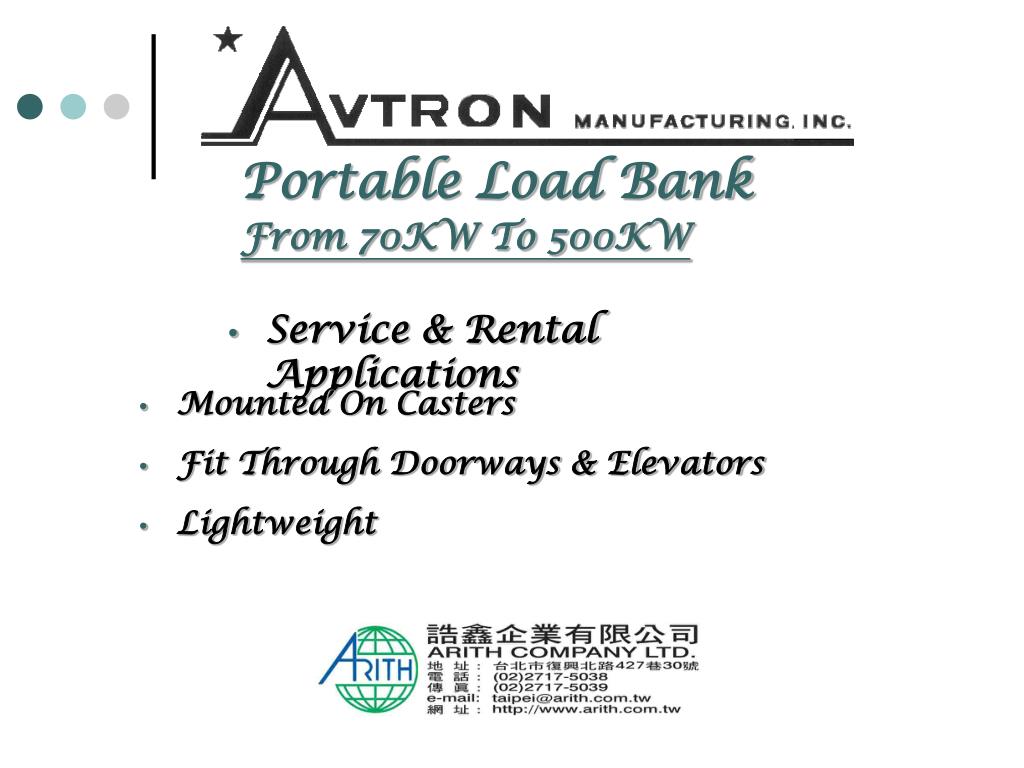

  19. Portable Load Bank Service & Rental Applications From 70KW To 500KW • Mounted On Casters • Fit Through Doorways & Elevators • Lightweight

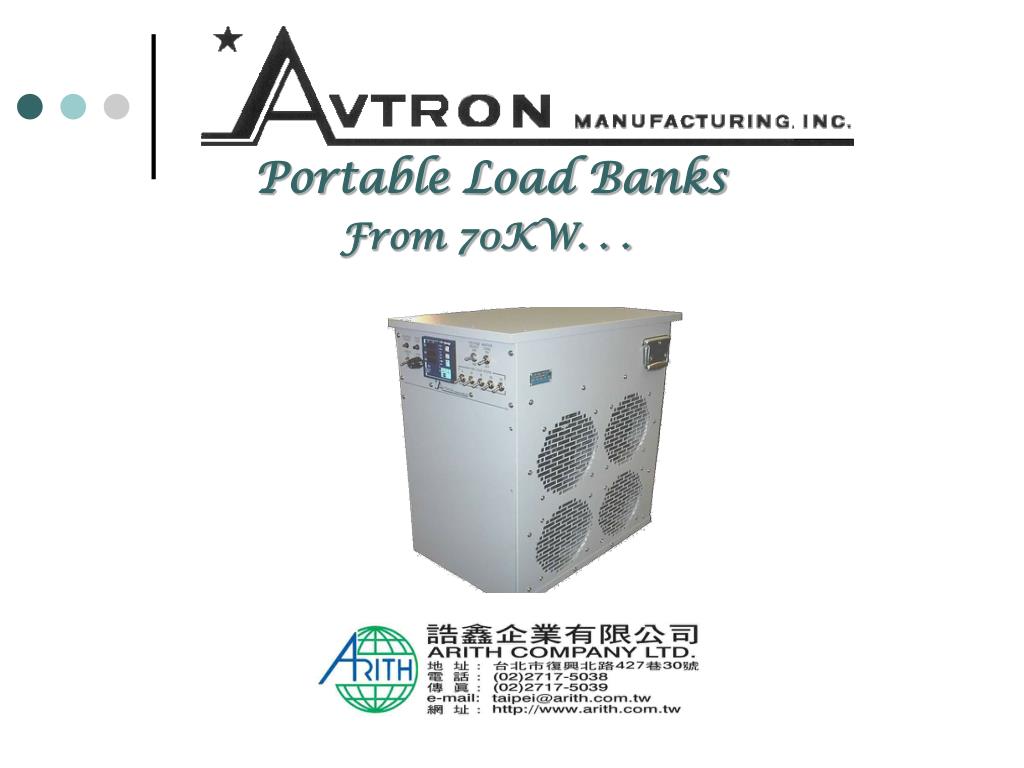

  20. Portable Load Banks From 70KW. . .

  21. Portable Load Banks . . . To 500KW

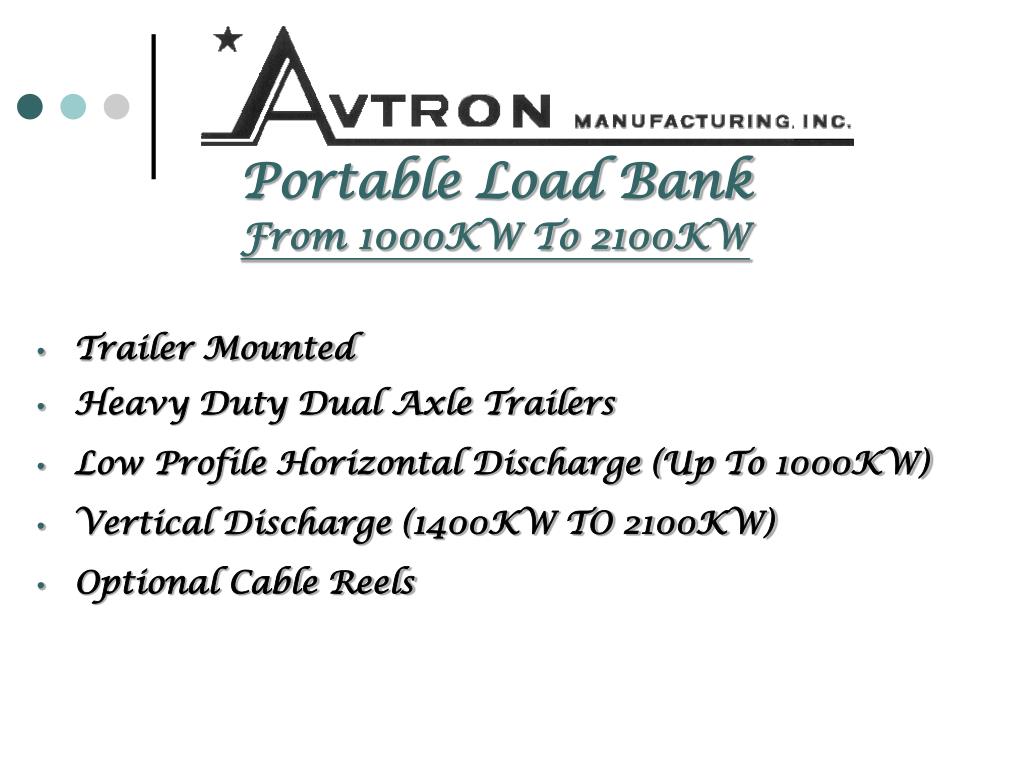

  22. Portable Load Bank Trailer Mounted From 1000KW To 2100KW • Heavy Duty Dual Axle Trailers • Low Profile Horizontal Discharge (Up To 1000KW) • Vertical Discharge (1400KW TO 2100KW) • Optional Cable Reels

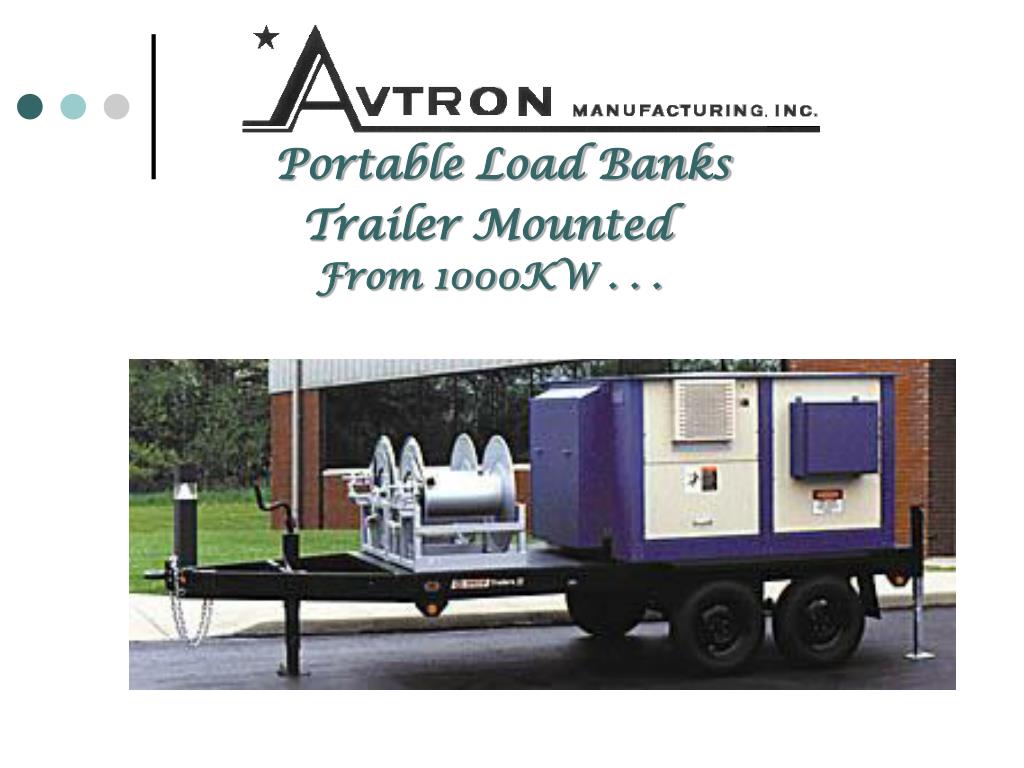

  23. Portable Load Banks Trailer Mounted From 1000KW . . .

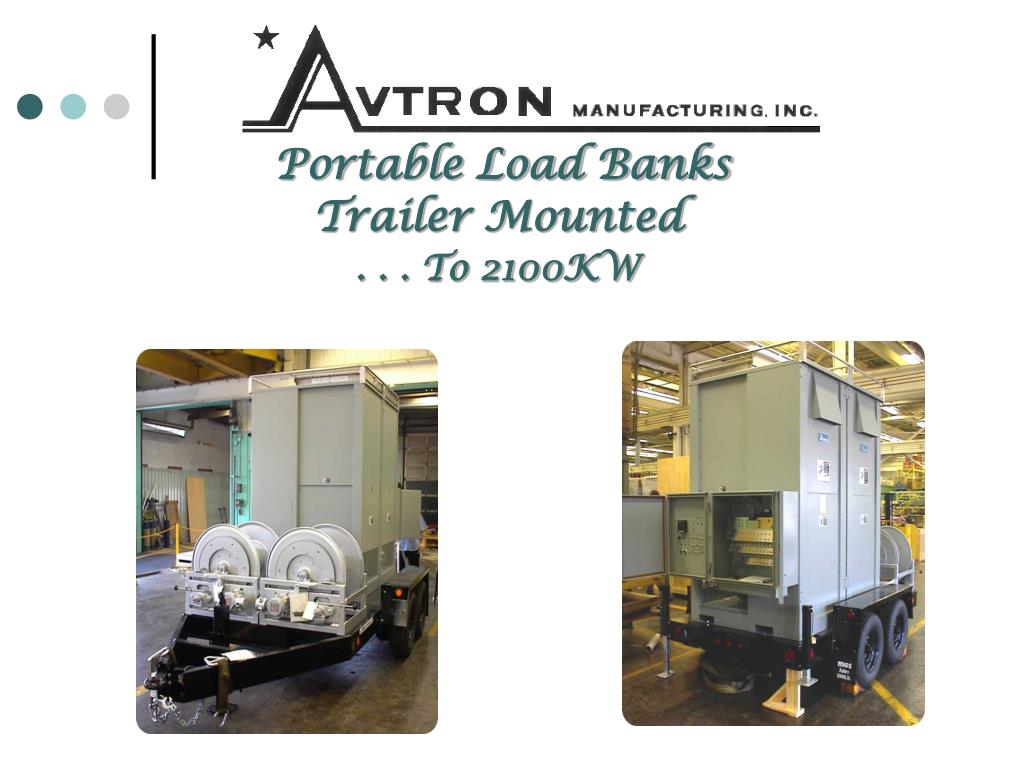

  24. Portable Load Banks Trailer Mounted . . . To 2100KW

  25. Portable Load Banks Facility Normal/Emergency Loads Tap Box Synchronizing Gear Arranged For Spare Portable Engine Generator Portable Engine Generator Portable Load Bank - Or - Portable Load Bank

  26. Radiator Mounted Load Banks Dedicated Engine Generator Sets • Typically 50-60% Of The Generator Rating

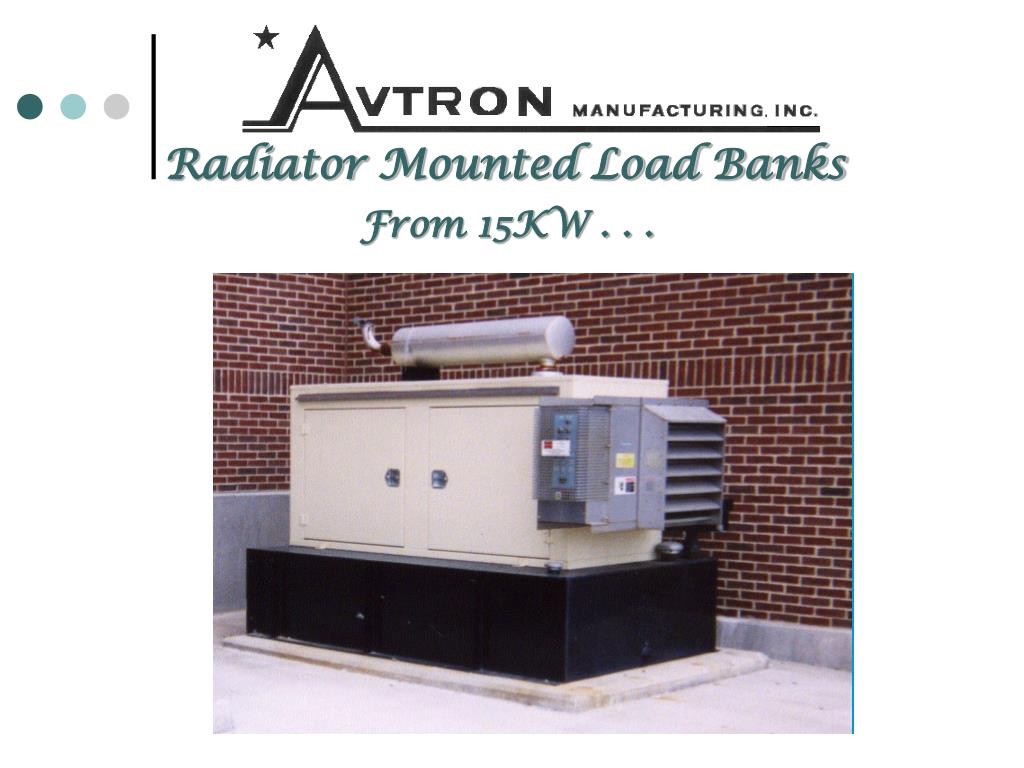

  27. Radiator Mounted Load Banks From 15KW . . .

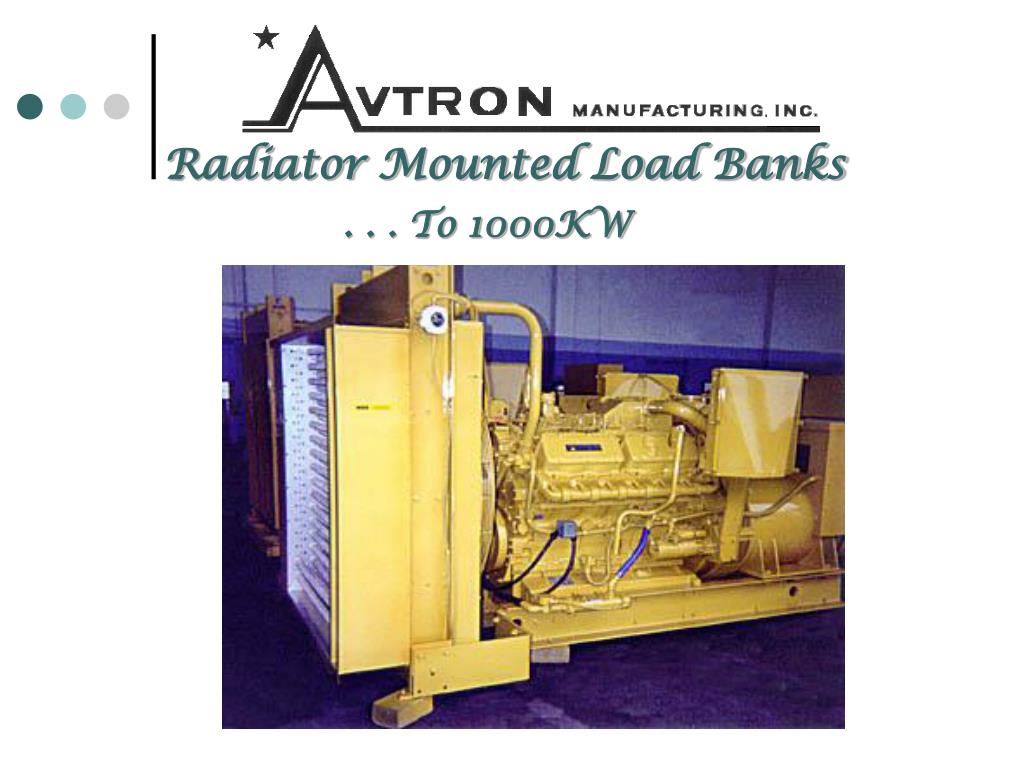

  28. Radiator Mounted Load Banks . . . To 1000KW

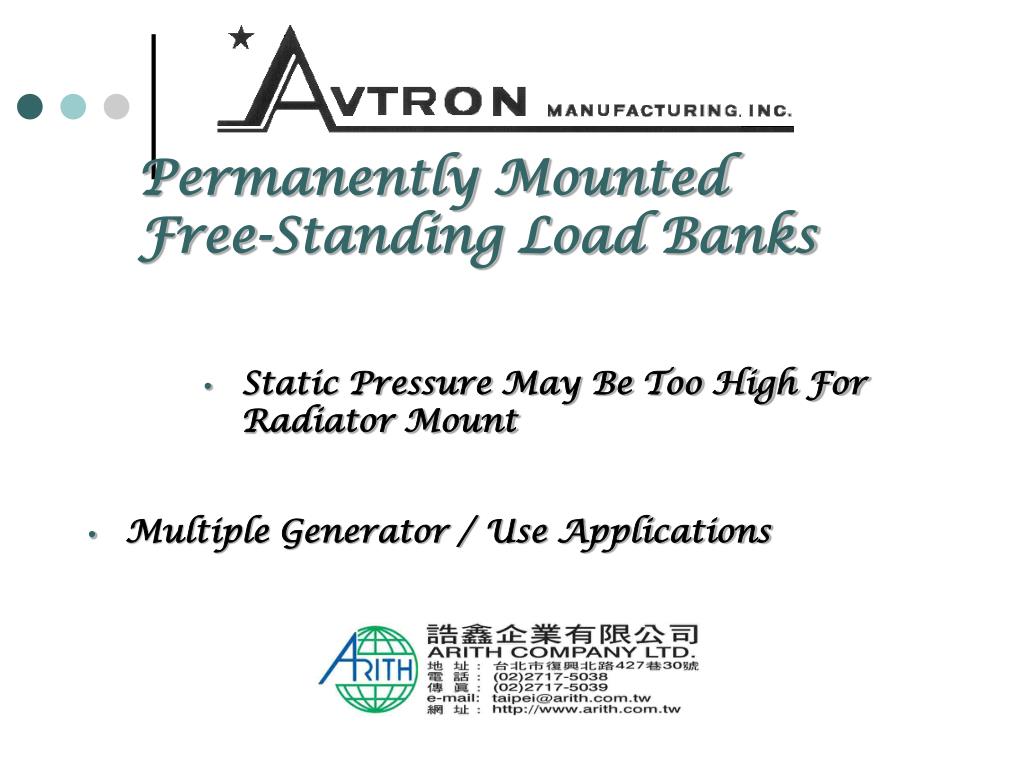

  29. Permanently Mounted Free-Standing Load Banks Static Pressure May Be Too High For Radiator Mount • Multiple Generator / Use Applications

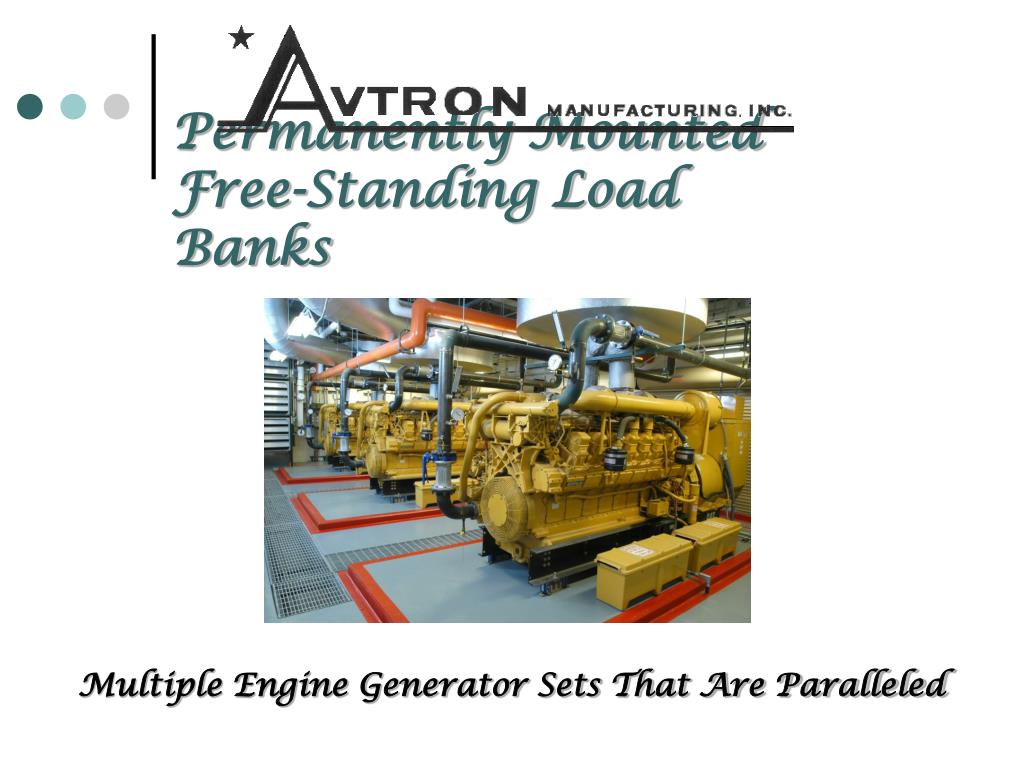

  30. Permanently Mounted Free-Standing Load Banks Multiple Engine Generator Sets That Are Paralleled

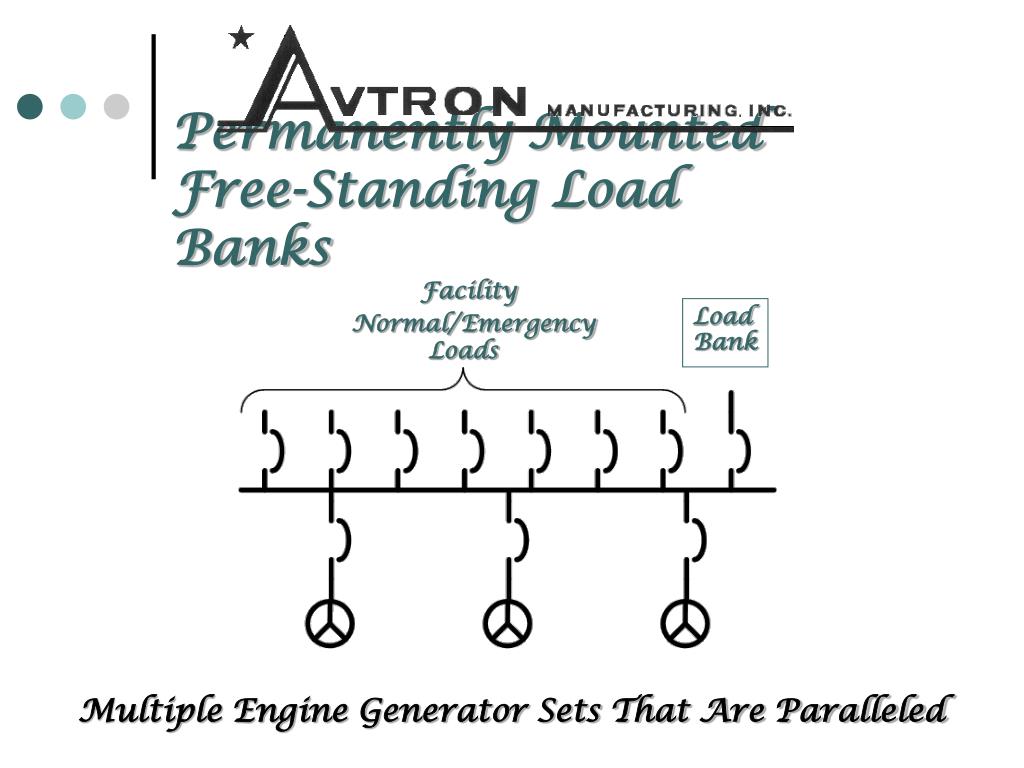

  31. Permanently Mounted Free-Standing Load Banks Facility Normal/Emergency Load Bank Loads Multiple Engine Generator Sets That Are Paralleled

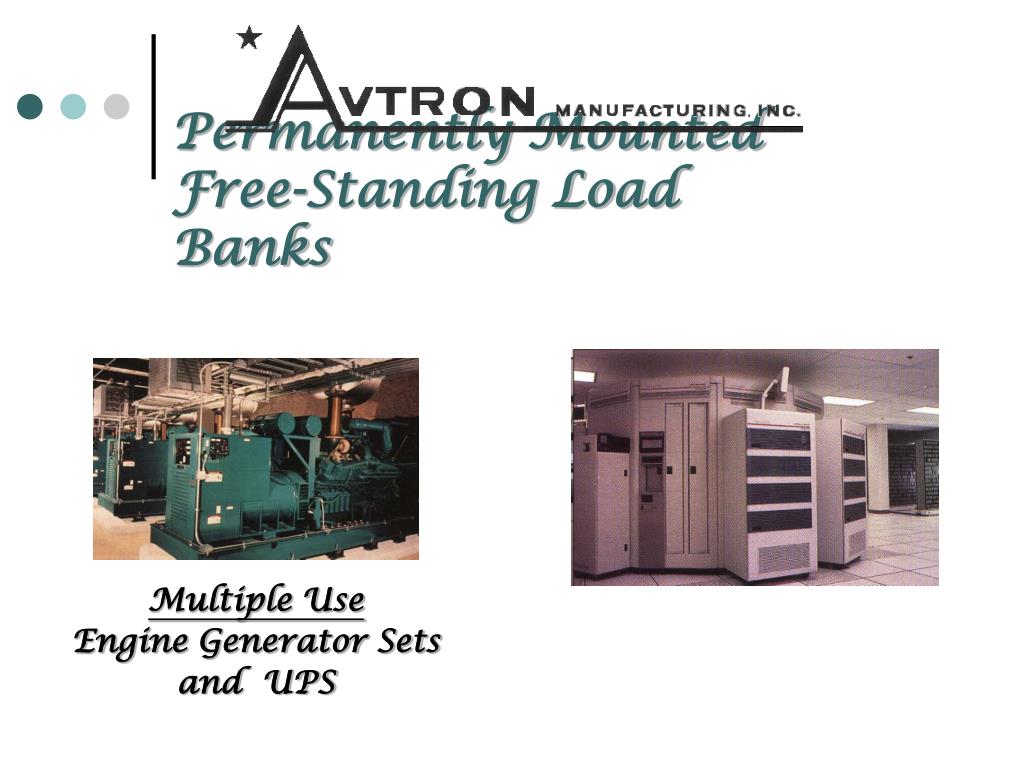

  32. Permanently Mounted Free-Standing Load Banks Multiple Use Engine Generator Sets and UPS

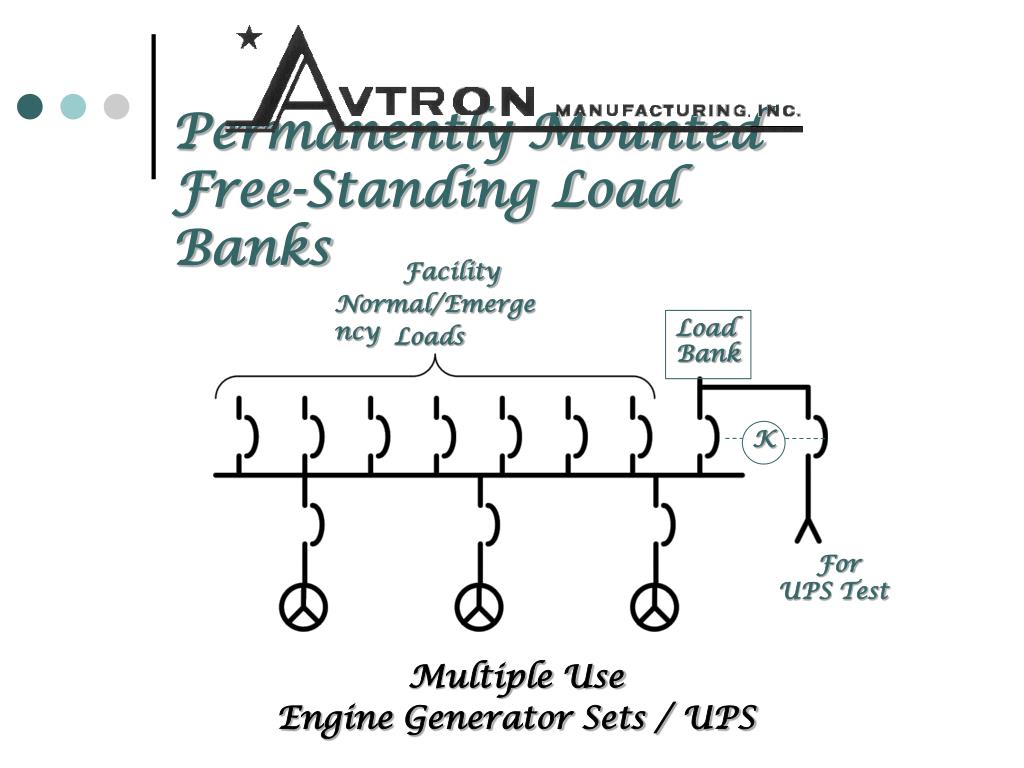

  33. Permanently Mounted Free-Standing Load Banks Facility Normal/Emergency Load Loads Bank K For UPS Test Multiple Use Engine Generator Sets / UPS

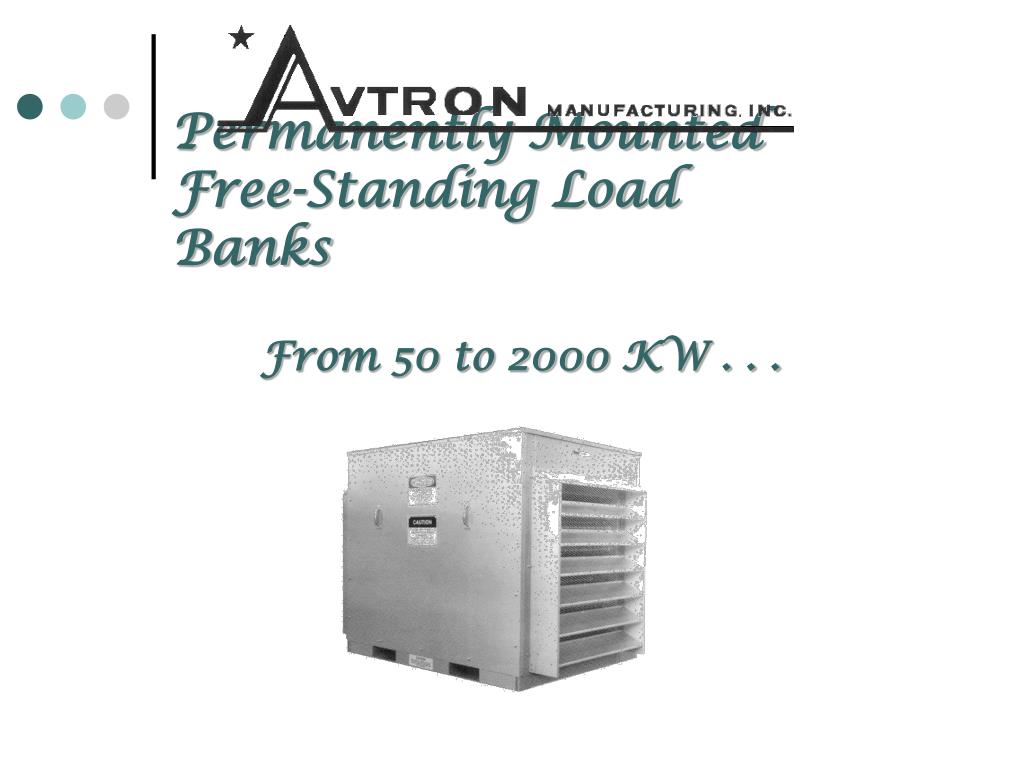

  34. Permanently Mounted Free-Standing Load Banks From 50 to 2000 KW . . .

  35. Traditionally, Permanently Mounted Load Banks Discharge Horizontally

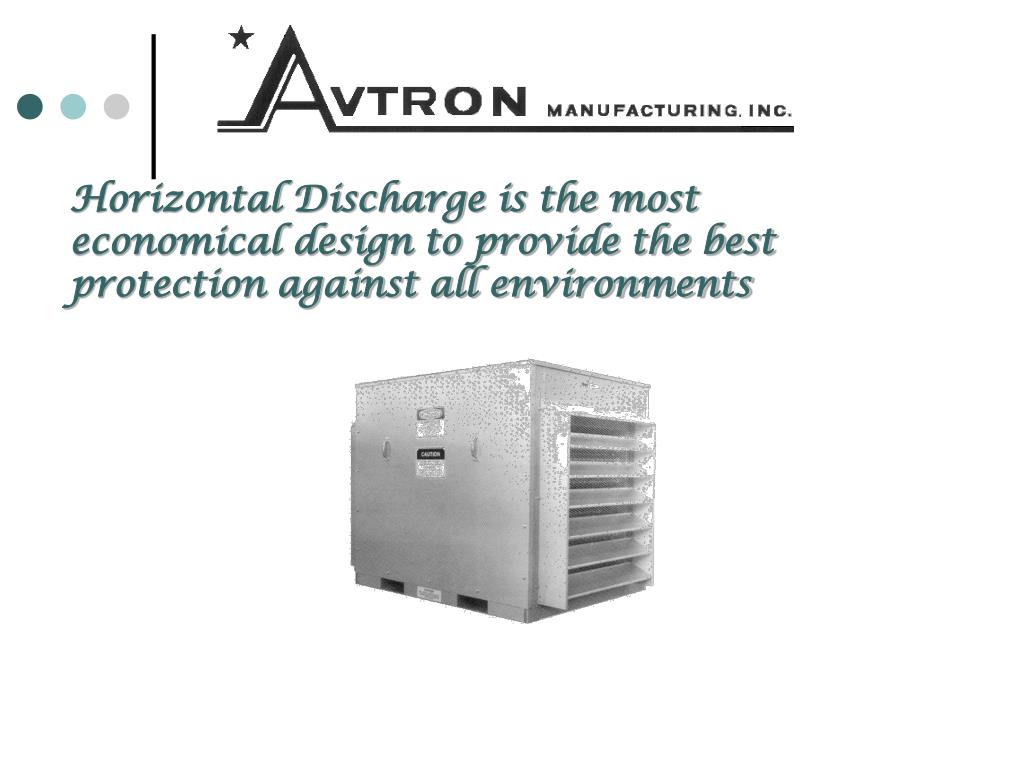

  36. Horizontal Discharge is the most economical design to provide the best protection against all environments

  37. When Installing a Permanently Mounted Free-Standing Load Bank Consider. . . Free Air Space for Cooling Air & Hot Exhaust • Location Of Installation  1KW-hour = 3,413 BTU  1,000 KW – hour = 3.4 Million BTU

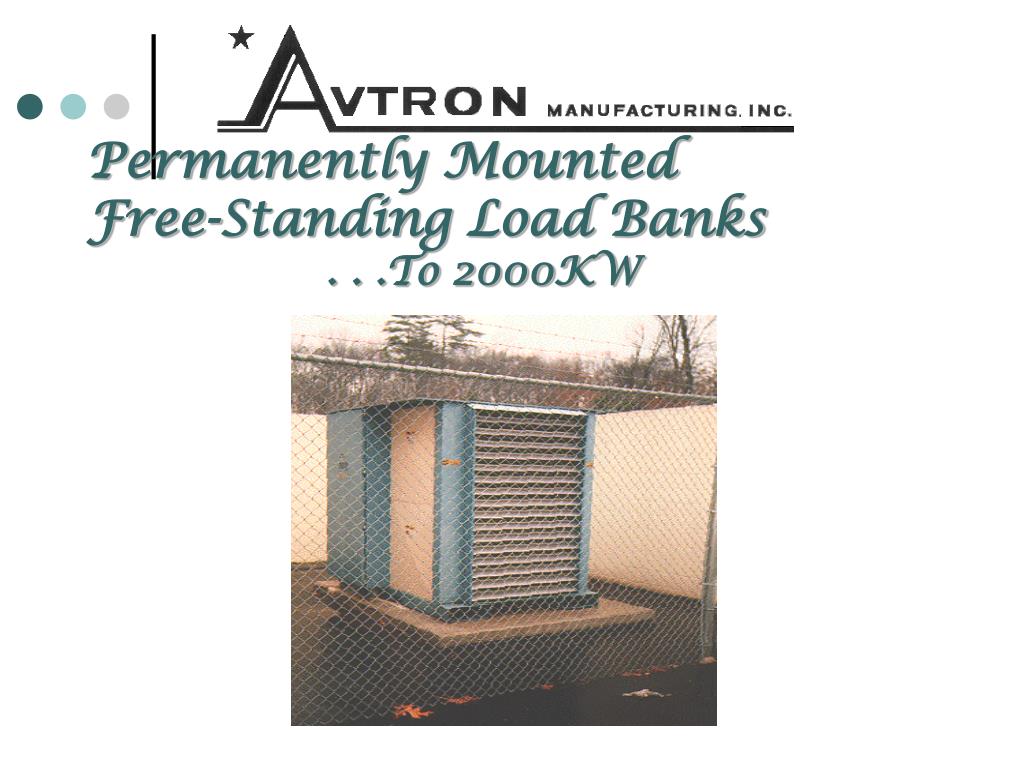

  38. Permanently Mounted Free-Standing Load Banks . . .To 2000KW

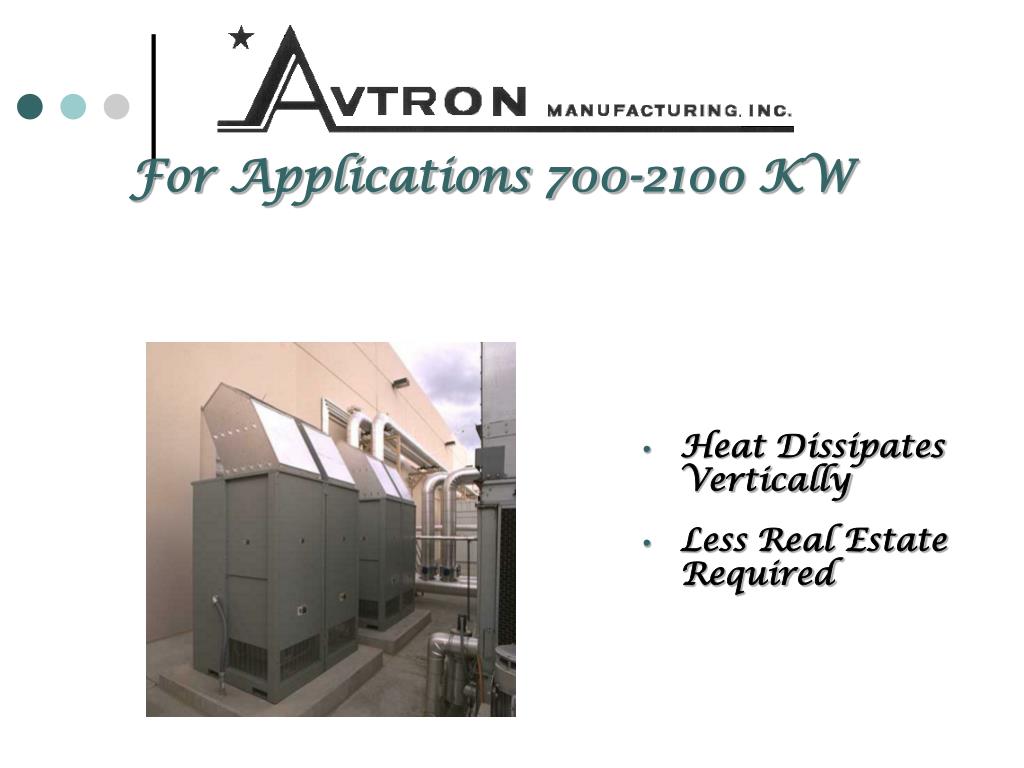

  39. For Applications 700-2100 KW • Heat Dissipates Vertically • Less Real Estate Required

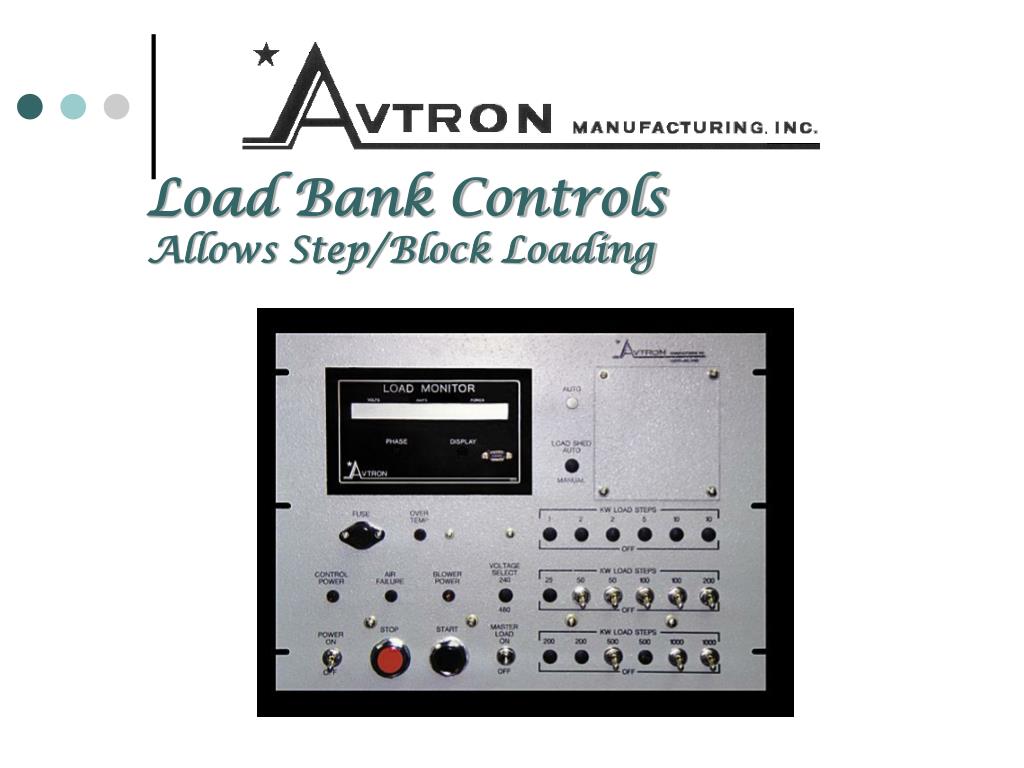

  40. Load Bank ControlsAllows Step/Block Loading

  41. Load Bank Controls Located on Load Bank

  42. Load Bank Controls • Remotely  On Wall  In Paralleling Switchgear

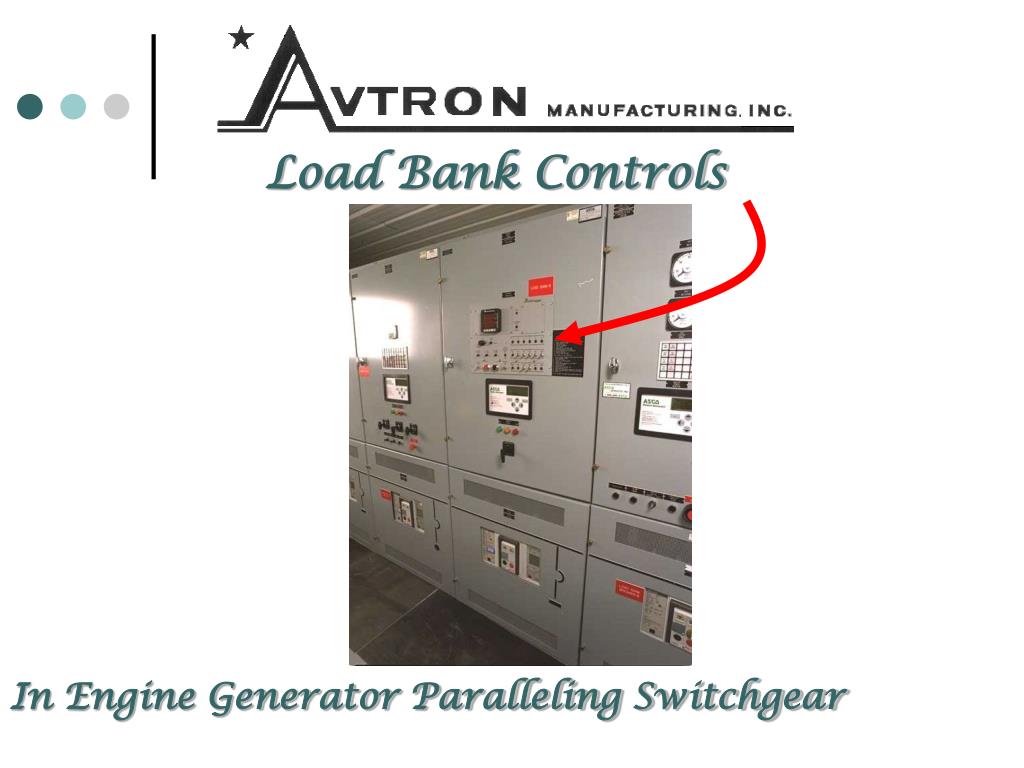

  43. Load Bank Controls In Engine Generator Paralleling Switchgear

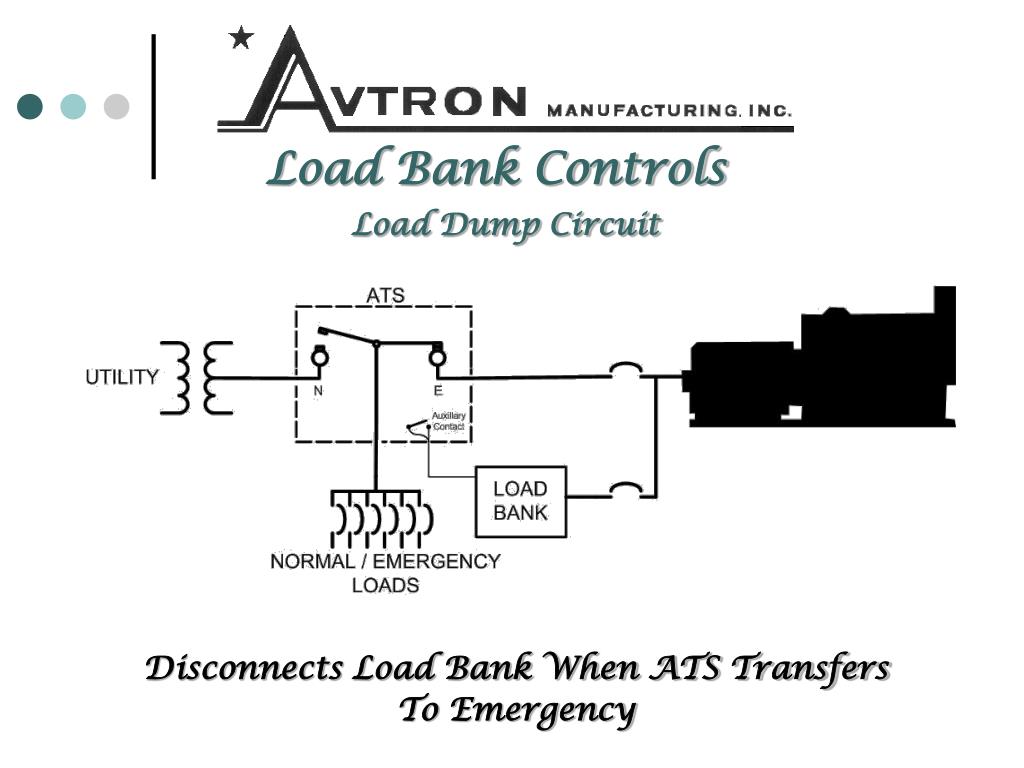

  44. Load Bank Controls Load Dump Circuit Disconnects Load Bank When ATS Transfers To Emergency

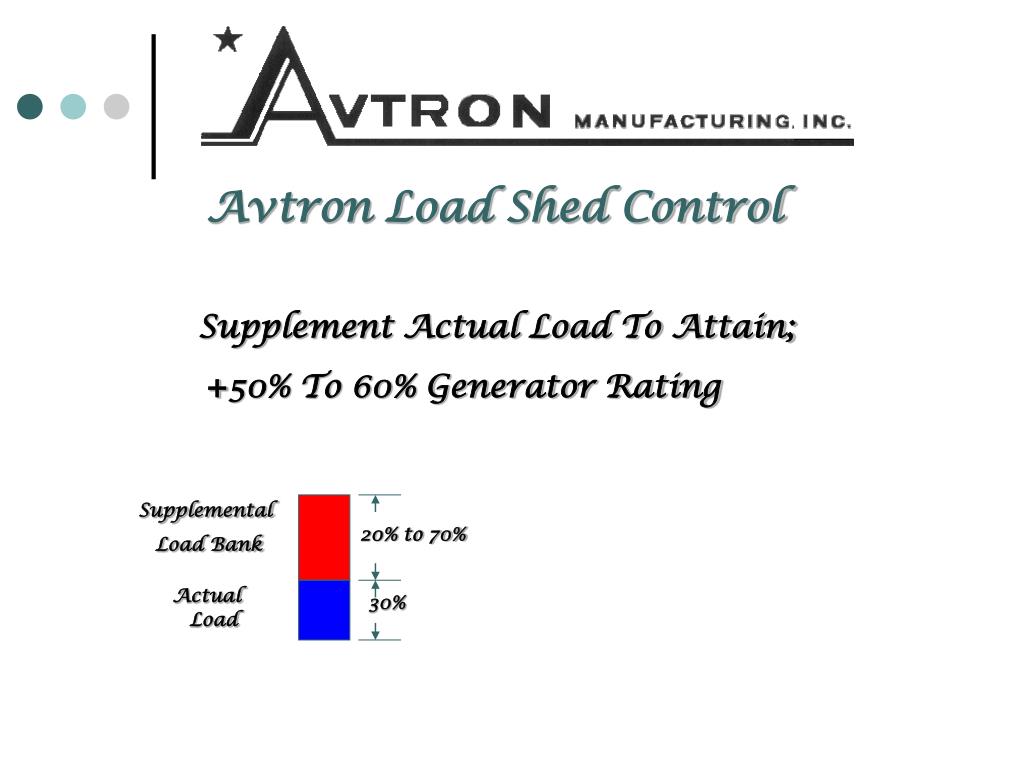

  45. Avtron Load Shed Control Supplement Actual Load To Attain; 50% To 60% Generator Rating Supplemental Load Bank 20% to 70% Actual 30% Load

  46. Load Bank Controls Load Shedder Option Dynamic Facility Load Load Shedder Option Load Bank

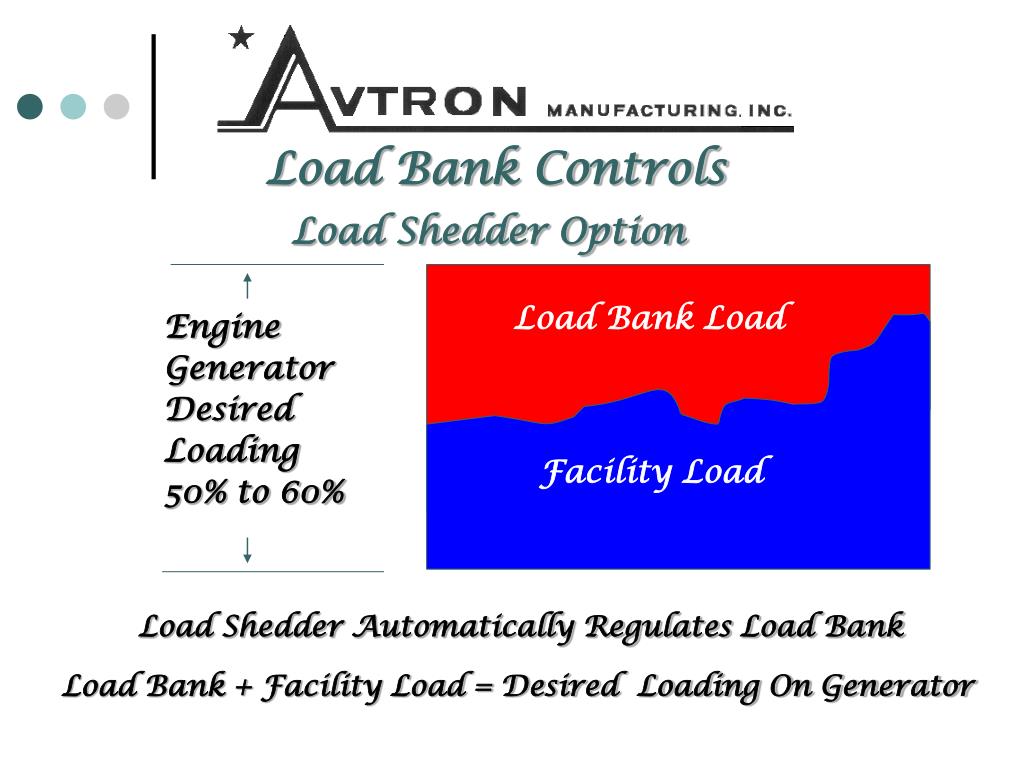

  47. Load Bank Controls Load Shedder Option Load Bank Load Engine Generator Desired Loading 50% to 60% Facility Load Load Shedder Automatically Regulates Load Bank Load Bank + Facility Load = Desired Loading On Generator

  48. What Gives Avtron It’s Premier Reputation? Built To The Highest Standards

  49. Built To The Highest Standards

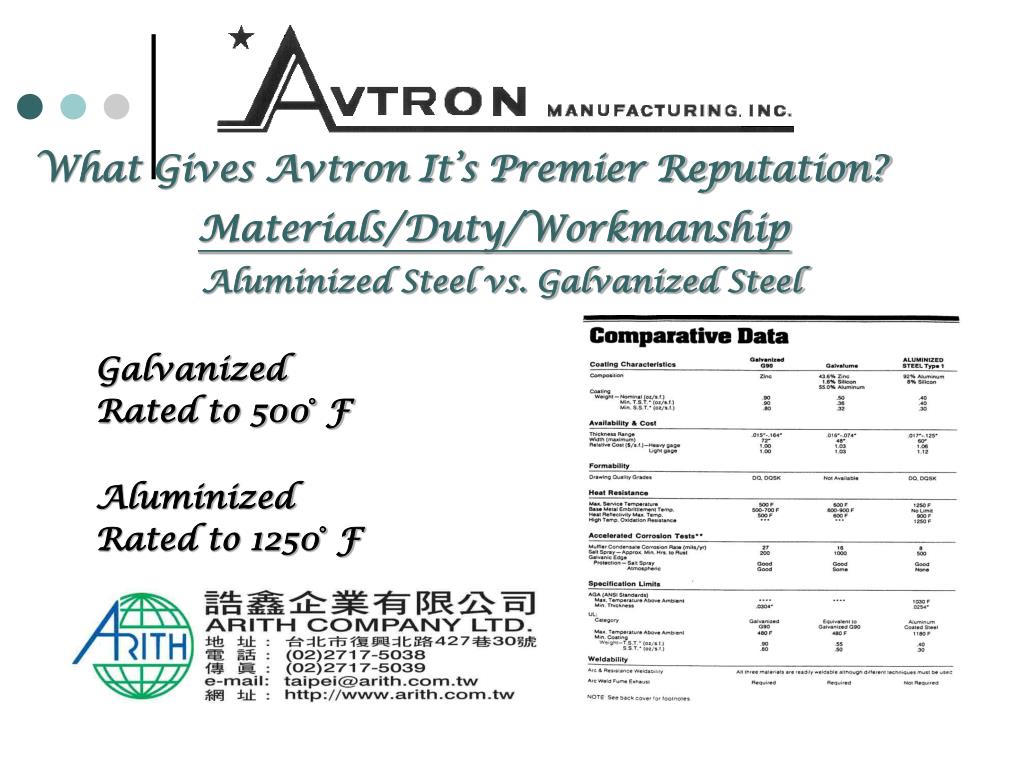

  50. What Gives Avtron It’s Premier Reputation? Materials/Duty/Workmanship Aluminized Steel vs. Galvanized Steel Galvanized Rated to 500° F Aluminized Rated to 1250° F
