radiology and order comms custom statuses

Radiology and order comms custom statuses

Paul Davison

Consultant Radiologist

RCR Imaging Informatics Group

25th March 2011

the tools
The Tools
  • Radiology RIS system
    • HSS CRIS version 1.06.12t
    • Southern cluster shared instance – SHA1
    • Order comms interface from original LSP deployment offering
  • Order Communications system
    • Sunquest ICE Release July 09.1/Version 391 (about to upgrade to Alpine)
ice cris interactions
ICE CRIS interactions
  • Main issues in post OC deployment
    • Limited representation of radiology workflow – pathology orientated
    • ICE did not show appointment information unless directly appointed from order
    • ‘Incorrect’ exams – ICE did not support changed orders in CRIS e.g. RL or CTMR
    • ‘Added’ orders in CRIS not supported
    • Cancellation of orders in CRIS –
      • Could not display cancellation reason in ICE
      • Problems with cancelling within multiple orders
ice cris interactions4
ICE CRIS interactions
  • Order status depends on HL7 messages sent between ICE and CRIS – order control segment (ORC)
  • CRIS OC interface document described ORC messages that should be sent to ICE
  • Can customise the status displayed in ICE through ‘Requesting Configuration’
  • Map the order status in segment 5 (ORC:5) to a custom status displayed in ICE
  • In reality we found messages were limited
hl7 order control messages
HL7 - Order Control Messages
  • Possible order status messages CRIS  ICE:
hl7 message examples
HL7 Message examples

MSH|^~\&|CRIS|LIVE|GE||20051014112020||OMG^O19|10016261|P|2.4

PID|||0471579^^^RNZ02^MR~420 449 8396^^^NHS^NH~10001041^^^CRIS^PI||RICE^DAVID^^^MR||19430310|M|||39 CLOUGHS ROAD^RINGWOOD^HAMPSHIRE^^BH24 1UU||01425 473240 / 01425 4712~||||||||||||||||""|N

PD1|||^^J82039|G3367427

PV1||||||||||||||||||A

ORC|NW||10001292^CRIS||SC||^^^200510141119^^1||200510141119|CRIS||C3142130^KIRKPATRICK JNP|RNZ02BURN||||130|alanstibook|CRIS||^^RNZ02

OBR|||10001292^CRIS|CCALL^CT Calcaneum Lt||||||||||||||||10001231|RNZ10001292|||C|||^^^200510141119^^1|||||||^^^^^^RNZ02

MSH|^~\&|CRIS|LIVE|GE||20051014112050||OMG^O19|10016285|P|2.4

PID|||0471579^^^RNZ02^MR~420 449 8396^^^NHS^NH~10001041^^^CRIS^PI||RICE^DAVID^^^MR||19430310|M|||39 CLOUGHS ROAD^RINGWOOD^HAMPSHIRE^^BH24 1UU||01425 473240 / 01425 4712~||||||||||||||||""|N

PD1|||^^J82039|G3367427^MPV1||||||||||||||||||A

ORC|SC||10001293^CRIS||CM||^^^200510141119^^1||200510141120|CRIS||C3142130^KIRKPATRICK JNP|RNZ02BURN||||130|alanstibook|CRIS||^^RNZ02

OBR|||10001293^CRIS|CCALR^CT Calcaneum Rt||||||||||||||||10001231|RNZ10001293|||C|||^^^200510141119^^1|||||||CRIS&Cris user^^^^XMR^^RNZ02

slide7

CRIS

Radiology processes

(paper heavy)

ICE requests

Requesting

Electronic ‘order’ created in ICE by Trust staff

REQ – requested status

‘OK’ Message

Instant

Electronic ‘order’ on CRIS

RCV – received status

Requests vetted

APT – appointment status

Appointment made

ATT – attended status

Patient attends

Printout used for ID purposes

EXM – examined status

Patient examined

RR – Results received status

Report dictated and typed

Reporting

Batch printing of results and distribution of reports

Verified report

F – Final report status

electronic cris workflow
Electronic CRIS Workflow
  • Wanted to move to electronic vetting
    • Orders in CRIS received by A&C staff
    • Received requests (RR) filtered and then vetted by appropriate staff
    • Become accepted requests (RA)
    • Accepted requests filtered by A&C staff
    • Create appointments/waiting/pending lists
    • Subsequent processes little changed
  • Combined with VR for vetting and reporting
electronic cris workflow9
Electronic CRIS Workflow
  • We wanted this CRIS workflow to be represented in ICE for users
  • To achieve this required
    • Service request to CSC to ‘open interfaces’ to send XO messages for changed orders
    • Software upgrade of ICE able to respond to changed order messages and added exams
    • Enhancement of CRIS HL7 messages to send more status messages
    • Mapping new CRIS status messages in ICE
cris custom status mapping
CRIS Custom status mapping
  • HSS can customise ORC:5 segment in CRIS HL7
    • Create a custom translation table in CRIS Setup (speak to HSS!)
    • Provided event can be made to trigger a status change in the database
    • CRIS looks at translation table and sends the customised HL7 message
  • Mapped to new order status in ICE
slide11

CRIS

Radiology processes

(now paper light)

ICE requests

Requesting

Electronic ‘order’ created in ICE by Trust staff

Electronic ‘order’ on CRIS

REQ – requested status

OK Message

Instant

‘order’ on CRIS received by A&C staff

ARR– request arrived

Received request on CRIS

RCV – received status

Request on CRIS vetted by radiologist or designated person (VR)

ACC – accepted status

Accepted request on CRIS

Accepted requests filtered by A&C staff

Waiting

Pending

APT – appointment status

Appointment made

ATT – attended status

Patient attends

Request printout used for ID

EXM – examined status

Patient examined

RR – Results received status

VR reporting

Reporting

Verified report

F – Final report status

Electronic sign off

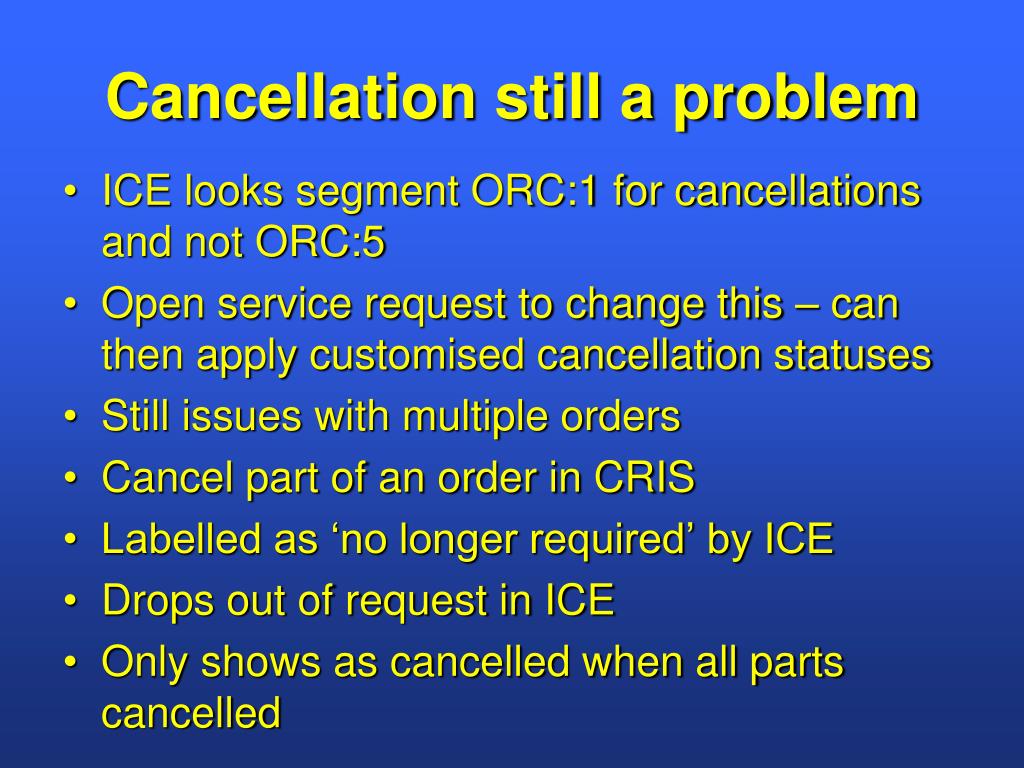

cancellation still a problem
Cancellation still a problem
  • ICE looks segment ORC:1 for cancellations and not ORC:5
  • Open service request to change this – can then apply customised cancellation statuses
  • Still issues with multiple orders
  • Cancel part of an order in CRIS
  • Labelled as ‘no longer required’ by ICE
  • Drops out of request in ICE
  • Only shows as cancelled when all parts cancelled
