Traumatic Brain Injury & Brain Tumors Fall 2011

Traumatic Brain Injury & Brain Tumors Fall 2011. John Nation, RN, MSN Adapted from the notes of Marnie Quick, RN, MSN and Charlene Morris, RN, MSN. The Brain. Brain A & P. Three major components- Cerebrum Right and left hemispheres Four lobes- frontal, temporal, parietal, and occipital

dusan
Download Presentation

Traumatic Brain Injury & Brain Tumors Fall 2011

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Traumatic Brain Injury&Brain TumorsFall 2011 John Nation, RN, MSN Adapted from the notes of Marnie Quick, RN, MSN and Charlene Morris, RN, MSN

  2. The Brain

  3. Brain A & P Three major components- Cerebrum • Right and left hemispheres • Four lobes- frontal, temporal, parietal, and occipital Frontal Lobe- • Cognitive function • Memory retention • Voluntary eye and motor movements • Expressive speech via Broca’s area Temporal Lobe- • Speech reception via Wernicke’s area • Visual and auditory integration Parietal Lobe- • Spatial information and control Occipital Lobe- • processing of sight

  4. Brain A & P (Cont’d) Brainstem- • Includes midbrain, pons, and medulla • Respiratory function • Vasomotor function • Cardiac function • Centers for sneezing, coughing, vomiting, sucking, swallowing, and hicupping

  5. Brain A & P (Cont’d) Cerebellum- • Located under the occipital lobe of the cerebrum • Coordinates voluntary movement • Trunk stability • Equilibrium

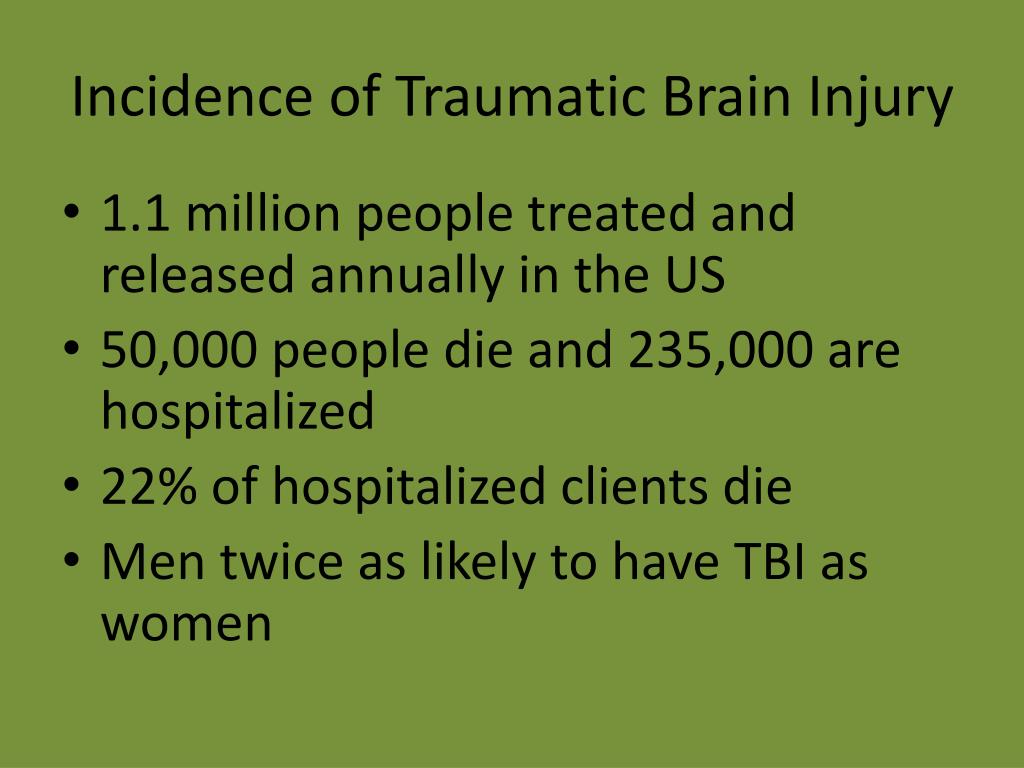

  6. Incidence of Traumatic Brain Injury • 1.1 million people treated and released annually in the US • 50,000 people die and 235,000 are hospitalized • 22% of hospitalized clients die • Men twice as likely to have TBI as women

  7. Incidence (Cont’d) • Mortality rate after severe head injury around 35% • More than half of people who survive severe head injury have serious disability

  8. Risks • Motor Vehicle Accidents (MVA) - 42,642 deaths due to MVA in 2006 - 3,475 deaths in Texas alone • Elevated Blood Alcohol Levels • Sports-related Trauma • Recreational Activities- Cliff jumping, rock climbing, mountain biking, etc. • Assault- Firearms, blunt trauma

  9. Brack ED Research

  10. Mechanisms of Injury • Acceleration Injury- struck in head by a moving object • Deceleration Injury- head hit non-moving object • Blunt or penetrating injury to the brain • Closed head injury

  11. Mechanisms of Injury (Cont’d) • Coup-countercoup injury- brain rebounds within skull, causing injuries at site of impact (coup) and directly opposite (countercoup) • Countercoup injury often more severe Source: Patrick J. Lynch, Creative Commons License 2006

  12. Types of Head Injury Scalp Lacerations- - external - extensive bleeding secondary to lots of blood vessels with poor constrictive abilities - care focused on preventing blood loss and infection

  13. Skull Fractures Linear Skull Fracture- • Break in continuity of bone • No alteration of relationships of parts • Frequently associated with low- speed injuries • Dura is intact • Accounts for around 80% of all skull fractures

  14. Skull Fractures (Cont’d) Depressed Skull Fracture- • Inward indentation of skull • Frequently associated with powerful blow/ mechanism of injury

  15. Skull Fractures (Cont’d) Simple Skull Fractures- • No fragmentation or communicating lacerations • Associated with low to moderate impact Comminuted Skull Fractures- • Multiple fractures with bone fragmentation • Associated with direct, high-momentum impact Compound Skull Fractures- • Scalp laceration and depressed fracture with communicating pathway to intracranial cavity

  16. Skull Fracture Locations

  17. Basilar Skull Fractures • Fractures along the base of the skull • Can include cranial nerve deficits *Battle’s sign* *Raccoon Eyes*

  18. Battle’s Sign (Postauricular ecchymosis) Raccoon Eyes (Periorbital ecchymosis)

  19. Basilar Skull Fracture (Cont’d) Cerebrospinal Fluid (CSF)- • Rhinorrhea- leaking of CSF from the nose • Otorrhea- leaking of CSF from the ear • Client is at high risk for meningitis

  20. Assessment for CSF • Test fluid for positive glucose reading- CSF gives positive glucose reading • If blood is also in CSF, testing for glucose is not reliable since blood has glucose as well • Allow fluid to leak onto 4x4, observe drainage over a few minutes, a yellowish ring around the blood indicates presence of CSF.

  21. Complications of Skull Fracture • Intracranial infections • Hematoma • Meningeal and brain tissue damage

  22. Traumatic Brain Injury

  23. Types of Skull Fractures (Cont’d) • Open Skull Fracture- extension of the fracture into the dura or air sinuses • Closed Skull Fracture- can lead to increased risk for elevated ICP

  24. Minor Brain Injury • Concussion- • Brief disruption in level of consciousness (LOC) • Retrograde amnesia (difficulty remembering event) • Headache • Usually of short duration • Usually not admitted to hospital if loss of consciousness < 5 minutes

  25. Minor Brain Injury (Cont’d) • Concussion Precautions: Monitor for: • worsening headache • Vomiting • Confusion/ change in level of consciousness • Weakness on one side of body • Inability to wake up

  26. Minor Brain Injury (Cont’d) Post Concussion Syndrome: • Generally 2 weeks to 2 months post injury • Headache, decreased attention span, personality/ behavioral changes, decreased short term memory, lethargy • Can significantly impact daily life

  27. Major Head Trauma Contusion- • Bruising of the brain within an area of the brain • Usually connected with a closed head injury • May involve bleeding, necrosis, and infarction at the site of a fracture • Clients on anticoagulation therapy with contusion are at higher risk for severe injury and death • Seizure is a common complication

  28. Major Brain Injury (Cont’d) Laceration- • Tearing of the brain tissue • Commonly seen with penetrating injuries (ie gunshot, knife wounds), open fractures, and depressed fractures • Surgical repair not possible • The larger the area of injury, the worse the outcome

  29. Major Brain Injury (Cont’d) Diffuse Axonal Injury (DAI)- • Widespread axonal damage • Can be present with mild to severe TBI • Results in axon swelling and disconnection • Results in decreased LOC, increased ICP, and global cerebral edema • 90% of clients remain in persistent vegetative state

  30. Major Brain Injury (Cont’d) Epidural Hematoma- • Bleeding between the dura and the skull • Is a true emergency • Usually seen with laceration to an artery, frequently the middle meningeal artery • Frequently initial loss of consciousness followed by a temporary improvement in condition (called a lucid interval)

  31. Epidural Hematoma (Cont’d) Signs and Symptoms- • Lucid interval following initial loss of consciousness • Decreased level of consciousness • Headache • Nausea and vomiting • Progresses rapidly Rapid surgical intervention needed!

  32. Subdural Hematoma Subdural Hematoma- • Bleed between the outer arachnoid membrane and the dura mater • Tends to be caused by a venous bleed, though can be arterial in nature • More common than epidural hematoma • Usually slower to develop than epidural hematoma

  33. Subdural Hematoma Signs and Symptoms- • Similar to signs/symptoms of increased ICP • Decreasing LOC • Headache

  34. Types of Subdural Hematomas

  35. Intracerebral Hematoma Intracerebral hematoma- • Caused by bleeding within the parenchyma (aka the nervous tissue) • Occurs with around 16% of head injuries

  36. Review • Scalp lacerations • Skull fractures • Concussions • Contusions • Diffuse Axonal Injury • Epidural Hematoma • Subdural Hematoma • Intracerebral Hematoma

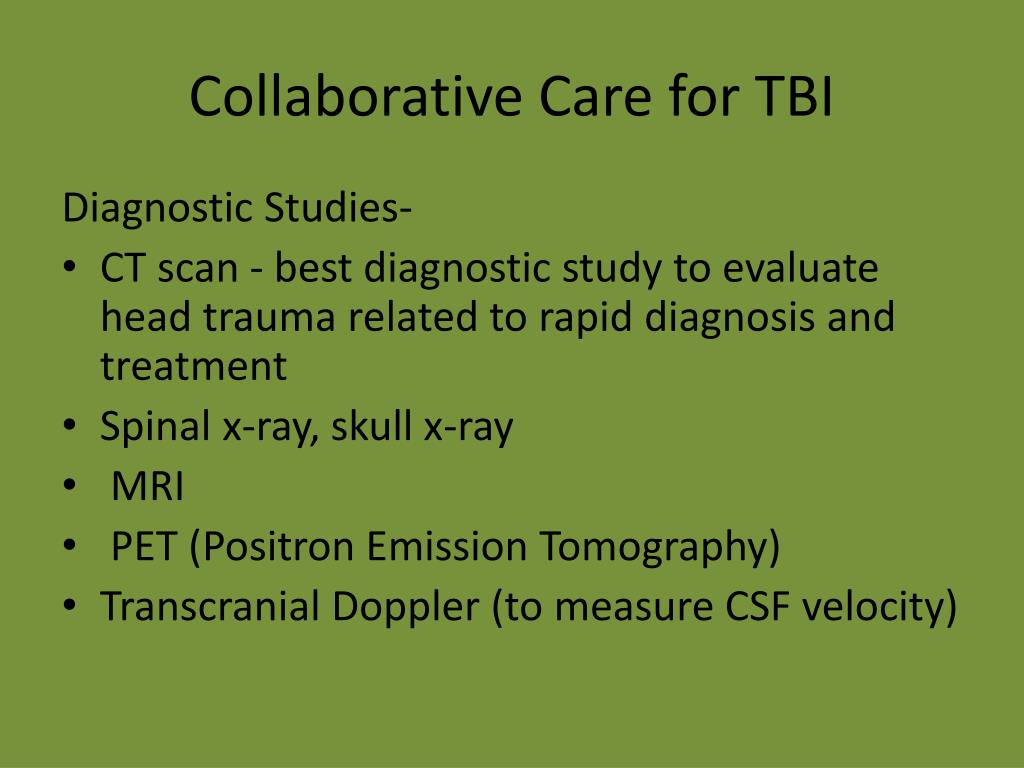

  37. Collaborative Care for TBI Diagnostic Studies- • CT scan - best diagnostic study to evaluate head trauma related to rapid diagnosis and treatment • Spinal x-ray, skull x-ray • MRI • PET (Positron Emission Tomography) • Transcranial Doppler (to measure CSF velocity)

  38. Collaborative Care for TBI (Cont’d) Diagnostic Tests (Cont’d)- • ABG’s • CBC • Glucose • Electrolytes

  39. Assessment Findings(Pg 1484 in Lewis) • Fractures/depressions • Battle’s Sign, Raccoon eyes • Cheyne-strokes respirations • Decreased O2 saturation • Pulmonary edema

  40. Assessment Findings (Cont’d) • Unequal/ dilated pupils • Confusion • Abusive/ slurred speech • Altered LOC • Seizures • Incontinence • Posturing • Glasgow coma scale <12 • CSF leaking form ears or nose

  41. Initial Interventions • Ensure patent airway • Stabilize cervical spine • O2 via non-rebreather • Large bore IV access (2) • Control external bleeding • Ongoing assessment

  42. Ongoing Monitoring (Lewis Pg. 1484) • Maintain client warmth • Frequent vital signs, level of consiousnes, SpO2, heart rhythm, Glasgow Coma Scale, pupil size/reactivity • Assess need for intubation if unable to protect own airway (absent gag reflex) • Use caution with IV fluids to avoid overload/ increasing ICP

  43. Treatment of TBI • Prevent secondary injury by managing increased ICP • Primary treatment is quick diagnosis and surgery if necessary • In concussion and contusion, usually treated only with observation and management of increased ICP

  44. Managing Increased ICP(At a glance from Module 10) • Airway management • Elevating head of bed 30 degrees • Temperature regulation • Osmotic diuretics (Mannitol) • Lasix • Invasive monitoring • Surgery

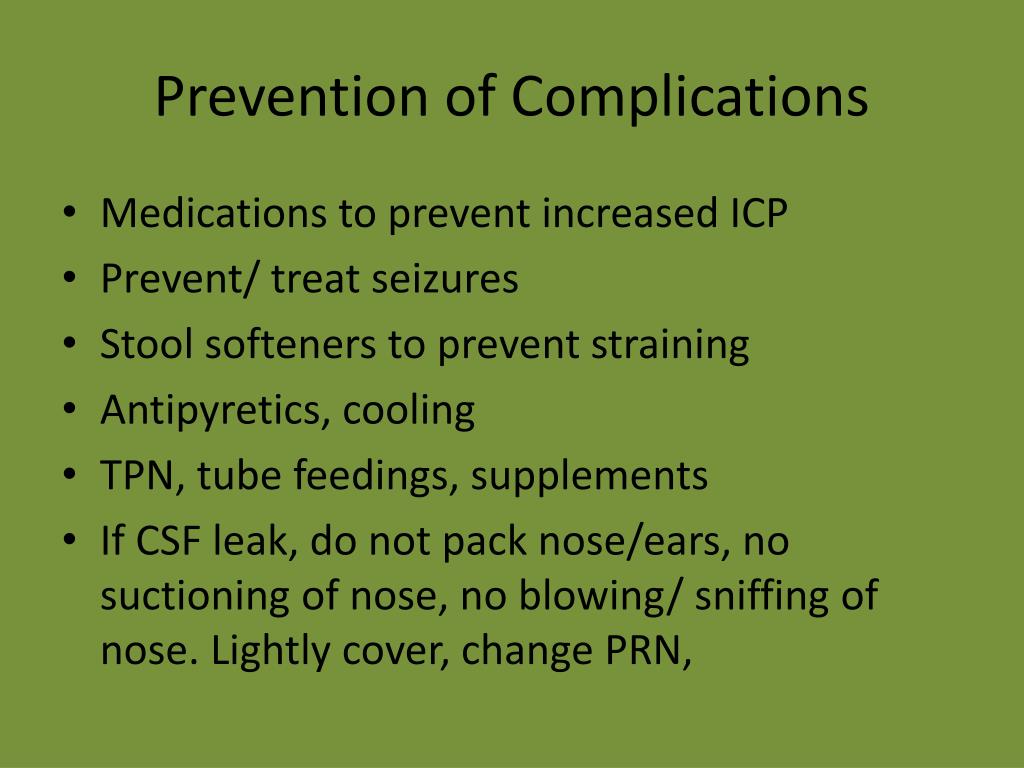

  45. Prevention of Complications • Medications to prevent increased ICP • Prevent/ treat seizures • Stool softeners to prevent straining • Antipyretics, cooling • TPN, tube feedings, supplements • If CSF leak, do not pack nose/ears, no suctioning of nose, no blowing/ sniffing of nose. Lightly cover, change PRN,

  46. Surgery for TBI In depressed and comminuted fractures, frequently a craniotomy to remove fragments • Crainiotomy- opening into the cranium with removal of a bone flap and opening the dura If large amount of bone is destroyed, may need: • craniectomy- removal of bone to allow brain to expand • Cranioplasty- repair of a cranial defect using articifial material

  47. Surgery for TBI (Cont’d) Acute Subdural and Epidural Hematomas- • Burr-hole openings for rapid decompression • Craniotomy • Drain generally left in place post surgery to prevent reaccumulation of blood

  48. Nursing Assessment- Review • Frequent Nuero assessments • Frequent vital signs • Glasgow Coma Scale • Brainstem reflexes (pupils, cough, gag, Doll’s eyes) • Watch for increased BP, decreased HR, and altered respirations - Cushing’s Triad- late sign with increased ICP- very bad! • Watch for CSF leak

  49. Nursing Diagnosis • Ineffective airway clearance • Ineffective breathing pattern • Ineffective tissue perfusion • Acute pain • Anxiety • Hyperthermia • Decreased cerebral perfusion
