traumatic brain injury

Traumatic Brain Injury

Katie Clement, MD

PICU Resident Lectures


  • Understand the mechanisms of Pediatric Traumatic Brain Injury
  • Understand the pathophysiology of TBI
  • Understand the management of TBI
  • Injury is leading cause of death for children
  • 40% of those are from TBI
  • Mortality between 17 – 33%
  • Most common cause of death & disability in childhood in developed countries
  • 3000 children die each year from TBI in the US

Krug EG et al. Am J Public Health. 2000.

Langlois JA et al. Centers for Disease Control & Prevention. 2006.

White JR et al. CCM. 2001.

Krug EG et al.

Langlois JA et al.

  • Severity of TBI is defined by the GCS Score
    • Mild
      • GCS 13-15
    • Moderate
      • GCS 9-12
    • Severe
      • GCS <9

Total score ranges from 3 - 15

effects of traum a

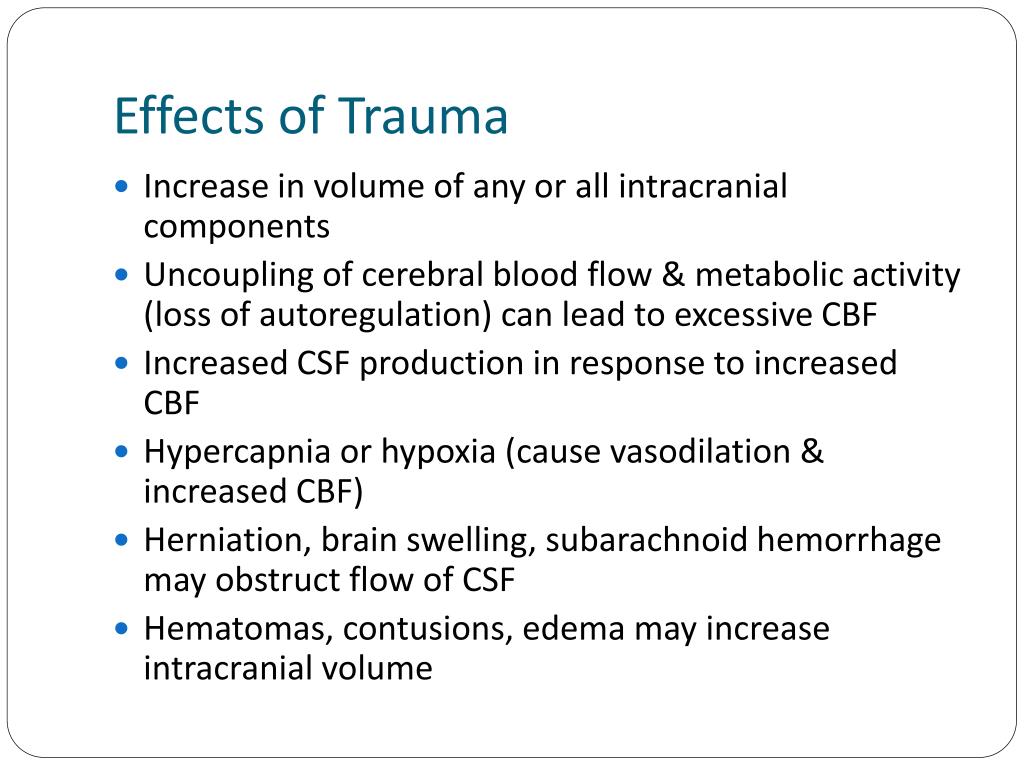

Effects of Trauma
  • Increase in volume of any or all intracranial components
  • Uncoupling of cerebral blood flow & metabolic activity (loss of autoregulation) can lead to excessive CBF
  • Increased CSF production in response to increased CBF
  • Hypercapnia or hypoxia (cause vasodilation & increased CBF)
  • Herniation, brain swelling, subarachnoid hemorrhage may obstruct flow of CSF
  • Hematomas, contusions, edema may increase intracranial volume
definition of icp
Definition of ICP
  • ICP = ICP vascular + ICP CSF
    • Used to estimate cerebral perfusion pressure
  • CPP = MAP – mean ICP
    • CPP: Cerebral Perfusion Pressure
    • ICP: Intracranial Pressure
    • MAP: Mean Arterial blood Pressure
normal values

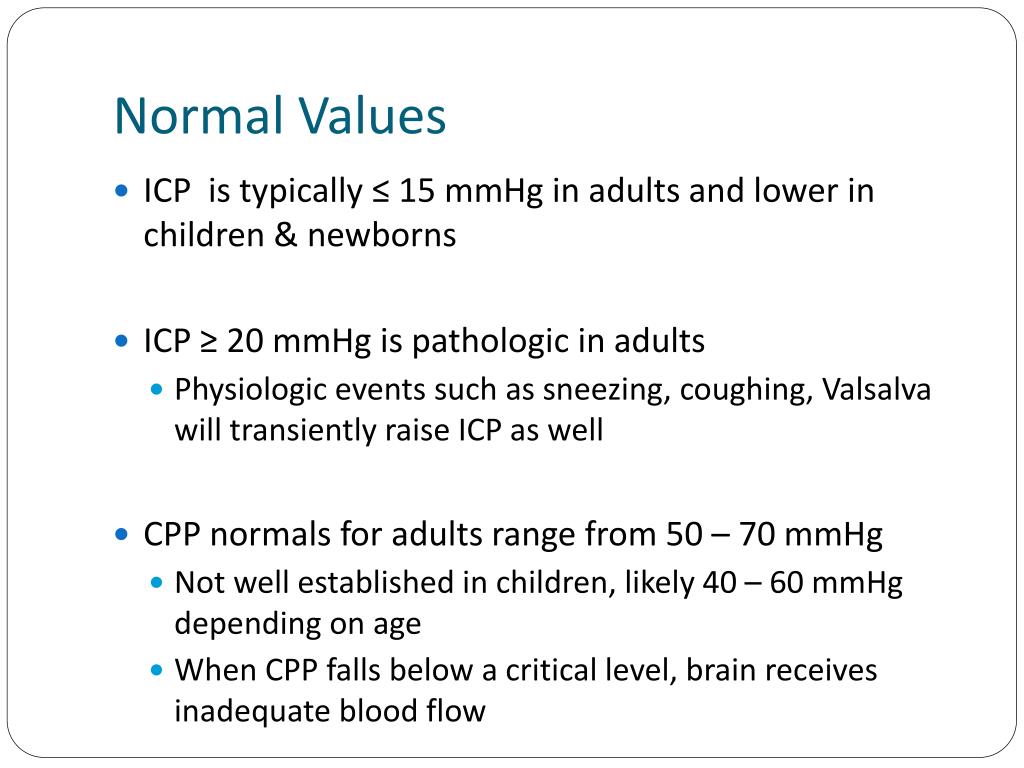

Normal Values
  • ICP is typically ≤ 15 mmHg in adults and lower in children & newborns
  • ICP ≥ 20 mmHg is pathologic in adults
    • Physiologic events such as sneezing, coughing, Valsalva will transiently raise ICP as well
  • CPP normals for adults range from 50 – 70 mmHg
    • Not well established in children, likely 40 – 60 mmHg depending on age
    • When CPP falls below a critical level, brain receives inadequate blood flow
intracranial pressure
Intracranial Pressure
  • The intracranial compartment has a fixed internal volume
    • Brain parenchyma – 80%
    • CSF – 10%
    • Blood – 10%
  • ICP is a function of the volume & compliance of each component
    • The Monroe-Kellie Doctrine
monroe kellie principle
Monroe-Kellie Principle

Intracranial compensation for an expanding mass lesion

Data from Pathophysiology and management of the intracranial vault. In: Textbook of Pediatric Intensive Care, 3rd ed, Rogers, MC (Ed), Williams and Wilkins 1996. p. 646; figure 18.1.


The relationship between intracranial volume and pressure is nonlinear

An initial increase in volume results in a small increase in pressure because of intracranial compensation (blue line). Once intracranial compensation is exhausted, additional increases in intracranial volume result in a dramatic rise in intracranial pressure (red line).

cerebral edema
Cerebral Edema
  • Diffuse swelling more common among infants and children compared to adults
  • Infant skull is more compliant, tolerates significant deformation without fracture
  • Brain atrophy begins in young adulthood and allows for more room in the adult skull for brain to expand

Lang DA. J Neurosurg 1994

Coats B. J Neurotrauma 2006

Kochanek PM. Dev Neurosci 2006

cerebral edema1
Cerebral Edema
  • Worsened with hypoxia & hypoperfusion
  • Types of edema:
    • Vasogenic- breakdown of the blood-brain barrier
    • Cytotoxic- cellular swelling
    • Interstitial- periventricular exudation of cerebrospinal fluid through the ependymal lining
    • Osmotic- movement of water into the interstitial spaces induced by osmotically active products of tissue injury and blood clot
cerebral autoregulation
Cerebral Autoregulation
  • Often impaired in children with TBI
  • Impaired autoregulation is associated with worse outcome

Cerebral autoregulation in hypertension

Kaplan, NM, Lancet 1994

2 insults
2 Insults
  • Primary Injury
    • Direct injury to brain parenchyma
    • Blunt force: Contusions, hematomas
    • Acceleration-deceleration: physical shearing or tearing of axons


Secondary Injury:

    • Potentially avoidable or treatable
      • Hypoxemia
      • Hypotension
      • Elevated ICP
      • Hypercarbia
      • Hyper- & Hypoglycemia
      • Electrolyte abnormalities
      • Enlarging hematomas
      • Coagulopathy
      • Seizures
      • Hyperthermia
    • Endogenous cascade of cellular & biochemical events
      • Occurs within minutes and continues for months after initial injury
      • Leads to neuronal cell death
diffuse axonal injury

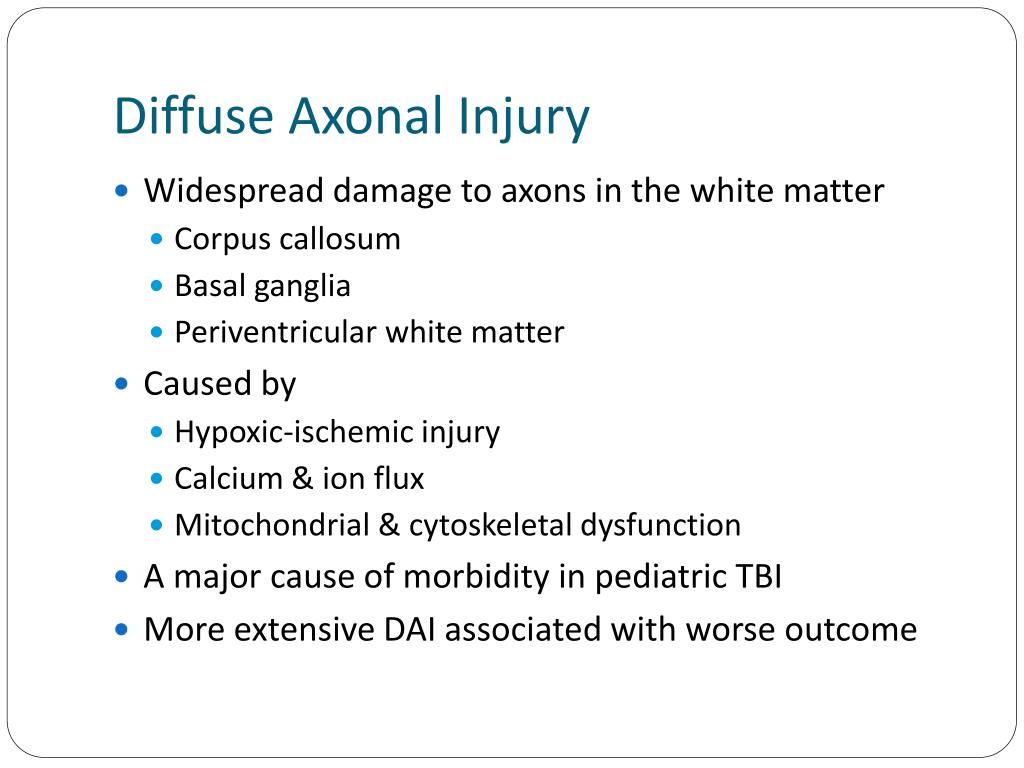

Diffuse Axonal Injury
  • Widespread damage to axons in the white matter
    • Corpus callosum
    • Basal ganglia
    • Periventricular white matter
  • Caused by
    • Hypoxic-ischemic injury
    • Calcium & ion flux
    • Mitochondrial & cytoskeletal dysfunction
  • A major cause of morbidity in pediatric TBI
  • More extensive DAI associated with worse outcome
initial evaluation
Initial Evaluation
  • Don’t forget standard trauma protocols:
    • Primary Survey
      • ABCs!
    • Secondary Survey
  • Mechanism of injury
  • Loss of consciousness + duration
  • Vomiting
  • Headache
    • One of the earliest symptoms of increased ICP
  • Progression of symptoms
physical exam general
Physical Exam—General
  • Hypoxia & hypotension should be immediately identified and treated
  • Respiratory depression, bradycardia, and/or hypertension may indicate impending herniation and also requires prompt treatment
  • Maintain C-spine immobilization
neuro exam
Neuro exam
  • Assign a GCS
  • Level of consciousness
  • Pupils
  • Extraocular movements
  • Funduscopic exam
  • Brainstem reflexes
  • DTRs
  • Response to pain
setting sun sign
Setting-Sun Sign
  • Late sign of increased intracranial pressure
  • Pressure on cranial nerves III, IV, and VI forces the eyes downward, revealing a rim of sclera above the irises.
funduscopic exam
Funduscopic Exam


Types of Herniation

  • Subfalcine : uneven, one-sided expansion of a cerebral hemisphere that pushes a portion of the brain tissue (cingulate gyrus) under the falx cerebri
  • Uncal: medial temporal lobe is pushed against the tentorium. Can compress brainstem in severe cases
  • Central transtentoral : downward pressure centrally, can cause bilateral uncal herniation.
  • Extracranial : brain tissue pushes through an opening in the cranial cavity either surgically or by trauma
  • Tonsillar : swelling or bleeding in the cerebellum pushes the cerebellar tonsils downward into the foramen magnum. Life threatening b/c can compress the brainstem
signs of herniation
Signs of herniation
  • Uncal herniation:
    • Third cranial nerve palsy
    • Hemiplegia
  • Progressive changes in respiratory pattern, pupil size, vestibuloocular reflexes, posturing
  • Cushing’s Triad
    • Hypertension
    • Bradycardia
    • Slow, irregular respirations


  • Can be associated with CN III injury
  • Uncal herniation can cause unilateral mydriasis & ptosis
  • Depends on type & extent of injury
  • Minimum: hct, T&S, UA
  • Useful in TBI:
    • Glucose
      • Hyperglycemia is a poor prognostic indicator
    • Electrolytes w/ osmolarity
    • Coags
      • DIC is associated with poor outcomes

Chiaretti A. Childs Nerv Syst 2002.

  • CT is preferred initial imaging
  • Following initial stabilization
  • Focal injuries are readily diagnosed by CT
  • Patients with DAI may have normal CT scans
  • Most common finding is diffuse cerebral swelling

Subdural hematoma


Epidural hematoma



Diffuse Axonal Injury (on MRI)

  • Minimize ICP elevation
  • Maintain adequate CPP to prevent secondary ischemic injury
  • CPP goal for adults should be 60 – 70 mmHg
  • Minimum acceptable for children is not defined, but recommended 40 – 65 mmHg depending on age.
    • Studies show that CPP from 40 – 65 improves outcome
    • CPP < 40 associated with poor outcome
  • ICP goal typically < 20 mmHg

Adelson PD. PCCM. 2003

initial decisions
Initial Decisions
  • Immediate NSGY consultation
  • Quickly identify focal injuries that require neurosurgical intervention
  • GCS ≤ 8 or GCS 9-12 and deteriorating/not protecting airway require intubation
  • Recognize signs of herniation & treat if present
    • Assure adequate oxygenation, breathing, BP
    • Give hyperosmolar therapy
    • Provide mild hyperventilation
    • Immediate NSGY evaluation
airway breathing
Airway & Breathing
  • Advanced airway management necessary if
    • Decreasing level of consciousness (GCS ≤ 8)
    • Marked respiratory distress
    • Hemodynamic instability
  • Other considerations
    • C-spine immobilization must be maintained
    • Nasotracheal intubation contraindicated with midface trauma or basilar skull fracture
    • Cuffed tubes to protect from aspiration
rapid sequence intubation

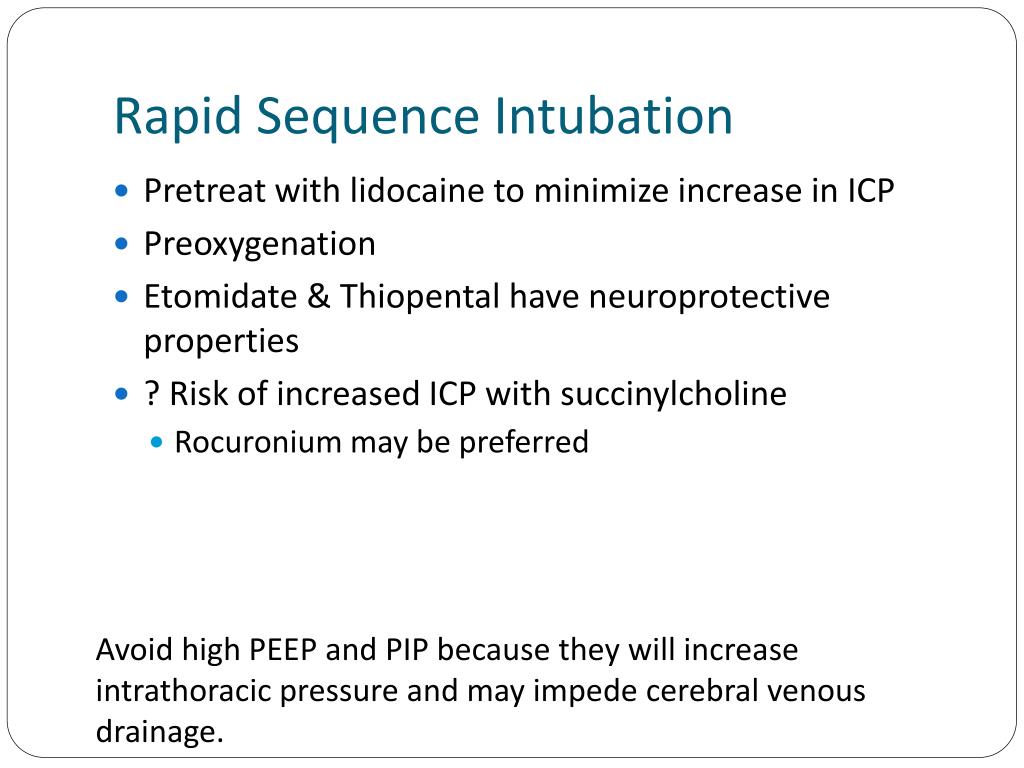

Rapid Sequence Intubation
  • Pretreat with lidocaine to minimize increase in ICP
  • Preoxygenation
  • Etomidate & Thiopental have neuroprotective properties
  • ? Risk of increased ICP with succinylcholine
    • Rocuronium may be preferred

Avoid high PEEP and PIP because they will increase intrathoracic pressure and may impede cerebral venous drainage.

  • Standard VS: HR, BP, Pulse Ox
  • Capnography
    • To monitor ventilation & avoid excessive hyperventilation
  • ICP monitoring recommended for abnormal head CT & initial GCS 3 – 8
  • Interventions used to decrease ICP require accurate and continuous ICP monitoring!!
icp monitoring

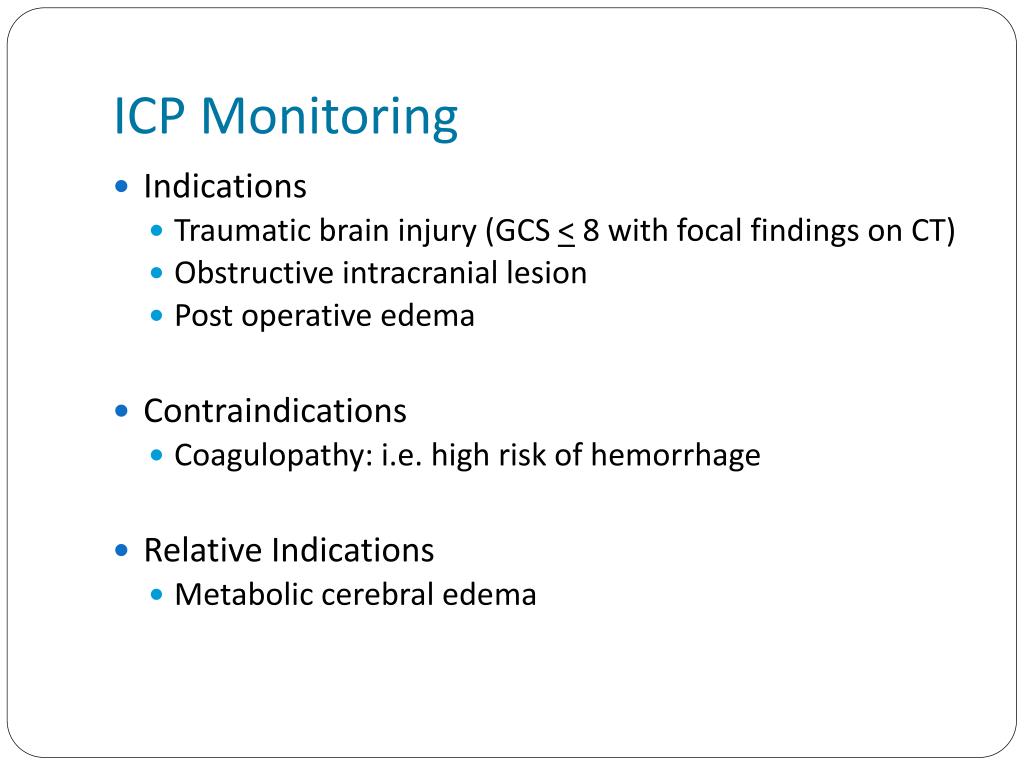

ICP Monitoring
  • Indications
    • Traumatic brain injury (GCS < 8 with focal findings on CT)
    • Obstructive intracranial lesion
    • Post operative edema
  • Contraindications
    • Coagulopathy: i.e. high risk of hemorrhage
  • Relative Indications
    • Metabolic cerebral edema
icp monitoring options

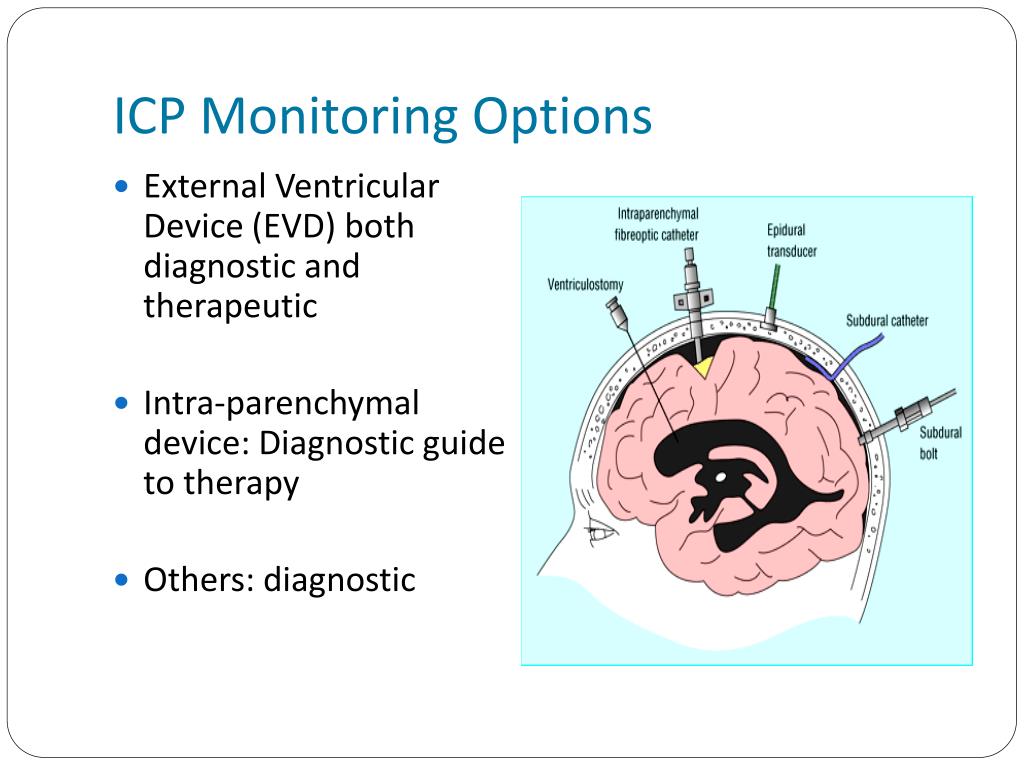

External Ventricular Device (EVD) both diagnostic and therapeutic

Intra-parenchymal device: Diagnostic guide to therapy

Others: diagnostic

ICP Monitoring Options
management of icp
Management of ICP
  • First tier therapies
    • Maintain CPP
    • Sedation & analgesia
    • HOB at 30 degrees
    • Ventriculostomy drain
    • Neuromuscular blockade
    • Hyperosmolar therapy (mannitol & hypertonic saline)
    • Mild hyperventilation
  • Second tier therapies
    • Hyperventilation
    • Decompressive craniectomy
    • High dose barbiturates
    • Hypothermia (32 – 34 degrees)
  • Reduces ICP
  • May be harmful with routine use
  • Results in hypocapnia
    • Vasoconstriction
    • Decreased cerebral blood flow
      • Associated with poor outcomes among children with TBI [30]
    • PCO2 < 30 mmHg associated with increased mortality
  • Maintain PaCO2 between 35 – 38 mmHg unless signs of impending herniation

Skippen P. CCM 1997.

Adelson PD. Pediatr Neurosurg 1997.

Curry R. PCCM 2008.

initial fluid management
Initial Fluid Management
  • Restore volume—Isotonic fluids preferred
    • Blood products as indicated
  • Outcomes are poor for children who are hypotensive at initial evaluation
  • Systolic blood pressure should be maintained above the 5th percentile for age and sex at the minimum
  • Improved outcomes for patients with initially higher blood pressure

White JR. CCM 2001

Vavilala MS. J Trauma 2003

Luerssen TG. J Neurosurg 1988

Pigula FA. J Pediatr Surg 1993

Adelson PD. PCCM. 2003

head positioning
Head Positioning

Maintain head in neutral position to avoid jugular venous obstruction

As head-up position is increased, ICP may be reduced, but beyond 30o heads-up CPP is likely compromised. Second source:  Durward, QJ, Amadner, AL, Del Maestro, RF, et al:  Cerebral and vascular responses to changes in head elevation in patients with intracranial hypertension, J Neurosurg 59: 938, 1983.

sedation and neuromuscular blockade
Sedation and Neuromuscular Blockade
  • Maintain adequate analgesia to blunt response to noxious stimuli
  • Maintain sedation to permit controlled ventilation
  • Cerebral oxygen consumption may be decreased in patients receiving neuromuscular blockade

Vernon DD. CCM 2000

antiseizure prophylaxis
Antiseizure Prophylaxis
  • Reduces the incidence of early posttraumatic seizures among children with severe TBI
  • Seizures increase metabolic demand and increase ICP
    • Leads to secondary brain injury
  • Retrospective studies demonstrate improved outcomes among children with TBI treated with anticonvulsants
  • Recommend anticonvulsants during the first week following TBI if high risk
    • Penetrating skull fractures, hematomas, masses, bleeds

Schierhout G. Cochrane Database Syst Rev 2001

Tilford JM. CCM 2001

Adelson PD et al. PCCM 2003

temperature control
Temperature control
  • Aggressively prevent & treat hyperthermia
    • Raises metabolic demand & ICP
  • Hypothermia decreases cerebral metabolism and may reduce CBF & ICP
    • Controversial
    • One multicenter trial showed harm
  • Control shivering with muscle relaxants

(Considered second tier therapy)

hyperosmolar therapy
Hyperosmolar Therapy
  • Establishes an osmotic gradient between plasma and parenchymal tissue
    • Reduces brain water content
  • Extensive research shows that it effectively decreases ICP in children with TBI
  • Decreases ICP effectively based on extensive clinical experience
  • Dose 0.25 – 1 g/kg IV
  • Adverse effects: hyperosmolarity, hypovolemia, electrolyte imbalance
  • Nephrotoxicity can occur, especially if patients are hypovolemic
  • Don’t typically use if serum osmolarity >320

Adelson PD et al. PCCM 2003.

hypertonic saline
Hypertonic Saline
  • Can be administered as a bolus or as an infusion
  • Optimal dosing not clear
    • 3% saline commonly used as bolus of 2-6 ml/kg
    • Continuous infusion of 0.1 – 1 ml/kg/hr also described
  • Effective at reducing ICP in small randomized trials & observational reports
  • Does not cause profound osmotic diuresis, so decreased risk of hypovolemia
  • Adverse effects:
    • Rebound intracranial hypertension
    • Central pontine myelinolysis (theoretical, not reported)

Huang SJ. Surg Neurol 2006.

Qureshi AI. CCM 2000.

glucose control
Glucose Control
  • Hyperglycemia associated with poor outcomes
    • Marker for severity of injury
    • Worsens brain tissue lactic acidosis
  • Recommend to keep glucose level at least less than 200

Adelson PD. PCCM 2003.

  • No benefit in trauma
  • Large, prospective multicenter trial demonstrated increased mortality among patients with acute TBI who received steroids
  • Useful only for vasogenic edema from tumors because they stabilize the BBB
barbiturate coma second tier therapy
Barbiturate coma—second tier therapy
  • Used if ICP refractory to other modalities
  • Pentobarbital typically used
  • Decreases cerebral metabolic rate and thus cerebral blood flow
  • May have protective effects during periods of hypoxia and/or hypoperfusion
  • Cardiac suppression, hypotension
    • Treat with fluids & inotropic support
  • No evidence for prophylactic use
other second tier therapies
Other second tier therapies
  • Aggressive hyperventilation (PaCO2 < 30)
    • Recommend brain tissue oxygenation monitoring or jugular venous O2 saturation or CBF monitoring
  • Decompressive craniectomy
    • Ideal patient has had no episodes of ICP > 40 before surgery, have had a GCS > 3 at some point
    • Evolving herniation syndrome within 48 hrs of injury
  • Lumbar CSF drainage
    • Not common
    • Must have a functioning EVD in place, open basal cisterns, no mass effect or shift on CT (to avoid herniation)
  • Hypothermia
    • Core temp 32 – 34 degrees
    • More studies needed
management algorithm
Management Algorithm

Adelson PD et al. PCCM 2003


Second Tier Therapies

Adelson PD et al. PCCM 2003

  • Have Neurosurgery involved EARLY
    • For surgical intervention & monitor placement
  • Keep ICP <20 mmHg
  • Keep CPP appropriate for age (> 40 – 60 mmHg)
  • Vavilala MS, Waitayawinyu P, Dooney NM. Initial approach to severe traumatic brain injury in children. 2011.
  • Huh JW, Raghupathi R. New concepts in treatment of pediatric traumatic brain injury. Anesthesiology Clin 2009:27;213-240.
  • Brasher WK. Elevated intracranial pressure in children. 2011.
