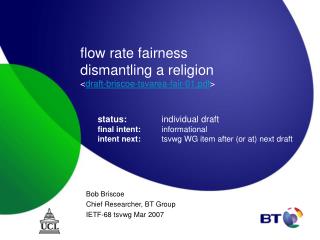

  1. flow rate fairnessdismantling a religion<draft-briscoe-tsvarea-fair-01.pdf> status: individual draft final intent: informational intent next: tsvwg WG item after (or at) next draft Bob Briscoe Chief Researcher, BT Group IETF-68 tsvwg Mar 2007

  2. updated 0001 draft • diffs and alt formats (courtesy of rfcdiff & xml2rfc tools) at:<http://www.cs.ucl.ac.uk/staff/B.Briscoe/pubs.html#rateFairDis> • lots of (on & off list) emailcomments from presenting at IETF-67 tsv-area, IRTF iccrg & e2erg • changes from previous draft-00 ( = “focused on in this talk”) • Toned down the polemic, but some still think it’s too hot for a WG item • Added importance of the issue and implications (§1 Introduction) • Added §8 "Critiques of Specific Schemes“: • pulls together critiques of: max-min, TCP, TFRC & router-based fairness (e.g. XCP) • added material on fairness wrt RTT, packet size and WFQ • Clarified how to calibrate the cost of congestion from equipment costs (in §5.2) • Clarified §5.3.2 "Enforcing Cost Fairness“ • unofficial BoF Wed 15:10-16:40 Karlin I • Added substantial new §9 "Implications for the RFC Series"

  3. importance and implications (§1) • if we do nothing about fairness • the few are ruining it for the many • so, keeping interactive apps viable requires massive capacity • or poor incentives to invest in capacity • so, operators are kludging it with DPI (deep packet inspection) • so, today’s apps are getting frozen into the Internet • and we’re getting complex, ugly feature interactions

  4. 1/4 1/2 1/2 1/2 1/4 1/4 1/4 1/4 1/4 time recapdismantling flow rate fairness • doesn’t even address relevant questions • how many flows is it fair for an app to create? • how fast should flows go through separate bottlenecks? • how fast should a brief flow go compared to a longer lasting one? • myopic • across flows, across network and across time

  5. recapreplace with cost fairness bit rate x1(t) user1 • cost of your behaviour on others • bytes you contributed to excess load • termed congestion volume [bytes] • accumulates simply and correctly • across flows, across network paths and across time • not your bit rate xi • but loss (marking) fraction times your bit ratepxi user2 x2(t) congestion or loss (marking) fraction [%]

  6. pls add this rule to your buzzword matching algorithmscost fairness <> re-ECNdraft-briscoe-tsvarea-fair-01.pdfdraft-briscoe-tsvwg-re-ecn-tcp-03.txt • re-ECN is not limited to enforcing cost fairness • re-ECN appendix shows how to police TCP (flow rate fairness) • fairness I-D shows how to do other forms of fairness with it • cost fairness could be done with something else • but no other practical schemes (yet)

  7. RTT fairness • TCP’s stable rate is proportional to 1/RTT • doesn’t need to be, but change of rate (dynamics) should be • FAST is an example of congestion control like this • cost fairness alone is sufficient to punish a flow that has a longer RTT but isn’t more cautious (e.g. flow1) • without having to mandate anything extra about RTT fairness long RTT but sluggish too x1 flowrate, xi x2 short RTT and responsive time, t congestion, p area is bits marked,ie. congestion volume,vi =  pxi dt Cost fairness ensures flow1 is accountable for the extra costit caused to everyone else congestionbit rate, pxi v1 v2

  8. implications of this draft for the RFC seriescc RFCs sorted by who must/should to do what • cc algo as impl’n building block without saying where to use • 3448 TFRC • spec of cc impl’n for a specific transport • 2581 TCPcc, 2960 SCTP, 4341 4342 DCCP CCIDs, 3551 RTP/AVP, 4585 RTP/AVPF • hosts must impl’t a specific transport • 1122 Host Reqs • what hosts must do if they impl’t a specific cc enhancement • 3124 Congestion Mgr • spec semantics of cong’n notification impl’n • 2309 AQM, 3168 ECN • apps must impl’t safe cc behaviour • 2616 HTTP/1.1, 3550 RTP cc applicability • best practice, guidelines & principles for cc design • 1254 cc survey, 2309 AQM, 2914 cc Principles, 3426 Arch considerations, 3714 Voice cc concerns • recommend how new cc designs should interact with old • 2309 AQM, 2357 Criteria for RMT, 2914 cc Principles acks: Michael Welzl & Wes Eddy draft-irtf-iccrg-cc-rfcs-00, adding to Sally Floyd’s RFC2914

  9. implications of this draft for the RFC seriesif we add app/user policy-control over congestion control • cc algo as impl’n building block without saying where to use • 3448 TFRC • spec of cc impl’n for a specific transport • 2581 TCPcc, 2960 SCTP, 4341 4342 DCCP CCIDs, 3551 RTP/AVP, 4585 RTP/AVPF • hosts must impl’t a specific transport • 1122 Host Reqs • what hosts must do if they impl’t a specific cc enhancement • 3124 Congestion Mgr • spec semantics of cong’n notification impl’n • 2309 AQM, 3168 ECN • apps must impl’t safe cc behaviour • 2616 HTTP/1.1, 3550 RTP cc applicability • best practice, guidelines & principles for cc design • 1254 cc survey, 2309 AQM, 2914 cc Principles, 3426 Arch considerations, 3714 Voice cc concerns • recommend how new cc designs should interact with old • 2309 AQM, 2357 Criteria for RMT, 2914 cc Principles stand as they are, for apps that don’t need or user policy ctrl stand as they are, for apps that don’t need or user policy ctrl OK. Must impl’t means available for use, not must be used critical to cost fairness; OK, except tighten up open issues (byte-mode drop & ECN tunnels) All sound general advice All good sound general advice Generally sound advice, except definitions of fairness based on flow rate, and TCP-fair advice in 2357 needs qualifying

  10. nextstepsaim, fire, ready • make this fairness I-D suitable for WG item • need to be able to make senders accountable for congestion caused (e.g. with re-ECN) • need weighting parameter added to transport APIs (e.g. MulTCP) • transition from what we have now? • we have no fairness, so there’s nothing to transition from • but there is a danger of getting it more unfair than we have already • therefore should have step 3 largely in place before step 4 • hi-speed congestion ctrl in progress could be designed as if we have step 3 • voluntary cost fairness (cf. voluntary TCP fairness) ?

  11. flow rate fairnessdismantling a religion<draft-briscoe-tsvarea-fair-01.pdf> spare slides: calibrating congestion cost as equipment cost packet size fairness WFQ & cost fairness Q&A

  12. a monetary value can be put on ‘what you unsuccessfully tried to get’ the marginal cost of upgrading network equipment so it wouldn’t have marked the volume it did so your behaviour wouldn’t have affected others competitive market matches... the cost of congestion volume with the cost of alleviating it congestion volume is not an extra cost part of the flat charge we already pay but we can’t measure who to blame for what if we could, we might see pricing like this... NOTE WELL IETF provides the metric industry does the business models note: diagram is conceptual congestion volume would be accumulated over time capital cost of equipment would be depreciated over time calibrating ‘cost to other users’ x1(t) x2(t)

  13. packet size fairness • new I-D written but not posted • intended as informational, through tsvwg WG? • gives principles for handling different packet sizes • for any active queue mgmt (AQM) scheme, eg: • RED drop/marking (open issue in RFC2309) • PCN (pre-congestion notification) marking (deliverable of newly chartered WG) • in summary: answers two questions • byte congestible or packet congestible resource? • RED should usually use byte-mode queue measurement • if byte congestible, which layer should account for packet size? • transport not network • transport should respond to congestion volume in bytes, not packets • TFRC-SP (small packets) is the correct place to do this • RED byte mode drop considered harmful

  14. weighted fair queuing (WFQ) • WFQ typically allocates capacity per flow, not per user • vulnerable to flow splitting games described in draft • controls fairness over flow lifetimes not over user history • but for high utilisation customer lines this approximates to the same thing • but not over all the congestion caused in the Internet – just one interface • implications of WFQ not being cost fair • doesn’t mean WFQ is ‘incorrect’ • just means WFQ can’t ensure customers pay their rightful costs • a future competing solution that did might be preferred by operators

  15. Bar BoF “re-ECN architectural intent” Wed 21 March 1510-1640, Karlin I, Prague Hilton background papers on re-ECN: <http://www.cs.ucl.ac.uk/staff/B.Briscoe/projects/refb/>including particularly<draft-briscoe-tsvwg-re-ecn-tcp-03.txt>
