  1. Lymphocyte Differentiation

  2. B cell development、activation and maturation Genetic Models • Genetic models: • Germ-Line model • The genome contributed by the grem cells contains a large repertoire of immunoglobulin genes. • No special genetic mechanisms to account for antibody diversity • Somatic-Variation model • The genome contains a small number of immunoglobulin genes, from which a large number of antibody specificities are generated in somatic cells by mutation or recombination. • Two-Gene model, 1965 by W. Dryer and J. Bennett • Two separate genes encode a single immunoglobulin heavy and light chain, one gene for the V region and the other for the C region

  3. B cell development、activation and maturation Verification of the two-gene model 1967, by S. Tonegawa and N. Hozumi 1987, Tonegawa got Nobel Prize • Digested DNA fragemnts from embryonic and myeloma cells hybridized with radiolabel-RNA • (b) V and C gene are brought closer together and intervening DNA sequence is eliminated

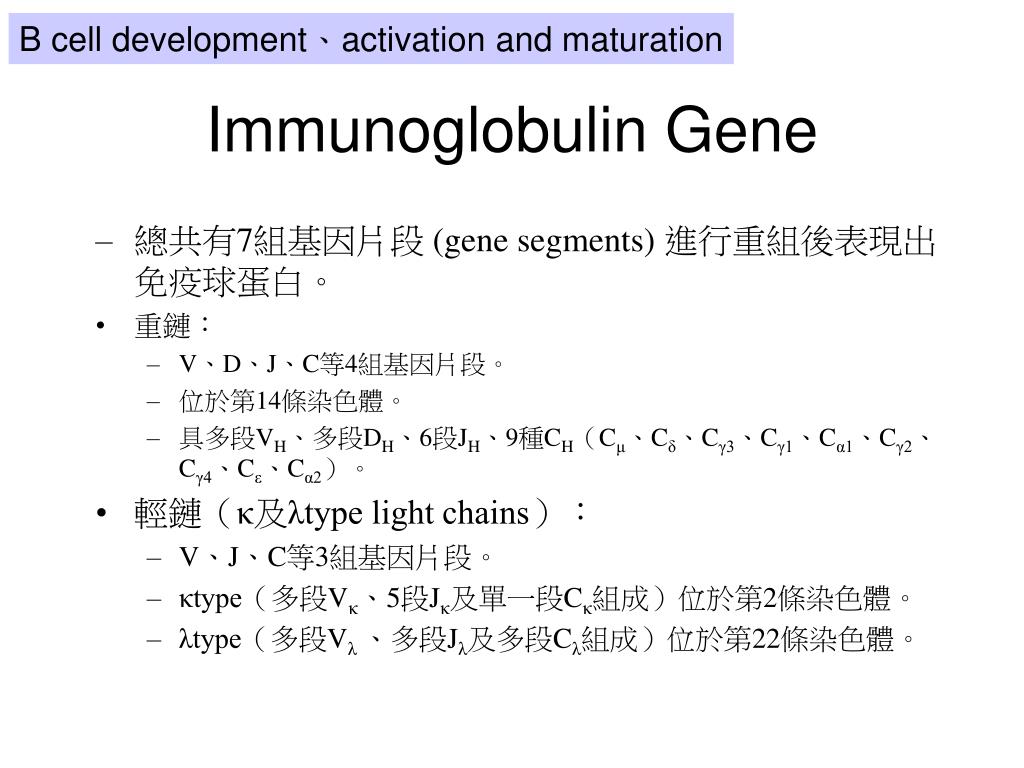

  4. B cell development、activation and maturation Immunoglobulin Gene • 總共有7組基因片段 (gene segments) 進行重組後表現出免疫球蛋白。 • 重鏈: • V、D、J、C等4組基因片段。 • 位於第14條染色體。 • 具多段VH、多段DH、6段JH、9種CH(Cμ、Cδ、Cγ3、Cγ1、Cα1、Cγ2、Cγ4、Cε、Cα2)。 • 輕鏈(κ及λtype light chains): • V、J、C等3組基因片段。 • κtype(多段Vκ、5段Jκ及單一段Cκ組成)位於第2條染色體。 • λtype(多段Vλ 、多段Jλ及多段Cλ組成)位於第22條染色體。

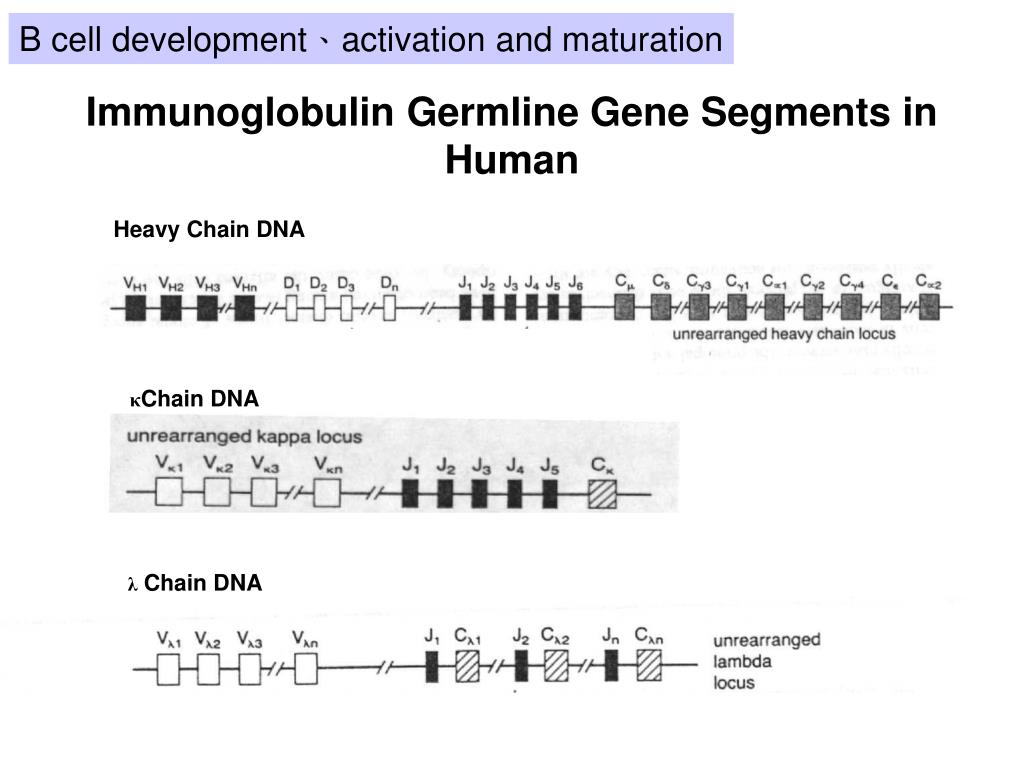

  5. Heavy Chain DNA κChain DNA λ Chain DNA B cell development、activation and maturation Immunoglobulin Germline Gene Segments in Human

  6. B cell development、activation and maturation Immunoglobulin Germline Gene Segments in Mouse

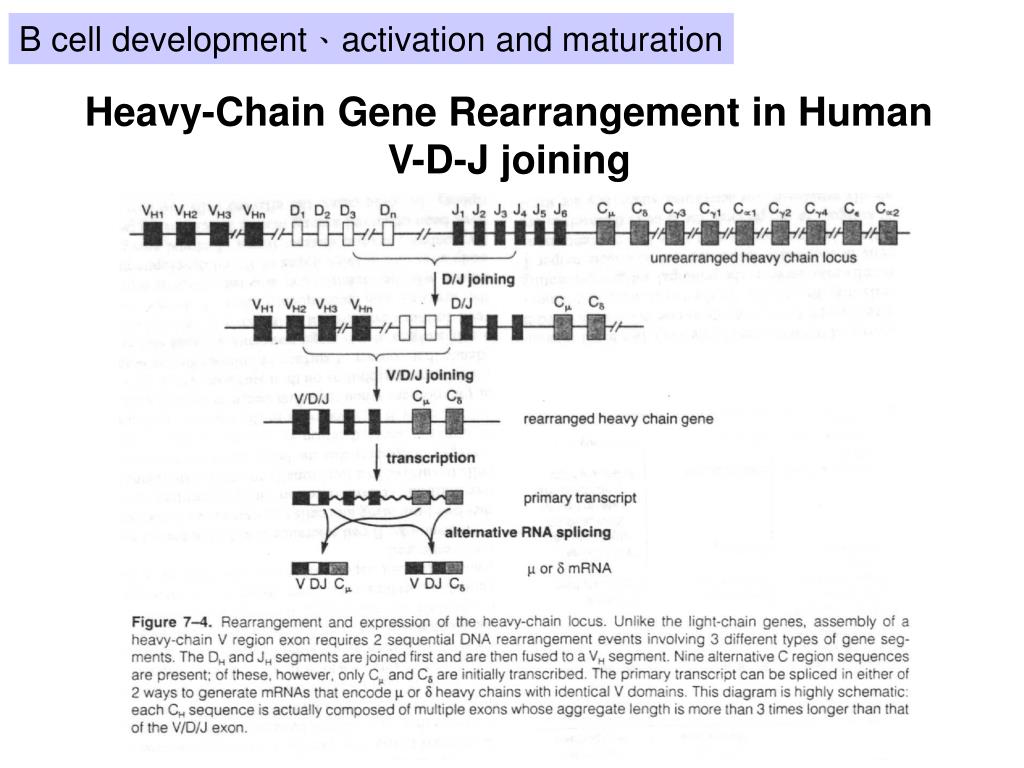

  7. B cell development、activation and maturation Heavy-Chain Gene Rearrangement in Human V-D-J joining

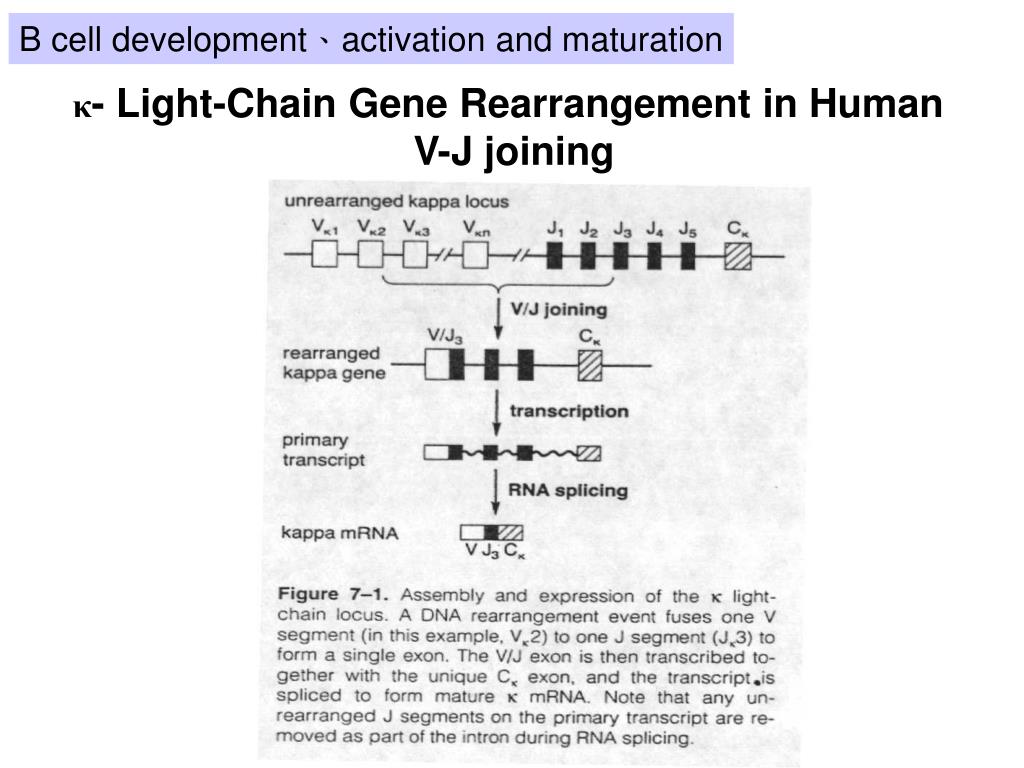

  8. B cell development、activation and maturation κ- Light-Chain Gene Rearrangement in Human V-J joining

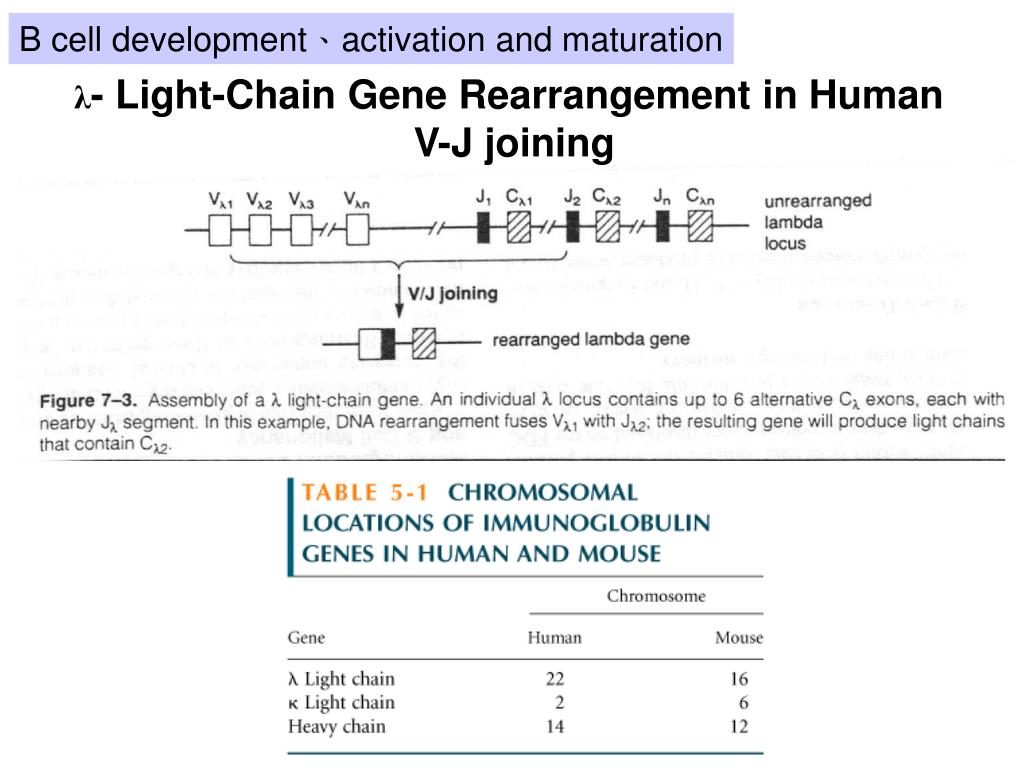

  9. B cell development、activation and maturation λ- Light-Chain Gene Rearrangement in Human V-J joining

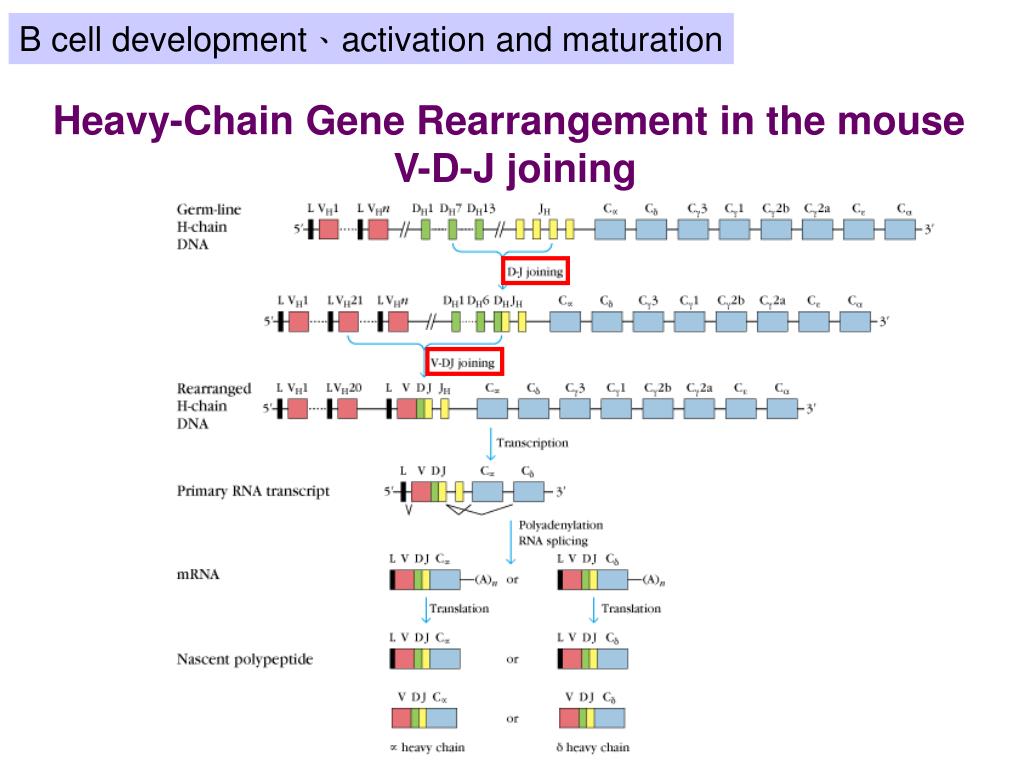

  10. B cell development、activation and maturation Heavy-Chain Gene Rearrangement in the mouse V-D-J joining

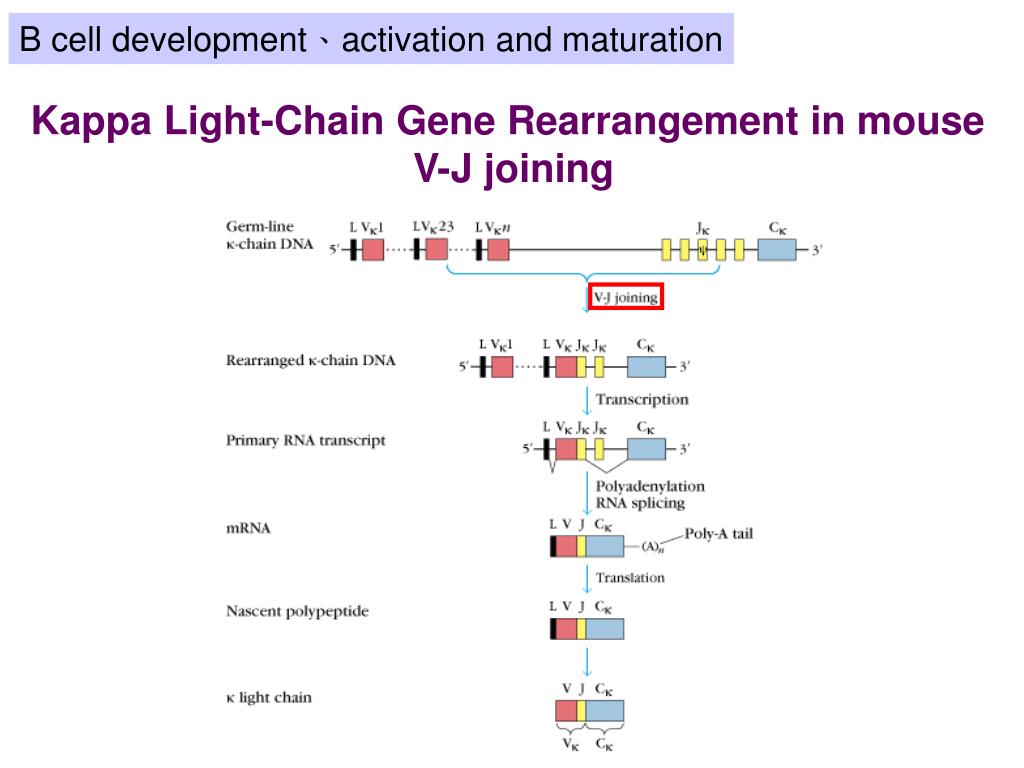

  11. B cell development、activation and maturation Kappa Light-Chain Gene Rearrangement in mouse V-J joining

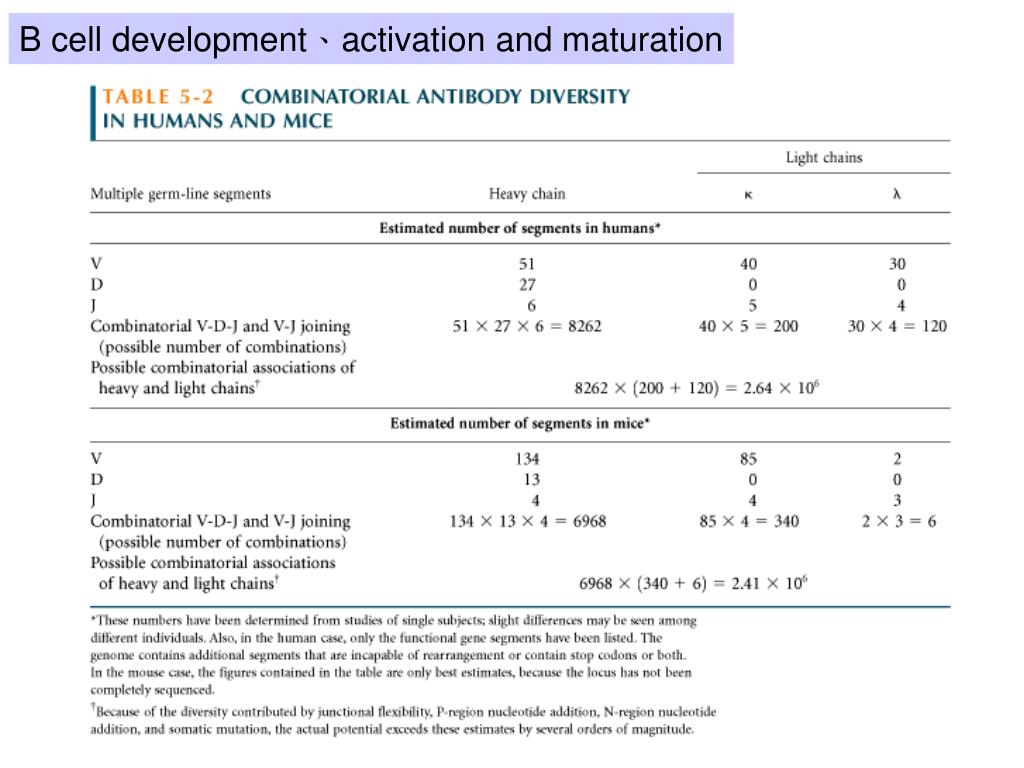

  12. B cell development、activation and maturation

  13. B cell development、activation and maturation Overview • Antigen-independent phase • Immunocompetent B cells expressing membrane IgM and IgD are generated in the bone marrow • Antigen-dependent phase • B cells are activated and proliferated with secondary lymphoid organs • To differentiate into memory B cell and plasma cells

  14. B cell development、activation and maturation Differentiation of B cell

  15. B cell development、activation and maturation Differentiation of B cell • pro-B cell:重排heavy-chain genes(DH/ JH joining),沒有免疫球蛋白產物。 • pre-B cell:重排heavy-chain genes(VH /DH/ JH joining),將VDJ片段與Cμ連結,做出μpolypeptide;light-chain genes尚未重排。 • late pre-B cell:細胞表面具有完整的heavy chain、Ig-α、Ig-β及surrogate light chain • immature B cell:細胞表面具有完整的surface IgM(s IgM),此時細胞可以辨識抗原,與抗原結合後造成細胞部活化及消滅,無法再進入分化過程。

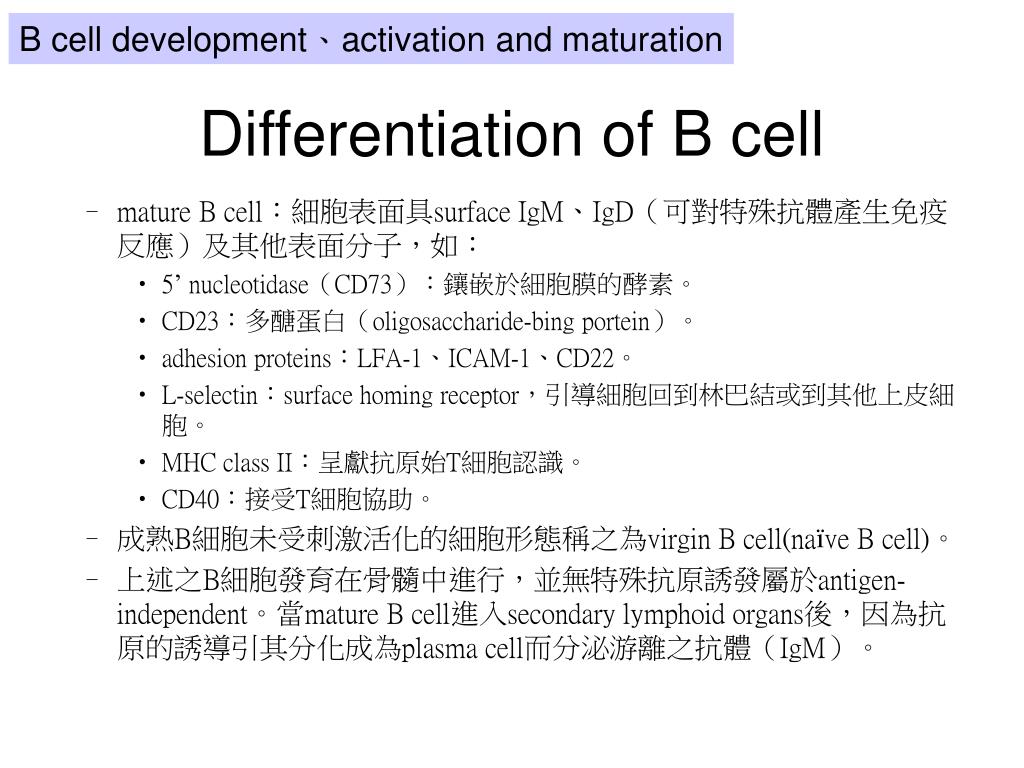

  16. B cell development、activation and maturation Differentiation of B cell • mature B cell:細胞表面具surface IgM、IgD(可對特殊抗體產生免疫反應)及其他表面分子,如: • 5’ nucleotidase(CD73):鑲嵌於細胞膜的酵素。 • CD23:多醣蛋白(oligosaccharide-bing portein)。 • adhesion proteins:LFA-1、ICAM-1、CD22。 • L-selectin:surface homing receptor,引導細胞回到林巴結或到其他上皮細胞。 • MHC class II:呈獻抗原始T細胞認識。 • CD40:接受T細胞協助。 • 成熟B細胞未受刺激活化的細胞形態稱之為virgin B cell(naïve B cell)。 • 上述之B細胞發育在骨髓中進行,並無特殊抗原誘發屬於antigen-independent。當mature B cell進入secondary lymphoid organs後,因為抗原的誘導引其分化成為plasma cell而分泌游離之抗體(IgM)。

  17. B cell development、activation and maturation  

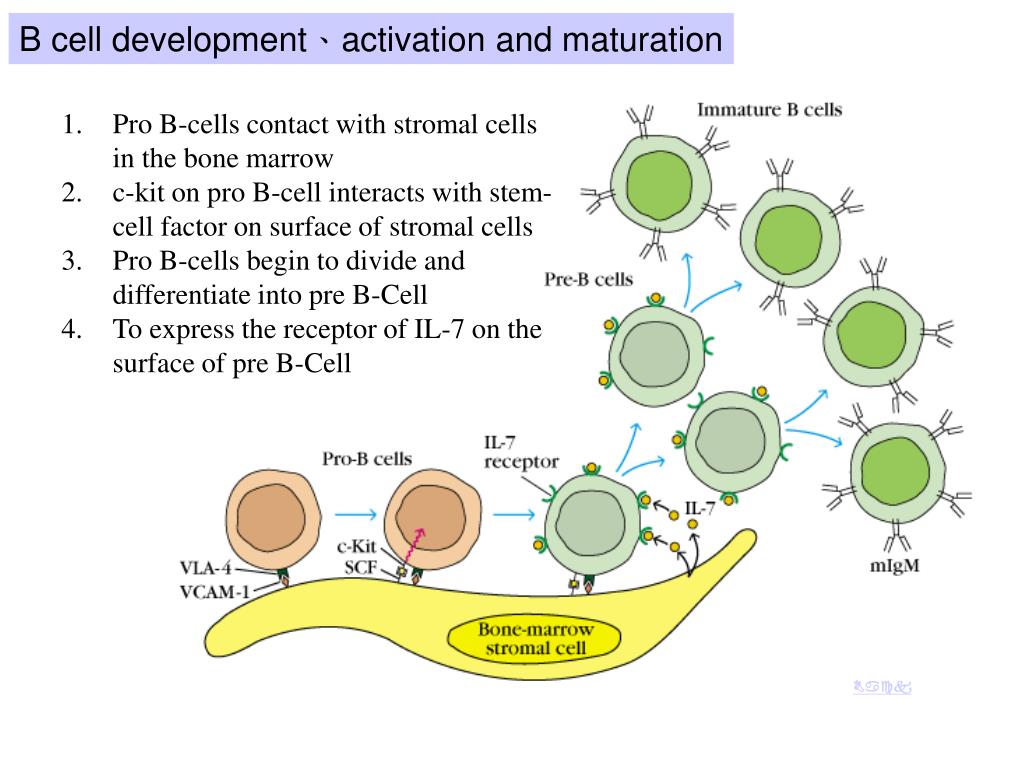

  18. B cell development、activation and maturation • Pro B-cells contact with stromal cells in the bone marrow • c-kit on pro B-cell interacts with stem-cell factor on surface of stromal cells • Pro B-cells begin to divide and differentiate into pre B-Cell • To express the receptor of IL-7 on the surface of pre B-Cell Back

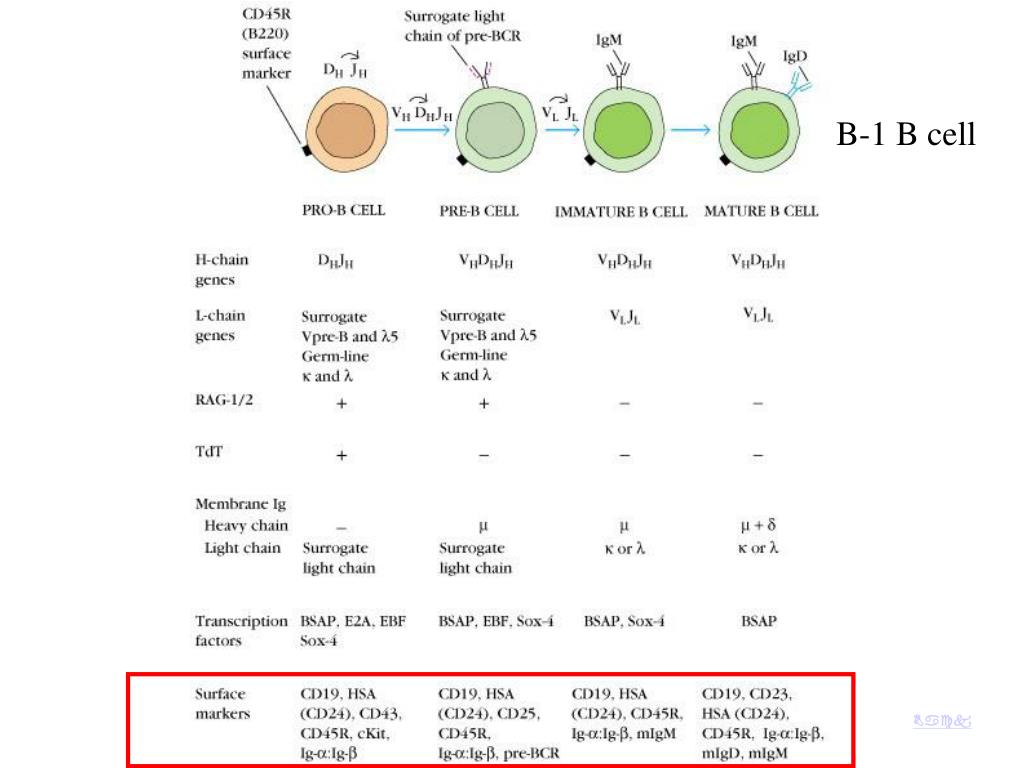

  19. B-1 B cell Back

  20. B cell development、activation and maturation The Cell Cycle of B lymphocytes

  21. B cell development、activation and maturation B cell activation and maturation • B細胞活化主要因素: • Ig-α及Ig-β: • 連結B細胞表面抗體及細胞質內之protein tyrosine kinases(PTKs,CD45之細胞質內部domain具有此活性)。 • 抗原: • Thymus-dependent:B細胞與抗原(大部分之蛋白抗原)作用後,需受到T細胞的協助方可活化者;即B細胞表面分子CD40可與TH細胞表面分子CD40L(CD40 ligand)結合後啟動。

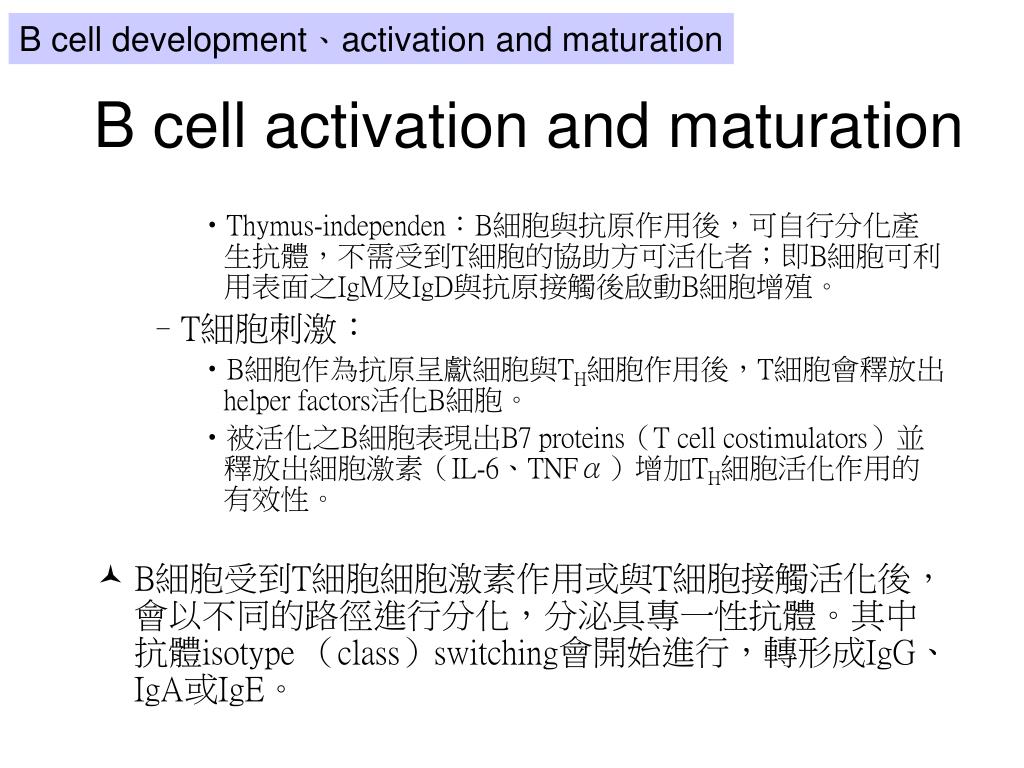

  22. B cell development、activation and maturation B cell activation and maturation • Thymus-independen:B細胞與抗原作用後,可自行分化產生抗體,不需受到T細胞的協助方可活化者;即B細胞可利用表面之IgM及IgD與抗原接觸後啟動B細胞增殖。 • T細胞刺激: • B細胞作為抗原呈獻細胞與TH細胞作用後,T細胞會釋放出helper factors活化B細胞。 • 被活化之B細胞表現出B7 proteins(T cell costimulators)並釋放出細胞激素(IL-6、TNFα)增加TH細胞活化作用的有效性。 • B細胞受到T細胞細胞激素作用或與T細胞接觸活化後,會以不同的路徑進行分化,分泌具專一性抗體。其中抗體isotype (class)switching會開始進行,轉形成IgG、IgA或IgE。

  23. B cell development、activation and maturation • Ig-α及Ig-β • Immunoreceptor tyrosine-based activation motif (ITAM) • The cytoplasmic tail of both Ig-α(61 amino acids ) and Ig-βlong (48 amino acids), 18-residue motif • To transduce the antigen-mIg binding stimulus into cell to become an effective intracellular signal • Binding stimulus is mediated by tyrosine kinases (PTKs) • The BCR itself has no PTK activity • Modification of coreceptors • B-cell coreceptor: • To provide stimulatory modifying signals • Complex of CD19, CR2 (CD21) and TAPA-1 (CD18) • CD22 • Associated with the B-cell receptor in resting B cells • A negative signal to make B-cell more difficult to activate

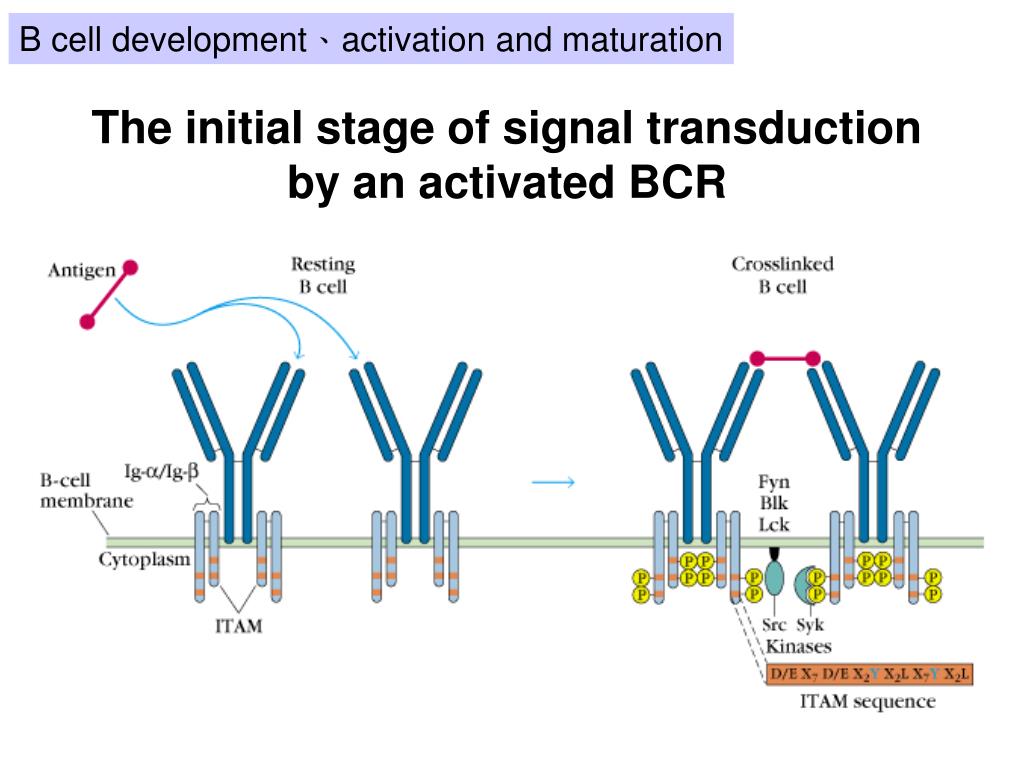

  24. B cell development、activation and maturation The initial stage of signal transduction by an activated BCR

  25. B cell development、activation and maturation • CD19: immunoglobulin superfamily protein, long cytoplasma tail, and three extracellular Ig-fold domain • CR2: receptor of complement (C3d) • TATP-1: transmembrane protein

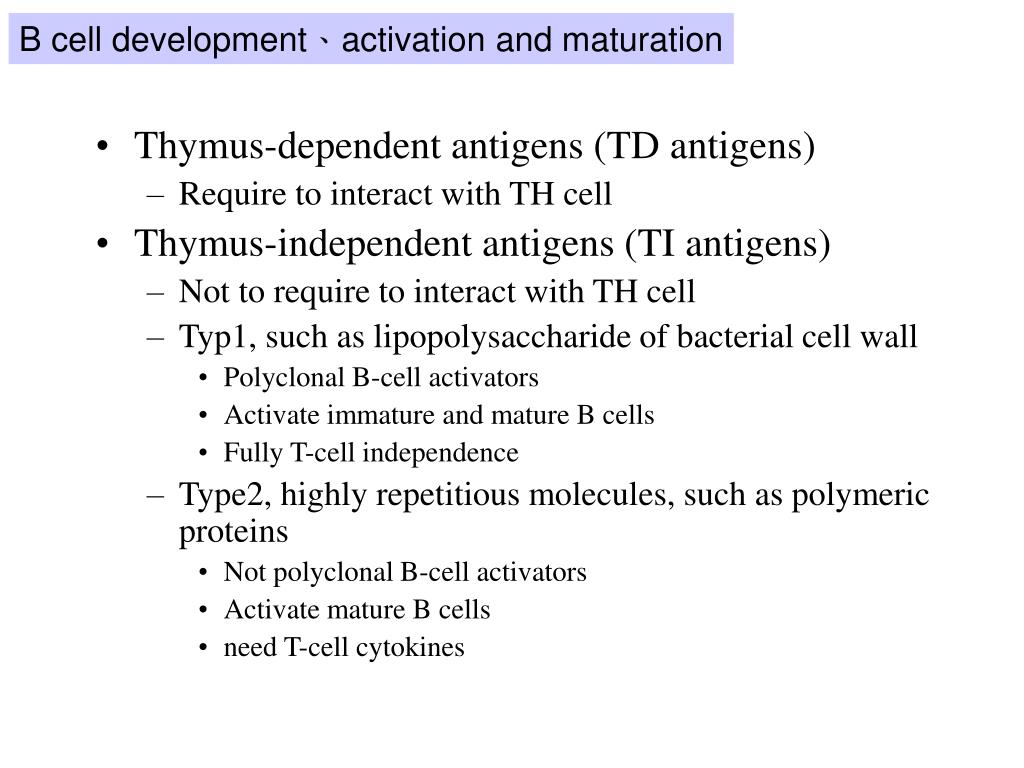

  26. B cell development、activation and maturation • Thymus-dependent antigens (TD antigens) • Require to interact with TH cell • Thymus-independent antigens (TI antigens) • Not to require to interact with TH cell • Typ1, such as lipopolysaccharide of bacterial cell wall • Polyclonal B-cell activators • Activate immature and mature B cells • Fully T-cell independence • Type2, highly repetitious molecules, such as polymeric proteins • Not polyclonal B-cell activators • Activate mature B cells • need T-cell cytokines

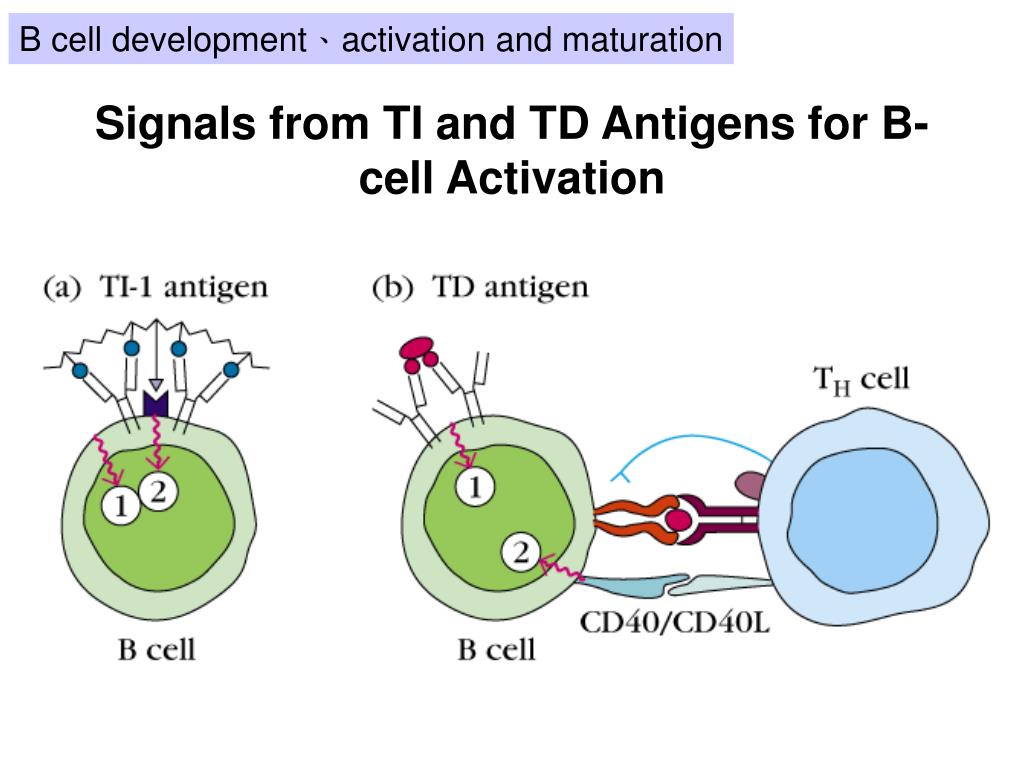

  27. B cell development、activation and maturation Signals from TI and TD Antigens for B-cell Activation

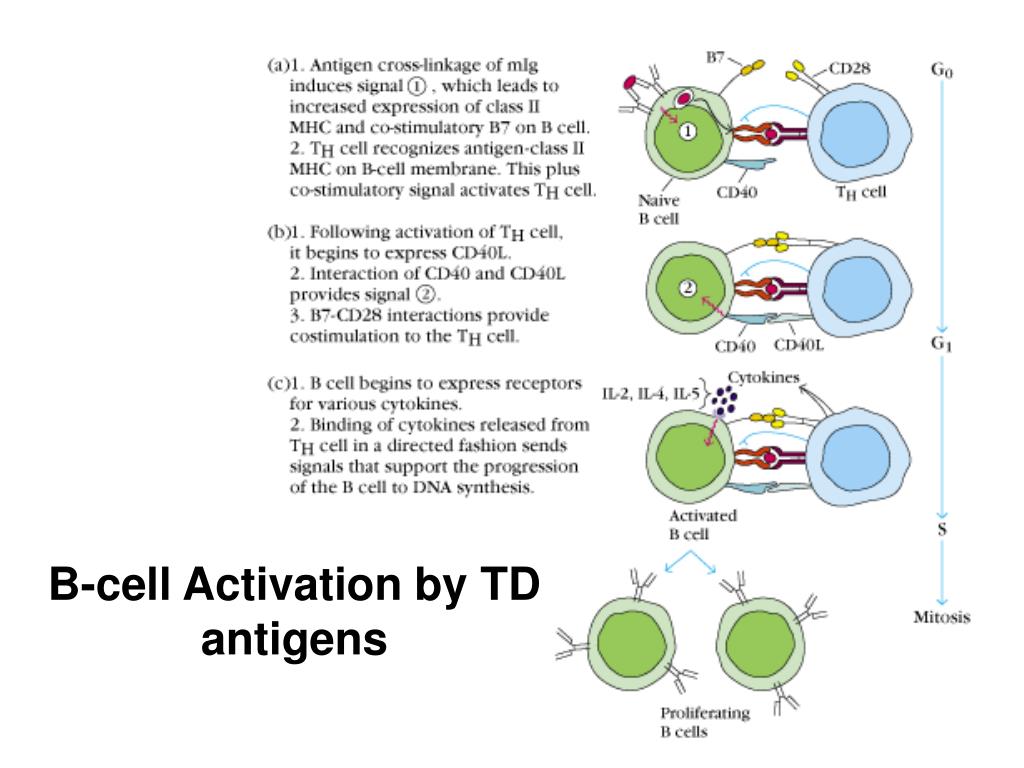

  28. B-cell Activation by TD antigens

  29. The Humoral Responses- Primary and Secondary Response

  30. Class Switching • isotype (class)switching(同種形轉換): • 在B細胞成熟(該時期遇抗原即發生)及增殖時發生。 • 利用heavy chain gene rearrangment來改變免疫球蛋白的類型(此時對於已經完成之VDJ joining比較不會受影響,即會表現出具有相同V區的基因,但此情形會因體細胞基因突變而增加抗體的多樣性)。 • T細胞及其分泌之激素對引發類別轉換具有重要的功能;如T細胞會傾向刺激IgA的形成,IL-4刺激B細胞產生IgG等。

  31. Plasma cell and Memory B cell • Plasma cell : • Plasma cells會移入bone marrow中,因此marrow為人體plasma cell聚集最主要的場所也是循環免抗體的主要來源。 • Plasma cells 無法複製增生,生活期也只有幾天的時間。 • 細胞核具有鐘面。 • Memory B cell(記憶細胞): • 因受抗原活化而產生,且記憶形成後會表現isotype抗體在其細胞表面上,具有循環特性,具有可引導淋巴細胞及組之間homing(自動引導)作用的表面分子。 • 分佈於各淋巴組織的發生中心,此處B細胞抗體可變區基因的變化率很大,選擇性也很高(過程中會使細胞進行自殺作用)。 • 多種記憶性B細胞會聚集於初級淋巴組織中,當受抗原感染時,具專一性之記憶性B細胞變成B細胞母細胞,進行快速增殖及分化。
