Lymphocyte

Chapter 9. Lymphocyte. 淋巴细胞. Introducion. Immune cells.  Specific immune response cells  Non-specific immune response cells. ( T cell 、 B cell and APC ). (phagocyte,NK cell, T cell and B1 cell).  Lymphocytes.  T cell and B cell  NK cell. T Lymphocytes and B Lymphocytes.

palma
Download Presentation

Lymphocyte

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 9 Lymphocyte 淋巴细胞

  2. Introducion • Immune cells Specific immune response cells Non-specific immune response cells ( T cell、B cell and APC ) (phagocyte,NK cell,T cell and B1 cell) Lymphocytes T cell and B cell NK cell

  3. T Lymphocytes and B Lymphocytes •Major cells participated in specific immune response •Common characteristics *heterogenicity (异质性)*ability for recognizing Ag (TCR / BCR) *can induce specific immune response

  4. T lymphocyte T淋巴细胞 • Surface marker • Subsets and function • Development process of T cell in the thymus

  5. Ⅰ.Surface marker of T cell 1.TCR-CD3 complex TCR   A.TCR (TCR/TCR) ---Characteristic marker of all T cell and specific receptor of recognizing Ag V V Structure ---heterodimer thatconsists of  chain and  chain (or  chain and  chain) linked by disulfide-bonds C C  Belong to members of IgSF ---each chain consists of a V and a C region on the extramembrane region orTCR B. CD3 molecule ( ,,,  and  chain)

  6. C.TCR-CD3 complex ---made up ofTCR and CD3 molecules Common model •TCR-CD3(80%~90%) •TCR-CD3 V V Function • CD3:transmit activating signal •TCR:only recognize antigen peptide-MHC complex ITAM /

  7. 2.CD4 and CD8 molecule A. Co-receptor of T cell B. Function T cell CD8+T CD4+T enhance adhension of T cell with APC or target cell(靶细胞) participate in signaltransduction V V V V 2 靶细胞 APC 3.Costimulating signal molecules ---CD28,CD2,LFA-1 and CD40L

  8. 3.Co-stimulating signal molecules (LFA-2) CD40L CD40 (B7.1/B7.2) (CD58) APC (CD28-B7最重要) •CD28,CD2 and LFA-1 binding to ligand on the surface of APC →costimulating signal of activation for T Cell • CD40L- -CD40 →co-stimulatory signal of activation for B cell • CTLA-4--B7.1/B7.2→suppressive signal for activative T cell

  9. 4. Mitogen receptor A.Mitogen receptor --- Various membrane molecules of recognizing mitogenon the surface of T cell PHA-receptor (植物血凝素受体) ConA- receptor (刀豆蛋白A受体) B.Mitogen binding to mitogen receptor →activation, proliferation and trans- formation of T cell (lymphocyte transformation test)

  10. Ⅱ.Subsets and Function of T Cells 1.TCR T cell ＆TCR T cell 2.CD4+T cell ＆ CD8+T cell 3.Th,Tc,Ts and TDTH cell 4.Naive T cell & memory T cell 5.NK1.1+ T cell

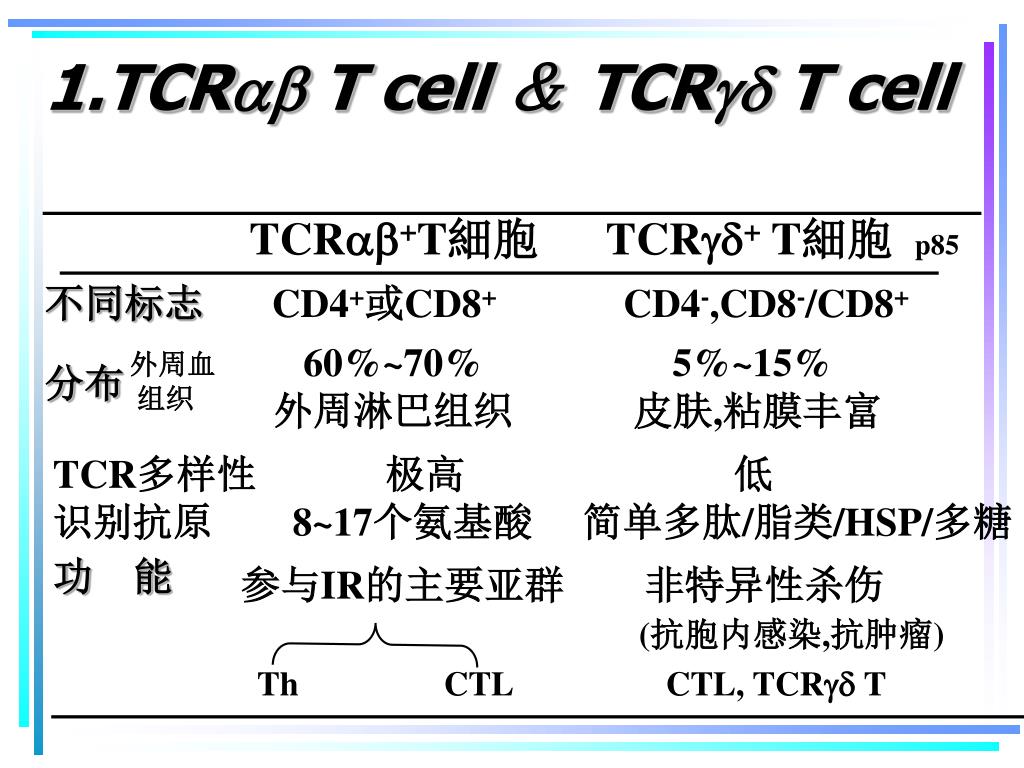

  11. 1.TCR T cell ＆ TCR T cell TCR+T細胞TCR+ T細胞 p85 不同标志 CD4+或CD8+ CD4-,CD8-/CD8+ 60%~70% 5%~15% 外周淋巴组织 皮肤,粘膜丰富 外周血 组织 分布 TCR多样性极高 低 识别抗原 8~17个氨基酸 简单多肽/脂类/HSP/多糖 功 能 参与IR的主要亚群 非特异性杀伤 (抗胞内感染,抗肿瘤) Th CTL CTL, TCR T

  12. 2.CD4+T cell ＆ CD8+T cell Common surface marker Recognize antigen ---CD2+ 、CD3+ 、TCR+ ---only recognize antigen peptide- MHC complex

  13. A. CD4+T cell (CD4+CD8-TCR+) Recognize antigen peptide Subtype Function ---consisits of 13~17 amino acid residue and restricted by MHC-Ⅱmolecules •Th and TDTH(help T cell and delayed type hypersensitivity T cell)•Th1 and Th2 •mediate immune response •take part inimmunoregulation •activate M and NK cell

  14. Ag Th0 IL-10 IL-2, IL-12 IFN-  IL-4 Th2 Th1 IL-4 ,5,6 , IL-10,13 IL-2, IL-12, IFN-, TNF B cell Tc;TDTH + + CMI HI ---参与细胞免疫,介导细胞毒及迟发型超敏性炎症 ---参与体液免疫(辅助B细胞产生抗体)

  15. B. CD8+T cell(CD4-CD8+ TCR+) (also called cytotoxic T lymphocyte, CTL/Tc) Recognize Ag and cytotoxicity Subtype  Function ---consisits of 8~10 amino acid residue and restricted by MHC-Ⅰmolecules •Tc and Ts•Tc 1 and Tc 2 Feature: specifically directly repeatedly • cytotoxicity • relate to graft rejection *kill target cells *mechanism:cytolysis and apoptosis

  16. 3.Th ,Ts ,Tc and TDTHcells (抑制免疫应答) A.Th and Ts cell B.Tc and TDTH cell (regulatory T cell) (介导 DTH, 引起炎症反应) (effector T cells) CD4+T细胞和CD8+T细胞既是效应性T细胞,又是调节性细胞

  17. 4.Naive T cell & memory T cell naive(初始)T cell (CD45RA+) Ag effector T (Tc,TDTH) activated T menory T (CD45RO+ ) 5.NK1.1+ T cell (NK1.1+, TCR-CD3+,DN/CD4+ ) cytotoxicity immunoregulation (non-specific killing effects) (secrete IL-4,IFN-)

  18. Ⅲ. Development process of T cell in the thymus 1. Development of TCR IL-7,SCF IL-2,IL-4 pro-T →→ →→ pre-T cell selection process CD2+CD5+ CD4- CD8- CD3+ (DN cell) pT+,TCR+→preTCR CD2+ CD3＋CD4+ CD8+ + (DP cell) CD3low, TCR+ 2. Selection process mature T cell •Positive selection •Negative selection CD4+/ CD8+(SP cell) TCR-CD3+

  19. pro-T (DN) 自身肽 MHC-Ⅰ pre-T 5% (SP) (DP) MHC-Ⅱ pre-T CD4 (DC/M) pre-T (95%)

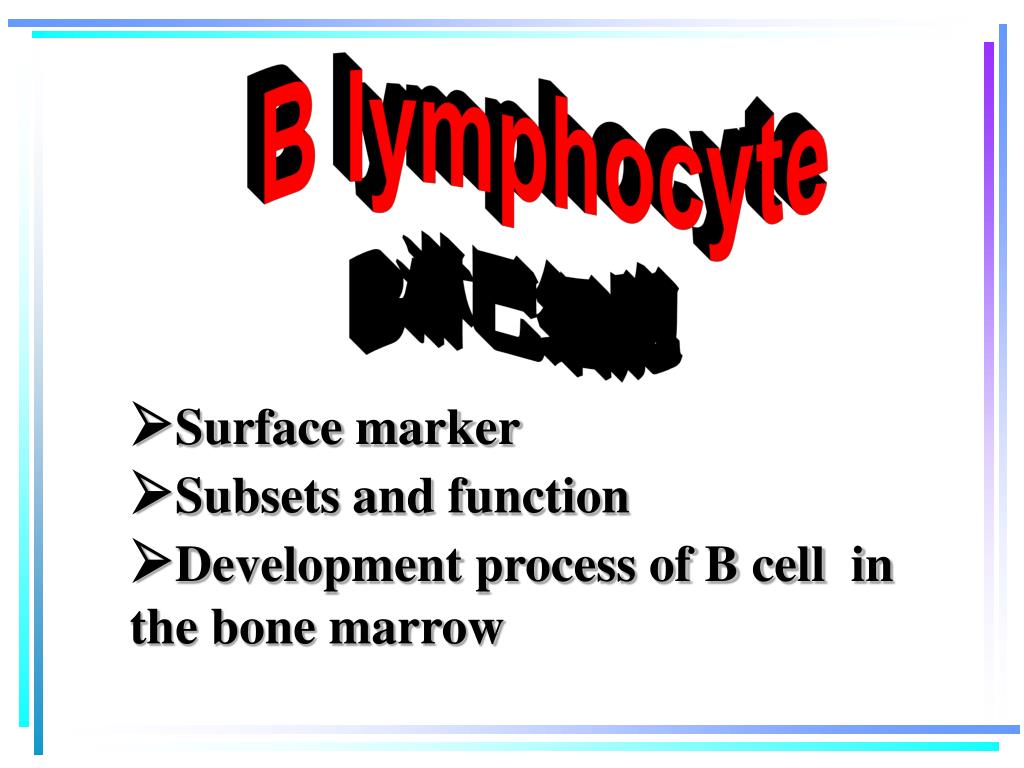

  20. B lymphocyte B淋巴细胞 Surface marker Subsets and functionDevelopment process of B cell in the bone marrow

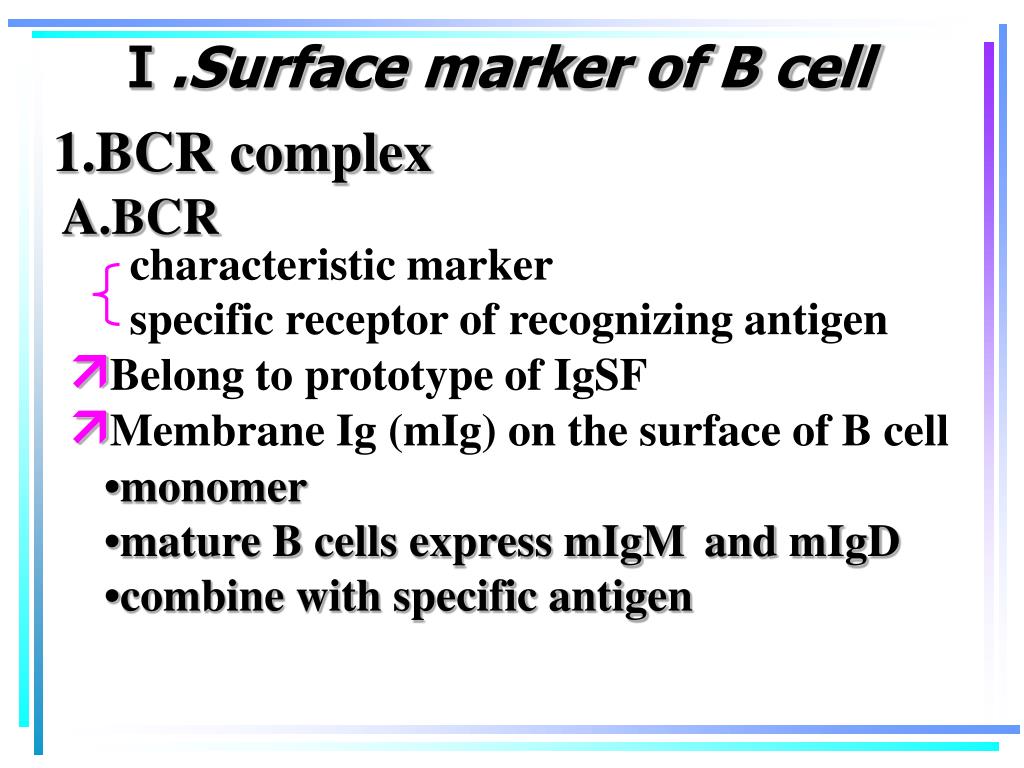

  21. Ⅰ.Surface marker of B cell 1.BCR complex A.BCR characteristic marker specific receptor of recognizing antigen Belong to prototype of IgSFMembrane Ig (mIg) on the surface of B cell •monomer •mature B cells express mIgM and mIgD•combine with specific antigen

  22. B.BCR complex Structure ---consist of BCR and Ig/Ig Function Ag binding site •BCR (B cell receptor ) •Ig / Ig ---combine with specific Ag *signal transduction molecules *take part in expression and transport of mIg chain BCR -Ig/Ig

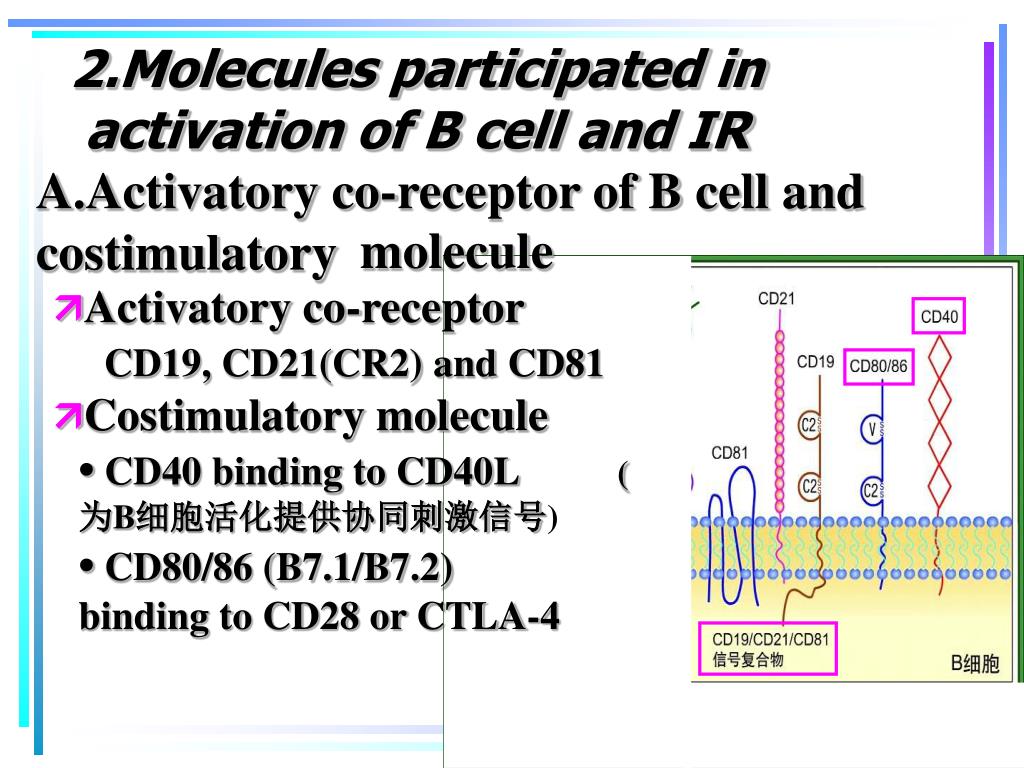

  23. 2.Molecules participated in activation of B cell and IR A.Activatory co-receptor of B cell and costimulatory molecule Activatory co-receptor CD19, CD21(CR2) and CD81 Costimulatory molecule •CD40 binding to CD40L (为B细胞活化提供协同刺激信号) •CD80/86 (B7.1/B7.2) binding to CD28 or CTLA-4

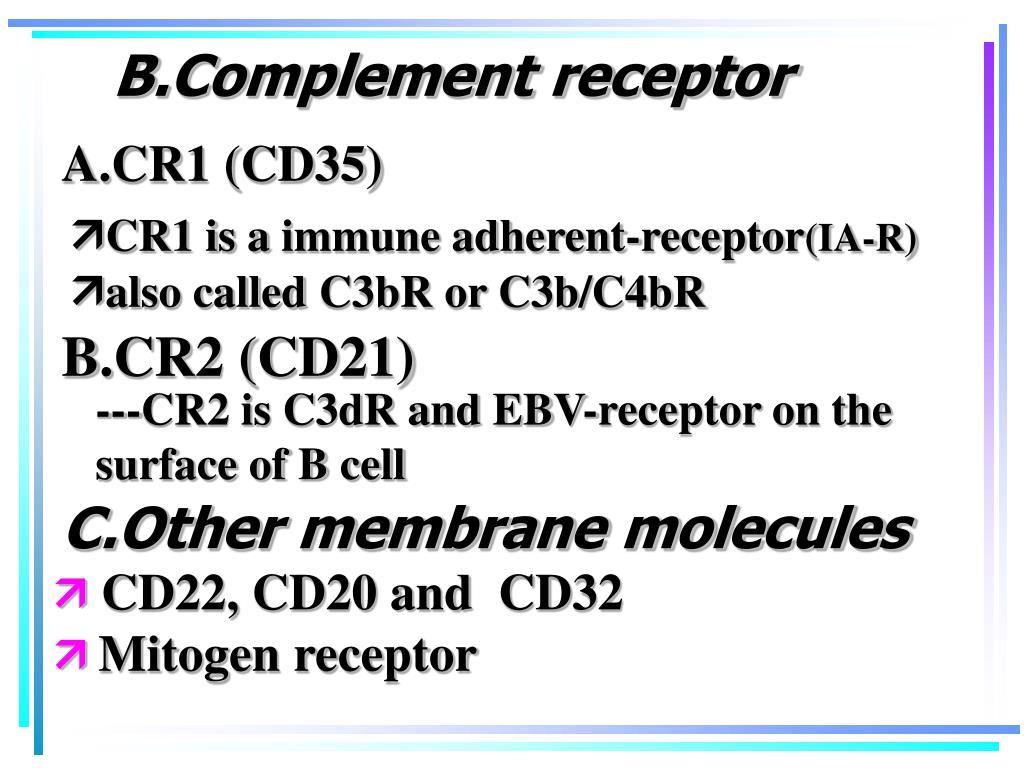

  24. B.Complement receptor A.CR1 (CD35) CR1 is a immune adherent-receptor(IA-R)also calledC3bR or C3b/C4bR B.CR2 (CD21) ---CR2 is C3dR and EBV-receptor on the surface of B cell C.Other membrane molecules CD22, CD20 and CD32 Mitogen receptor

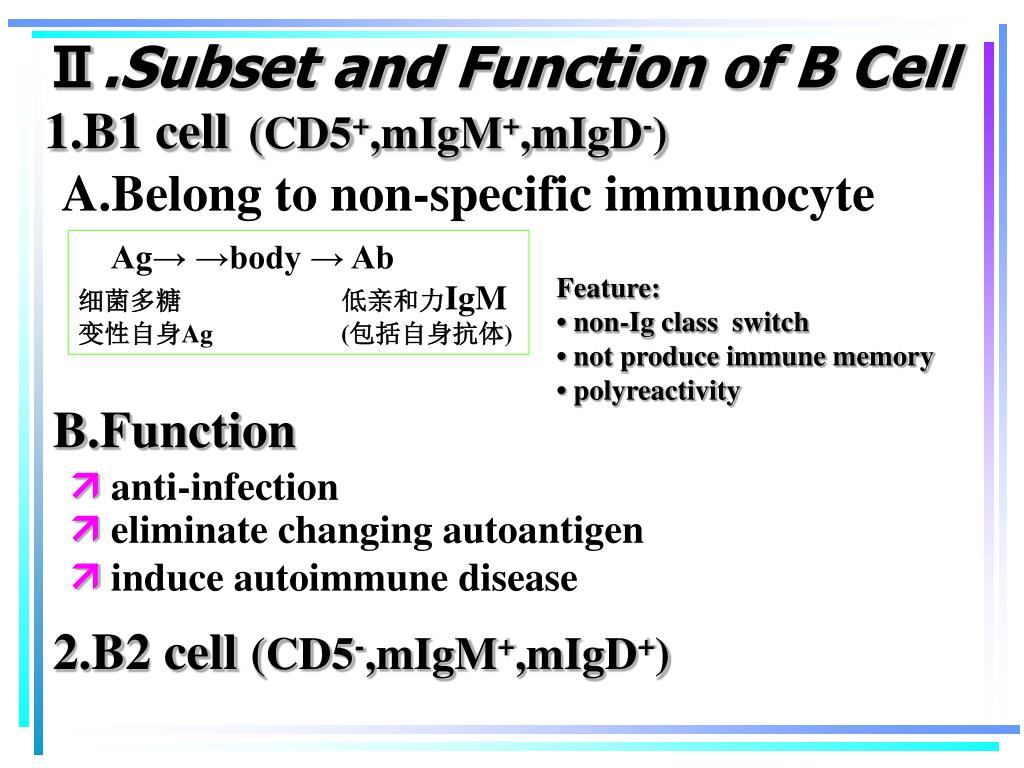

  25. Ⅱ.Subset and Function of B Cell 1.B1 cell(CD5+,mIgM+,mIgD-) A.Belong to non-specific immunocyte Ag→ →body → Ab 细菌多糖 低亲和力IgM 变性自身Ag (包括自身抗体) Feature: • non-Ig class switch • not produce immune memory • polyreactivity B.Function anti-infection  eliminate changing autoantigen induce autoimmune disease 2.B2 cell(CD5-,mIgM+,mIgD+)

  26. 2.B2 cell(CD5-,mIgM+,mIgD+) A.Major cells participated in IR B.Function Participate in humoral immunity Antigen presenting cell (APC) Secrite CKs ---produce Abs of single specificity and high affinity (presenting of processing peptide to T cell) (participate in immunoregulation)

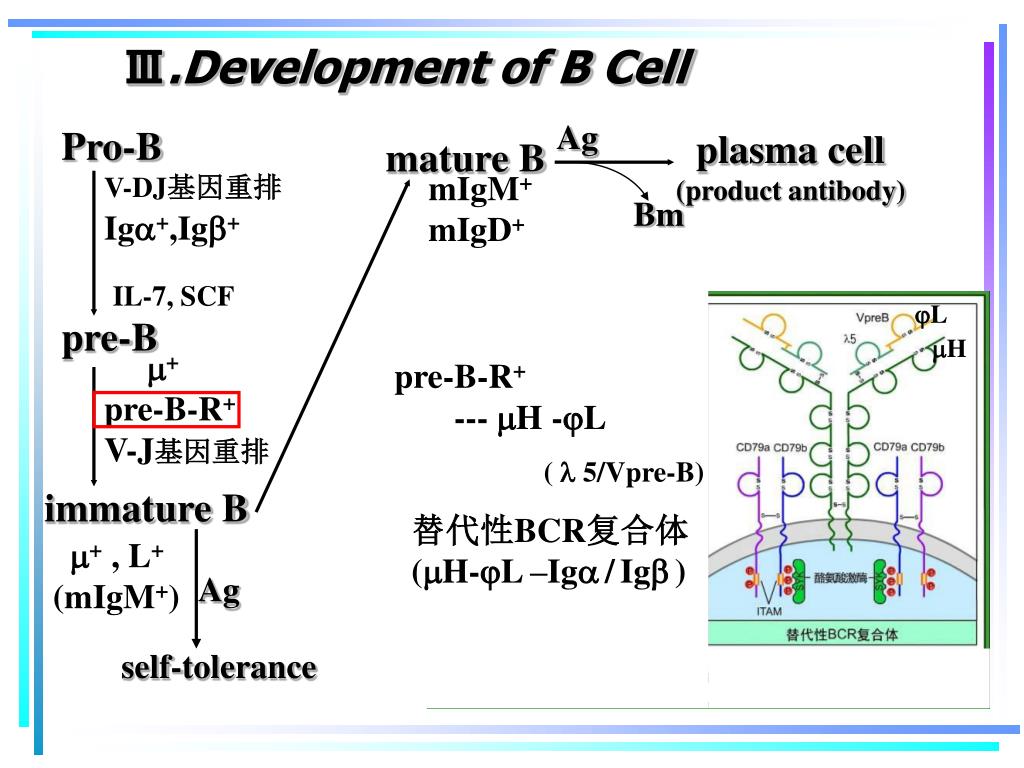

  27. Ⅲ.Development of B Cell Ag Pro-B plasma cell (product antibody) mature B V-DJ基因重排Ig+,Ig+ mIgM+ mIgD+ Bm IL-7, SCF L pre-B H + pre-B-R+ V-J基因重排 pre-B-R+ --- H -L (  5/Vpre-B) immature B 替代性BCR复合体(H-L –Ig/Ig) + , L+ (mIgM+) Ag self-tolerance

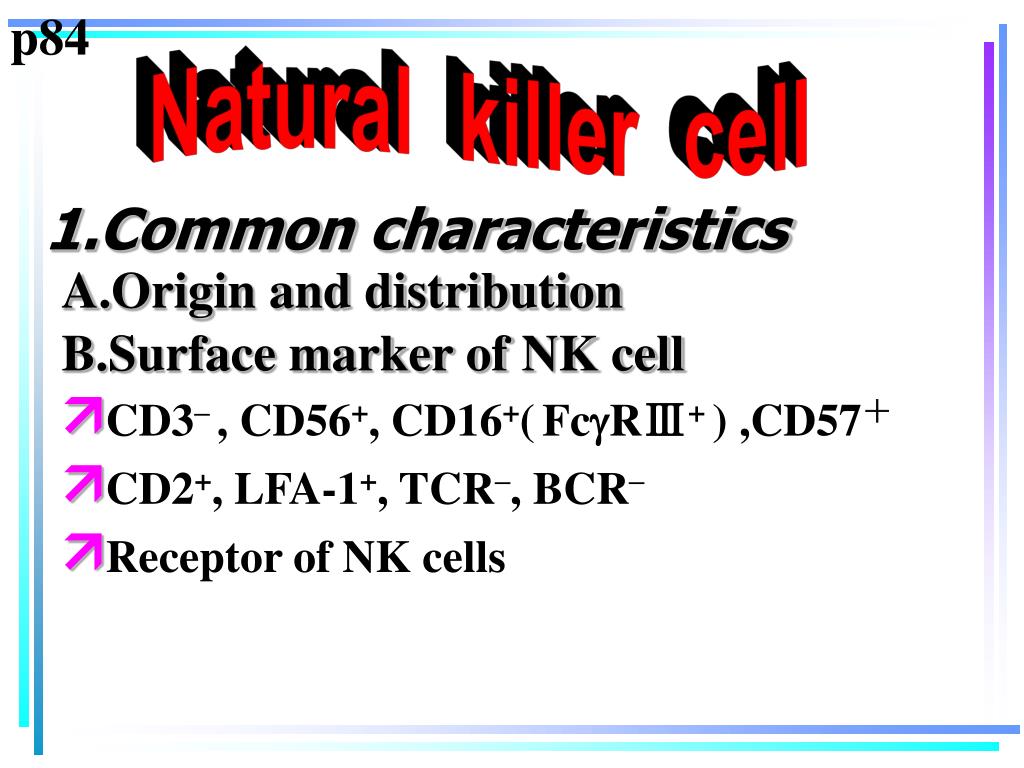

  28. p84 Natural killer cell 1.Common characteristics A.Origin and distribution B.Surface marker of NK cell CD3– , CD56+, CD16+(FcRⅢ+ ) ,CD57＋ CD2+, LFA-1+, TCR–, BCR–Receptor of NK cells

  29. KAR KIR (contain ITAM) (contain ITIM) ligand polysaccharide MHC-Ⅰmolecules produce signal activatory signal inhibitory signal (占主导) kill target cells loss of killer activity (病毒感染细胞/肿瘤细胞) (自身组织细胞不被破坏)

  30. 2.Biologic function of NK cell A.Anti-infection and anti-tumor B.Participate in immunoregulation kill target cells---natural killer activity mechanism •AM of NK cell binding to corresponding ligand of target cell → necrosis or apoptosis of cells •mediate ADCC andrelease killer mediator (secrete IFN-,IL-1,GM-CSF)
