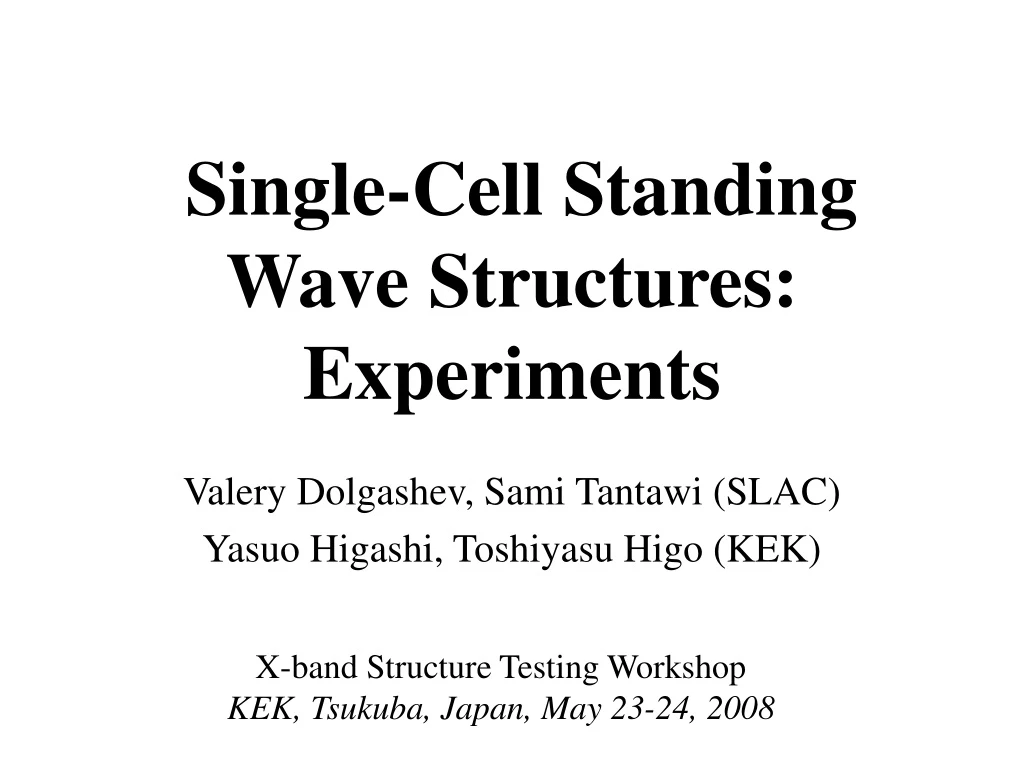

  1. Single-Cell Standing Wave Structures: Experiments Valery Dolgashev, Sami Tantawi (SLAC) Yasuo Higashi, Toshiyasu Higo (KEK) X-band Structure Testing Workshop KEK, Tsukuba, Japan, May 23-24, 2008

  2. This work is made possible by the efforts of • A. Yeremian, J. Lewandowski, C. Pearson, J. Eichner, D. Martin, C. Yoneda, L. Laurent, R. Talley, J. Zelinski and staff of SLAC Klystron Lab.

  3. Outline • Standing Wave Structures • Results • Low shunt impedance • One-Cell-Structures • Three-Cell-Structures • TiN Coated Single Cell Structure • High shunt impedance • Thick elliptical iris • Thin round iris

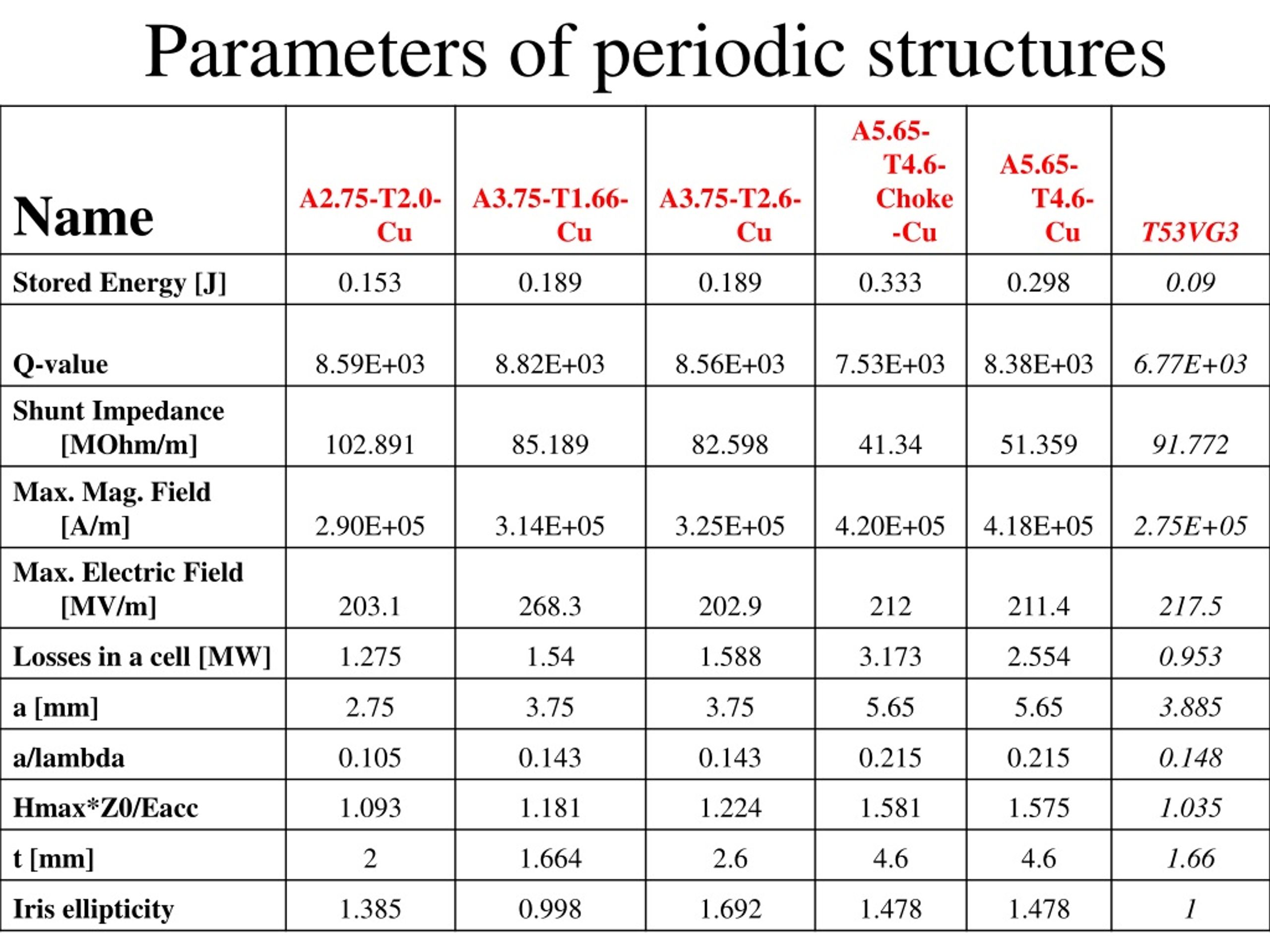

  4. Parameters of periodic structures

  5. Pulse Shapes

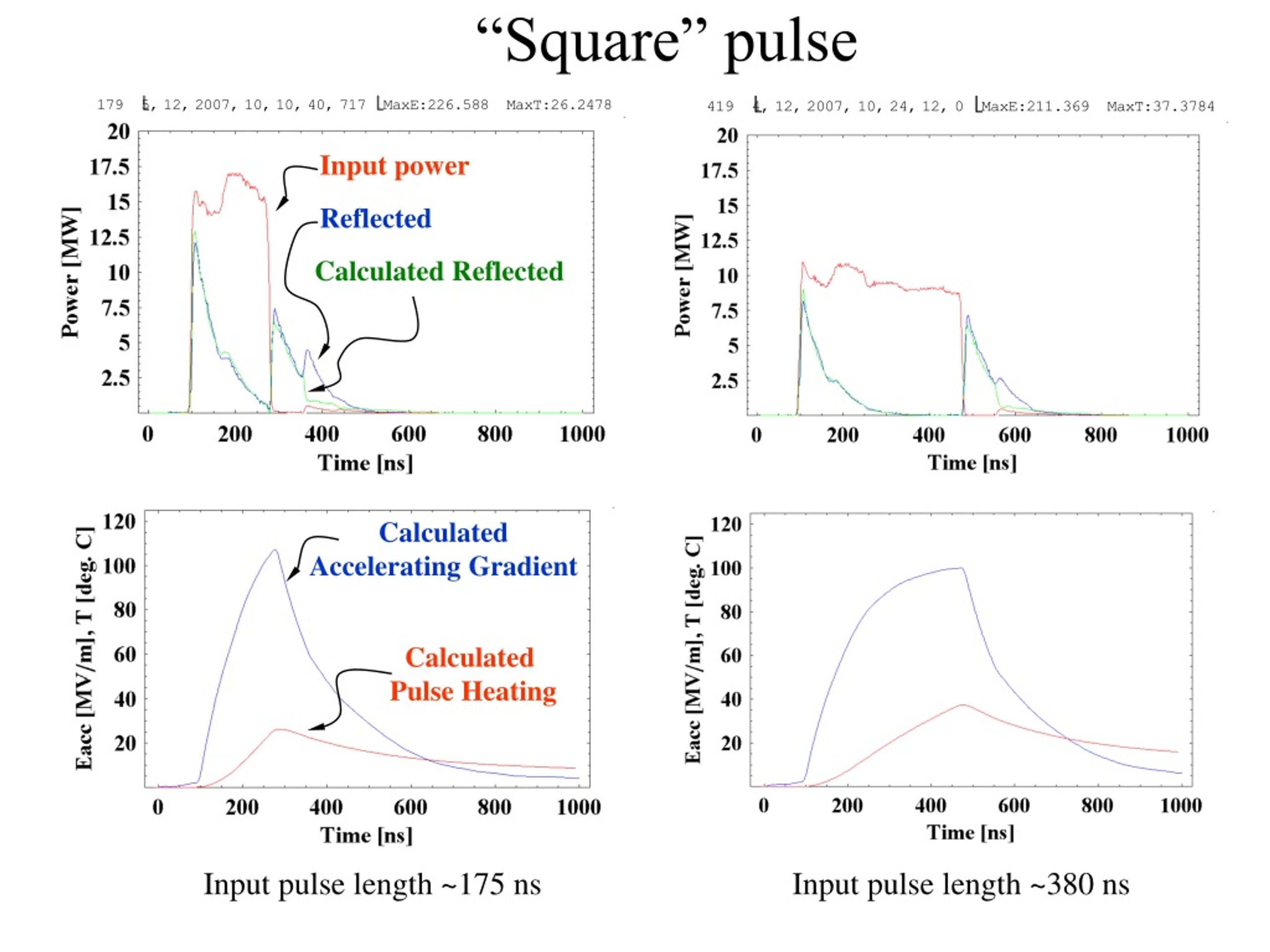

  6. “Square” pulse Input power Reflected Calculated Reflected Calculated Accelerating Gradient Calculated Pulse Heating Input pulse length ~175 ns Input pulse length ~380 ns

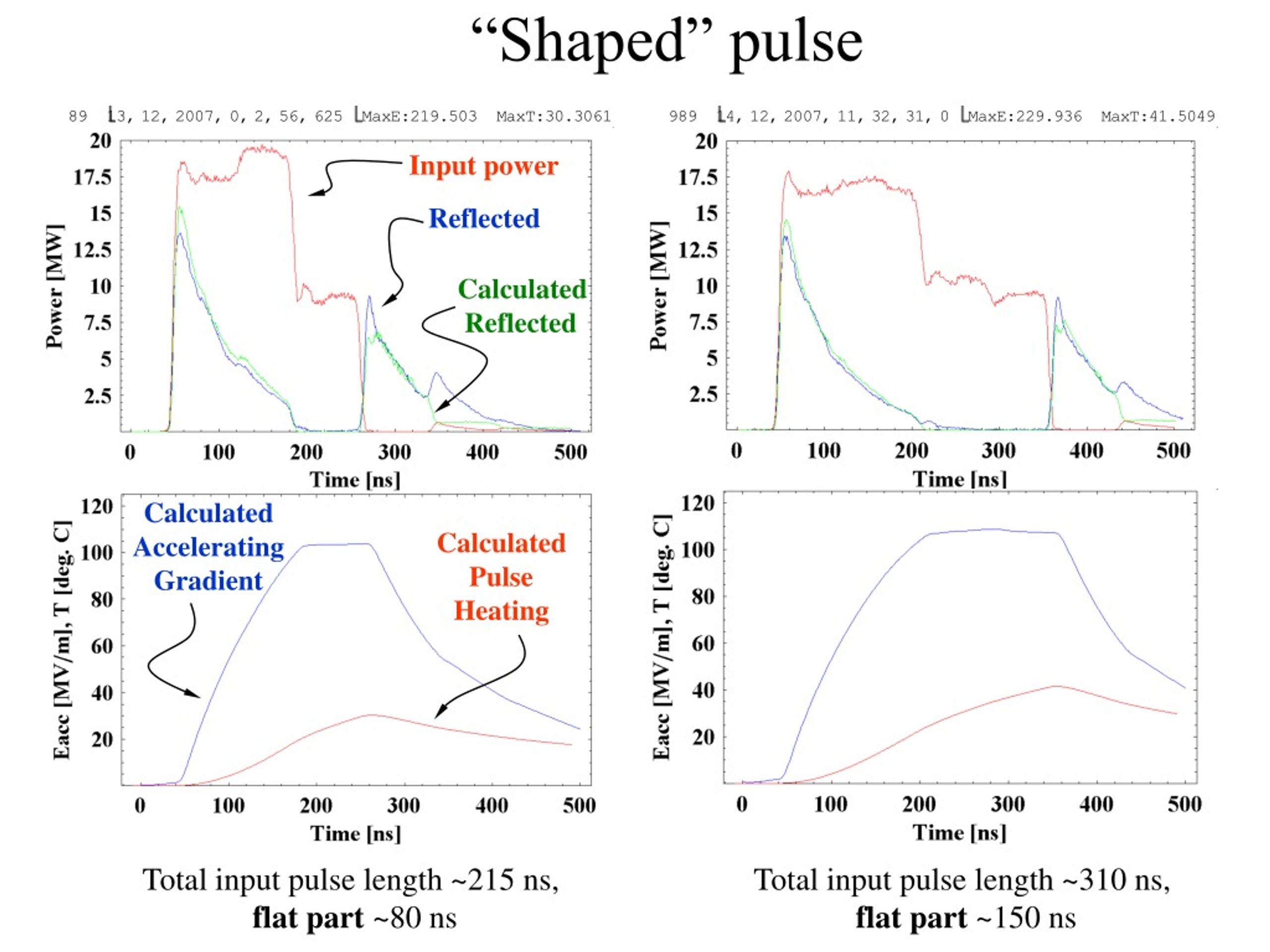

  7. “Shaped” pulse Input power Reflected Calculated Reflected Calculated Accelerating Gradient Calculated Pulse Heating Total input pulse length ~215 ns, flat part ~80 ns Total input pulse length ~310 ns,flat part ~150 ns

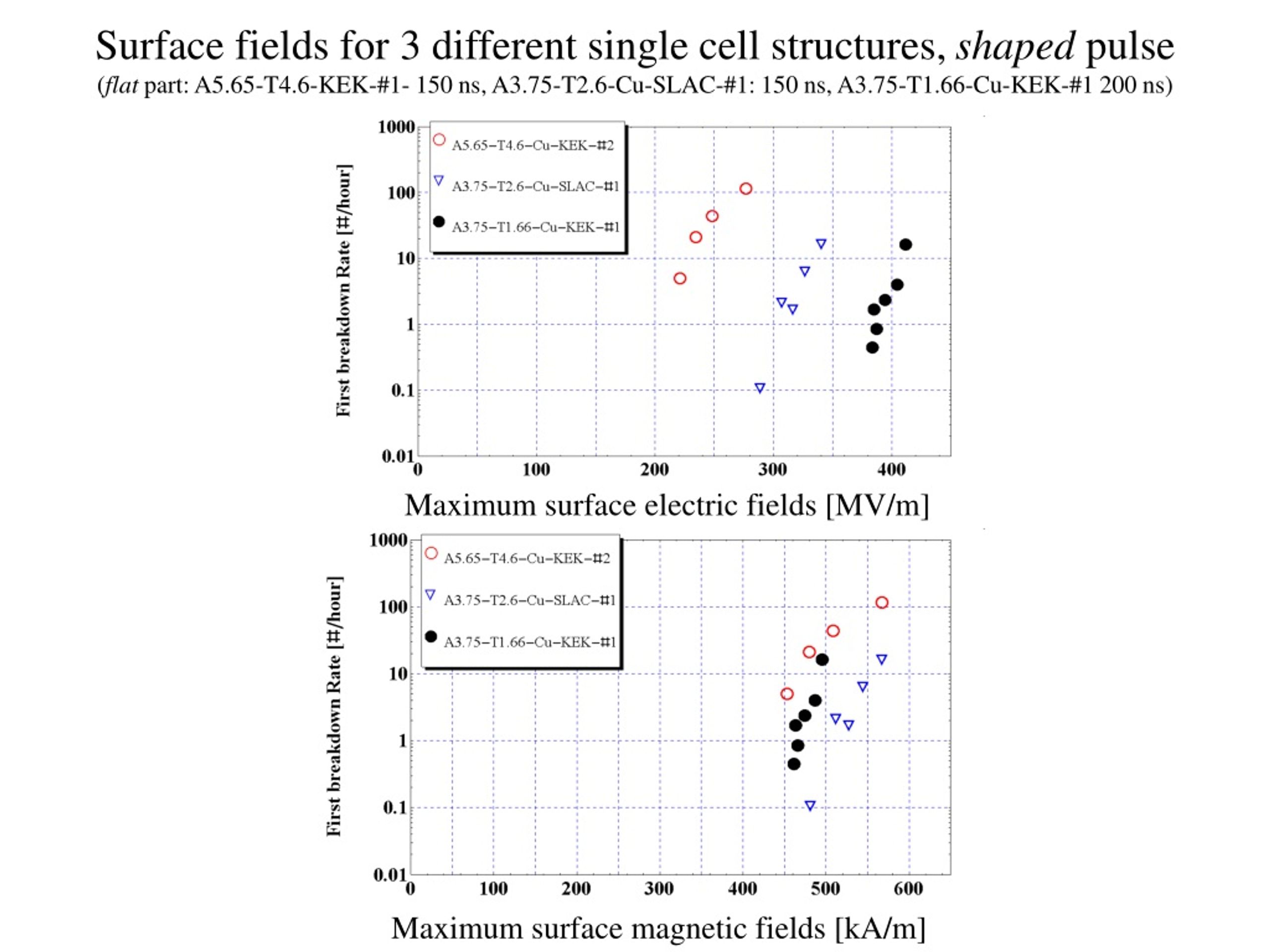

  8. Surface fields for 3 different single cell structures, shaped pulse(flat part: A5.65-T4.6-KEK-#1- 150 ns, A3.75-T2.6-Cu-SLAC-#1: 150 ns, A3.75-T1.66-Cu-KEK-#1 200 ns) Maximum surface electric fields [MV/m] Maximum surface magnetic fields [kA/m]

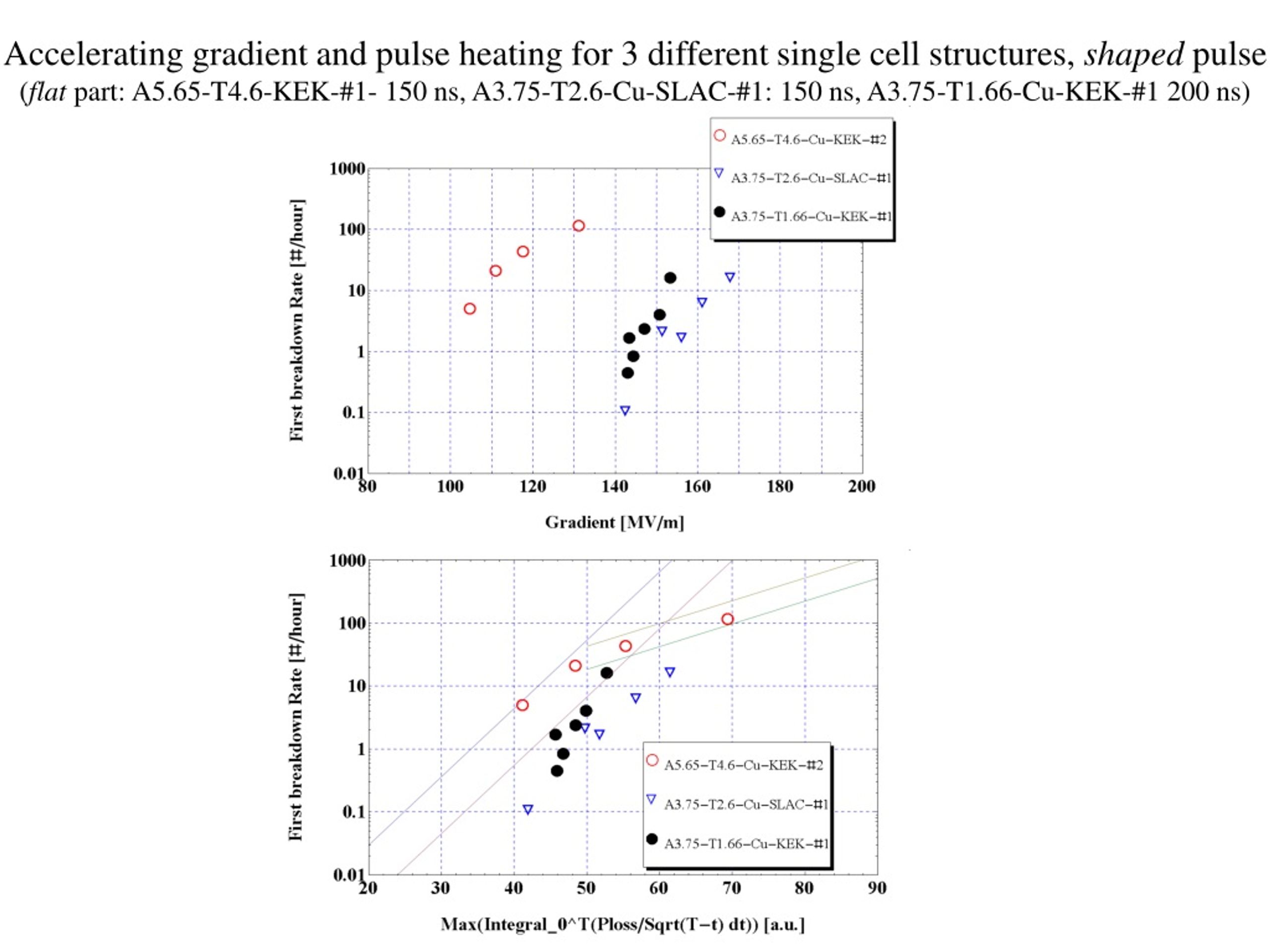

  9. Accelerating gradient and pulse heating for 3 different single cell structures, shaped pulse (flat part: A5.65-T4.6-KEK-#1- 150 ns, A3.75-T2.6-Cu-SLAC-#1: 150 ns, A3.75-T1.66-Cu-KEK-#1 200 ns)

  10. Grain boundary on iris of 1C-SW-A5.65-T4.6-Cu-KEK-#2 Grain boundary in high electric field area Grain boundary in high magnetic field area Lisa Laurent, 20 March 2008

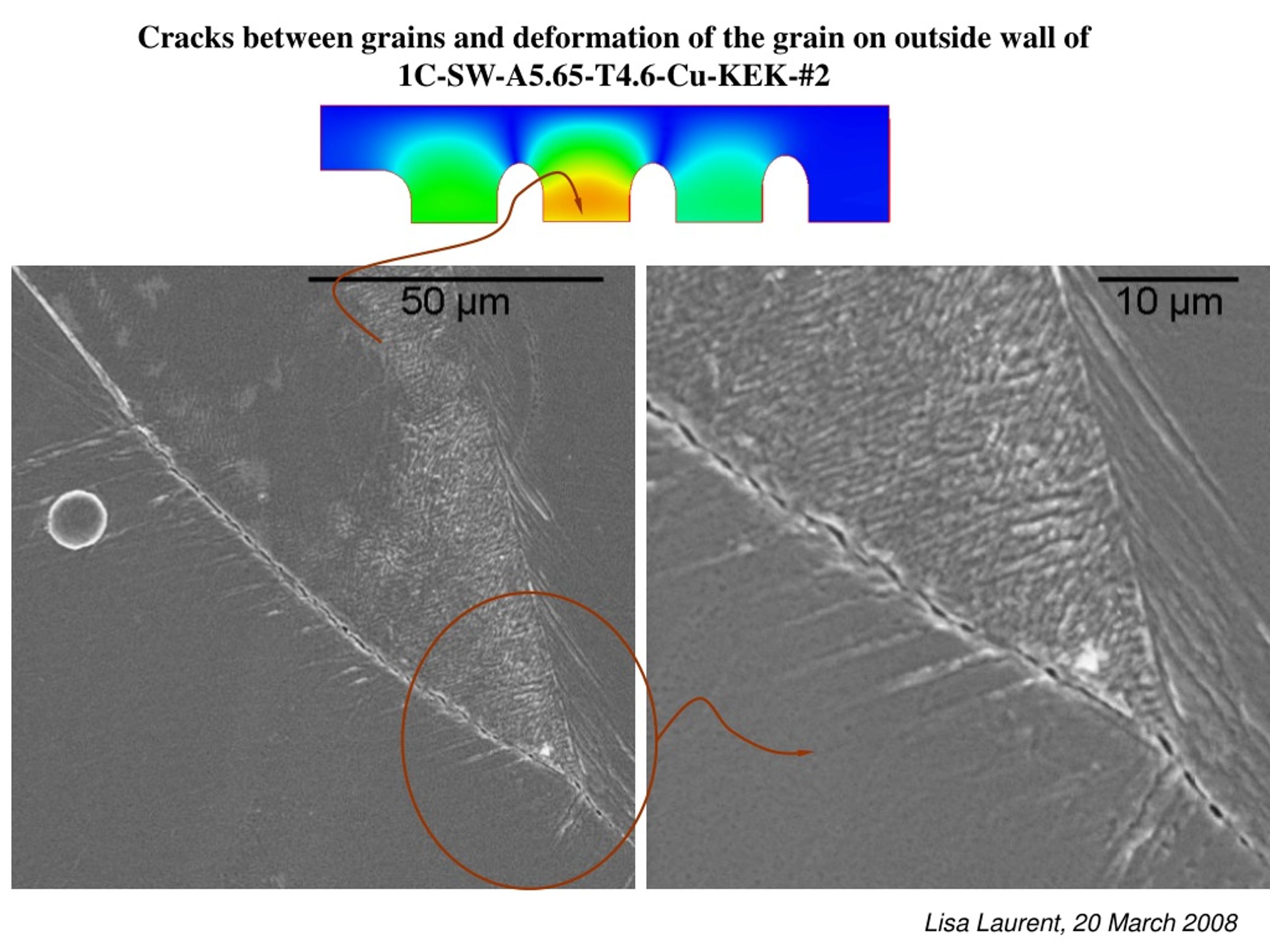

  11. Cracks between grains and deformation of the grain on outside wall of 1C-SW-A5.65-T4.6-Cu-KEK-#2 Lisa Laurent, 20 March 2008

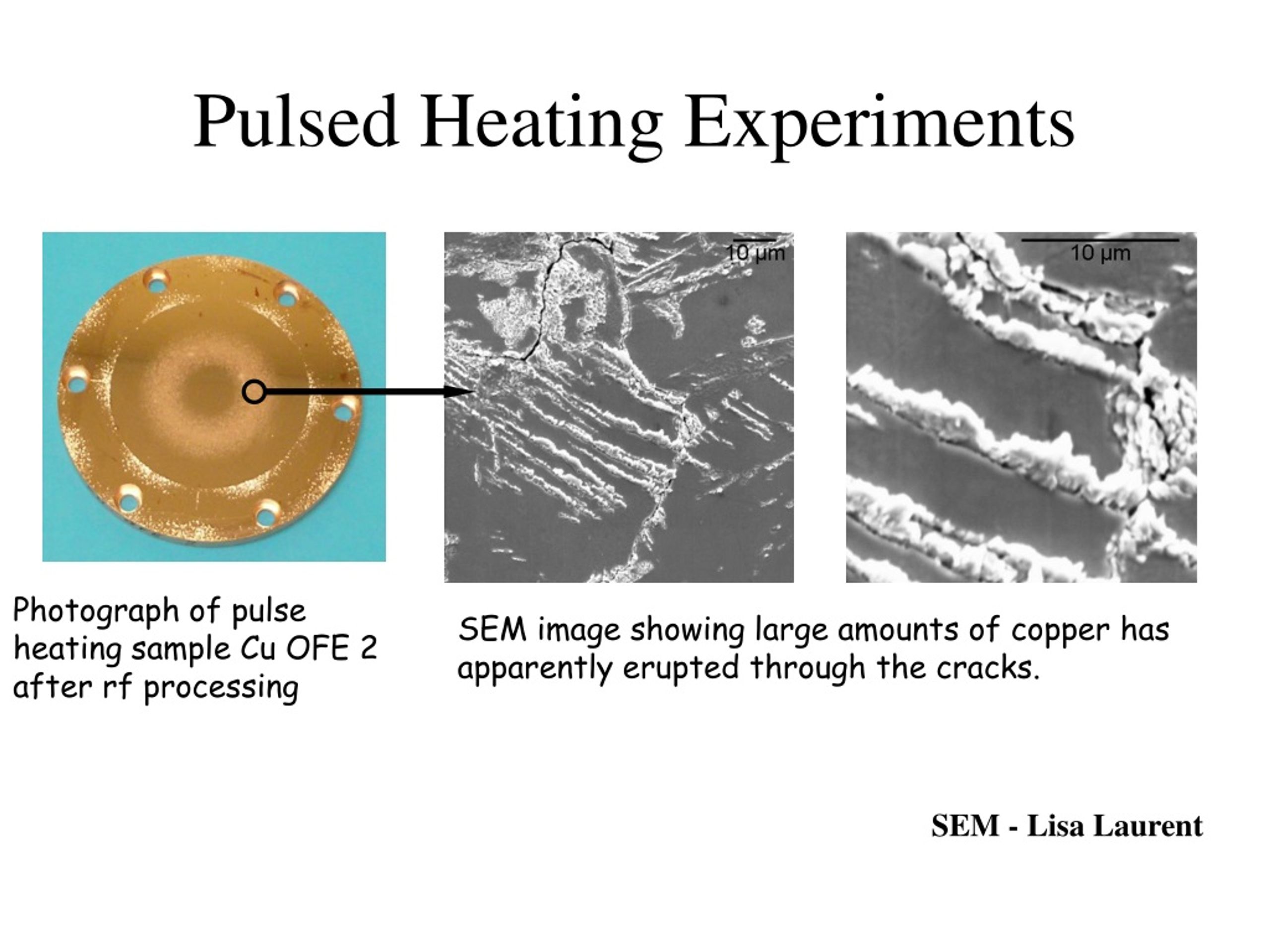

  12. Pulsed Heating Experiments Photograph of pulse heating sample Cu OFE 2 after rf processing SEM image showing large amounts of copper has apparently erupted through the cracks. SEM - Lisa Laurent

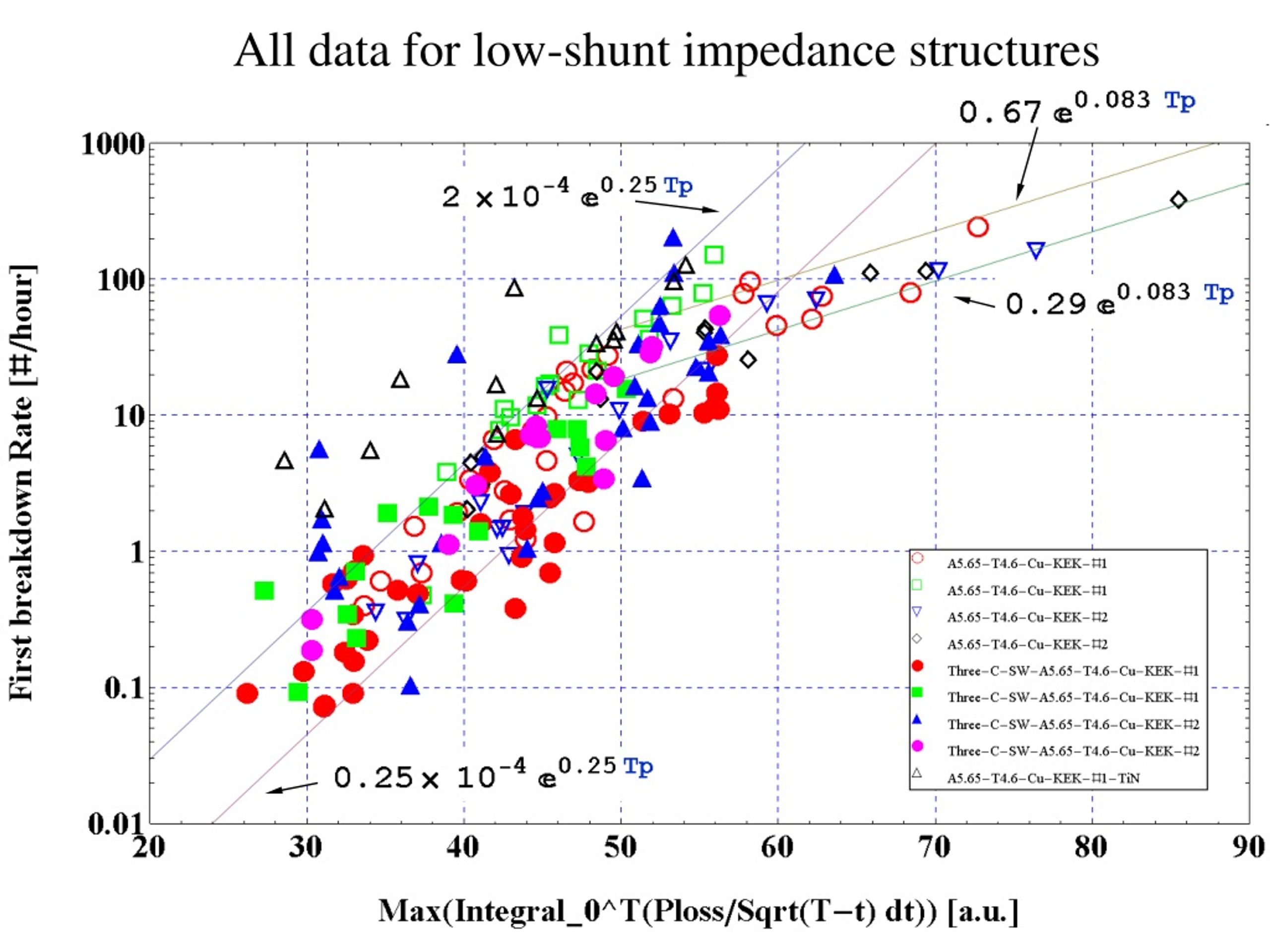

  13. All data for low-shunt impedance structures

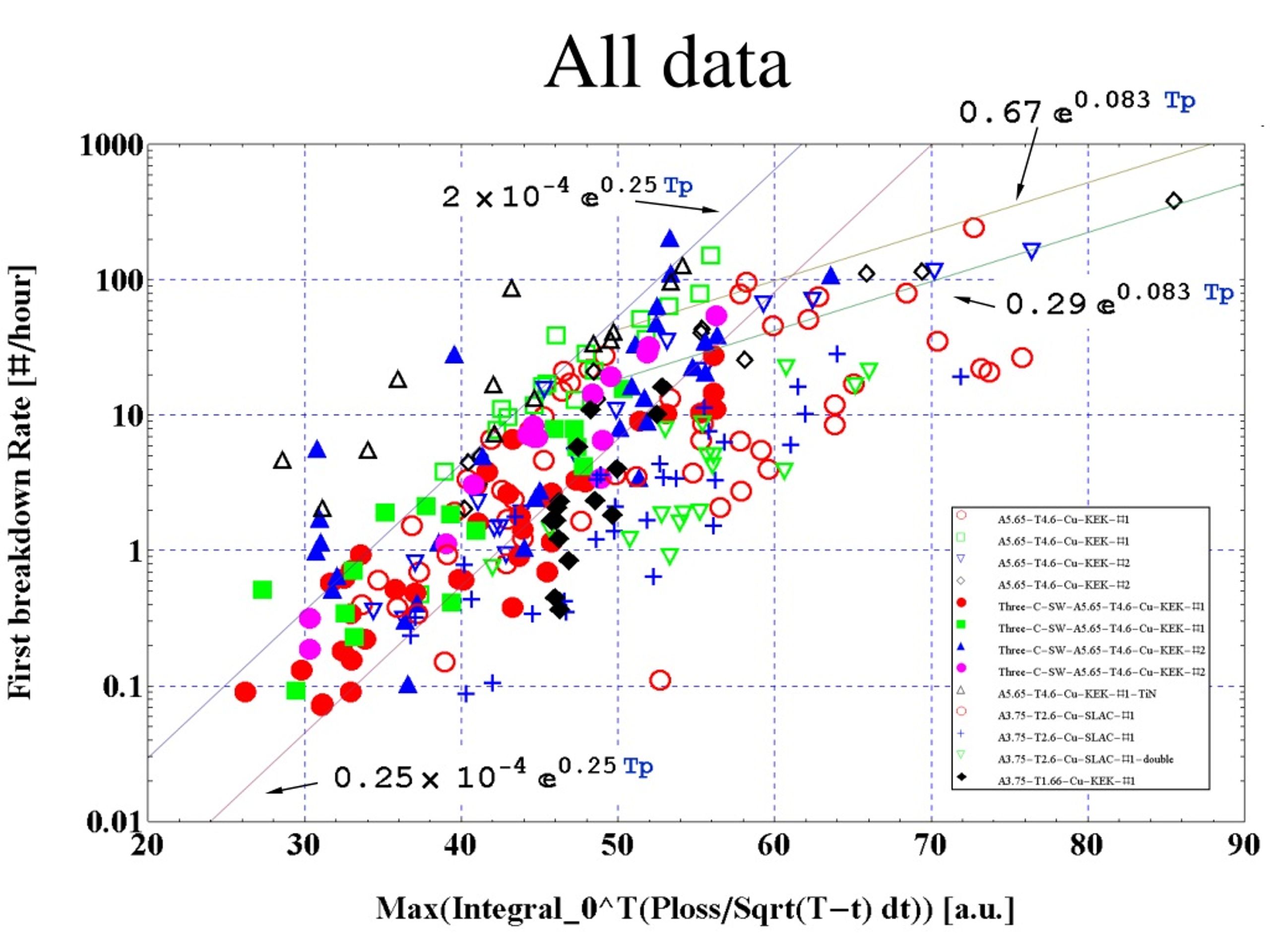

  14. All data

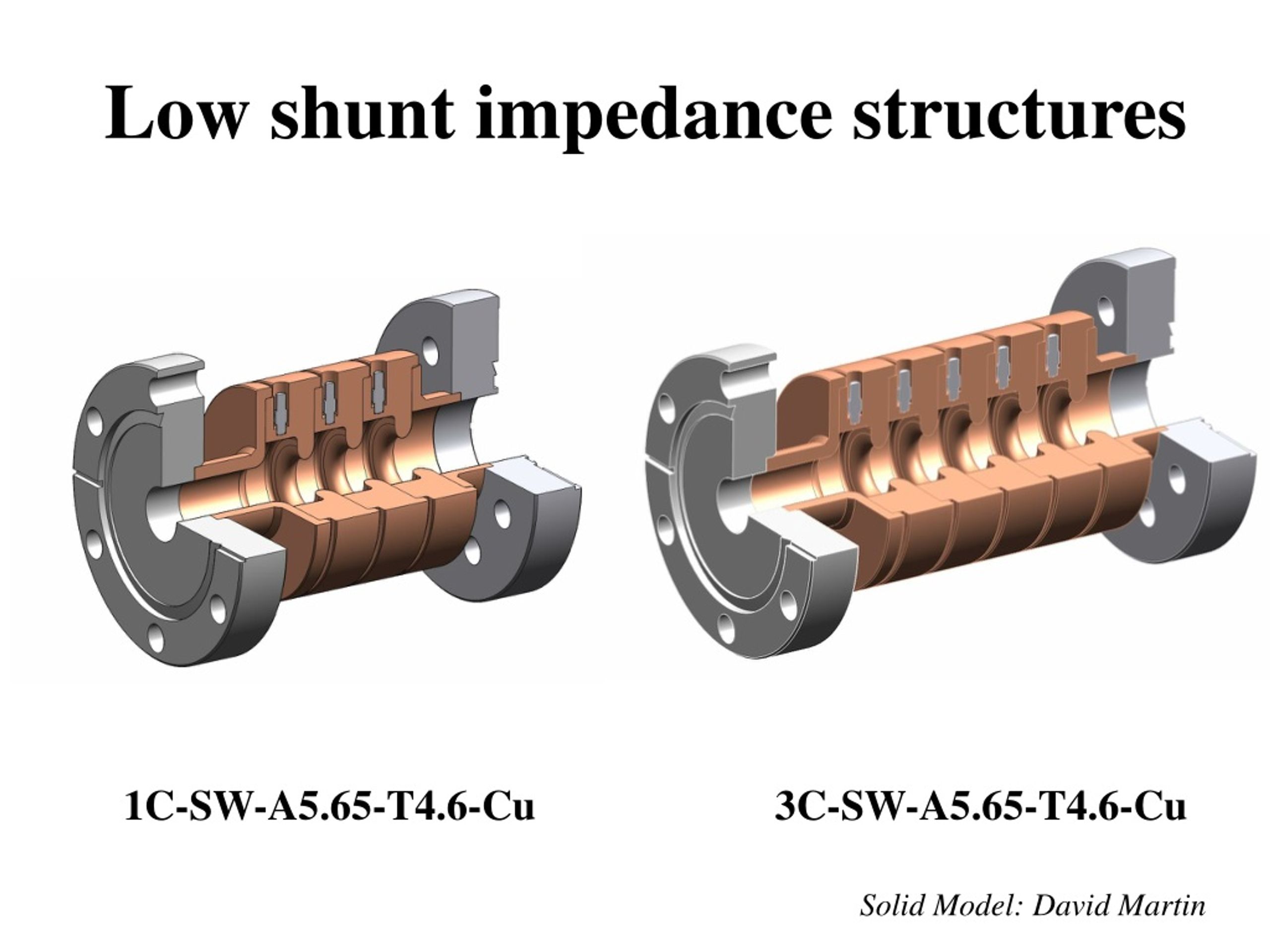

  15. Low shunt impedance structures 1C-SW-A5.65-T4.6-Cu 3C-SW-A5.65-T4.6-Cu Solid Model: David Martin

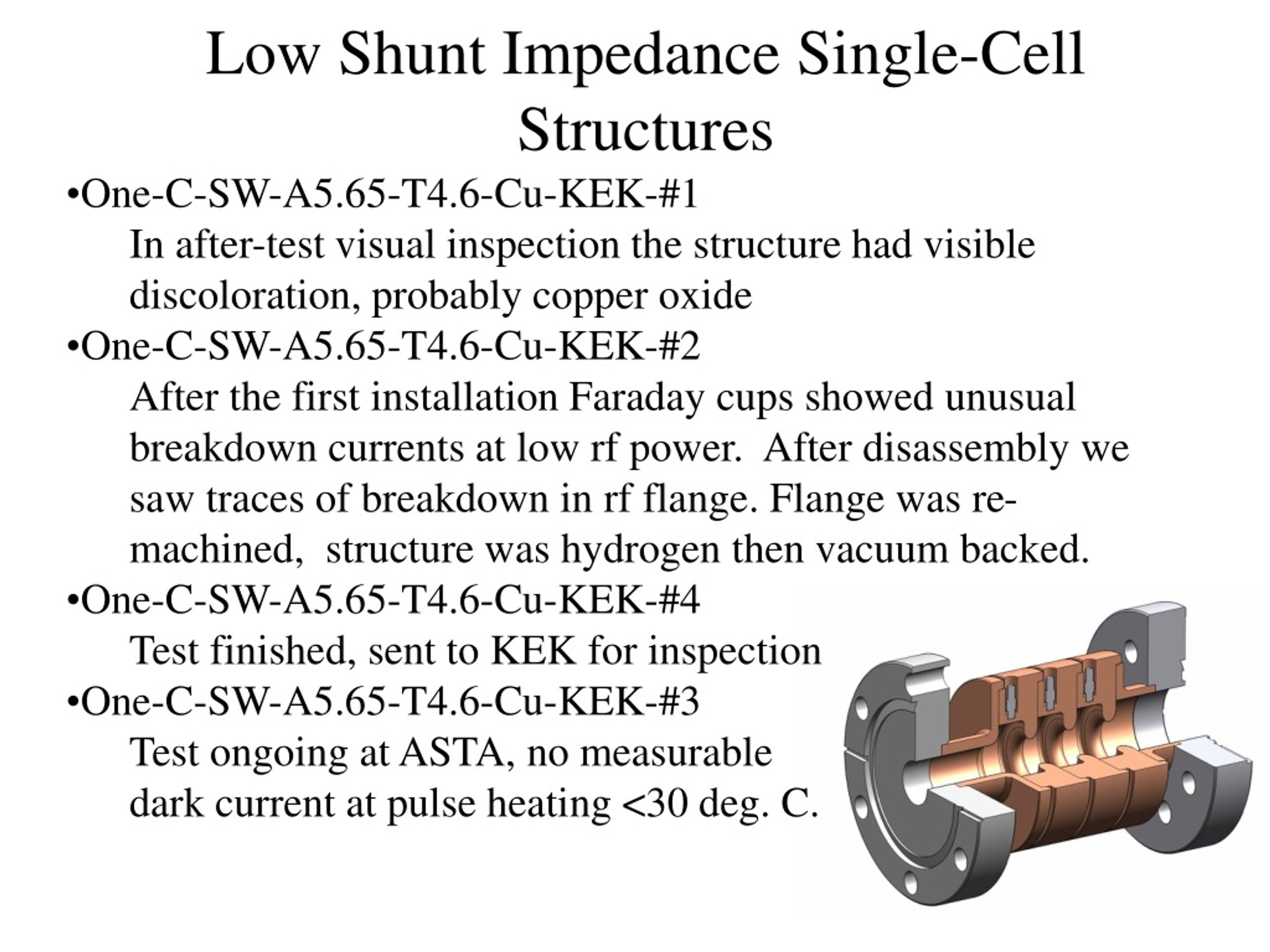

  16. Low Shunt Impedance Single-Cell Structures • One-C-SW-A5.65-T4.6-Cu-KEK-#1 In after-test visual inspection the structure had visible discoloration, probably copper oxide • One-C-SW-A5.65-T4.6-Cu-KEK-#2 • After the first installation Faraday cups showed unusual breakdown currents at low rf power. After disassembly we saw traces of breakdown in rf flange. Flange was re-machined, structure was hydrogen then vacuum backed. • One-C-SW-A5.65-T4.6-Cu-KEK-#4 • Test finished, sent to KEK for inspection • One-C-SW-A5.65-T4.6-Cu-KEK-#3 • Test ongoing at ASTA, no measurable • dark current at pulse heating <30 deg. C.

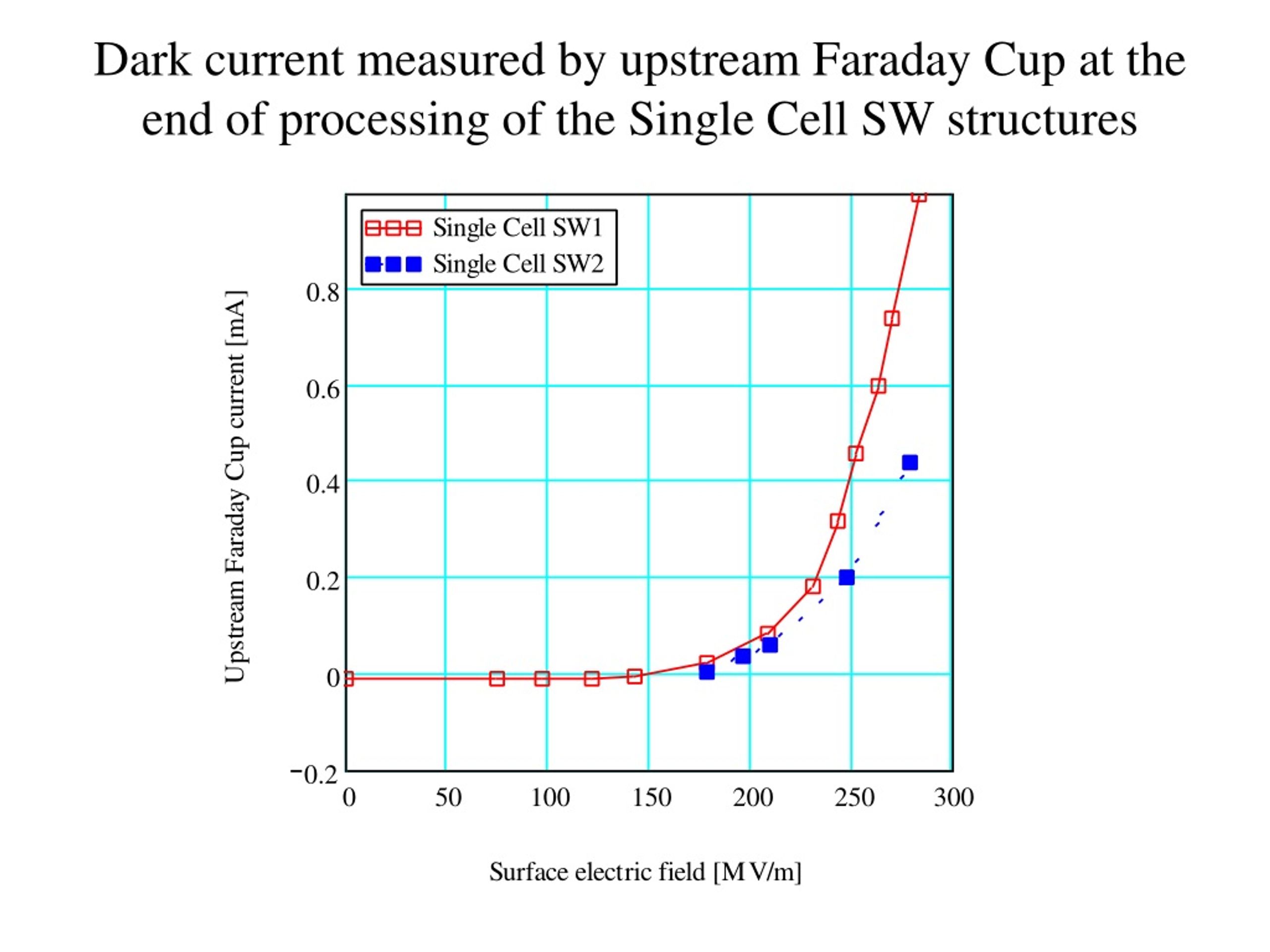

  17. Dark current measured by upstream Faraday Cup at the end of processing of the Single Cell SW structures

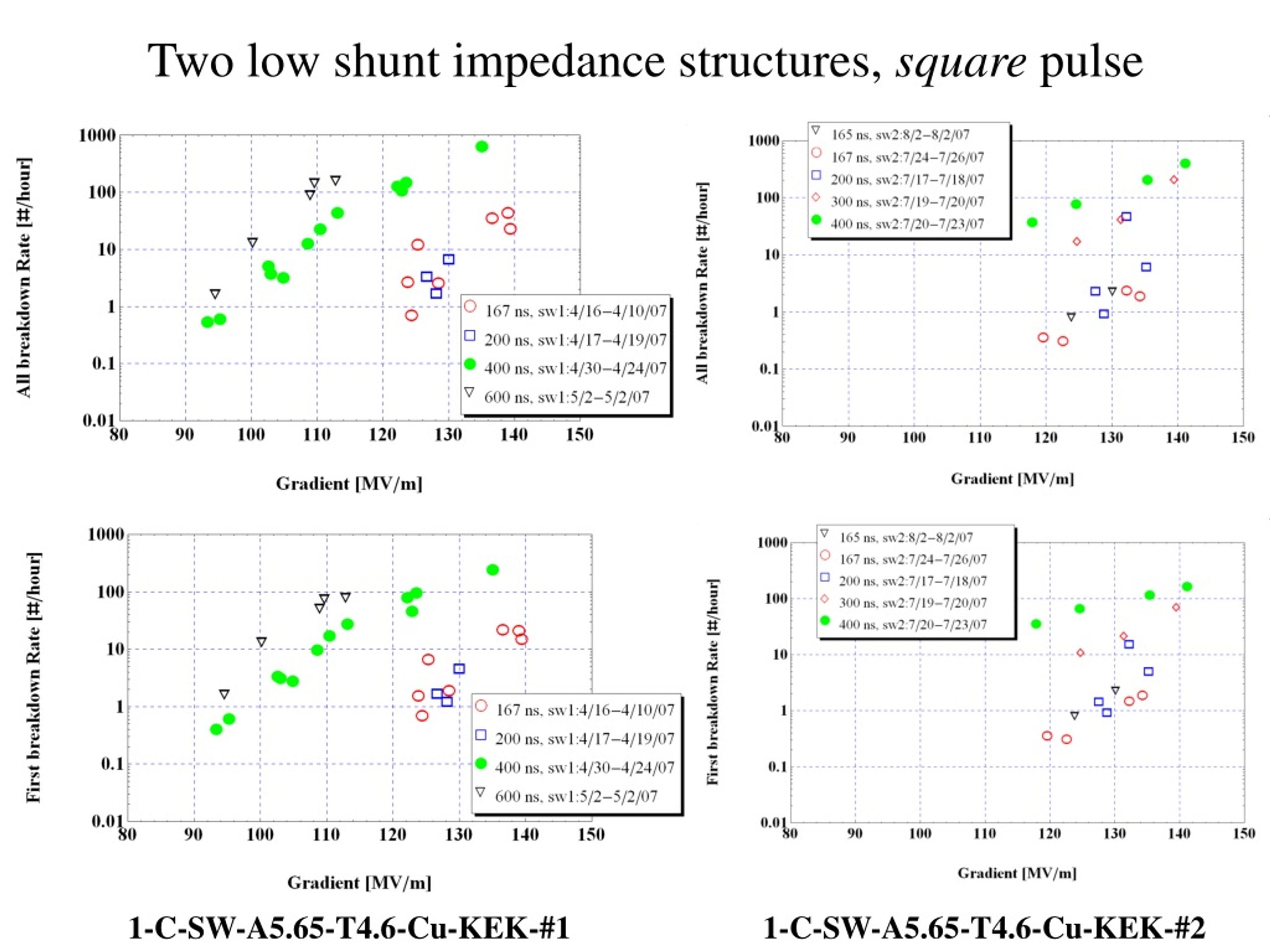

  18. Two low shunt impedance structures, square pulse 1-C-SW-A5.65-T4.6-Cu-KEK-#1 1-C-SW-A5.65-T4.6-Cu-KEK-#2

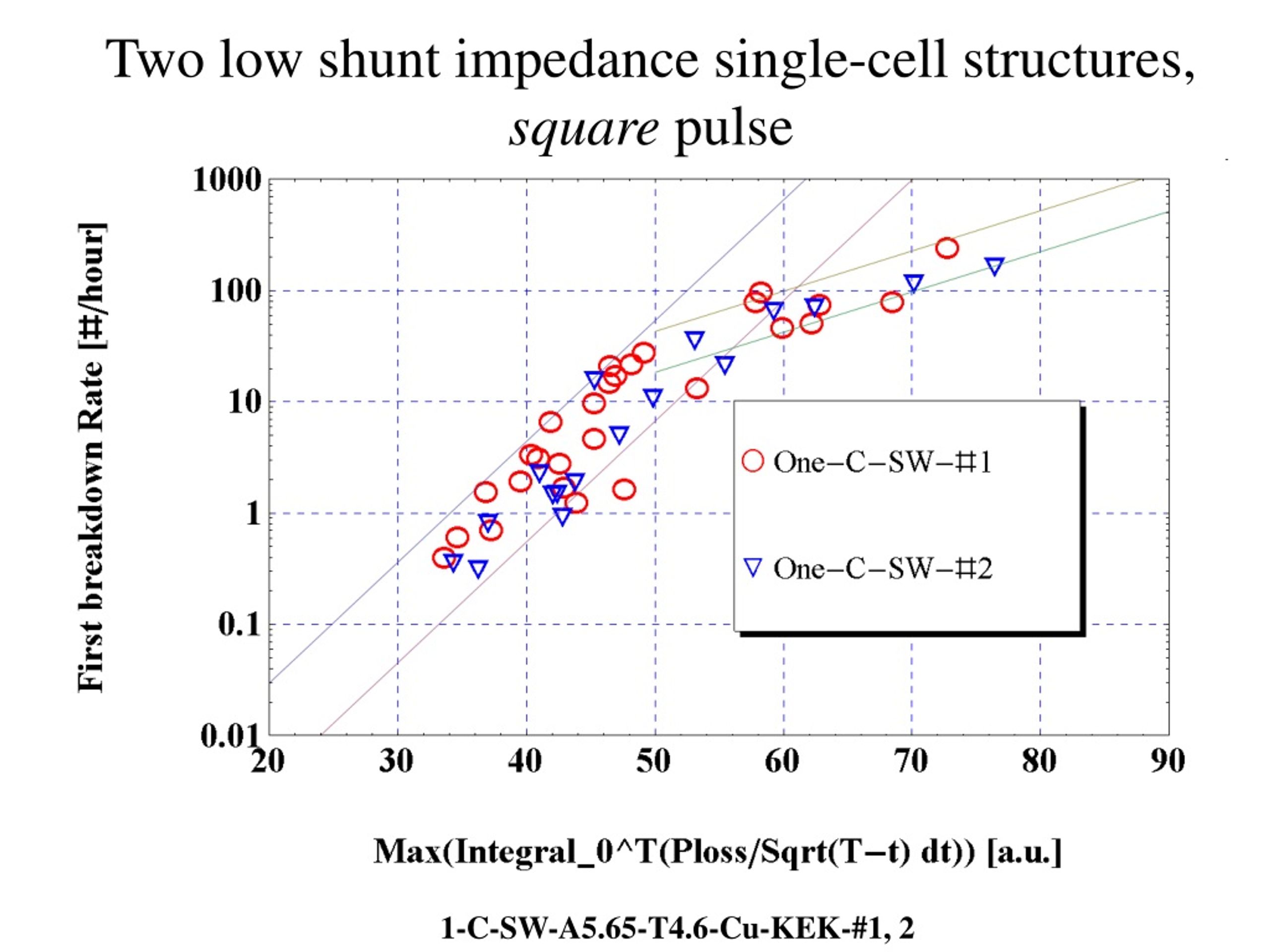

  19. Two low shunt impedance single-cell structures, square pulse 1-C-SW-A5.65-T4.6-Cu-KEK-#1, 2

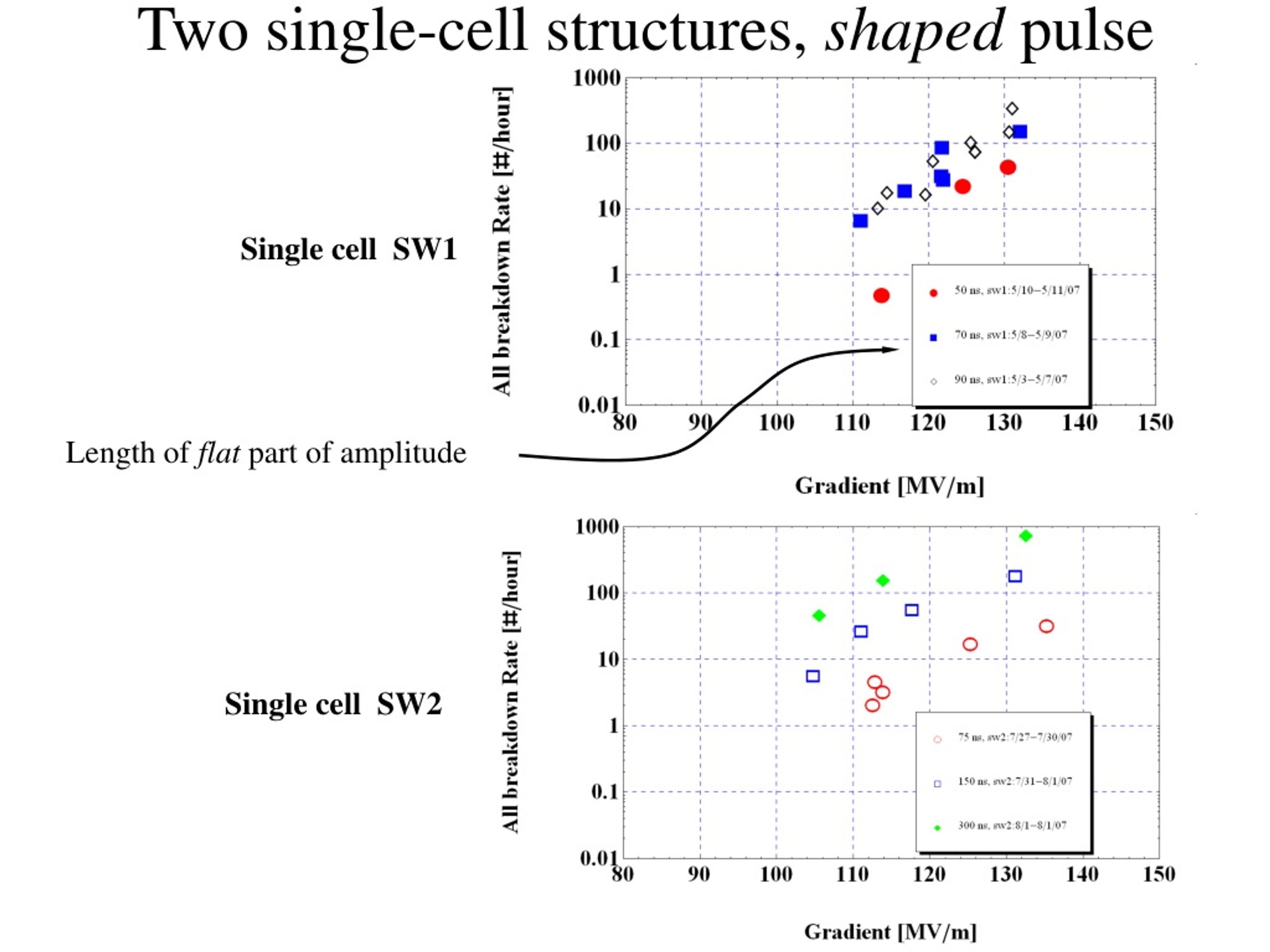

  20. Two single-cell structures, shaped pulse Single cell SW1 Length of flat part of amplitude Single cell SW2

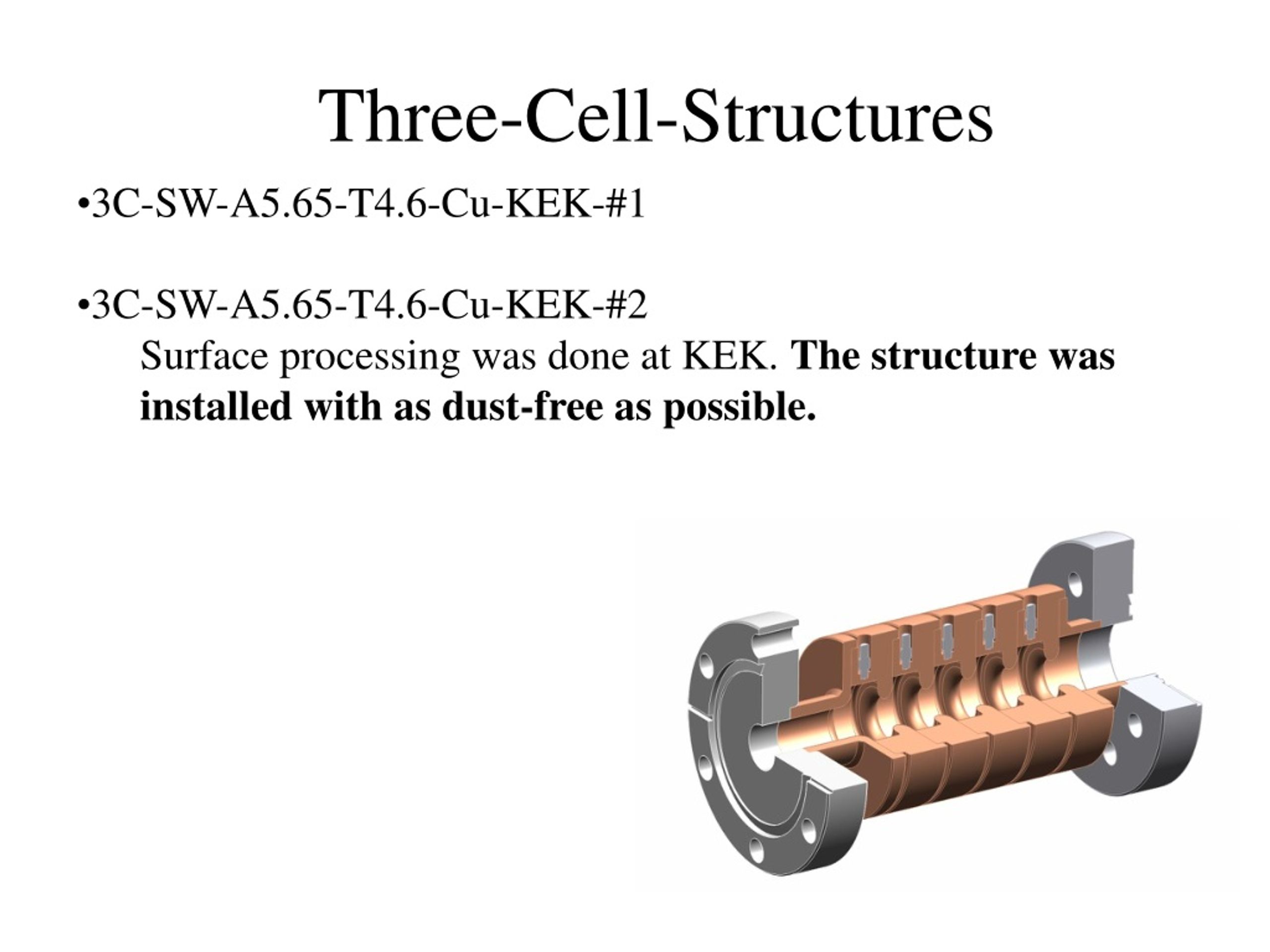

  21. Three-Cell-Structures • 3C-SW-A5.65-T4.6-Cu-KEK-#1 • 3C-SW-A5.65-T4.6-Cu-KEK-#2 • Surface processing was done at KEK. The structure was installed with as dust-free as possible.

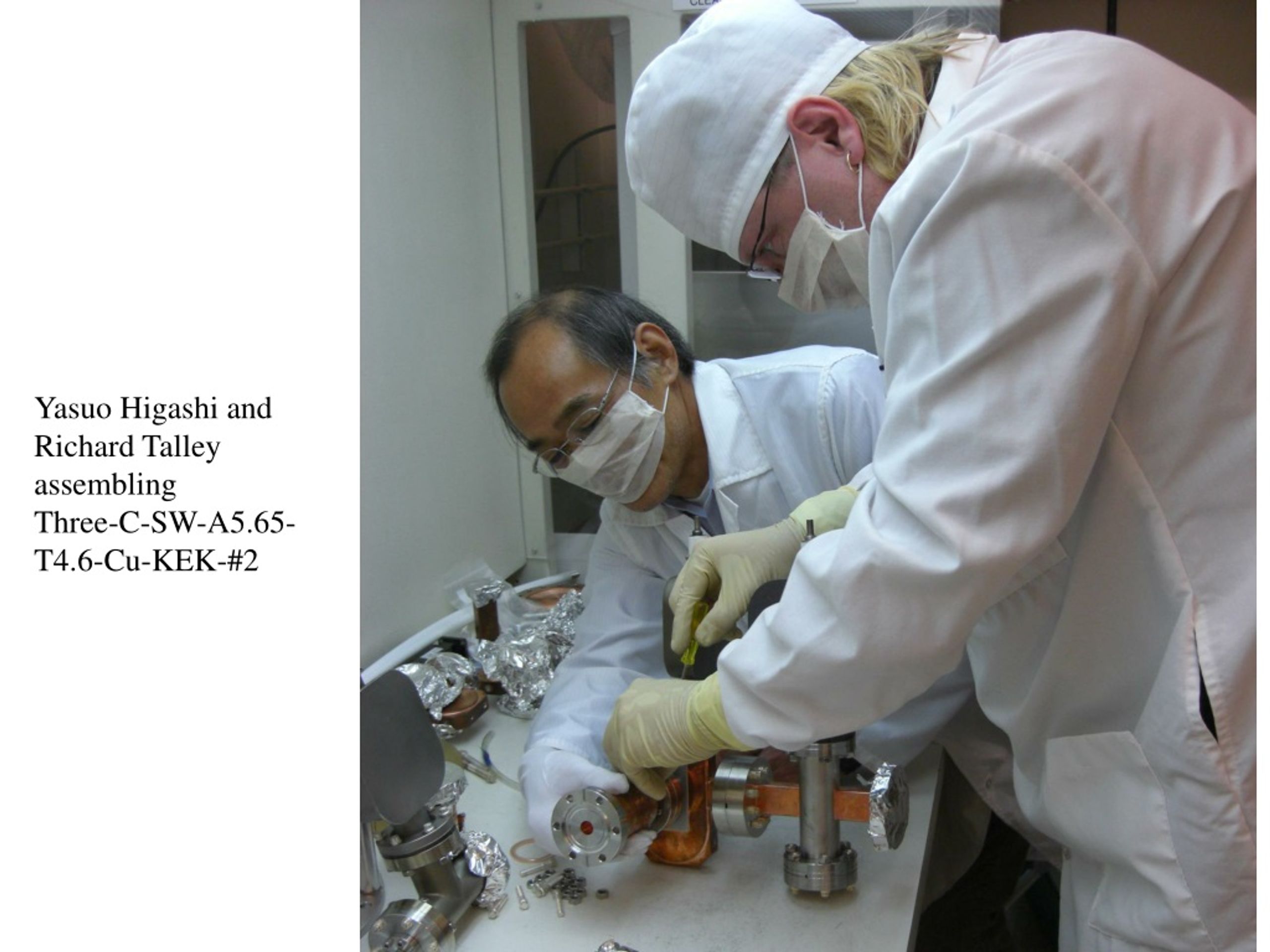

  22. Yasuo Higashi and Richard Talley assembling Three-C-SW-A5.65-T4.6-Cu-KEK-#2

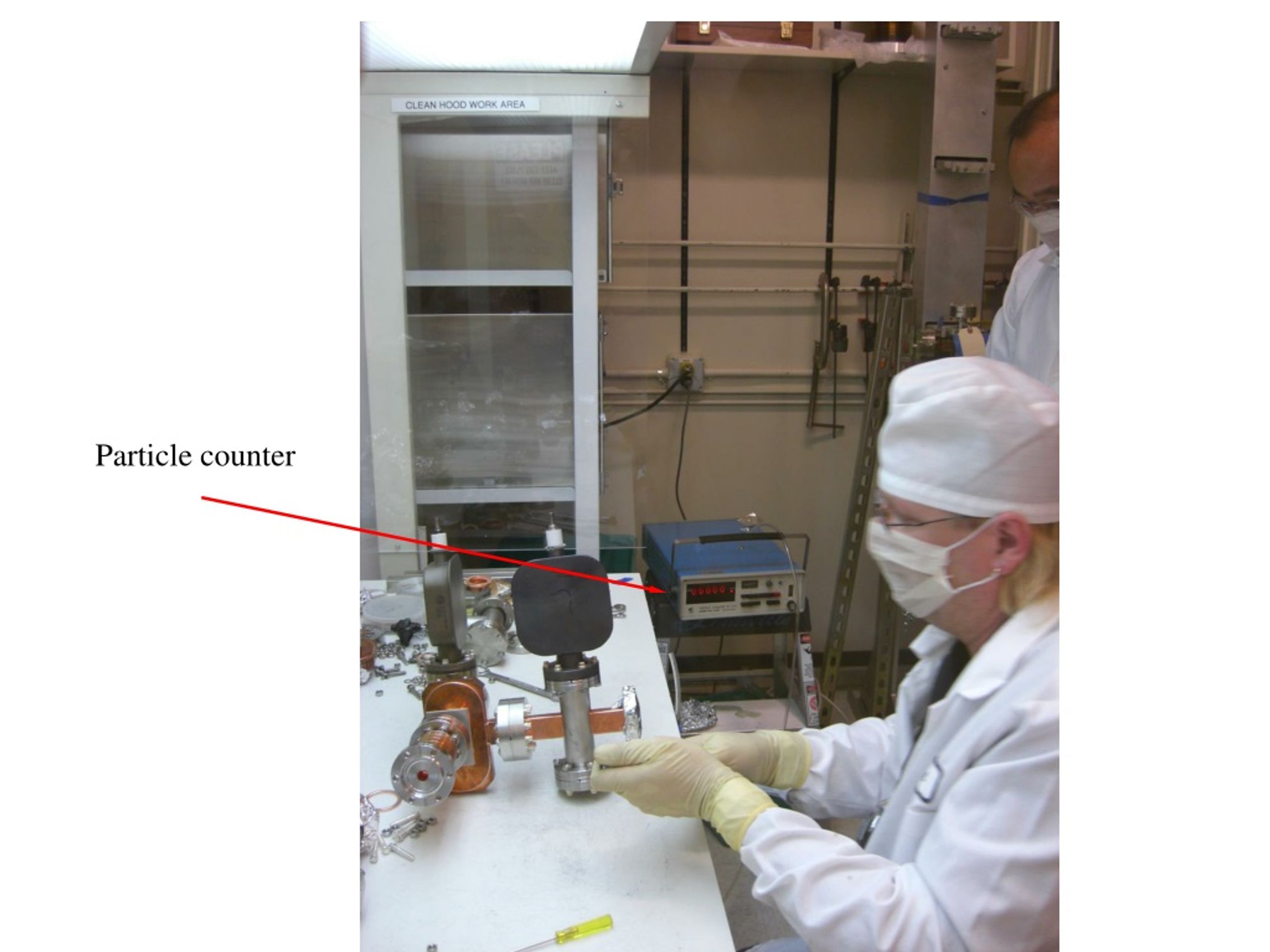

  23. Particle counter

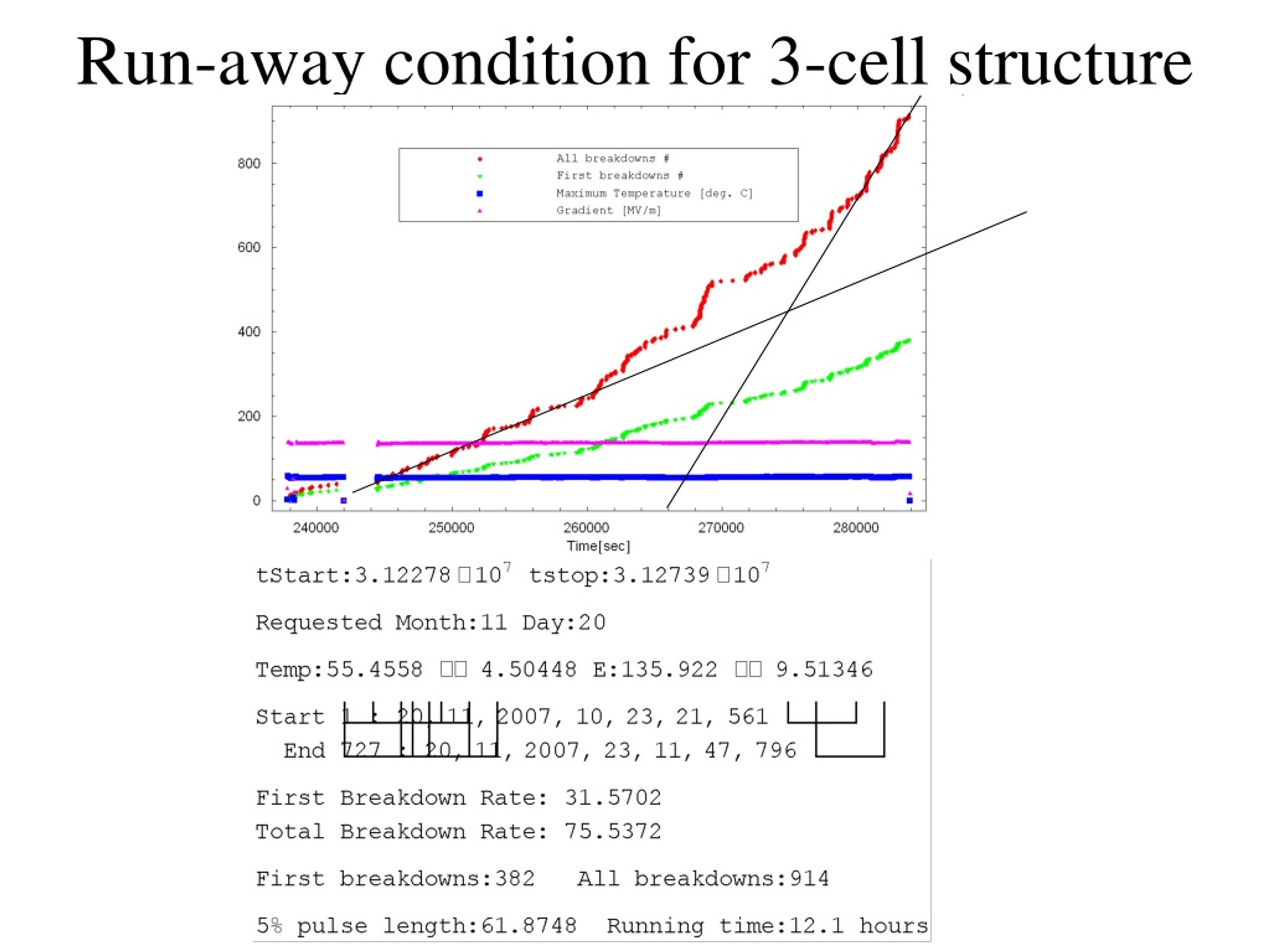

  24. Run-away condition for 3-cell structure

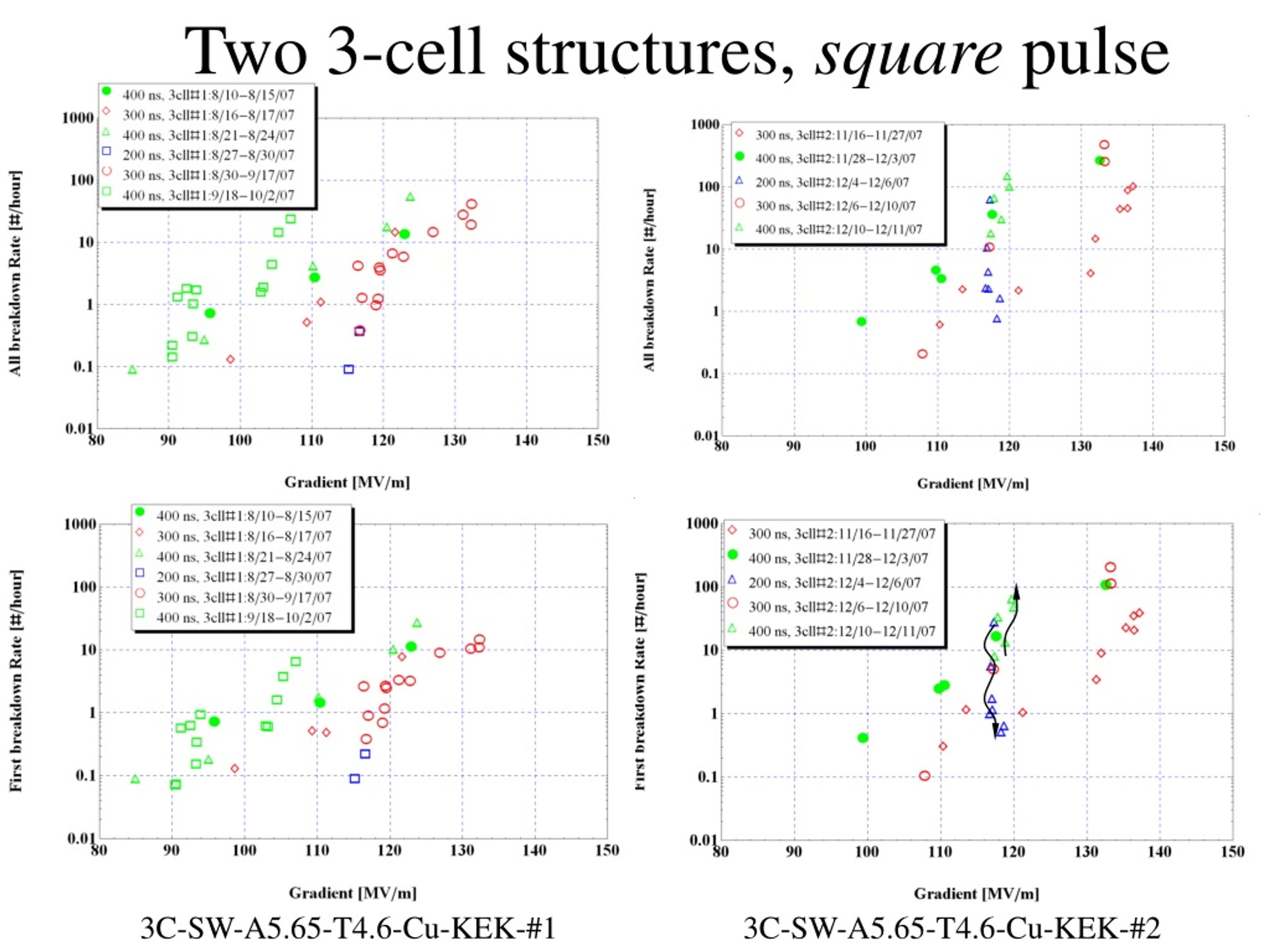

  25. Two 3-cell structures, square pulse Same max. gradient ~117 MV/m

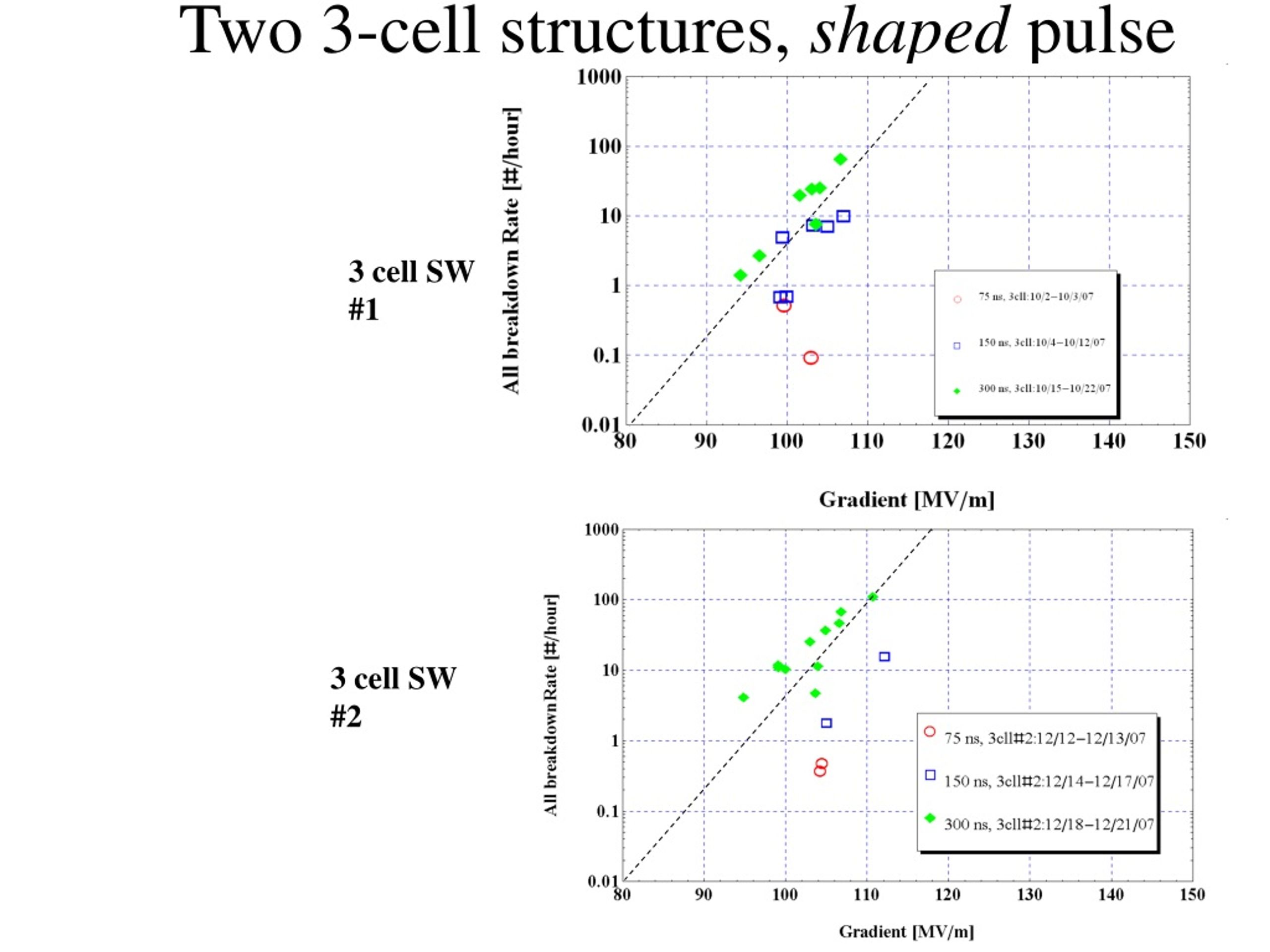

  26. Two 3-cell structures, shaped pulse 3 cell SW #1 3 cell SW #2

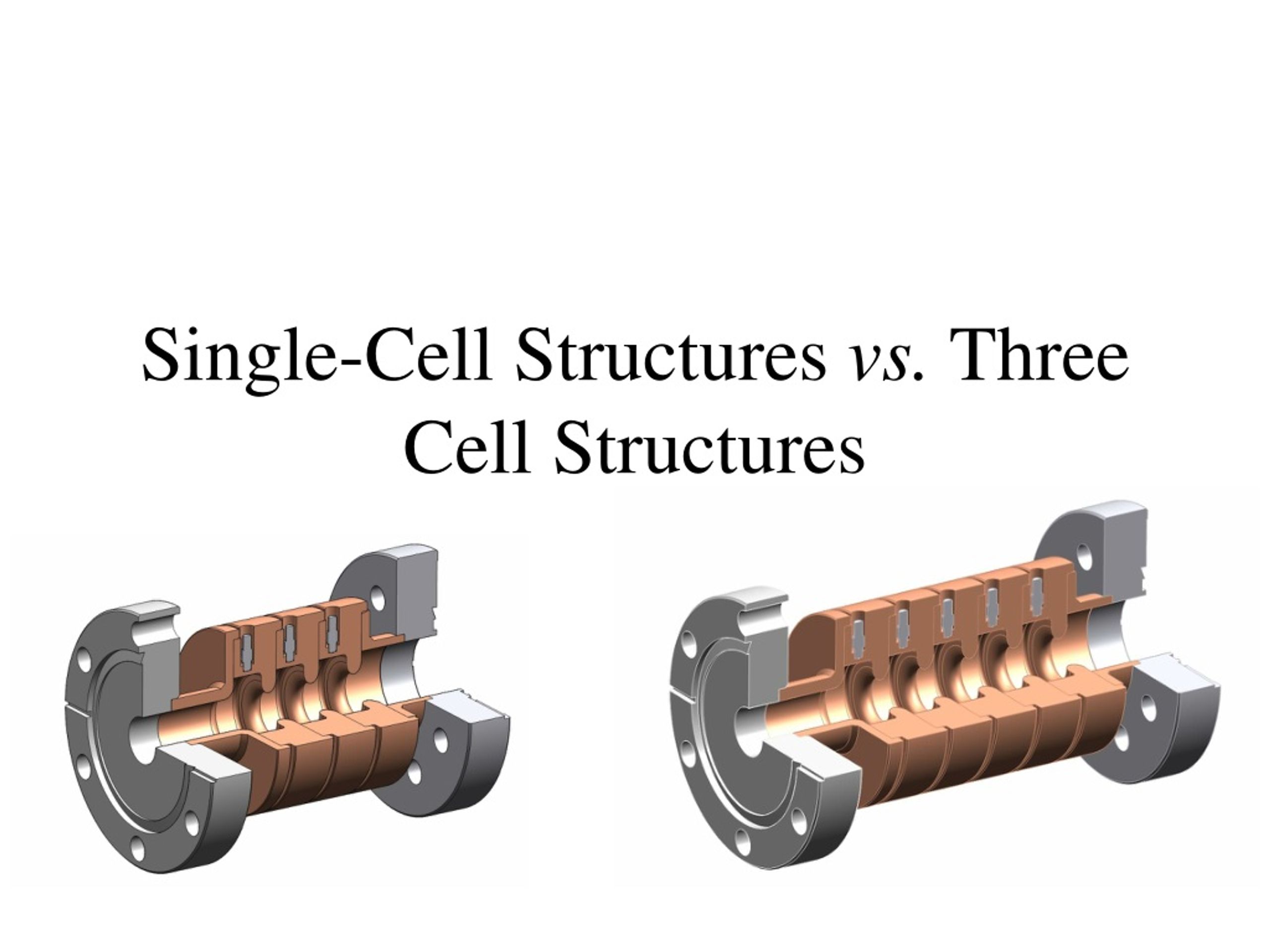

  27. Single-Cell Structures vs. Three Cell Structures

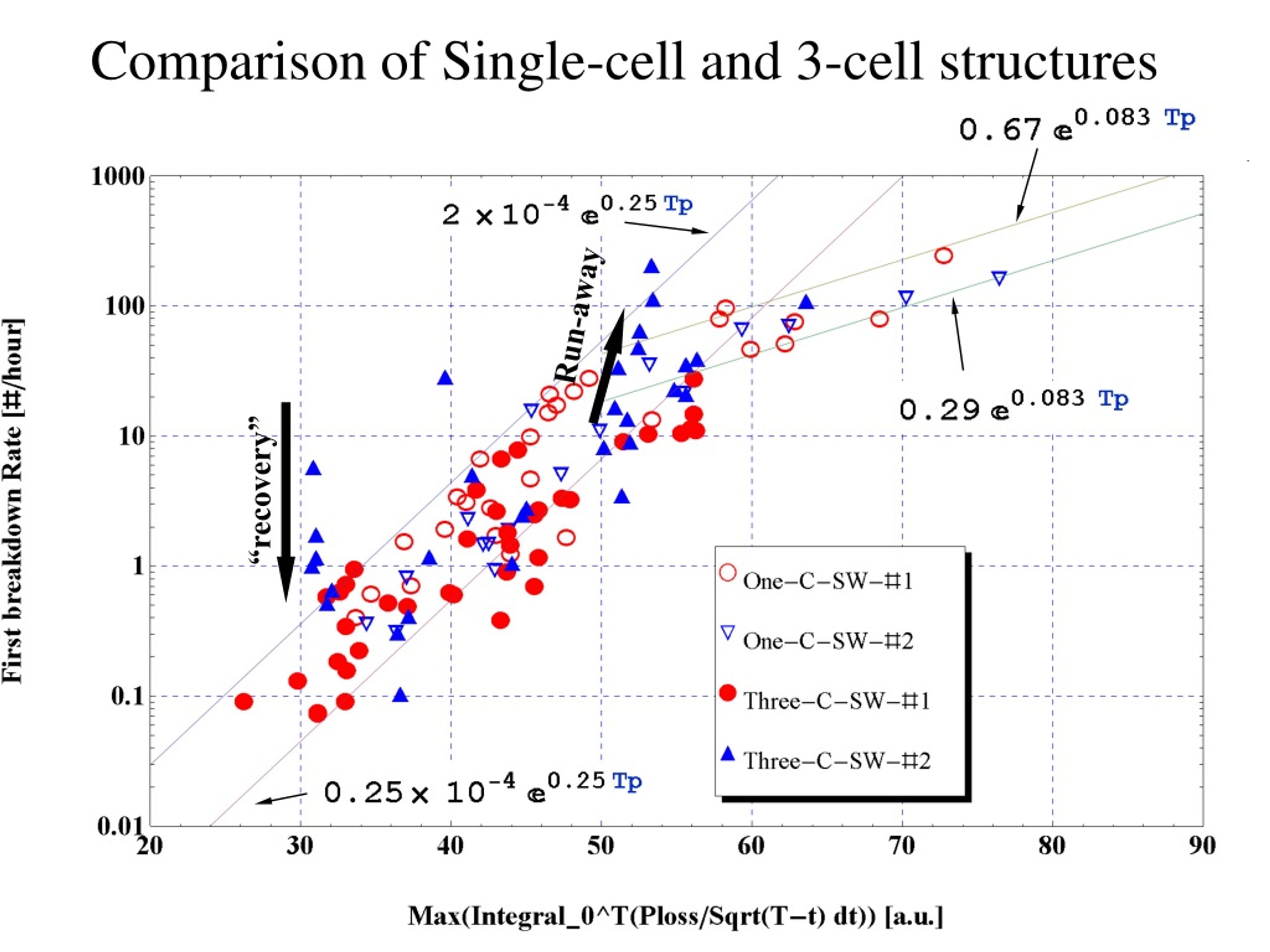

  28. Comparison of Single-cell and 3-cell structures Run-away “recovery”

  29. TiN Coated vs. Uncoated Copper Structure

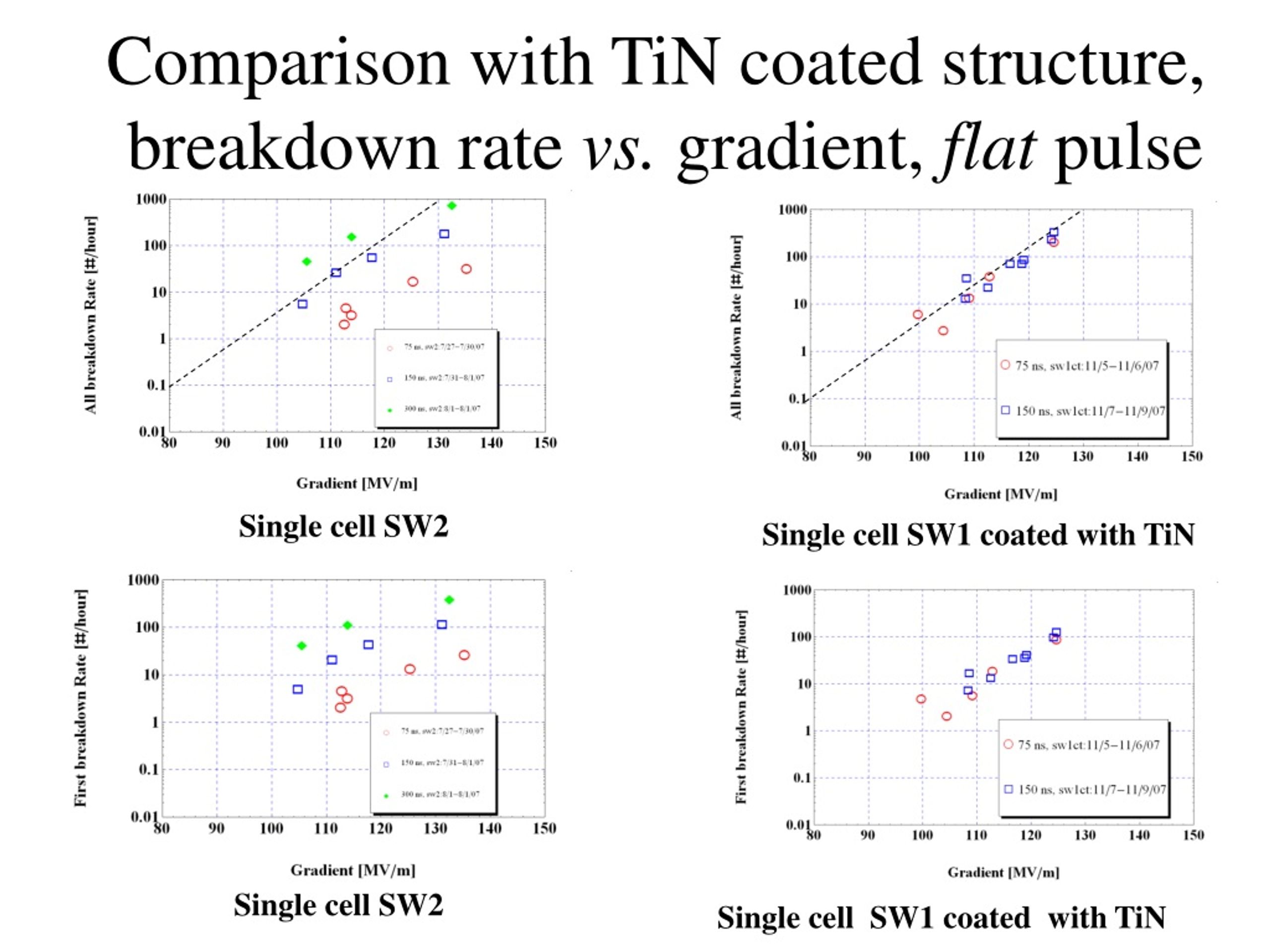

  30. Comparison with TiN coated structure, breakdown rate vs. gradient, flat pulse Single cell SW2 Single cell SW1 coated with TiN Single cell SW2 Single cell SW1 coated with TiN

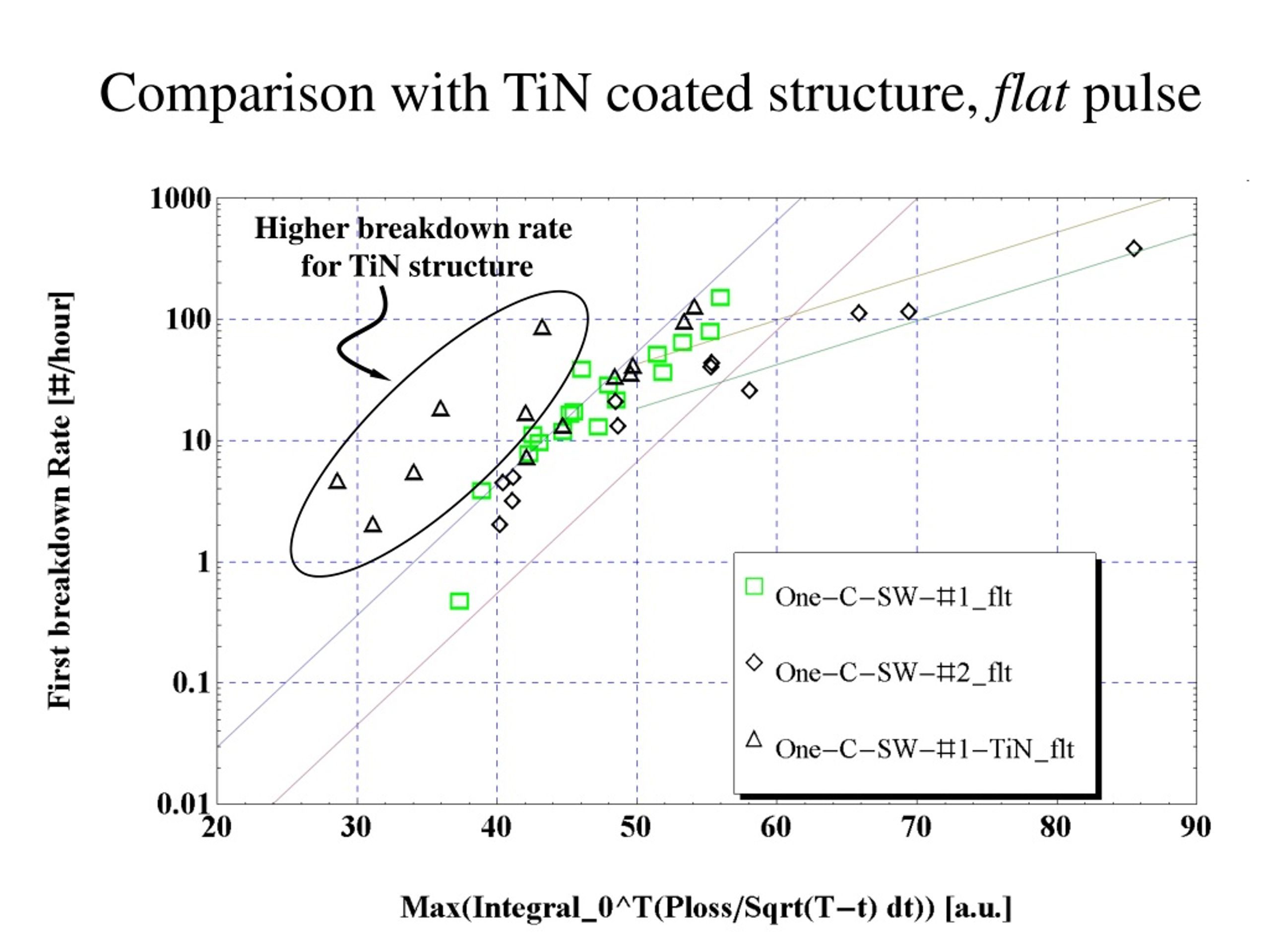

  31. Comparison with TiN coated structure, flat pulse Higher breakdown rate for TiN structure

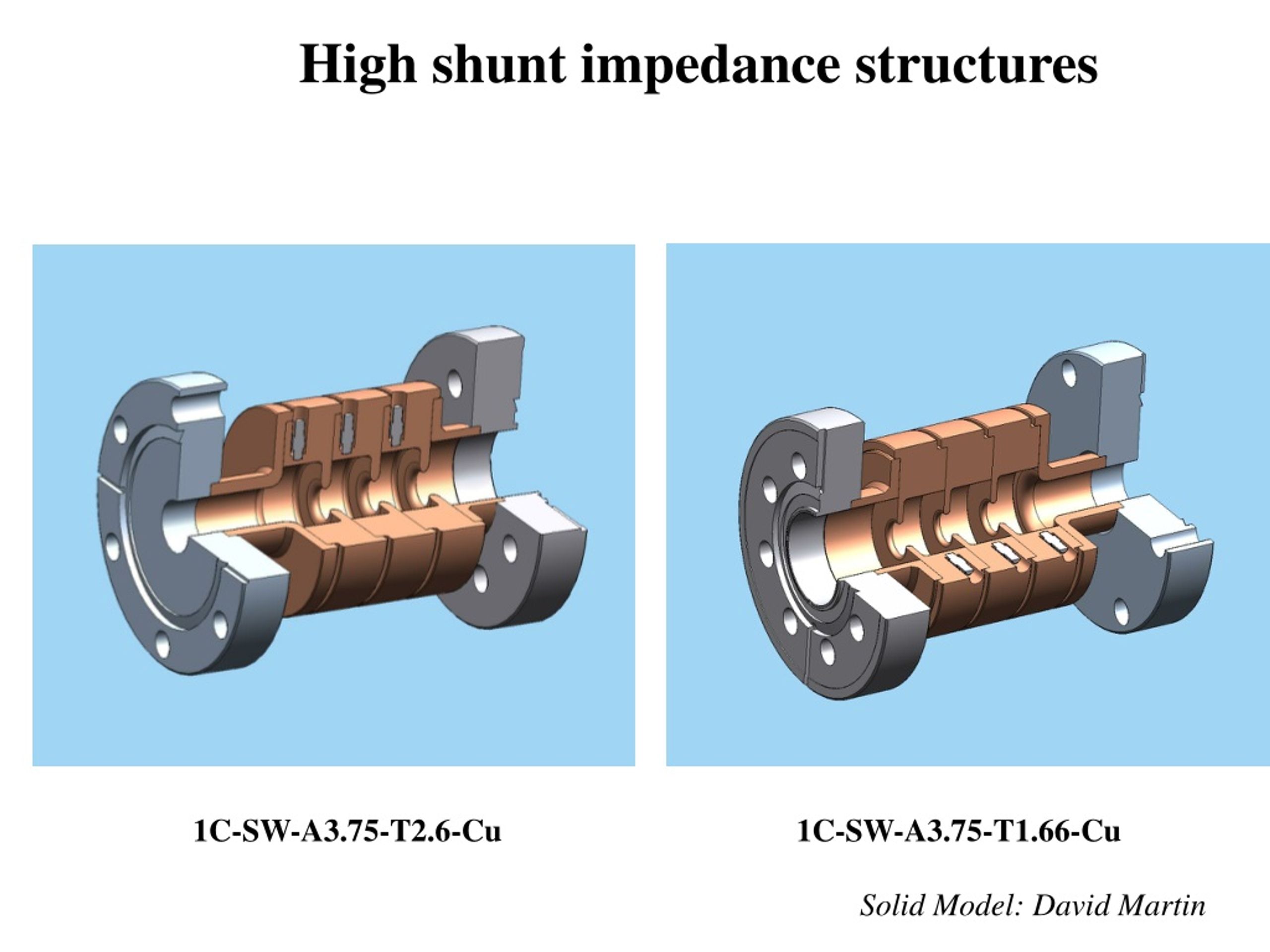

  32. High shunt impedance structures 1C-SW-A3.75-T2.6-Cu 1C-SW-A3.75-T1.66-Cu Solid Model: David Martin

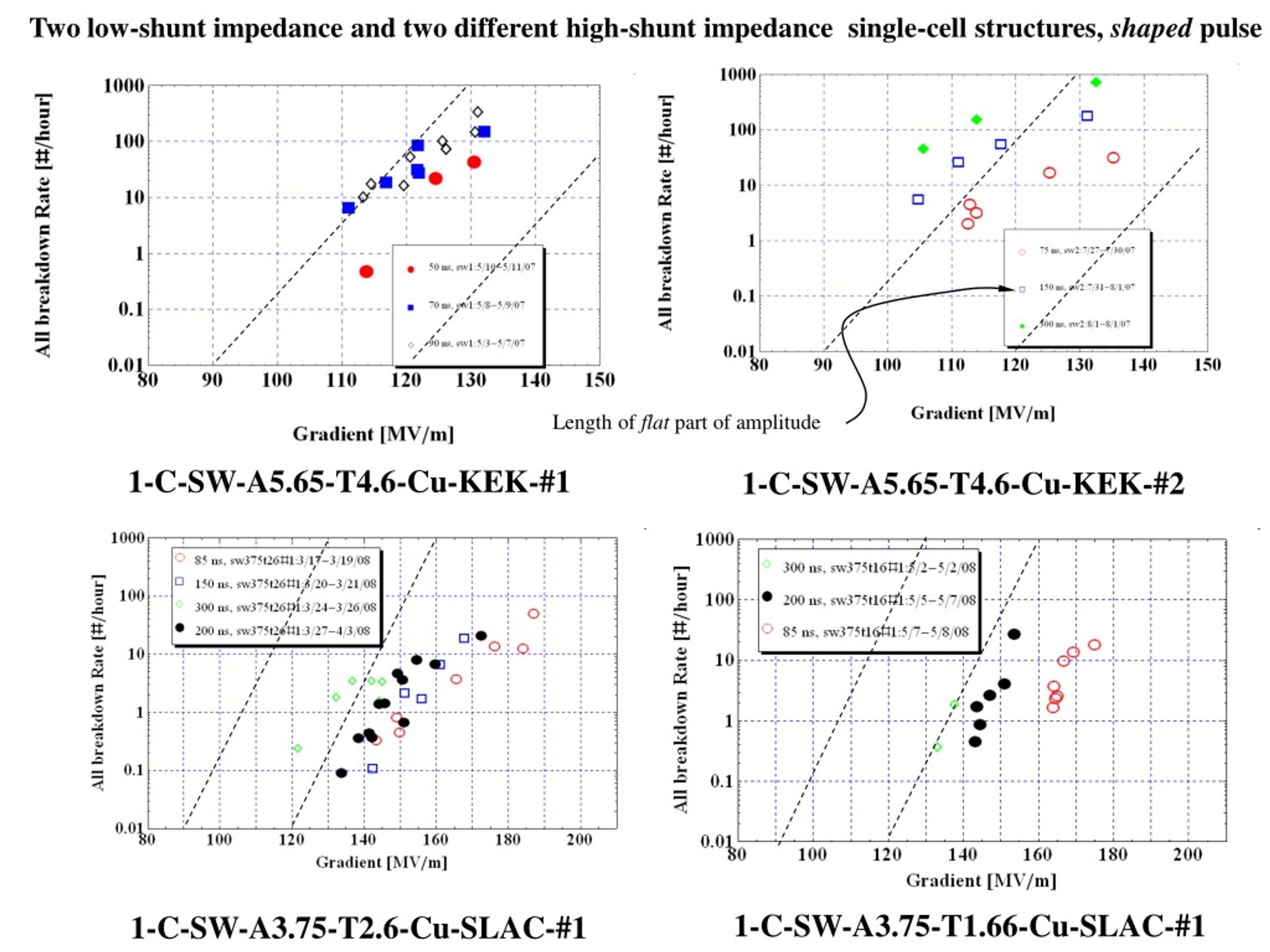

  33. Two low-shunt impedance and two different high-shunt impedance single-cell structures, shaped pulse Length of flat part of amplitude 1-C-SW-A5.65-T4.6-Cu-KEK-#1 1-C-SW-A5.65-T4.6-Cu-KEK-#2 1-C-SW-A3.75-T1.66-Cu-SLAC-#1 1-C-SW-A3.75-T2.6-Cu-SLAC-#1

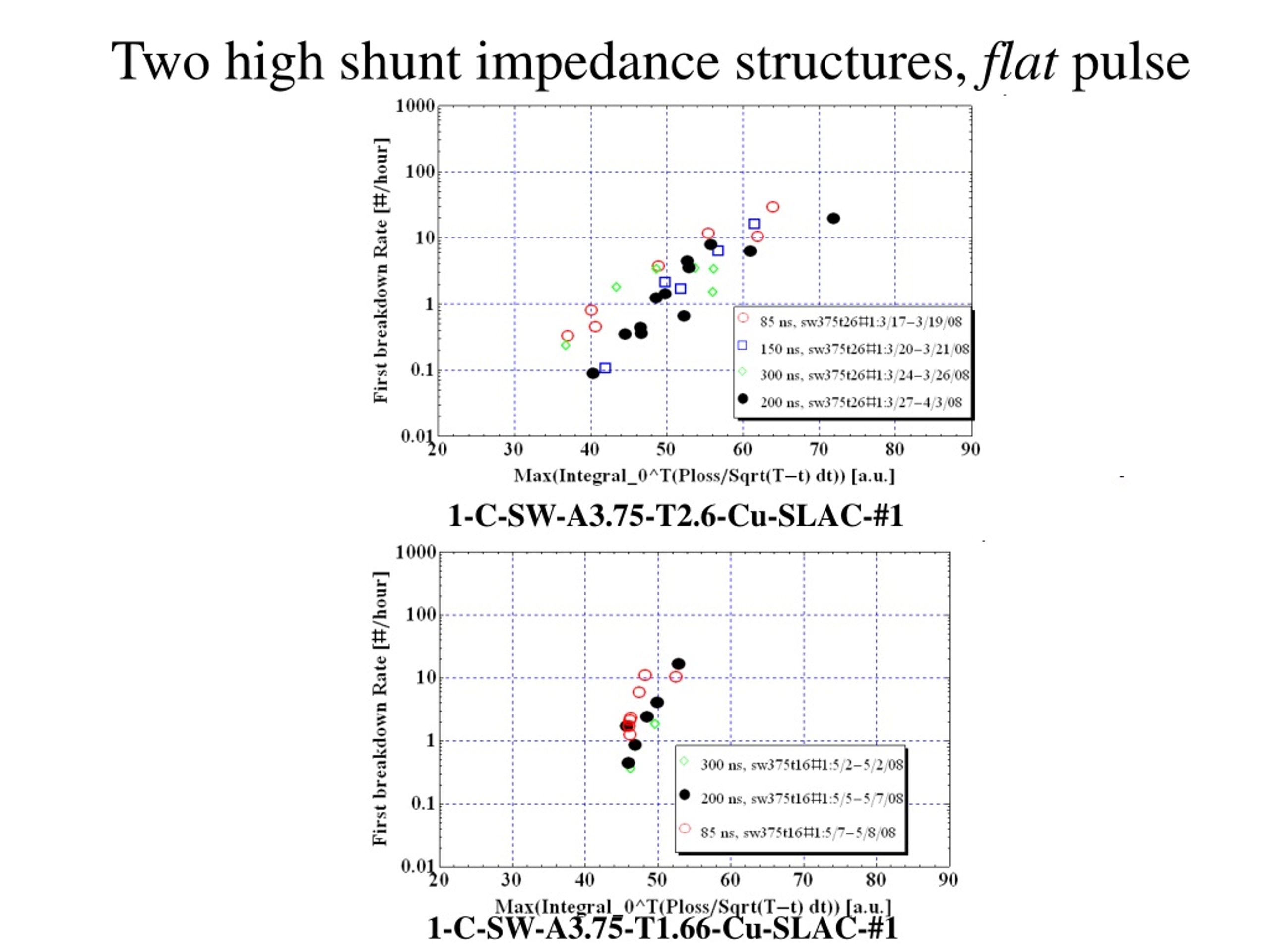

  34. Two high shunt impedance structures, flat pulse 1-C-SW-A3.75-T2.6-Cu-SLAC-#1 1-C-SW-A3.75-T1.66-Cu-SLAC-#1

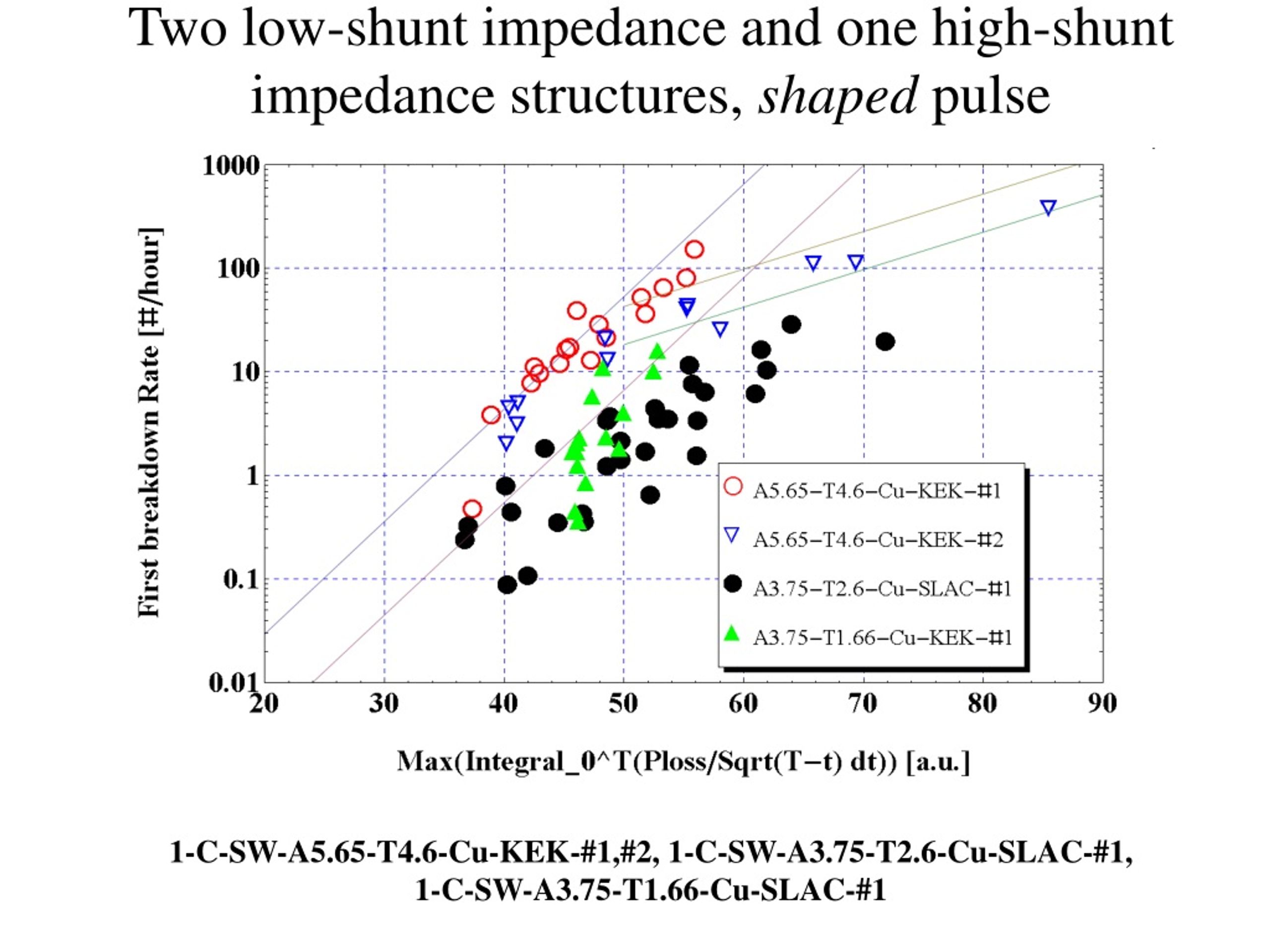

  35. Two low-shunt impedance and one high-shunt impedance structures, shaped pulse 1-C-SW-A5.65-T4.6-Cu-KEK-#1,#2, 1-C-SW-A3.75-T2.6-Cu-SLAC-#1, 1-C-SW-A3.75-T1.66-Cu-SLAC-#1

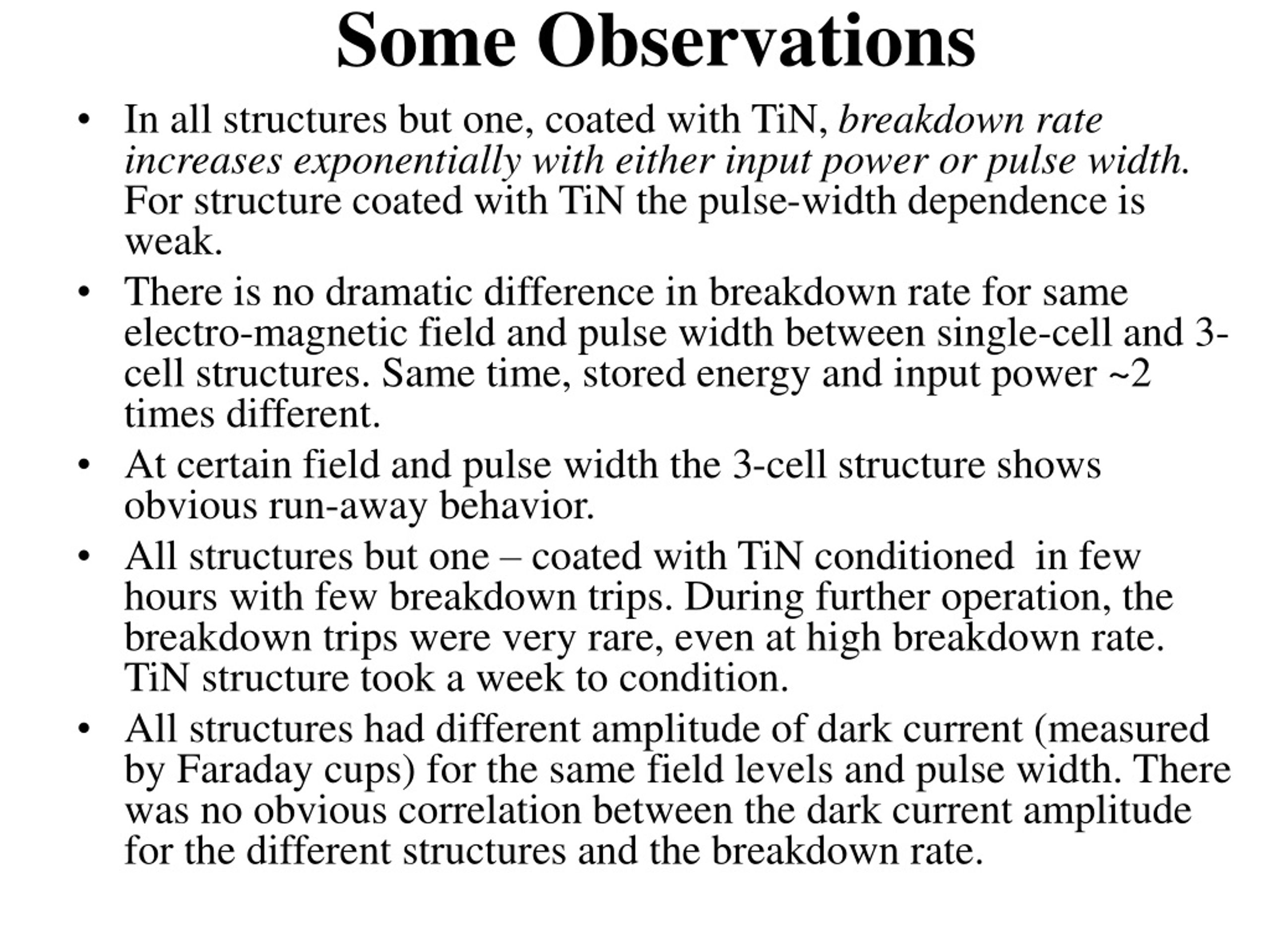

  36. Some Observations • In all structures but one, coated with TiN, breakdown rate increases exponentially with either input power or pulse width. For structure coated with TiN the pulse-width dependence is weak. • There is no dramatic difference in breakdown rate for same electro-magnetic field and pulse width between single-cell and 3-cell structures. Same time, stored energy and input power ~2 times different. • At certain field and pulse width the 3-cell structure shows obvious run-away behavior. • All structures but one – coated with TiN conditioned in few hours with few breakdown trips. During further operation, the breakdown trips were very rare, even at high breakdown rate. TiN structure took a week to condition. • All structures had different amplitude of dark current (measured by Faraday cups) for the same field levels and pulse width. There was no obvious correlation between the dark current amplitude for the different structures and the breakdown rate.

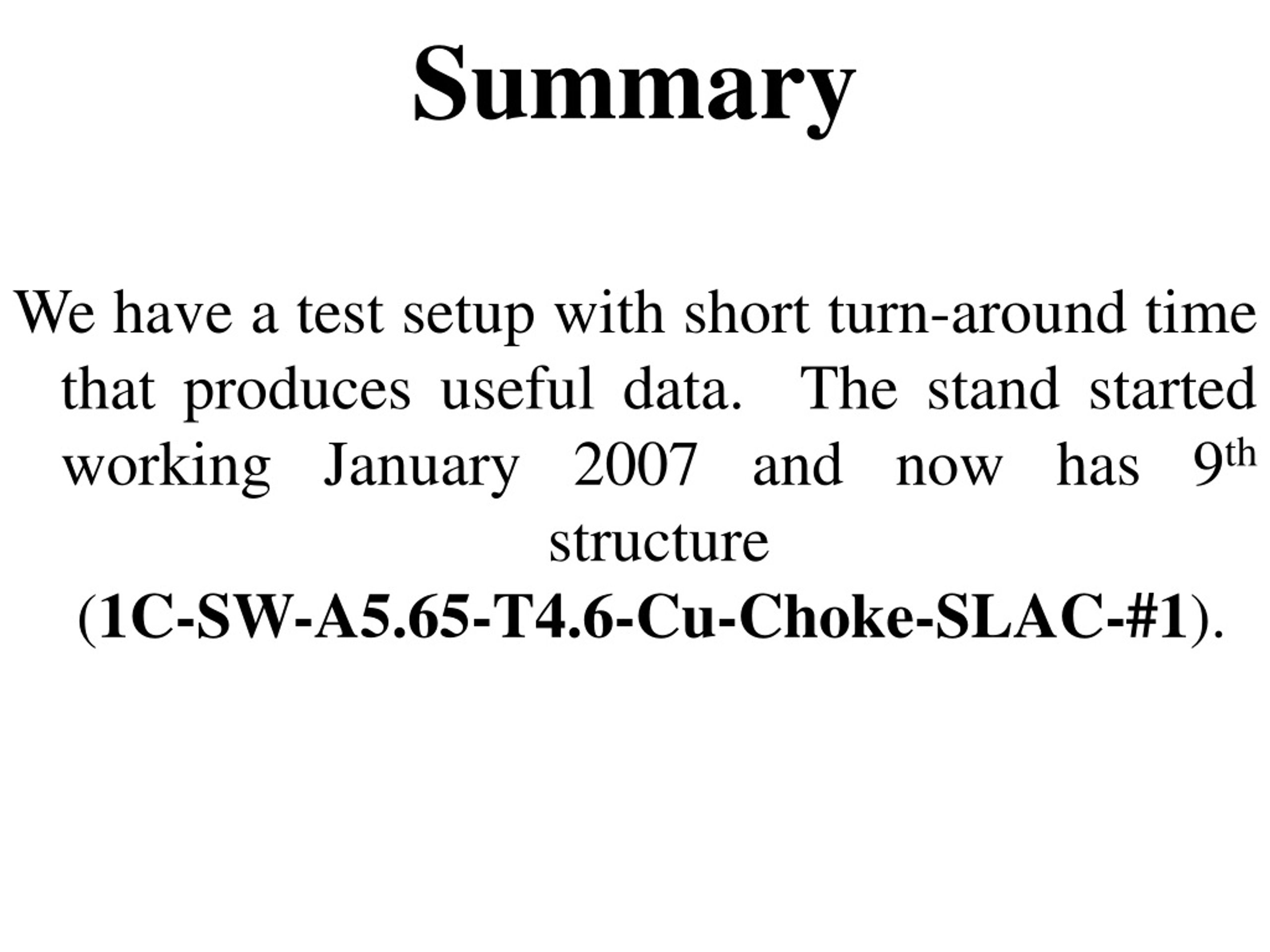

  37. Summary We have a test setup with short turn-around time that produces useful data. The stand started working January 2007 and now has 9th structure (1C-SW-A5.65-T4.6-Cu-Choke-SLAC-#1).

  38. More slides

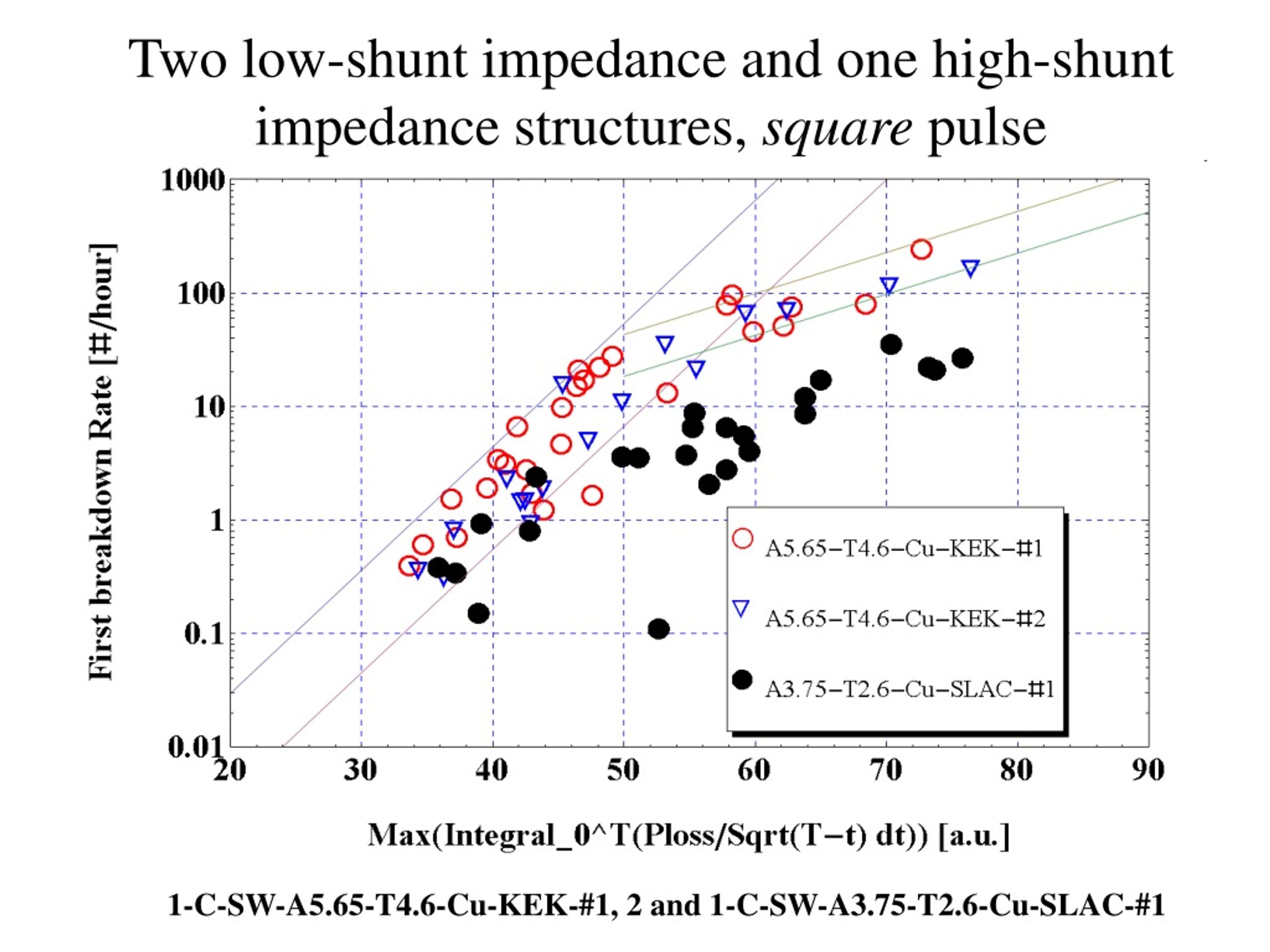

  39. Two low-shunt impedance and one high-shunt impedance structures, square pulse 1-C-SW-A5.65-T4.6-Cu-KEK-#1, 2 and 1-C-SW-A3.75-T2.6-Cu-SLAC-#1

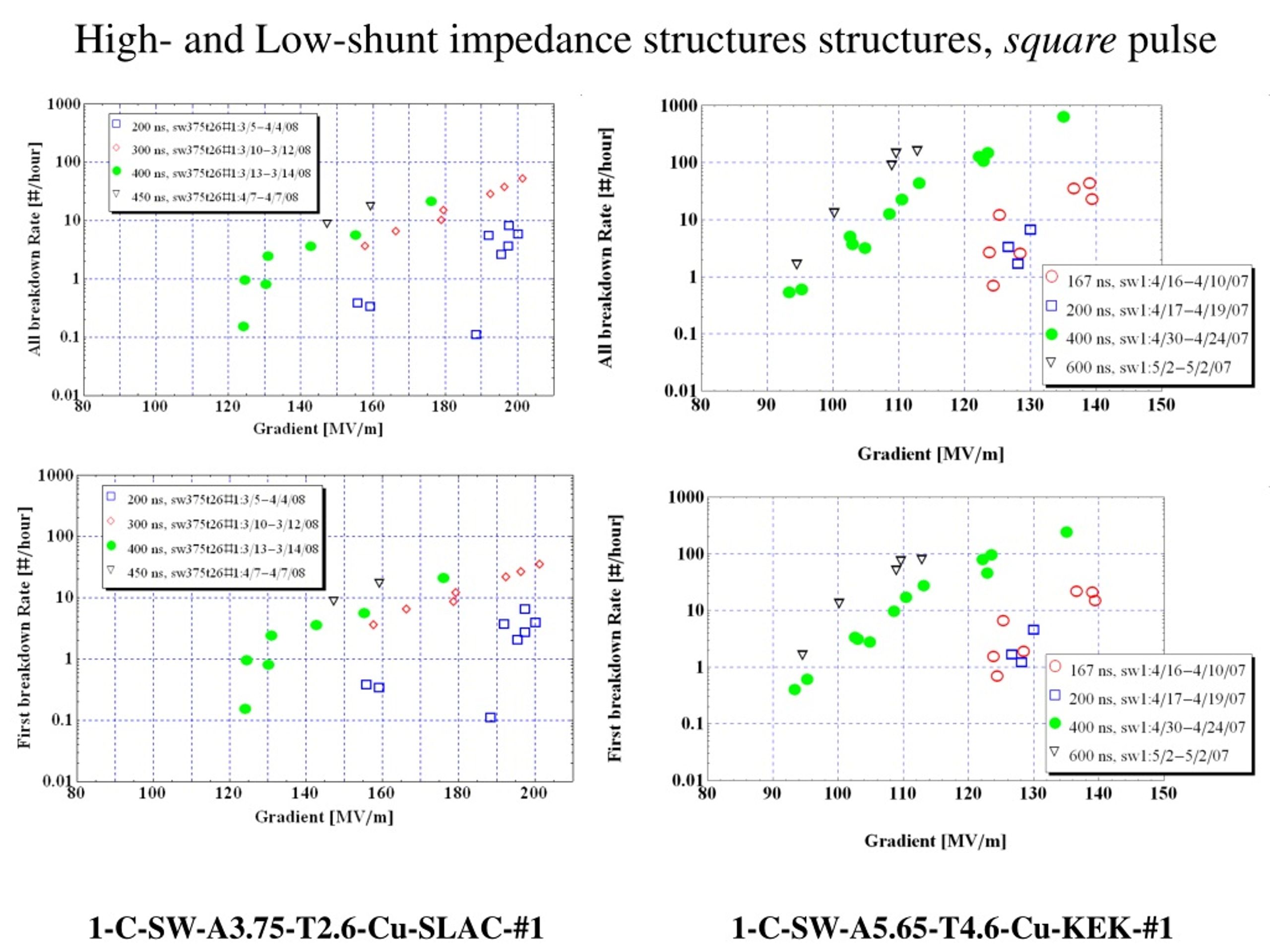

  40. High- and Low-shunt impedance structures structures, square pulse 1-C-SW-A3.75-T2.6-Cu-SLAC-#1 1-C-SW-A5.65-T4.6-Cu-KEK-#1

  41. Two 3-cell structures, square pulse 3C-SW-A5.65-T4.6-Cu-KEK-#1 3C-SW-A5.65-T4.6-Cu-KEK-#2
