geon systems report

GEON Systems Report

Karan Bhatia

San Diego Supercomputer Center

Friday Aug 13 2004

www.geongrid.org

year 2 goals accomplishments
Goals:

Procure and deploy physical resources for partners

Provide infrastructure for management of systems

including mechanisms for collaboration and communication

Provide basic production services for data

Provide basic grid services for applications

Year 2 Goals & Accomplishments
  • Physical Layer
    • Purchased and Deployed hardware
  • Systems Layer
    • Developed management software and collaborations with partner sites
    • Developed Geon Software Stack
  • Grid Layer
    • Beginning to build out Services
      • Portal & Security done (end of aug)
      • Naming & Discovery, Data Management & Replication, and mediation
    • Basic research still being done
  • Applications Layer
    • Some apps ready, used as templates for how to build apps in Geon

www.geongrid.org

geongrid development

Applications

End-user Apps & Services

Grid Layer

Grid System Services

OS & Software layer

Systems Layer

Physical Deployment

Hardware, clusters, networks

GEONgrid Development

www.geongrid.org

physical deployment
Vendors:

Dell (27 prod systems + 9 devel systems)

Poweredge 2650-based systems

Dual 2.8 GHz Pentium processors

2 GB RAM

ProMirco (3 systems)

Dual pentium

4 TB + RAID

HP Cluster donation (9 systems)

Rx2600-based dual 1.4 GHz

15 partner sites

1 PoP node

Optional small cluster (4 system)

Optional data node

Misc equipment as needed

Switches, racks, etc.

Applications

Grid Layer

Systems Layer

Physical Deployment

Physical Deployment

www.geongrid.org

deployment architecture
Similar to BIRN Architecture

Each site runs a PoP

Optional cluster and data nodes

Users access resources through PoP

PoP provides point of entry

PoP provides access to global services

Developers add services & data hosted on GEON resources

Web services/Grid services

Deployment Architecture

www.geongrid.org

slide6

GEONgrid Current Status

Physical Resources:

- all pops deployed, 3 data nodes deployed, clusters all up

- HP cluster delivered

Software Stack:

- mix of GeonRocks 0.1 (redhat 9-based), redhat 9

www.geongrid.org

systems layer
Unified Software Stack definition

Custom GEON Roll

Web/Grid Services software Stack

Common GEON Applications and Services

Focus on scalable systems management

Modified Rocks for wide-area cluster management (See [Sacerdoti94])

Collaborations with partner sites

Identified appropriate contacts

Applications

Grid Layer

Systems Layer

Physical Deployment

Systems Layer

www.geongrid.org

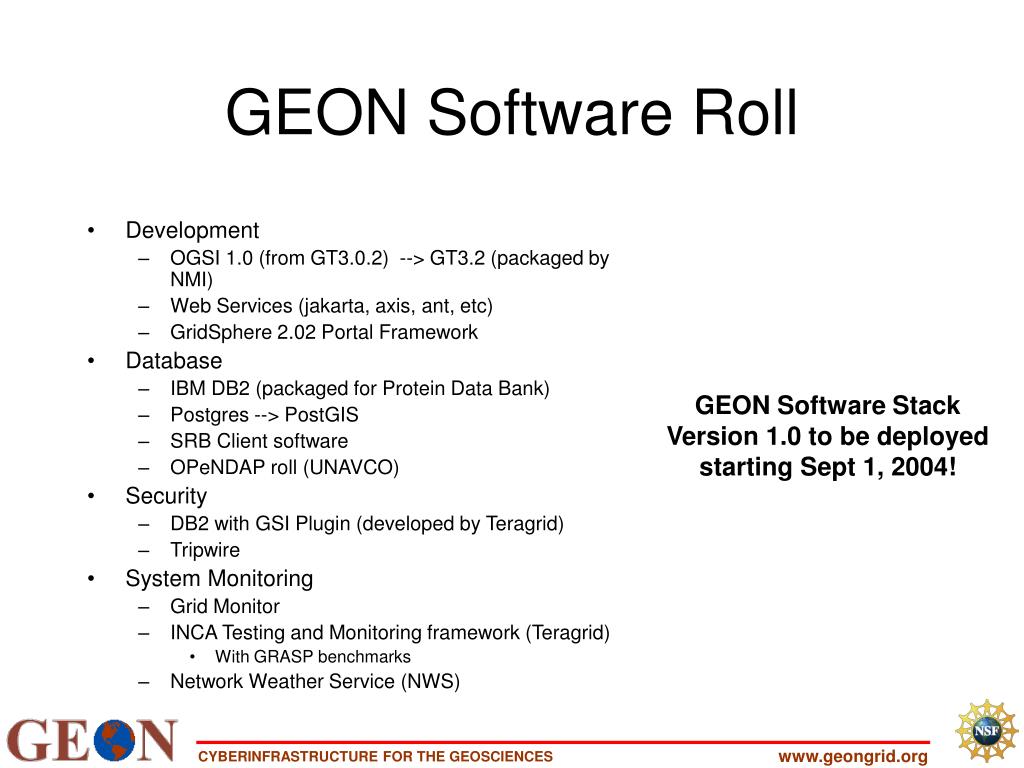

geon software roll
Development

OGSI 1.0 (from GT3.0.2) --> GT3.2 (packaged by NMI)

Web Services (jakarta, axis, ant, etc)

GridSphere 2.02 Portal Framework

Database

IBM DB2 (packaged for Protein Data Bank)

Postgres --> PostGIS

SRB Client software

OPeNDAP roll (UNAVCO)

Security

DB2 with GSI Plugin (developed by Teragrid)

Tripwire

System Monitoring

Grid Monitor

INCA Testing and Monitoring framework (Teragrid)

With GRASP benchmarks

Network Weather Service (NWS)

GEON Software Roll

GEON Software Stack Version 1.0 to be deployed starting Sept 1, 2004!

www.geongrid.org

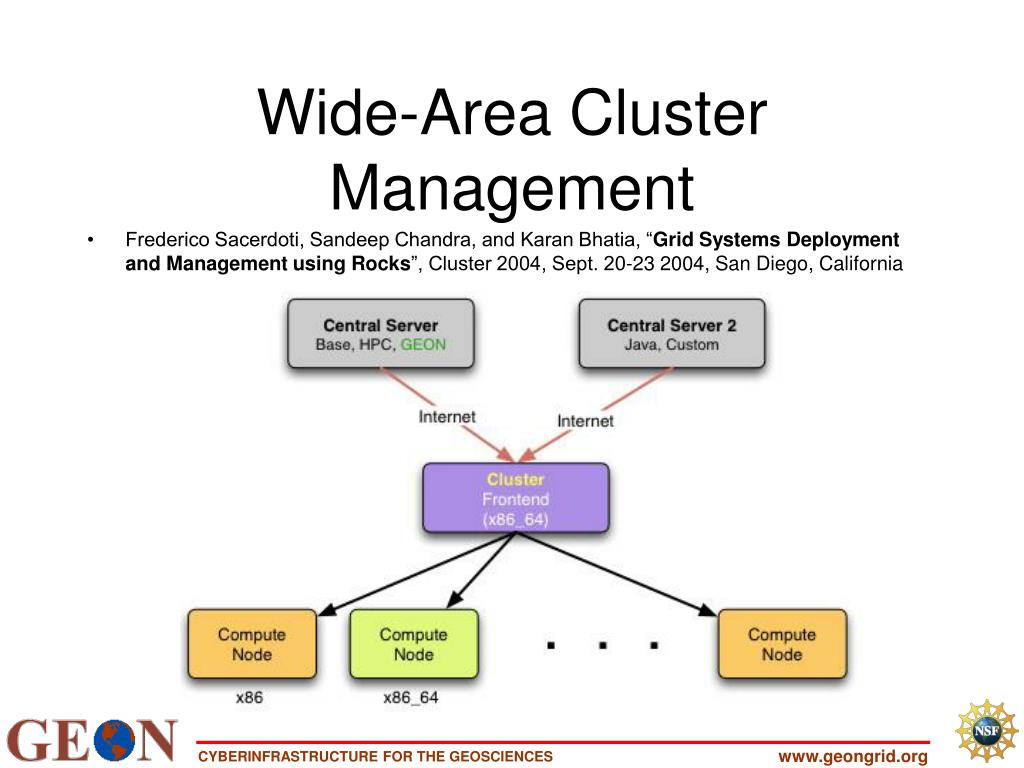

wide area cluster management
Frederico Sacerdoti, Sandeep Chandra, and Karan Bhatia, “Grid Systems Deployment and Management using Rocks”, Cluster 2004, Sept. 20-23 2004, San Diego, CaliforniaWide-Area Cluster Management

www.geongrid.org

additional infrastructure
Production/Development servers

8 development servers used for various activities

Main Production Portal

Blogs, forums, RSS

Production application services

CVS services

cvs.geongrid.org

Geon Certificate Authority

ca.geongrid.org

Additional Infrastructure

www.geongrid.org

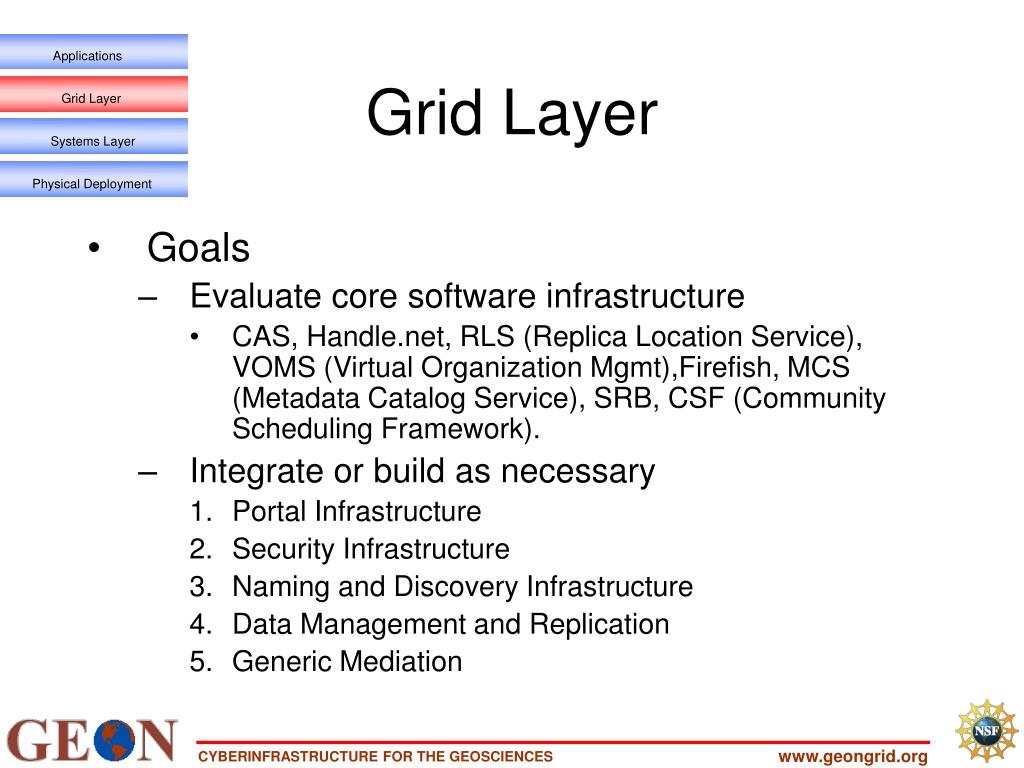

grid layer
Goals

Evaluate core software infrastructure

CAS, Handle.net, RLS (Replica Location Service), VOMS (Virtual Organization Mgmt),Firefish, MCS (Metadata Catalog Service), SRB, CSF (Community Scheduling Framework).

Integrate or build as necessary

Portal Infrastructure

Security Infrastructure

Naming and Discovery Infrastructure

Data Management and Replication

Generic Mediation

Applications

Grid Layer

Systems Layer

Physical Deployment

Grid Layer

www.geongrid.org

1 portal infrastructure
GridSphere Portal Framework

Developed by GridLab (Jason Novatny, and others) Albert Einstein Institute, Berlin, Germany

Java/JSP Portlet Container

JSR 168 support, WSRP and JSF coming

Supports

Collaboration (standard portlet API)

Personalization (eg. my.yahoo.com)

Grid Services (GSI support)

Web Services

Other Frameworks

Open Grid Computing Environments (OGCE)

Apache JetSpeed based --> Sakai

1. Portal Infrastructure

www.geongrid.org

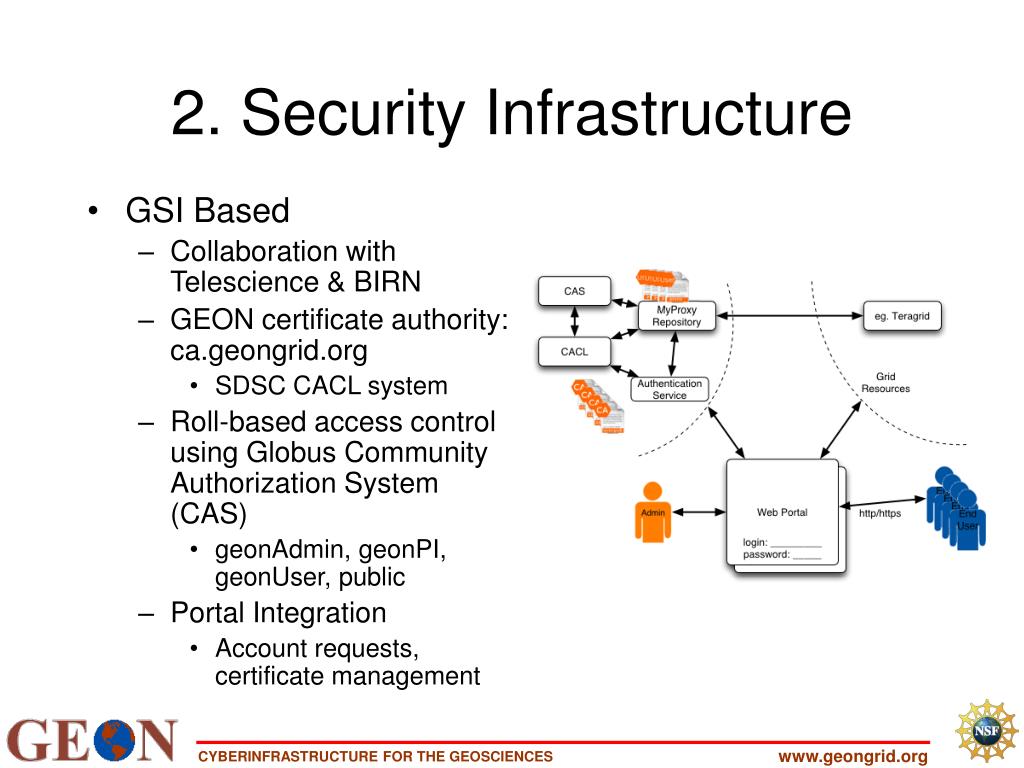

2 security infrastructure
GSI Based

Collaboration with Telescience & BIRN

GEON certificate authority: ca.geongrid.org

SDSC CACL system

Roll-based access control using Globus Community Authorization System (CAS)

geonAdmin, geonPI, geonUser, public

Portal Integration

Account requests, certificate management

2. Security Infrastructure

www.geongrid.org

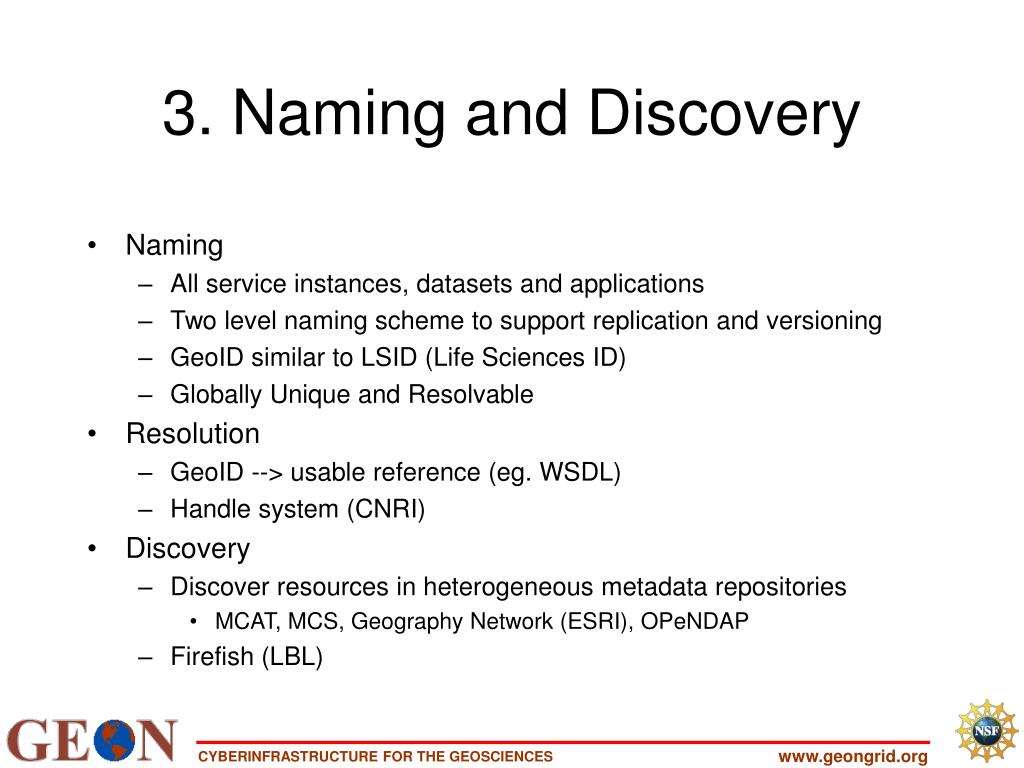

3 naming and discovery
Naming

All service instances, datasets and applications

Two level naming scheme to support replication and versioning

GeoID similar to LSID (Life Sciences ID)

Globally Unique and Resolvable

Resolution

GeoID --> usable reference (eg. WSDL)

Handle system (CNRI)

Discovery

Discover resources in heterogeneous metadata repositories

MCAT, MCS, Geography Network (ESRI), OPeNDAP

Firefish (LBL)

3. Naming and Discovery

www.geongrid.org

4 data management replication
Installed Services

GridFTP

SRB Server

GMR testing

Grid Movement and Replication

With IBM Research

OGSA-DAI performance

With GRASP (baru, casanova, snavely)

4. Data Management & Replication

www.geongrid.org

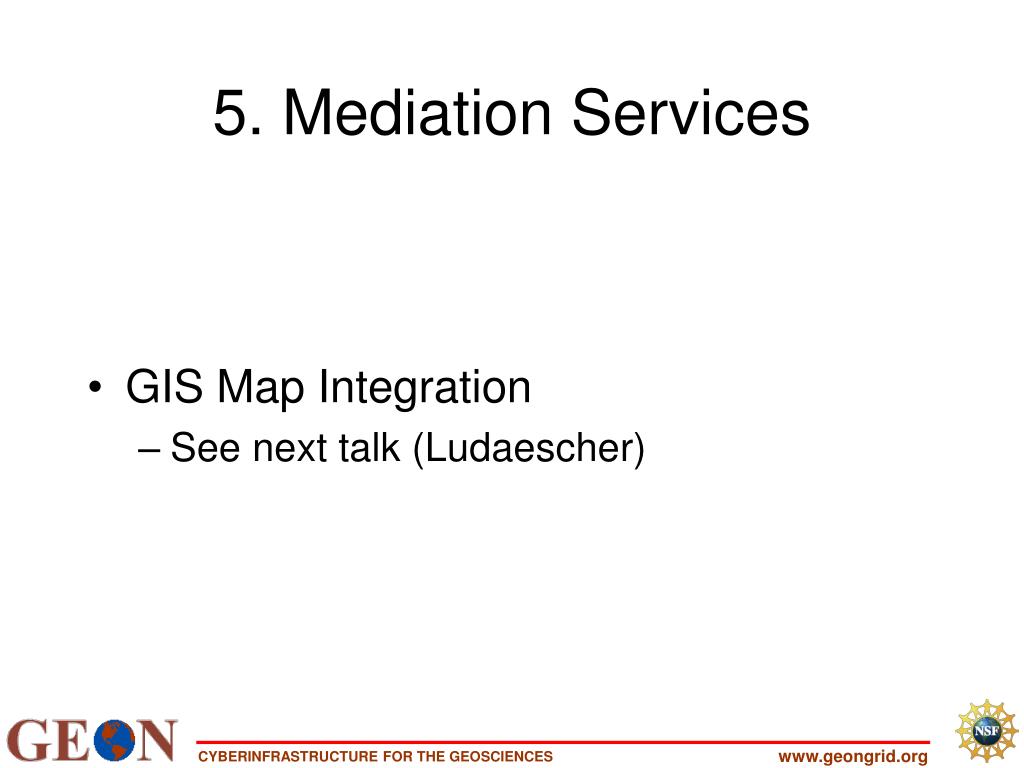

5 mediation services
GIS Map Integration

See next talk (Ludaescher)

5. Mediation Services

www.geongrid.org

year 2 summary
Physical Layer

Purchased and Deployed hardware

Systems Layer

Developed management software and collaborations with partner sites

Developed Geon Software Stack

Grid Layer

Beginning to build out Services

Portal & Security done (end of aug)

Naming & Discovery, Data Management & Replication, and mediation

Basic research still being done

Applications Layer

Some apps ready, used as templates for how to build apps in Geon

Year 2 Summary

www.geongrid.org

looking ahead year 3
Goals:

Provide core software infrastructure

Integration with outside resources

Encourage software development and integration with partners

More data, more apps, more tools

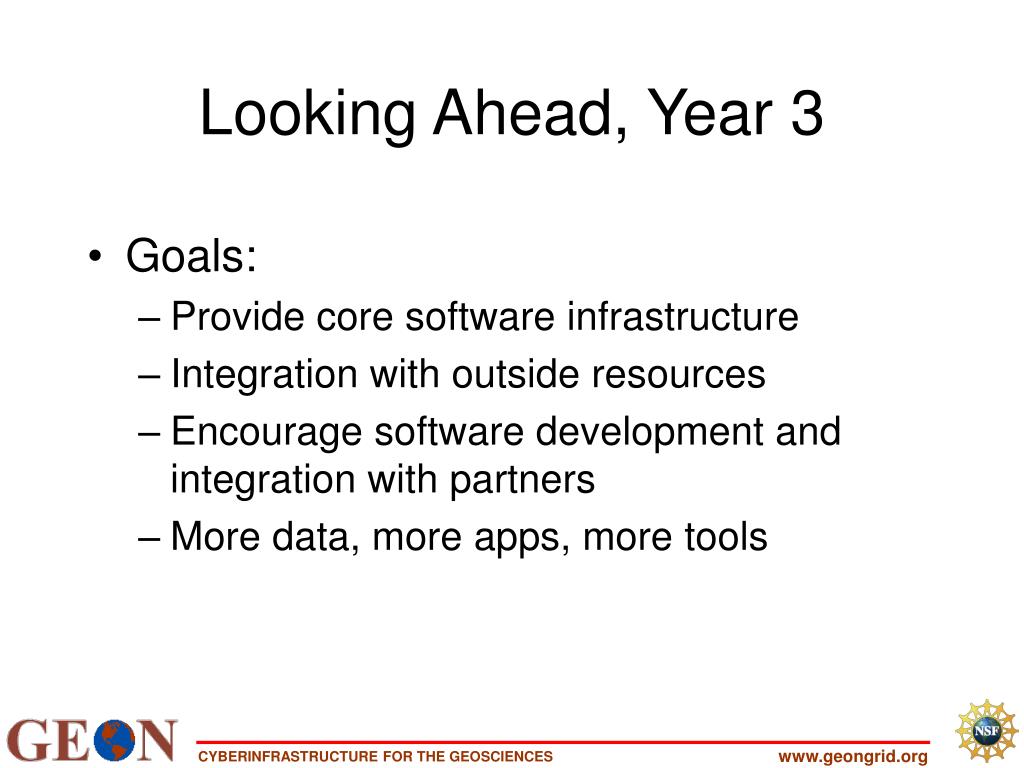

Looking Ahead, Year 3

www.geongrid.org

questions
Questions?

www.geongrid.org

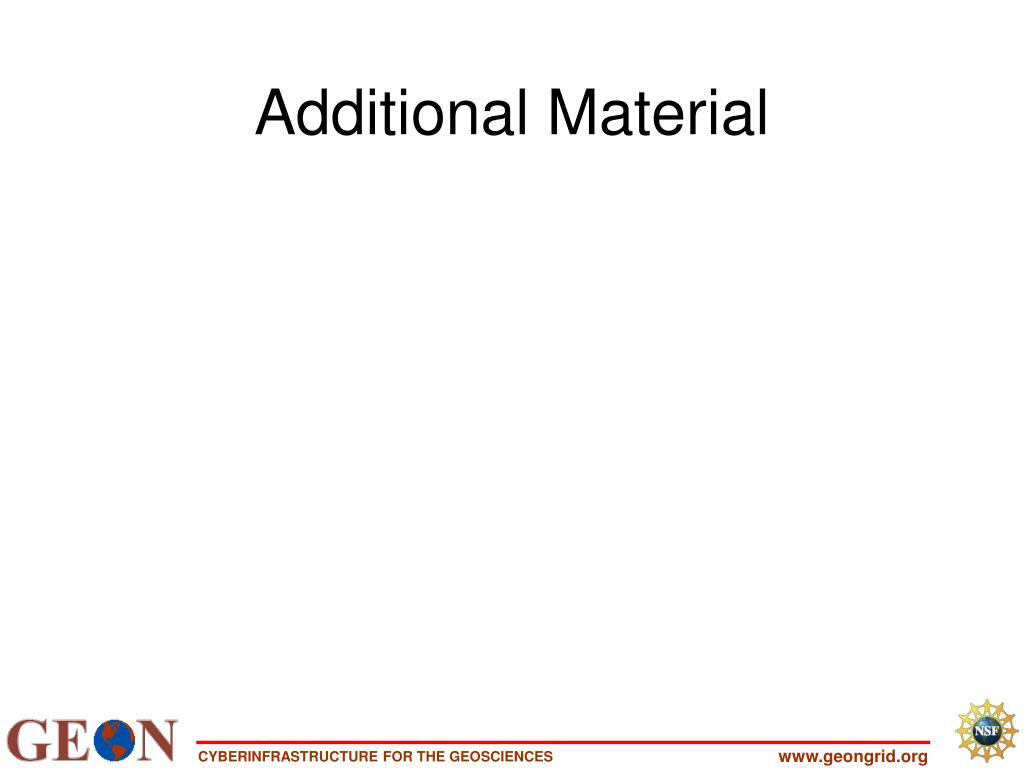

additional material
Additional Material

www.geongrid.org

grid movement and replication with ibm
Data is stored in the postgres database at UTEP on the GEON node.

GMR capture service running at UTEP reads and replicates data to the postgres database running at SDSC.

GMR apply and monitor service run at SDSC to store data sent by the capture service.

OGSA-DAI data access service provides access to database on both UTEP and SDSC nodes.

The user application grid service accepts two parameters,

The name of the node you want to access and

An SQL query to get data of interest that will be sent to the grav application.

Based on the SQL query an XML query document is generated.

Also based on the node, an appropriate service handle is selected.

The application grid service invokes the OGSA-DAI grid service handle to access data from the database.

The application grid service receives the data, and parses it to extract the relevant data values that are submitted to the grav application.

Grid Movement and Replication (with IBM)

www.geongrid.org
