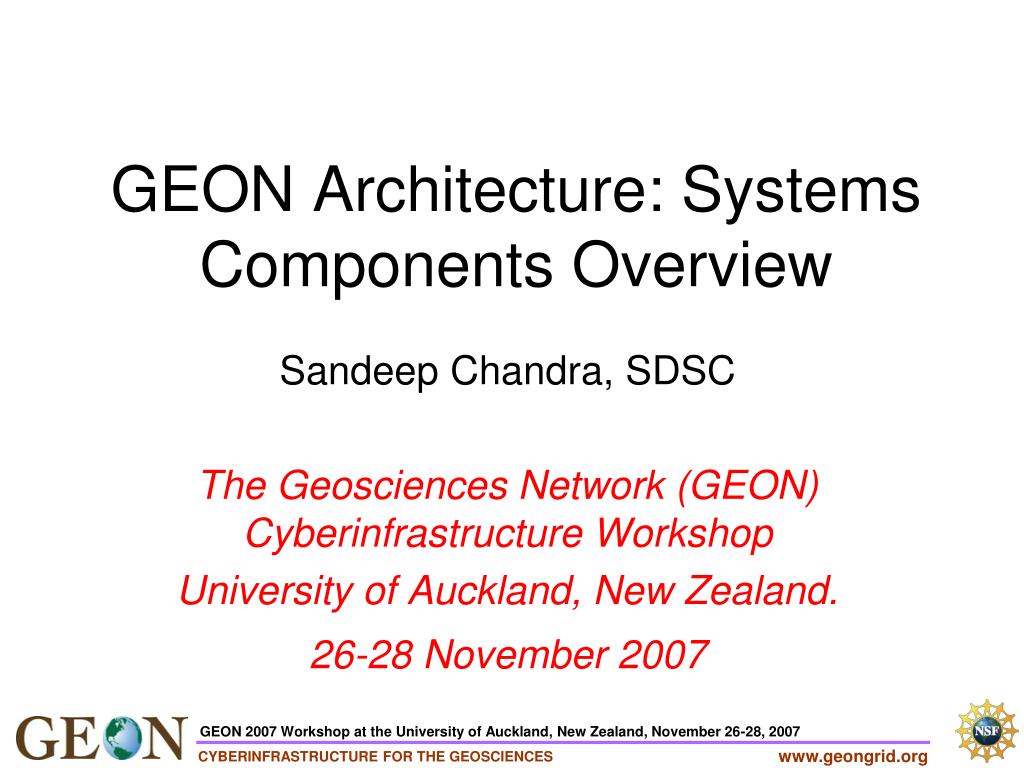

geon architecture systems components overview

GEON Architecture: Systems Components Overview

SandeepChandra, SDSC

The Geosciences Network (GEON) Cyberinfrastructure Workshop

University of Auckland, New Zealand.

26-28 November 2007

www.geongrid.org

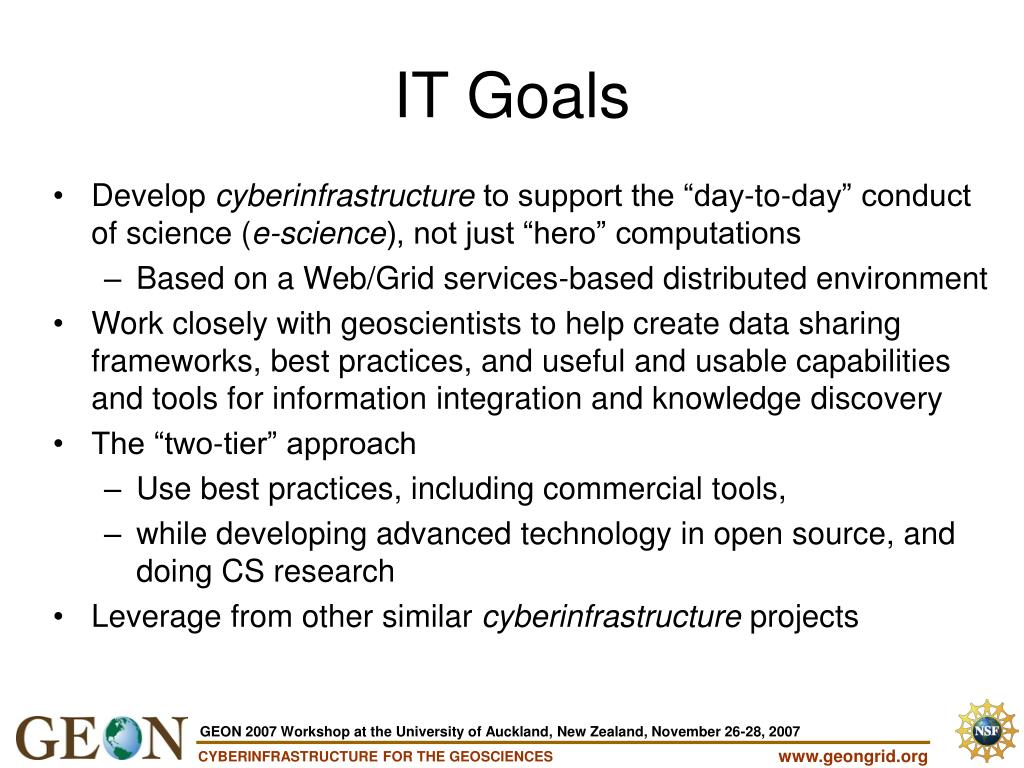

it goals
IT Goals
  • Develop cyberinfrastructure to support the “day-to-day” conduct of science (e-science), not just “hero” computations
    • Based on a Web/Grid services-based distributed environment
  • Work closely with geoscientists to help create data sharing frameworks, best practices, and useful and usable capabilities and tools for information integration and knowledge discovery
  • The “two-tier” approach
    • Use best practices, including commercial tools,
    • while developing advanced technology in open source, and doing CS research
  • Leverage from other similar cyberinfrastructure projects

www.geongrid.org

balancing empowering and controlling
System Deployment

Standard reference systems for GEON PoP (point-of-presence) and GEON Portal middleware infrastructure

Additional resources can be attached to the PoP

Software Deployment

Centralized software stack definition

Locally controlled extensions

Application Development and Integration

Centralized web-based portal for access to core resources

Local portals provide customization into users home environment and access to local expertise

Security

Centralized user account policies

Locally defined “non-grid” user policies

Balancing “Empowering” and “Controlling”

www.geongrid.org

software layers
Software Layers

www.geongrid.org

hardware deployment
Vendors

Dell (40 prod systems + devel systems)

Poweredge 2950-based systems

Dual Core 2.8 GHz Intel Xeon

750GB SAS, 2-4 GB RAM

ProMirco (3 systems)

Dual Pentium

4 TB + RAID

HP Cluster donation (9 systems)

Rx2600-based dual 1.4 GHz

PoPs (PI Institutes, Project Partners, International Partners)

23 servers in 23 domains

Compute and Data Clusters

4 small clusters (3-4 nodes each)

3 medium cluster (8-9 nodes)

1 large cluster (30,000 su’s on Teragrid)

Data Storage

3 data nodes (4 TB)

12 TB online SAN

10 TB tape archive

Misc. Equipment

Switches, racks, etc.

Hardware Deployment

www.geongrid.org

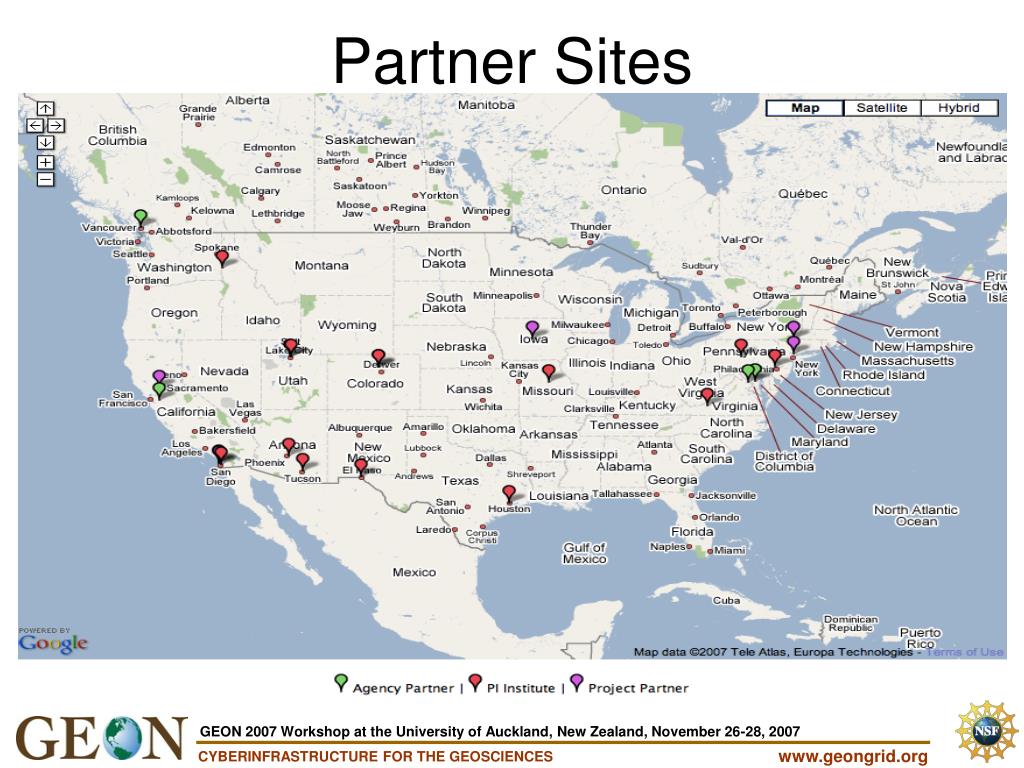

partner sites
Partner Sites

www.geongrid.org

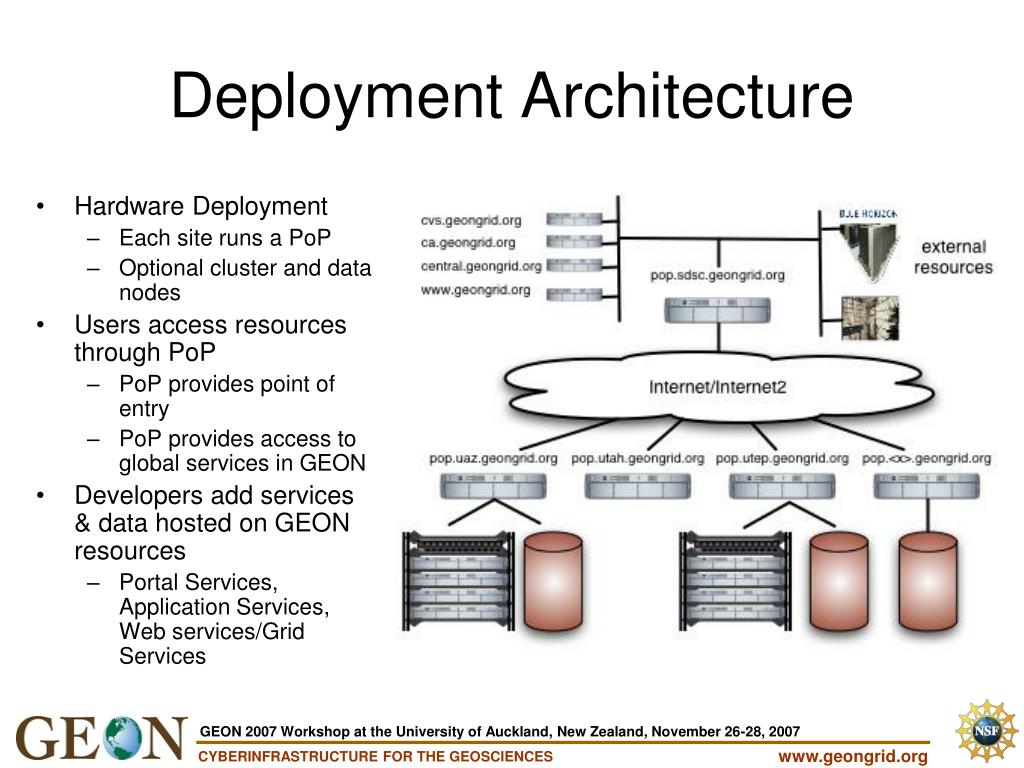

deployment architecture
Hardware Deployment

Each site runs a PoP

Optional cluster and data nodes

Users access resources through PoP

PoP provides point of entry

PoP provides access to global services in GEON

Developers add services & data hosted on GEON resources

Portal Services, Application Services, Web services/Grid Services

Deployment Architecture

www.geongrid.org

geon hardware facility
GEON Hardware Facility

www.geongrid.org

systems software
Unified Software Stack definition

Custom GEON Roll

GEON Portal

Web/Grid Services software Stack

Common GEON Applications and Services

Focus on scalable systems management

Modified Rocks for wide-area cluster management

Mechanism to provide local extensions to base software stack definition

Collaborations with partner sites

Identified appropriate contacts

Helping partner sites in systems development

Systems Software

www.geongrid.org

geon software stack
Base OS

Rocks: highly programmatic software configuration management

Development

Globus 4.0.2 (GSI, GridFTP, etc)

Web Services (Jakarta-tomcat-5.0.28, axis-1.2, ant-1.6, jdk1.4.2, etc)

GridSphere 2.0.2 Portal Framework

Database

IBM DB2

Postgres 8.0.3

PostGIS 1.2 (Geos, Proj)

Security

Tripwire, chkrootkit

System Monitoring

INCA Testing and Monitoring framework (Teragrid)

With GRASP benchmarks

Network Weather Service (NWS)

Ganglia

Job Submission and Monitoring

Condor, PBS

GRASS (GDAL, NetCDF, Tiff)

GMT

PBS

Condor

NWS

INCA/GRASP

Globus

OGSA-DAI

Pre-Web

Axis

Tomcat

Postgres

PostGIS Geos Proj

Ant

Samba

JDK

Tripwire

Rocks 4.2.1 based on

RedHat Enterprise Linux

GEON Software Stack

GEONGrid Software Stack

GridSphere Portal

www.geongrid.org

wide area cluster management
Federico Sacerdoti, Sandeep Chandra, and Karan Bhatia, “Grid Systems Deployment and

Management using Rocks”, IEEE Cluster 2004, Sept. 20-23 2004, San Diego, California

Wide-Area Cluster Management

www.geongrid.org

slide12

GEON Rocks Central

  • Local extensions to software stack
  • Partner sites package and maintain locally hosted rolls.
  • Provides easy installation and automatic configuration of software on nodes.
  • A highly customized node.

central.<X>.geongrid.org

<X> Central Server

(<Y> Roll)

GEON Frontend

(GEONGrid+GRASS+GMT)

ASU Central Server

(GRASS Roll)

central.asu.geongrid.org

Compute

Compute

SDSC Central Server

(GEONGrid Roll)

UTEP Central Server

(GMT Roll)

central.sdsc.geongrid.org

central.utep.geongrid.org

www.geongrid.org

additional infrastructure
Production/Beta/Development servers

8 Production servers used for various activities

3 Beta Servers

1 Common Development Server

1 Central Server for hosting Rocks and GEON stack.

Blogs, Forums, Calendar, RSS

Bug tracking software (JIRA)

CVS/SVN services

svn.geongrid.org

GEON Certificate Authority

gama.geongrid.org

Additional Infrastructure

www.geongrid.org

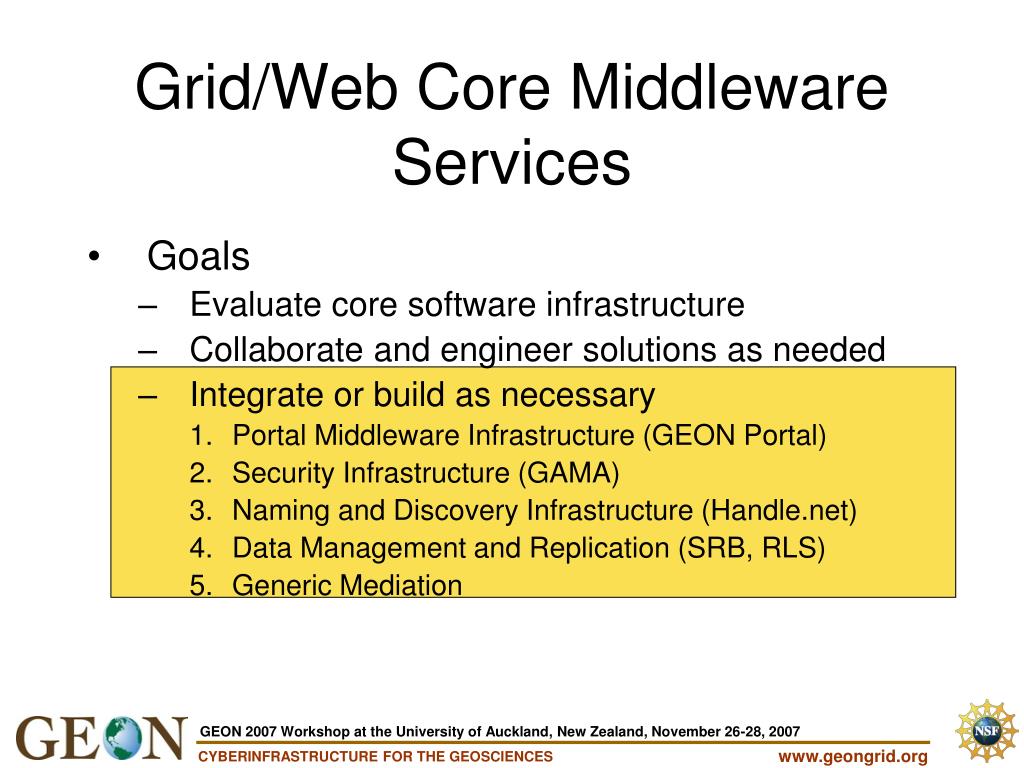

grid web core middleware services
Goals

Evaluate core software infrastructure

Collaborate and engineer solutions as needed

Integrate or build as necessary

Portal Middleware Infrastructure (GEON Portal)

Security Infrastructure (GAMA)

Naming and Discovery Infrastructure (Handle.net)

Data Management and Replication (SRB, RLS)

Generic Mediation

Grid/Web Core Middleware Services

www.geongrid.org

core services
Authentication

GSI, CAS, SAML, MyProxy, CACL-CA, Naregi-CA, GAMA

Monitoring

NWS, INCA

Scheduling

Condor, CSF (Community Scheduling Framework)

Cataloging

RLS (Replica Location Service), Handle.net

Data Transfer and Management

GridFTP, SRB

Replication

RLS, SRB

Databases

Postgres, PostGIS, DB2

Core Services

www.geongrid.org

portal infrastructure
GridSphere Portal Framework

Developed by GridLab (Jason Novatny, and others) Albert Einstein Institute, Berlin, Germany

Java/JSP Portlet Container

JSR 168 support, WSRP and JSF

Supports

Collaboration (standard portlet API)

Personalization (e.g. my.yahoo.com)

Grid Services (GSI support)

Web Services

Other Frameworks

Open Grid Computing Environments (OGCE)

Apache JetSpeed based on Sakai

Portal Infrastructure

www.geongrid.org

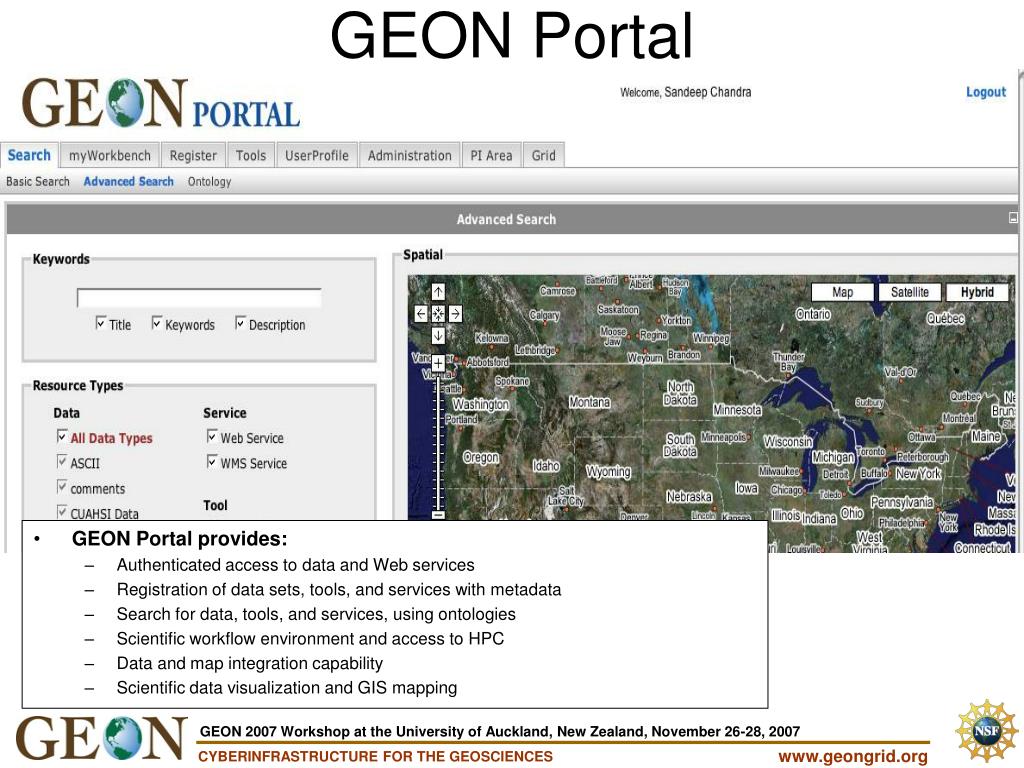

geon portal
GEON Portal
  • GEON Portal provides:
    • Authenticated access to data and Web services
    • Registration of data sets, tools, and services with metadata
    • Search for data, tools, and services, using ontologies
    • Scientific workflow environment and access to HPC
    • Data and map integration capability
    • Scientific data visualization and GIS mapping

www.geongrid.org

distributed portals
Distributed portal architecture

Allows partner sites to “brand” their portal

Facilitates development by partners

Allows custom apps for each site

Unified user login

GSI based, managed by GEON system

Networking for local organizations

Distributed Portals

www.geongrid.org

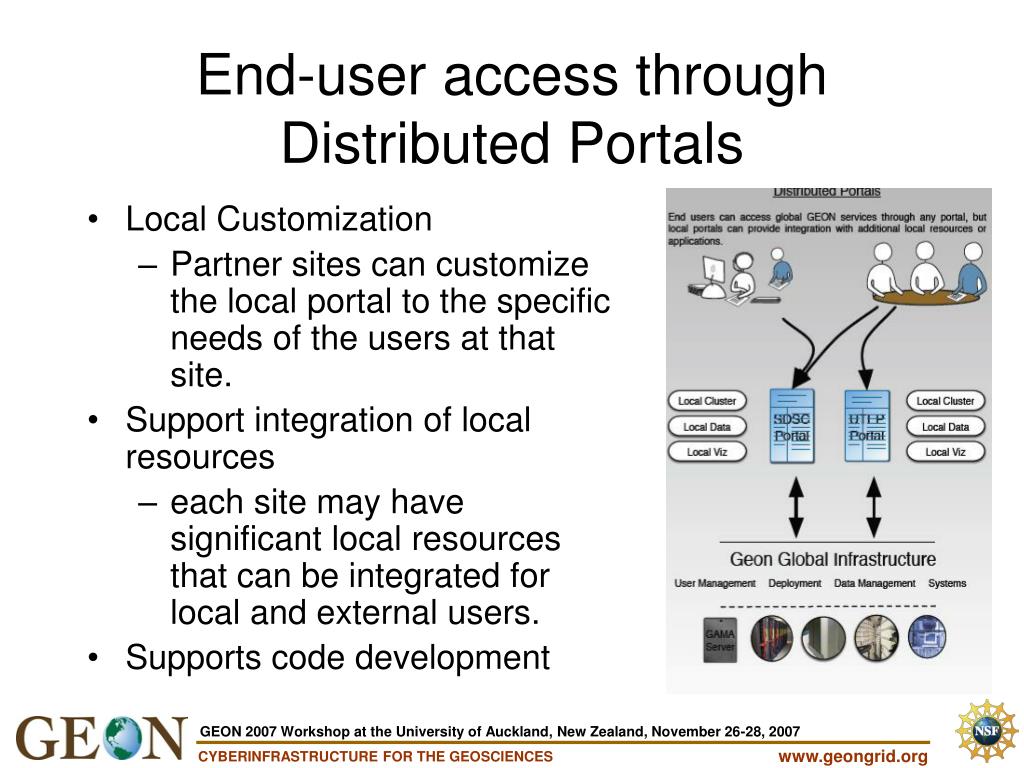

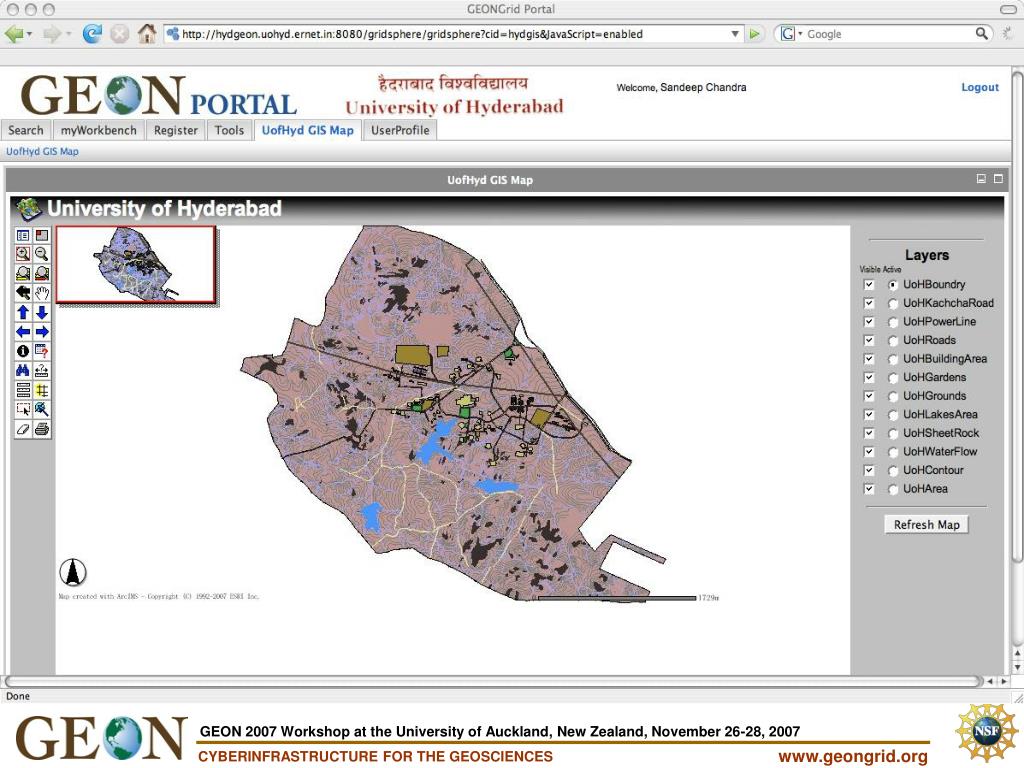

end user access through distributed portals
Local Customization

Partner sites can customize the local portal to the specific needs of the users at that site.

Support integration of local resources

each site may have significant local resources that can be integrated for local and external users.

Supports code development

End-user access through Distributed Portals

www.geongrid.org

challenges
Managing distributed catalogs

Integration of tools

Complete automation of portal middleware deployment process

Challenges

www.geongrid.org

data portal middleware
Data Portal Middleware
  • Portal Server
    • Dual Core Xeon
    • 750 GB SAS
    • 4-8 GB RAM
    • Rocks, GEON
  • Data Server
    • Dual Core Xeon
    • 1.5TB RAID 5
    • 4-8 GB RAM
    • Rocks, SRB
  • CA Server
    • Dual Core Xeon
    • 30GB SCSI
    • 2 GB RAM
    • Rocks, GAMA

www.geongrid.org

data portals deployed
Data Portals Deployed

www.geongrid.org

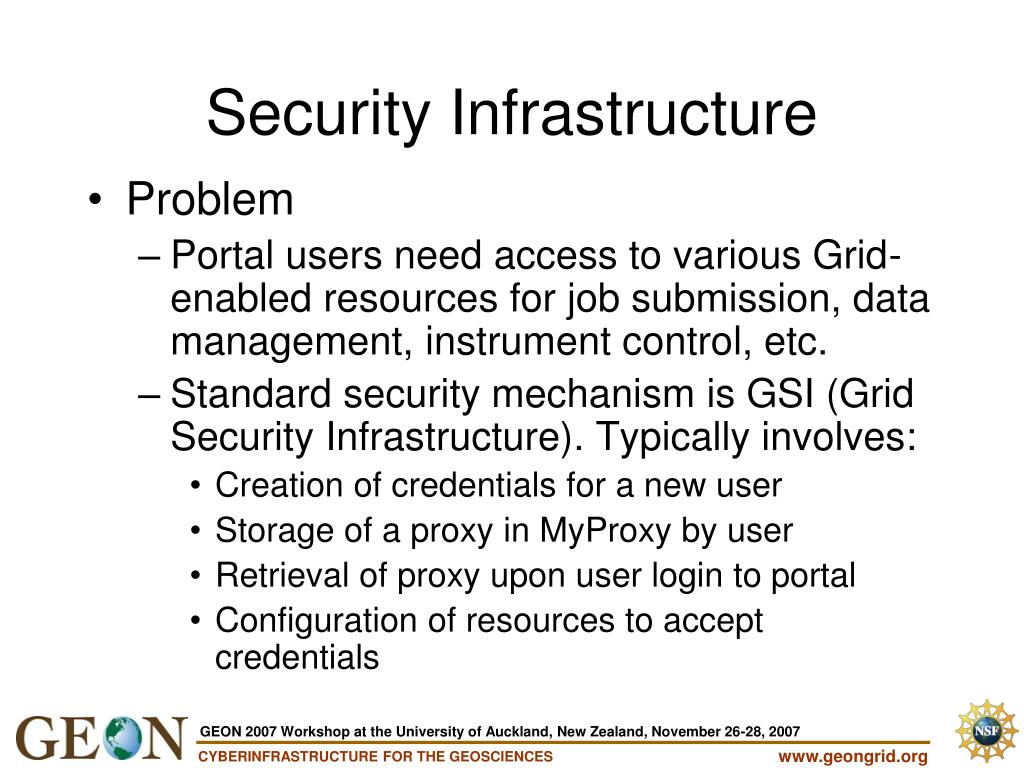

security infrastructure
Problem

Portal users need access to various Grid-enabled resources for job submission, data management, instrument control, etc.

Standard security mechanism is GSI (Grid Security Infrastructure). Typically involves:

Creation of credentials for a new user

Storage of a proxy in MyProxy by user

Retrieval of proxy upon user login to portal

Configuration of resources to accept credentials

Security Infrastructure

www.geongrid.org

security infrastructure25
GSI Based

Collaboration with Telescience & BIRN

GEON certificate authority: gama.geongrid.org

SDSC CACL system

Roll-based access control by extending Gridsphere capabilities

geonAdmin, geonPI, geonUser, public

Portal Integration

Account requests, certificate management

Security Infrastructure

www.geongrid.org

gama grid account management architecture
A Solution

Install command-line security infrastructure on a dedicated, locked-down machine (GAMA server)

Wrap apps in Web Services on GAMA server

Construct GridSphere portlets and services for submitting and managing account requests from users on a portal server

Configure GridSphere to automatically retrieve a proxy from the GAMA server when a user logs on to the portal

GAMA: Grid Account Management Architecture

www.geongrid.org

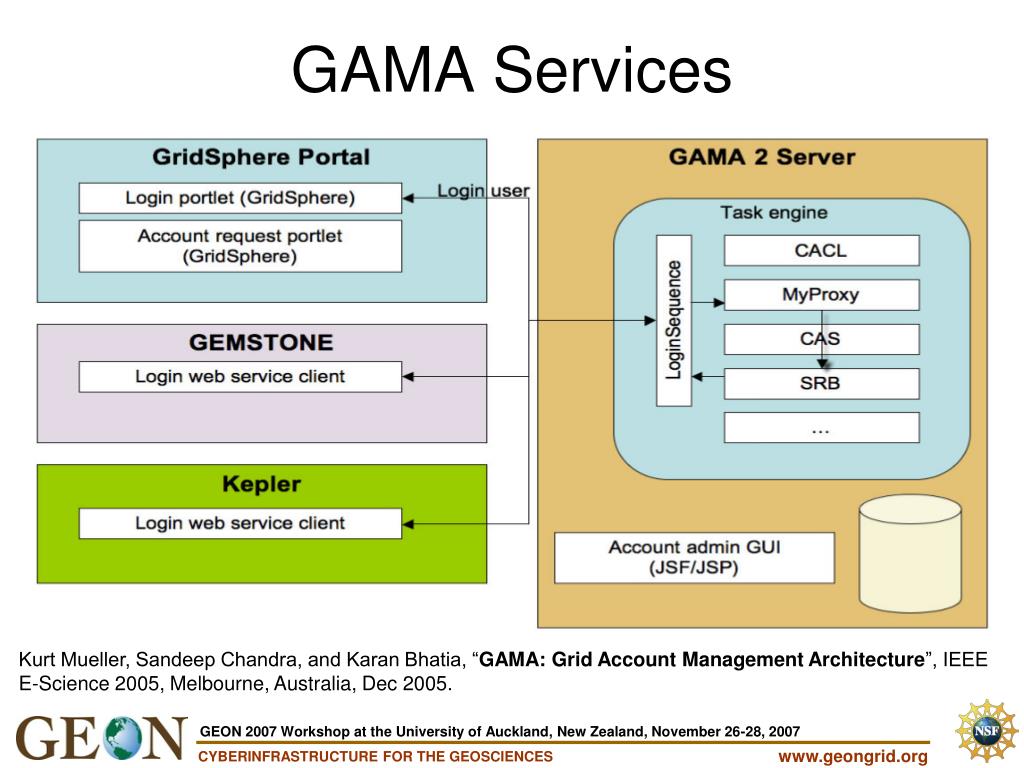

gama services
GAMA Services

Kurt Mueller, Sandeep Chandra, and Karan Bhatia, “GAMA: Grid Account Management Architecture”, IEEE

E-Science 2005, Melbourne, Australia, Dec 2005.

www.geongrid.org

gama portal components
GAMA Portal Components

PortletServices

ActionPortlets

AccountRequest

objects

Grid

Sphere

DB

AccountRequestService

All object persistence

methods, and many

other account manage-

ment methods

RequestApprovalRule

objects

hibernate

GAMAClientService

Encapsulates all

communication with

GAMA server

GAMAAuthModule

Provides GridSphere login

and automatic credential

retrieval

Utility classes

FormInputValidation

SendMail

www.geongrid.org

gama supports
GAMA Supports
  • GSI-based using best practices
  • Global account acceptance policies
  • Supports importing of grid accounts (privileged user)
  • Supports non-grid local accounts (non-privileged user)
  • Supports portals, clusters and rich clients
  • Packaged as Rocks rolls.

www.geongrid.org

authorization
Extending Gridsphere user db

Users can be authorized for access to tools/services at various levels

Registration, LiDAR, SYNSEIS

Authorization

www.geongrid.org

naming and discovery
Naming

All service instances, datasets and applications

Two level naming scheme to support replication and versioning

Globally Unique and Resolvable

Resolution

Handle system (Evaluating)

Collaborating with Earthchem project

Discovery

Discover resources in heterogeneous metadata repositories

MCAT, MCS, Geography Network (ESRI), OPeNDAP

UDDI

Replica Location Service (Globus)

Naming and Discovery

www.geongrid.org

data management replication
Data Movement and

Storage

GridFTP

SRB Server

Caching and Replication

Replica Location Service (RLS)

Data Services Metrics

GRASP

Inca

Data Management & Replication

www.geongrid.org

system monitoring and benchmarking
System Monitoring and Benchmarking
  • Inca for user-level monitoring of Grid functionality and performance
  • Measure Bandwidth, Latency and other system metrics
  • Use Globus, GRASP, INCA and NWS frameworks
  • Archive results and display data continuously

www.geongrid.org

summary
Physical Layer

Deploy hardware

Systems Layer

Developing management software and collaborations with partner sites

Developing and Deploying GEON Middleware

Collaborating with partner sites to develop local software stack extensions

Grid Layer

Services for

Portal & Security (Authentication & Authorization)

Naming & Discovery, Data Management & Replication, and Mediation

Applications Layer

Apps ready, used as templates for how to build apps in GEON.

Summary

www.geongrid.org

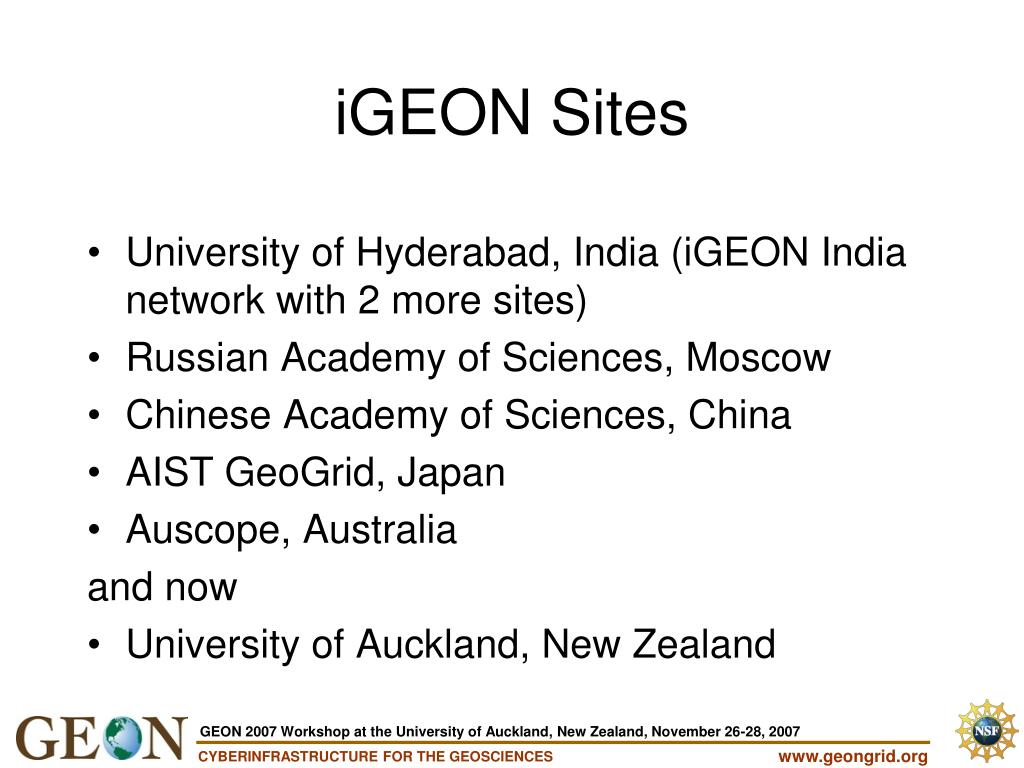

igeon sites
University of Hyderabad, India (iGEON India network with 2 more sites)

Russian Academy of Sciences, Moscow

Chinese Academy of Sciences, China

AIST GeoGrid, Japan

Auscope, Australia

and now

University of Auckland, New Zealand

iGEON Sites

www.geongrid.org

looking ahead geon 2 0
Goals:

Robustify existing GEON systems and middleware infrastructure.

Build new useful tools on top of existing framework.

Encourage software development and resource integration with partner sites

More data, More apps

Looking Ahead: GEON 2.0

www.geongrid.org

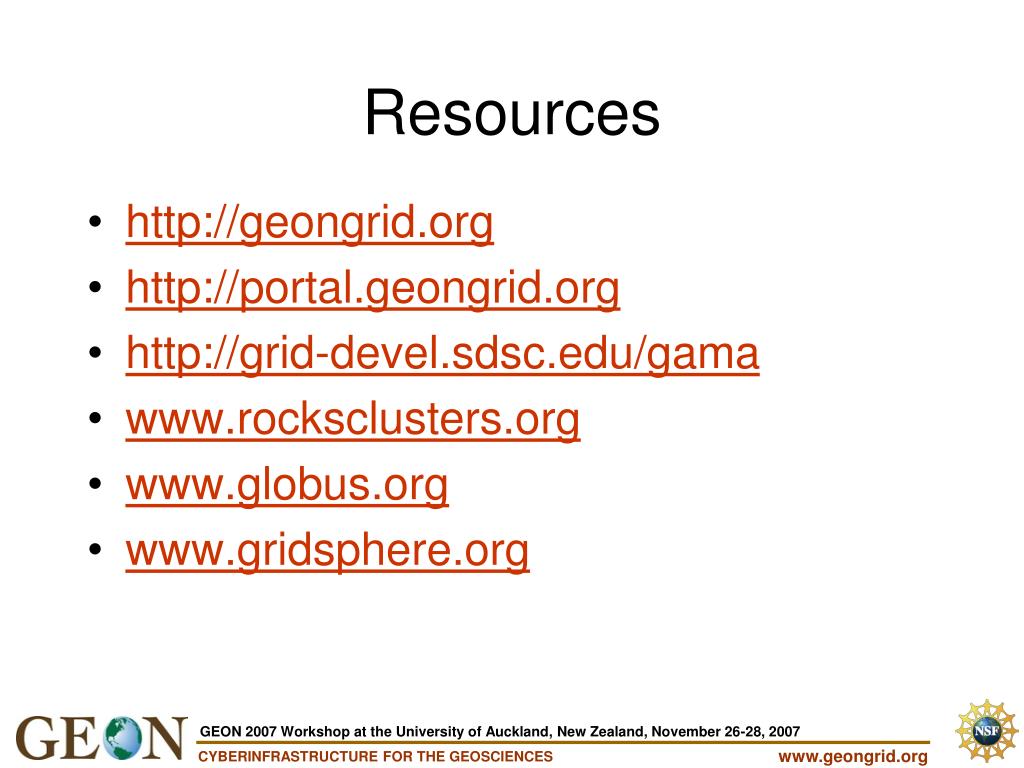

resources
http://geongrid.org

http://portal.geongrid.org

http://grid-devel.sdsc.edu/gama

www.rocksclusters.org

www.globus.org

www.gridsphere.org

Resources

www.geongrid.org

acknowledgements
GEON Team

Grid-Devel Group

Rocks Group

University of Auckland

BeSTGRID

Acknowledgements

www.geongrid.org
