Dynamics in Earth’s Atmosphere

what drives air motion
What Drives Air Motion?
  • Warm air rises and cools as it expands. Cool air falls to fill the space left by warm air. This sets up a vertical convection current.
  • Particles exert a force as they move and this force per unit area is called pressure.
what drives air motion1
What Drives Air Motion?
  • If two columns of air have the same temperature, they will have the same distribution of air particles and therefore the same pressure. However, a warmer column of air will have more height. The pressure at the same altitude in a cold and warm air column will be different.

Diagram from R.S Naylor

The columns in the first set have the same

temperature and pressure at each altitude. The

second set shows a cold and warm column. You have

to go higher in the warm column to get the same

pressure as in the cold. Therefore, the pressure is

higher at the same height in the warmer air column

compared to the cold.


Diagram from R.S Naylor

Particles move from areas of high pressure to areas

of lower pressure because of a pressure gradient.

The moving particles exert a pressure-gradient

force. In the case of cold and warm air columns, air

will move from the warm to the cold column at the

same height. This movement generates wind.

pressure in the atmosphere
Pressure in the atmosphere

This is a contour

display of pressures

at the surface.

Blues represent

lower pressures

while reds

indicate higher


global heating and air circulation
Global Heating and Air Circulation
  • Unequal heating of the Earth causes general air circulation. As we have discovered, global regions receive more direct radiation and therefore have higher temperatures. The warmer equatorial air rises and moves toward the polar regions (cooling as it goes). The colder polar air sinks and is drawn toward the equator.
global heating and air circulation1
Global Heating and Air Circulation
  • The fact that the Earth rotates complicates the circulation. Free-moving objects appear to deviate from straight-line paths as the Earth spins. This deflection due to Earth’s rotation is called the Coriolis effect. The effect is greatest near the poles and non-existent at the equator.
global heating and air circulation2
Global Heating and Air Circulation
  • Because the Earth rotates, the air circulation develops three cells in each hemisphere. These cells redistribute heat across Earth’s surface and generate weather systems.
global winds
Global Winds
  • The three cell circulation generates global wind patterns. The general winds include polar easterlies, westerlies, northeast or southeast trade winds, and doldrums (at the equator).
  • Wind direction is always designated as the direction from which the wind blows.
high and low pressure systems
High and Low Pressure Systems
  • When an local area of high pressure develops in Earth’s atmosphere the air moves outward from the center (high to low). The air is diverging and moves downward.
  • When an area of local low pressure develops, the air converges toward the lower pressure center and up.

Air circulation around a

high pressure system

Air circulation around a low

pressure system

wind directions
Wind Directions
  • In the Northern Hemisphere, upper level winds move clockwise around a high pressure system and counter-clockwise around a low pressure system.
  • Wind directions around high and low pressure systems are reversed in the Southern Hemisphere.

Pressure contour plot (blue

is lower pressure, red is higher)

Plot of wind direction-

Note that the winds are

moving counter-clockwise

around the low and clockwise

around the high region.

upper atmospheric circulation
Upper Atmospheric Circulation
  • In the upper troposphere “rivers” of rapidly moving air circle the Earth. These high speed winds are referred to a jet streams.
  • The polar jet stream is a result of a temperature gradient at the polar front where warm tropical air meets cold polar air.
upper atmospheric circulation1
Upper Atmospheric Circulation
  • The subtropical jet stream forms when warm tropical air is moved from the equator to the poles, generating a sharp temperature gradient along the subtropical front.

The polar front and the two jet streams have an

influence on the movement of weather systems

across the globe.

jet streams
Jet Streams
  • The polar front is strongest during the winter and weakest during the summer.
  • During major cold outbreaks, the polar front dives south over the country. Consequently, the polar jet stream also dives south in response. The polar jet stream often aids in the development of storms and it also tends to steer the storms.
jet streams1
Jet Streams
  • The subtropical jet stream tends to develop during the winter season. The subtropical jet stream can also help develop and steer storms and disturbances.
local weather
Local Weather
  • Local weather systems depend on the movement of the polar front (jet streams), seasonal conditions (temperature variations), and local topography (mountains, bodies of water…).

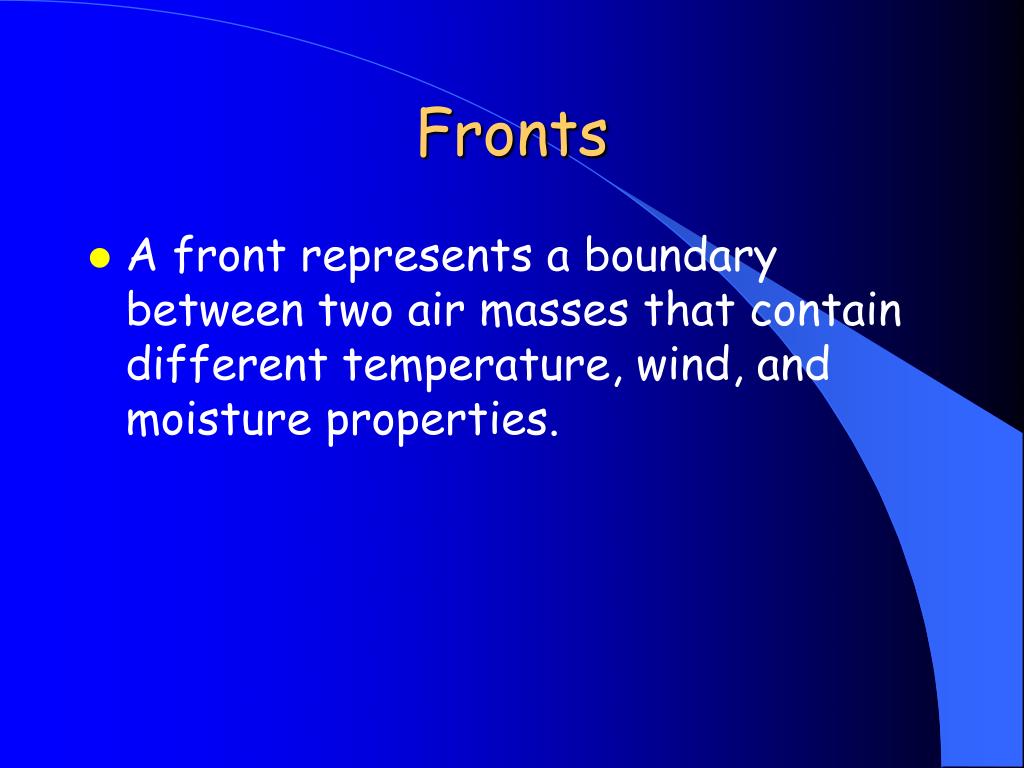

  • A front represents a boundary between two air masses that contain different temperature, wind, and moisture properties.
when fronts meet

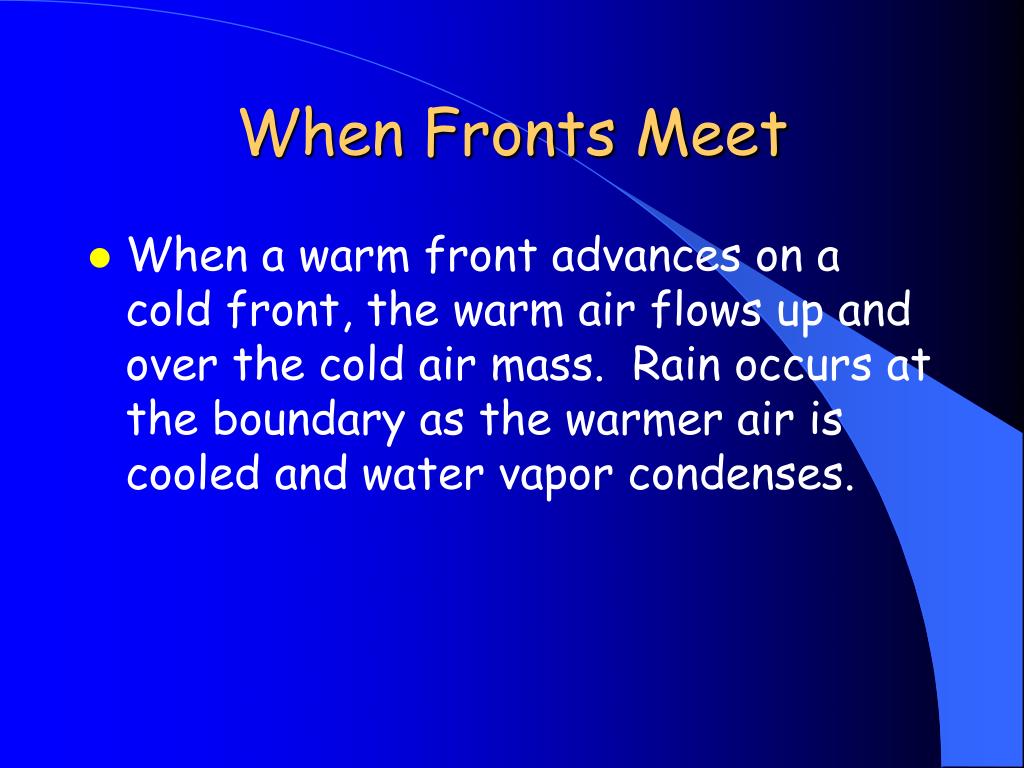

When Fronts Meet
  • When a warm front advances on a cold front, the warm air flows up and over the cold air mass. Rain occurs at the boundary as the warmer air is cooled and water vapor condenses.
when fronts meet1
When Fronts Meet
  • When a cold front advances on a warm front, it wedges under the warmer air causing the warmer air to rise and cool. Rain occurs where the fronts meet.
when fronts meet2
When Fronts Meet
  • When a faster moving cold front advances and begins to merge with a warm front an occluded front forms. This is associated with a low pressure system. Rain occurs where the fronts meet.

Warm air

Cold air

Cool air


Global circulation

as viewed from

the South Pole

  • The climate of a location may be defined as a "composite" of the long-term prevailing weather that occurs at that location. In a sense, climate is "average weather". Climate can be measured quantitatively by calculating the long term averages of different climate elements such as temperature and rainfall.
