section 13 1 review

Section 13-1 Review

Page #324:1-8

slide2

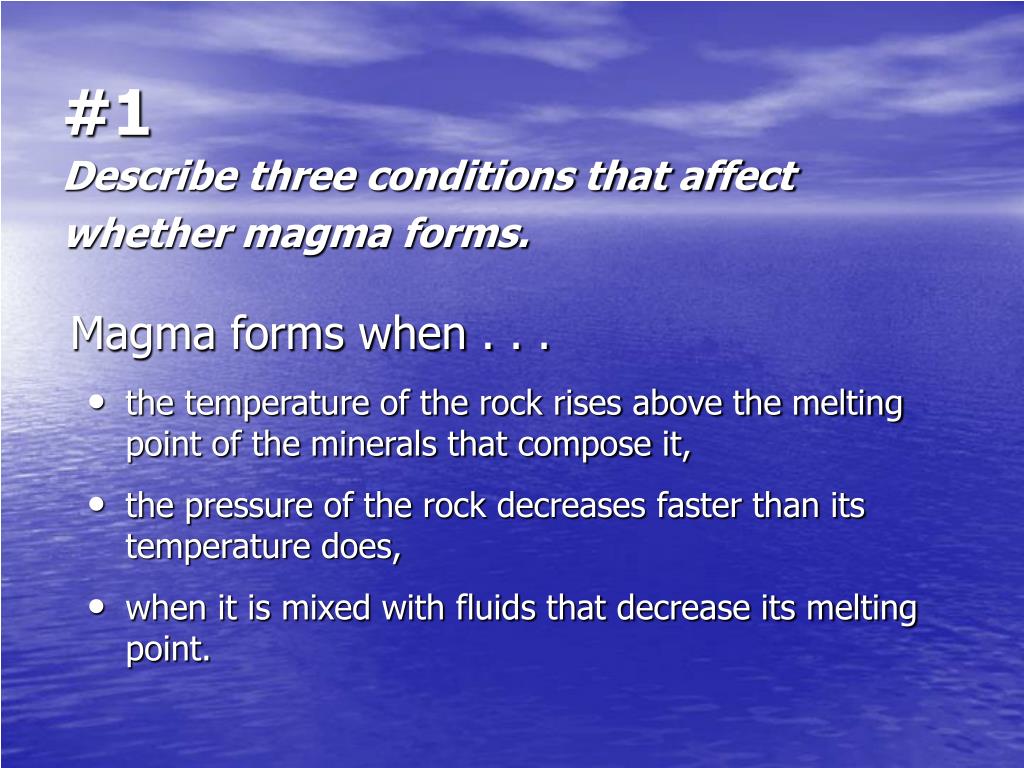

#1

Describe three conditions that affect

whether magma forms.

Magma forms when . . .

  • the temperature of the rock rises above the melting point of the minerals that compose it,
  • the pressure of the rock decreases faster than its temperature does,
  • when it is mixed with fluids that decrease its melting point.
slide3

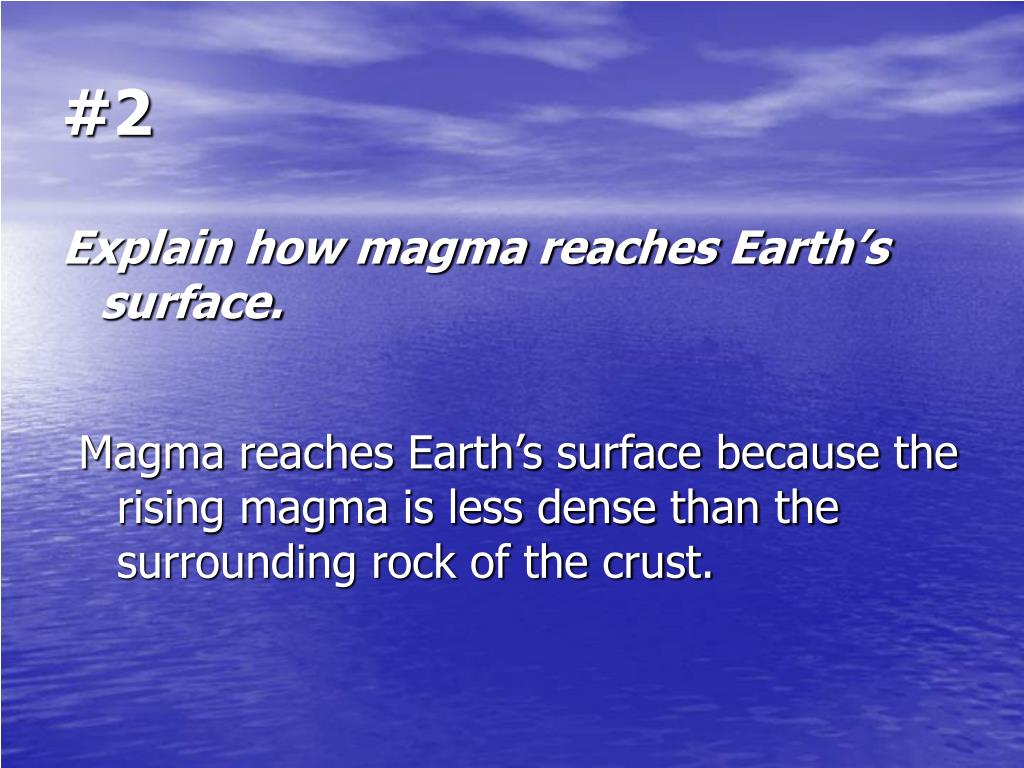

#2

Explain how magma reaches Earth’s surface.

Magma reaches Earth’s surface because the rising magma is less dense than the surrounding rock of the crust.

slide4

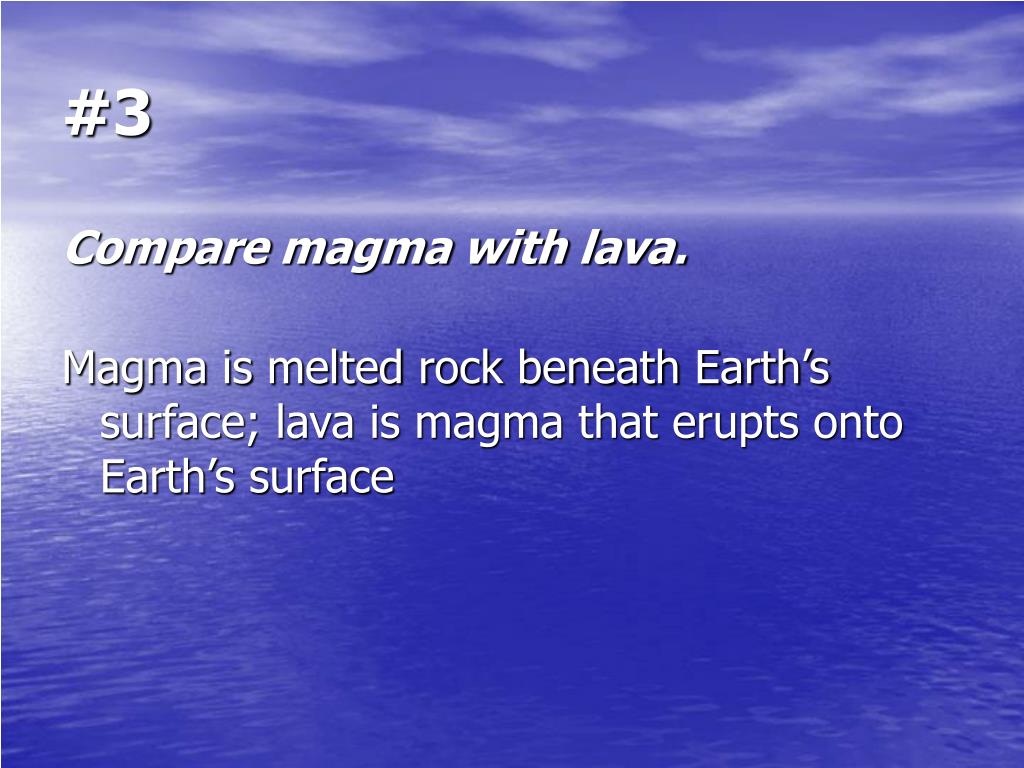

#3

Compare magma with lava.

Magma is melted rock beneath Earth’s surface; lava is magma that erupts onto Earth’s surface

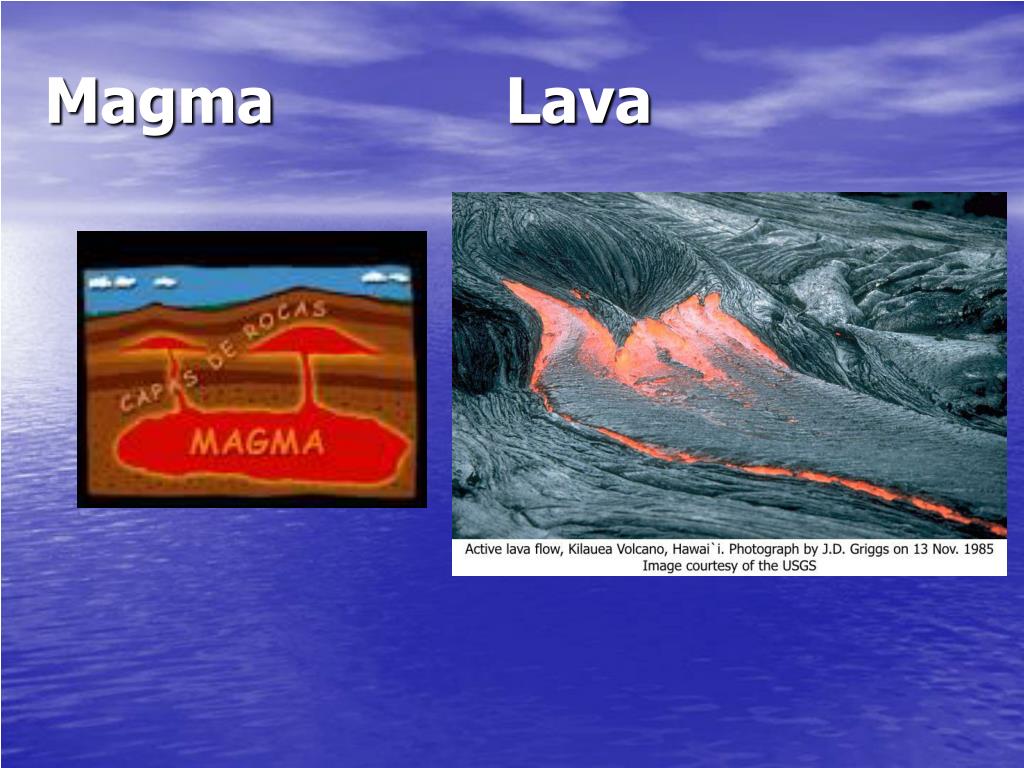

magma
Magma

Lava

slide6

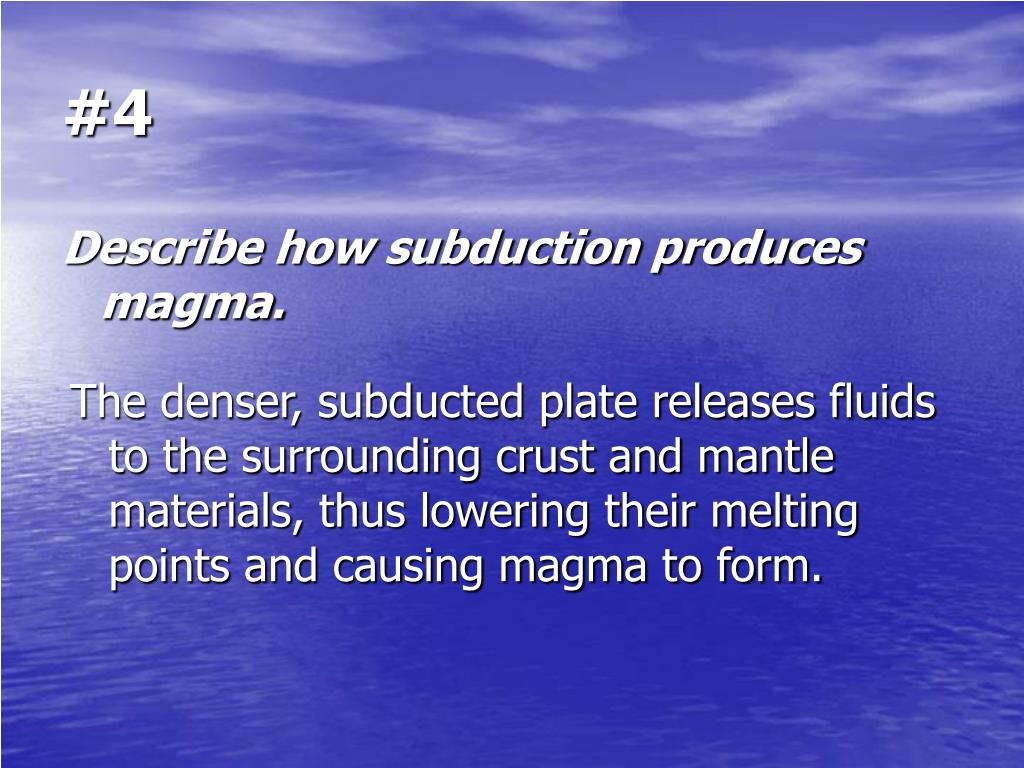

#4

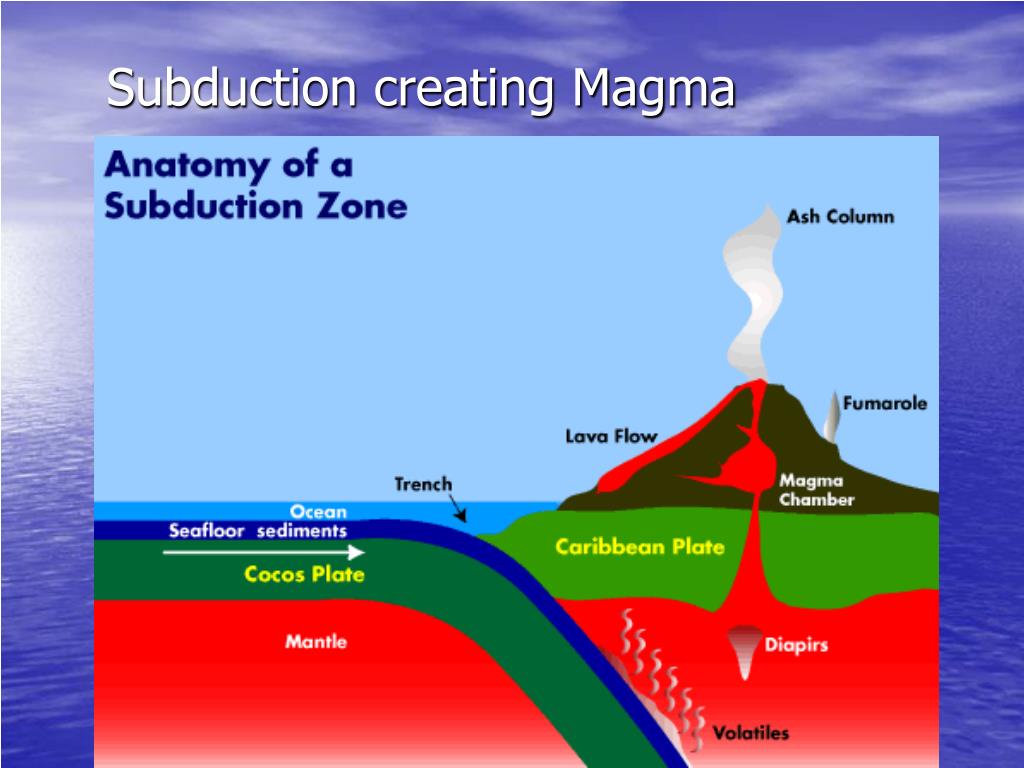

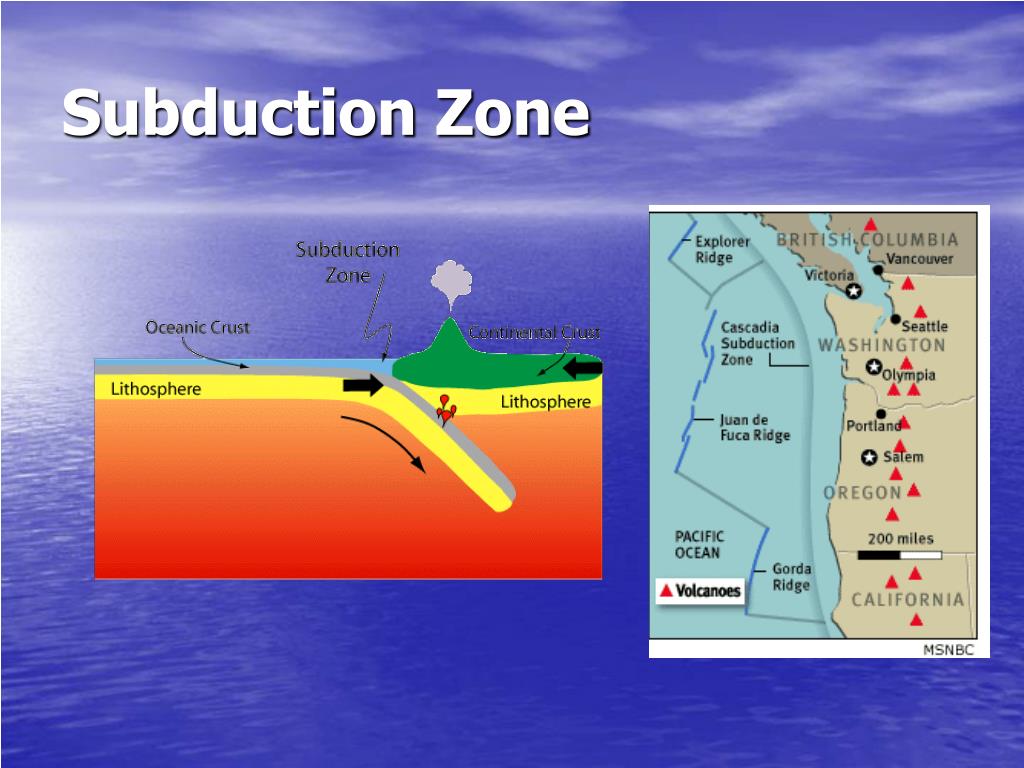

Describe how subduction produces magma.

The denser, subducted plate releases fluids to the surrounding crust and mantle materials, thus lowering their melting points and causing magma to form.

slide8

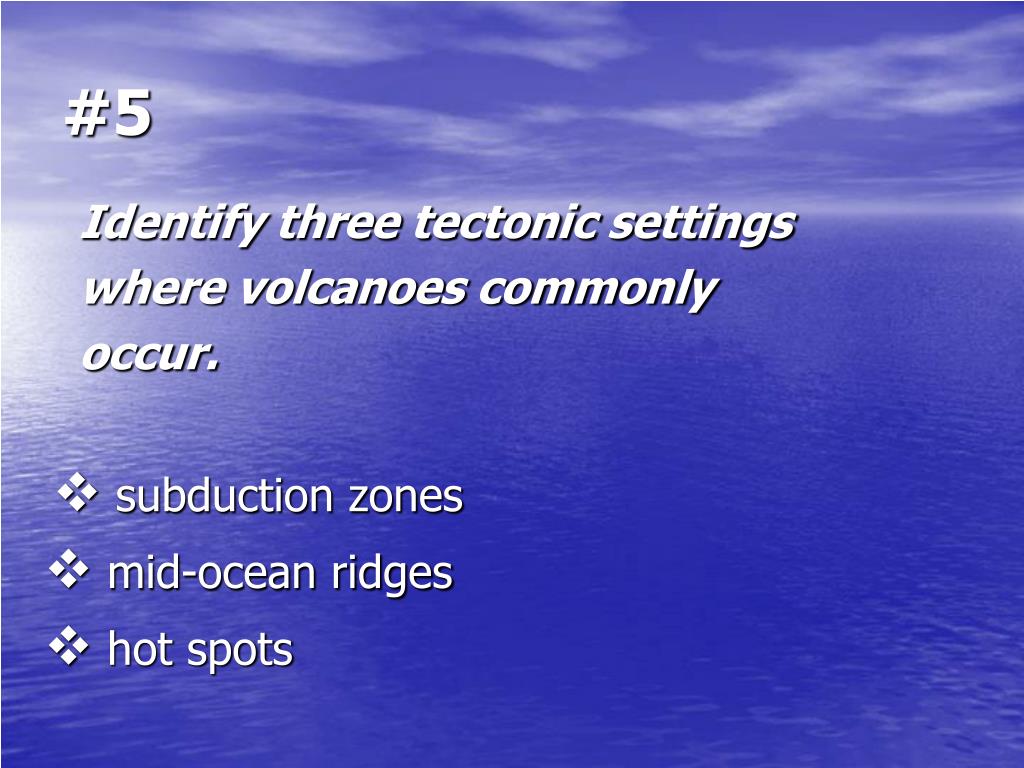

#5

Identify three tectonic settings

where volcanoes commonly

occur.

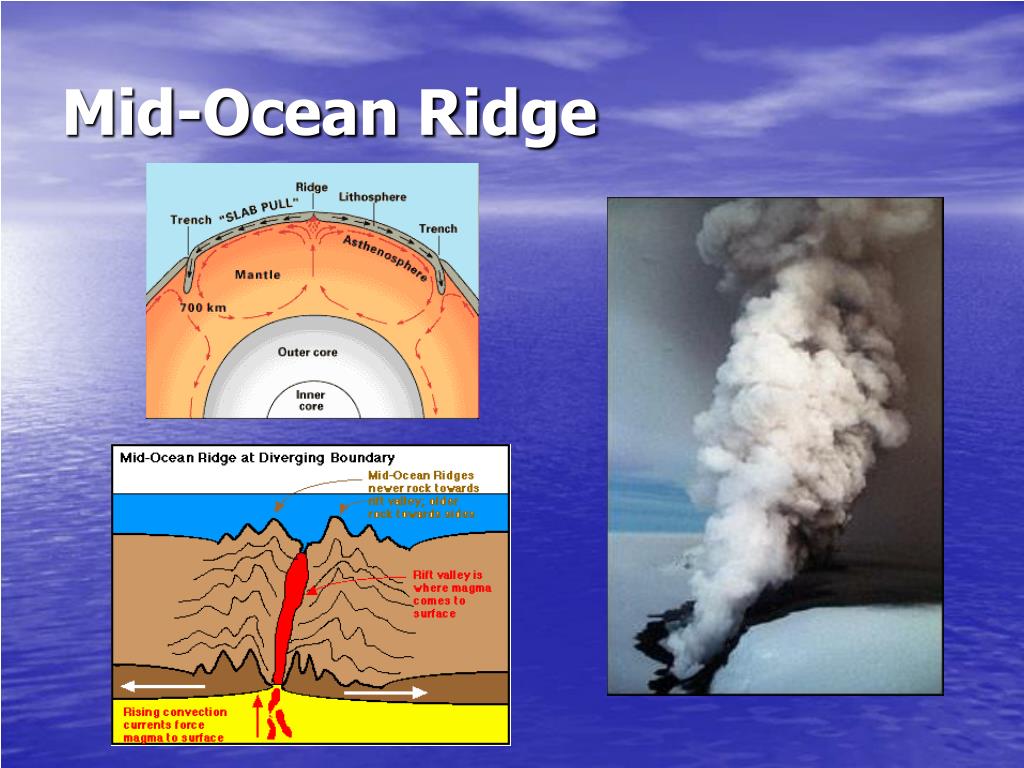

  • subduction zones
  • mid-ocean ridges
  • hot spots
slide11

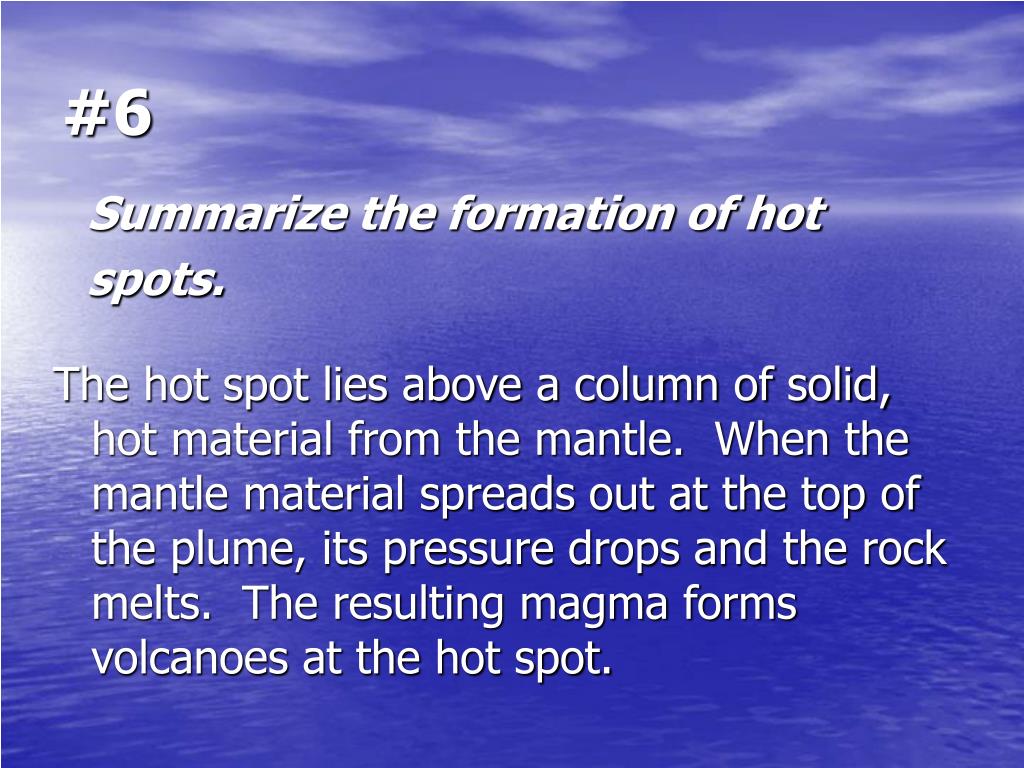

#6

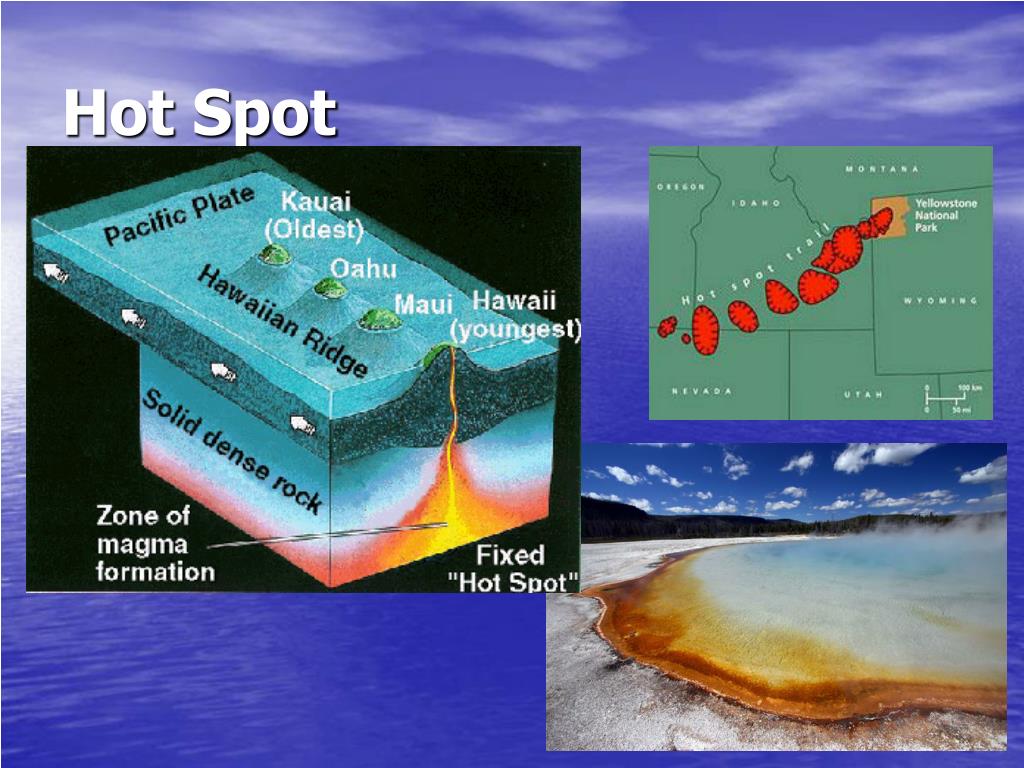

Summarize the formation of hot

spots.

The hot spot lies above a column of solid, hot material from the mantle. When the mantle material spreads out at the top of the plume, its pressure drops and the rock melts. The resulting magma forms volcanoes at the hot spot.

slide13

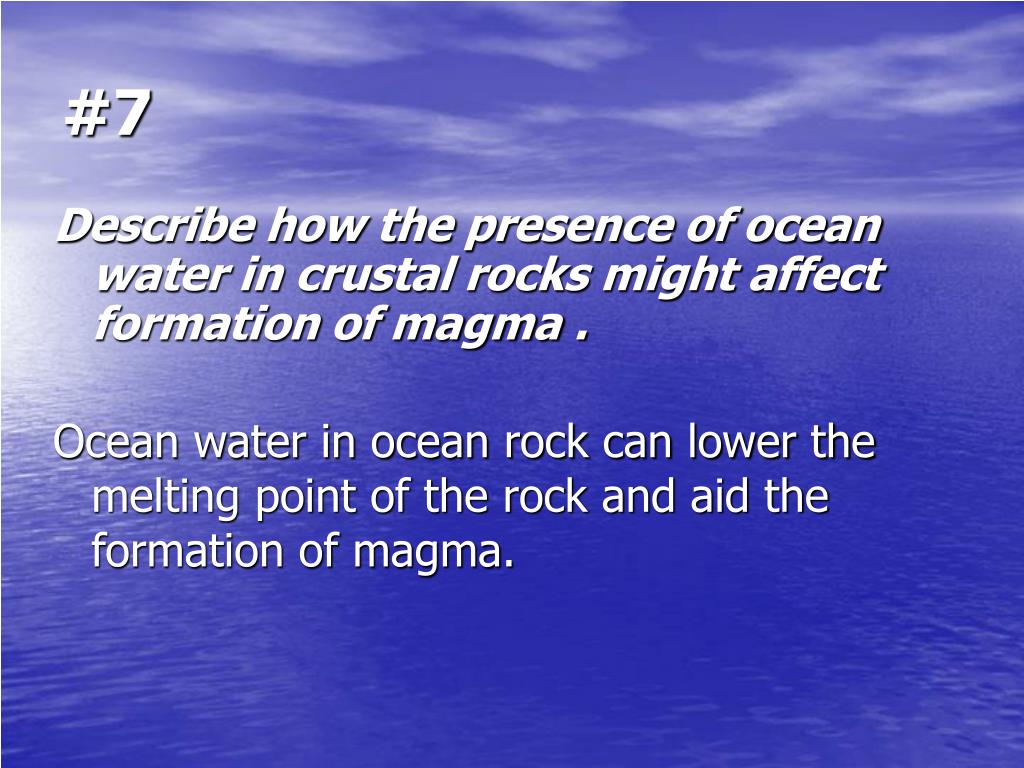

#7

Describe how the presence of ocean water in crustal rocks might affect formation of magma.

Ocean water in ocean rock can lower the melting point of the rock and aid the formation of magma.

slide14

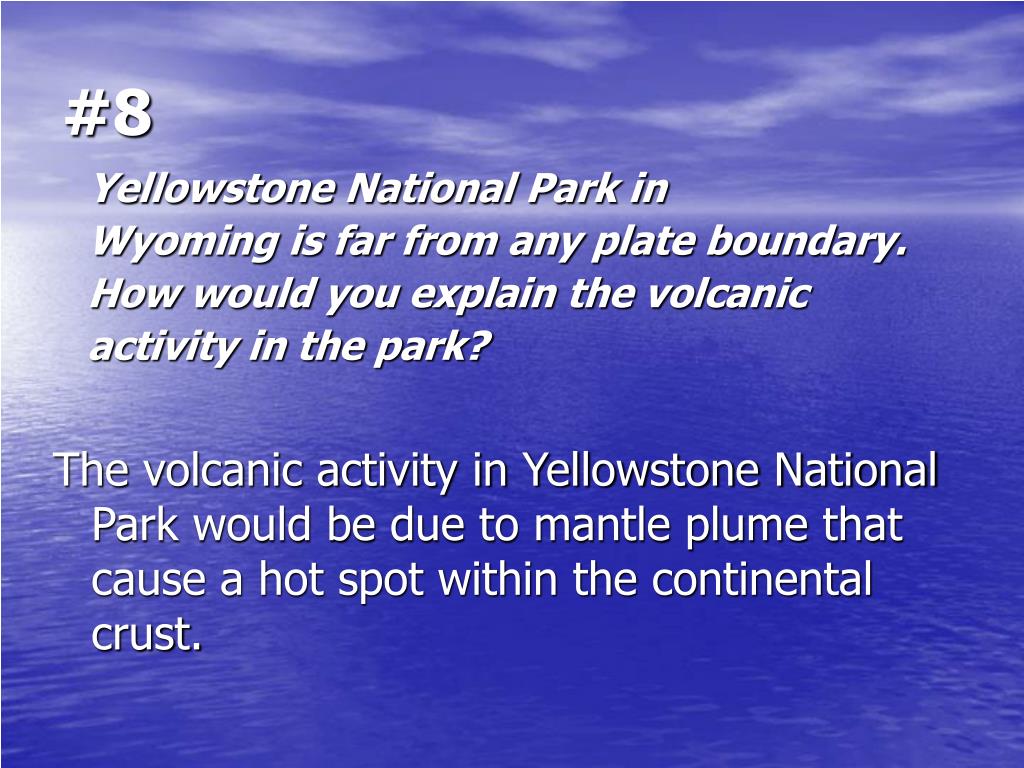

#8

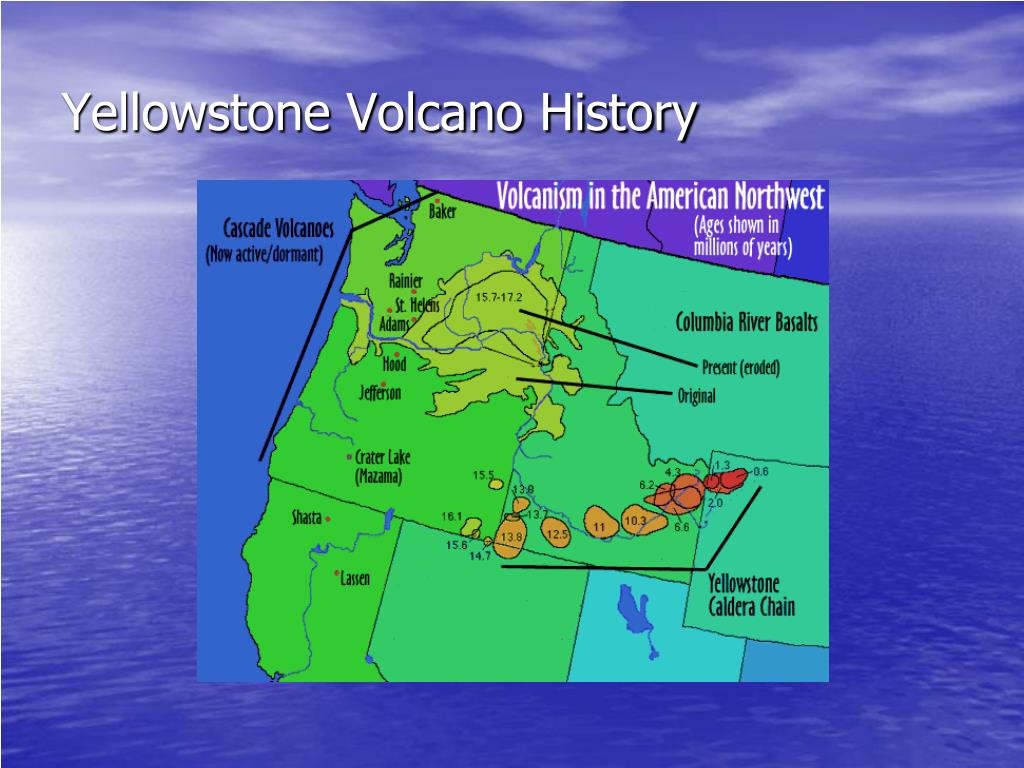

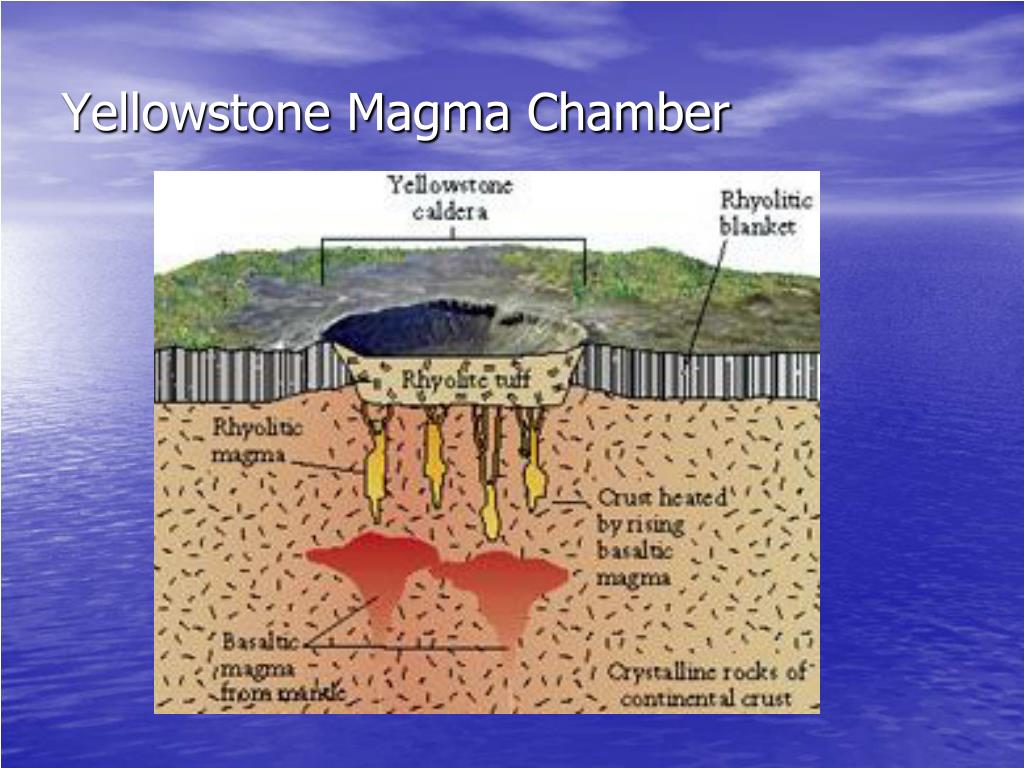

Yellowstone National Park in

Wyoming is far from any plate boundary.

How would you explain the volcanic

activity in the park?

The volcanic activity in Yellowstone National Park would be due to mantle plume that cause a hot spot within the continental crust.
