  1. Jaringan Akses Broadband(Broadband Acess) ET3041 Jaringan Telekomunikasi Tutun Juhana Laboratorium Telematika Departemen Teknik Elektro Institut Teknologi Bandung Imam Suharjo, ST Imam_te@yahoo.com Universitas Mercu Buana Yogyakarta http://mercubuana-yogya.ac.id Sumber : http://telecom.ee.itb.ac.id/~tutun dengan penambahan/pengurangan materi.

  2. Service Requirements to the Access Network Slides borrowed from C. Courcoubetis’s Basic concepts and directions in telecommunications Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  3. Teknologi Dasar Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

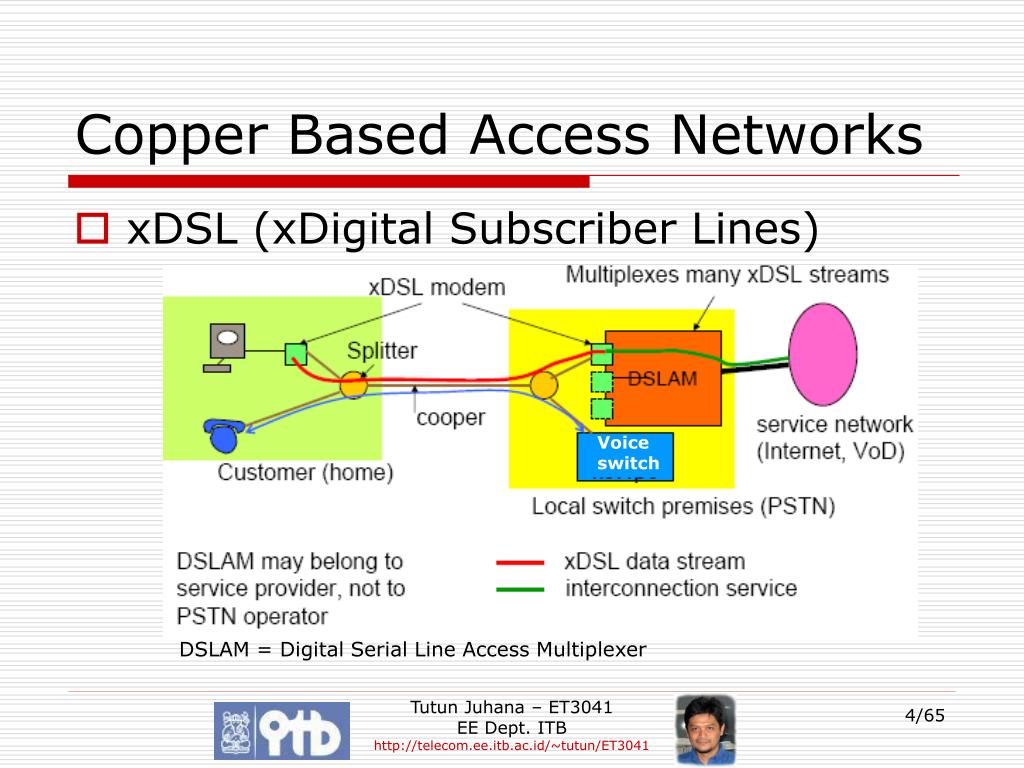

  4. Copper Based Access Networks • xDSL (xDigital Subscriber Lines) Voice switch DSLAM = Digital Serial Line Access Multiplexer Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  5. Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  6. Cable TV Network Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  7. Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  8. Wireless Networks Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  9. Fiber Access Network FFTEx = Fiber to the Exchange FTTCab = Fiber to the Cabinet FTTC = Fiber to the Curb FTTH = Fiber to the Home/Building Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  10. Point-to-point Fiber • ONU = Optical Network Unit • Tidak ada sharing serat optik • Tidak ada power splitting, tidak ada sinkronisasi node Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  11. FTTC (Fiber to the Curb) • Bukan shared infrastructure • Tersedia 1400 kanal Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  12. Passive Optical Network Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  13. APON (ATM-based PON) Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  14. FSAN (Full Service Access Network) Initiative • Ikut mengembangkan PON • Terdiri dari 21 Operator dan 20 vendor (Juni 2002) Tutun Juhana – ET3041 EE Dept. ITB http://telecom.ee.itb.ac.id/~tutun/ET3041

  15. Eirecom Telia Verizon KT BT NTT Bell Canada KPN Bezeq DTAG Chunghwa FT SwissCom SingTel TI Telstra Qwest Telefonica BellSouth SBC Malta 21 Operators and 20 vendors as of June 2002 Agere Alcatel BroadcomBroadLight Ericsson FlexLight Fujitsu Hitachi Iamba Infineon INOVIA/ECI Lucent Marconi Mitsubishi / Paceon NEC/eLuminant Oki Optical Solutions Quantum Bridge Terawave Zonu

  16. Trend Broadband Access LAN(SS) Bit Rate (bps) WDM-PON Carrier grading ? 1G GbE-MC G-PON 600M B-PON 100M IEEE802.3 100M-Ether MC 150M B-PON FSAN, ITU-T Developing 10M FSAN, ITU-T 10M-Ether MC STM PON Developed FSAN, ITU-T 1M Developed 100k ADSL 2004 2002 Year 1998 2000 2003 2001
