memory mode
MEMORY MODE

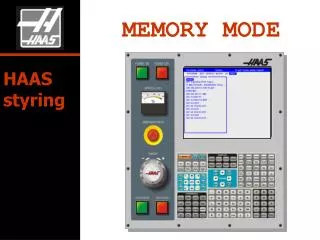

HAAS styring

slide2

Signaturforklaring

Klik

med venstre museknap eller TRYK <ENTER> for at

bladre gennem siderne.

TRYK <ESC> for at afslutte.

TRYK

3 gange for at

komme til

denne side

(Fortsat på

næste side)

Bemærk:

HANDLING

TASTER

INSTRUKTIONER

INFORMATION

ANDEN

INFORMATION

memory mode1
MEMORY MODE

I dette modul lærer du om MEMORY MODE (automatik tilstand) på HAAS styringen

slide5

Memory knapper

MEMORY:

SINGLE BLOCK:

DRY RUN:

OPTIONAL STOP:

BLOCK DELETE:

Når du trykker MEM knappen vises det aktive program som afvikles, når der trykkes på <CYCLE START>.

Det aktive program er det, som er valgt i tilstanden LIST PROGRAMS.

memory knappen
Memory knappen:

MEMORY knappen:

Det valgte program er klar til afvikling.

TRYK

<CYCLE START>

PROGRAM (MEM) O91002 N00000

G01 Z-0.0337 F7. ;

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

G01 X0.7835 ;

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

G01 X0.7835 ;

G01 X0.3058 Y0.5308 ;

G01 X0.7835 ;

G03 X0.2475 Y0.5508 R0.02 ;

F4 FOR PROG REVIEW

O12345 (MILL LAB PROG 1) ;

single block knappen
Single Block knappen:

SINGLE BLOCK knappen:

Styringen afvikler kun én programlinie for hvert tryk på

<CYCLE START> knappen.

PROGRAM (MEM) O91002 N00000

G01 Z-0.0337 F7. ;

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

G01 X0.7835 ;

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

G01 X0.7835 ;

G01 X0.3058 Y0.5308 ;

G01 X0.7835 ;

G03 X0.2475 Y0.5508 R0.02 ;

F4 FOR PROG REVIEW

O12345 (MILL LAB PROG 1) ;

SINGBK

dry run knappen
Dry Run knappen:

PROGRAM (MEM) O91002 N00000

DRY RUN knappen:

Bruges i Memory eller MDI tilstand.

Bruges til at tjekke et program med reduceret tilspænding og omdrejningstal.

Al ilgang og tilspænding afvikles med den hastighed som er valgt med JOG hastighedsknapperne.

TRYK

Vælg hastigheden med

eller TRYK

<HAND CNTL SPIN>

og vælg hastigheden med håndhjulet.

G01 Z-0.0337 F7. ;

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

G01 X0.7835 ;

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

G01 X0.7835 ;

G01 X0.3058 Y0.5308 ;

G01 X0.7835 ;

G03 X0.2475 Y0.5508 R0.02 ;

DRY RUN SPEED 1.

O12345 (MILL LAB PROG 1) ;

DRYRUN

optional stop knap
Optional Stop knap:

OPTIONAL STOP knap:

Programafviklingen stopper, når koden M01 mødes i programmet.

TRYK

<CYCLE START>

for at fortsætte programafviklingen.

PROGRAM (MEM) O91002 N00000

G01 Z-0.0337 F7. ;

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

M01 G01 X0.7835 (Optional Stop);

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

G01 X0.7835 ;

G01 X0.3058 Y0.5308 ;

G01 X0.7835 ;

G03 X0.2475 Y0.5508 R0.02 ;

F4 FOR PROG REVIEW

O12345 (MILL LAB PROG 1) ;

OPTSTP

block delete knappen
Block Delete knappen:

BLOCK DELETE knappen:

En programlinie som begynder med en skråstreg (/) bliver ignoreret (dvs. den pågældende blok udføres ikke).

PROGRAM (MEM) O91002 N00000

G01 Z-0.0337 F7. ;

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

/G01 X0.7835 (Block Delete) ;

G01 X-0.5687 Y-0.9857 ;

G01 X-0.2275 ;

G01 X0.1314 Y0.2275 ;

G01 X-0.7835 ;

G01 X0.1314 Y0.2275 ;

G01 X0.7835 ;

G01 X0.3058 Y0.5308 ;

G01 X0.7835 ;

G03 X0.2475 Y0.5508 R0.02 ;

F4 FOR PROG REVIEW

O12345 (MILL LAB PROG 1) ;

BLKDEL
