    1. Real Mode and Protect Mode Architecture Wannachai Wannasawade

    2. Real Mode Memory Addressing • First 1 M byte of memory is called real memory or conventional memory • 8088/86 to 80188/186 operate exclusively in real mode (upward compatible upto P4) • 80286+ can operate in both real & protected mode • Default microprocessor mode for all intel family is real mode Real Mode and Protect Mode

    3. Segment and Offset • All real mode memory addresses comprise of a segment address + offset address • Segment Address: located in segment registers, defines the beginning address of any 64K-byte memory segment • Offset Address: selects any location within the 64K-byte memory segment (also called displacement) • Note: All segments in real mode have a fixed length of 64K-bytes Real Mode and Protect Mode

    4. Real Mode Memory Addressing FFFFF 1FFFF Offset = F000 1F000 Segment register 64K-byte Segment 1 0 0 0 10000 00000 Real Mode and Protect Mode

    5. Real Mode Memory Addressing Physical Address Segment + Offset by shift left segment 1 byte Example Segment is 2000H Offset is 1234H thus Physical Address is 20000+1234H = 21234H In real mode, Segment size are 64Kbyte per Segment Real Mode and Protect Mode

    6. Real Mode Memory Addressing Default Segment and Offset Register It’s combination between segment and offset. For example CS:IP or CS:EIP Segment Offset Purpose CS IP Instruction Address SS SP or BP Stack Address DS BX,DI,SI,and Data Address 8,16 bit number ES DI for string String Destination instruction Address Real Mode and Protect Mode

    7. Real Mode Memory Addressing Segment Offset Purpose CS EIP Instruction Address SS ESP or EBP Stack Address DS EAX.EBX,ECX, EDX, EDI,ESI, Data Address and 8,32 bit number ES EDI for string String Destination instruction Address FS No default General Address GS No default General Address Real Mode and Protect Mode

    8. Default Segment & Offset Registers • A new program is loaded in the TPA at the first free location which is pointed at by the free-pointer • Program loading is handled automatically by the program-loader • Both of the above pointers are managed by operating system Real Mode and Protect Mode

    9. Advantages of segment:offset structure • Efficient memory allocation • Suppose an application requires 1000H bytes of memory for code, 190H bytes for data and 200H for stack and no extra segment Real Mode and Protect Mode

    10. Default Segment & Offset Registers • 􀁺Relocation: (i.e., usable without any change if moved in memory) • The scheme although complicated in perception, is useful as it allows seamless relocation of programs • This allows the same program to be executed on slightly different machines (or slightly different operating systems) • This also allows real mode programs to work in protected mode Real Mode and Protect Mode

    11. Protected Mode Memory Addressing • Keyword: • More than 1Mbyte • Selector • Descriptor • Global Descriptor • Local Descriptor • System Descriptor • Application Descriptor Real Mode and Protect Mode

    12. How do a Process/program Excecute? • What comprises the state of a running program (a process or task)? • If a second process, P2, is to be created and run (not shown), then the state of P1 must be saved so it can be later resumed with no side-effects. • Since only one copy of the registers exist, they must be saved in memory. • We’ll see there is hardware support for doing this on the Pentium later. Real Mode and Protect Mode

    13. Memory Resource Hierarchy • For now, let’s focus on the organization and management of memory. • Ideally, programmers would like a fast, infinitely large nonvolatile memory. • In reality, computers have a memory hierarchy: • Cache (SRAMS): Small (KBytes), expensive, volatile and very fast (< 5ns). • Main Memory (DRAM): Larger (MBytes), medium-priced, volatile and mediumspeed (<80ns). • Disk: GBytes, low-priced, non-volatile and slow (ms). • Therefore, the OS is charged with managing these limited resources and creating the illusion of a fast, infinitely large main memory. • The Memory Manager portion of the OS: • Tracks memory usage. • Allocates/Deallocates memory. • Implements virtual memory. Real Mode and Protect Mode

    14. Basic Memory Management • In a multiprogramming environment, a simple memory management scheme is to divide up memory into n (possibly unequal) fixed-sized partitions. • These partitions are defined at system start-up and can be used to store all the segments of the process (e.g., code, data and stack). • Advantage: it’s simple to implement. • However, it utilizes memory poorly. Also, in time sharing systems, queueing up jobs in this manner leads to unacceptable response time for user processes. Real Mode and Protect Mode

    15. Variable Sized Partitions In a variable-sized partition scheme, the number, location and size of memory partitions vary dynamically: (1) Initially, process A is in memory. (2) Then B and C are created. (3) A terminates. (4) D is created, B terminates. Real Mode and Protect Mode

    16. Variable Sized Partitions • 􀁺 Problem: Dynamic partition size improves memory utilization but complicates allocation and deallocation by creating holes (external fragmentation). • 􀁺 This may prevent a process from running that could otherwise run if the holes were merged, e.g., combining X1 and X2 in previous slide. • 􀁺 Memory compaction is a solution but is rarely used because of the CPU time involved. • 􀁺 Also, the size of a process’s data segments can change dynamically, e.g. malloc(). • 􀁺 If a process does not have room to grow, it needs to be moved or killed. Real Mode and Protect Mode

    17. Implementing Memory on Harddisk • The hard disk can be used to allow more processes to run than would normally fit in main memory. • For example, when a process blocks I/O (e.g. keyboard input), it can be swapped out to disk, allowing other processes to run. • The movement of whole processes to and from disk is called swapping. • The disk can be used to implement a second scheme, virtual memory. • Virtual memory allows processes to run even when their total size (code, data and stack) exceeds the amount of physical memory (installed DRAM). • This is very common, for example, in microprocessors with 32-bit address spaces. • If an OS supports virtual memory, it allows for the execution of processes that are only partially present in main memory. • OS keeps the parts of the process that are currently in use in main memory and the rest of the process on disk. Real Mode and Protect Mode

    18. Virtual Memory • When a new portion of the process is needed, the OS swaps out older not recently usedmemory to disk. • Virtual memory also works in a multiprogrammed system. • Main memory stores bits and pieces of many processes. • A process blocks whenever it requires a portion of itself that is on disk, much in the same way it blocks to do I/O. • The OS schedules another process to run until the referenced portion is fetched from disk. • But swapping out portions of memory that vary in size is not efficient. • External fragmentation is still a problem (it reduces memory utilization). • Two concepts: • Segmentation:Allows the OS to “share” code and enforce meaningful constraints on the memory used by a process, e.g. no execution of data. • Paging:Allows the OS to efficiently manage physical memory, and makes it easier to implement virtual memory. Real Mode and Protect Mode

    19. Paging and Virtual Memory • So how does paging work? • We will refer to addresses which appear on the address bus of main memory as a physical addresses. • Processes generate virtual addresses, e.g., MOV EAX, [EBX] • Note, the value given in [EBX] can reference memory locations that exceed the size of physical memory. • (We can also start with linear addresses, which are virtual addresses translated through the segmentation system, to be discussed). • All virtual (or linear) addresses are sent to the Memory Management Unit (MMU) for translation to a physical address. Real Mode and Protect Mode

    20. Paging and Virtual Memory • The virtual (and physical) address space is divided into pages. • Page size is architecture dependent but usually range between 512- 64K. • Corresponding units in physical memory are called page frames. • Pages and page frames are usually the same size. • Assume: • •Page size is 4K • •Virtual Memory is 64K • •Physical memory is 32K. • • Therefore, there are • •16 virtual pages. • •8 page frames. • • Assume the process issues the virtual address 0 -> Paging translates it to physical address 8192 (using the layout on right.) • • Similarly, 20500 is translated to physical address 12K + 20 = 12308. • Note that 8 virtual pages are not mapped into physical memory (indicated by an X on the previous slide). Real Mode and Protect Mode

    21. Paging and Virtual Memory • A present /absent bit in the hardware indicates which virtual pages are mapped into physical RAM and which ones are not (out on disk). • What happens when a process issues an address to an unmapped page? • MMU notes page is unmapped using present/absent bit. • MMU causes CPU to trapto OS - page fault. • OS selects a page frame to replace and saves its current contents to disk. • OS fetches the page referenced and places it into the freed page frame. • OS changes the mem map and restarts the instruction that caused the trap. • Paging allows the physical address space of a process to be noncontiguous ! • This solves the external fragmentation problem (since any set of pages can be chosen as the address space of the process). • However, it generally doesn’t allow 100% mem utilization, since the last page of a process may not be entirely used (internal fragmentation). Real Mode and Protect Mode

    22. Paging and Virtual Memory • Address translation by MMU Real Mode and Protect Mode

    23. Paging and Virtual Memory Two important issues w.r.t the Page Table: • Size: • The Pentium uses 32-bit virtual addresses. • With a 4K page size, a 32-bit address space has 232/212 = 20 or 1,048,576 virtual page numbers ! • If each page table entry occupies 4 bytes, that’s 4MB of memory, just to store the page table. • For 64-bit machines, there are 252 virtual page numbers !!! • Performance: • The mapping from virtual-to-physical addresses must be done for EVERY memory reference. • Every instruction fetch requires a memory reference. • Many instructions have a memory operand. • Therefore, the mapping must be extremely fast, a couple nanoseconds, otherwise it becomes the bottleneck. Real Mode and Protect Mode

    24. Page Table Design Alternatives • Single page table stored in an array of fast hardware registers. • OS loads registers from memory when a process is started. • Advantage: No memory references are needed for the page table. • Disadvantage: Context switches require the entire page table to be loaded. • If it is large, this will be expensive. • Page table kept entirely in main memory. • Single register points to the start of the page table. • Advantage: Context switches only require updating the register pointer. • Disadvantage: One or more memory references are needed to read page table entries for each instruction. • Modern computers keep “frequently used” page table entries on chip in a cache (similar to first alternative above) and the others in main memory (similar to the second alternative). Real Mode and Protect Mode

    25. Multi-level Page Tables • Instead of using only one level of indirection, use two. Real Mode and Protect Mode

    26. Multi-level Page Tables • This addresses page table size problem since many of the second-level page tables need not be defined (and therefore stored in main memory). • Note that two page faults can occur for a single memory reference. • If the second-level page table is not in memory, a page fault occurs. • If the page that the second-level entry refers to is not in memory, another page fault occurs. • In general, Page Framesare machine dependent with the following info: • Page Frame address: Most significant bits of physical memory address. • Present/Absent bit: If 1, page is in memory, if 0, it is on disk. • Modified bit: If set, page has been written to, e.g. it is ‘dirty’. • Referenced bit: Used in the OS page replacement algorithm. • Protection bits: Specifi es if data in page can be read/written/executed. Real Mode and Protect Mode

    27. Translation Lookaside Buffers (TLBs) • With two-level paging, one memory reference could require three memory accesses ! • In order to reduce the number of times this occurs, a fast lookup table called a TLB is added as a hardware cache in the microprocessor. Real Mode and Protect Mode

    28. Translation Lookaside Buffers (TLBs) • Number of TLB entries varies from 8 to 2048. • Typically around 64. • When a TLB miss occurs: • A trap occurs and an OS routine handles the fault. The instruction is then restarted. • The OS routine copies one (or more) page frame(s) from the page table in memory to one (or more) of the TLB entries. • Therefore, if page is referenced again soon, a TLB hit occurs eliminating the memory reference for the page frame. Real Mode and Protect Mode

    29. Protected Mode Memory Addressing • Allows access to data and programs located both above and within the first 1M byte of memory • While offset addresses (upto 32 bits or 4G bytes) are still valid, the segment addressing scheme is not valid. • The segment register in this case contains a selector which selects a descriptor from a descriptor table • Real mode programs work in protected mode, because the difference is primarily in the interpretation of different registers Real Mode and Protect Mode

    30. Selectors & Descriptors • The selector in a segment register, selects one of the 8192 descriptors stored in one of two descriptors • Descriptor: describes the location, length and access rights of the memory segment • Types of descriptor tables • Global descriptor table (common to all programs) • Local descriptor table (application specific) • Each descriptor contains 8192 descriptors Real Mode and Protect Mode

    31. Selectors & Descriptors • Base Address: indicates the starting location of the segment • For 80286, 24 bit (16 M bytes) • For 80386+, 32 bit (4 G bytes) Real Mode and Protect Mode

    32. Selectors & Descriptors • Segment Limit: contains the last offset address found in the segment • Example: if a segment begins at 60 0000H and ends at • 6000FFH, then • Base Address = 60 0000H • Segment Limit = 00FFH • For 80286, limit is 16 bits (upto 64K) • For 80386+, limit is 20 bits (upto 1 M, in standard mode) Real Mode and Protect Mode

    33. Selectors & Descriptors Other New Features (in x386+ descriptor) 􀁺 Granularity bit (G): 􀁺 If G=0, the limit is in the range 0 – FFFFFH 􀁺 If G=1, the limit is multiplied by 4K, allowing a segment length of 4G bytes in steps of 4K bytes 􀁺 Example 1: 􀁺 Base = start = 1000 0000H; Limit = 001FFH; G = 0 􀁺 End = Base + Limit = 10000000H + 001FFH = 1000 01FFH 􀁺 Example 2: 􀁺 Base = start = 1000 0000H; Limit = 001F FXXXH; G = 1 􀁺 End = Base + Limit = 10000000H + 001F FXXXH = 101F FFFFH Real Mode and Protect Mode

    34. Selectors & Descriptors Other New Features 􀁺 AV bit: AV bit is used to indicate whether the segment is available or reserved by OS or another application 􀁺 D bit: Indicates how x386+ access register and memory data in the protected mode 􀁺 D = 0 􀃎16-bit instruction mode 􀁺 D = 1 􀃎32-bit instruction mode 􀁺 This bit value can be over-ridden Real Mode and Protect Mode

    35. Access Rights Byte Real Mode and Protect Mode

    36. Segment Registers in Protected Mode 􀁺 Privilege levels are used in multiuser environments (highest RPL = 00) Real Mode and Protect Mode

    37. Selection of a Descriptor DS=0008H 􀃎 Descriptor 1, PL = 00 from Global Descriptor Descriptor Contains Base Address: 0010 0000H Segment Limit = 000FF H Note: Descriptor 0 is not for programming access Real Mode and Protect Mode

    38. Program Invisible Registers • Used to access and specify the addresses of global & local descriptor tables • Not addressable for programming • Accessible to OS • Each segment register has a program invisible portion (which acts like an address cache) to store the corresponding descriptor information for a segment register Real Mode and Protect Mode

    39. Program Invisible Registers Real Mode and Protect Mode

    40. Memory Paging • The memory paging mechanism allows for any physical address to be assigned to any linear address (i.e., relocation is possible) • Linear address is an address generated by a program. • Memory paging allows for a linear address to be invisible translated to a physical address • The scheme allows usage of extended memory resources such as memory between video & system BIOS etc. • Paging mechanism can be used in both real and protected modes Real Mode and Protect Mode

    41. Paging Registers 􀁺 Paging unit is controlled by µP’s control registers (CR0-CR3 in x386+ and CR4 in Pentiums) Real Mode and Protect Mode

    42. Paging Registers • Some of the important parts of the paging mechanism are in CR0 and CR3, e.g., • PG: (in CR0) PG=1 enables paging mechanism, else linear address is directly converted to a physical address • PCD: (in CR3) controls the PCD pin of µP, i.e., PCD pin equals logic 1 during bus cycles that are not pages (for controlling L2 cache) • PWT: (in CR3) controls the PWT pin of µP, i.e., PWT pin equals logic 1 during bus cycles that are not pages (for controlling write through cache) • Page directory base address: (in CR3) locates the page directory for page translation unit at any 4K byte boundary in the memory system Real Mode and Protect Mode

    43. Paging Registers • The page directory has 1024 directory entries of length 4 bytes each • Each page directory entry addresses a page table that contains 1024 entries Real Mode and Protect Mode

    44. Other invisible registers • GDTR (global descriptor table register) • IDTR (interrupt descriptor table register) • LDTR (local descriptor table register): A • selector into GDTR, which is allocated as local descriptor table • TR (task register): hold a selector that defines a task (an application program or subprogram) • Note task switching can done at a rate of 17µs Real Mode and Protect Mode

    45. Linear Address Format • Page directory entry: leftmost 10 bits (4 M bytes in size), e.g., linear addresses 0000 0000H to 003F FFFFH address 1st page (page 0) • Page table entry: contains the next 10 bits (4 K byte range) after the page directory entry, e.g., 0000 0000H to 0000 0FFFH refer to both directory and table equal 0 • Page offset address: selects a byte in the 4K byte memory page Real Mode and Protect Mode

    46. Linear Address Format Example: 􀁺 If page table 0 entry contains address 0010 0000H Then 􀁺 For linear addresses 0000 0000H to 0000 0FFFH The corresponding physical address is 􀁺 0010 0000H to 0010 0FFFH Real Mode and Protect Mode

    47. TLB – (translation look-aside buffer) • TLB is a dedicated cache (queue) structure to hold the 32 most recent page directory and table entries • Pentium+ processors have TLBs for each data and instruction caches Real Mode and Protect Mode

    48. Page Directory and Page Table Real Mode and Protect Mode

    49. Page Directory and Page Table Relocated memory space Regular paged memory Real Mode and Protect Mode

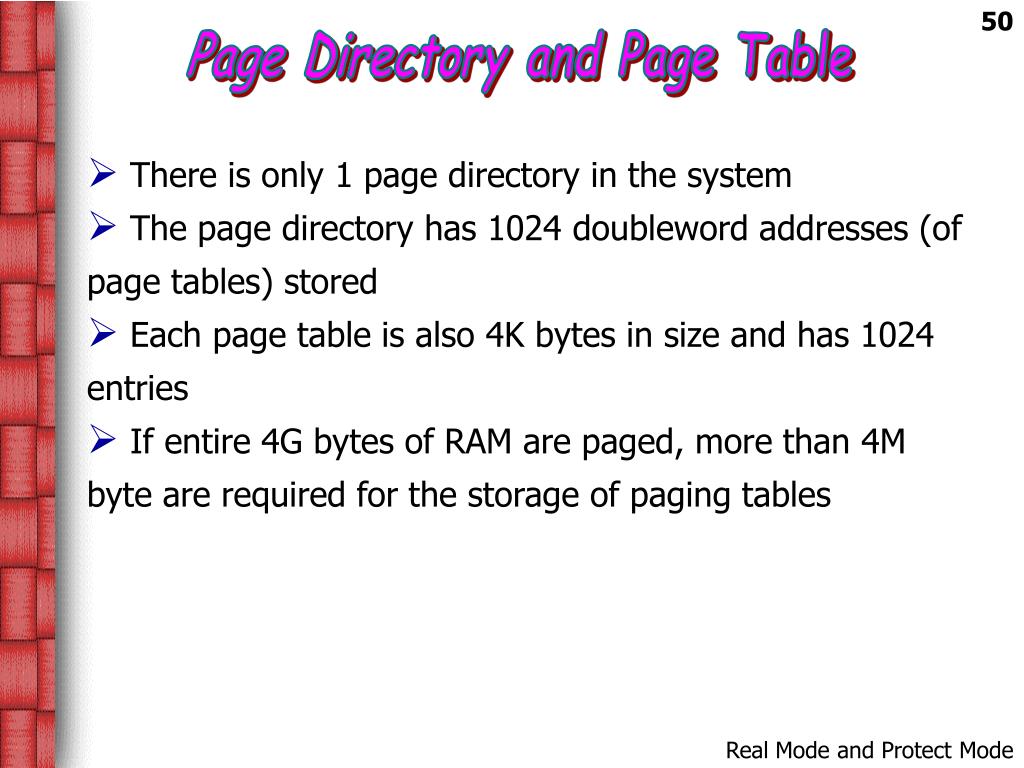

    50. Page Directory and Page Table • There is only 1 page directory in the system • The page directory has 1024 doubleword addresses (of page tables) stored • Each page table is also 4K bytes in size and has 1024 entries • If entire 4G bytes of RAM are paged, more than 4M byte are required for the storage of paging tables Real Mode and Protect Mode
