Parallelograms

Parallelograms. Unit 9, Lesson 2 & 3. What is a parallelogram?. By definition, a parallelogram is a quadrilateral with both pairs of opposite sides parallel. Parallelograms have: 2 sets of parallel sides 2 sets of congruent sides opposite angles congruent consecutive angles supplementary

caelan
Download Presentation

Parallelograms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Parallelograms Unit 9, Lesson 2 & 3

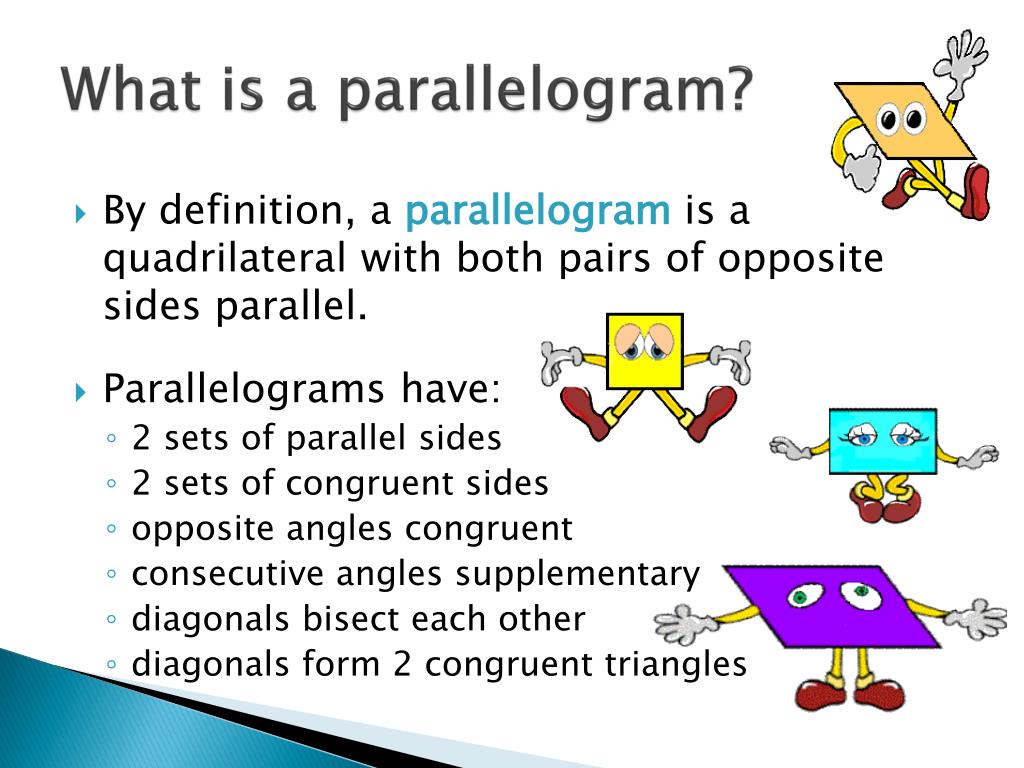

  2. What is a parallelogram? • By definition, a parallelogram is a quadrilateral with both pairs of opposite sides parallel. • Parallelograms have: • 2 sets of parallel sides • 2 sets of congruent sides • opposite angles congruent • consecutive angles supplementary • diagonals bisect each other • diagonals form 2 congruent triangles

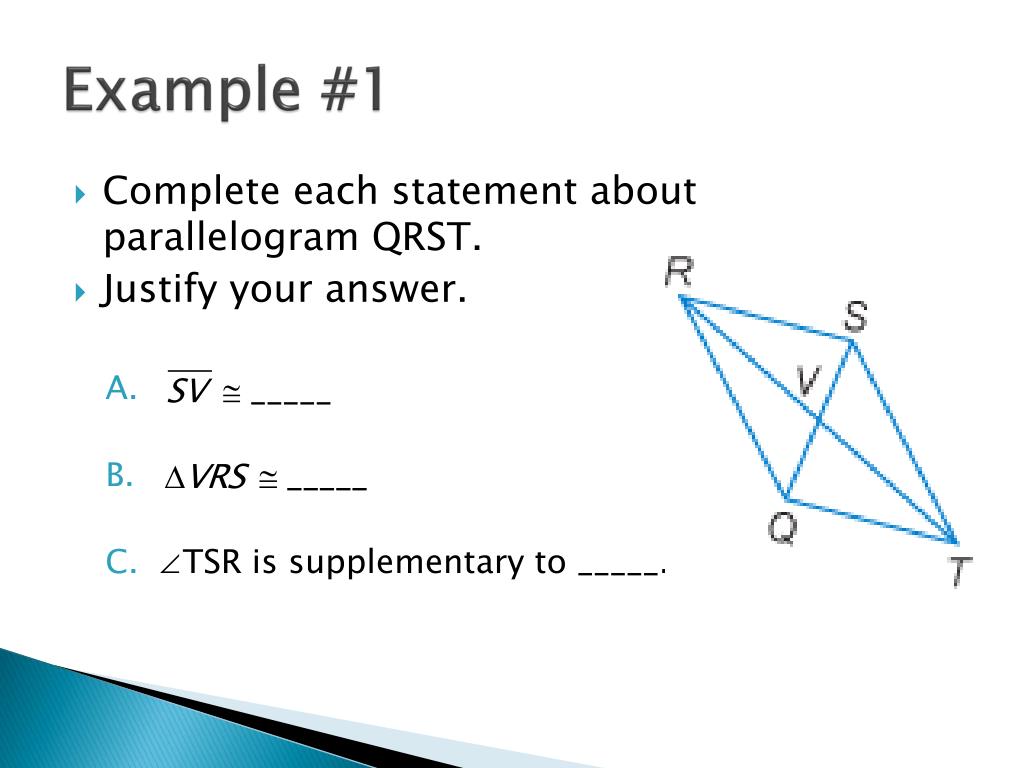

  3. Example #1 • Complete each statement about parallelogram QRST. • Justify your answer. • ∠TSR is supplementary to _____.

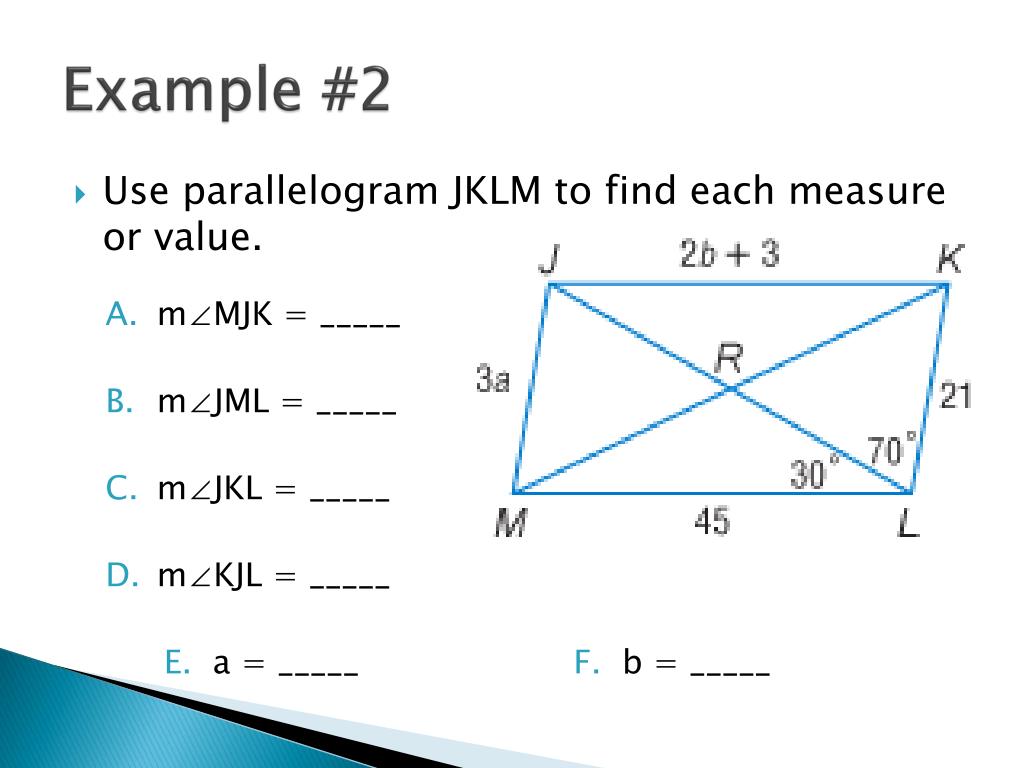

  4. Example #2 • Use parallelogram JKLM to find each measure or value. • m∠MJK = _____ • m∠JML = _____ • m∠JKL = _____ • m∠KJL = _____ E. a = _____ F. b = _____

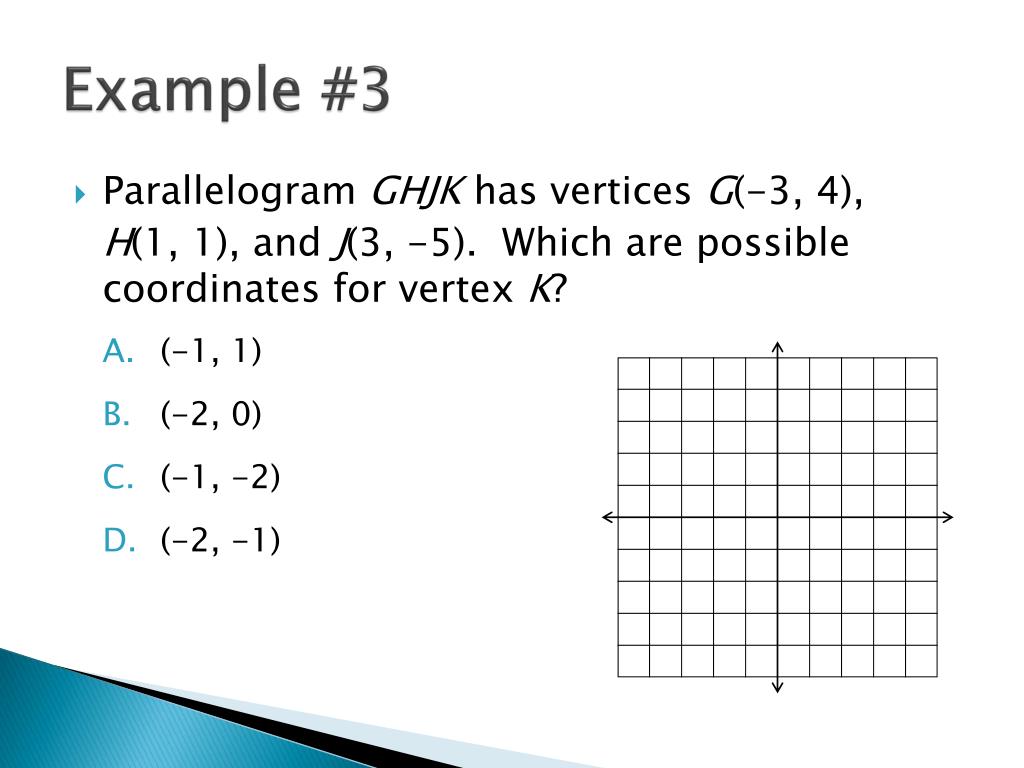

  5. Example #3 • Parallelogram GHJK has vertices G(-3, 4), H(1, 1), and J(3, -5). Which are possible coordinates for vertex K? • (-1, 1) • (-2, 0) • (-1, -2) • (-2, -1)

  6. The following quadrilaterals are parallelograms. Solve for x and y. 4. 5. 6. x- 4 (y – 4) (3x + 3) 3y - 8 (x + 27) 2x - 12 3x - 6 3x – 16 3y + 2 x + 18

  7. B A C E D Given:Parallelogram ACDE; Prove: Parallelogram ACDE Given Given Opposite sides of a parallelogram are congruent. Transitive property If two sides of a triangle are congruent, then the angles opposite them are also congruent.

  8. A C B E D Given: Parallelogram ACDE; Prove:∆BDCis isosceles Parallelogram ACDE Given Given Opposite angles of a parallelogram are congruent. Transitive property ∆BDC is isosceles If 2 angles of a triangle are congruent, then the sides opposite them are also congruent. Definition of isosceles triangle
