  1. Dijkstra’s Algorithm andHeuristic Graph Search David Johnson

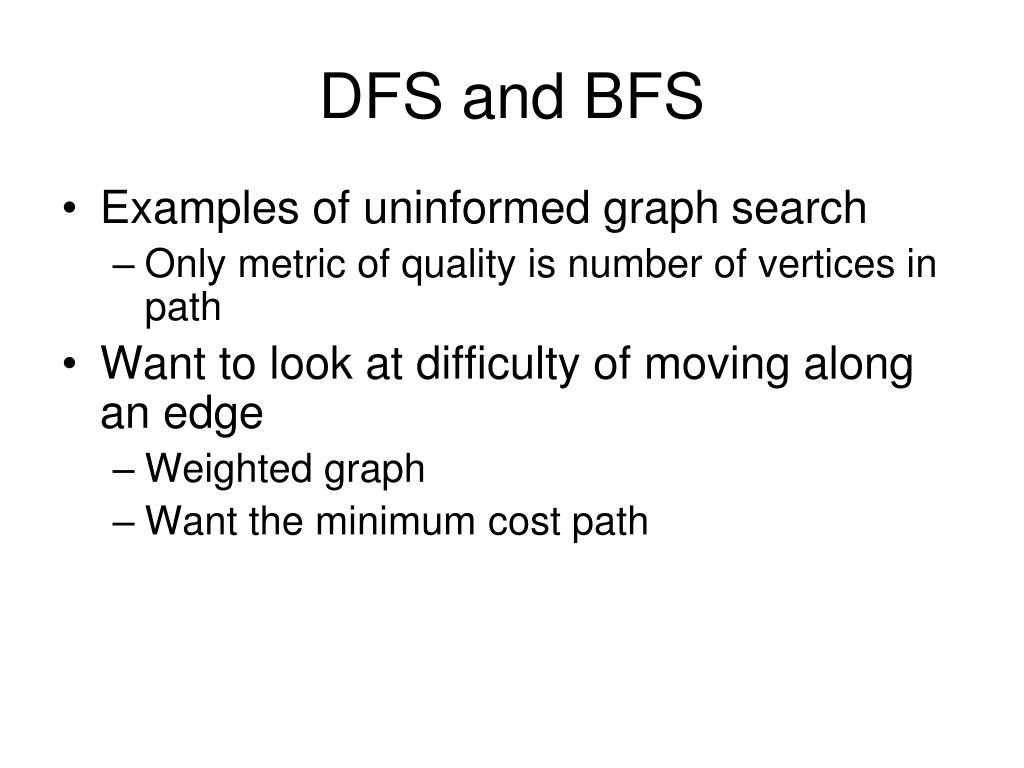

  2. DFS and BFS • Examples of uninformed graph search • Only metric of quality is number of vertices in path • Want to look at difficulty of moving along an edge • Weighted graph • Want the minimum cost path

  3. Dijkstra’s Algorithm • Always finds the lowest cost path • For positive edge weight graphs • Some subtle differences with breadth-first search • Maintains a cost to visit every vertex • Looks at the successors of the current lowest cost vertex in the wavefront

  4. Dijkstra’s Outline • Initialize a cost array to infinity • Set the start vertex cost to 0.0, put in search list • Find the minimum cost vertex in searchList • For each successor • Compute tentative cost = current cost + edge • If tentative cost < existing cost then overwrite • Mark min cost vertex as visited/locked • This has a different meaning than breadth-first • Terminate when goal is minimum cost vertex

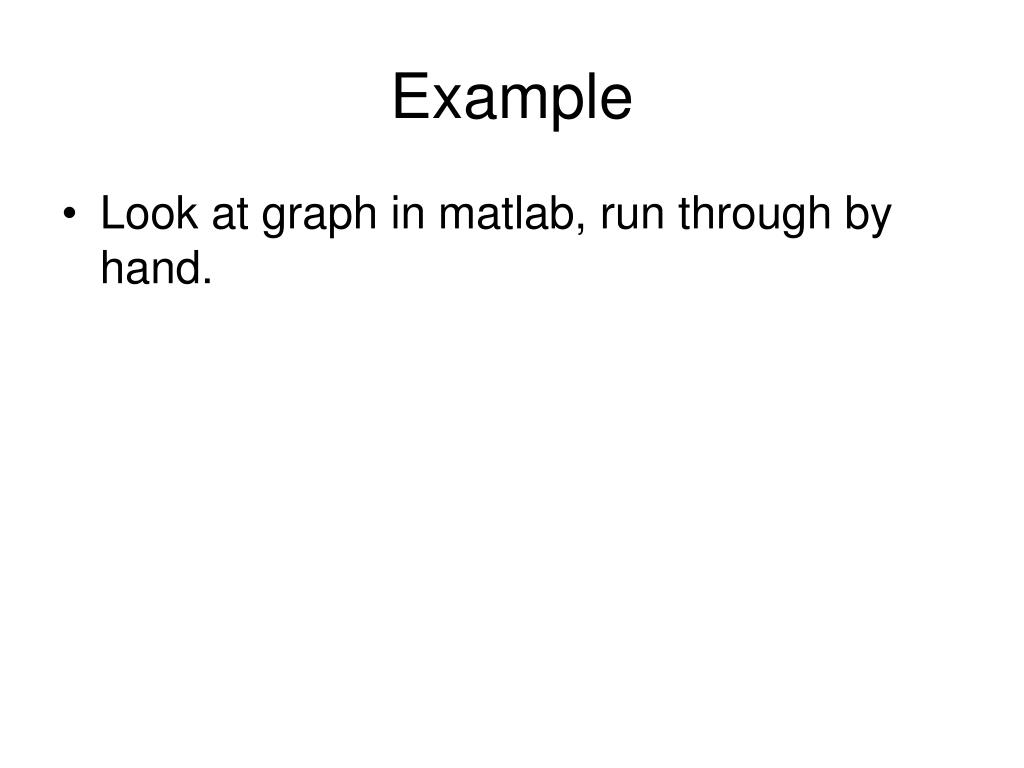

  5. Example • Look at graph in matlab, run through by hand.

  6. Heuristic Search • More powerful techniques employ a heuristic • Estimate cost to goal • Expand most promising vertices first • Try to avoid the expanding ring of BFS and Dijkstra

  7. Search Heuristics • Heuristic • Informal approach to solving a problem • “rule-of-thumb” • Estimates • On a terrain map, what would be an example heuristic for choosing which node to expand?

  8. Greedy Best-First Search • Expands the vertex in the search list with the smallest valued estimated cost to goal • Can only use when a meaningful heuristic is available • Ignores the cost so far

  9. Dijkstra vs Best-First

  10. Problem Solved?

  11. A* • Combines • Dijkstra’s current path cost G(n) • Best-first’s cost to goal heuristic H(n) • Finds shortest paths • Under some conditions • Doesn’t search as much as BFS • Pretty standard

  12. A* • Expands the node with smallest F(n) = G(n) + H(n) • Need to choose H(n) • If H(n) < true cost, finds shortest path • What if G(n) >> H(n)? • What if H(n) >> G(n)?

  13. Some Example Heuristics • 4-point connectivity (Manhattan distance)

  14. Some Example Heuristics • 8-point connectivity

  15. Some Example Heuristics • Euclidean Distance • Cannot move to match heuristic • H(n) does not match G(n)

  16. One complication • Multiple paths may have same cost • A* will explore them all What kind of terrain would this map represent?

  17. Add a tie-breaker • Makes the costs not exactly the same

  18. Implementation • Just like Dijkstra • Need a cost-so-far plus heuristic cost summed array • Select current vertex based on that

  19. More resources • Amit’s A* page • http://theory.stanford.edu/~amitp/GameProgramming/Heuristics.html • Applet • http://www.vision.ee.ethz.ch/~cvcourse/astar/AStar.html
