developing xpsdrv print drivers

Developing XPSDrv Print Drivers

Felix MaxaSoftware Design EngineerDigital Documents Platform and SolutionsFeng YueDevelopment LeadDigital Documents Platform and Solutions

agenda
Agenda
  • XPSDrv Filter Pipeline
  • XPSDrv Configuration
    • GPD/PPD-Only Configuration
    • Unidrv/PScript5 Plug-in Configuration
  • XPSDrv Setup and Installation
  • XPSDrv Logo Requirements

Assumes basic familiarity with XPSDrv

xpsdrv overview
XPSDrv Overview
  • New print driver model in Window Vista
  • XPS Document format is the spool file
    • Advanced color and graphic support
    • Application content preserved to driver or device
  • Defines an extensible filter pipeline
    • Consolidated design for plug-ins
    • Shared common functionality
    • Allows flexible allocation of rendering between driver and device (scalable consumption)
  • Compatibility with Win32 and Windows Presentation Foundation (WPF) applications
xpsdrv filter pipeline

XPSDrv Filter Pipeline

Felix MaxaSoftware Design EngineerDigital Documents Platform and Solutions

xpsdrv filter pipeline architecture

Provided by

Microsoft

ISV

IHV

XPSDrv Filter Pipeline Architecture

WPF App

Win32 App

ApplicationProcess

SpoolerProcess

Filter Pipeline Process

Version 3Driver

Filter Pipeline

Config Module/Plug-in

XPS

Filter PipelineManager

Filter 1

ConversionRender Module

FPConfigXML

Filter N

PropertyBag

print paths

Provided by

Microsoft

ISV

IHV

Print Paths

SPOOLFILE

Filter Pipeline Process

SpoolerProcess

Filter Pipeline

Filter PipelineManager

Filter 1

Print processor

Filter N

GDI

FPConfigXML

PropertyBag

Printer Driver

filter pipeline manager
Filter Pipeline Manager
  • The Filter Pipeline Manager (FPM)is responsible for
    • Loading and initializing filters as describedby the filter configuration file to create the filter pipeline
    • Managing the data between filters as the print job is processed via the Inter-filter Communicators (IFC)
    • Unloading filters when the print job is finished
print pipeline filter configuration file
Print Pipeline Filter Configuration File
  • XML file that defines
    • Filter ordering – Simple ordering of XML elements
    • Filter interfaces – Defined by XML attributes
    • Input/output formats for each filter – Defined by XML elements
  • Potential for modification by IT Admins to add filters
    • Be aware of functionality impact
pipeline config file sample
Pipeline Config File Sample
  • <Filters>
  • <Filter dll = "WdkPipelineFilter.dll"
  • clsid = "{8267d291-6ddd-4972-a94e-3ce88149a1fa}"
  • name = "add simple page">
  • <Input guid = "{b8cf8530-5562-47c4-ab67-b1f69ecf961e}"
  • comment = "IID_IXpsDocumentProvider"/>
  • <Output guid = "{4368d8a2-4181-4a9f-b295-3d9a38bb9ba0}"
  • comment = "IID_IXpsDocumentConsumer"/>

</Filter>

<FilterServiceProvider dll = "providerA.dll"/>

<FilterServiceProvider dll = "providerB.dll"/>

  • </Filters>
property bag
Sharing data between

Filters

Pipeline manager and filters

Pairs (string key, variant value)

Examples

("PrinterName", VARIANT_BSTR)

("ProgressReport", VARIANT_IUNKNOWN)

("PrinterHandle", VARIANT_BYREF)

("UserSecurityToken", VARIANT_BYREF)

("PrintJobId", VARIANT_ULONG)

Property Bag
filter access to xps job
Filter Access To XPS Job
  • Stream
  • XPS high level interfaces

[0].piece FONT-1 Resources\99bc59ed.ODTTF\

[0].piece IMAGE-1 Resources\8792381d.jpg\

[1].last.piece IMAGE-1 Resources\8792381d.jpg\

[0].piece FONT-2 Resources\6b2554d5.ODTFF\

[1].last.piece FONT-2 Resources\6b2554d5.ODTFF\

[0].piece IMAGE-2 Resources\42a30e86.jpg\

[1].last.piece IMAGE-2 Resources\42a30e86.jpg\

[0].last.piece PT-1 Metadata\Job_PT.xml\

[0].piece FDS FixedDocumentSequence.fdseq\

[1].piece FDS FixedDocumentSequence.fdseq\

[2].last.piece FDS FixedDocumentSequence.fdseq\

[0].piece FP Documents\1\Pages\3.fpage

[1].last.piece FP Documents\1\Pages\3.fpage

xps document filter interfaces
XPS Document Filter Interfaces
  • Filters can
    • Read and write Page markup
    • Read content for other parts
    • Create new parts and associate with pages
    • Create new documents and pages
    • Delete relationships
    • Enumerate resources for page
  • Mix of XPS and Stream based filters
    • The filter pipeline manager takes careof data conversion
the filter interface definition
The Filter Interface Definition

interface IPrintPipelineFilter : IUnknown

{

HRESULT

InitializeFilter(

[in] IInterFilterCommunicator *pICommunicator,

[in] IPrintPipelinePropertyBag *pIPropertyBag,

[in] IPrintPipelineManagerControl *pIPipelineControl

);

HRESULT

ShutdownOperation(

void

);

HRESULT

StartOperation(

void

);

}

custom filter interfaces
Custom Filter Interfaces
  • <Filters>
  • <Filter dll = "CustomFilterA.dll"
  • clsid = "{33b32cf3-954c-4dfd-a016-6f05303fe65b}"
  • name = "read stream - write custom">
  • <Input guid = "{4d47a67c-66cc-4430-850e-daf466fe5bc4}"
  • comment="IID_IPrintReadStream"/>
  • <Output guid = "{00000003-0000-0000-C000-000000000046}"
  • provider = "{a6686ae8-909f-42ee-9377-6fc6c815df61}"
  • dll = "CustInterfaceProvider.dll"/>

</Filter>

  • <Filter dll = "CustomFilterB.dll"
  • clsid = "{f761761d-5467-409a-adff-91460ba008d9}"
  • name = "read custom - write stream">
  • <Input guid = "{00000003-0000-0000-C000-000000000046}"/>
  • <Output guid = "{65bb7f1b-371e-4571-8ac7-912f510c1a38}"
  • comment="IID_IPrintWriteStream"/>

</Filter>

  • </Filters>
filter service providers
Module which exports

HRESULT

DrvPopulateFilterServices(

__in IPrintPipelinePropertyBag *pPropertyBag

);

Registered in the pipeline config

<FilterServiceProvider dll = “providerA.dll”/>

Access to configuration module functionalityand data from filters

Ex. IPrintCoreHelper

Filter Service Providers
interleaving
Interleaving
  • Page level interleaving
    • Resources first
    • Mark up first
    • Interleaved at certain piece size
  • For some devices, filter must help
    • Ensure resources are available when needed
    • Enables consumption by memory constrained consumers
    • Use discard control
    • Send resources again
interleaving in config file
Interleaving In Config File

<Filter dll = "TestFilter.dll"

clsid = "{e96f780a-5b6a-47d5-a433-fa0d4e52688d}"

<Input guid = "{b8cf8530-5562-47c4-ab67-b1f69ecf961e}"/>

<Output guid = "{4368d8a2-4181-4a9f-b295-3d9a38bb9ba0}"/>

<Interleaving mode="MarkupFirst" pieceSize="0"/>

<Interleaving mode="MarkupFirst" pieceSize="2000"/>

<Interleaving mode="ResourcesFirst" pieceSize="30900"/>

<Interleaving mode="MarkupFirst"/>

<Interleaving mode="ResourcesFirst"/>

</Filter>

filter recommendations
Filter Recommendations
  • Filters should not spawn separate processes or threads
    • If a separate process/thread is required fora filter, the filter MUST properly manage the process/thread lifetime
  • Stream filters – aware that not all datais correctly interleaved
    • Filters must be robust to non-interleavedand incorrectly interleaved content
common implementation challenges
COM apartment model

Driver packages – XML file changes

PnPUtil.exe

Debug help

System\CurrentControlSet\Control\Print

PipelineHostTimeout REG_DWORD miliseconds

PipelineDebugLog REG_DWORD 0 or non-0

Common Implementation Challenges
xpsdrv configuration

XPSDrv Configuration

Feng YueDevelopment LeadDigital Documents Platform and Solutions

xpsdrv configuration architecture

Config Module

XPSDrv Configuration Architecture

Provided by

Microsoft

WPF App

ISV

Win32 App

IHV

XPSDrv Driver

Version 3 Driver

Unidrv Plug-in

Unidrv ConfigModule

GPD

PScript5 Plug-in

PScript5 ConfigModule

PPD

Filter Pipeline

XPS

Filter 1

MonolithicConfig Module

Filter N

ConversionRender Module

gpd ppd only config
GPD/PPD-Only Config
  • GPD/PPD-only configuration is supported for XPSDrv printer drivers
    • Smallest investment cost and short development time
    • No customization of Unidrv/PScript5 behavior
    • No UI customization
  • Best suited for XPSDrv passthrough or basic printer drivers
  • Primary changes are
    • Print Schema Mapping
    • XPSDrv Specific GPD/PPD Entries
gpd ppd to print schema map
Standard GPD/PPD keywords automatically mapped to public Print Schema equivalents

Non-standard keywords automatically mapped to private device namespace

GPD/PPD To Print Schema Map
  • Example:
  • *Feature: PaperSize ->
  • <psf:Feature name=“psk:PageMediaSize”>
  • Example:
  • *Feature: IHVFoo ->
  • <psf:Feature name=“ns0001:IHVFoo”>
gpd ppd to print schema map29
GPD/PPD To Print Schema Map
  • Windows Vista GPD/PPD parsers will recognize new Print Schema mapping keywords
    • Specify IHV private namespace for automatically mapped keyword
    • Specify mapping from non-standard keywords to Print Schema equivalents
  • GPD Keywords
    • PrintSchemaPrivateNamespaceURI
    • PrintSchemaKeywordMap
  • PPD Keywords
    • MSPrintSchemaPrivateNamespaceURI
    • MSPrintSchemaKeywordMap
gpd ppd xpsdrv entries
New “Include” entry to reference XPSDrv standard contents

msxpsinc.gpd

msxpsinc.ppd

Currently files include a new keyword to specify XPSDrv printer driver

*IsXPSDriver?: TRUE (msxpsinc.gpd)

*MSIsXPSDriver?: TRUE(msxpsinc.ppd)

Keyword must be present to properly recognize XPSDrv drivers

GPD/PPD XPSDrv Entries
gpd sample file

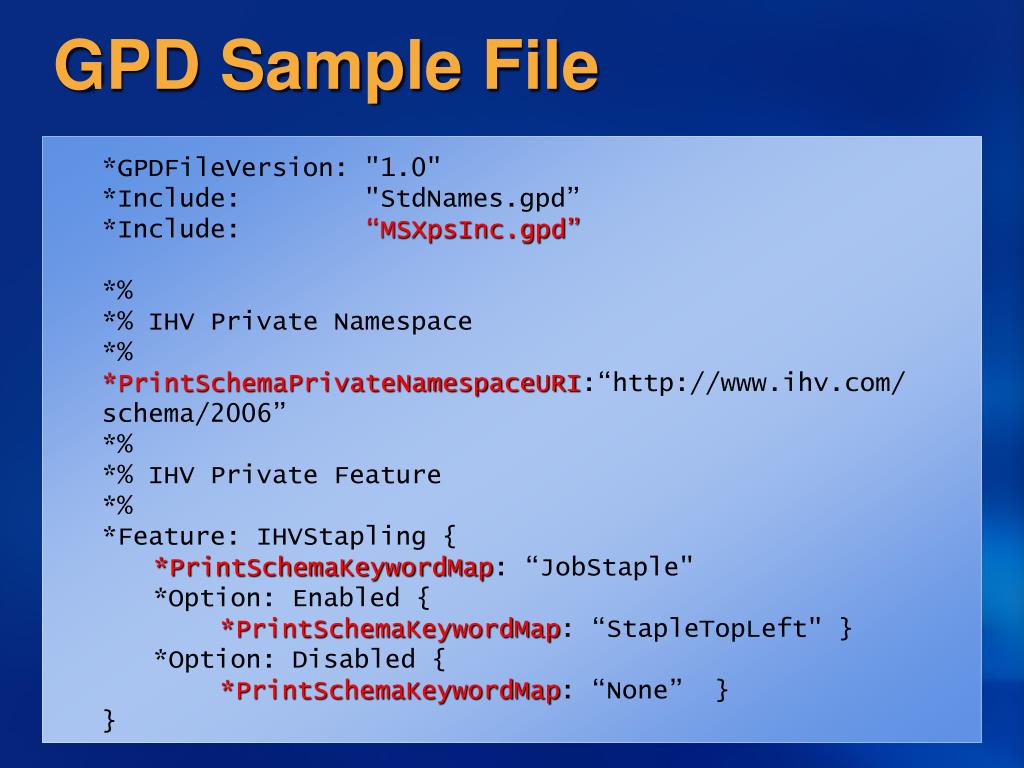

GPD Sample File

*GPDFileVersion: "1.0"

*Include: "StdNames.gpd”

*Include:“MSXpsInc.gpd”

*%

*% IHV Private Namespace

*%

*PrintSchemaPrivateNamespaceURI:“http://www.ihv.com/schema/2006”

*%

*% IHV Private Feature

*%

*Feature: IHVStapling {

*PrintSchemaKeywordMap: “JobStaple"

*Option: Enabled {

*PrintSchemaKeywordMap: “StapleTopLeft" }

*Option: Disabled {

*PrintSchemaKeywordMap: “None” }

}

unidrv pscript5 plug in config
Unidrv/PScript5 Plug-In Config
  • Unidrv/PScript5 Plug-in allows full customization of config module
    • Ability to modify, replace and add to system PrintTicket/PrintCapabilities (PT/PC) processing
    • Ability to fully replace system UI
    • Non-trivial investment cost and development time
  • Suited for all types of XPSDrv drivers
  • Primary changes are
    • Plug-in PT/PC provider: IPrintOemPrintTicketProvider
    • Helper interface for Unidrv/PScript5 settings: IPrintCoreHelper
    • XPSDrv document events and communicating with filters
iprintoemprintticketprovider
Enables plug-ins to customize PT/PC processing

Results of Unidrv/PScript5 processing will be passed to plug-in to finalize processing

DECLARE_INTERFACE_(IPrintOemPrintTicketProvider, IUnknown)

{

STDMETHOD(GetSupportedVersions)(…)

STDMETHOD(BindPrinter)(…)

STDMETHOD(PublishPrintTicketHelperInterface)(…)

STDMETHOD(QueryDeviceDefaultNamespace)(…)

STDMETHOD(ConvertPrintTicketToDevMode)(…)

STDMETHOD(ConvertDevModeToPrintTicket)(…)

STDMETHOD(CompletePrintCapabilities)(…)

STDMETHOD(ExpandIntentOptions)(…)

STDMETHOD(ValidatePrintTicket)(…)

};

IPrintOemPrintTicketProvider
iprintcorehelper
COM interface that enables plug-ins to read and set the Unidrv and PScript5 private DEVMODE settings

Enables functional parity for full-UI replacement

DECLARE_INTERFACE_(IPrintCoreHelper, IUnknown)

{

// IUnknown methods skipped

STDMETHOD(CreateInstanceOfMSXMLObject)(…)

STDMETHOD(EnumConstrainedOptions)(…)

STDMETHOD(EnumFeatures)(…)

STDMETHOD(EnumOptions)(…)

STDMETHOD(GetOption)(…)

STDMETHOD(SetOptions)(…)

STDMETHOD(WhyConstrained)(…)

STDMETHOD(GetFontSubstitution)(…)

STDMETHOD(SetFontSubstitution)(…)

};

IPrintCoreHelper
iprintcorehelper36
Two derived interfaces provide Unidrv and PScript5 specific functionality

DECLARE_INTERFACE_(IPrintCoreHelperUni, IPrintCoreHelper)

{

STDMETHOD(CreateDefaultGDLSnapshot)(…)

STDMETHOD(CreateGDLSnapshot)(…)

};

DECLARE_INTERFACE_(IPrintCoreHelperPS, IPrintCoreHelper)

{

STDMETHOD(GetGlobalAttribute)(…)

STDMETHOD(GetFeatureAttribute)(…)

STDMETHOD(GetOptionAttribute)(…)

};

IPrintCoreHelper
xpsdrv document events
XPSDrv will use the existing DrvDocumentEvent mechanism

When printing from Win32 apps, existing GDI events will be used

When printing from WPF apps,the following new XPS events will be used

DOCUMENTEVENT_XPS_QUERYFILTER

DOCUMENTEVENT_XPS_ADDFIXEDDOCUMENTSEQUENCEPRE/POST

DOCUMENTEVENT_XPS_ADDFIXEDDOCUMENTPRE/POST

DOCUMENTEVENT_XPS_ADDFIXEDPAGEEPRE/POST

DOCUMENTEVENT_XPS_ADDFIXEDDOCUMENTSEQUENCEPRINTTICKETPRE/POST

DOCUMENTEVENT_XPS_ADDFIXEDDOCUMENTPRINTTICKETPRE/POST

DOCUMENTEVENT_XPS_ADDFIXEDPAGEPRINTTICKETPRE/POST

DOCUMENTEVENT_XPS_CANCELJOB

XPSDrv Document Events
configuration recommendations
Configuration Recommendations
  • For Unidrv/PScript5 drivers, provide separate GPD/PPD for each filter
    • Contributes to the modularity of filters
  • Expose PT/PC keywords in the public Print Schema
    • Where possible, map driver features to public Print Schema keywords
    • Contributes to application use of features
    • Contributes to better synchronization of driver and application settings
inf changes
INF Changes
  • XPSDrv drivers need to make a series of changes to be properly registered by the spooler
  • CopyFiles
    • Must include Filter Pipeline configuration file
  • Needs
    • Must include XPSDRV.OEM install directive
    • Unidrv/PScript5 drivers must include XPSGPD.OEM or XPSPPD.OEM install directives
inf file sample
INF File Sample

[Manufacturer]

Microsoft

[Microsoft]

"XPSDrv Sample Driver" = INSTALL_XDSMPL_FILTERS

[INSTALL_XDSMPL_FILTERS]

CopyFiles=XPSDrvSample,ConfigPlugin,COLORPROFILES

DataFile=XDSmpl.GPD

Include=NTPRINT.INF

Needs=UNIDRV.OEM, XPSGPD.OEM, XPSDRV.OEM

ICMProfiles=xdwscRGB.cdmp

[XPSDrvSample]

xdsmpl-pipelineconfig.xml

...

premium logo requirement
Premium Logo Requirement
  • XPSDrv implementation is a requirement for the Premium Logo for print and multi-function devices
  • See DEV-PRNT-56 in the Windows Logo Program requirements for more information
configuration module logo requirements
Configuration ModuleLogo Requirements
  • Must be a valid Version 3 printer driver configuration module
  • Must support PrintTicket and PrintCapabilities
    • All features configurable in the driver UI
    • Minimal set keywords are required for basic functionality
filter pipeline logo requirements
Filter Pipeline Logo Requirements
  • The XPSDrv driver must include a valid Filter Pipeline Configuration File
  • Filters must conform to the rendering rules and PrintTicket processing rules defined in the XML Paper Specification
  • Filters must not have a dependency on the CLR or the WinFX Runtime Components
  • Filters in the XPSDrv driver filter pipeline must not display User Interface (UI) content
call to action
Call To Action
  • Test for compatibility now!
    • Test the GDI Print Path, XPS Print Path, and compatibility print paths
    • Report problems immediately
  • Plan for XPSDrv support
    • Host-based printers
    • Pass-through XPSDrv drivers for XPS-capable devices (direct consumption)
  • Start implementation now
    • Aim for Windows Vista launch availability
call to action47
Call To Action
  • Review the Windows Vista Logo Program requirements
    • Basic and Premium
  • At WinHEC
    • Practice driver dev and testing skills in XPS Printing hands on labs
    • Ask the Experts at lunch today
    • Visit the Microsoft Pavilion to see XPS demos
    • Read XPSDrv Print Drivers and the Windows Color System on http://www.microsoft.com/whdc/device/print/default.mspx
    • Attend related sessions
      • PRI050 Inside Printer Installation on Windows Vista
      • PRI039 Using the Windows Color System in Device Drivers
      • PRI102 Using XPSDrv Print Drivers to Extend Windows Print Functionality
      • PRI077 Print Driver and XPSDrv Testing in Windows Vista
additional resources
Additional Resources
  • Technical advice
  • WDK and SDK
  • Online
    • XPS Portal http://www.microsoft.com/xps
      • Links to relevant blogs, whitepapers, specs
    • WHDC Printing documents http://www.microsoft.com/whdc/device/print/default.mspx
    • WHDC Color documentshttp://www.microsoft.com/whdc/device/display/color/default.mspx
    • Windows Digital Documents Platform Team Newsletter https://profile.microsoft.com/RegSysProfileCenter/subscriptionwizard.aspx?wizid=77d9786e-9500-40a4-ba20-a4c7504d83ca&lcid=1033
  • XPSinfo @ microsoft.com
  • Prninfo @ microsoft.com
  • Mscolor @ microsoft.com
slide49

© 2006 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries.

The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
