  1. Latest GNSS results of the CMONOC network and its application in earthquake monitoring Junping Chen, Yize Zhang, Yibing Xie, Weijie Tan, Sainan Yang, Bin Wu Shanghai Astronomical Observatory (SHAO) junping@shao.ac.cn http://www.shao.ac.cn/shao_gnss_ac

  2. Content • Background & motivation • GNSS Velocity field • Ionospheric disturbance monitoring • GNSS coseismic monitoring • Further results and analysis • Summary 2

  3. Background & motivation • CMONOC(Crustal Movement Observation Network of China) 260 continuous stations 2000 campaign stations 6 SLR + 3 VLBI 100 absolute gravity stations 700 relative gravity stations http://neiscn.org/ 3

  4. Background & Motivation • Routine GNSS data analysis at SHAO • SHA strategy in huge network solution (Chen et al. CSNC2013) 4

  5. Background & Motivation • GNSS data analysis at SHAO • GNSS routine results Troposphere Time series Coord. Time series 5

  6. CMONOC GNSS Velocity field • Daily solutions combined using QOCA • 247 stations with time span > 1 year • ITRF 2008 => EURA plate Horizontal Vertical 6

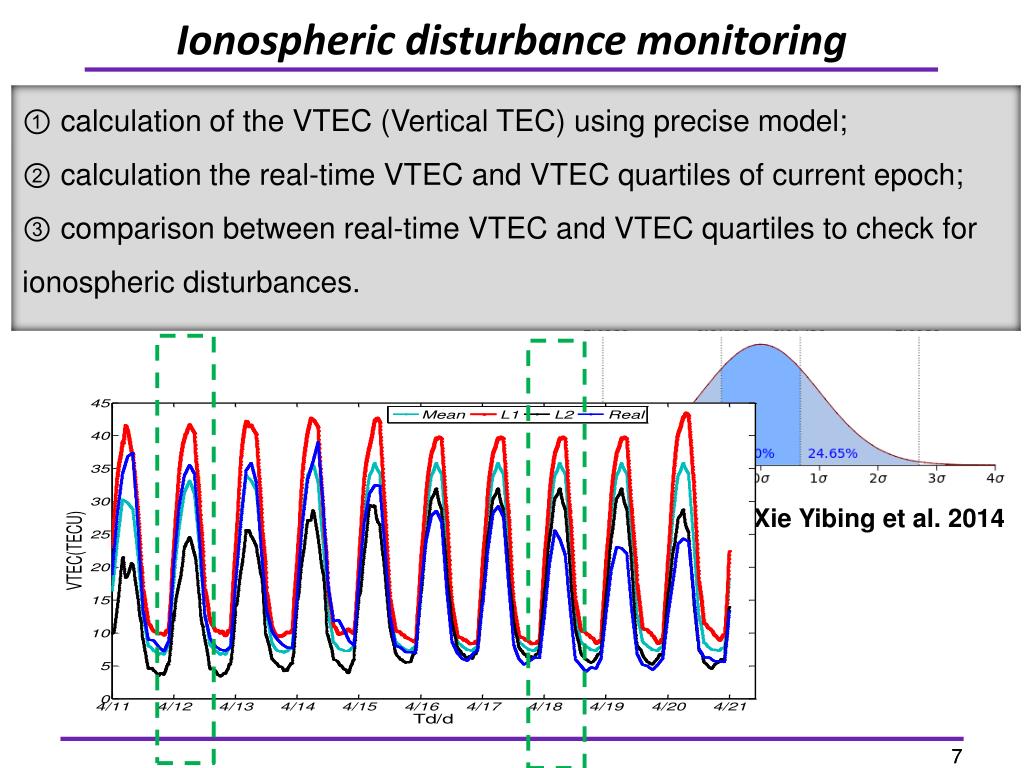

  7. Ionospheric disturbance monitoring • VTEC Quartiles ① calculation of the VTEC (Vertical TEC) using precise model; ② calculation the real-time VTEC and VTEC quartiles of current epoch; ③ comparison between real-time VTEC and VTEC quartiles to check for ionospheric disturbances. Lushan (Sichuan Province) MS7.0 earthquake on April 20,2013 Estimated VTEC less than L2 quartile: disturbance Zhang X H 2013; Xie Yibing et al. 2014 7

  8. GNSS coseismic monitoring • instantaneous site velocity solution ① retrieval of real-time high rate streams; ② calculation of the Doppler observations; ③ estimation of station instantaneous velocity; ④check for coseismic deformation. Xinjiang Ms6.6 earthquake on June 30,2012 Zhang and Guo 2013 8

  9. Further results and analysis • Troposphere • Regional modeling and real-time estimation ZTD time series ZTD modeling 9

  10. Further results and analysis • Site deformation analysis Vertical seasonal signal Expansion rate Strain rate 10

  11. Summary • Routine GNSS CMONOC analysis at SHAO • Velocity field & earthquake monitoring results • Troposphere modeling and site deformation analysis on going • NEXT: • CMONOC data contributing to BDS data analysis • Regional RF combining with SLR & VLBI 11

  12. Acknowledgment: NSFC project (No. 11273046) CMONOC Project http://www.shao.ac.cn/shao_gnss_ac Thank you! 12
