fpga implementation of closed loop control system for small scale robot

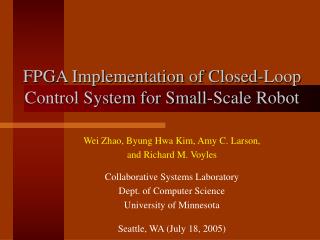

FPGA Implementation of Closed-Loop Control System for Small-Scale Robot

Wei Zhao, Byung Hwa Kim, Amy C. Larson,

and Richard M. Voyles

Collaborative Systems Laboratory

Dept. of Computer Science

University of Minnesota

Seattle, WA (July 18, 2005)

small scale robot for urban search and rescue
Small-scale robot for urban search and rescue

Bore Hole

Search Occluded Spaces with Tethered Robot Dropped Through Bore Hole

Deployed Configuration

Stowed Configuration

Department of Electrical Engineering, University of Minnesota

introduction
Introduction
  • Small-Scale Robot
    • Beneficial for urban search and rescue, military surveillance and countermeasure, planetary exploration
    • Resource-constrained issues
    • Mechanical design and controller design

CRAWLER functional architecture

Department of Electrical Engineering, University of Minnesota

introduction cont d
Introduction (cont’d)
  • Tasks of this project
    • Investigate FPGA implementation of different designs for PID control system to provide performance and resource requirements to Run Time Reconfiguration (RTR) and HW/SW codesign algorithms
    • Different designs
      • One-channel parallel and serial designs
      • Multiple-channel designs
    • These designs are evaluated in terms of
      • Area
      • Power
      • Speed

Department of Electrical Engineering, University of Minnesota

related work
Related work
  • Weiss et al. analyzed different RTR methods on the XC6000 architecture [2].
  • Shirazi described a framework and tools for RTR [5].
  • Noguera and Badia proposed a HW/SW codesign algorithm for dynamically reconfiguration [3].
  • Chen et al. implemented a complete wheelchair controller on an FPGA with parallel PID design [13].
  • Samet et al. designed three PID architectures for FPGA implementation – parallel, serial and mixed [14].
  • Chan et al. implemented power-efficient design of PID controller using FPGA [Chan04].
    • [Chan04]: Y.F. Chan, M. Moallem, and W. Wang, “Efficient implementation of PID control algorithm using FPGA technology,” in 43rd IEEE Conference on Decision and Control, Vol. 5, Dec. 2004, pp. 4885 – 4890.

Department of Electrical Engineering, University of Minnesota

pid control algorithm
PID control algorithm
  • Differential equation

Kp : proportional gain, Ti : integral time constant, Td : derivative time constant

  • Difference equation

: Positionalgorithm

: Incrementalalgorithm

where

Department of Electrical Engineering, University of Minnesota

one channel parallel design
One-channel parallel design
  • Incremental algorithm

4 additions and

3 multiplications

Department of Electrical Engineering, University of Minnesota

one channel serial design
One-channel serial design

Department of Electrical Engineering, University of Minnesota

multiple channel designs
Multiple-channel designs
  • Channel-level parallel (CLP) designs
      • Each channel has its own PID unit
      • Large area, proportional to number of channels
  • Channel-level serial (CLS) designs
      • All channels share one PID unit
      • Small area independent of each channel
      • More complex control unit
      • Context switching

Department of Electrical Engineering, University of Minnesota

multiple channel designs10
Multiple-channel designs
  • Channel-level parallel (CLP) designs
      • Each channel has its own PID unit
      • Large area, proportional to number of channels
  • Channel-level serial (CLS) designs
      • All channels share one PID unit
      • Small area independent of each channel
      • More complex control unit
      • Context switching

Arithmetic-level parallel (ALP) design

Arithmetic-level serial (ALS) design

Department of Electrical Engineering, University of Minnesota

experiment system platform
Experiment system platform
  • FPGA board (Xport)
    • Spartan II XC2S150 FPGA
  • Microprocessor module (GBA)
    • ARM7TDMI processor, 32-bit RISC

Department of Electrical Engineering, University of Minnesota

function test
Function test
  • Step response control
    • All designs perform correct function.
    • Fast response, small overshoot and high accuracy.

Department of Electrical Engineering, University of Minnesota

performance test area
Performance test: area
  • Area test
    • Test tool
      • Xilinx ISE, Place & Route Report
    • Test metric
      • CLB slices
      • Logic gates

Device resources utilization of designs

Department of Electrical Engineering, University of Minnesota

performance test area cont d
Performance test: area (cont’d)
  • Area
    • CLS design smallerthan CLP design for large number of channels
    • But, CLP design smaller for small number of channels
    • Arithmetic-level serial design always smaller than arithmetic-level parallel, whatever CLP or CLS

Department of Electrical Engineering, University of Minnesota

performance test speed
Performance test: speed
  • Speed test
    • Test tool
      • Xilinx Timing Analyzer

Department of Electrical Engineering, University of Minnesota

performance test power
Performance test: power
  • Power test
    • Test tool
      • Xilinx XPower
    • Input signals
      • Set input signal frequency and activity rate: far from accurate
      • Simulation data file (VCD file): accurate
        • Simulation tool: ModelSim
        • Simulation input: real step response experiment data
    • Two situations
      • Stable state
        • Control error = 0
      • Dynamic state
        • Control error  0

Department of Electrical Engineering, University of Minnesota

performance test power cont d
Performance test: power (cont’d)

Department of Electrical Engineering, University of Minnesota

performance test power cont d18
Performance test: power (cont’d)
  • Power dissipation
    • For the same sampling frequency, CLP+ALS design consumes least power.
    • But area of CLP is too large for large number of channels.  CLS+ALS design has smallest area.

Department of Electrical Engineering, University of Minnesota

conclusions
Conclusions
  • Preliminary work exploring resources-constrained robot control system design using FPGA.
  • One-channel serial and parallel architectures, and CLS multiple-channel designs for PID closed-loop control.
  • Functional correctness verified.
  • For one channel design increasing sampling frequency,
    • ALS shows less power than ALP.
  • For small number of channels
    • CLP+ALS design has smallest area and least power.
  • For large number of channels
    • CLP+ALS design still least power, but design is too large.
    • CLS+ALS design has smallest area.
  • Performance test methodologies and metrics discussed.

Department of Electrical Engineering, University of Minnesota

future work
Future work
  • Implement and test on Virtex-II Pro FPGA.
  • Run time reconfiguration: reconfigure structure to adapt different situation and terrain.
  • Use Virtex-II FPGA clock gating structure to improve power efficiency.
  • Decrease motor power consumption.
  • Current work: develop FPGA Interface to C3088 camera using Xilinx ML310 board (Virtex-II pro).
