TISSUE EMBEDDING PROCESSOR TES-1090ACP

Weswox Is The Leading Supplier Manufacturer Exporter Of WESWOX TISSUE EMBEDDING PROCESSOR Based In Ambala India. We Are One Of The Leading Manufacturers And Suppliers Of Centrifuge Machines, Pathological Instruments.<br>

Weswox
Download Presentation

TISSUE EMBEDDING PROCESSOR TES-1090ACP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

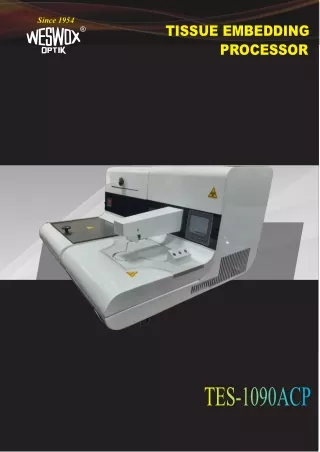

  1. Since 1954 TISSUE EMBEDDING PROCESSOR ® TES-1090ACP

  2. TISSUE EMBEDDING PROCESSOR ® TES-1090ACP Features : Ÿ Microprocessor controlled ? ve independent heating zones. Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Ÿ Large storage tank with ? lter that ensures continous ? ow of paraf? n from the tank. Automatic system start and stop ( 7 day memory). Electrically heated forceps holder on both sides. Temperature display panel for all heated areas. Paraf? n ? ow control via keypad and foot pedal. Illuminated work area. Two Tissue preservation boxes, paraf? n nozzle. Ÿ Optional Cold Spot. Technical Specifications : o o Setting Temp. Range : 50-75 C in increments 1 C. q o o Paraf? n Bath : 50-70 C + 1 C. q o o Paraf? n reservior & Tap : 50-70 C + 1 C. q o o q Working Surface : 50-70 C + 1 C. o o q Cassette Bath : 50-70 C + 1 C. q Volume of the paraf? n : 2.5 to 3.5 ltrs. q Volume of Cassette Bath : 360x220x2. q Size of the embedding table : 330X220mm. 220-240V, 50-60Hz as per EUCE standards. q Power : The Western Electric & Scientific Works Near B.D. Higher Secondary School, Ambala Cantt-133001 India :2 1 0 0 1 5 0 9 Weswoxindia.com Tel : (91) 171 4002952 Ph. : (91) 94664 09560 Email: info@weswoxindia.com With a policy of continuous development, WESWOX reserves the right to change design and specifications without prior notice.
