Cyclone Ver - TG Machines

Cyclone is a type of dust collector; device used for cleaning gases from solid particles (dust). In a cyclone, the contaminated gas falls into and swirls in a cylindrical chamber, as a result of which the heavier components in the gas are thrown outwards by the centrifugal force. As a result of rubbing against the walls of the cyclone, they lose speed and fall under the influence of gravity, and clean air flows up through the centrally placed channel.

TGMachines
Download Presentation

Cyclone Ver - TG Machines

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

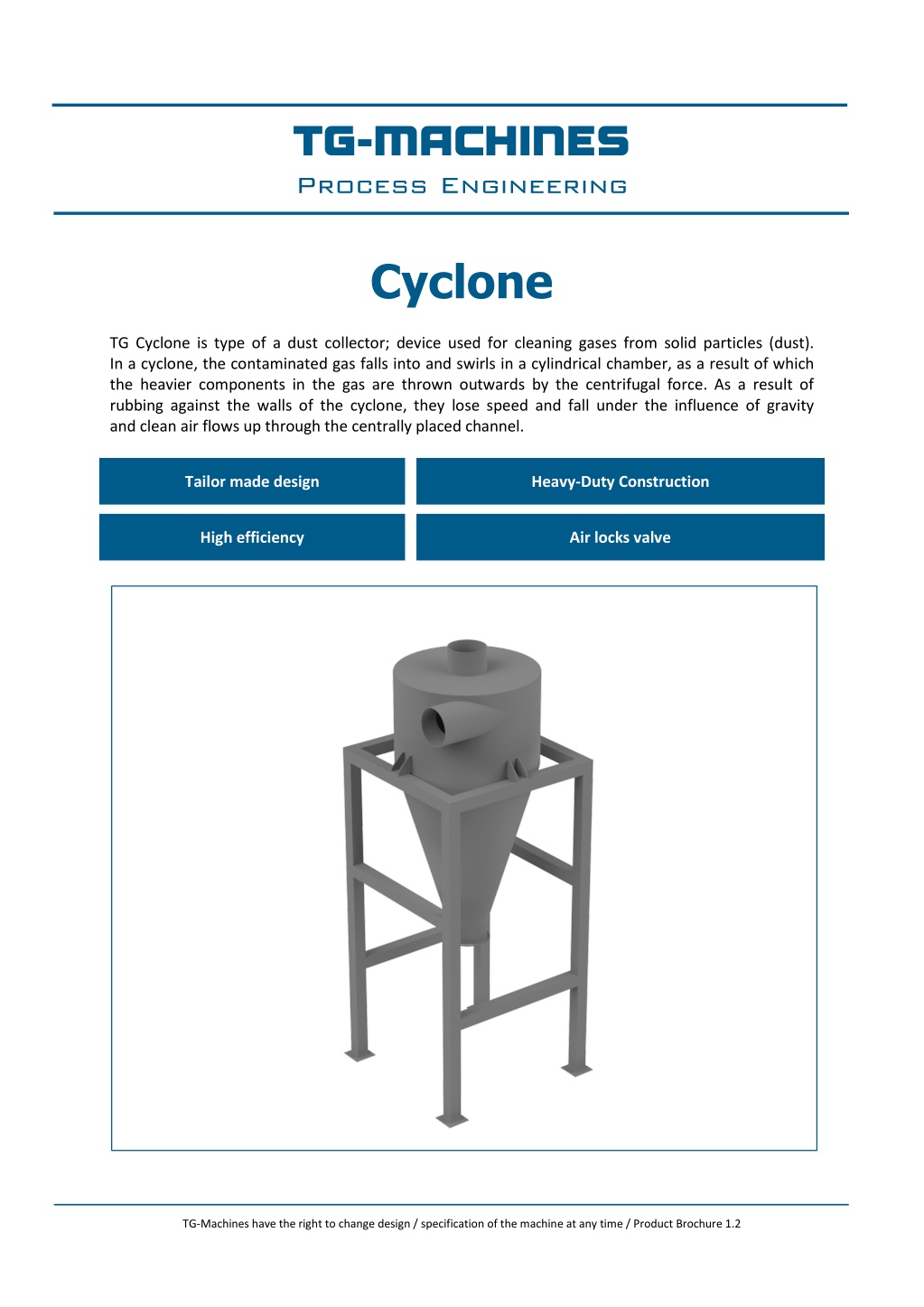

  1. TG-MACHINES Process Engineering Cyclone TG Cyclone is type of a dust collector; device used for cleaning gases from solid particles (dust). In a cyclone, the contaminated gas falls into and swirls in a cylindrical chamber, as a result of which the heavier components in the gas are thrown outwards by the centrifugal force. As a result of rubbing against the walls of the cyclone, they lose speed and fall under the influence of gravity and clean air flows up through the centrally placed channel. Tailor made design Heavy-Duty Construction High efficiency Air locks valve TG-Machines have the right to change design / specification of the machine at any time / Product Brochure 1.2

  2. TG-MACHINES Process Engineering TECHNICAL DATA: Model Diameter [mm] Capacity [m3/hr] C-0400 400 800-1500 C-0500 500 1300-2400 C-0600 600 1800-3700 C-0700 700 2500-4700 C-0800 800 3300-6000 C-0900 900 4000-7500 C-1000 1000 4500-8500 C-1100 1100 6400-12000 C-1200 1200 7600-14500 C-1300 1300 8500-16500 C-1400 1400 10000-20000 Application:  Separation of the meal dust from the air  Separating air-borne materials (e.g. shavings and sawdust in wood factories) from air  Dust extraction of air taken from the vicinity of engines intended to operate in dusty conditions  Dust removal of exhaust gases from heating plants, heat and power plants, steel mills TG-MACHINES Process Engineering Phone: +48 792 665 291 / E-mail: info@tg-machines.com / www: tg-machines.com Poland - Ostrowiec Świętokrzyski / China - Fangqiao Town, Yixing City, Jiangsu TG-Machines have the right to change design / specification of the machine at any time / Product Brochure 1.2
