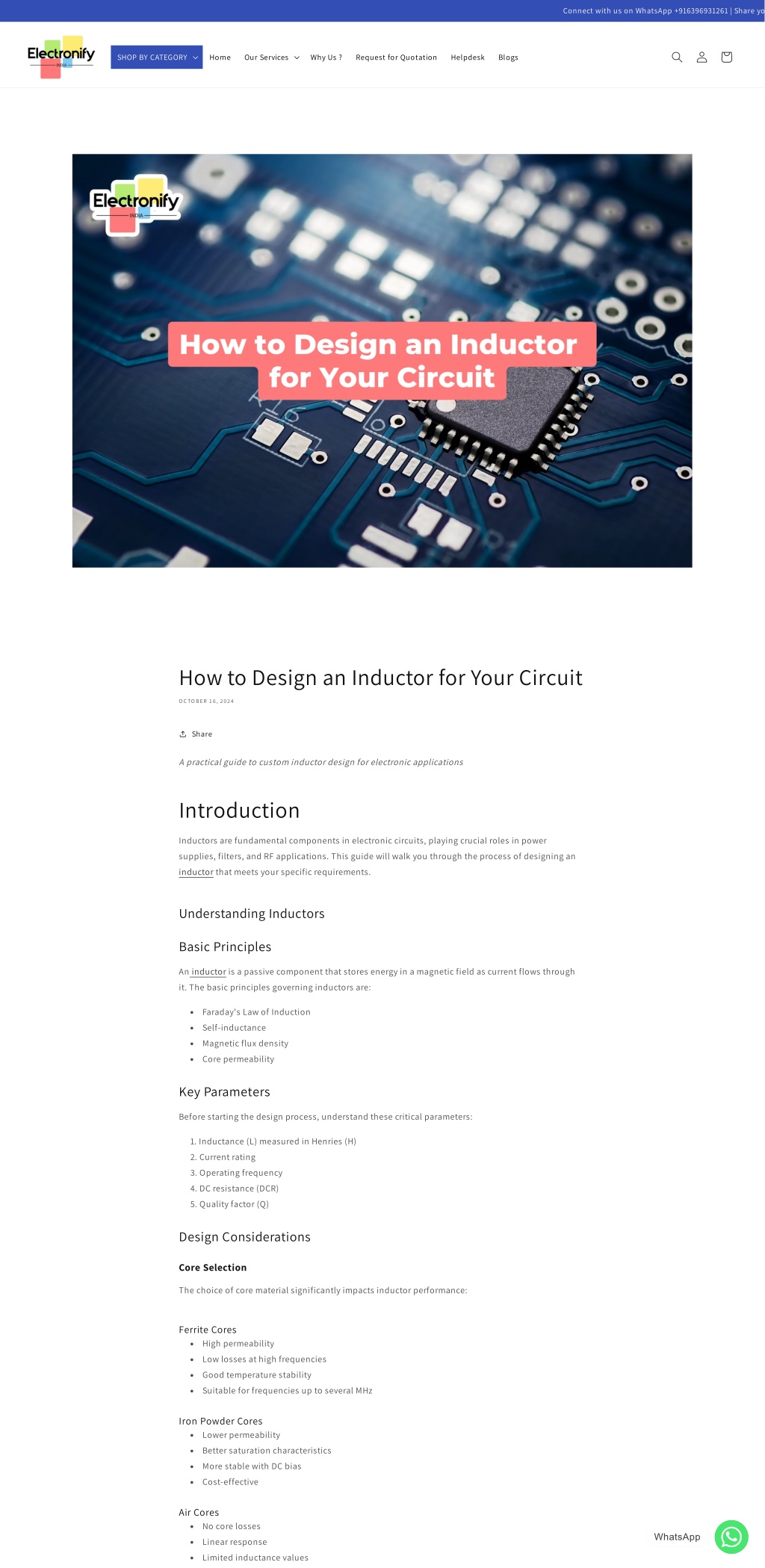

1. Connect with us on WhatsApp +916396931261 | Share yo SHOP BY CATEGORY Home Our Services Why Us ? Request for Quotation Helpdesk Blogs How to Design an Inductor for Your Circuit OCTOBER 16, 2024 Share A practical guide to custom inductor design for electronic applications Introduction Inductors are fundamental components in electronic circuits, playing crucial roles in power supplies, filters, and RF applications. This guide will walk you through the process of designing an inductor that meets your specific requirements. Understanding Inductors Basic Principles An inductor is a passive component that stores energy in a magnetic field as current flows through it. The basic principles governing inductors are: Faraday's Law of Induction Self-inductance Magnetic flux density Core permeability Key Parameters Before starting the design process, understand these critical parameters: 1. Inductance (L) measured in Henries (H) 2. Current rating 3. Operating frequency 4. DC resistance (DCR) 5. Quality factor (Q) Design Considerations Core Selection The choice of core material significantly impacts inductor performance: Ferrite Cores High permeability Low losses at high frequencies Good temperature stability Suitable for frequencies up to several MHz Iron Powder Cores Lower permeability Better saturation characteristics More stable with DC bias Cost-effective Air Cores No core losses Linear response Limited inductance values WhatsApp

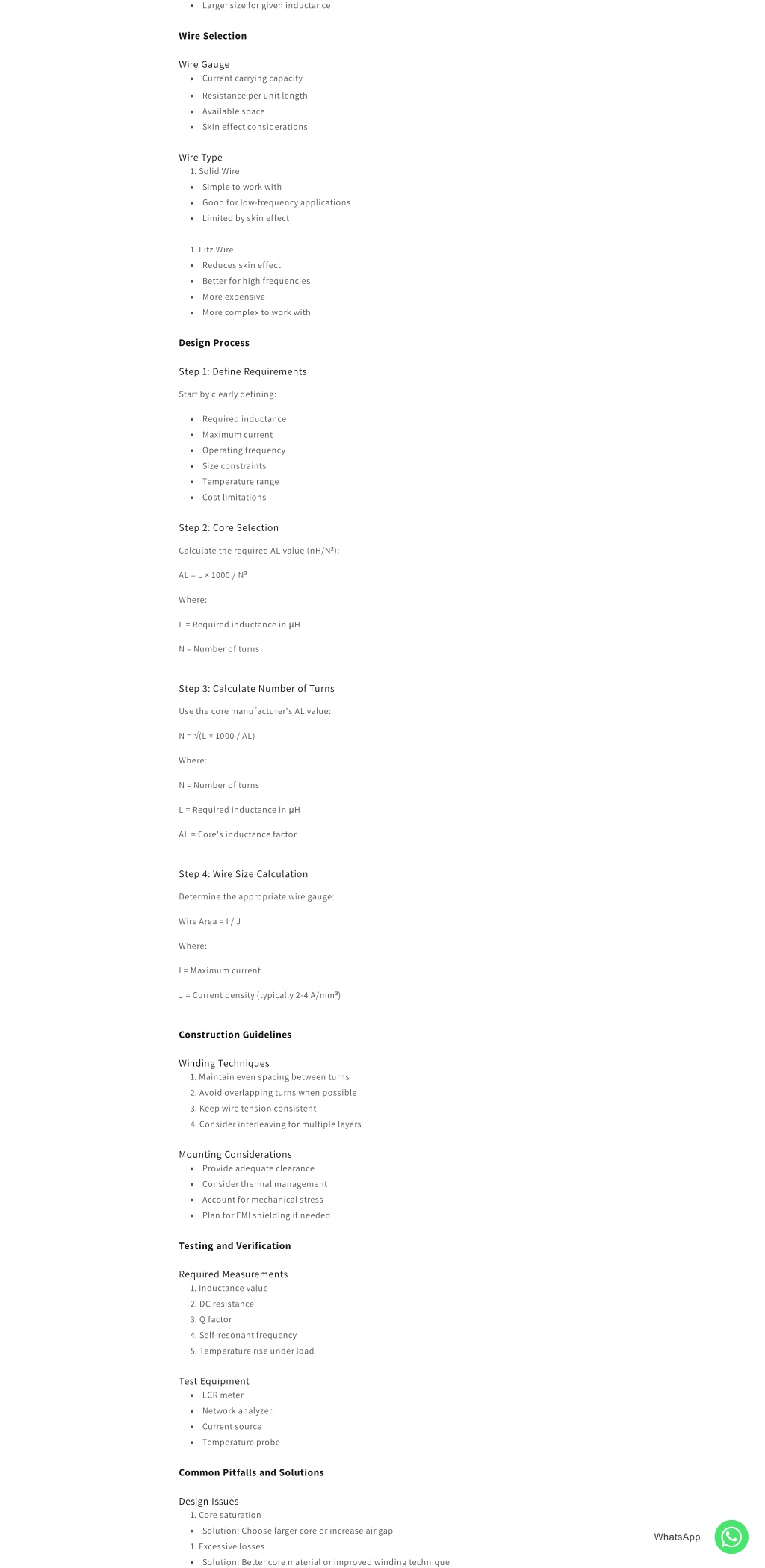

2. Larger size for given inductance Wire Selection Wire Gauge Current carrying capacity Resistance per unit length Available space Skin effect considerations Wire Type 1. Solid Wire Simple to work with Good for low-frequency applications Limited by skin effect 1. Litz Wire Reduces skin effect Better for high frequencies More expensive More complex to work with Design Process Step 1: Define Requirements Start by clearly defining: Required inductance Maximum current Operating frequency Size constraints Temperature range Cost limitations Step 2: Core Selection Calculate the required AL value (nH/N²): AL = L × 1000 / N² Where: L = Required inductance in µH N = Number of turns Step 3: Calculate Number of Turns Use the core manufacturer's AL value: N = √(L × 1000 / AL) Where: N = Number of turns L = Required inductance in µH AL = Core's inductance factor Step 4: Wire Size Calculation Determine the appropriate wire gauge: Wire Area = I / J Where: I = Maximum current J = Current density (typically 2-4 A/mm²) Construction Guidelines Winding Techniques 1. Maintain even spacing between turns 2. Avoid overlapping turns when possible 3. Keep wire tension consistent 4. Consider interleaving for multiple layers Mounting Considerations Provide adequate clearance Consider thermal management Account for mechanical stress Plan for EMI shielding if needed Testing and Verification Required Measurements 1. Inductance value 2. DC resistance 3. Q factor 4. Self-resonant frequency 5. Temperature rise under load Test Equipment LCR meter Network analyzer Current source Temperature probe Common Pitfalls and Solutions Design Issues 1. Core saturation Solution: Choose larger core or increase air gap 1. Excessive losses Solution: Better core material or improved winding technique WhatsApp

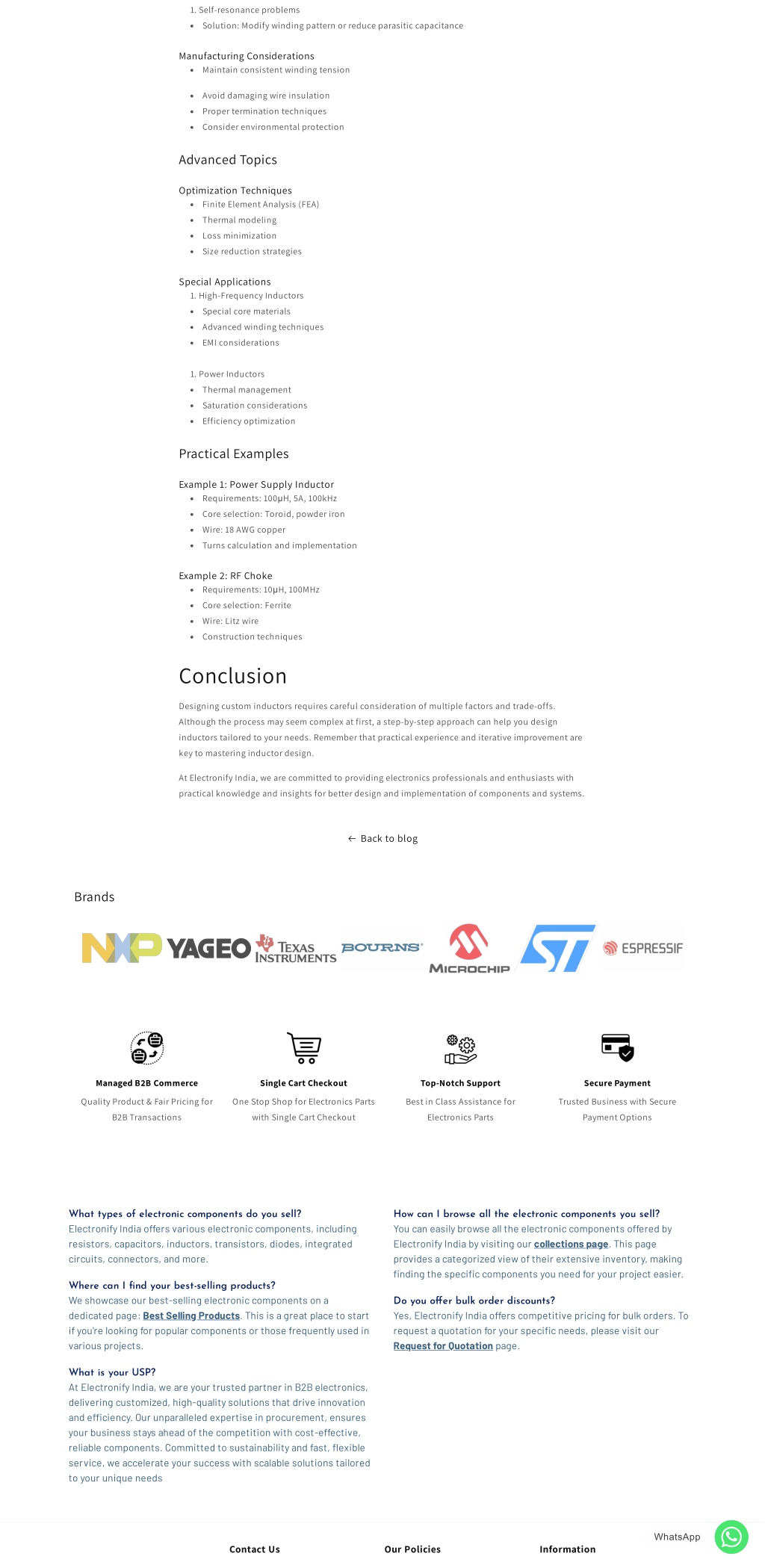

3. 1. Self-resonance problems Solution: Modify winding pattern or reduce parasitic capacitance Manufacturing Considerations Maintain consistent winding tension Avoid damaging wire insulation Proper termination techniques Consider environmental protection Advanced Topics Optimization Techniques Finite Element Analysis (FEA) Thermal modeling Loss minimization Size reduction strategies Special Applications 1. High-Frequency Inductors Special core materials Advanced winding techniques EMI considerations 1. Power Inductors Thermal management Saturation considerations Efficiency optimization Practical Examples Example 1: Power Supply Inductor Requirements: 100µH, 5A, 100kHz Core selection: Toroid, powder iron Wire: 18 AWG copper Turns calculation and implementation Example 2: RF Choke Requirements: 10µH, 100MHz Core selection: Ferrite Wire: Litz wire Construction techniques Conclusion Designing custom inductors requires careful consideration of multiple factors and trade-offs. Although the process may seem complex at first, a step-by-step approach can help you design inductors tailored to your needs. Remember that practical experience and iterative improvement are key to mastering inductor design. At Electronify India, we are committed to providing electronics professionals and enthusiasts with practical knowledge and insights for better design and implementation of components and systems. Back to blog Brands Managed B2B Commerce Single Cart Checkout Top-Notch Support Secure Payment Quality Product & Fair Pricing for B2B Transactions One Stop Shop for Electronics Parts with Single Cart Checkout Best in Class Assistance for Electronics Parts Trusted Business with Secure Payment Options What types of electronic components do you sell? Electronify India offers various electronic components, including resistors, capacitors, inductors, transistors, diodes, integrated circuits, connectors, and more. How can I browse all the electronic components you sell? You can easily browse all the electronic components offered by Electronify India by visiting our collections page. This page provides a categorized view of their extensive inventory, making ?nding the speci?c components you need for your project easier. Where can I ?nd your best-selling products? We showcase our best-selling electronic components on a dedicated page: Best Selling Products. This is a great place to start if you're looking for popular components or those frequently used in various projects. Do you o?er bulk order discounts? Yes, Electronify India offers competitive pricing for bulk orders. To request a quotation for your speci?c needs, please visit our Request for Quotation page. What is your USP? At Electronify India, we are your trusted partner in B2B electronics, delivering customized, high-quality solutions that drive innovation and e?ciency. Our unparalleled expertise in procurement, ensures your business stays ahead of the competition with cost-effective, reliable components. Committed to sustainability and fast, ?exible service, we accelerate your success with scalable solutions tailored to your unique needs WhatsApp Contact Us Our Policies Information
