Hybridization Oven

<br>Hybridization Oven offers a temperature range from 5u00b0C to 100u00b0C which provides optimal conditions for different stages of hybridization. Designed with variable <br>speed control that enables consistent saturation of samples for washing or hybridizing. Features a rocking mechanism that reduces the risk of uneven <br>hybridization and non-specific binding. Incorporated hot air convection combined with microprocessor control results in uniform temperature and even air circulation.

Kimber4
Download Presentation

Hybridization Oven

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

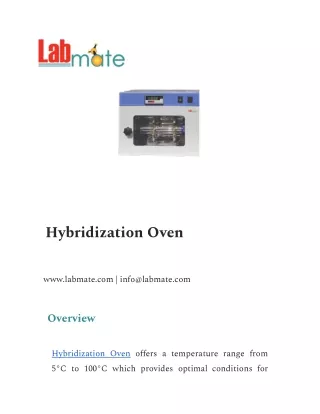

  1. Hybridization Oven www.labmate.com | info@labmate.com Overview Hybridization Oven offers a temperature range from 5°C to 100°C which provides optimal conditions for

  2. different stages of hybridization. Designed with variable speed control that enables consistent saturation of samples for washing or hybridizing. Features a rocking mechanism hybridization and non-specific binding. Incorporated hot air convection combined with microprocessor control results in uniform temperature and even air circulation. that reduces the risk of uneven Specifications : Temperature Range 5°C to 100°C Temperature Accuracy ± 0.5°C Temperature Resolution 0.1°C Temperature Equilibrium Time < 20min

  3. Temperature Error ± 0.03°C Rotation Speed 6.5 ± 0.5 rpm Tube Size 35 × 240 mm Working Time 24hrs Power Consumption 600W Power Supply 220VAV, 50Hz Dimension (L × W × H) 360 ×340 ×310 mm Weight 30kgs Features : - Cra?ed interior with stainless steel

  4. - Features the dual glass door that prevents radiation - Equipped with rotating pipe for easy hybrid tube assembly or disassembly - Enables rapid heating - Equipped with a furnace to prevent stagnant zones - User-friendly interface for ease of operation Applications : Widely used in research laboratories and molecular biology labs, specifically catering to processes that involve the identification of DNA, RNA, or proteins. Its adaptability makes it ideal for essential techniques like Northern blotting, Southern blotting, and Western blotting. Labmate Scientific

  5. Email: info@labmate.com | Website: www.labmate.com
