the netherlands approach for generating climate change scenarios

The Netherlands approach for generating climate change scenarios

Bart van den Hurk, KNMI

and many others

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

exercise from last week

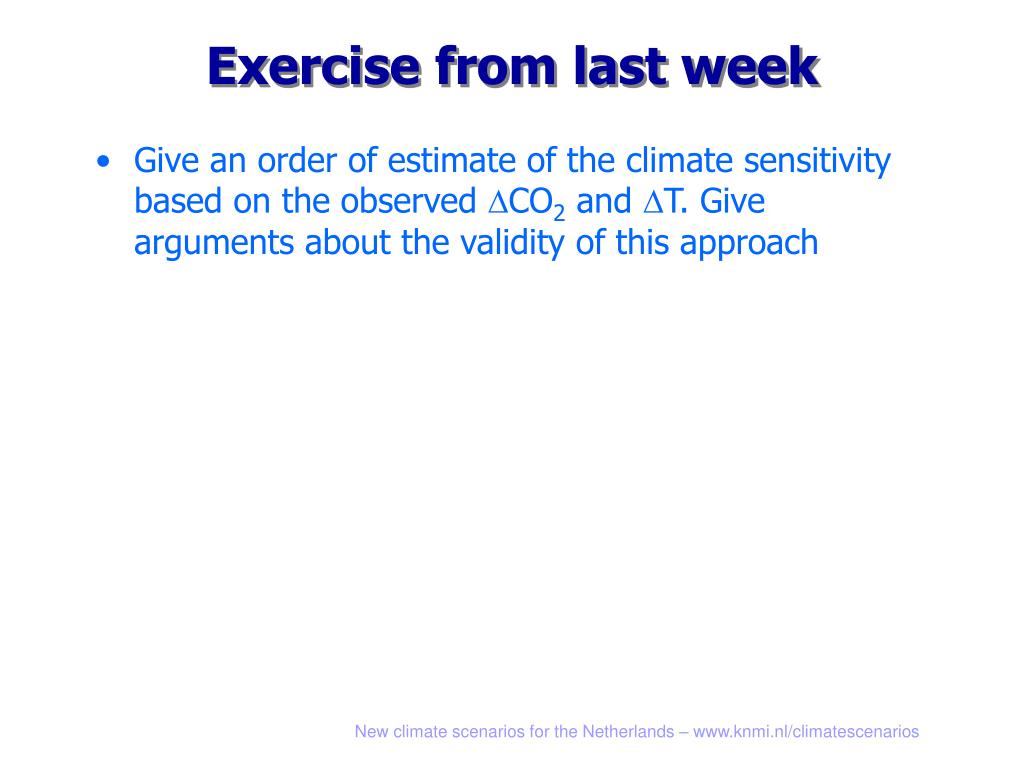

Exercise from last week
  • Give an order of estimate of the climate sensitivity based on the observed CO2 and T. Give arguments about the validity of this approach

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

what are climate scenarios
What are climate scenarios?
  • No predictions but What if… projections

prob

T

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

what are climate scenarios4
What are climate scenarios?
  • No predictions but What if… projections
  • With the following characteristics:
    • Plausible: fair chance of actually occuring in the future (excluding very unlikely situations)
    • Internally consistent: mean and extreme precipitation, temperature etc can all occur in the same climate
    • Relevant: aimed at information needs for impact assessment or policy evaluation applications

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

model projections of future global climate
Model projections of future global climate
  • Models are imperfect
  • Future greenhouse gas concentrations are unknown
  • Coordinated effort:
    • define set of emission scenarios
    • calculate concentration evolution
    • use this to make projections with range of GCMs
  • AR4: Large (~25) nr of GCMs available for 1900 – 2200 (http://www-pcmdi.llnl.gov/)

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

projections mean precipitation 2050 1990 with the mpi model
Projections mean precipitation (2050/1990) with the MPI model

A2

A1B

+25%

Winter

Summer

-50%

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

projections mean precipitation 2050 1990 with the mpi model7
Projections mean precipitation (2050/1990) with the MPI model

A2

A1B

+25%

Winter

Mean change

Winter change  +5 – +10%

Summer change  -10 – -15%

Difference scenarios

A2 a bit stronger in winter

A1B a bit stronger in summer

Gradient

N-S gradient in winter

SE-NW gradient in summer

Resolution

Resolution very coarse

(>150 km)

Extremes

Only seasonal mean!

No info on extremes or

nr of wet days.

Summer

-50%

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

the production of the knmi 06 scenarios
The production of the KNMI’06 scenarios

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

the production of the knmi 06 scenarios9
The production of the KNMI’06 scenarios

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

global mean climate change scenarios

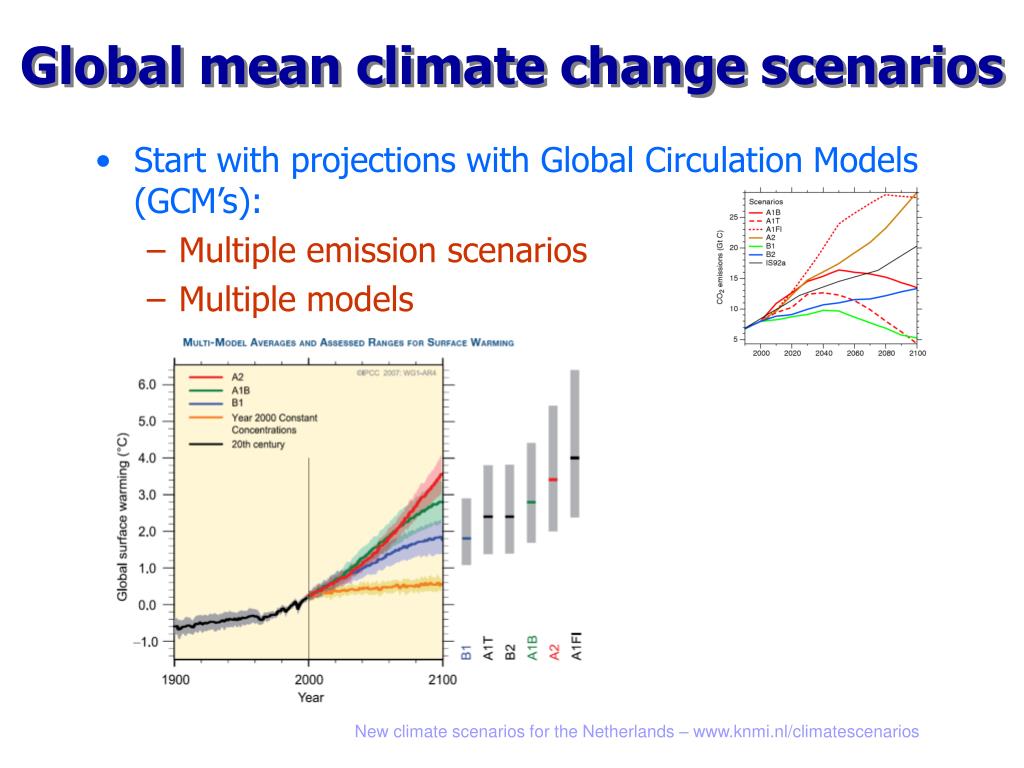

Global mean climate change scenarios
  • Start with projections with Global Circulation Models (GCM’s):
    • Multiple emission scenarios
    • Multiple models

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

but there s more than global mean temperature
But there’s more than global mean temperature

Sea level pressure difference

from 2 different GCMs

Van Ulden and Van Oldenborgh, 2006

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

g west in west europe for present day climate
G-west in West-Europe for present-day climate
  • Approx 10 AR4 GCM-runs

Observations

Models

Van Ulden et al, 2006

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

g west end of 21 st century with doubled co 2 levels
G-west end of 21st century with doubled CO2-levels
  • Changes relative to present climate

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

g west end of 21 st century with doubled co 2 levels14
G-west end of 21st century with doubled CO2-levels
  • Changes relative to present climate

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

the influence from the driving gcm
The influence from the driving GCM!
  • Change of precipitation annual cycle in Rhine area from multiple regional climate model simulations
  • Two different GCM’s

ECHAM4/OPYC (more Atlantic advection in winter, less in summer)

HadAM3H (small changes in circulation statistics)

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

winter temperature and wind direction
Winter temperature andwind direction

A2 scenario

Control

simulation

Observed

14 12 10 8 6 4 2 0 -2 -4 -6 -8 -10

  • Eastern winds give low winter temperatures

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

rationale of the scenarios
Rationale of the scenarios
  • The steering variables
    • 1. Global temperature

– 2. Strength of seasonal

mean west-circulation

(not for zsea)

Strength of west-circulation

month

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

the production of the knmi 06 scenarios18
The production of the KNMI’06 scenarios

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

regional climate change downscaling
Regional climate change: downscaling
  • GCM-grid box too coarse

Global model

Regional model

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

downscaling
Downscaling
  • Downscaling = local interpretation of GCM-scenario by using local added information
    • Orography, land/sea
    • Land use, …
  • 2 families of methods
    • Statistical
    • Dynamical

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

statistical downscaling
Statistical downscaling
  • Ingredients:
    • Local observed time series of weather variable (e.g. precipitation)
    • Archive of large scale circulation-indicators (e.g. air pressure, temperature/wind in higher atmosphere, gradients of humidity, pressure, …)
    • Correlation-equation
    • Large scale circulation-indicators from a GCM projection to be downscaled

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

statistical downscaling22
Statistical downscaling

I from GCM’s + a and b from local calibration  local P

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

dynamical downscaling regional climate model rcm
Dynamical downscaling: Regional Climate Model (RCM)
  • High resolution GCM (50 – 20 km)
    • better resolving land-sea, orography, atm.gradients
  • Lateral boundary conditions from reanalysis (present-day climate conditions) or GCM runs (scenario runs)
    • multi-level
    • temporal frequency dependent on domain
  • Inner domain free evolving

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

analysis of ar4 gcms precipitation and temperature
Analysis of AR4 GCMs: precipitation and temperature
  • Local downscaling:
    • Daily values rather than seasonal means
    • (Soft) extremes
    • Number of rain days
  • 10 PRUDENCE RCM’s
    • 8x HadAM3H (fairly dry in summer, modest SST, strong circ in summer, less in winter)
    • 2x ECHAM4 (very wet in winter and dry in summer, strong circ, stronger effect SST)
    • Problem: no GCM run representative for circ  0
    • “Escape”:
      • KNMI RCM remains fairly wet in summer (can be used for G- en W-scenario)
      • in winter the RCM runs cover the GCM-variability reasonable

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

analysis of ar4 gcms precipitation and temperature25

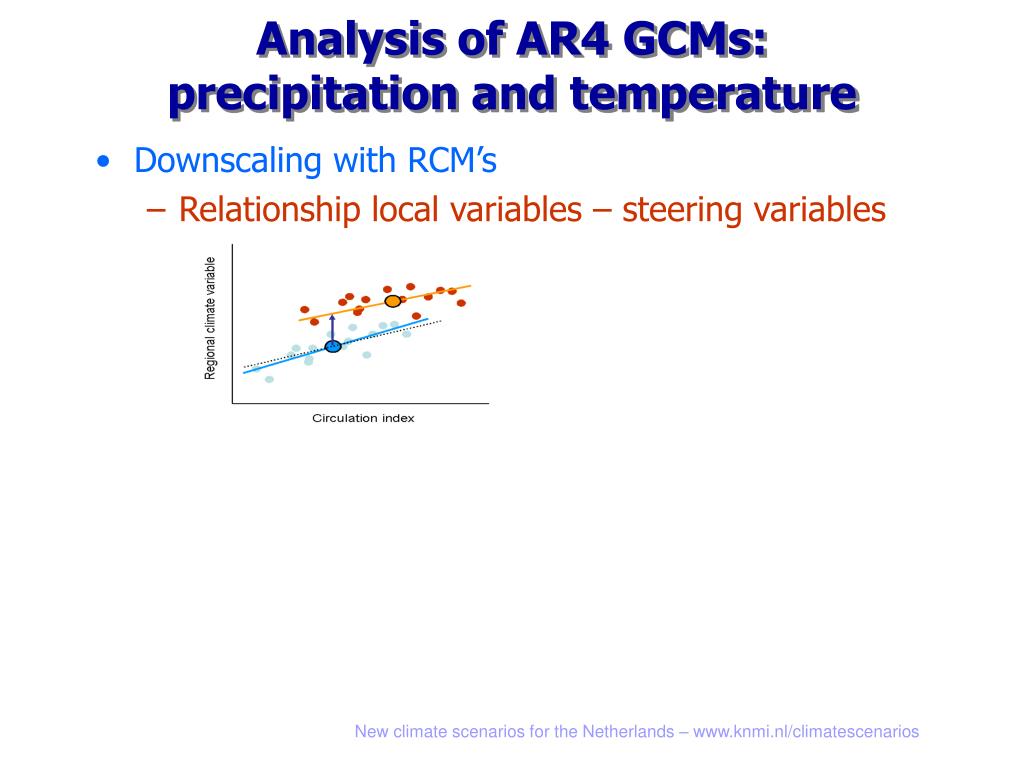

Analysis of AR4 GCMs: precipitation and temperature
  • Downscaling with RCM’s
    • Relationship local variables – steering variables

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

analysis of ar4 gcms precipitation and temperature26

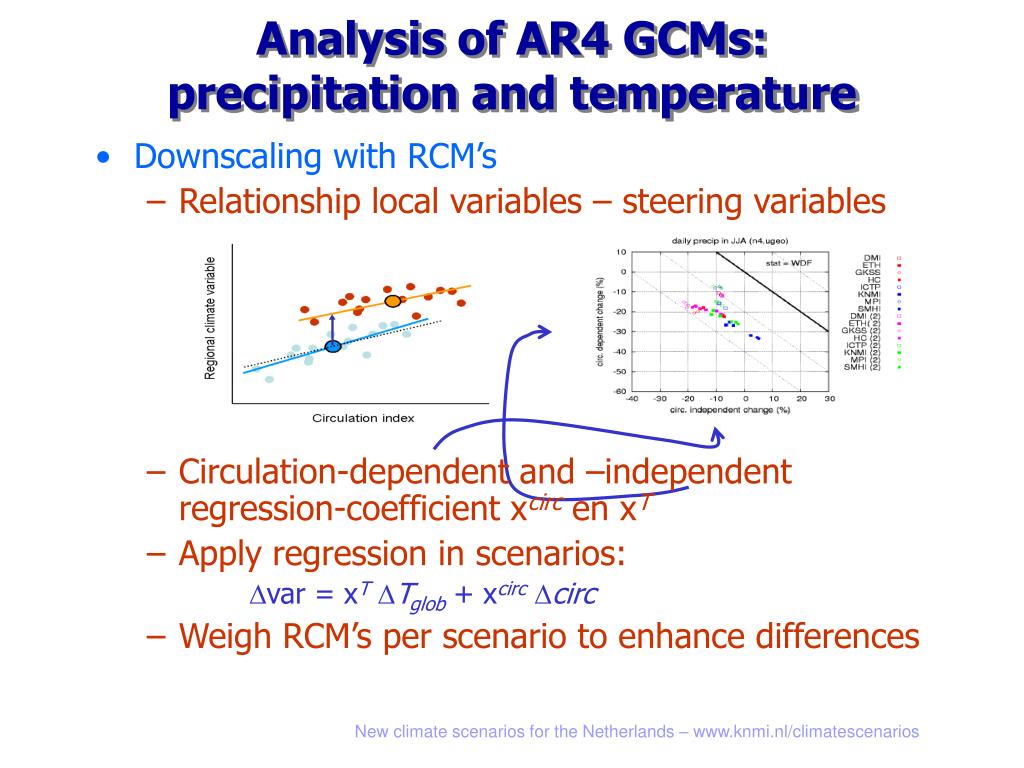

Analysis of AR4 GCMs: precipitation and temperature
  • Downscaling with RCM’s
    • Relationship local variables – steering variables
    • Circulation-dependent and –independent regression-coefficient xcirc en xT
    • Apply regression in scenarios:

var = xT Tglob + xcirc circ

    • Weigh RCM’s per scenario to enhance differences

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

result change in 2050 relative to 1990
Result: change in 2050 relative to 1990

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

result change in 2050 relative to 199028

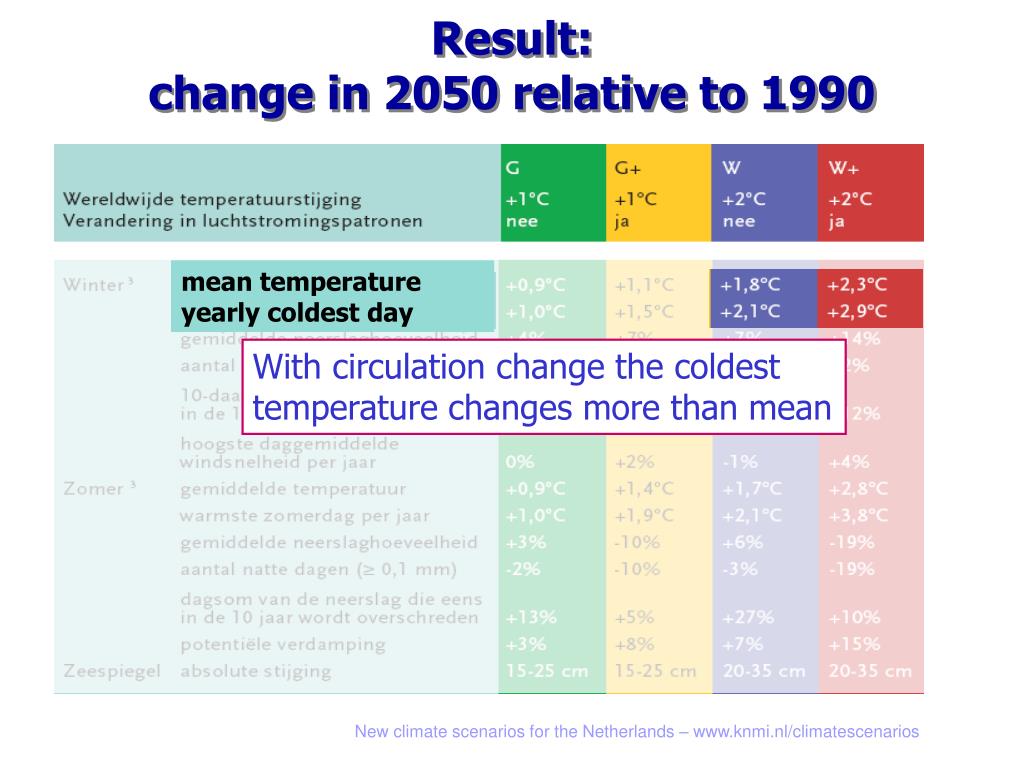

Result: change in 2050 relative to 1990

mean temperature

yearly coldest day

With circulation change the coldest

temperature changes more than mean

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

result change in 2050 relative to 199029

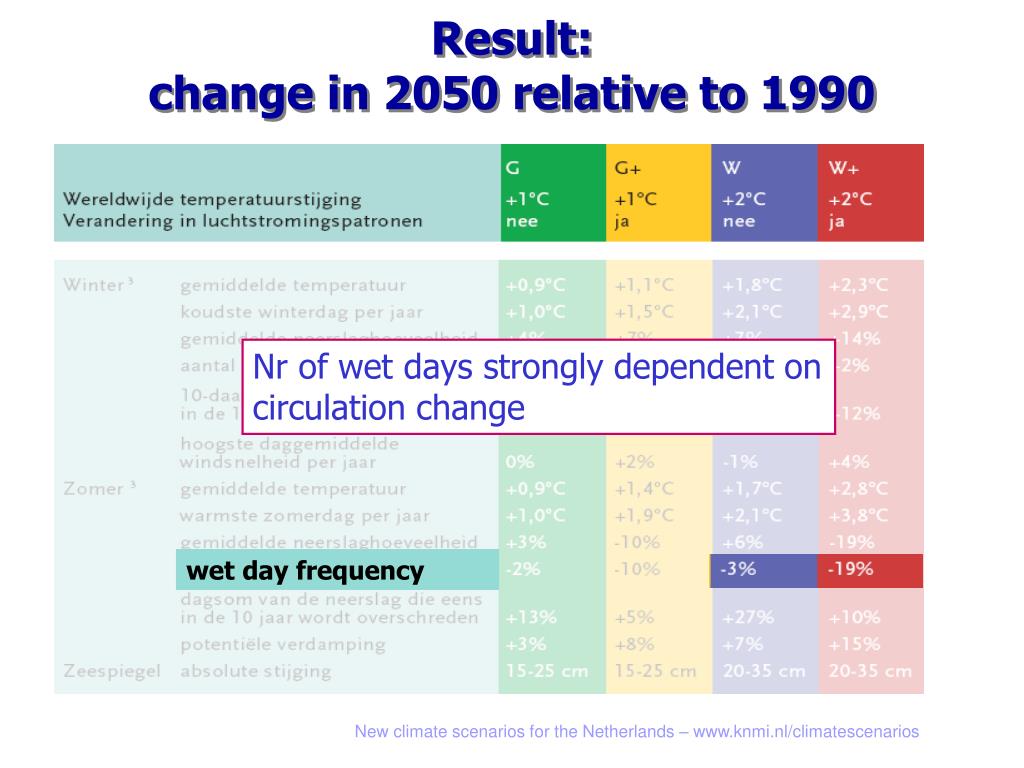

Result: change in 2050 relative to 1990

Nr of wet days strongly dependent on

circulation change

wet day frequency

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

result change in 2050 relative to 199030
Result: change in 2050 relative to 1990

Wet day mean precipitation dependent on

global temperature rise

mean precipitation

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

result change in 2050 relative to 199031
Result: change in 2050 relative to 1990

Extreme precipitation is more likely in a

wetter climate

daily precipitation exceeded 1/10yrs

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

result change in 2050 relative to 199032
Result: change in 2050 relative to 1990

annual maximum daily mean wind

Windscenarios hardly show a significant change

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

result change in 2050 relative to 199033
Result: change in 2050 relative to 1990

Sea level scenario’s after 2050 show acceleration:

For 2100 the range is between 35 and 85 cm

sea level rise

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

general picture

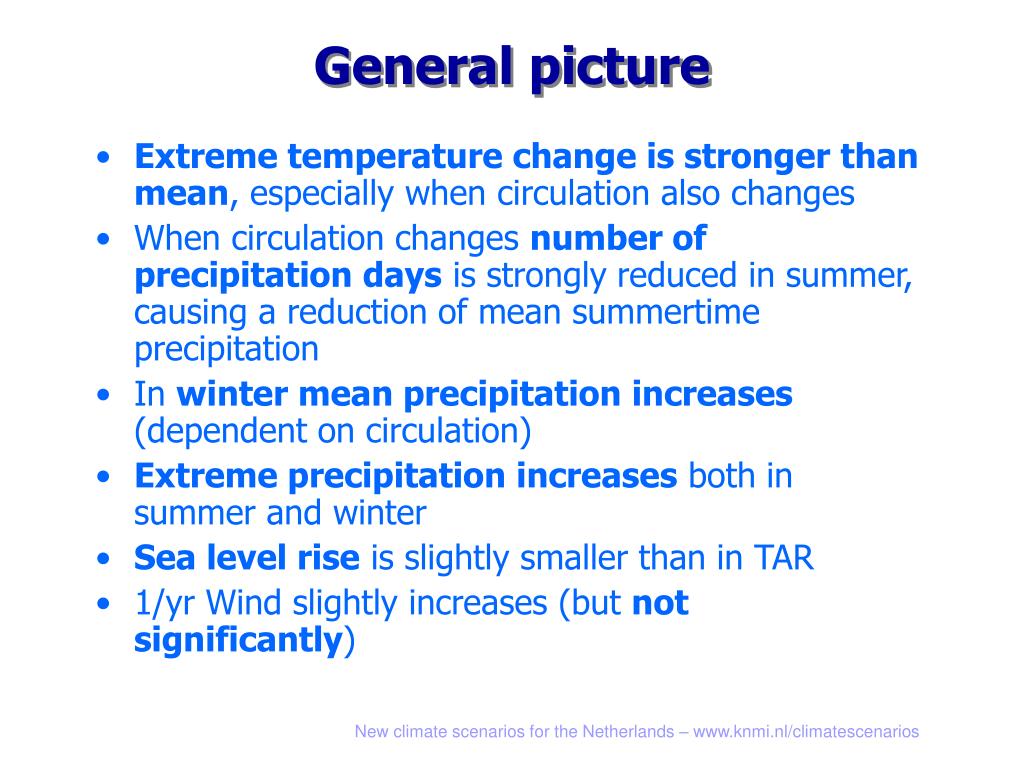

General picture
  • Extreme temperature change is stronger than mean, especially when circulation also changes
  • When circulation changes number of precipitation days is strongly reduced in summer, causing a reduction of mean summertime precipitation
  • In winter mean precipitation increases (dependent on circulation)
  • Extreme precipitation increases both in summer and winter
  • Sea level rise is slightly smaller than in TAR
  • 1/yr Wind slightly increases (but not significantly)

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

tailored climate scenarios
Tailored climate scenarios
  • Specific use in many applications (e.g. water management) requires “tailoring”
  • Examples
    • High resolution time series of precipitation
    • Ground water tables in the Netherlands
    • Long (>100 yr) time series
    • Dynamical downscaling in Rhine basin

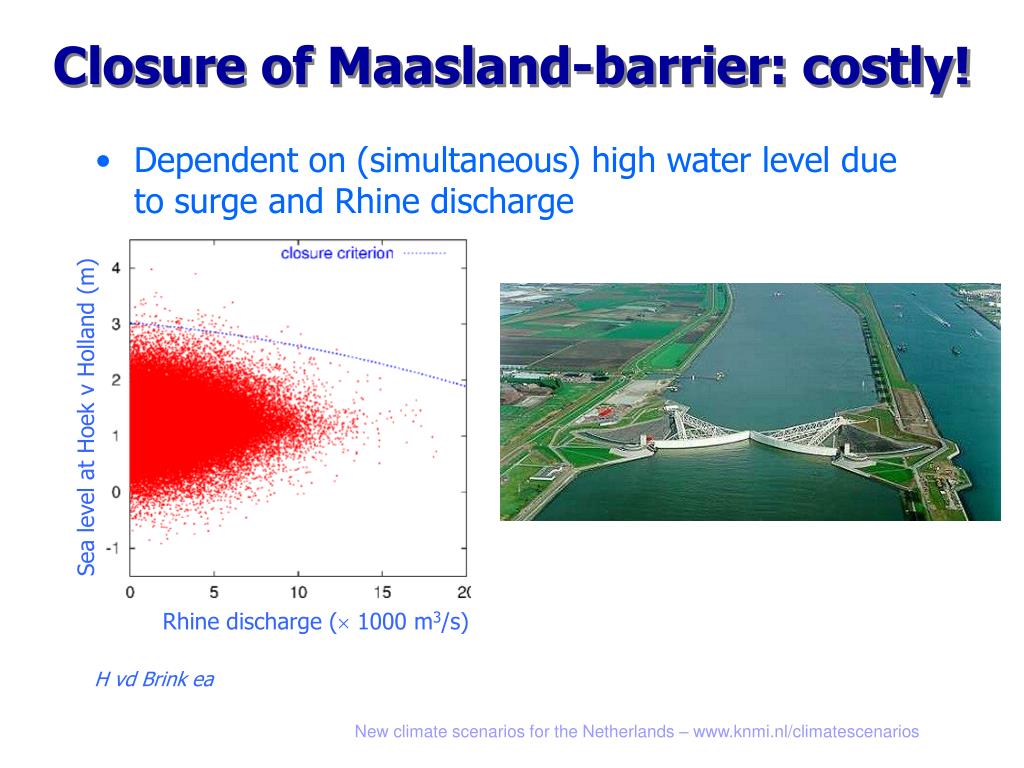

    • Closure of Maasland barrier

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

the production of the knmi 06 scenarios36

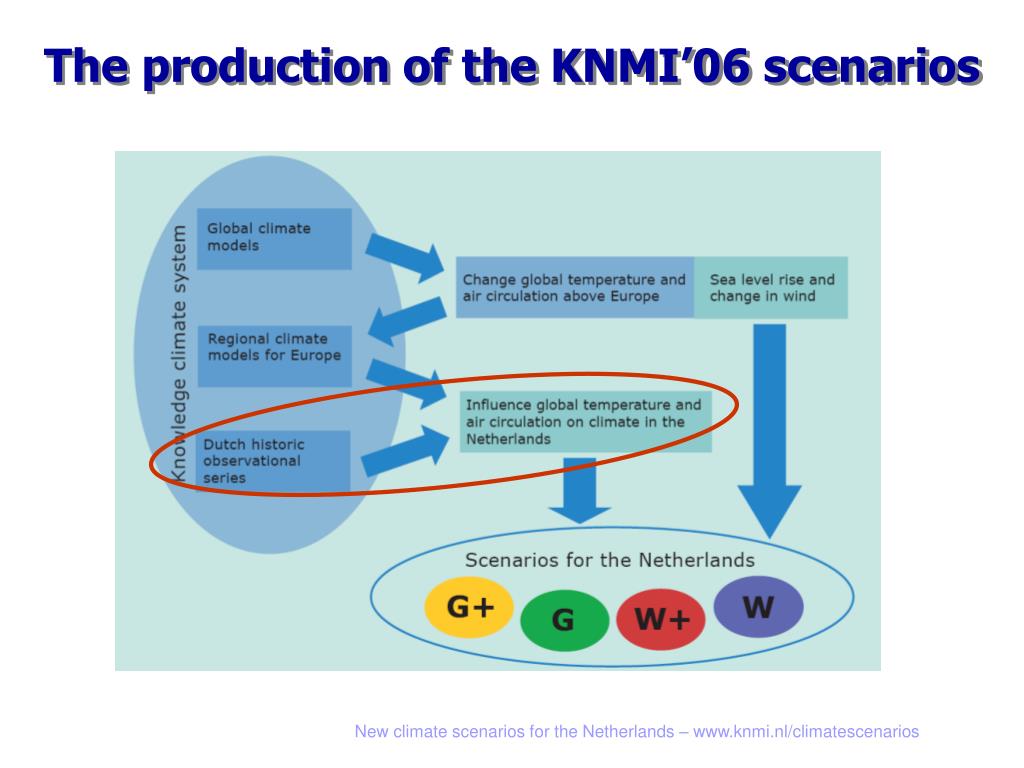

The production of the KNMI’06 scenarios

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

generation of high resolution time series
Generation of high resolution time series
  • Climate scenarios provide general key numbers (change of mean, change of 1/10yr return value)
  • Change an existing (obs) time series of precipitation
    • linearly (using only mean change)
    • non-linearly (changing also shape of distribution and # wet days)

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

non linear time series transformation
Non-linear time series transformation
  • Determination of extremes (via statistical downscaling)
    • From previous step: p50, p99, scaled to pn via assumed scaling of pdf
    • Observed time series transformed with pn
    • From transformed time series:
      • Return time of extremes
      • Nr of frost days
      • Length growing season…

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

generation of high resolution time series39
Generation of high resolution time series

non-linear transformation

introduces dry day

n-lin > obs

lin < obs

and different changes for different intensities

n-lin < obs

lin < obs

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

effect on groundwater table example
Effect on groundwater table (example)

non-linear transformation

has tendency to be wetter in wet episodes and drier in dry spells

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

change in ground water table the netherlands
Change in ground water table the Netherlands
  • Aim: first assessment of effect of W+ scenario on ground water table in various stages of the growing season
  • Tailoring:
    • production of location specific meteo (applied linearly in this example)
    • running high resolution ground water model

Lowest water

table during

growing season:

generally drier

Start of growing

season:

generally wetter

courtesy Timo Kroon,

Franziska Keller ea

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

long time series
Long time series
  • Extremes (1/x jr; x»1) have more impact than the mean climate
  • Length of time series is limited
    • Observations: < 150 jr
    • GCM’s: < 200 jr
    • RCM’s: < 50 jr
  • Estimation of extremes by:
    • Extrapolation of fitted Generalized Extreme Value (GEV) functions
    • Creation of long time series by resampling

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

fit of gev distribution
Fit of GEV-distribution
  • Assume that yearly maxima obey a given ditribution P(,) (for instance Gumbel)
  • Determine return time from ranked sequence
  • Fit GEV to ranked sequence
  • Extrapolate return times

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

resampling
Resampling
  • Use historical time series of combination of weather variables (P, T, u)
  • Select a random day
  • Search for analogues
  • Select a random analogue day
  • Take next day in historical time series
  • Preservation of temporal correlation

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

resampling45
Resampling

Simulated rainfall series

Historical rainfall series

date

value (mm)

Resampling with replacement

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

resampling46
Resampling

Historical rainfall series

date

value (mm)

Largest 4-day amount: 46 mm

Simulated rainfall series

Largest 4-day amount: 80 mm

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

dynamical downscaling using 1 rcm results for rhine discharge
Dynamical downscaling using 1 RCM: results for Rhine discharge

Control

J F M A M J J A S O N D

SWURVE project (Lenderink et al, 2003)

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

dynamical downscaling using 1 rcm results for rhine discharge48
Dynamical downscaling using 1 RCM: results for Rhine discharge

Annual cycle

increases

A2-scenario 2070-2100

Extreme value

analysis:

Shorter return period of peak discharge

J F M A M J J A S O N D

SWURVE project (Lenderink et al, 2003)

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

closure of maasland barrier costly
Closure of Maasland-barrier: costly!
  • Dependent on (simultaneous) high water level due to surge and Rhine discharge

Sea level at Hoek v Holland (m)

Rhine discharge ( 1000 m3/s)

H vd Brink ea

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

closure of maasland barrier costly50
Closure of Maasland-barrier: costly!
  • Dependent on (simultaneous) high water level due to surge and Rhine discharge

Sea level at Hoek v Holland (m)

Closure return time (years)

Rhine discharge ( 1000 m3/s)

Sea level rise (m)

H vd Brink ea

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

final remarks
Final remarks

Tailoring

Process of tailoring is important for application in practice. Close multi-disciplinary cooperation is required

Generic scenarios

Designed to span a wide range

of possible climate change,

suitable for many applications

Dry summers

Particularly dry summer conditions gain additional attention in Dutch climate adaptation policy

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

for next week
For next week
  • Think of an application interested in climate change information
  • Describe relevant meteorological variables & their statistical moments
  • Propose a procedure to create this specific climate change scenario

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios

more information
More information
  • Bart van den Hurk
    • hurkvd@knmi.nl
    • www.knmi.nl/~hurkvd
  • www.knmi.nl/climatescenarios

New climate scenarios for the Netherlands – www.knmi.nl/climatescenarios
