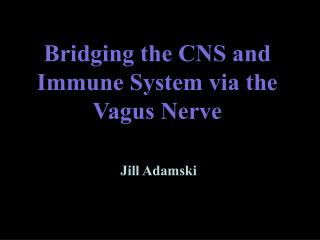

Bridging the CNS and Immune System via the Vagus Nerve. Jill Adamski.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
Download Presentation

Bridging the CNS and Immune System via the Vagus Nerve

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

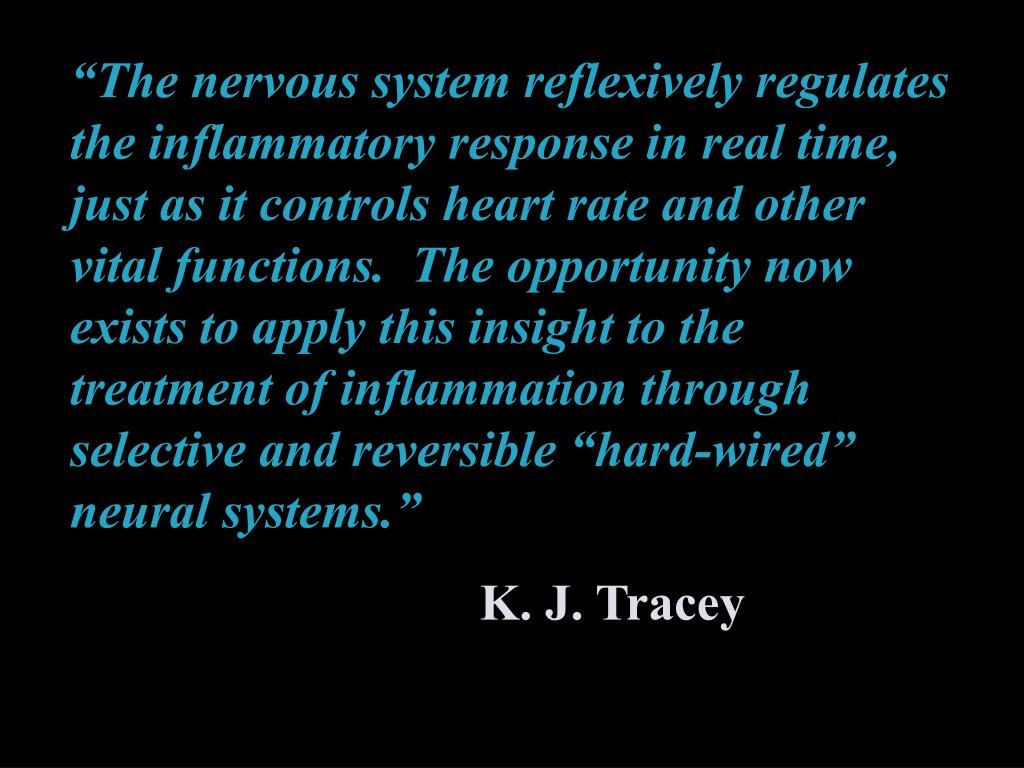

“The nervous system reflexively regulates the inflammatory response in real time, just as it controls heart rate and other vital functions. The opportunity now exists to apply this insight to the treatment of inflammation through selective and reversible “hard-wired” neural systems.”

K. J. Tracey

septic shock

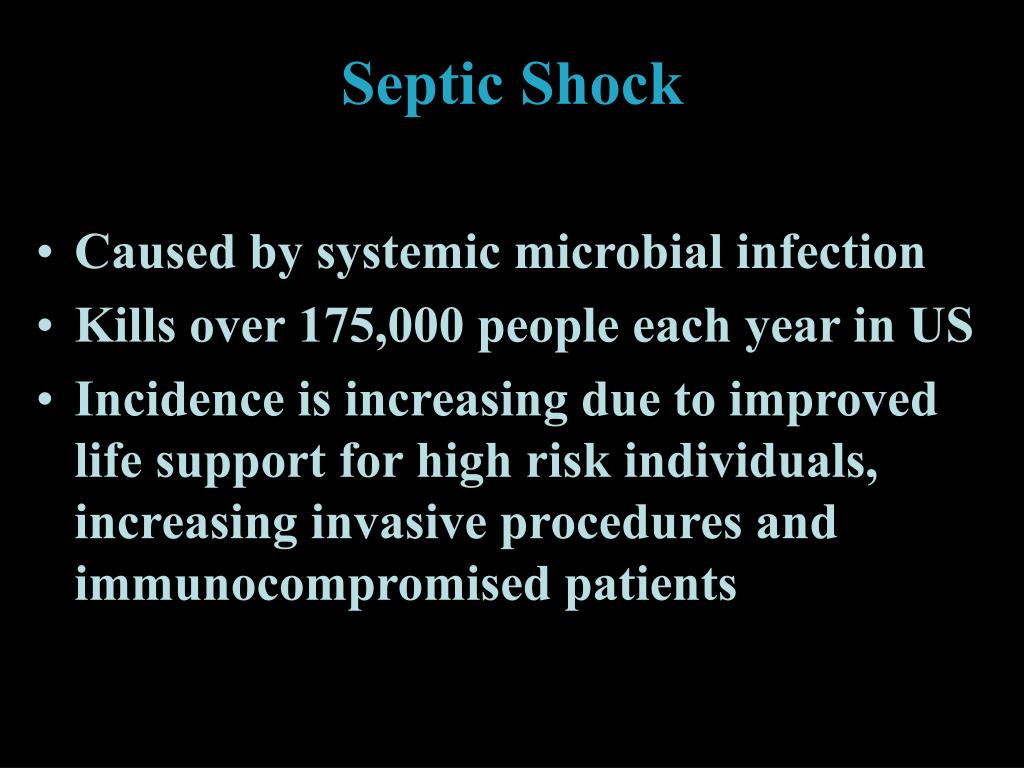

Septic Shock
  • Caused by systemic microbial infection
  • Kills over 175,000 people each year in US
  • Incidence is increasing due to improved life support for high risk individuals, increasing invasive procedures and immunocompromised patients
septic shock1
Septic Shock
  • Systemic vasodilatation (hypotension)
  • Diminished myocardial contractility
  • Widespread endothelial injury and activation, causing systemic leukocyte adhesion and pulmonary alveolar capillary damage (ARDS)
  • Activation of coagulation system (DIC)
  • Hypoperfusion results in multiorgan system failure (liver, kidneys, CNS, etc)
  • Unless underlying infection (LPS overload) is rapidly brought under control the patient usually dies.
effects of septic shock can be reproduced by lps alone
Effects of Septic Shock can be Reproduced by LPS Alone





NO, PAF, etc.

Low Quantities

Mono/mac activation

Endo Activation

Complement Activation

Local Inflammation

Moderate Quantities

Brain- Fever

Liver- Acute phase reactants

Systemic Effects

High Quantities

Low cardiac output and peripheral resistance

Blood vessel injury, thrombosis, DIC


Septic Shock


Anti-Inflammatory Responses Normally Inhibit Inflammation

Nature. 2002;420:853-859

Slow, distributed throughout body and dependent on concentration gradients.

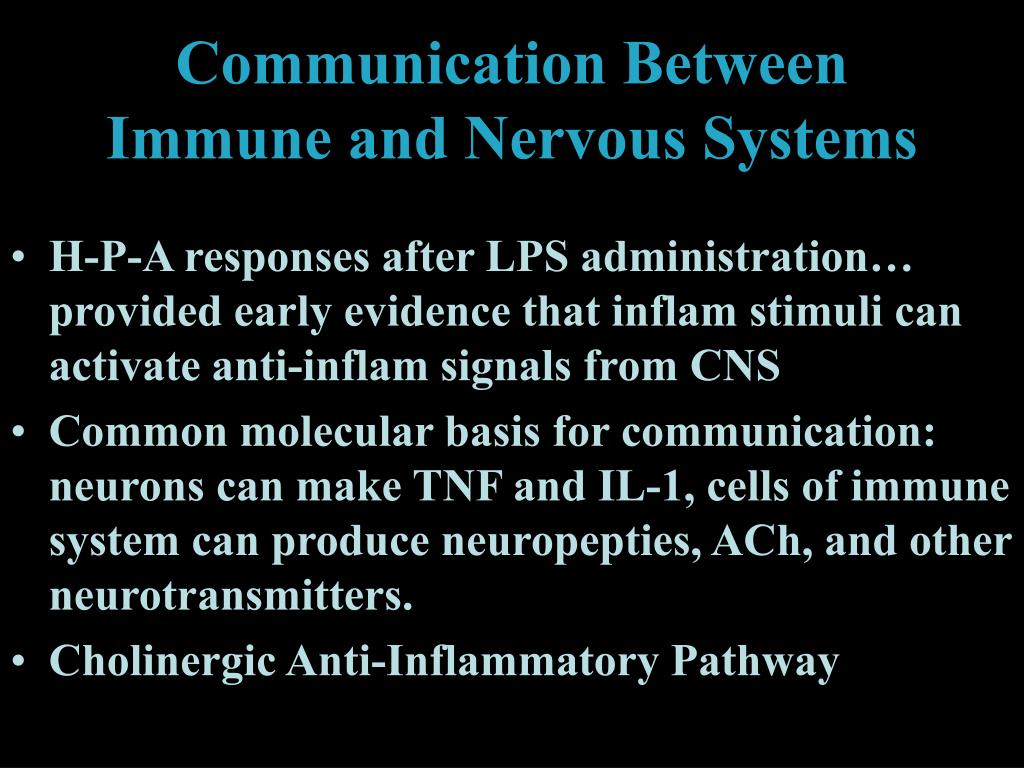

communication between immune and nervous systems
Communication Between Immune and Nervous Systems
  • H-P-A responses after LPS administration… provided early evidence that inflam stimuli can activate anti-inflam signals from CNS
  • Common molecular basis for communication: neurons can make TNF and IL-1, cells of immune system can produce neuropepties, ACh, and other neurotransmitters.
  • Cholinergic Anti-Inflammatory Pathway
autonomic nervous system
Autonomic Nervous System
  • 2 principal divisions: Sympathetic and Parasympathetic
  • Controls visceral body functions and innervates glands (involuntary)
  • Continuously controls heart and respiratory rate, blood pressure, GI motility, body temp, and other constantly changing essential life functions
  • Normally subconscious, but can be put under conscious control from signals originating in the higher brain.
      • Subjects can be trained through biofeedback to decrease their heart rate by increasing parasympathetic outflow

Vagus Nerve Innervations - Acetylcholine is principle parasympathetic neurotransmitter


Stimulates digestion & motility

Stimulates urination

Airway constriction

Decreases HR

Constricts pupil


* Reticuloendothelial System







Wiring of the Inflammatory Reflex

E. Blalock (UAB)originally postulated that the immune system acts as a “6th sense” that detects microbial invasion and produces molecules that relay this info to the brain.

Nature. 2002;420:853-859


Diffusible vs. Neural Anti-Inflammatory Pathways

Nature. 2002;420:853-859

Cholinergic anti-inflammatory pathway is discrete and localized in tissues where invasion and injury typically originate.


“Dovetail” between parasympathetic nervous system and the innate immune system is a nicotinic, -bungarotoxin-sensitive macrophage acetylcholine receptor








a -Bungarotoxin(a -BgTx) is a postsynaptic neurotoxin found in the venom of the Braided Krait snake (Bungarus Multictus). Like other neurotoxins it blocks neuromuscular transmission.


-Bungarotoxin-binding nicotinic receptors are clustered on the surface of macrophages.

Nature. 2003;421:384-388


Increased cytokine production in 7 subunit-deficient mice during endotoxemia.

Nature. 2003;421:384-388

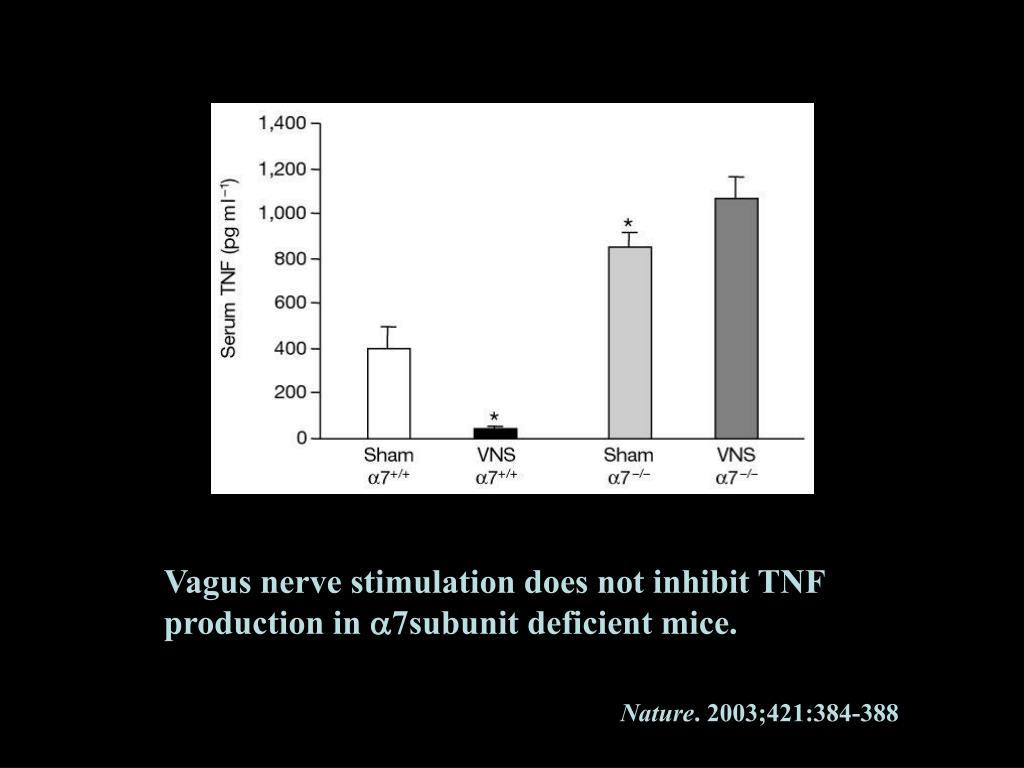

Vagus nerve stimulation does not inhibit TNF production in 7subunit deficient mice.

Nature. 2003;421:384-388

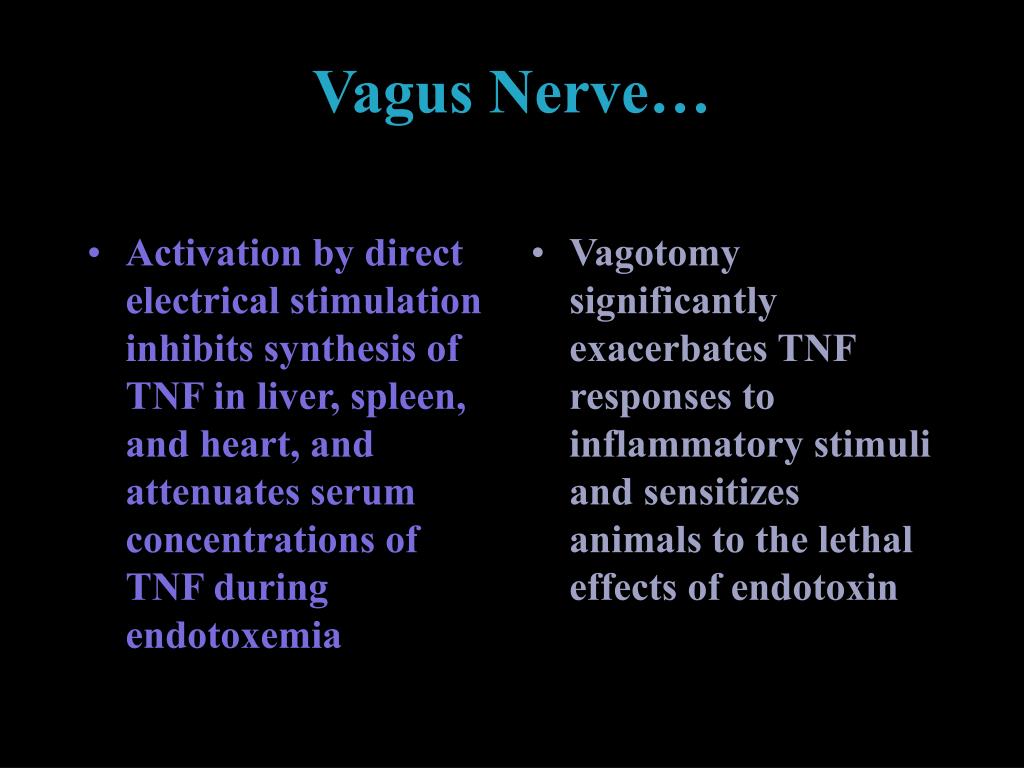

vagus nerve
Activation by direct electrical stimulation inhibits synthesis of TNF in liver, spleen, and heart, and attenuates serum concentrations of TNF during endotoxemia

Vagotomy significantly exacerbates TNF responses to inflammatory stimuli and sensitizes animals to the lethal effects of endotoxin

Vagus Nerve…
