Hematology Analyzer ZHEA-A13

Zimed hematology analyzer is a blood counter with 3-part WBC differentiation and a rate of 60 samples per hour. It offers 20 parameters, uses narrow apertures for analysis, adapts to voltage, and supports keyboard, mouse, and thermal or external printing.<br>

Alissa3
Download Presentation

Hematology Analyzer ZHEA-A13

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

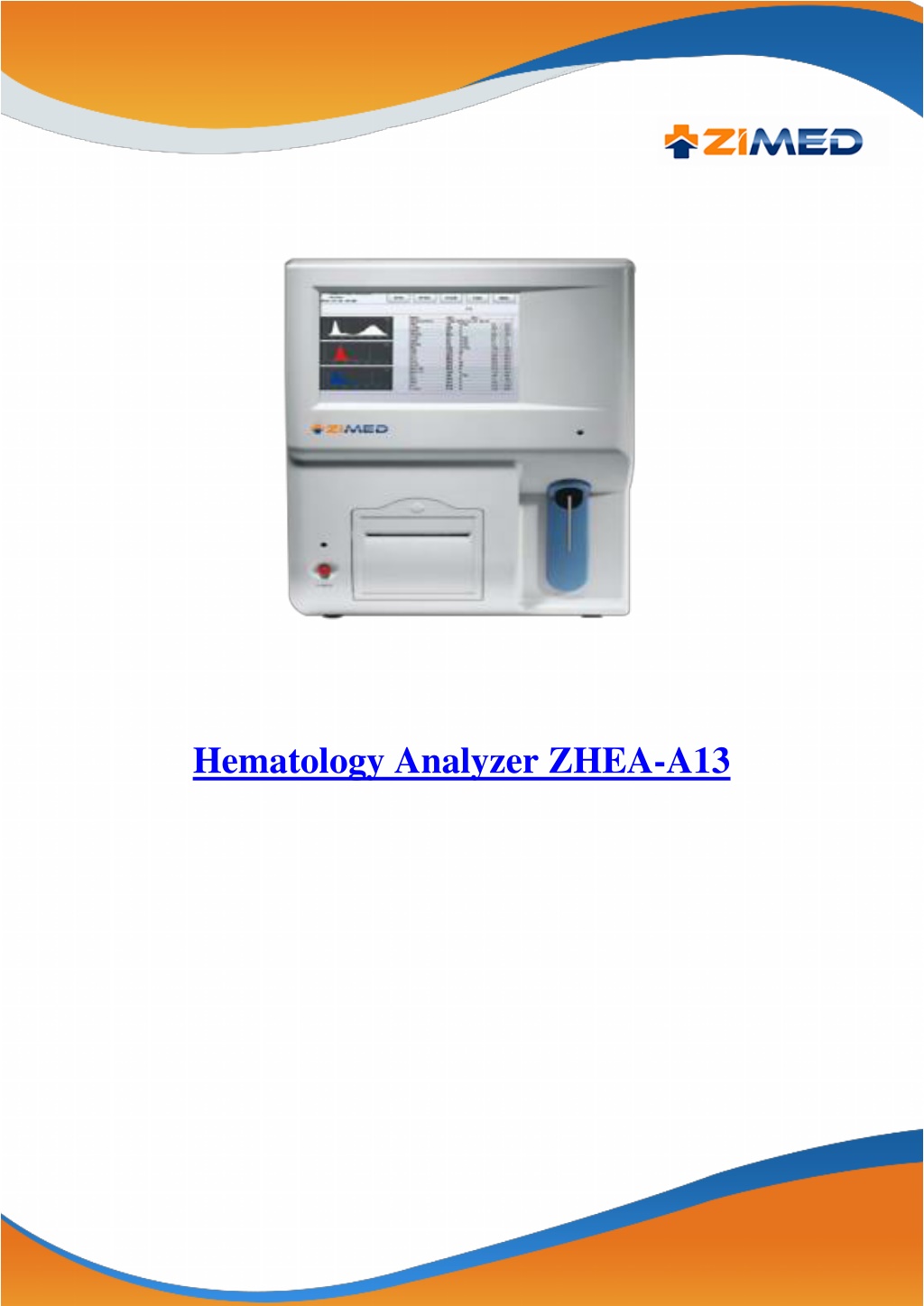

  1. Hematology Analyzer ZHEA-A13

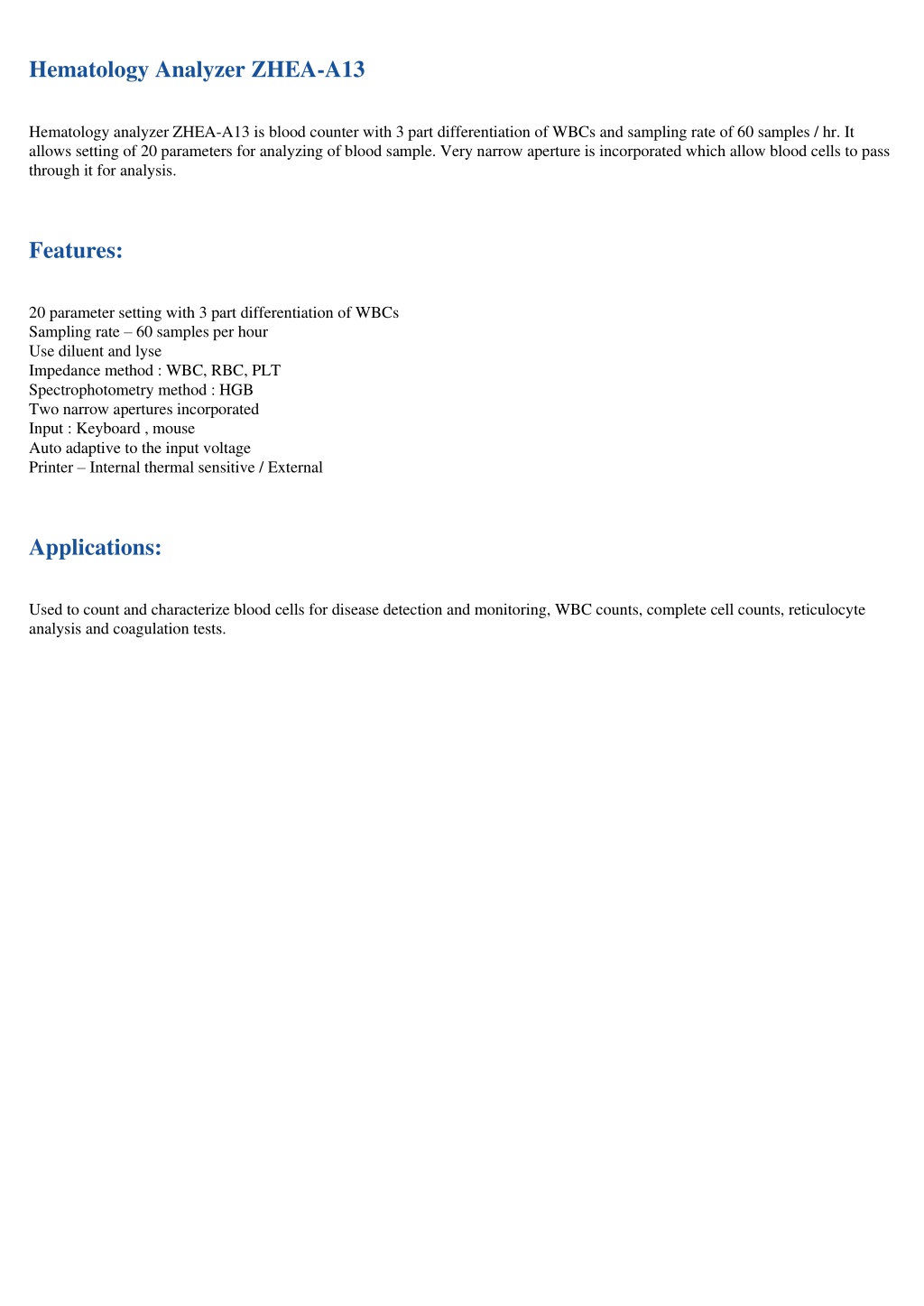

  2. Hematology Analyzer ZHEA-A13 Hematology analyzer ZHEA-A13 is blood counter with 3 part differentiation of WBCs and sampling rate of 60 samples / hr. It allows setting of 20 parameters for analyzing of blood sample. Very narrow aperture is incorporated which allow blood cells to pass through it for analysis. Features: 20 parameter setting with 3 part differentiation of WBCs Sampling rate – 60 samples per hour Use diluent and lyse Impedance method : WBC, RBC, PLT Spectrophotometry method : HGB Two narrow apertures incorporated Input : Keyboard , mouse Auto adaptive to the input voltage Printer – Internal thermal sensitive / External Applications: Used to count and characterize blood cells for disease detection and monitoring, WBC counts, complete cell counts, reticulocyte analysis and coagulation tests.

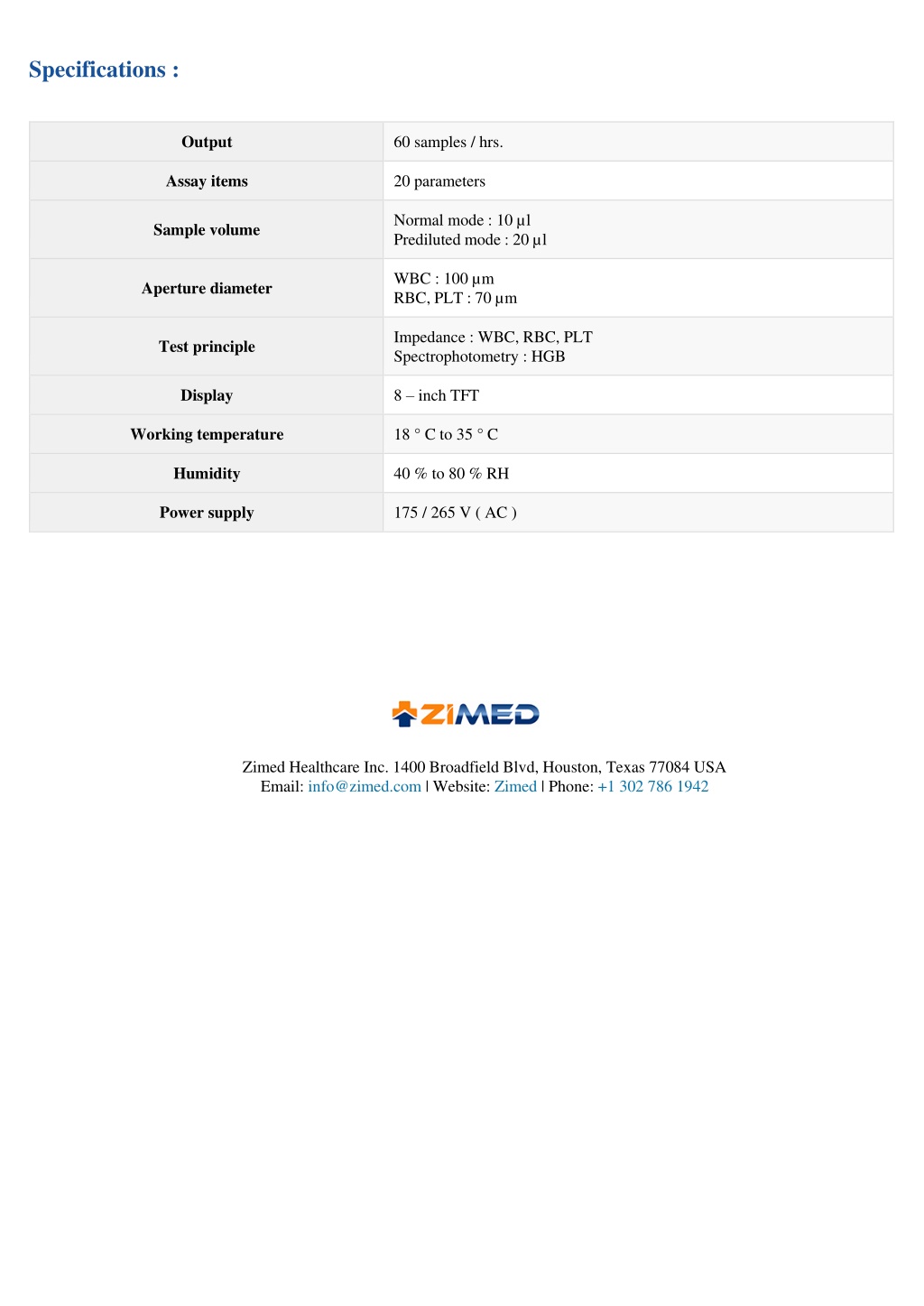

  3. Specifications : Output 60 samples / hrs. Assay items 20 parameters Normal mode : 10 µl Prediluted mode : 20 µl Sample volume WBC : 100 µm RBC, PLT : 70 µm Aperture diameter Impedance : WBC, RBC, PLT Spectrophotometry : HGB Test principle Display 8 – inch TFT Working temperature 18 ° C to 35 ° C Humidity 40 % to 80 % RH Power supply 175 / 265 V ( AC ) Zimed Healthcare Inc. 1400 Broadfield Blvd, Houston, Texas 77084 USA Email: info@zimed.com | Website: Zimed | Phone: +1 302 786 1942
