  1. Liquid Tight Strain Reliefs Sales Training Outline 2006 Jeff Roye Product Manager 35 Royal Road Flemington, NJ 908-806-9400 www.altechcorp.com

  2. Jeff Roye (short bio) • >10 years with Altech Corp. • Product Manager since 1998 • Educational background is in Electrical Engineering

  3. Introduction • Liquid Tight Strain Reliefs serve two main purposes: • Seal cable entries and keep contaminants from entering • Provide strain relief to reduce stress on components and terminal points • Altech offers a wide variety of Liquid Tight Strain Reliefs to meet the requirements of each application • Wide range of thread types - PG, NPT, Metric • Functions • Straight - through • Flat Cable • Multiconductor • Traction Relief • EMI/RFI • Bend protection • Thread adapters

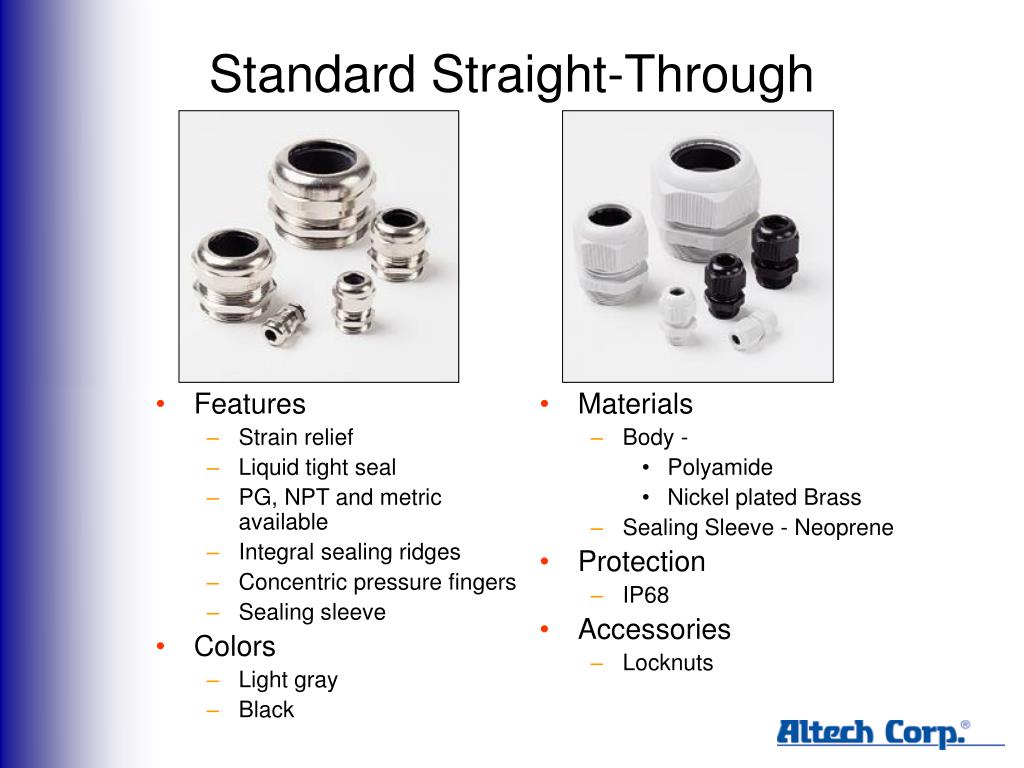

  4. Standard Straight-Through • Features • Strain relief • Liquid tight seal • PG, NPT and metric available • Integral sealing ridges • Concentric pressure fingers • Sealing sleeve • Colors • Light gray • Black • Materials • Body - • Polyamide • Nickel plated Brass • Sealing Sleeve - Neoprene • Protection • IP68 • Accessories • Locknuts

  5. Industrial Straight-Through • Features • Strain relief • Liquid tight seal • Superior protection for demanding applications • PG and metric sizes • Pressure dome compresses insert for seal • Short seal, long seal or seal with clamping ring • Protection • IP68 • Colors • Light gray • Black • Materials • Body • Polyamide, PVDF, Nickel-plated Brass & Stainless steel • Insert • Tefabloc • Santoprene/Nitril

  6. Flat Cable • Features • Strain relief • Liquid tight seal • PG and Metric sizes • Rounded sides or oval openings to best fit cable shapes • Full size sealing insert • Color • Light Gray • Black • Materials • Body • Polyamide • Nickel plated Brass • Stainless Steel • Insert - Tefabloc • Protection • IP68 • Accessories • Locknuts • Seal Rings

  7. Multi-Conductor • Features • Strain relief • Liquid tight seal • Multiple cables in one cord grip • Pre-molded holes for multiple cables • PG and Metric sizes • Full size sealing insert • Colors • Light gray • Black • Materials • Body • Polyamide • Nickel plated Brass • Stainless Steel • Insert • Tefabloc • Protection • IP68 • Accessories • Locknuts • Seal Rings

  8. EMI/RFI (Clamping ring) • Features • Strain relief • Liquid tight seal • Shielding against electromagnetic and radio frequency interference • Tin-Plated Plastic clamping ring grounds cable shield to cord grip • PG and Metric sizes • Preinstalled seal ring • Economical design • Materials • Body - Nickel plated Brass • Insert - Tefabloc • Seal Ring - Nitril • Protection • IP68 • Accessories • Locknuts - EMI/RFI

  9. EMI/RFI (Spring) • Features • Strain relief • Liquid tight seal • Shielding against electromagnetic and radio frequency interference • Pressure rings ground cable shield to cord grip • PG sizes • Tubular sealing insert • Preinstalled seal ring • Materials • Body - Nickel plated Brass • Insert - Santoprene • Seal Ring - Perbunan • Protection • IP68 • Accessories • Locknuts - EMI/RFI

  10. Traction Relief • Feature • Trumpet - shaped cable clamp • Cable clamp provides increased strain relief • PG and Metric sizes • Sealing ring compression provides seal • Color • Light gray • Accessories • Locknut • Seal Ring • Materials • Body • Nickel plated Brass • Sealing Rings • Neoprene • Protection • IP65

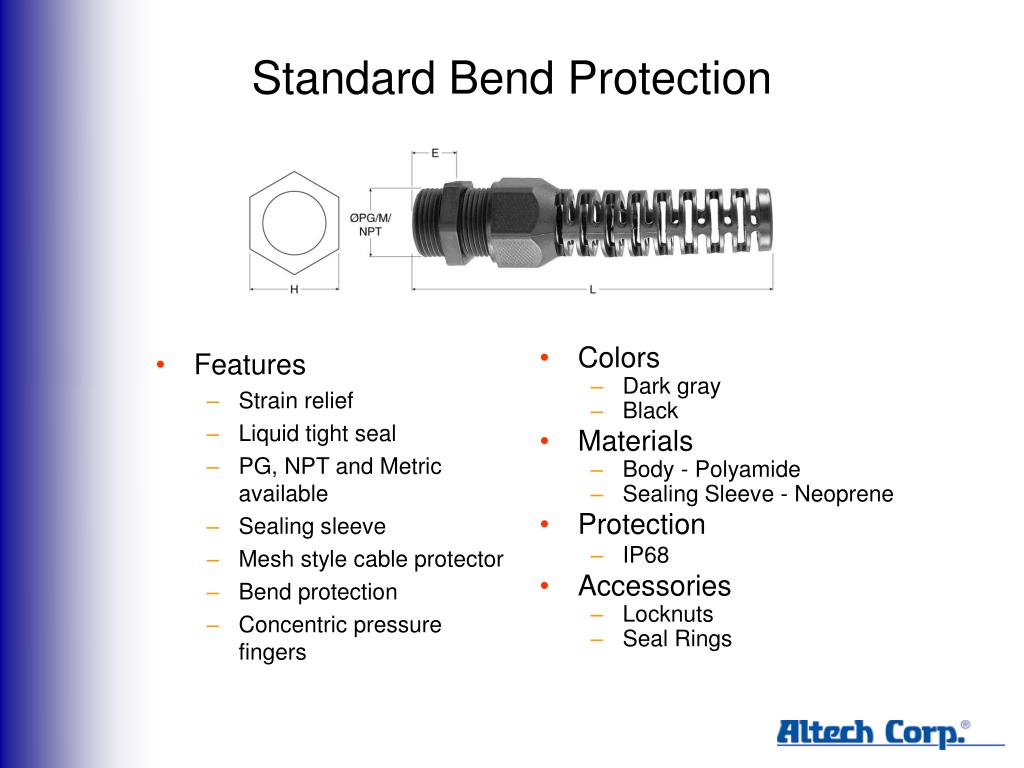

  11. Standard Bend Protection • Features • Strain relief • Liquid tight seal • PG, NPT and Metric available • Sealing sleeve • Mesh style cable protector • Bend protection • Concentric pressure fingers • Colors • Dark gray • Black • Materials • Body - Polyamide • Sealing Sleeve - Neoprene • Protection • IP68 • Accessories • Locknuts • Seal Rings

  12. DIN style Straight-Through • Features • Ideal for basic applications • Low cost • Protects and seals against contaminants • PG and Metric sizes • Sealing ring provides seal • Color • Light gray • Materials • Body • Polystyrene • Nickel-plated Brass • Sealing Ring - Rubber • Protection • IP65 • Accessories • Locknuts • Seal Rings

  13. Accessories • Seal Rings • Locknuts • Reducers • Enlargers • Plugs

  14. Corrugated Tube • Features • Crush Protection • Liquid tight seal • Large bending radius • 23 diameters available • Slit version available • Color • Black • Material • Polyamide • Protection • IP67 with appropriate accessories

  15. Corrugated Tube Accessories • Straight and Angled glands • PG and Metric Threads • IP65 Protection • Locknuts • Seal Rings • O-Rings • Mounting clips

  16. Competitors • Agro • Heyco • Hummel • Lapp • Olflex • Sealcon • T&B
