  1. Foot Switches Sales Training Outline 2006 Klaus Tum Product Manager 35 Royal Road Flemington, NJ 908-806-9400 www.altechcorp.com

  2. Klaus Tum (short bio) • Electrical Engineer • 10 years with Altech Corporation • Product Manager of Circuit Breakers, Busbars, Motor Disconnect Switches,Foot Switches, Sensors, Contactors,Motor Starters, Pin & Sleeve Connectors

  3. Introduction

  4. Introduction

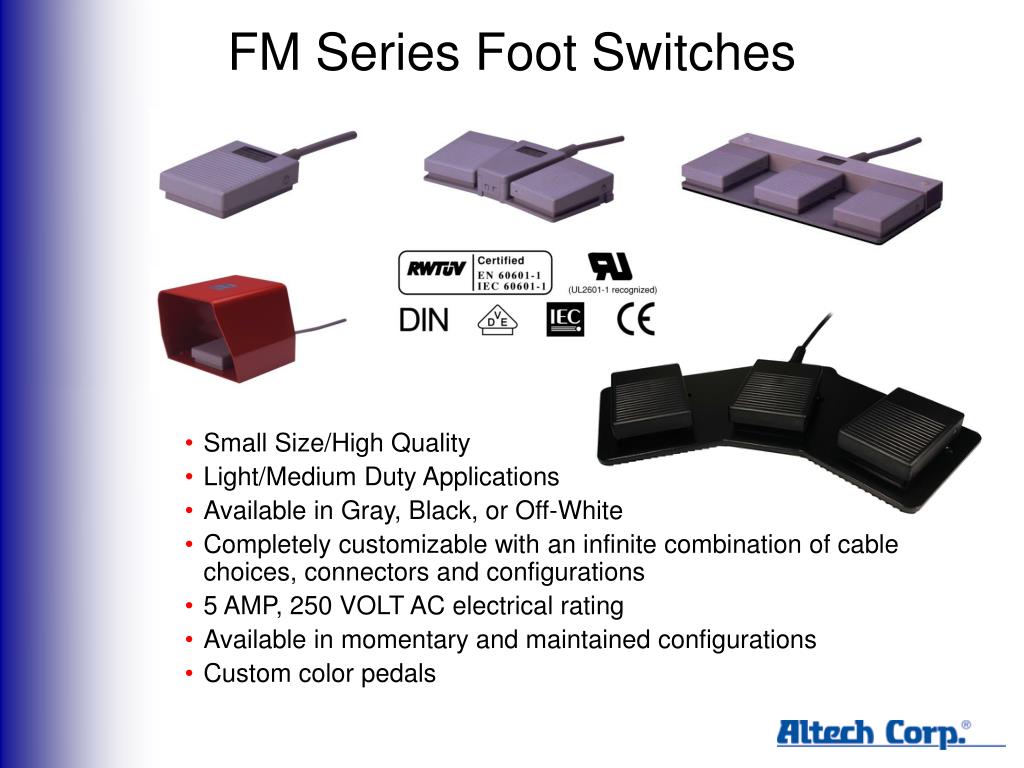

  5. FM Series Foot Switches • Small Size/High Quality • Light/Medium Duty Applications • Available in Gray, Black, or Off-White • Completely customizable with an infinite combination of cable choices, connectors and configurations • 5 AMP, 250 VOLT AC electrical rating • Available in momentary and maintained configurations • Custom color pedals

  6. PCFS-3M Series Foot Switches • Compact size • Black steel body, with or without guards • Up to 10A, (1/2hp) / 125 VAC electrical rating • Custom cables and connectors • Low cost • Made to compete with Treadlite series

  7. FK Series Foot Switches • Medium size • Available in Gray or Black • Higher electrical rating than FM Series • Up to 10 AMP, 250 Volt AC electrical rating • Custom cables and connectors

  8. FM/FK Switch Configuration

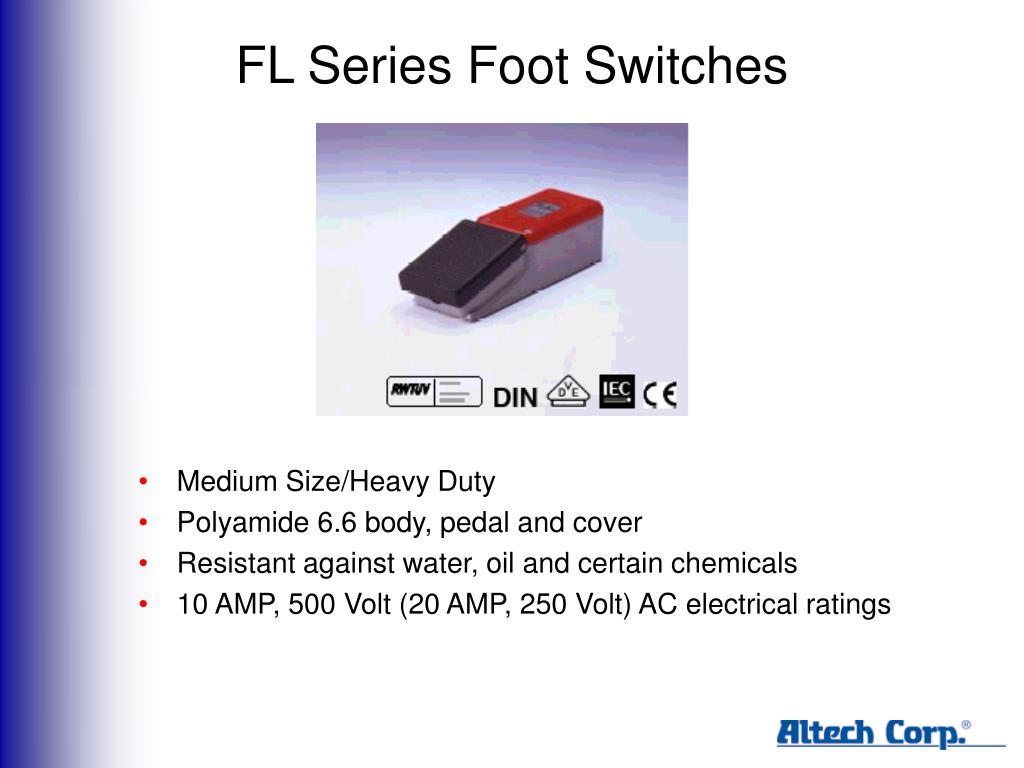

  9. FL Series Foot Switches • Medium Size/Heavy Duty • Polyamide 6.6 body, pedal and cover • Resistant against water, oil and certain chemicals • 10 AMP, 500 Volt (20 AMP, 250 Volt) AC electrical ratings

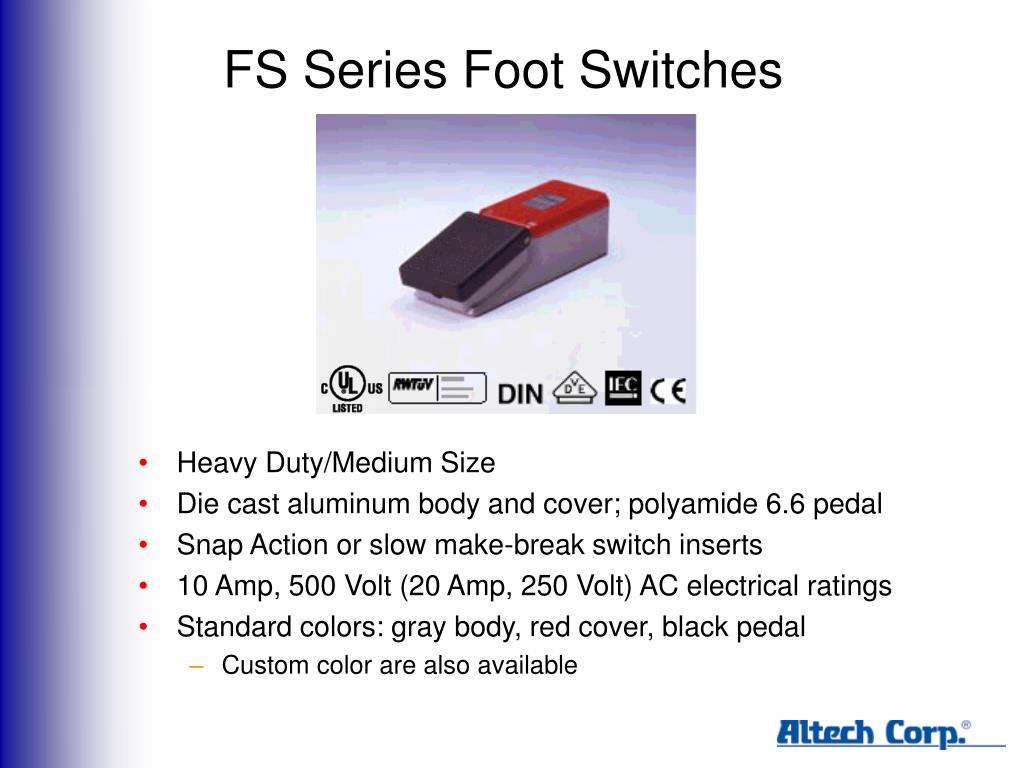

  10. FS Series Foot Switches • Heavy Duty/Medium Size • Die cast aluminum body and cover; polyamide 6.6 pedal • Snap Action or slow make-break switch inserts • 10 Amp, 500 Volt (20 Amp, 250 Volt) AC electrical ratings • Standard colors: gray body, red cover, black pedal • Custom color are also available

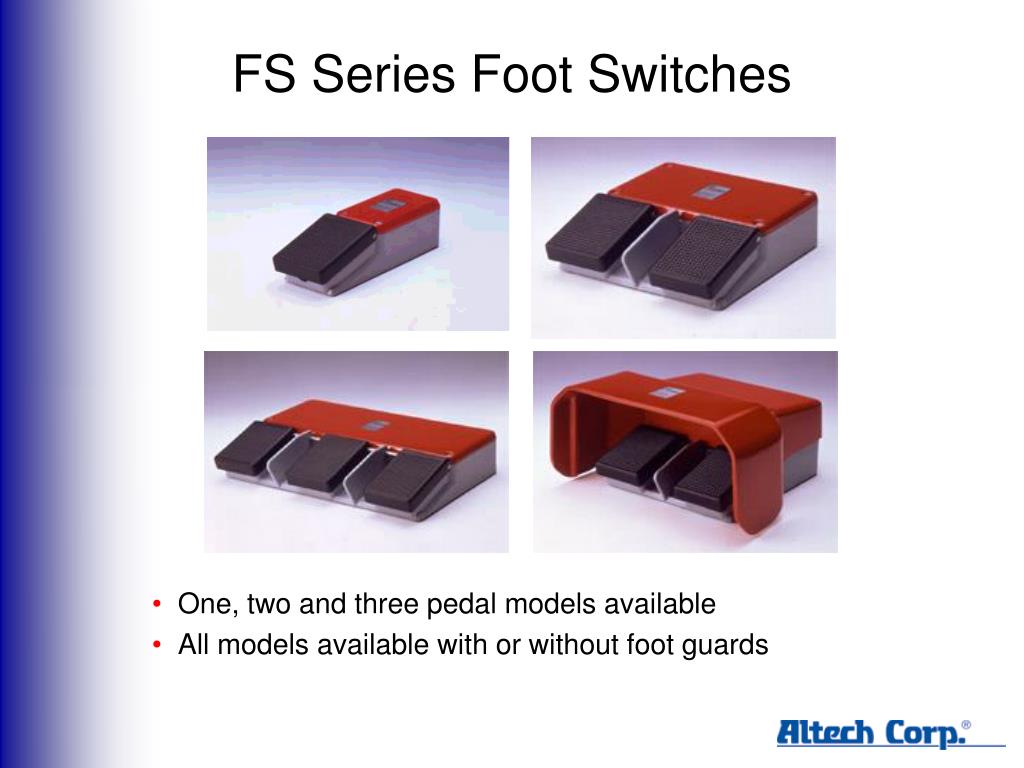

  11. FS Series Foot Switches • One, two and three pedal models available • All models available with or without foot guards

  12. FL/FS Switch Configuration

  13. Potentiometer Configuration • Available in FL/FS series • Standard configuration includes microswitch • Available with resistance from 100 OHM to 20K OHM (10K OHM standard)

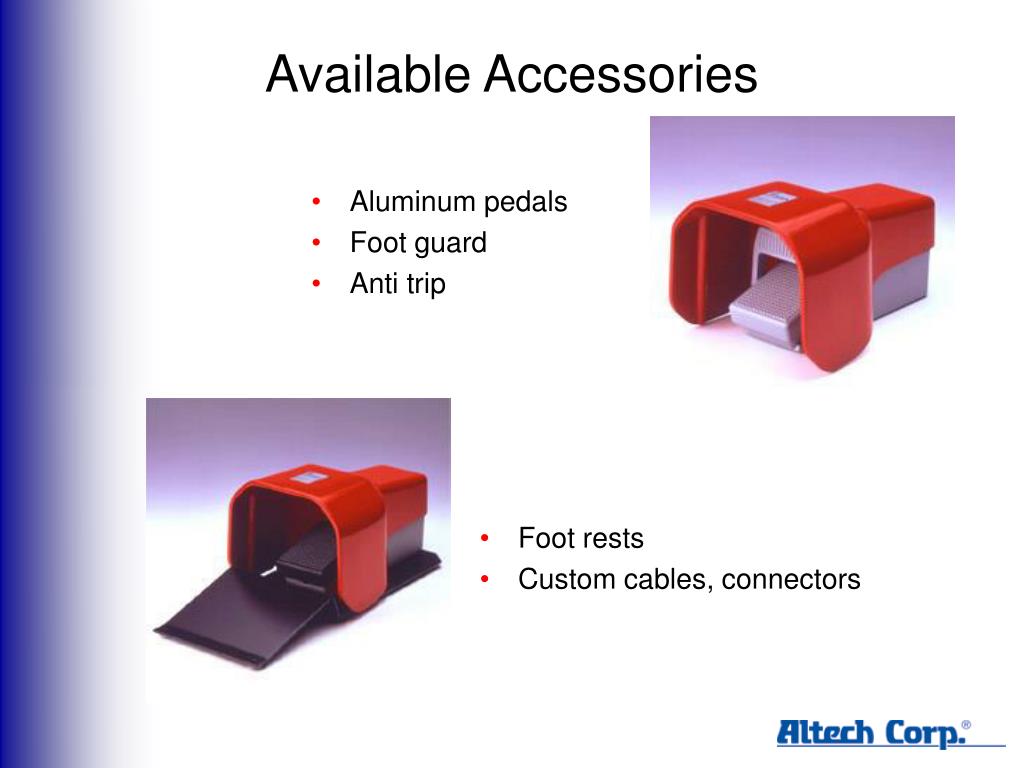

  14. Available Accessories • Aluminum pedals • Foot guard • Anti trip • Foot rests • Custom cables, connectors

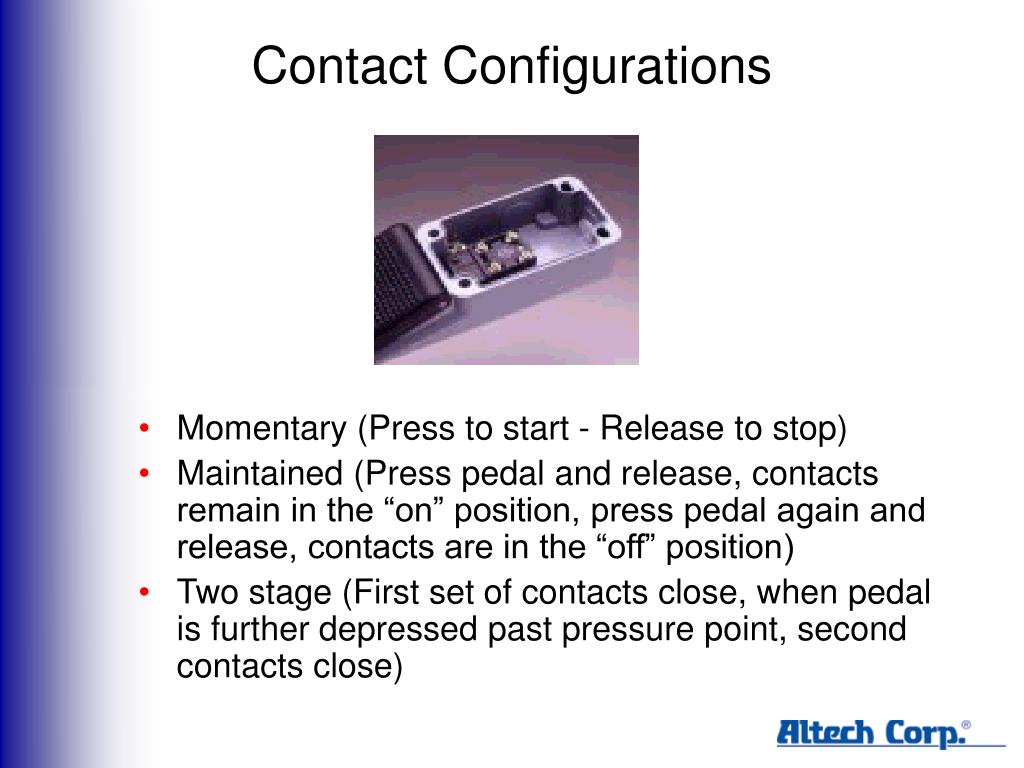

  15. Contact Configurations • Momentary (Press to start - Release to stop) • Maintained (Press pedal and release, contacts remain in the “on” position, press pedal again and release, contacts are in the “off” position) • Two stage (First set of contacts close, when pedalis further depressed past pressure point, second contacts close)

  16. CustomConfigurations • Custom assemblies • Custom colors/ textures • Custom cables • Custom connectors

  17. IEC 601-1 for Medical Applications • Protection Level IPX8 (Immersion in water) • Limited voltage rating to 25V~ (AC)/60V (DC) • UL/CSA, VDE approved switch insert • Installed cable with special pull/bend protection strain relief • Special, modified housing • Available with FM, FL and FS Series Foot Switches

  18. Why Altech Foot Switches? • Highest quality European components • Customizable to any customer’s needs • Trained support staff to answer all of your questions • Minimal lead time, even for custom applications • Excellent technical support
