Database architecture optimized for the new bottleneck memory access

Database Architecture Optimized for the new Bottleneck: Memory Access

Chau Man Hau

Wong Suet Fai


Outline

Background

Initial Experiment

Architectural Consequences

Data Structures

Query Processing Algorithms

Clustered Hash-Join

Quantitative Assessment

Conclusion

Outline


Background

The growth of hardware performance has not equally distributed

CPU speed has increased roughly 70% per year

Memory speed has only improved 50% at last 10 years

Background

Today:

CPU : 3Ghz

RDRAM : 800Mhz


Background1

Three aspects of memory performance

Latency (physical distance limit)

Bandwidth

Address translate (TLB)

Background

Today:

On die L3 Cache


Initial experiment

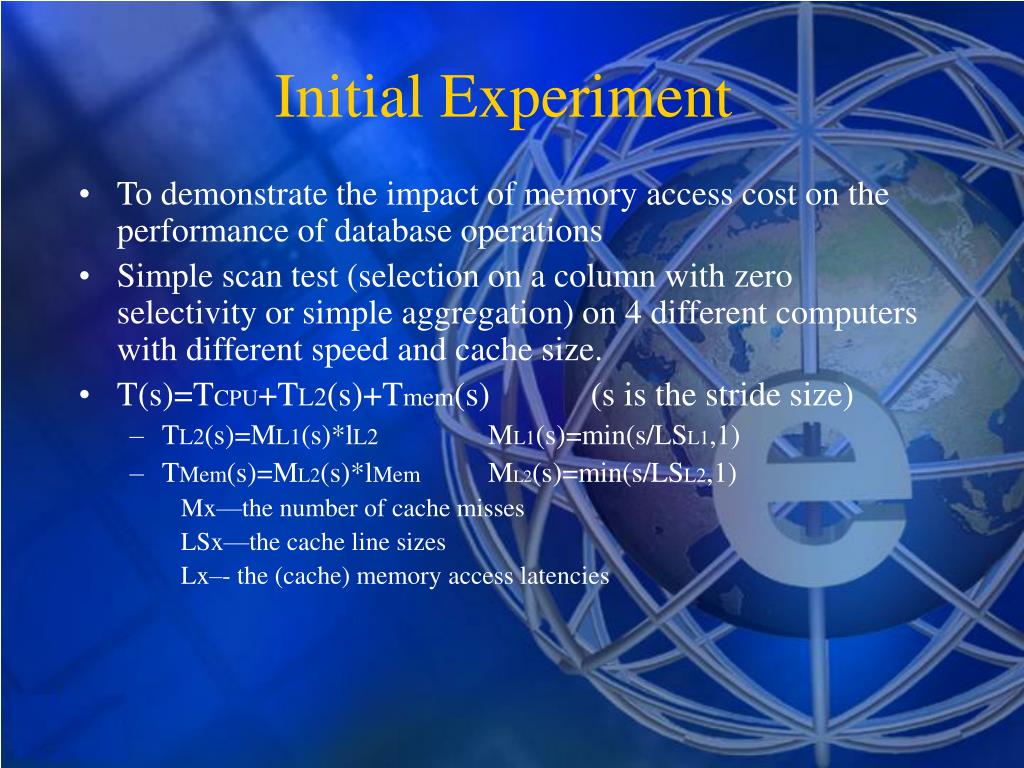

To demonstrate the impact of memory access cost on the performance of database operations

Simple scan test (selection on a column with zero selectivity or simple aggregation) on 4 different computers with different speed and cache size.

T(s)=TCPU+TL2(s)+Tmem(s) (s is the stride size)

TL2(s)=ML1(s)*lL2ML1(s)=min(s/LSL1,1)

TMem(s)=ML2(s)*lMemML2(s)=min(s/LSL2,1)

Mx—the number of cache misses

LSx—the cache line sizes

Lx–- the (cache) memory access latencies

Initial Experiment


Initial experiment1

Initial Experiment

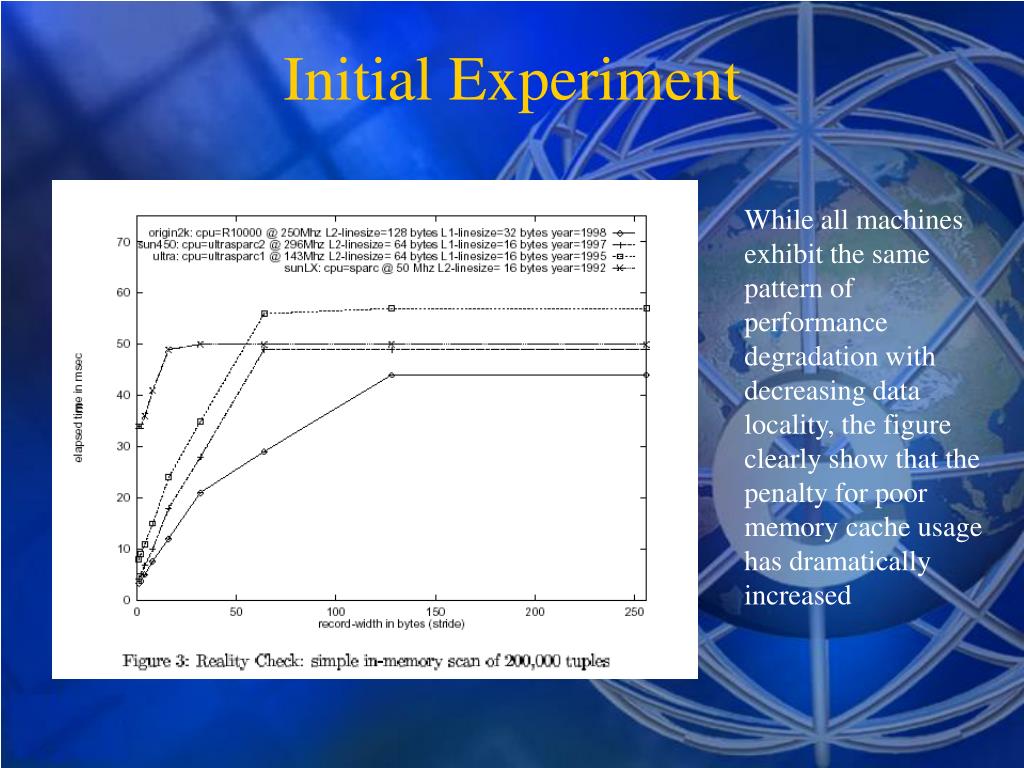

While all machines exhibit the same pattern of performance degradation with decreasing data locality, the figure clearly show that the penalty for poor memory cache usage has dramatically increased

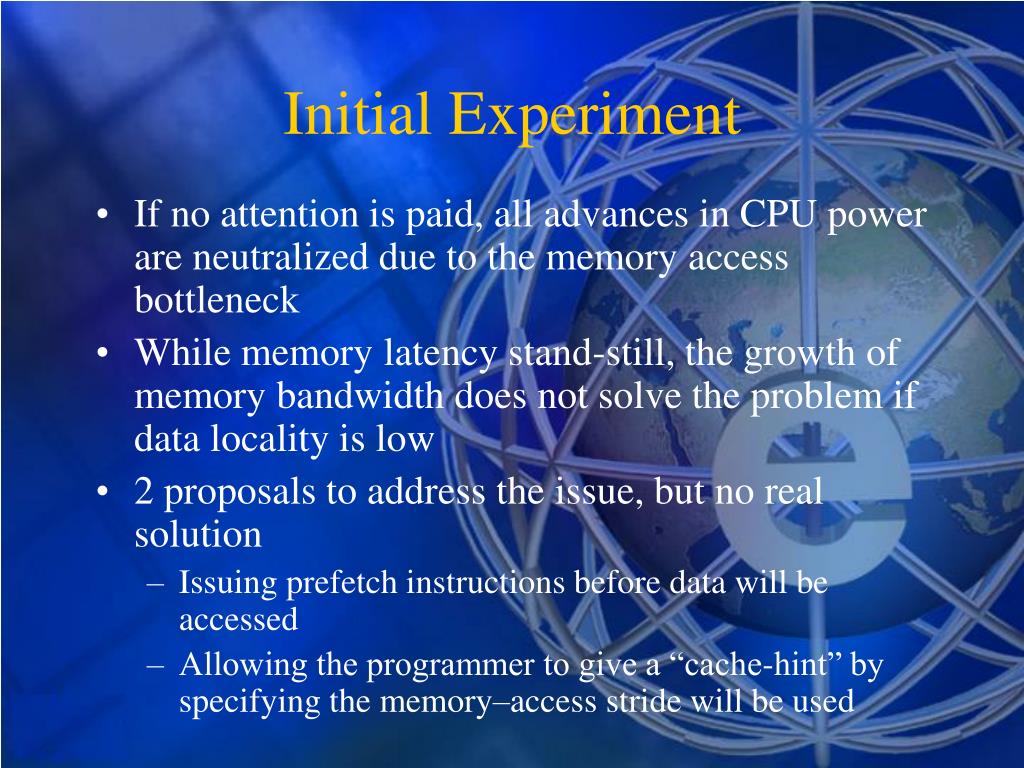

Initial experiment2

If no attention is paid, all advances in CPU power are neutralized due to the memory access bottleneck

While memory latency stand-still, the growth of memory bandwidth does not solve the problem if data locality is low

2 proposals to address the issue, but no real solution

Issuing prefetch instructions before data will be accessed

Allowing the programmer to give a “cache-hint” by specifying the memory–access stride will be used

Initial Experiment


Architectural consequences data structures

In the case of sequential scan, performance is strongly determined by the record-width

Vertically decomposed data structures is used to achieve better performance

Storing each column in a separate binary table(BAT– an array of fixed-size two-field records, eg [OID, value])

Architectural Consequences-- Data Structures


Data structure

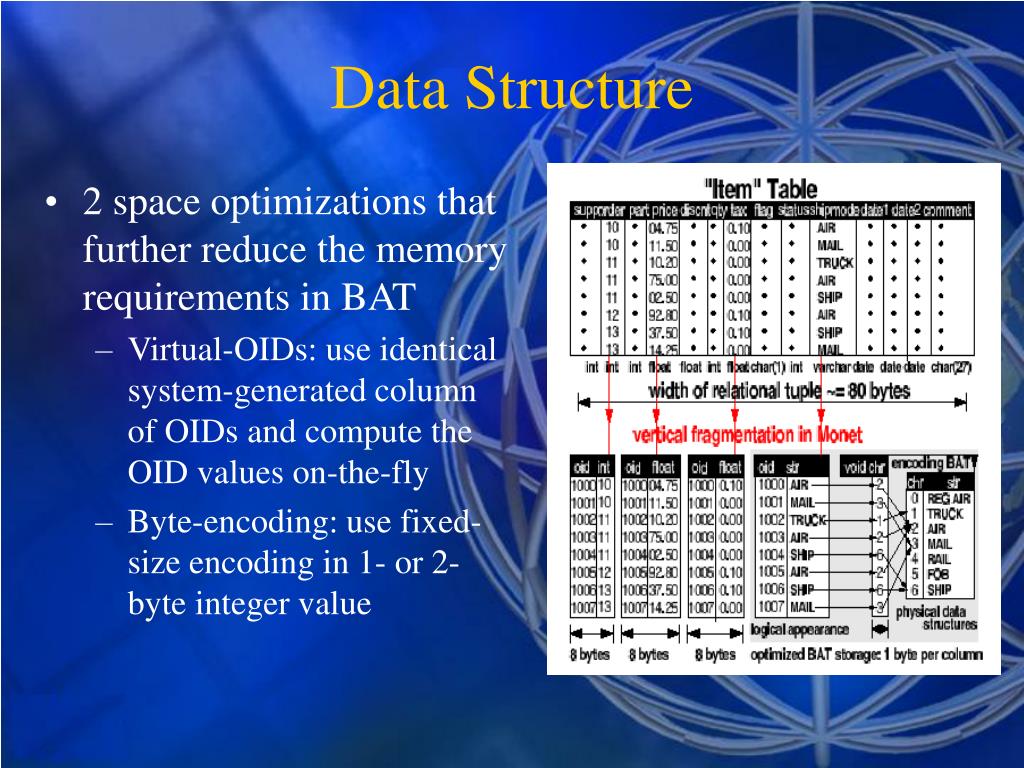

2 space optimizations that further reduce the memory requirements in BAT

Virtual-OIDs: use identical system-generated column of OIDs and compute the OID values on-the-fly

Byte-encoding: use fixed-size encoding in 1- or 2-byte integer value

Data Structure

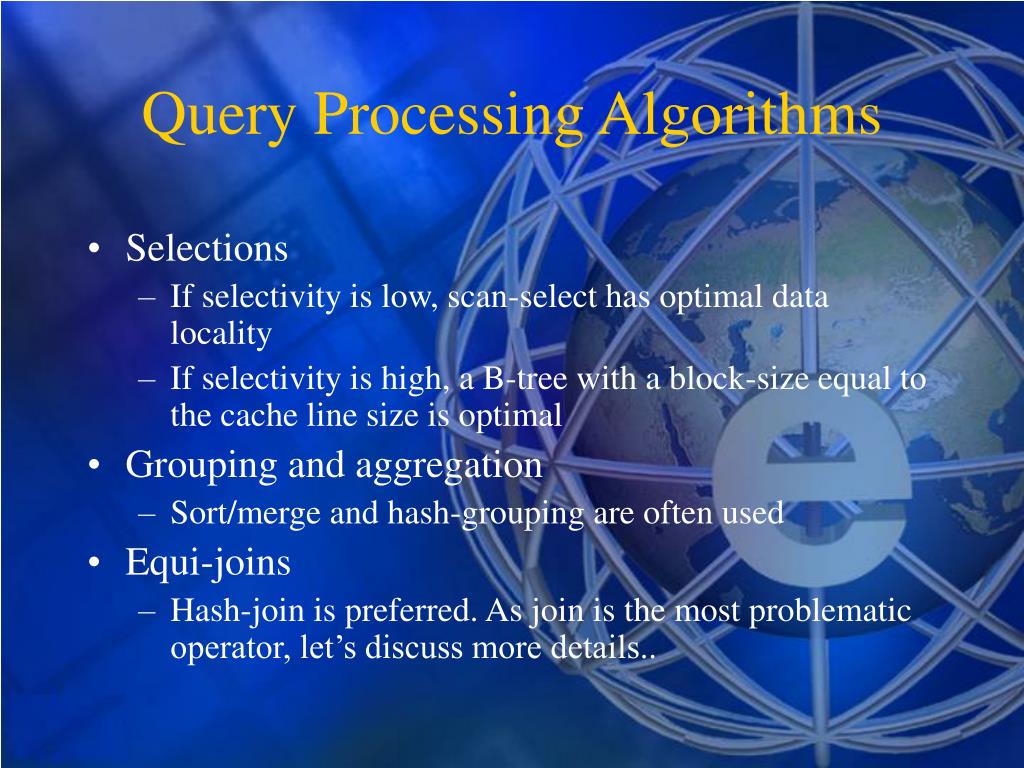

Query processing algorithms

Selections

If selectivity is low, scan-select has optimal data locality

If selectivity is high, a B-tree with a block-size equal to the cache line size is optimal

Grouping and aggregation

Sort/merge and hash-grouping are often used

Equi-joins

Hash-join is preferred. As join is the most problematic operator, let’s discuss more details..

Query Processing Algorithms


Clustered hash join

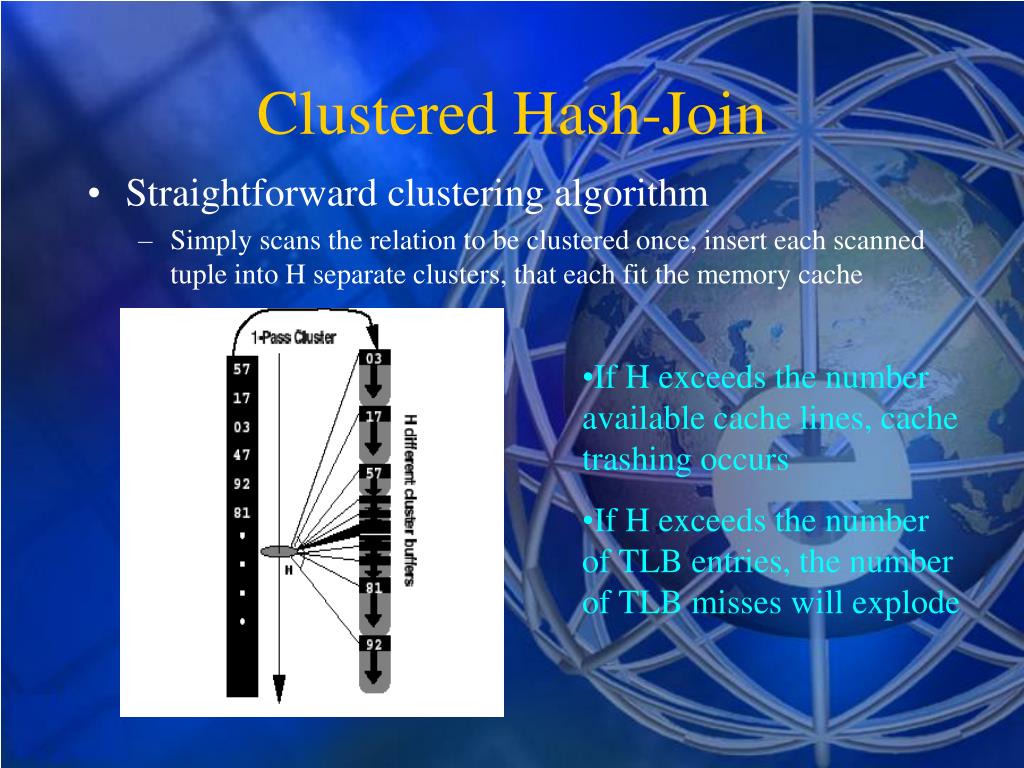

Straightforward clustering algorithm

Simply scans the relation to be clustered once, insert each scanned tuple into H separate clusters, that each fit the memory cache

Clustered Hash-Join

  • If H exceeds the number available cache lines, cache trashing occurs

  • If H exceeds the number of TLB entries, the number of TLB misses will explode

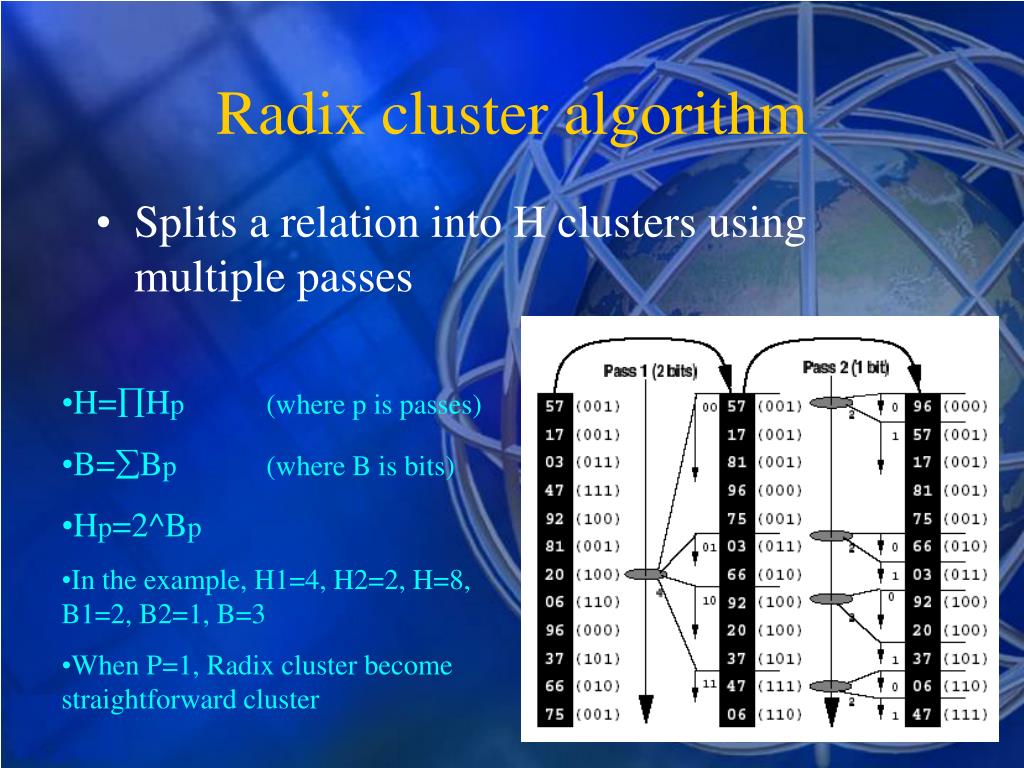

Radix cluster algorithm

Splits a relation into H clusters using multiple passes

Radix cluster algorithm

  • H=Hp(where p is passes)

  • B=Bp(where B is bits)

  • Hp=2^Bp

  • In the example, H1=4, H2=2, H=8, B1=2, B2=1, B=3

  • When P=1, Radix cluster become straightforward cluster

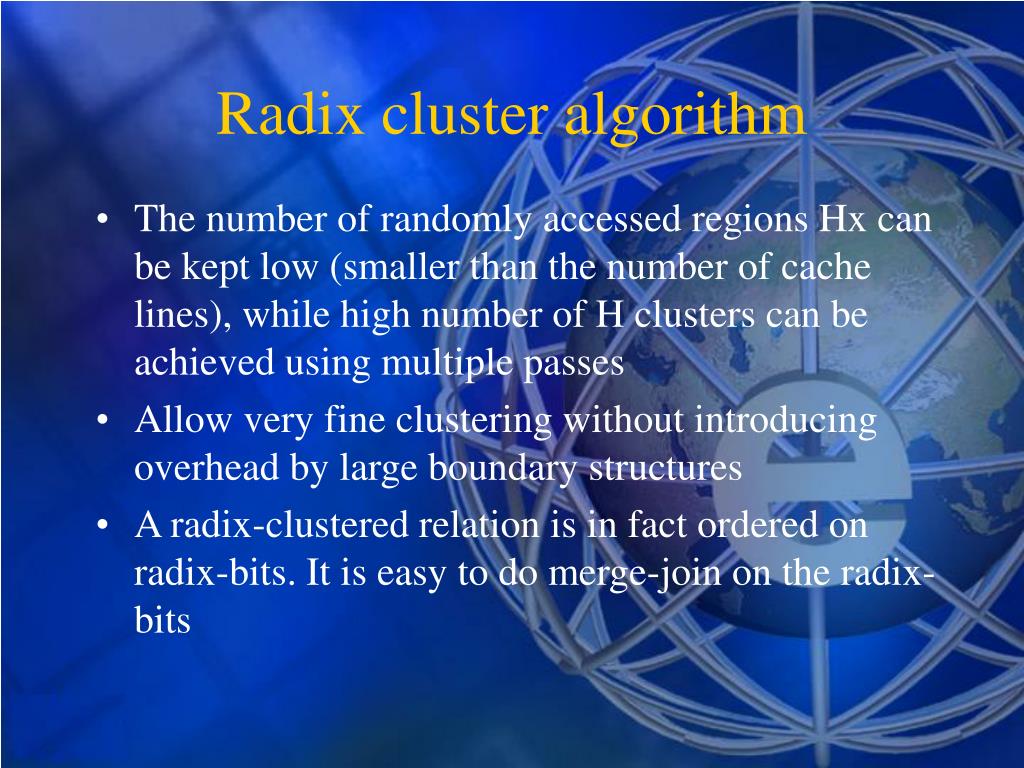

Radix cluster algorithm1

The number of randomly accessed regions Hx can be kept low (smaller than the number of cache lines), while high number of H clusters can be achieved using multiple passes

Allow very fine clustering without introducing overhead by large boundary structures

A radix-clustered relation is in fact ordered on radix-bits. It is easy to do merge-join on the radix-bits

Radix cluster algorithm


Quantitative assessment

There are 3 tuning parameters for the radix-cluster algorithm

The number of bits used for clustering (B), implying the number of clusters H=2^B

The number of passes used during clustering (P)

The number of bits used per clustering pass (Bp)

Quantitative Assessment

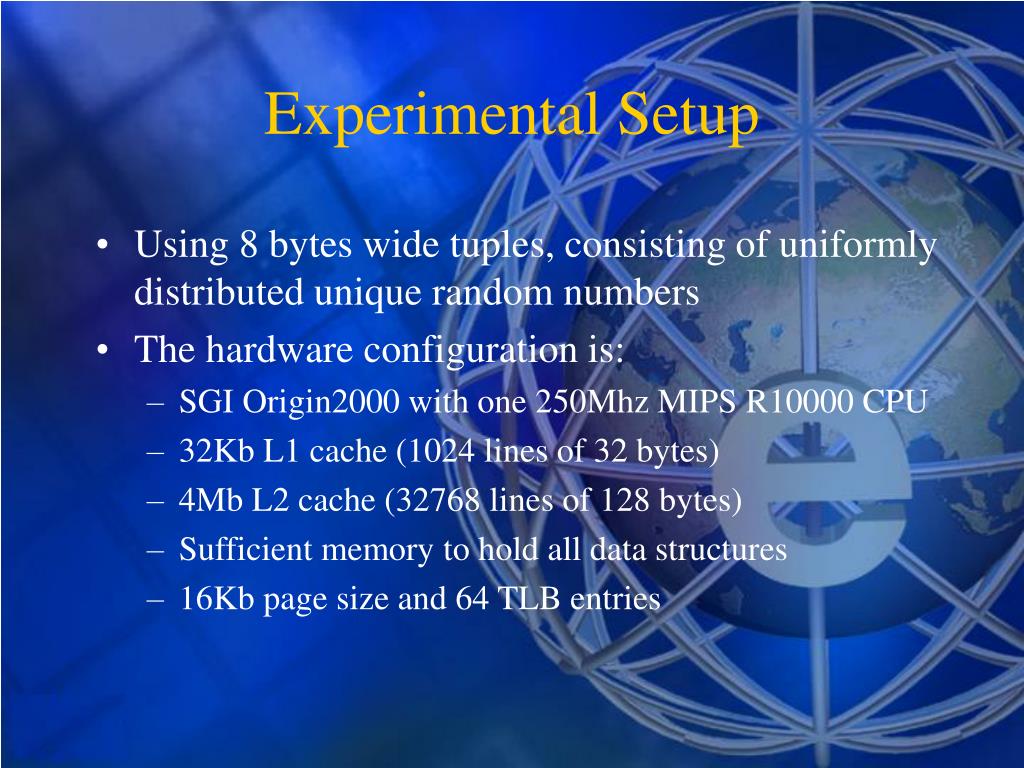

Experimental setup

Using 8 bytes wide tuples, consisting of uniformly distributed unique random numbers

The hardware configuration is:

SGI Origin2000 with one 250Mhz MIPS R10000 CPU

32Kb L1 cache (1024 lines of 32 bytes)

4Mb L2 cache (32768 lines of 128 bytes)

Sufficient memory to hold all data structures

16Kb page size and 64 TLB entries

Experimental Setup


Radix cluster results

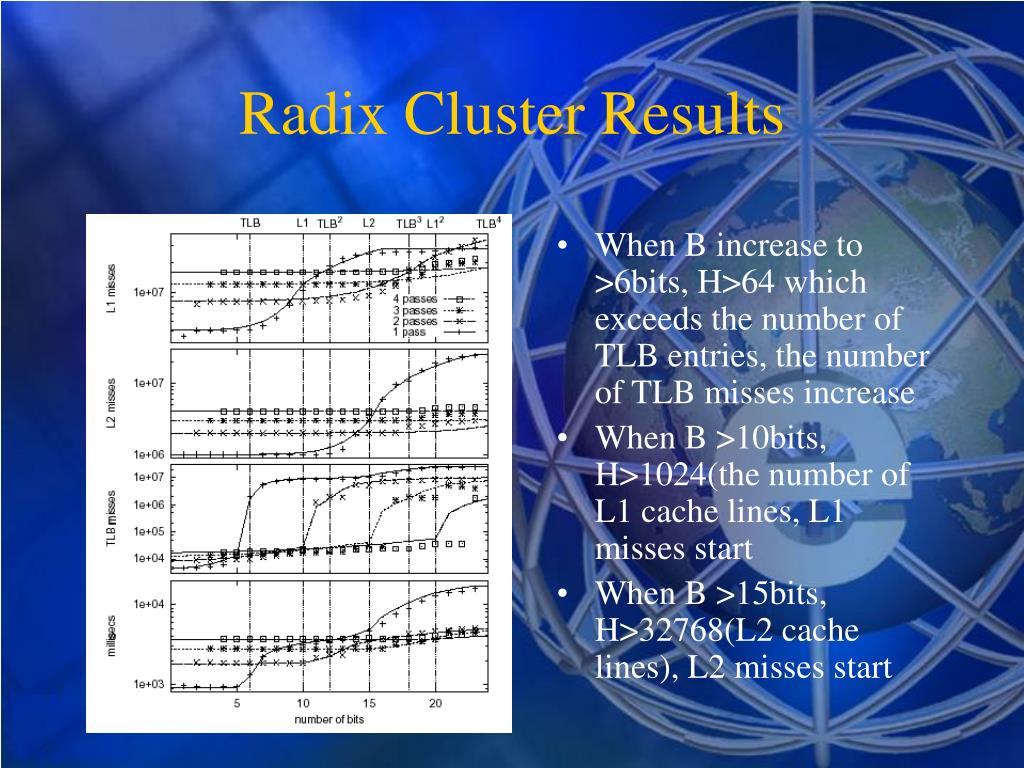

When B increase to >6bits, H>64 which exceeds the number of TLB entries, the number of TLB misses increase

When B >10bits, H>1024(the number of L1 cache lines, L1 misses start

When B >15bits, H>32768(L2 cache lines), L2 misses start

Radix Cluster Results

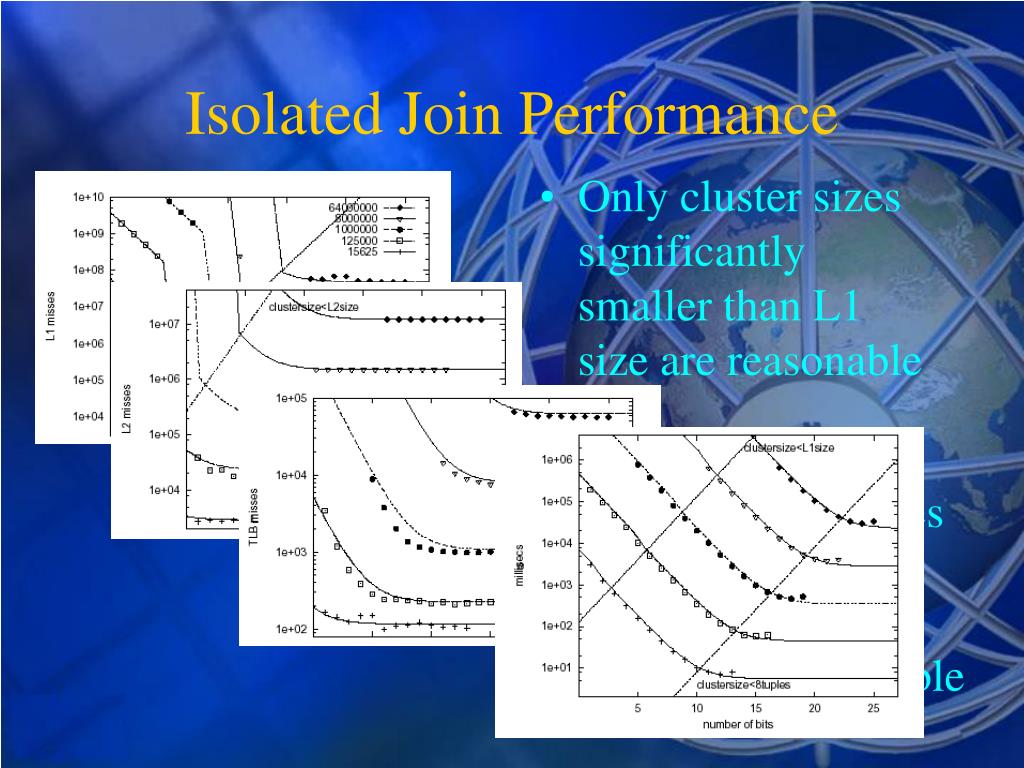

Isolated join performance

Only cluster sizes significantly smaller than L1 size are reasonable

Isolated Join Performance

  • Only cluster sizes significantly smaller than L2 size are reasonable

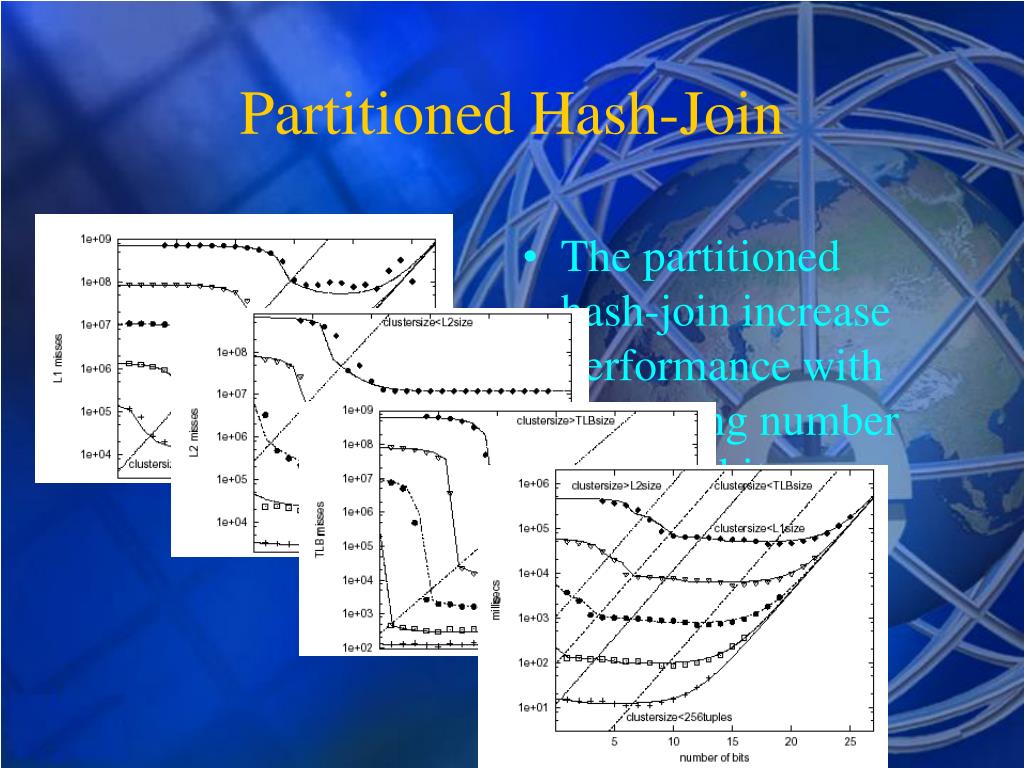

Partitioned hash join

The partitioned hash-join increase performance with increasing number of radix-bits

Partitioned Hash-Join


Overall join performance

Combined cluster and join cost for both partitioned hash-join and radix-join

Radix-cluster get cheaper for less radix bits

Both partitioned hash-join and radix-join get more expensive for less radix bits

To determine the optimum number of B, it turns out there are 4 possible strategies

Overall Join Performance


Overall join performance1

Phash L2 – partitioned hash-join on B=log2(C*12/||L2||), so the inner relation plus hash-table fits the L2 cache

Phash TLB – partitioned hash-join on B=log2(C*12/||TLB||), so the inner relation plus hash-table spans at most |TLB| pages

Phash L1 -- partitioned hash-join on B=log2(C*12/||L1||), so the inner relation plus hash-table fits the L1 cache

Radix – radix-join on B=log2(C/8)

Overall Join Performance


Overall join performance2

Overall Join Performance

  • Compares radix-join(thin lines) and partitioned hash-join(thick lines) over the whole bit range

  • Partitioned hash-join performs best with cluster size of 200 tuples

  • Radix with 4 tuples per cluster is better than radix 8


Overall join performance3

Overall Join Performance

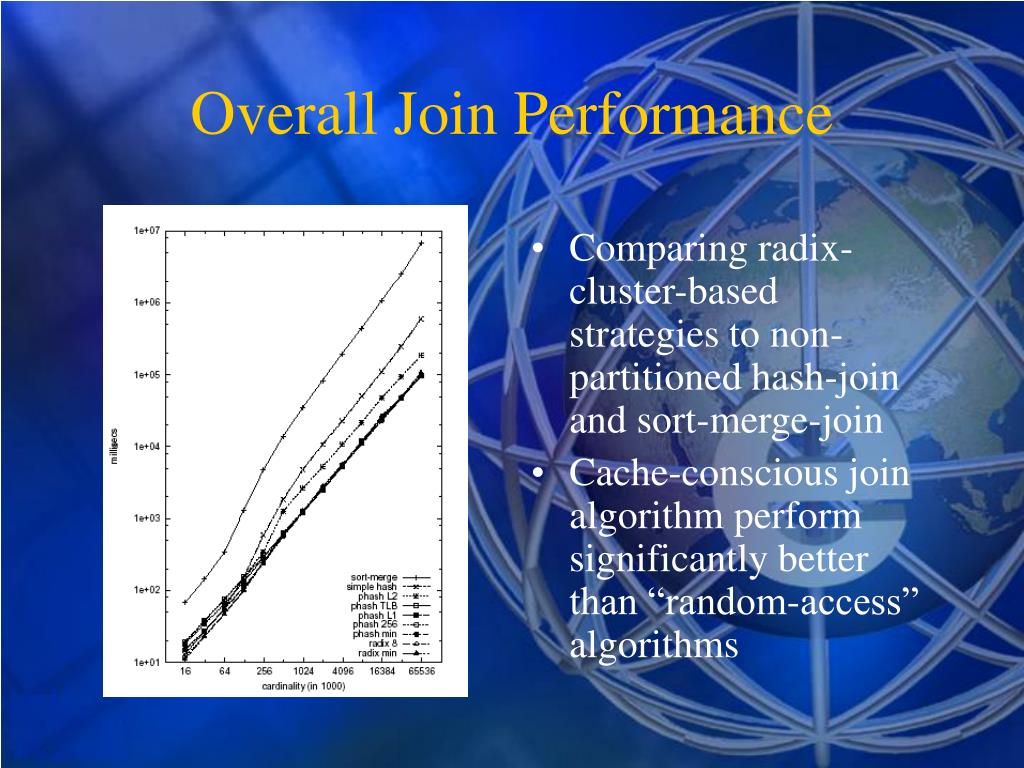

  • Comparing radix-cluster-based strategies to non-partitioned hash-join and sort-merge-join

  • Cache-conscious join algorithm perform significantly better than “random-access” algorithms


Conclusion

Memory access cost is increasingly a bottleneck for database performance

Recommend using vertical fragmentation in order to better use memory bandwidth

Introduced new radix algorithms for use in join processing make optimal use of today’s hierarchical memory systems

Experiment results in a broader context of database architecture

Conclusion
