Logicvision approach for memory access

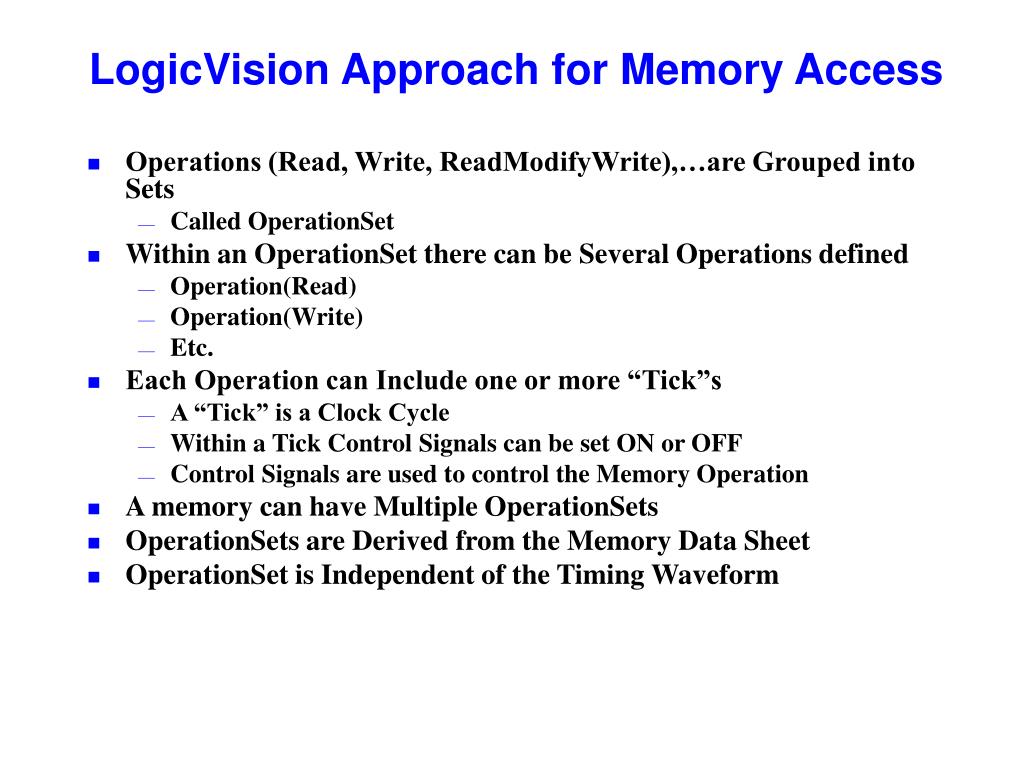

LogicVision Approach for Memory Access

  • Operations (Read, Write, ReadModifyWrite),…are Grouped into Sets

    • Called OperationSet

  • Within an OperationSet there can be Several Operations defined

    • Operation(Read)

    • Operation(Write)

    • Etc.

  • Each Operation can Include one or more “Tick”s

    • A “Tick” is a Clock Cycle

    • Within a Tick Control Signals can be set ON or OFF

    • Control Signals are used to control the Memory Operation

  • A memory can have Multiple OperationSets

  • OperationSets are Derived from the Memory Data Sheet

  • OperationSet is Independent of the Timing Waveform


Operationsets

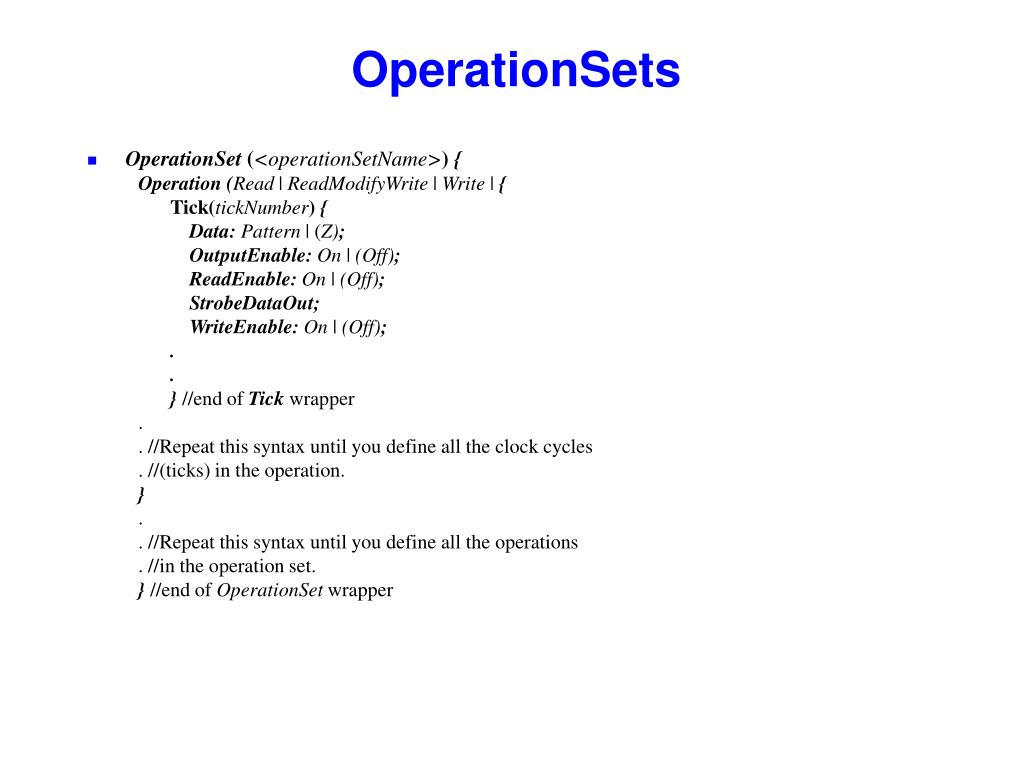

OperationSets

  • OperationSet (<operationSetName>) {

    Operation (Read | ReadModifyWrite | Write | {

    Tick(tickNumber) {

    Data: Pattern | (Z);

    OutputEnable: On | (Off);

    ReadEnable: On | (Off);

    StrobeDataOut;

    WriteEnable: On | (Off);

    .

    .

    } //end of Tick wrapper

    .

    . //Repeat this syntax until you define all the clock cycles

    . //(ticks) in the operation.

    }

    .

    . //Repeat this syntax until you define all the operations

    . //in the operation set.

    } //end of OperationSet wrapper


Example

Example

  • OperationSet (Sync) {

    Operation (Write) {

    Tick {

    WriteEnable:On;

    }

    Tick {

    }

    }

    Operation (Read) {

    Tick {

    ReadEnable: On;

    }

    Tick {

    ReadEnable: On;

    StrobeDataOut;

    }

    }

    Operation (ReadModifyWrite) {

    Tick {

    ReadEnable: On;

    }

    Tick {

    WriteEnable:On;

    ReadEnable: Off;

    StrobeDataOut;

    }

    }

    }


Defining the read cycle

test_clock

addr

dout

don’t care

rwb

csb

oeb

Defining the Read Cycle

read_cycle (

change addr;

assert csb;

assert oeb;

wait;

assert csb;

assert oeb;

wait;

expect dout;

wait;

)

Strobe d_out


Defining the write cycle

test_clock

addr

din

don’t care

rwb

csb

oeb

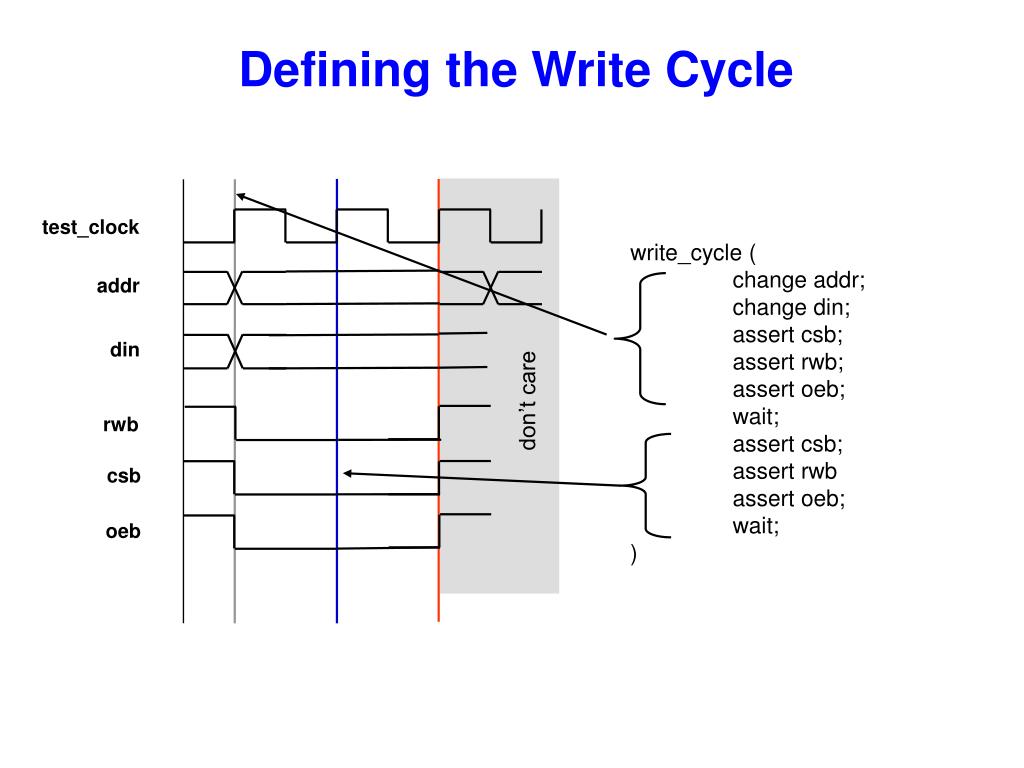

Defining the Write Cycle

write_cycle (

change addr;

change din;

assert csb;

assert rwb;

assert oeb;

wait;

assert csb;

assert rwb

assert oeb;

wait;

)
