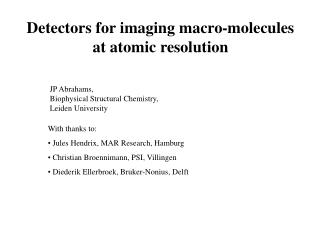

Detectors for imaging macro-molecules at atomic resolution. JP Abrahams, Biophysical Structural Chemistry, Leiden University. With thanks to: Jules Hendrix, MAR Research, Hamburg Christian Broennimann, PSI, Villingen Diederik Ellerbroek, Bruker-Nonius, Delft. Genome.

luella
Download Presentation

Detectors for imaging macro-molecules at atomic resolution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Detectors for imaging macro-molecules at atomic resolution JP Abrahams, Biophysical Structural Chemistry, Leiden University • With thanks to: • Jules Hendrix, MAR Research, Hamburg • Christian Broennimann, PSI, Villingen • Diederik Ellerbroek, Bruker-Nonius, Delft

  2. Genome Proteome information gene organism Cell substance molecule Biophysical Structural Chemistry Central question: how do molecules interact to create life?

  3. proteomics bio-informatics genetics array techniques Other techniques for identifying genes, proteins and/or ligands Genes, proteins metabolites Transfection: In vivostudies Extraction: in vitro studies Theory development Research in life science ATOMS structural biology MOLECULES biochemistry / biophysics CELL cell biology ORGANISM physiology

  4. 2. Measure diffraction 1. Grow crystals 3. Solve phases and refine structure X-ray crystallography

  5. EM images Identify particles (Re- )align 3D particles model Generate a 3D reconstruction 20 nm Cryo-EM 300 nm Courtesy: R Koning, J Plaisier, HK Koerten

  6. diffraction Diffraction pattern Optics of diffraction and imaging detector lens detector object object diffraction image focus

  7. Detector requirements in structural biology Detective Quantum Efficiency : DQE = (Signalout/Noiseout)2/(Signalin/Noisein)2

  8. Overview of detectors used in X-ray diffraction & electron microscopy

  9. Image plate detectors • Based on a system (storage phosphor) for medical applications • Advantages: • practically no intrinsic noise; • large size • high spatial resolution • large dynamic range • Disadvantages: • long read-out time • Manufacturers: MAR Research, Rigaku • Technology is tried & trusted, no major future developments are foreseen MAR image plate detector

  10. CCD detectors • Photon detection of an X-ray phosphor by a CCD. • Advantages: • fast readout; • low noise; • reasonable spatial resolution • Disadvantages: • limited dynamic range; • small size requires de-magnifying optics; • reasonable spatial resolution; • expensive • Manufacturers: Bruker-Nonius, MAR Research, ADSC • Technology is recent and still developing Courtesy Bruker-Nonius

  11. CCD detectors – new developments: Lens-based de-magnification Courtesy Bruker-Nonius MAR-research

  12. CCD detectors – new developments: Next generation CCD’s JFET hybrid pre-amps: 2x faster, 2x lower noise Normal (buried channel) mode: 4x higher dynamic range Back illuminated CCD: 2-3X higher quantum efficiency Fairchild CCD486 Courtesy Bruker-Nonius

  13. X-rays Al p+ - E V d r i f t b i a s + n+ n++ Pixel detectors Courtesy MAR Research • Direct detection of electrons by pixel electrodes. • Advantages: • fast readout; • low noise; • high spatial resolution; • high dynamic range • Disadvantages: • Very recent technology; first commercial products are anticipated for Autumn 2002 • Manufacturers: MAR Research • Technology is recent and still developing Courtesy Christian Broennimann, PSI

  14. MAR Research Solid State Direct Conversion detector

  15. MAR Research Solid State Direct Conversion detector Dimensions: 430mm x 358mm Pixelsize: 140mm x 140 mm Number of pixels: 7.8 Mpixels Readout time: less that 1 s

  16. MAR Research Solid State Direct Conversion detector

  17. X-rays Al p+ - E V d r i f t b i a s + n+ n++ X-rays Sensor Chip Bump Bonds Ext /Comp Clock 15 bit RBI F SR 1 2 Clock counter RBO Gen Ext Clock 1.7fF Digital Block Analog Block Treshold correction - Global Comp + Tresh Bump Pad CS Amp Enable/ Reset Disable Cal Pixel Detectors: Principle Si pn -junction 3.6 eV to create 1 eh -pair Detector 0.2 mm Pixel Sensor 0.2 mm 0.3 mm Pixel electronics Pixel Read-out Chip Radiation hard

  18. Paul Scherrer Institut PILATUS Detector with 3 Modules • Bank Data • Active Area: 238.7 x 35.3 mm2 • 157 x 1098 = 172386 pixels • 48 chips (radiation hard) • 2.38 mm gap between modules • Readout-time: 6 ms • Energy Range: Eg >4 keV • XY-addressing of each pixel • Threshold adjust of each pixel • Analog signal of each pixel Ch. Brönnimann

  19. Paul Scherrer Institut Diffraction pattern recorded with PILATUS Detector at Beamline 6s at the SLS • Data Taking • Lysozyme crystal • 1 deg. Rotation(of a 45 deg data set) • 2s exposure, E=12 keV • Data taken at 7 detector positions • Flatfield correction for each detector position Ch. Brönnimann

  20. Future developments: digital holography? Single molecule diffraction Computa-tional phase retrieval Continuous or over-sampled diffraction pattern Courtesy Miao, Hodgson & Sayre, PNAS 98, p 6642

  21. Summary & conclusions • The ideal detector in structural biology has the following characteristics: • For X-ray diffraction: • Large, high-resolution, high dynamic range detectors with a fast readout. • Detectors coming close to these specifications are available (CCD-based detectors) and more promising ones are around the corner (solid state direct conversion) • For electron diffraction: • Similar requirements as for X-ray diffraction. • CCD detectors are already very good, but may be overtaken in future by solid state direct conversion detectors. • For electron imaging: • even higher resolution is required, but a high dynamic range is not as essential. • It is not certain if direct conversion detectors will achieve a resolution that is sufficient; using large detectors will help, but this may require a re-think of the engineering of electron microscopes.
