Recall lecture 10

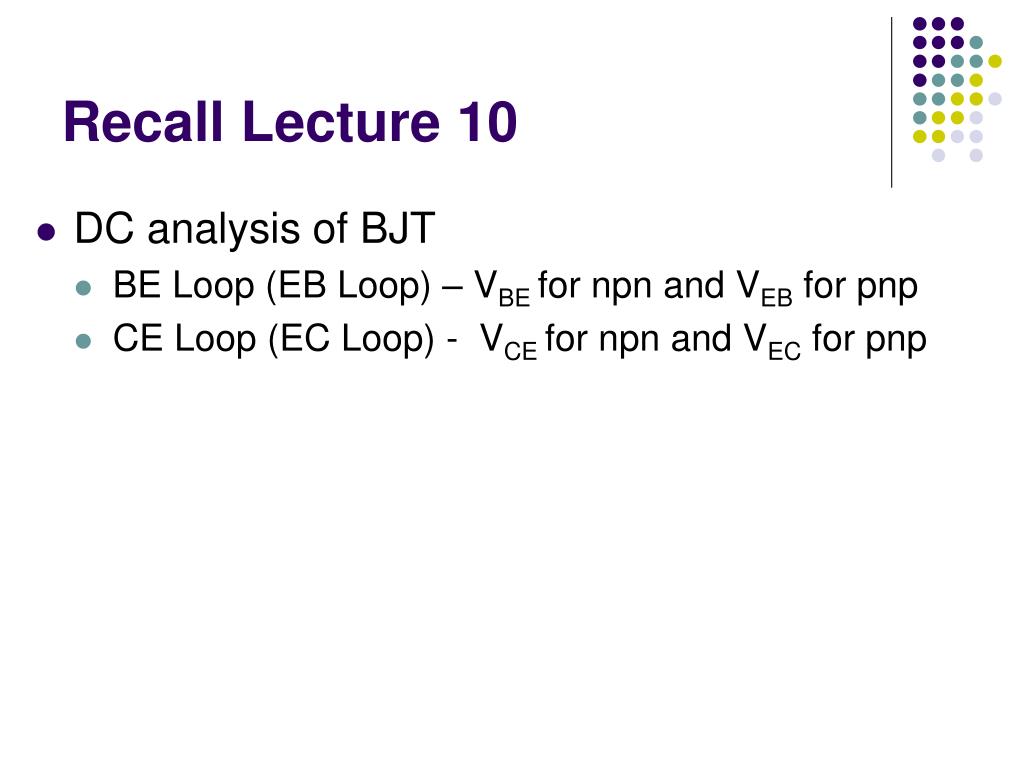

Recall Lecture 10

  • DC analysis of BJT

    • BE Loop (EB Loop) – VBE for npn and VEB for pnp

    • CE Loop (EC Loop) - VCE for npn and VEC for pnp


Example pnp

IE

EXAMPLE - PNP

Given  = 75 and VEC = 6V. Find the values of the labelled parameters, RC and IE,


Recall lecture 10

  • DC analysis of BJT

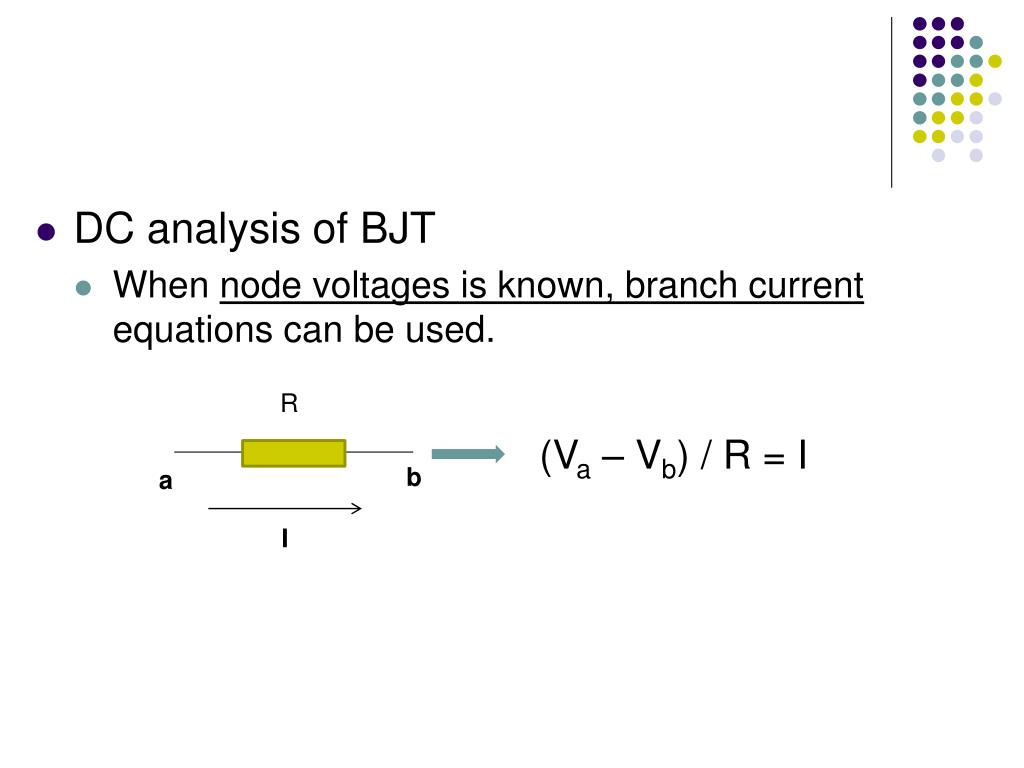

    • When node voltages is known, branch current equations can be used.

(Va – Vb) / R = I

R

b

a

I


Bjt circuits at dc

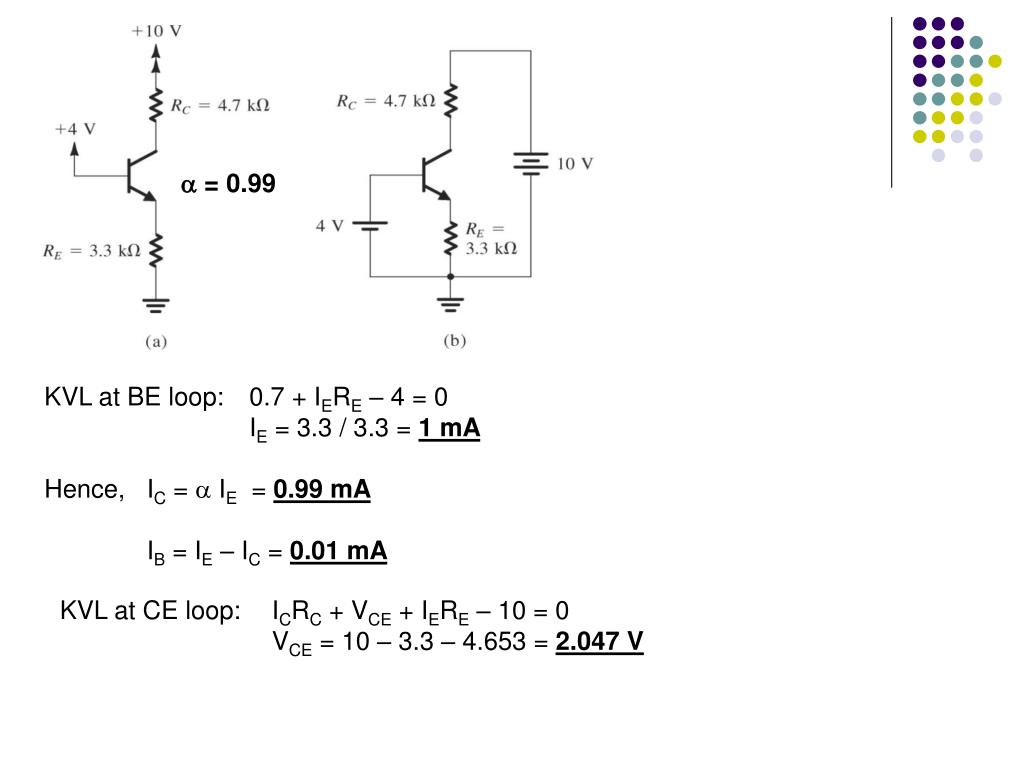

BJT Circuits at DC

 = 0.99

KVL at BE loop:0.7 + IERE – 4 = 0

IE = 3.3 / 3.3 = 1 mA

Hence, IC =  IE= 0.99 mA

IB = IE – IC = 0.01 mA

KVL at CE loop: ICRC + VCE + IERE – 10 = 0

VCE = 10 – 3.3 – 4.653 = 2.047 V

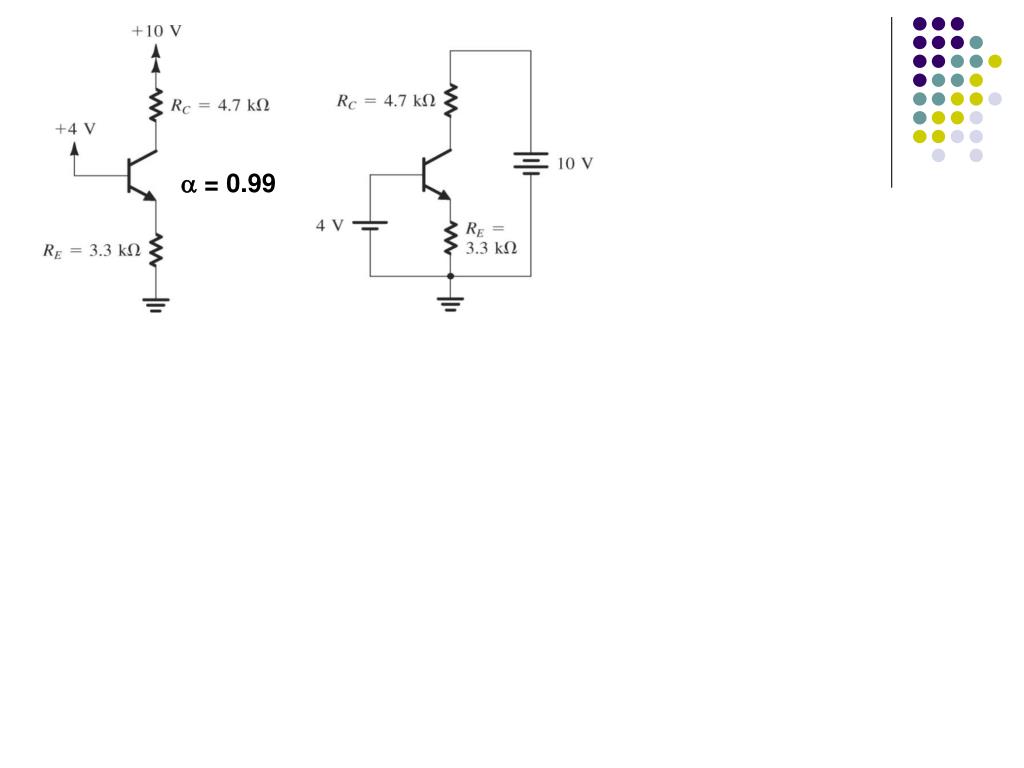

Bjt circuits at dc1

BJT Circuits at DC

 = 0.99

VC = 5.347 V

Hence,

VCE = VC – VE

= 5.347 – 3.3

= 2.047 V

IC = IE

IB = IE - IC

VBE = 0.7V

VB – VE = 0.7V

VE = 4 – 0.7 = 3.3 V since VB = 4V

VE – 0 = IE

10 - VC = IC

3.3 k

4.7 k


Load line and voltage transfer characteristic

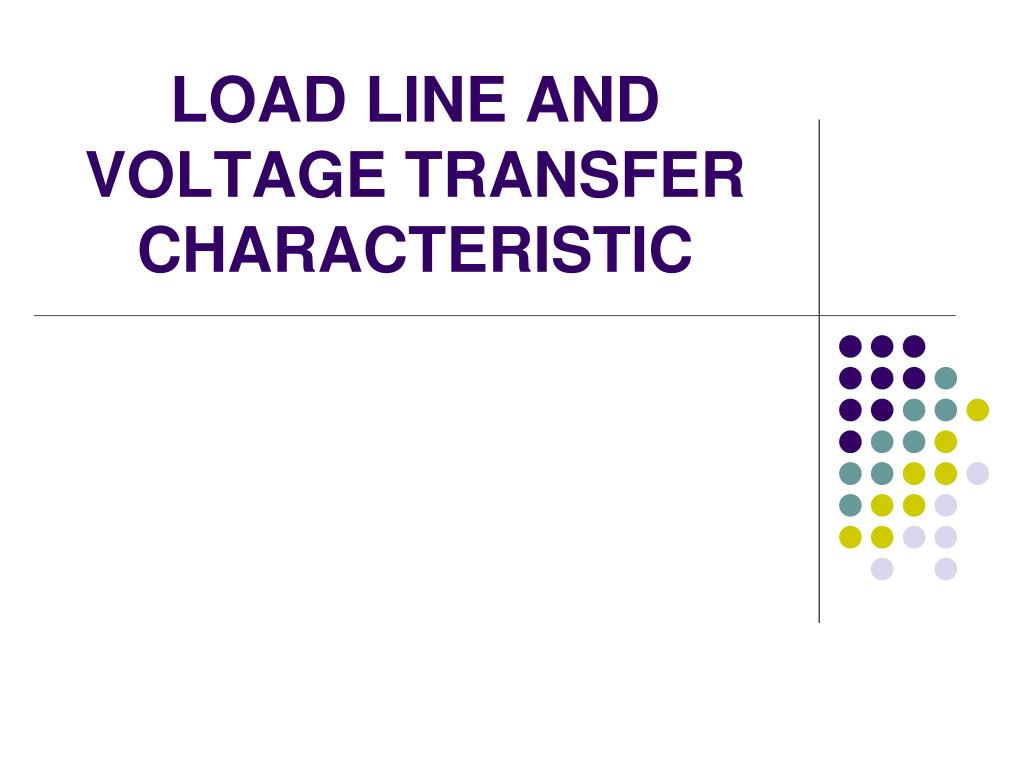

LOAD LINE AND VOLTAGE TRANSFER CHARACTERISTIC


Recall lecture 10

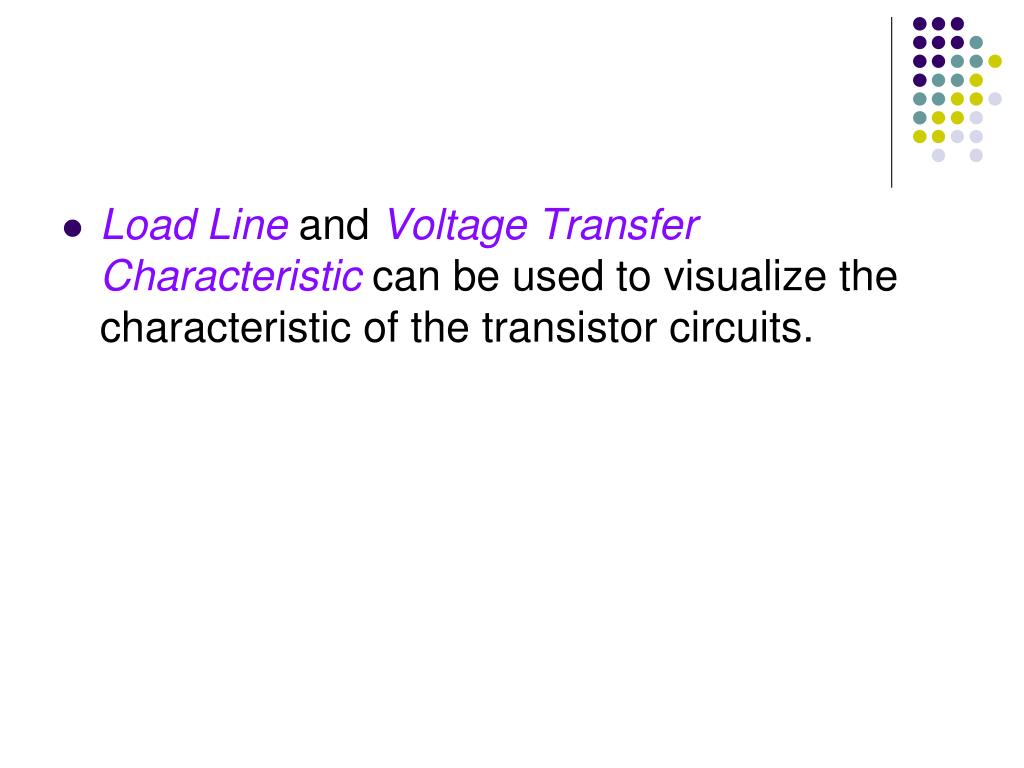

  • Load Lineand Voltage Transfer Characteristic can be used to visualize the characteristic of the transistor circuits.


Load line

LOAD LINE


Recall lecture 10

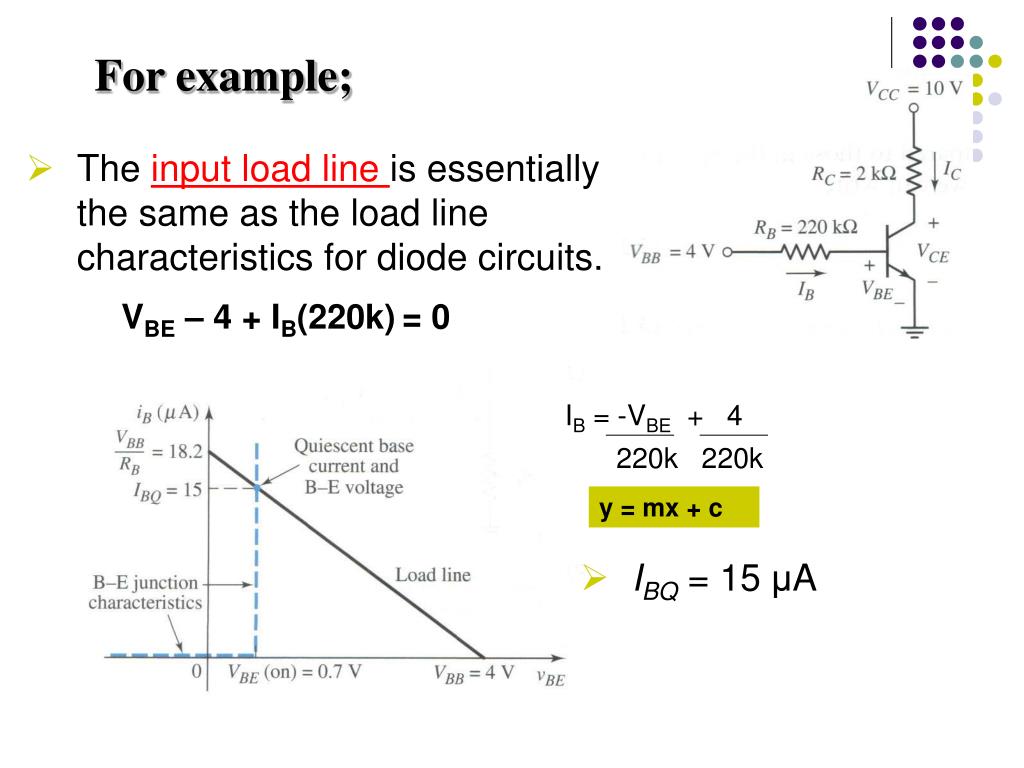

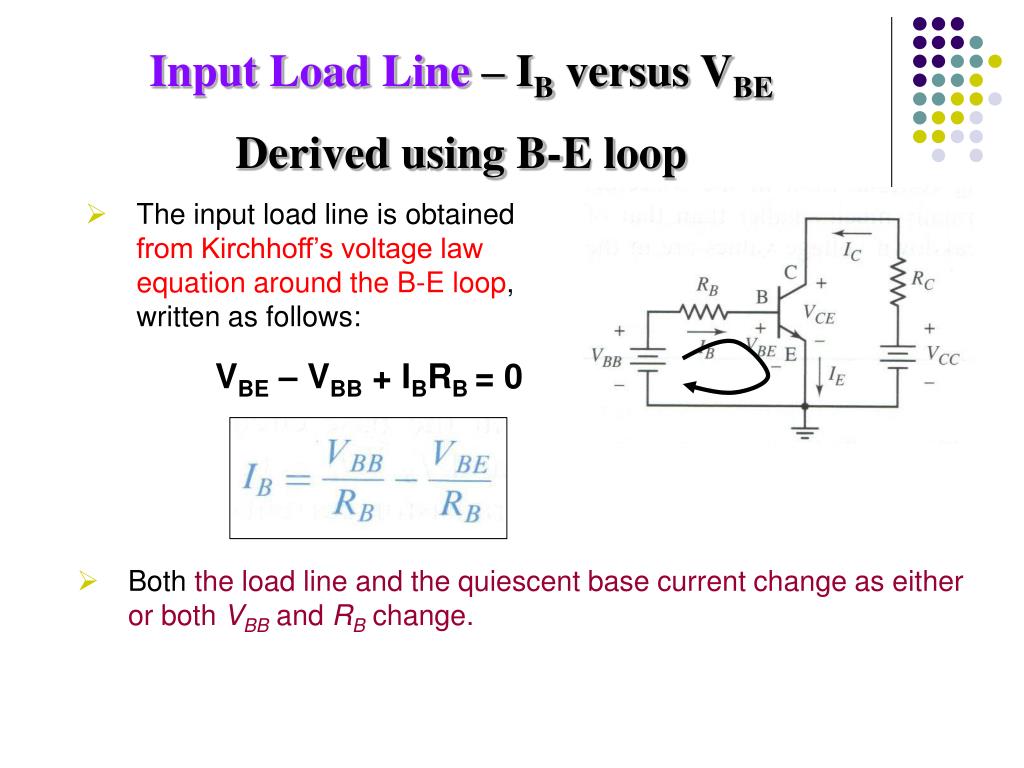

Input Load Line – IB versus VBE

Derived using B-E loop

  • The input load line is obtained from Kirchhoff’s voltage law equation around the B-E loop, written as follows:

VBE – VBB + IBRB = 0

  • Both the load line and the quiescent base current change as either or both VBBand RB change.


Recall lecture 10

IB = -VBE + 4

220k

220k

For example;

  • The input load line is essentially the same as the load line characteristics for diode circuits.

VBE – 4 + IB(220k)= 0

y = mx + c

  • IBQ = 15 μA


Recall lecture 10

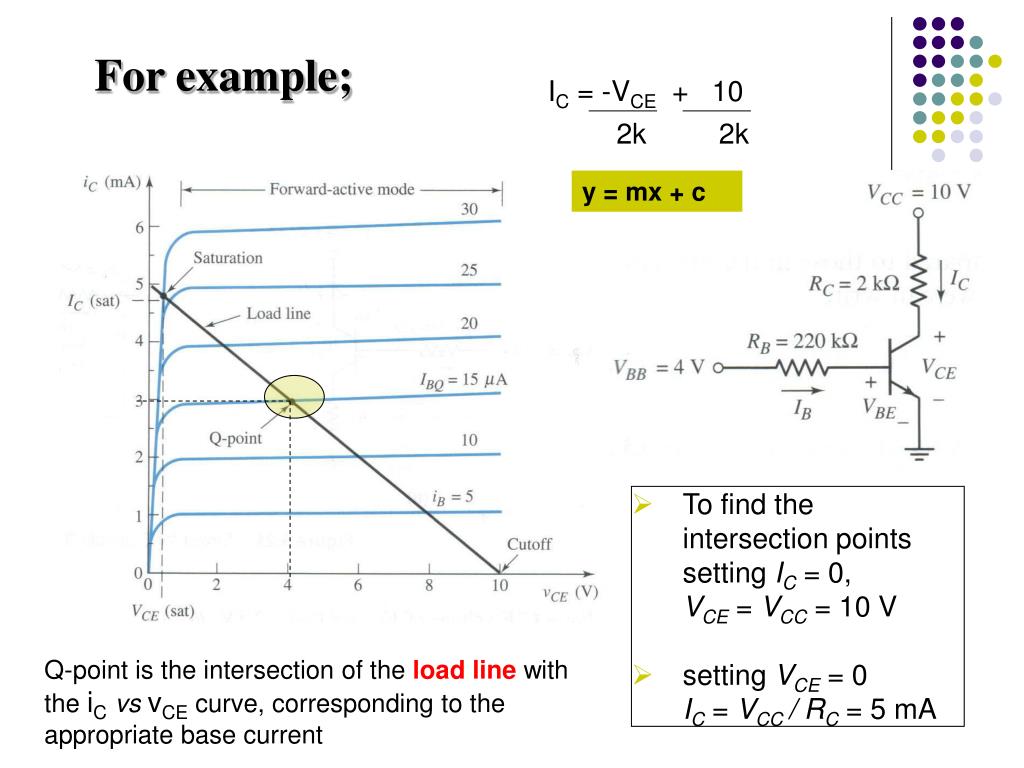

Output Load Line – IC versus VCE

Derived using C-E loop

  • For the C-E portion of the circuit, the load line is found by writing Kirchhoff’s voltage law around the C-E loop. We obtain:


Recall lecture 10

IC = -VCE + 10

2k

2k

For example;

y = mx + c

  • To find the intersection points setting IC= 0,

    VCE = VCC = 10 V

  • setting VCE = 0

    IC= VCC / RC = 5 mA

Q-point is the intersection of the load line with the iCvsvCE curve, corresponding to the appropriate base current


Recall lecture 10

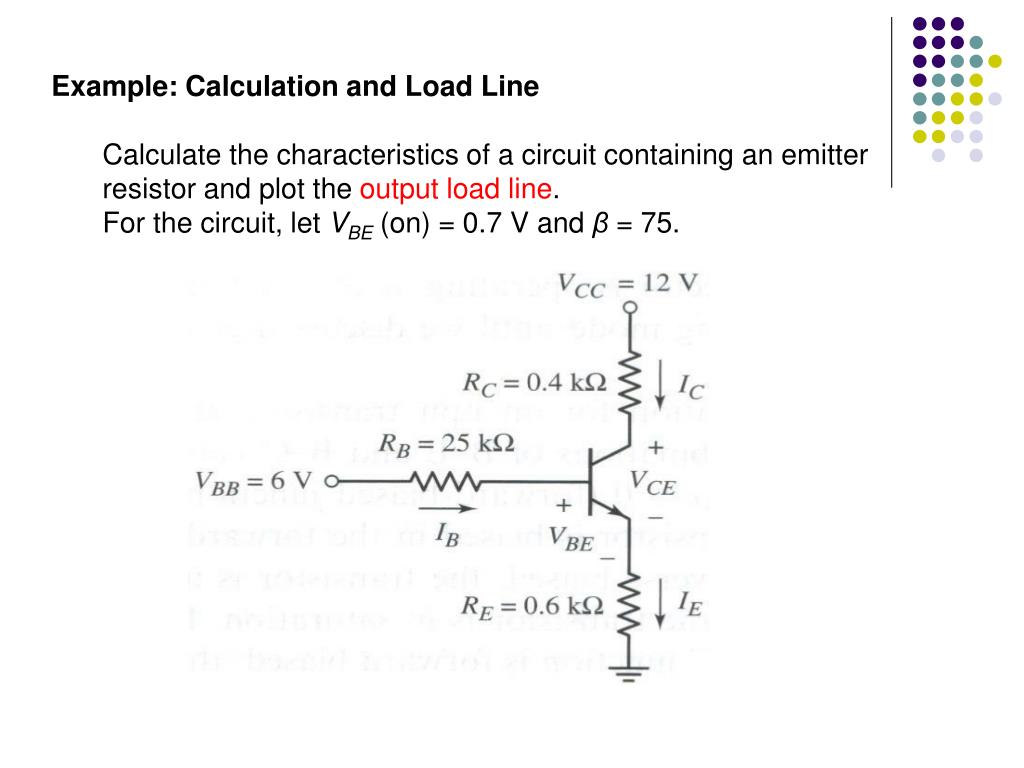

Example: Calculation and Load Line

Calculate the characteristics of a circuit containing an emitter resistor and plot the output load line.

For the circuit, let VBE(on) = 0.7 V and β = 75.


Recall lecture 10

Load Line

Use KVL at B-E loop


Recall lecture 10

Use KVL at C-E loop – to plot the load line


Recall lecture 10

VCE = 12 – IC (1.01)

IC = - VCE + 12

1.01

IB = 75.1 A

VCE = 12 – 5.63 (1.01)

VCE = 6.31 V
