C 3 n 6 h 6

+

+

2 HCl

C3N6H6

C3N3Cl3

X-Ray Rietveld

refinement of C6N9H3•HCl

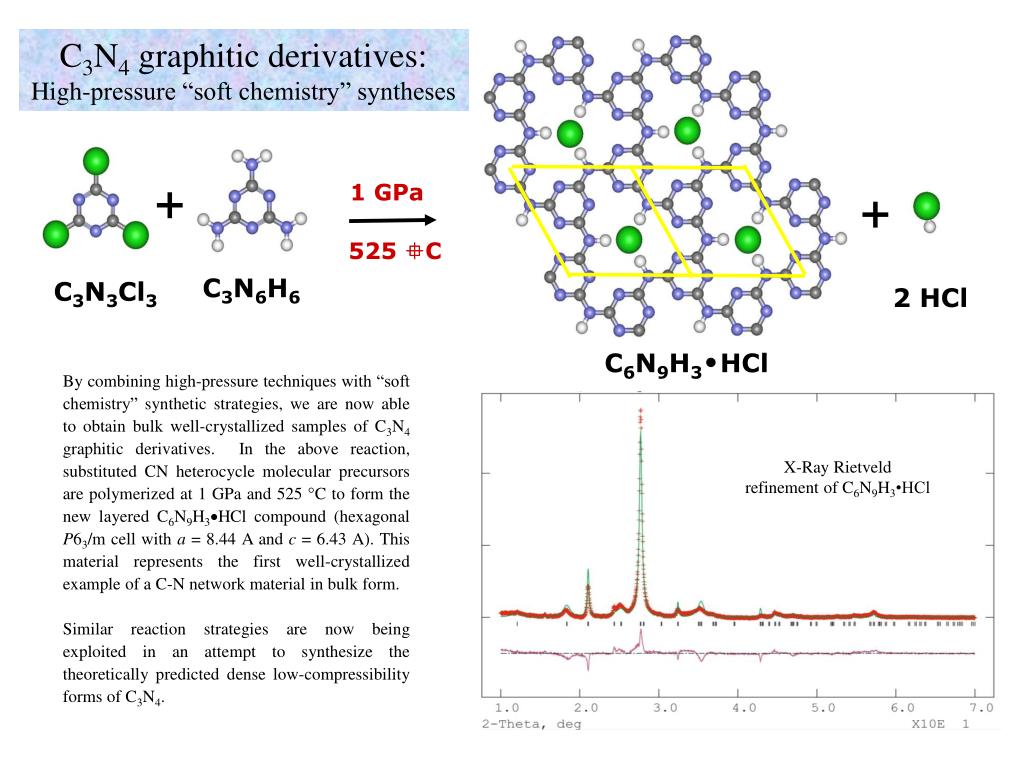

C3N4 graphitic derivatives:

High-pressure “soft chemistry” syntheses

1 GPa

525 C

C6N9H3 HCl

  • By combining high-pressure techniques with “soft chemistry” synthetic strategies, we are now able to obtain bulk well-crystallized samples of C3N4 graphitic derivatives. In the above reaction, substituted CN heterocycle molecular precursors are polymerized at 1 GPa and 525 C to form the new layered C6N9H3HCl compound (hexagonal P63/m cell with a = 8.44 A and c = 6.43 A). This material represents the first well-crystallized example of a C-N network material in bulk form.

  • Similar reaction strategies are now being exploited in an attempt to synthesize the theoretically predicted dense low-compressibility forms of C3N4.
