Pulmonary Pathology

Pulmonary Pathology. Obstructive Airways Disease. Respiratory disease. Pulmonary diseases (especially infective) together with gastrointestinal infection are the commonest cause of death in the developing world Pulmonary disease is almost entirely environmental rather than genetic.

efuru
Download Presentation

Pulmonary Pathology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Pulmonary Pathology Obstructive Airways Disease

  2. Respiratory disease • Pulmonary diseases (especially infective) together with gastrointestinal infection are the commonest cause of death in the developing world • Pulmonary disease is almost entirely environmental rather than genetic

  3. Basic anatomy!

  4. The respiratory acinus • Cartilage is present to level of proximal bronchioles • Beyond terminal bronchiole gas exchange occurs • The distal airspaces are kept open by elastic tension in alveolar walls

  5. Function of lungs…. • Gas exchange (O2, CO2) • Depends on compliance (stretchability) of lungs • Can only occur in alveoli that are both ventilated and perfused

  6. Ventilation-perfusion defects • Alveoli that are ventilated but not perfused is ventilatory “dead space” • Alveoli that are perfused but not ventilated leads to “shunting” of non-oxygenated blood from pulmonary to systemic circulation ( a mechanism of cyanosis)

  7. Spirometry (pulmonary physiology) • FEV1: volume of air blown out forcibly in 1 second. A function of large airways. Dependent on body size. • Vital capacity (VC): total volume of expired air. Ratio FEV1/VC compensates for body size • Tco (transfer factor): absorption of carbon monoxide in 1 breath (gas exchange)

  8. Functional Classification of Lung Disease Distinctive clinical and physiological features define: • Obstructive lung disease: decreased FEV1 and FEV1/VC • Restrictive lung disease: decreased FEV1. Normal FEV1/VC. Decreased Tco.

  9. Respiratory failure (causes) • Ventilation defects (CNS, neuromuscular defects, drugs) • Perfusion defects (cardiac failure, pulmonary emboli) • Gas exchange defects (fibrosis, consolidation, emphysema) Lead to hypoxia and hypercapnia Often more than factor one will operate

  10. Airway Narrowing/Obstruction • Muscle spasm • Mucosal oedema (inflammatory or otherwise • Airway collapse due to loss of support • (Localised obstruction due to tumour or foreign body)

  11. Localised obstruction • Collapse • Lipid pneumonia • Infection • Bronchiectasis (if longstanding)

  12. Main Categories of (diffuse) Obstructive Disease • Asthma • Chronic obstructive pulmonary disease (COPD/COAD/COLD)

  13. Chronic Obstructive Disease • Chronic bronchitis • Emphysema Symptomatic patients often have both

  14. Bronchial Asthma A chronic inflammatory disorder characterised by hyperreactive airways leading to episodic reversible bronchoconstriction

  15. Asthma • Extrinsic - response to inhaled antigen • Intrinsic - non-immune mechanisms (cold, exercise, aspirin)

  16. Immunological Mechanisms Type Ι hypersensitivity - allergen binds to IgE on surface of mast cells • Degranulation (histamine) • muscle spasm • inflammatory cell influx (eosinophils) • mucosal inflammation/oedema • Inflammatory infiltrate tends to chronicity

  17. Pathology of asthma • Airway inflammation with mucosal oedema • Mucus plugging

  18. Mucosal oedema

  19. Mucus plugs

  20. Mucus plug/inflammation

  21. Inflammation

  22. Inflammation/epithelial damage

  23. Chronic Obstructive Pulmonary Disease • Chronic bronchitis • Emphysema A smokers disease Symptomatic patients usually have both

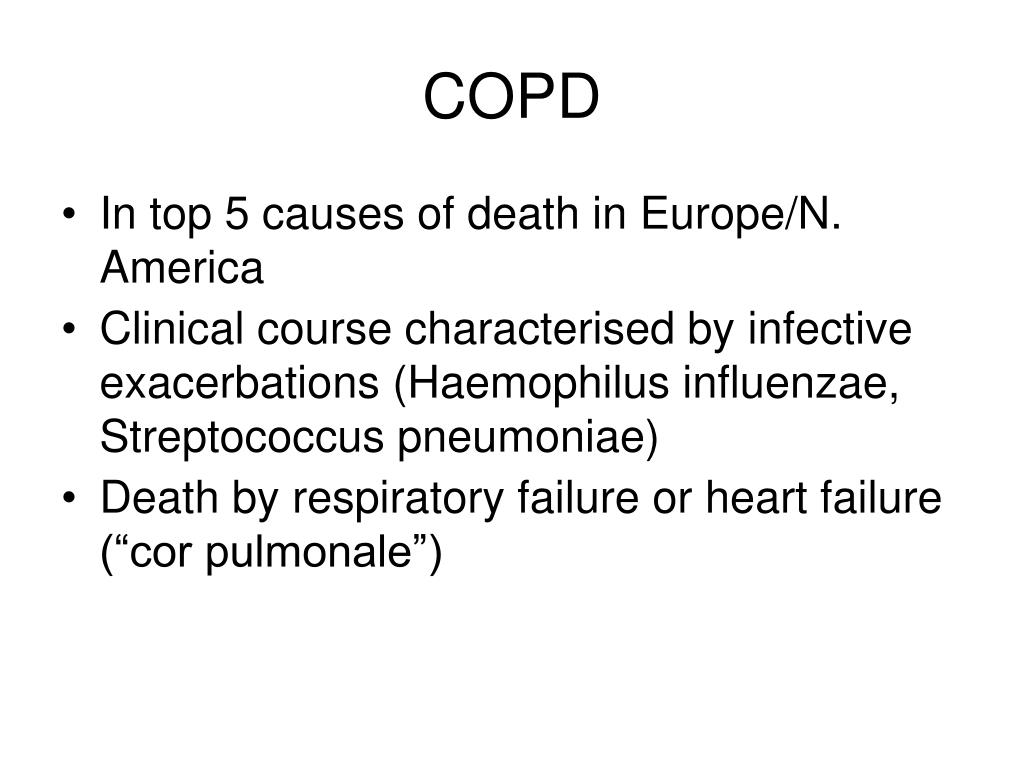

  24. COPD • In top 5 causes of death in Europe/N. America • Clinical course characterised by infective exacerbations (Haemophilus influenzae, Streptococcus pneumoniae) • Death by respiratory failure or heart failure (“cor pulmonale”)

  25. Chronic Bronchitis Cough productive of sputum on most days for 3 months of at least 2 successive years • An epidemiological definition • Does not imply airway inflammation

  26. Chronic Bronchitis • Chronic irritation defensive increase in mucus production with increase in numbers of epithelial cells (esp goblet cells) • Poor relation to functional obstruction • Role in sputum production and increased tendency to infection

  27. Chronic Bronchitis • Non-reversible obstruction • In some patients there may be a reversible (“asthmatic”) component

  28. Normal vs. Chronic Bronchitis

  29. Small airways in Chronic Bronchitis • More important than traditionally realised • Goblet cell metaplasia, macrophage accumulation and fibrosis around bronchioles may generate functional obstruction

  30. Emphysema • Increase beyond the normal in the size of the airspaces distal to the terminal bronchiole • Without fibrosis The gas-exchanging compartment of the lung

  31. Emphysema (types) • Centriacinar (centrilobular) • Panacinar • Others (e.g. localised around scars in the lung)

  32. Emphysema • Difficult to diagnose in life (apart from late disease – enl;arged “barrel chest”) • Radiology (CT) can show changes in lung density • Correlation with function known from autopsy studies

  33. Emphysema • “Dilatation” is due to loss of alveolar walls (tissue destruction) • Appears as “holes” in the lung tissue

  34. Normal lung

  35. Centriacinar emphysema

  36. Panacinar emphysema 1

  37. Panacinar emphysema 2

  38. Emphysema How do these changes relate to functional deficit? • Poorly at macroscopic level • Better with microscopic measurement

  39. Normal

  40. Early emphysema

  41. Emphysema Impairs Respiratory Function • Diminished alveolar surface area for gas exchange (decreased Tco) • Loss of elastic recoil and support of small airways leading to tendency to collapse with obstruction

  42. Loss of surface area (emphysema)

  43. Loss of support on bronchiolar walls

  44. As disease advances…. Pa O2 leads to: • Dyspnoea and increased respiratory rate • Pulmonary vasoconstriction (and pulmonary hypertension)

  45. Epidemiology of COPD • Smoking • Atmospheric pollution • Genetic factors

  46. Pathophysiology of Emphysema High rate of emphysema in the rare genetic condition of α 1 antitrypsin deficiency • THE PROTEASE/ANTIPROTEASE HYPOTHESIS

  47. Elastic Tissue • Sensitive to damage by elastases (enzymes produced by neutrophils and macrophages) • α 1 antitrypsin acts as an anti-elastase Imbalance in either arm of this system predisposes to destruction of elastic alveolar walls (emphysema)

  48. Tobacco smoke….. • Increases nos. of neutrophils and macrophages in lung • Slows transit of these cells • Promotes neutrophil degranulation • Inhibits α 1 antitrypsin
