Phylogeography

Phylogeography

John Brookfield

Ecology Club

11th February 2010

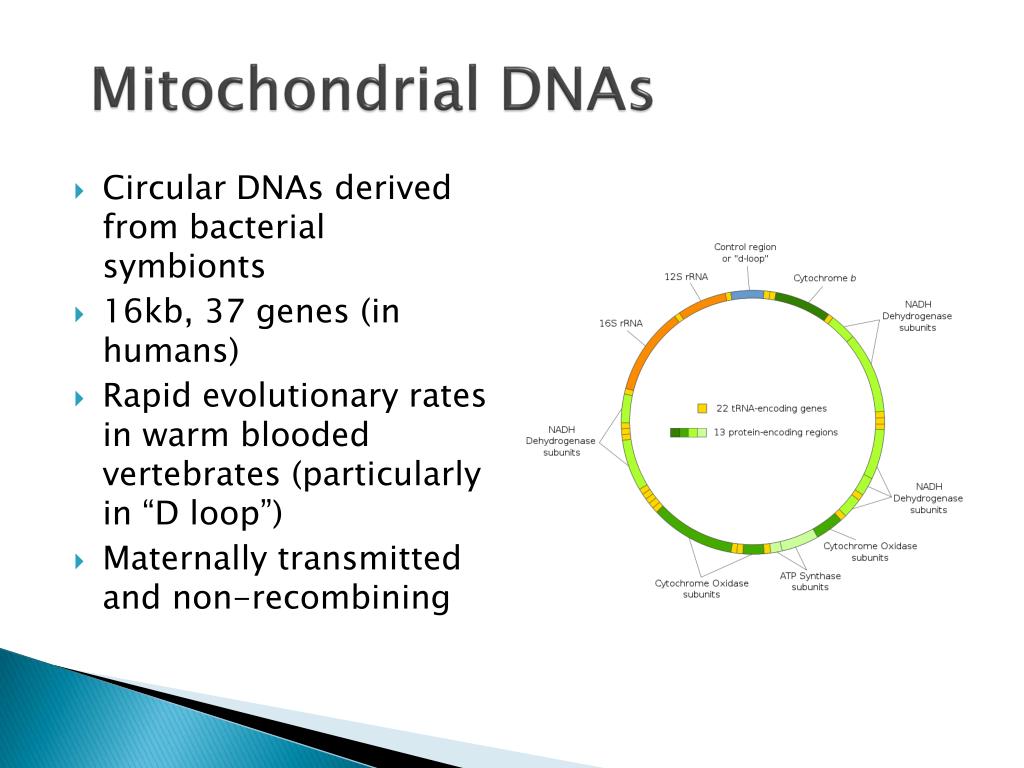

Mitochondrial dnas

Circular DNAs derived from bacterial symbionts

16kb, 37 genes (in humans)

Rapid evolutionary rates in warm blooded vertebrates (particularly in “D loop”)

Maternally transmitted and non-recombining

Mitochondrial DNAs


Phylogeography avise 1994 molecular markers natural history and evolution chapman and hall
Phylogeography (Avise 1994*)Molecular Markers, Natural History and Evolution. Chapman and Hall


Mitochondrial dnas in an undivided population
Mitochondrial DNAs in an undivided population

2Nf


Mutations enable the tree to be estimated average divergence 2 nf n
Mutations enable the tree to be estimated-Average divergence=2NfN

*

*

2Nf

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*


Animals from northern and southern populations
Animals from Northern and Southern Populations divergence=2

Nor Nor Nor Nor Sou Sou Sou Sou

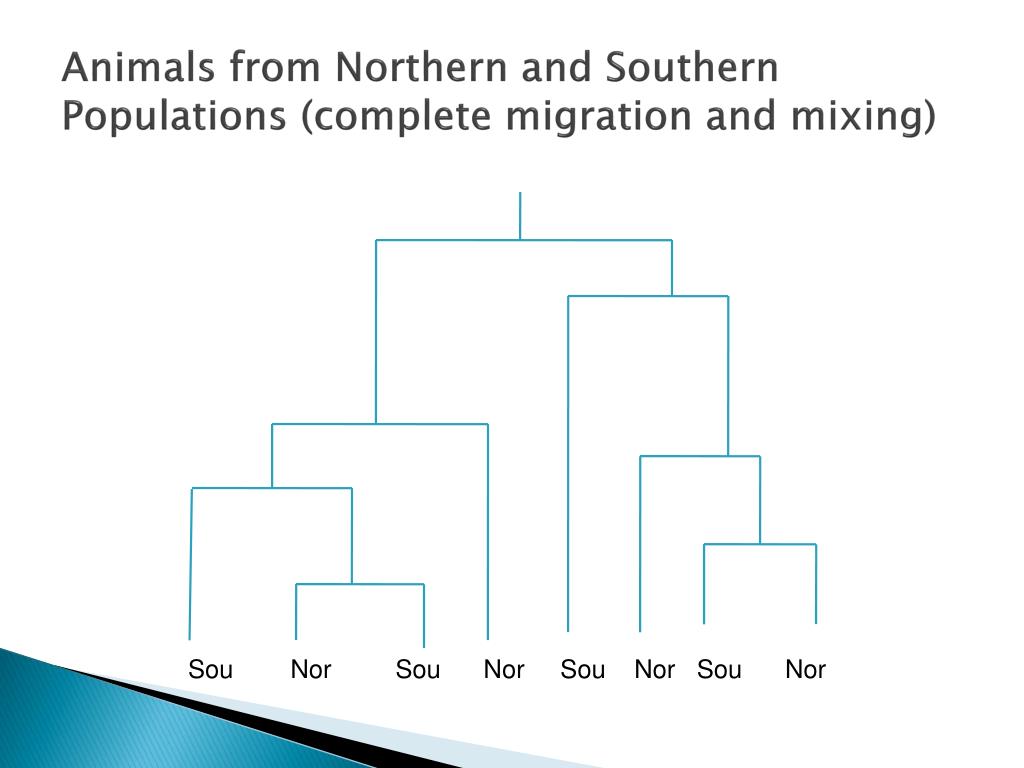

Animals from northern and southern populations complete migration and mixing
Animals from Northern and Southern Populations (complete migration and mixing)

Sou Nor Sou Nor Sou Nor Sou Nor


Animals from northern and southern populations1
Animals from Northern and Southern Populations migration and mixing)

MRCA

MRCA

Nor Nor Nor Nor Nor Sou Sou Sou Sou Sou


A complementary approach f st
A complementary approach- migration and mixing)FST

  • Hardy-Weinberg Formula: q=1-p

  • AA: p2

  • Aa: 2pq

  • aa: q2

    Random Mating

    Inbreeding (specified by F ), when homozygotes exceed p2 +q2

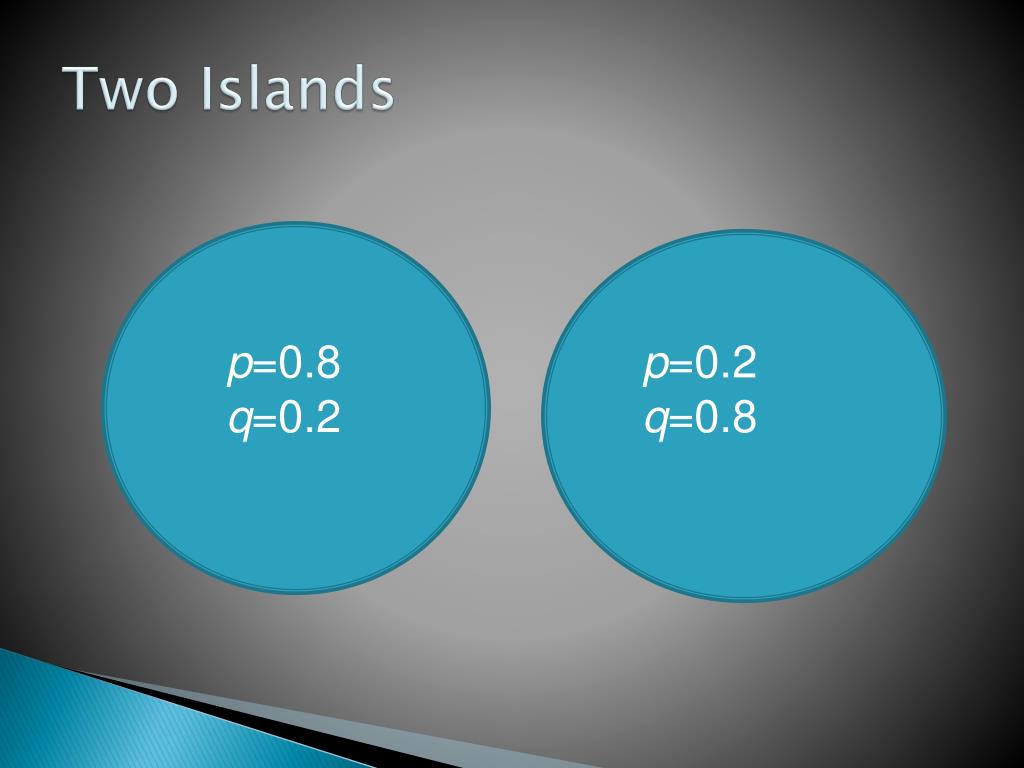

Two islands
Two Islands migration and mixing)

p=0.8

q=0.2

p=0.2

q=0.8

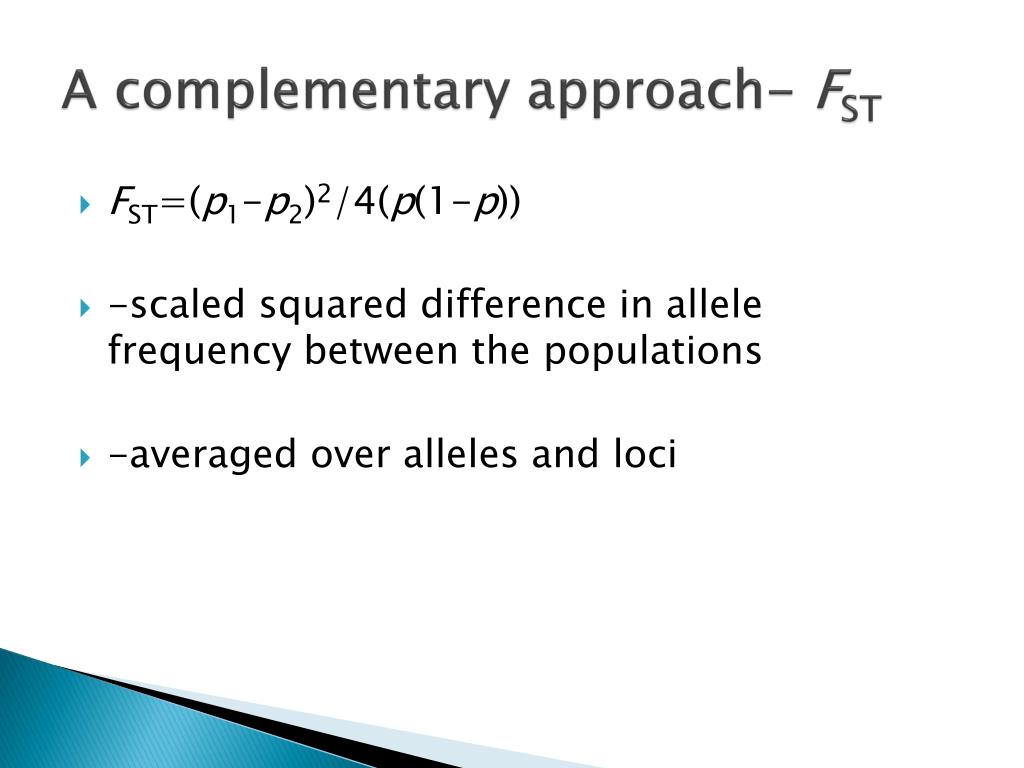

A complementary approach f st1
A complementary approach- migration and mixing)FST

  • FST=(p1-p2)2/4(p(1-p))

  • -scaled squared difference in allele frequency between the populations

  • -averaged over alleles and loci


Two islands1
Two Islands migration and mixing)

p=0.8

q=0.2

p=0.2

q=0.8

FST = (0.8-0.2)2/(4x0.5x0.5)=0.36


What does f st mean
What does migration and mixing)FST mean

  • FST=(p1-p2)2/4(p(1-p))

    =(0.8-0.2)2/(4x0.5X0.5)=0.36

    How many heterozygotes expected (Hardy-Weinberg)=2p(1-p)=0.50

    How many seen=

    2p1(1-p1)/2

    +2p2(1-p2)/2

    =0.8x0.2+0.2x0.8 =0.32


Two islands2
Two Islands migration and mixing)

p=0.9

q=0.1

p=0.1

q=0.9

FST = (0.9-0.1)2/(4x0.5x0.5)=0.64

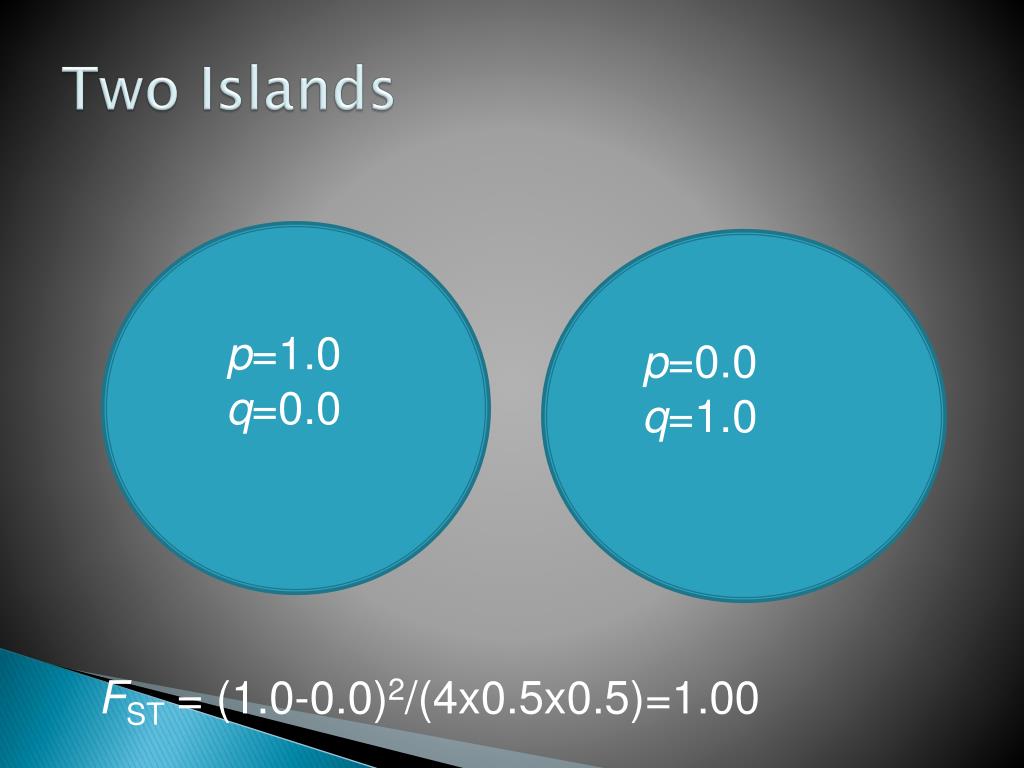

Two islands3
Two Islands migration and mixing)

p=1.0

q=0.0

p=0.0

q=1.0

FST = (1.0-0.0)2/(4x0.5x0.5)=1.00


Two islands4
Two Islands migration and mixing)

p=0.6

q=0.4

p=0.4

q=0.6

FST = (0.6-0.4)2/(4x0.5x0.5)=0.04


Two islands two loci a and b
Two Islands-Two Loci, A and B migration and mixing)

pA=0.6

qa=0.4

pB=0.7

qb=0.3

pA=0.4

qa=0.6

pB=0.3

qb=0.7

Linkage Disequilibrium: Association of A and B and association of a and b

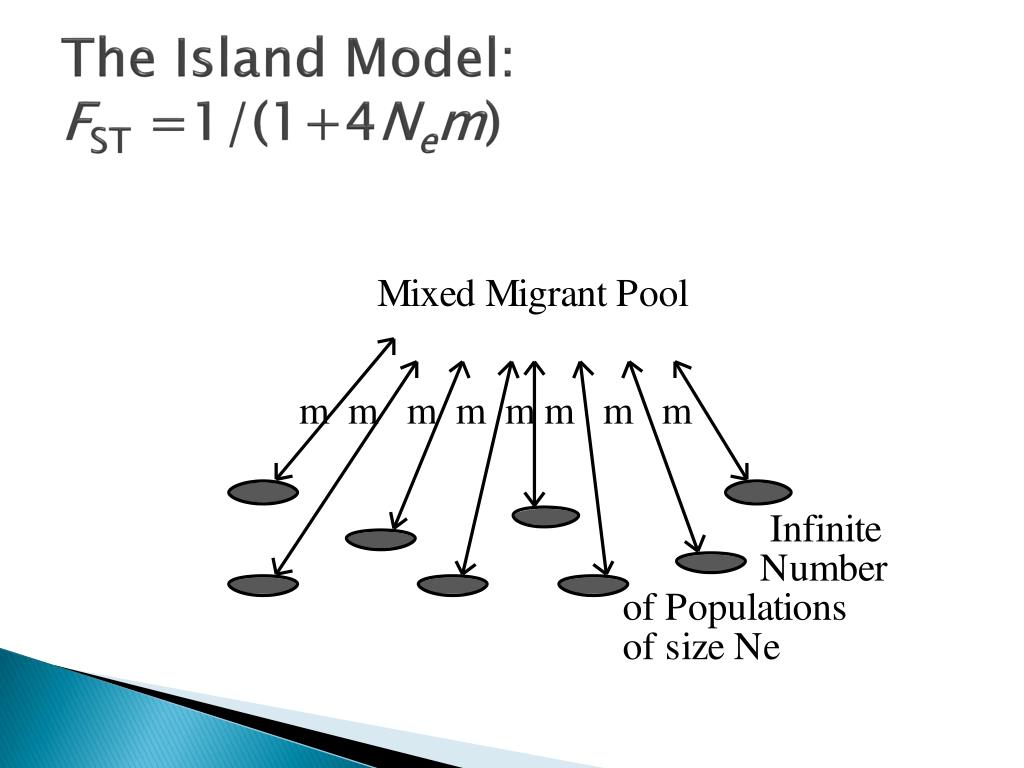

The island model f st 1 1 4 n e m
The Island Model: migration and mixing)FST =1/(1+4Nem)


Linear stepping stone model
Linear Stepping Stone Model migration and mixing)

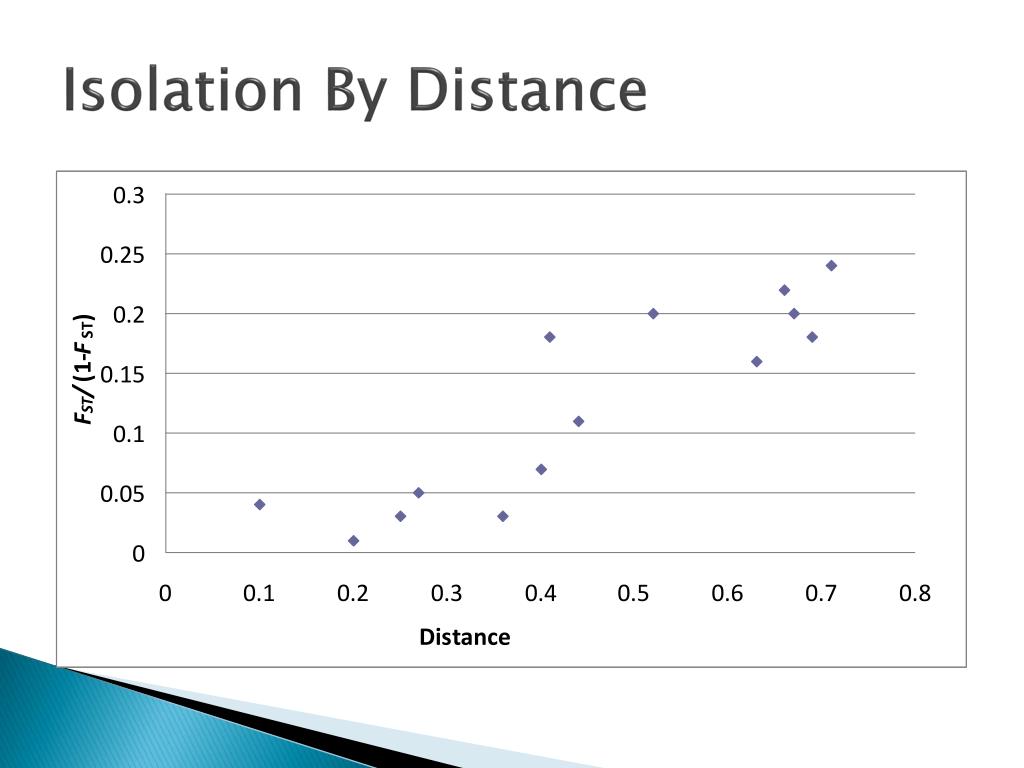

Isolation by distance
Isolation By Distance migration and mixing)

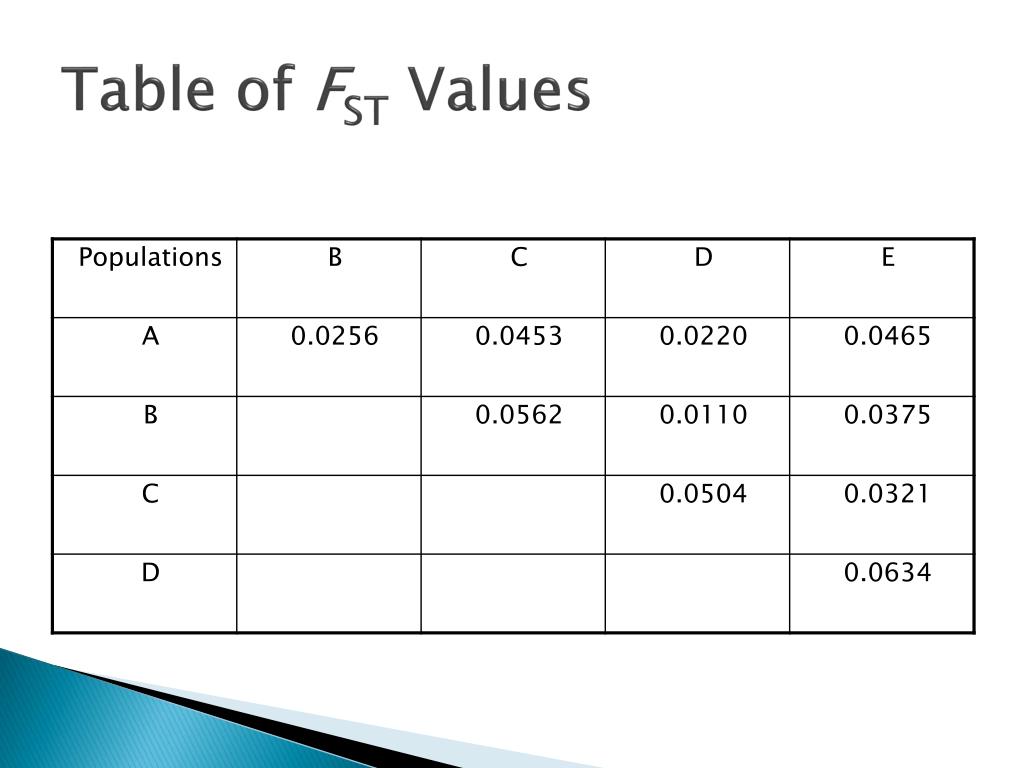

Table of f st values
Table of migration and mixing)FST Values

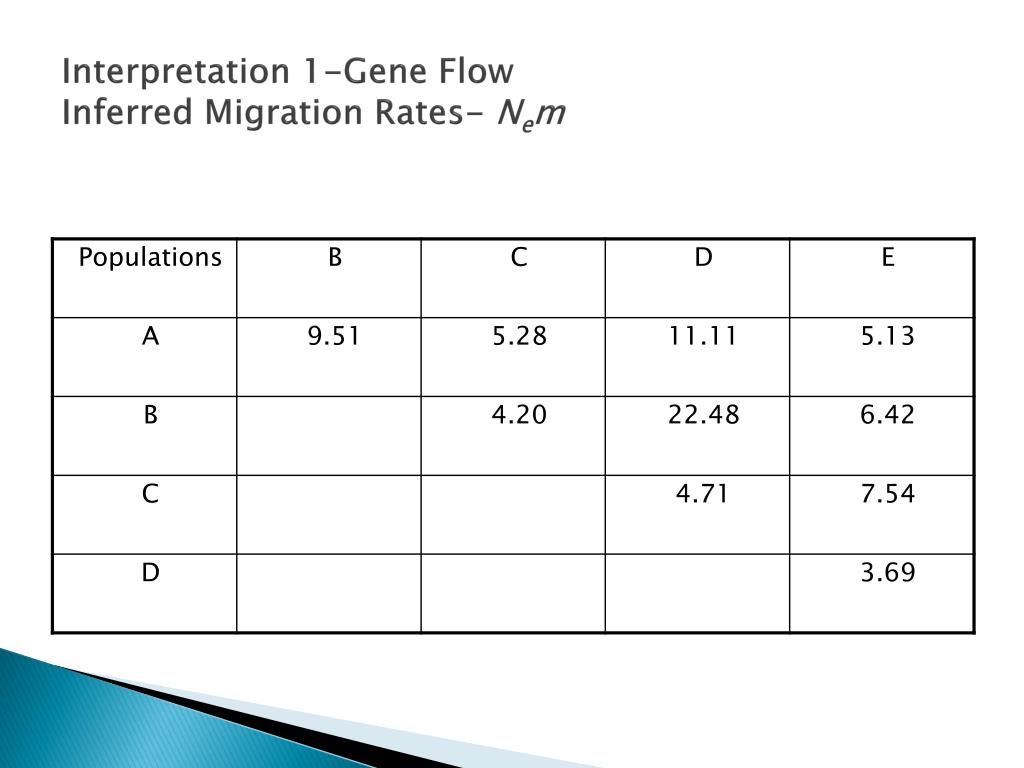

Interpretation 1 gene flow inferred migration rates n e m
Interpretation 1-Gene Flow migration and mixing)Inferred Migration Rates- Nem


Table of f st values1
Table of migration and mixing)FST Values


Interpretation 2 ancestral population splitting upgma tree of population ancestry
Interpretation 2-Ancestral Population Splitting migration and mixing)UPGMA Tree of Population Ancestry


Methods
Methods migration and mixing)

  • AMOVA-Laurent Excoffier ARLEQUIN

  • http://cmpg.unibe.ch/software/arlequin3/

  • Designed for mtDNAs initially

  • Takes various levels-populations and subpopulations, etc. molecular variation between them as a proportion of total molecular variance


Methods-Nested Clade Analysis (1) migration and mixing)Templeton, A. (2006) Population genetics and microevolutionary theory. Wiley

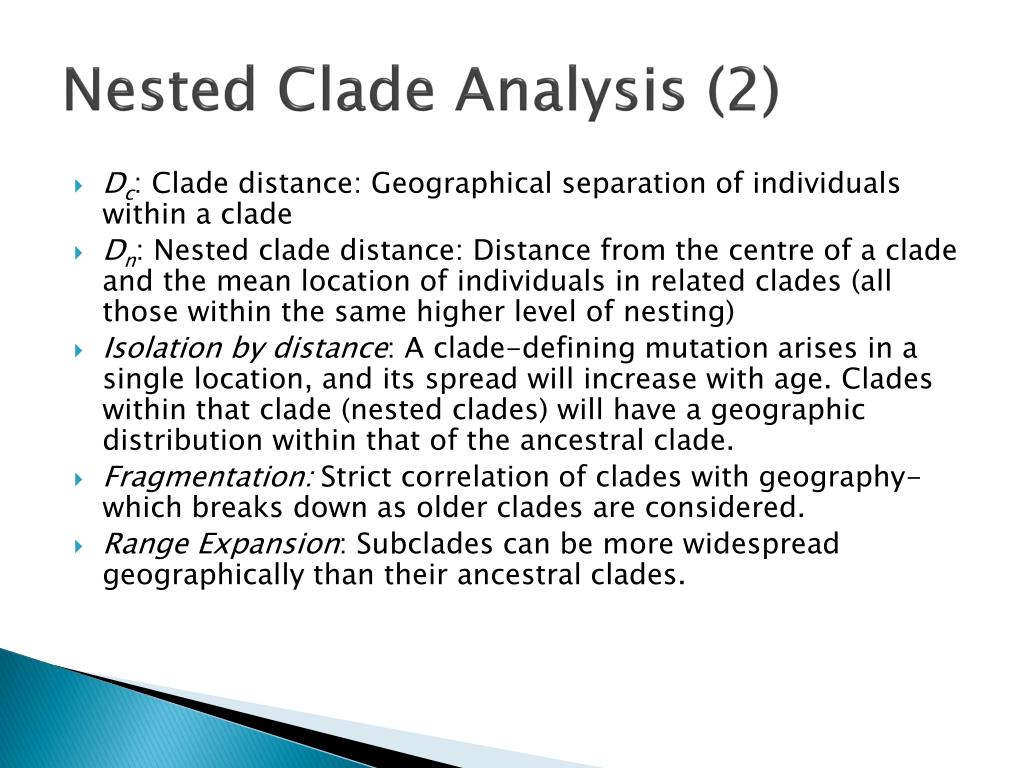

Nested clade analysis 2
Nested Clade Analysis (2) migration and mixing)

  • Dc: Clade distance: Geographical separation of individuals within a clade

  • Dn: Nested clade distance: Distance from the centre of a clade and the mean location of individuals in related clades (all those within the same higher level of nesting)

  • Isolation by distance: A clade-defining mutation arises in a single location, and its spread will increase with age. Clades within that clade (nested clades) will have a geographic distribution within that of the ancestral clade.

  • Fragmentation: Strict correlation of clades with geography-which breaks down as older clades are considered.

  • Range Expansion: Subclades can be more widespread geographically than their ancestral clades.


Methods structure jonathan pritchard

Samples individuals and genotypes at many loci migration and mixing)

Creates subpopulations where there are Hardy-Weinberg proportions and linkage equilibrium within subpopulations

Assigns individuals to subpopulations

http://pritch.bsd.uchicago.edu/structure.html

Methods: STRUCTURE- Jonathan Pritchard


Methods geneland

G. Guillot, Estoup, A., Mortier, F. Cosson, J.F migration and mixing). A spatial statistical model for landscape genetics. Genetics, 170, 1261-1280, 2005.

http://www2.imm.dtu.dk/~gigu/Geneland/

Methods-GENELAND


Natural selection

Selective Sweeps migration and mixing)

Complete or partial

Locus-specific

Natural Selection


Natural selection1
Natural Selection migration and mixing)

  • Effects on FST

    • Balanced polymorphism throughout species range gives low FST

    • Geographically localised selection gives high FST
