  1. The Liver, Gallbladder and Biliary Tree Tristan Boam

  2. Summary • Anatomy • Surface Anatomy • Epiploic Foramen • Liver • Liver Pathologies • Jaundice • Gall Bladder • Gall Stones • Gall Bladder Pathologies

  3. Liver - Anatomy • Anterior – 2 lobes: Left and Right • Separated by Falciform Ligament

  4. Liver - Anatomy • Posterior: 2 Lobes – Caudate (Superior) and Quadrate (Inferior) • Ligaments: Ligamentum Venosum (Superior) and Ligamentum Teres (Inferior) • Porta Hepatis and IVC Caudate Quadrate

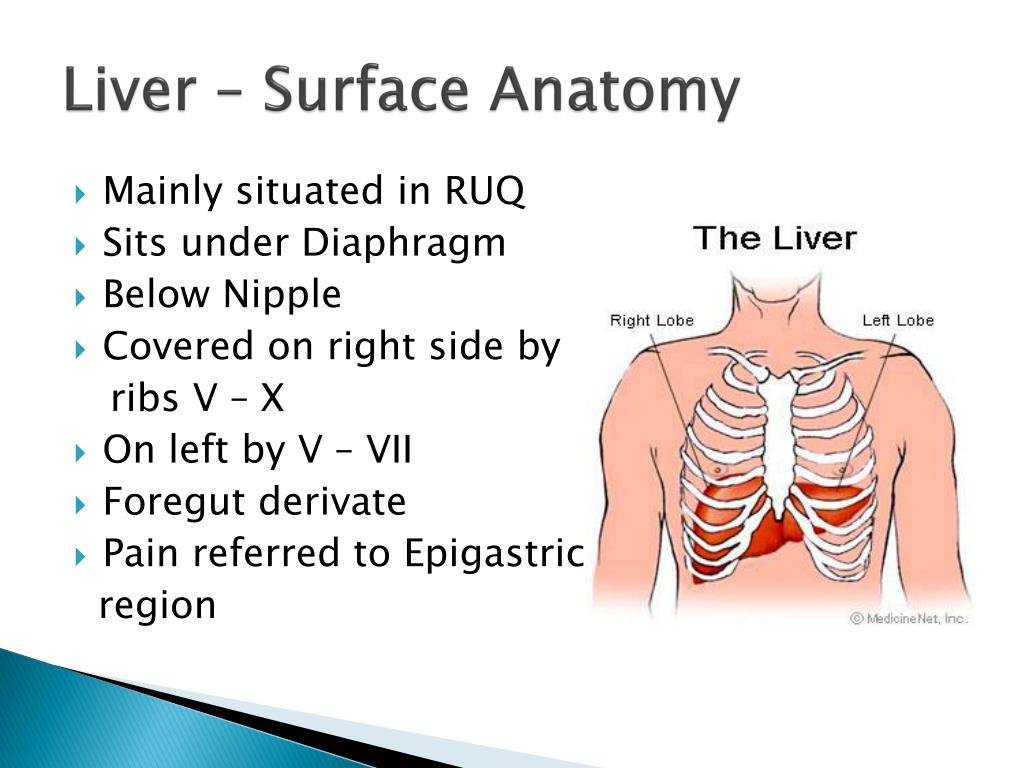

  5. Liver – Surface Anatomy • Mainly situated in RUQ • Sits under Diaphragm • Below Nipple • Covered on right side by ribs V – X • On left by V – VII • Foregut derivate • Pain referred to Epigastricv region

  6. Liver - Blood Supply • Hepatic Arteries • Hepatic Portal Vein • Hepatic Veins - IVC

  7. Hepatic Arteries • Coeliac Trunk • Common Hepatic Artery • Left and Right Hepatic Arteries • Porta Hepatis • 20 – 30% of O2 to Liver

  8. Hepatic Portal Vein • Tributaries from GI Tract: Oesphageal, Gastric, Splenic, Superior and Inferior Mesenteric Veins • 70 – 80% 02 supply to Liver

  9. Hepatic Veins • Drains Liver to the IVC • Helps to suspend Liver in Abdomen • Can be ruptured in high impact trauma

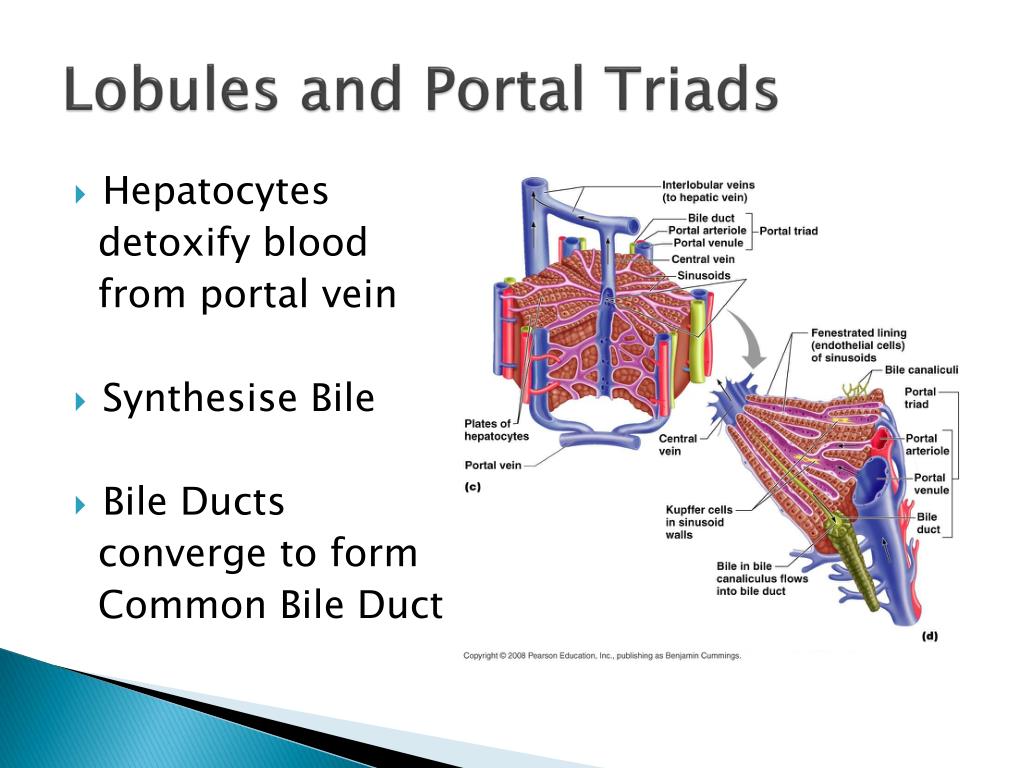

  10. Lobules and Portal Triads • Hepatocytes detoxify blood from portal vein • Synthesise Bile • Bile Ducts converge to form Common Bile Duct

  11. Epiploic Foramen • Entrance to Lesser Sac • Surgical Access • Borders: • Anterior: Portal Triad • conducted in free edge of • lesser omentum • Posterior: IVC • Superior: Caudate Lobe • Inferior: 1st Part of Duodenum

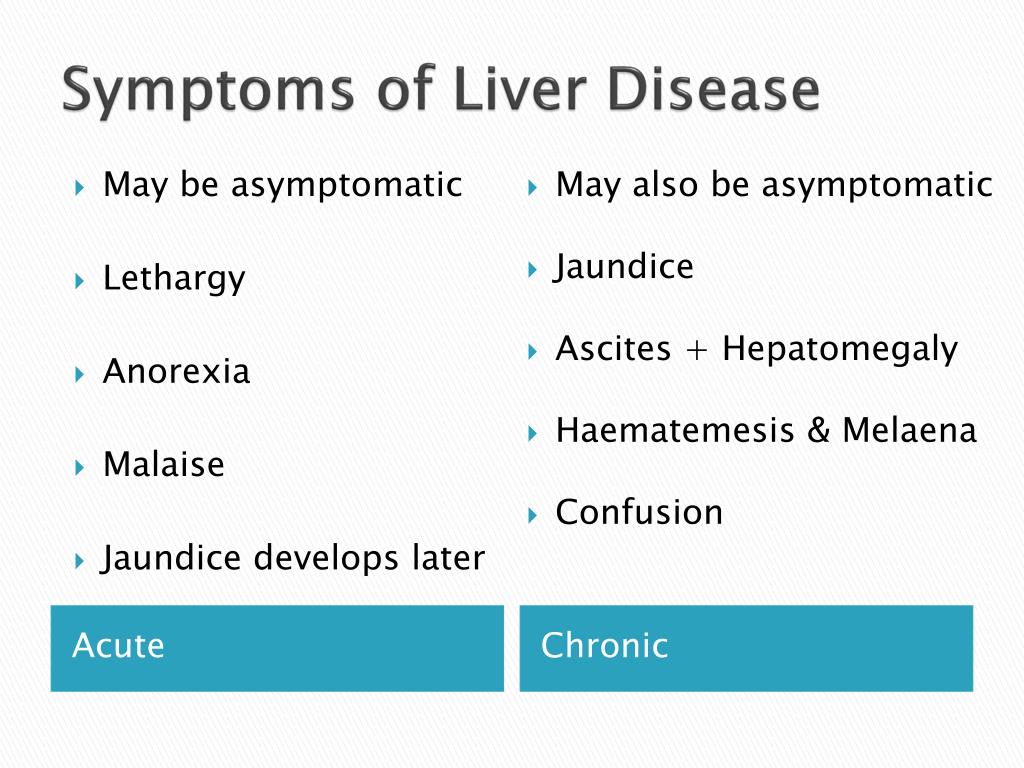

  12. Symptoms of Liver Disease • May be asymptomatic • Lethargy • Anorexia • Malaise • Jaundice develops later • May also be asymptomatic • Jaundice • Ascites + Hepatomegaly • Haematemesis & Melaena • Confusion Acute Chronic

  13. Jaundice • Pre-Hepatic • Haemolysis • Unconjugated so not in urine • Hepatic (CholestaticIntrahepatic) • Alcohol • Hepatitis • Cirrhosis • Conjugated • Post Hepatic (CholestaticExtrahepatic) • Gallstones • Tumour • Conjugated

  14. Hepatitis • Inflammatory cell infiltrates • Hepatocyte Necrosis • Hepatomegaly • Councilmann bodies in Viral Hepatitis due to apoptosis of hepatocytes

  15. Hepatitis - Causes • Viral • Hepatitis (all) • CMV • EBV • Toxoplasma • Alcohol • Drugs • Paracetamol • Isoniazid • Pregnancy • Hepatitis B ± D & C • Autoimmune • Alcohol • Drugs • Wilson’s Disease • Haemochromatosis Acute Chronic

  16. Cirrhosis • End stages of Chronic Liver Disease • Fibrosis and nodules affecting WHOLE Liver • Compression of venous systems and creation of arteriovenous shunts: • Portal hypertension

  17. Portal hypertension • Increase in hepatic portal vein pressure • Pre-hepatic • Portal vein thrombosis • Compression – carcinoma • Hepatic • Hepatitis • Cirrhosis • Post-hepatic • Rare • Budd-Chiari syndrome (Hepatic Vein Thrombosis) • Right Heart Failure • Constrictive Pericarditis

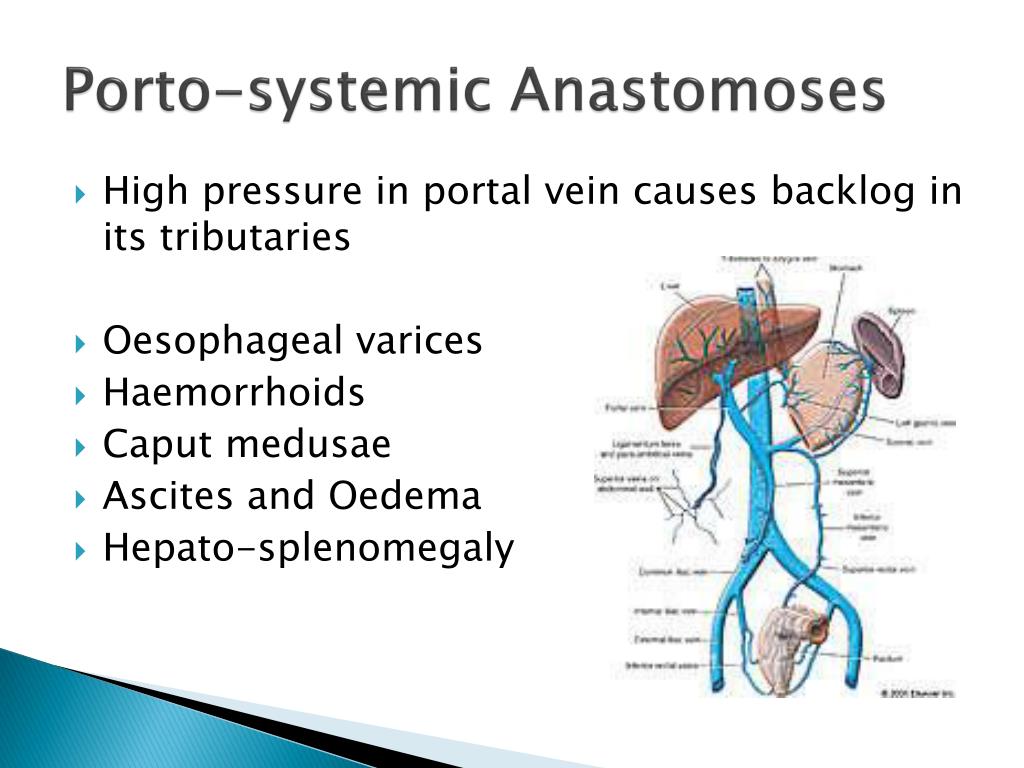

  18. Porto-systemic Anastomoses • High pressure in portal vein causes backlog in its tributaries • Oesophageal varices • Haemorrhoids • Caput medusae • Ascites and Oedema • Hepato-splenomegaly

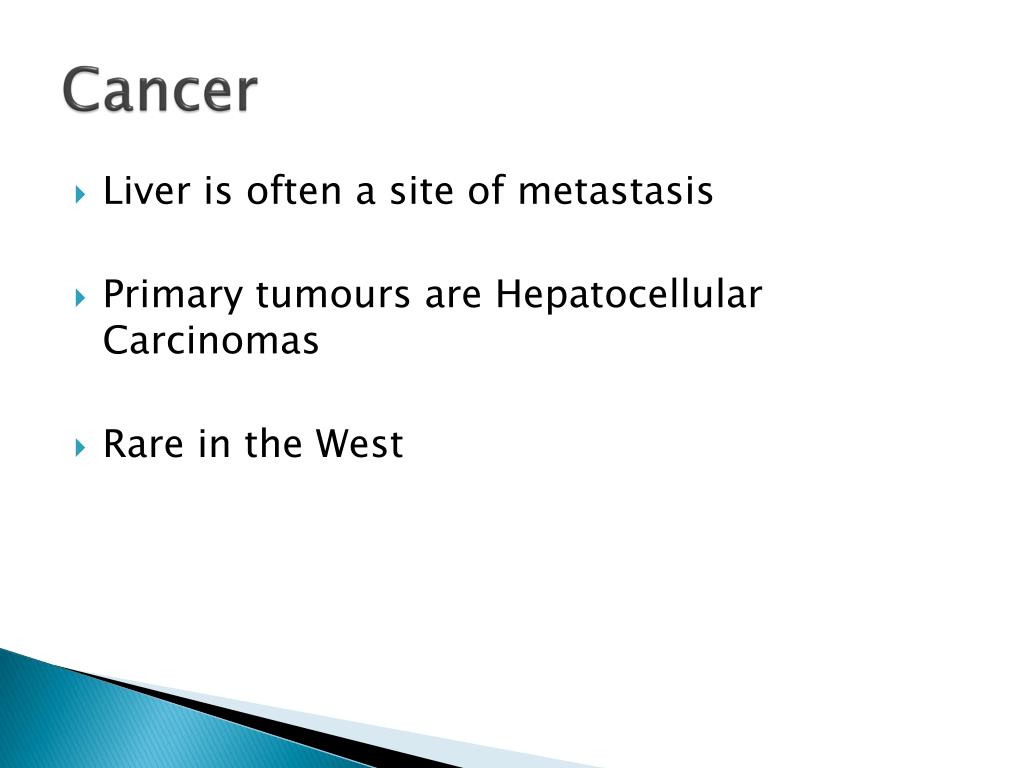

  19. Cancer • Liver is often a site of metastasis • Primary tumours are Hepatocellular Carcinomas • Rare in the West

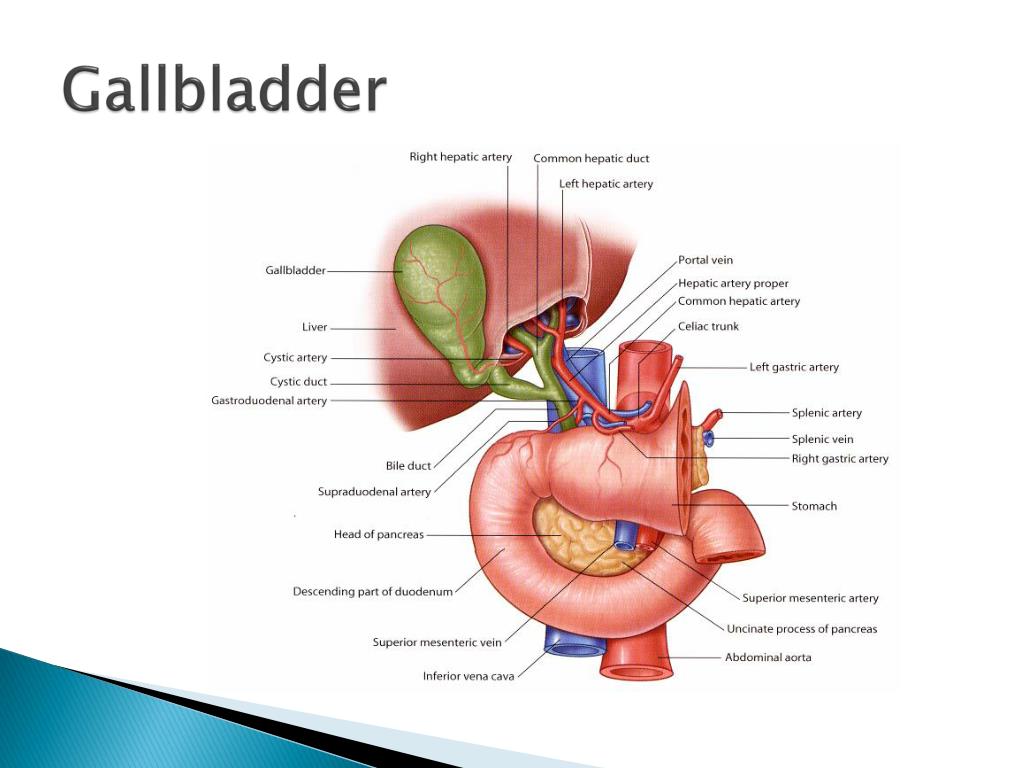

  20. Gallbladder

  21. Gallbladder

  22. Gallbladder • Fundus, Body and Neck • Stores bile • Supplied by cystic artery • Foregut derivate • Gallstones formed by cholesterol imbalance involved in pathologies

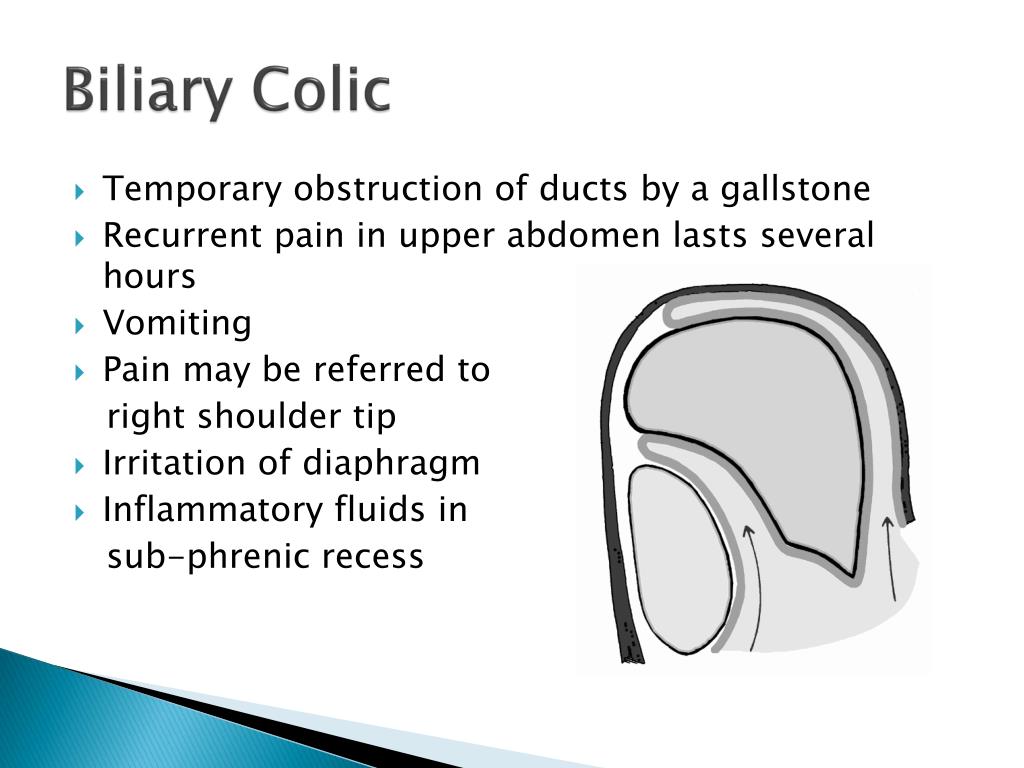

  23. Biliary Colic • Temporary obstruction of ducts by a gallstone • Recurrent pain in upper abdomen lasts several hours • Vomiting • Pain may be referred to right shoulder tip • Irritation of diaphragm • Inflammatory fluids in sub-phrenic recess

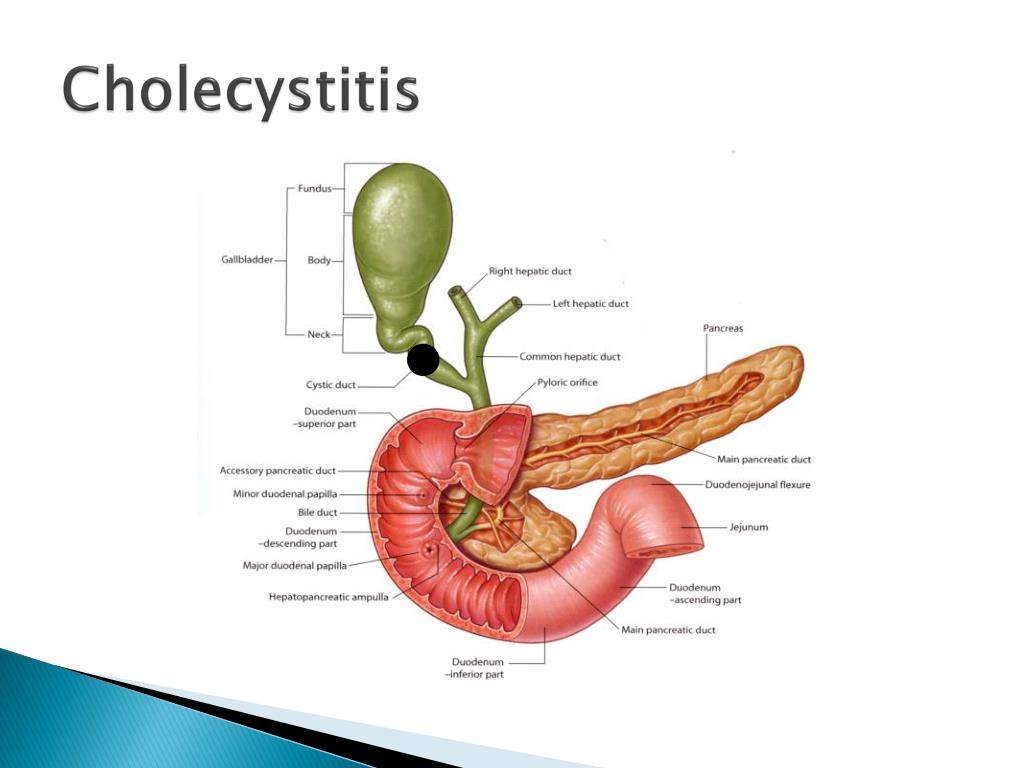

  24. Cholecystitis

  25. Cholecystitis • Gallstone impacted in cystic duct or neck of gallbladder • Symptoms same as biliary colic • Severe pain in RUQ, guarding • Inflammatory markers +ve, Leucocytosis • Murphy’s sign • Patient inhales • Physician pushes below right costal margin • Pain when patient exhales

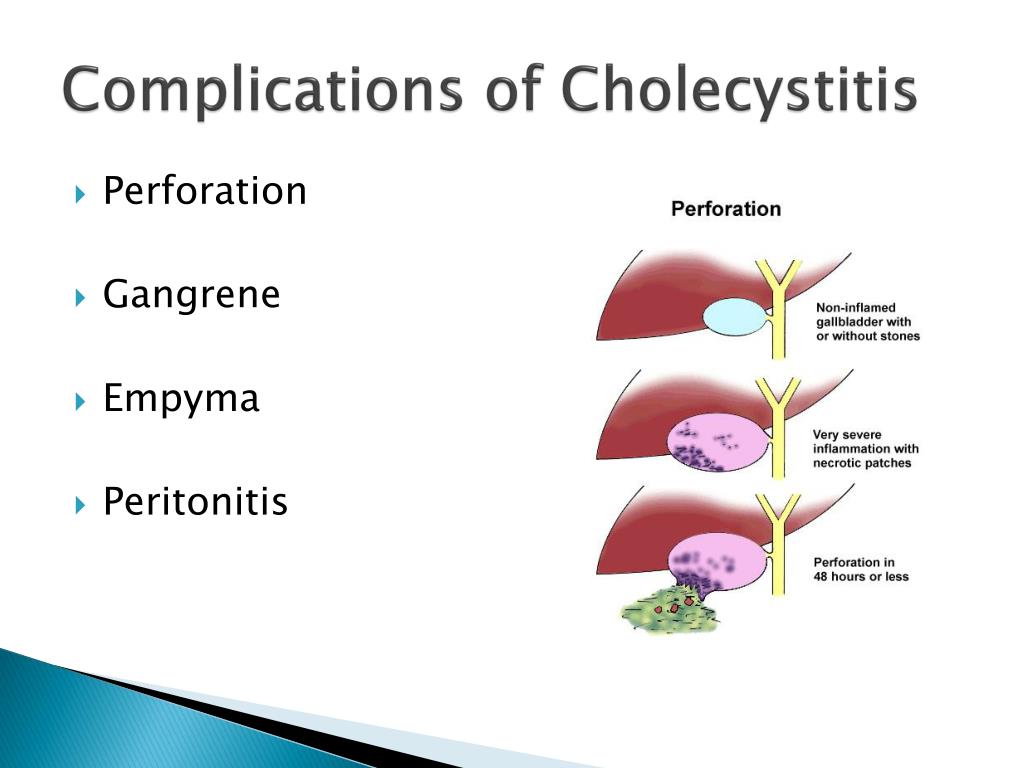

  26. Complications of Cholecystitis • Perforation • Gangrene • Empyma • Peritonitis

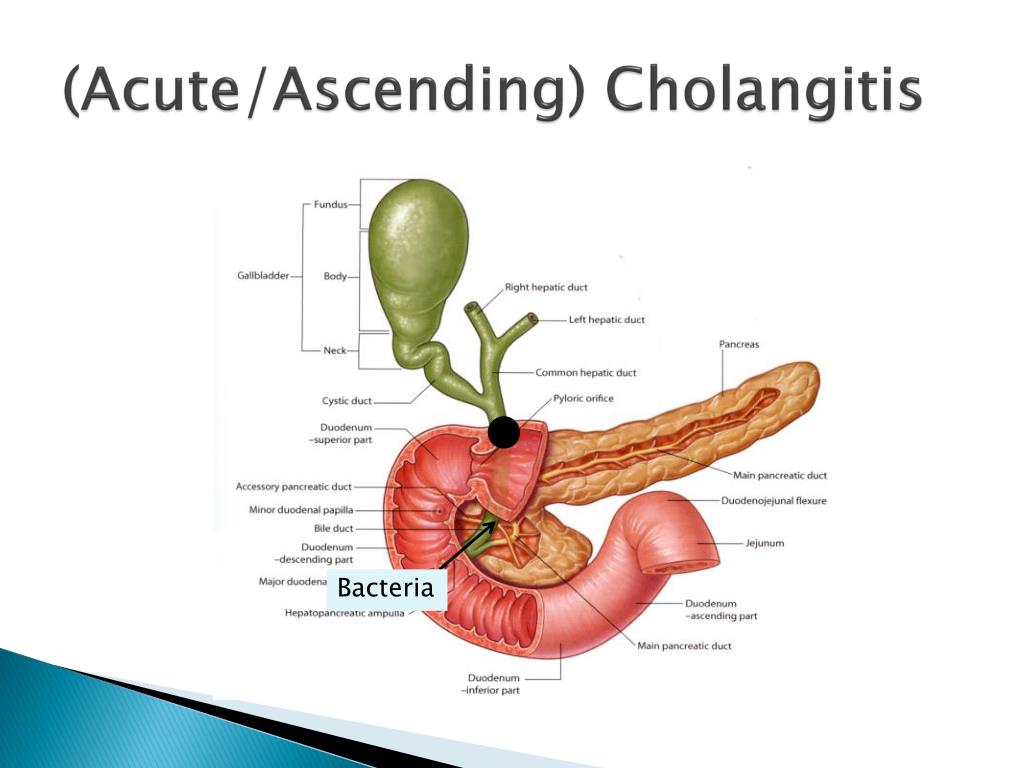

  27. (Acute/Ascending) Cholangitis Bacteria

  28. Cholangitis • Blockage of common bile duct • Jaundice (obstructive) • Lack of bile flow causes micro-organisms to ascend from the gut • E. Coli, E. Faecalis

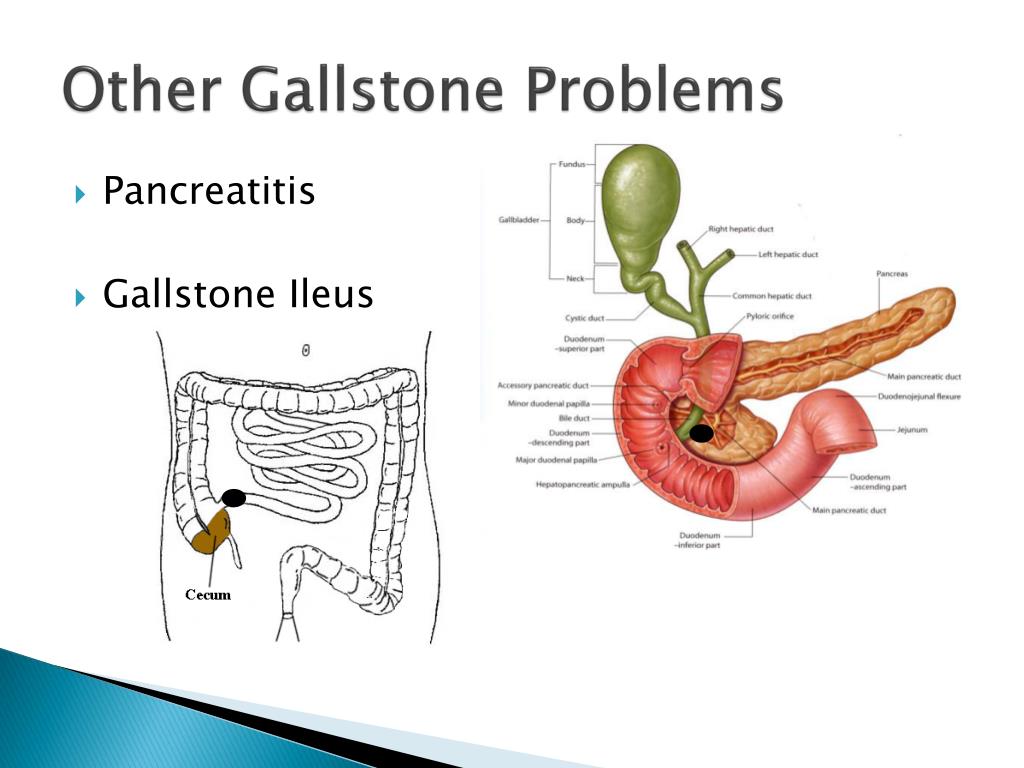

  29. Other Gallstone Problems • Pancreatitis • Gallstone Ileus
