  1. MEMBRANE SEPARATION CLASSIFICATION ASEP MUHAMAD SAMSUDIN, S.T.,M.T.

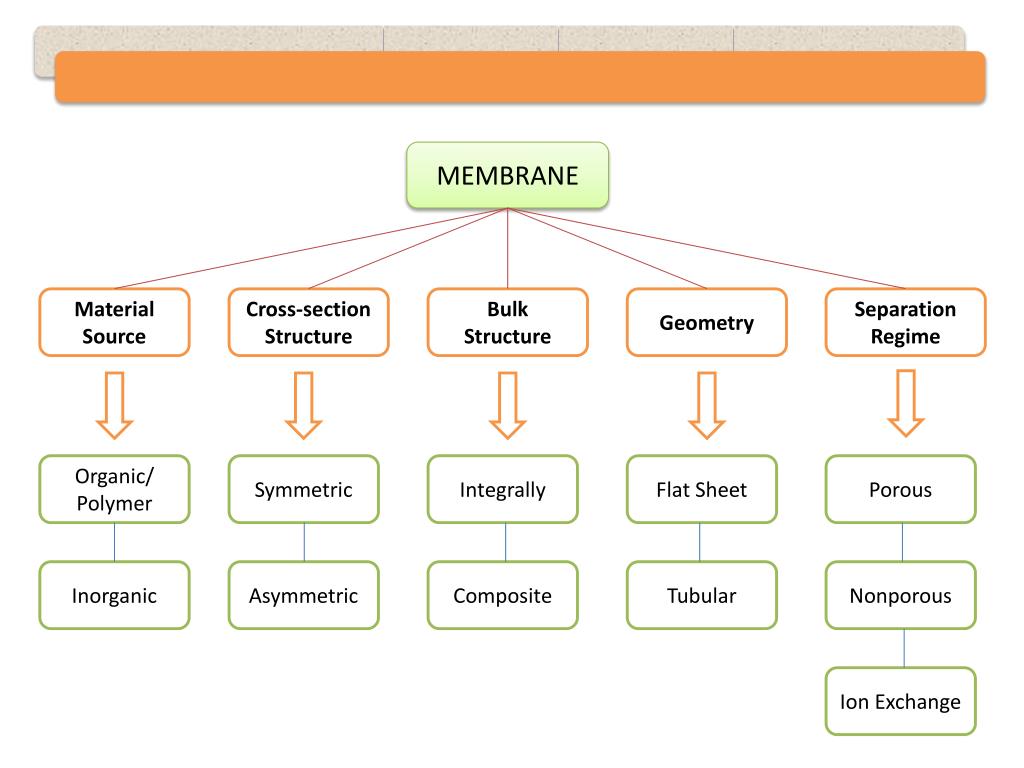

  2. MEMBRANE Material Source Cross-section Structure Bulk Structure Geometry Separation Regime Organic/ Polymer Symmetric Integrally Flat Sheet Porous Inorganic Asymmetric Composite Tubular Nonporous Ion Exchange

  3. Material Source Organic/ Polymer Inorganic Source : www.tjskl.org.cn Source : www.weiku.com

  4. Cross-section Structure Symmetric Asymmetric Source : www.sciencedirect.com

  5. Cross-section Structure Symmetric Asymmetric Source : www.sciencedirect.com

  6. Bulk Structure Integrally Composite Source : http://openi.nlm.nih.gov

  7. Geometry Flat Sheet Tubular Source : www.membranespecialists.com • hollow fiber (d < 0,5 mm) • capiler (d = 0,5  10 mm) • tubular (d 10 mm).

  8. Separation Regime Source : web.ornl.gov Source : glossary.periodni.com Source : www.co2crc.com.au

  9. Material source Cross-section structure Selective barrier regime Bulk structure Membrane process symmetric RO, MF porous UF, MF polymeric integrally ED charge non-porous asymmetric Membrane for separation porous UF, NF non-porous composite NF, RO, PV ED charge non-porous Inorganic
