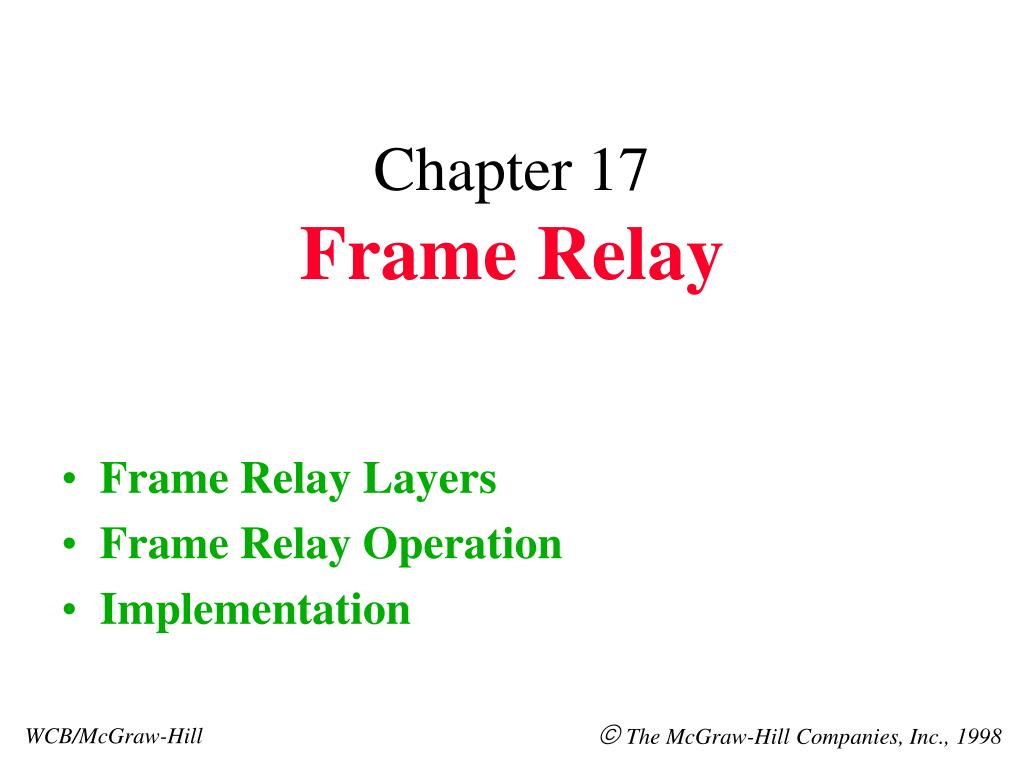

  1. Chapter 17Frame Relay • Frame Relay Layers • Frame Relay Operation • Implementation The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

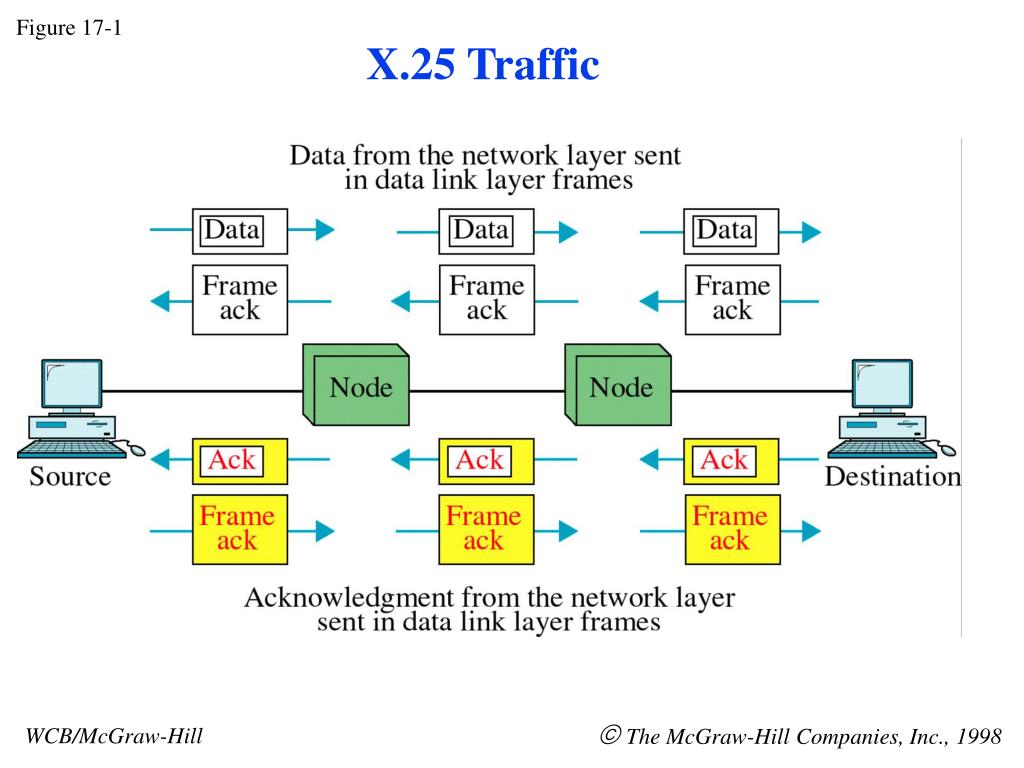

  2. Figure 17-1 X.25 Traffic The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  3. Figure 17-2 Frame Relay Traffic The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

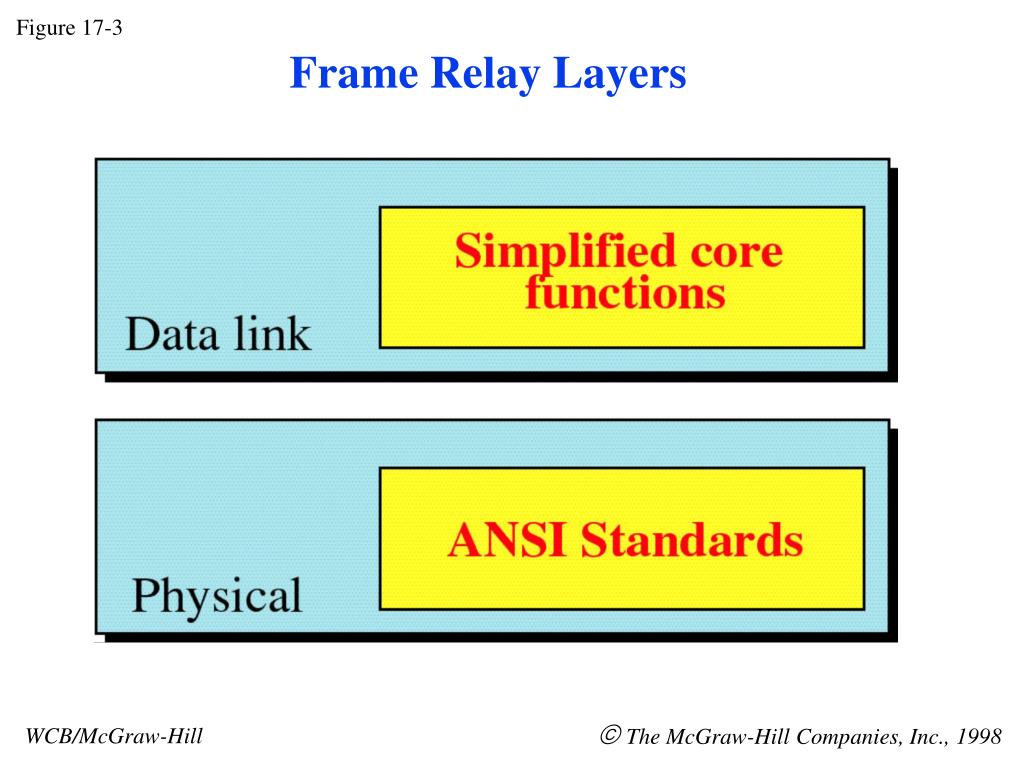

  4. Figure 17-3 Frame Relay Layers The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

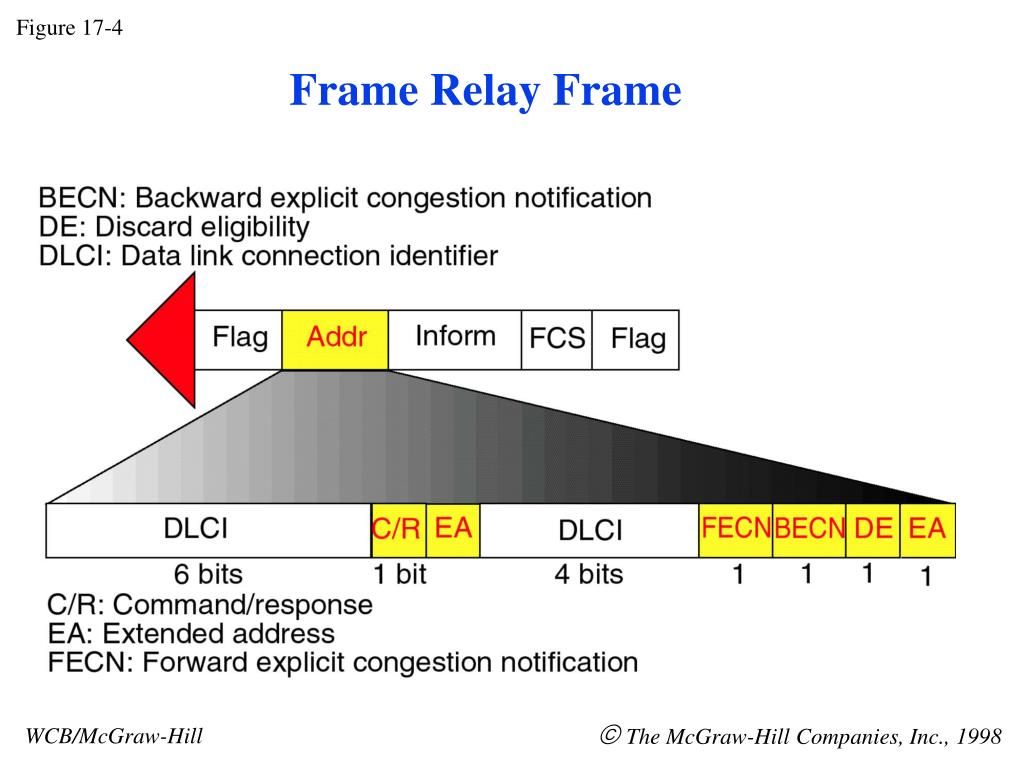

  5. Figure 17-4 Frame Relay Frame The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

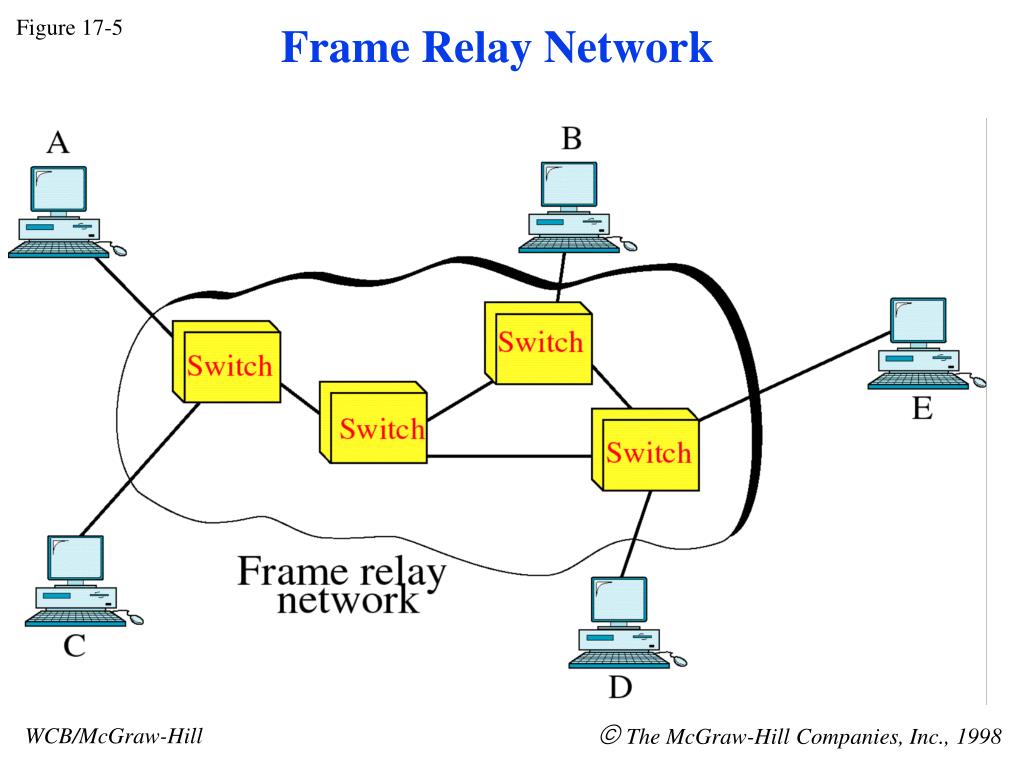

  6. Figure 17-5 Frame Relay Network The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

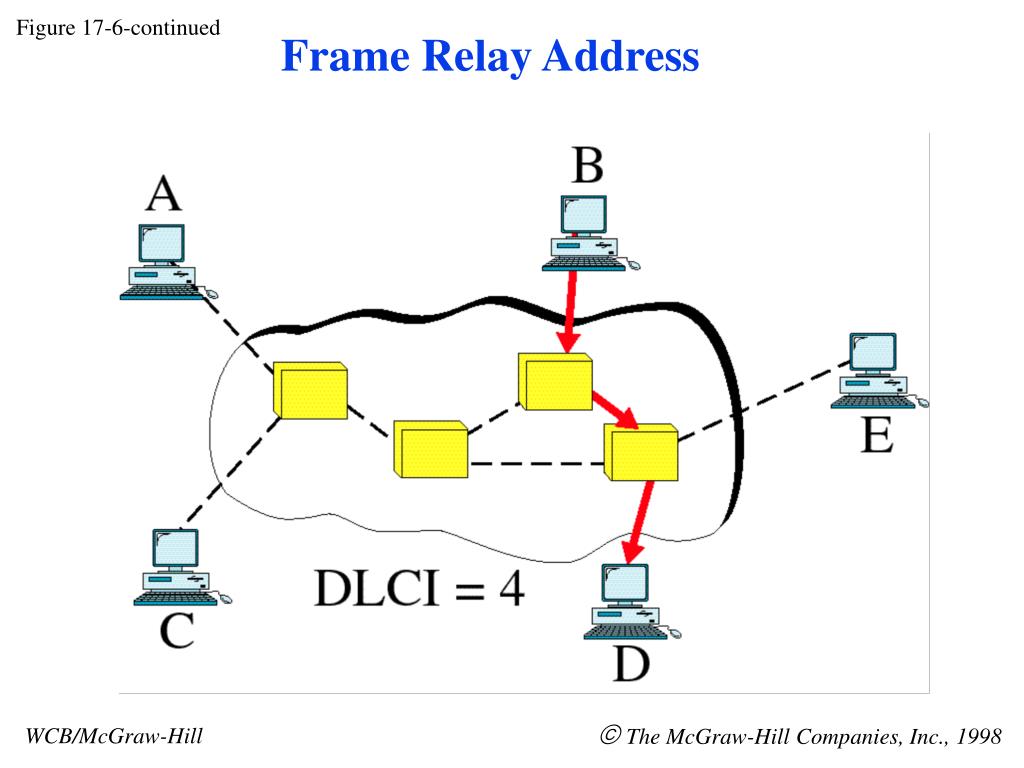

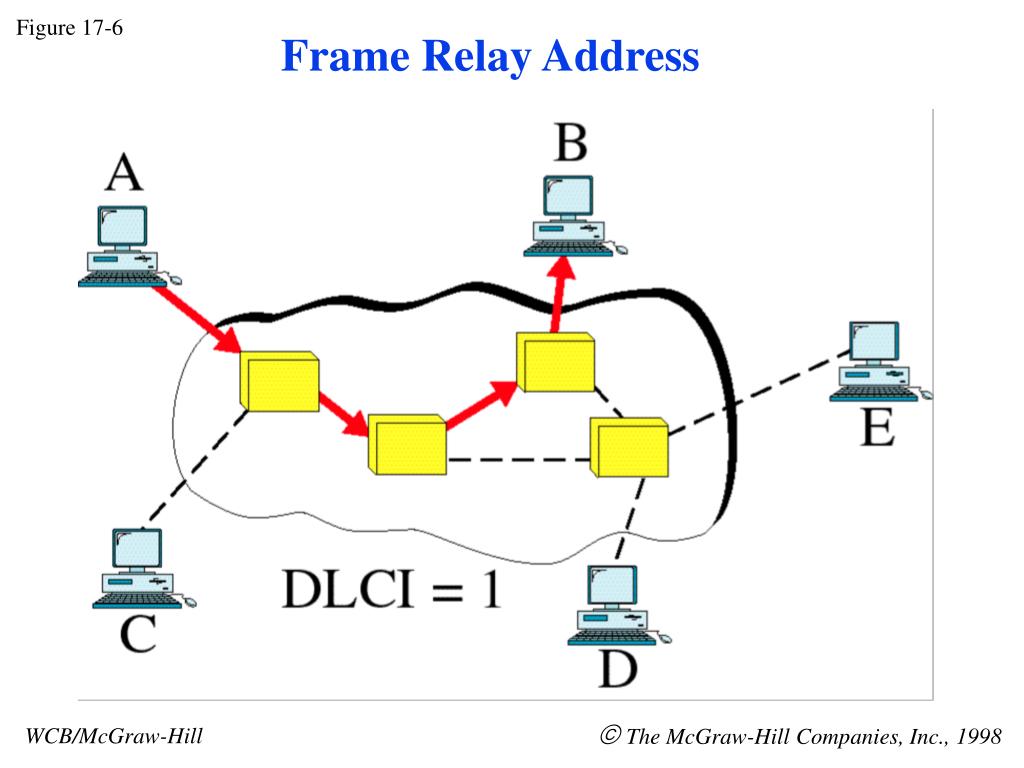

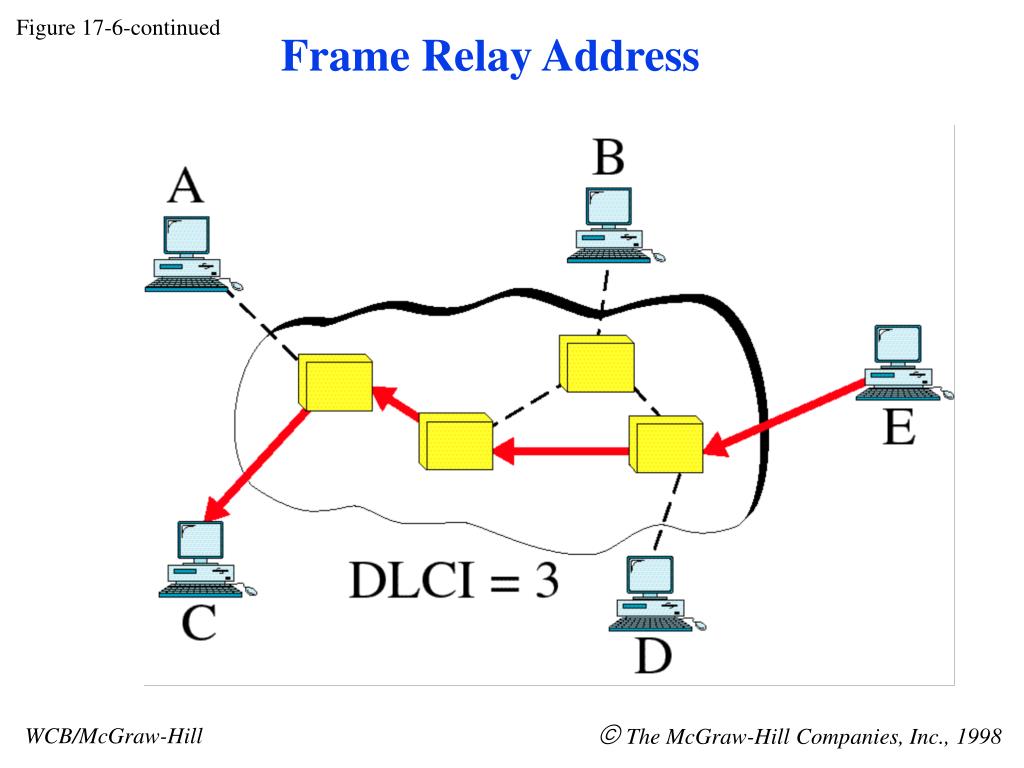

  7. Figure 17-6 Frame Relay Address The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  8. Figure 17-6-continued Frame Relay Address The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  9. Figure 17-6-continued Frame Relay Address The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  10. Figure 17-6-continued Frame Relay Address The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

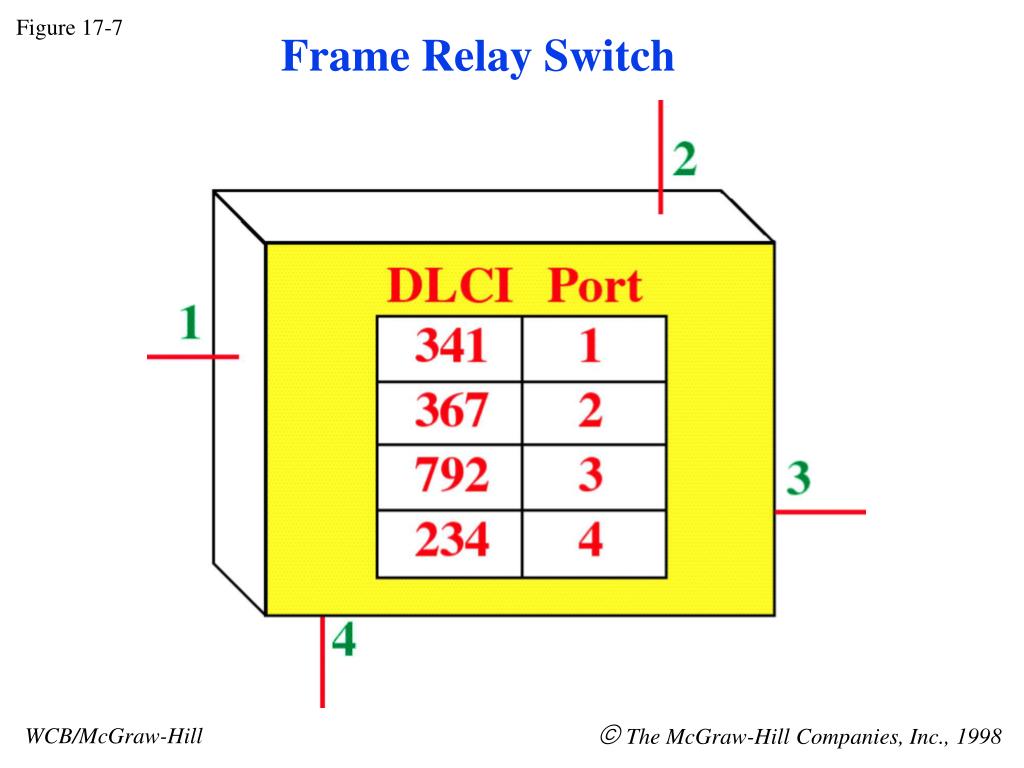

  11. Figure 17-7 Frame Relay Switch The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

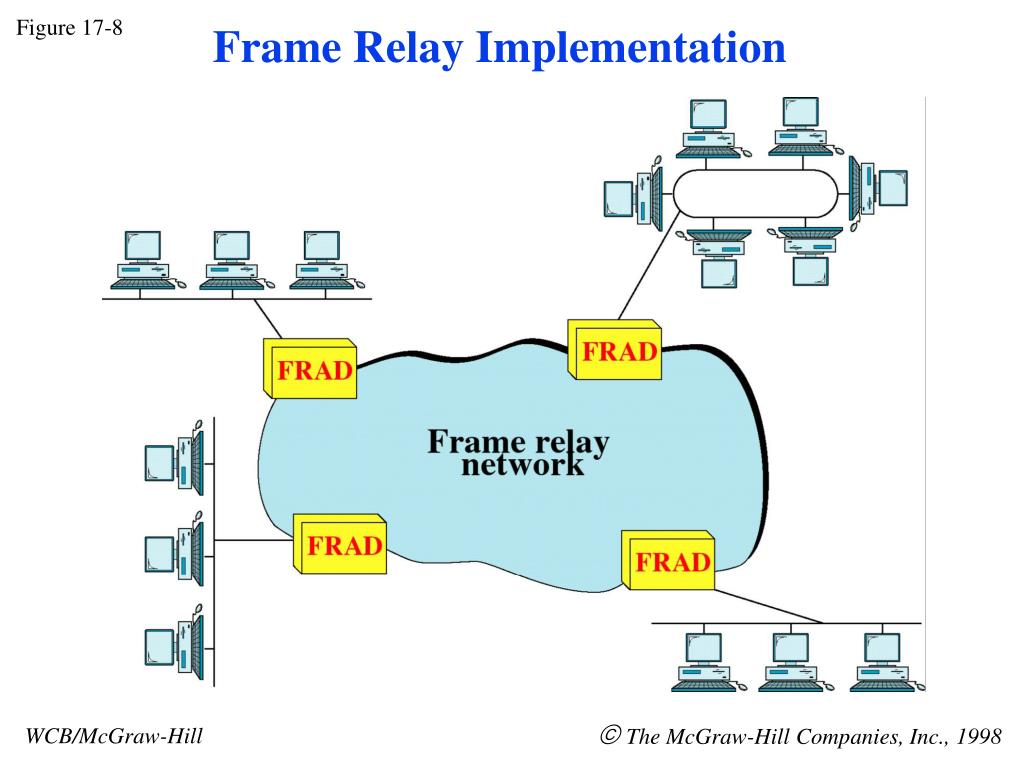

  12. Figure 17-8 Frame Relay Implementation The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill
