Presentation Transcript
slide1

The Value of Zero-Hour Implantation BiopsiesVolker Nickeleit Nephropathology Laboratory, Department of Pathology The University of North Carolina, Chapel Hill, USA

slide2

Baseline Renal Allograft Biopsies Purpose: 1) Organ adequacy (Harvest biopsy) 2) Pre-existing Disease (Protocol Biopsy) a) Post transplant biopsy interpretation (“book-keeping”)b) Prediction of function / management c) Diagnosis of (living) donor disease

slide3

Donor harvest biopsies

Harvest biopsies of limited practical valuePurpose: 1) Organ adequacy : + / - (adjunct tool) 2) Pre-existing Disease : + / -a) Adequate post transplant biopsy interpretation

b) Implantation protocol biopsies

slide4

Harvest biopsies of limited practical valuePurpose: 1) Organ adequacy : + / - (adjunct tool) 2) Pre-existing Disease : + / -a) Adequate post transplant biopsy interpretation (“book-keeping”)Improvement: a) standardization of technique, i.e. needle cores, deep wedges b) complete tissue evaluation (PAS, trichrome) and material sharing with managing transplant center c) systematic studies of criteria to discard organs

slide5

a) Donor harvest biopsies

b) Implantation protocol biopsies

slide6

Implantation protocol biopsies to assess donor disease

  • Strengths:
  • a) full histological evaluation “no time constraints”
  • b) good assessment of lesions “special stains”
  • Problems:
  • a) Risk of complications / bleeding
  • (caveat: living donations)b) Sampling: 15 gauge needles, only one core, no frozen tissue, subcapsular wedge biopsies
slide7

UNC experience with post perfusion biopsiesn=175 kidney transplantsn=114 post perfusion zero-hour biopsies (65% of all organs)n=1 Complication (extended bleeding) 0.9% of all biopsiesBiopsy procedure: biopsy gun, 15 gauge needle, 1 or 2 coresTissue fixation in formalin and fresh frozen collection

slide8

Baseline Renal Allograft Biopsies Purpose: a) Diagnosis of (living) donor disease b) Identifying “baseline” histological changesc) Prediction of function / management

slide9

Baseline Renal Allograft Biopsies Purpose: a) Diagnosis of (living) donor disease b) Identifying “baseline” histological changesc) Prediction of function / management

slide10

N=114 biopsies n=72 cadaveric, n=42 living origin donor age: median 37 yrs (range: 9 – 61 yrs)N=78 (68%) Banff minimal adequacy (> 6 glomeruli and > 1 artery; caveat: often medulla)N=22 (20%) Normal (no arteriosclerosis, no glomerulosclerosis)N=42 (37%) Immunofluorescence analysis N=0 Immuncomplex mediated GN N=0 C4d positivity N=0 Tubular HLA-DR expressionN=0 (0%) Active disease

slide11

Histological features (total n=114):Glomeruli median: 14 (range: 0 - 52)Sclerosed Glomeruli > 3 sclerosed glomeruli n=1% Interst. fibrosis 0% n=66, <10% n=31, > 10% n=13% Tub. Atrophy 0% n=84, < 10% n=22, > 10% n=6Arteriolosclerosis (0-4) (0) n=57, (1) n=33, (2) n=10, (3) n=1Intimal sclerosis (0-4) (0) n=45, (1) n=24, (2) n=17, (3) n=4 ATN (0-4) (0) n=0, (1) n=78, (2) n=48, (3) n=14, (4)n=1

slide12

Moderate Arteriosclerosis ( Scoring: > 2 / 4 ) 21 / 114 biopsies (18%) 18% of cadaveric organs N= 13 cadaveric organs (mean: 37 yrs, range: 18 – 59 yrs) N= 1 secondary FSGS (cadaveric organ) 19% of organs from living donations N= 8 organs of living origin (mean: 46 yrs, range: 37-54 yrs)

slide13

Baseline Renal Allograft Biopsies Purpose: a) Diagnosis of (living) donor disease

Unexpected arteriosclerosis (suggestive of hypertension induced damage) in 19% of donors

b) Identifying “baseline” histological changes

Arteriosclerosis and arteriolosclerosis in 40% of organs

slide14

Baseline Renal Allograft Biopsies Purpose: a) Diagnosis of (living) donor diseaseb) Identifying “baseline” histological changes

c) Prediction of function / management

slide15

Acute rejection - graft failure

( 12 months post transplantation)

Multi-organ recipients 4/ 114 (4%)

Acute rejection 19/ 110 (17%)

Graft failure 5/ 110 (5%)

BK-Virus nephropathy 8/ 110 (8%)

Lost for follow up 4/ 114 (4%)

40 Patients excluded from functional analyses

slide16

Statistical analysisHistological features: % globally sclerotic glomeruli % interstitial fibrosis % tubular atrophy arteriolosclerosis (0-4) arterial intimal sclerosis (0-4) ATN (0-4)Clinical data (during 12 months post transplantation):S-Creatinine: 2 weeks, 1, 3, 6, 12 months post txDelayed graft function: at least 1 episode of HD post txBlood-Pressure: 3, 6, 12 months post txAcute rejection episodesGraft lossDemographic data: Recipient age, sex, race, number of tx Donor age, sex, race Type of donor organ

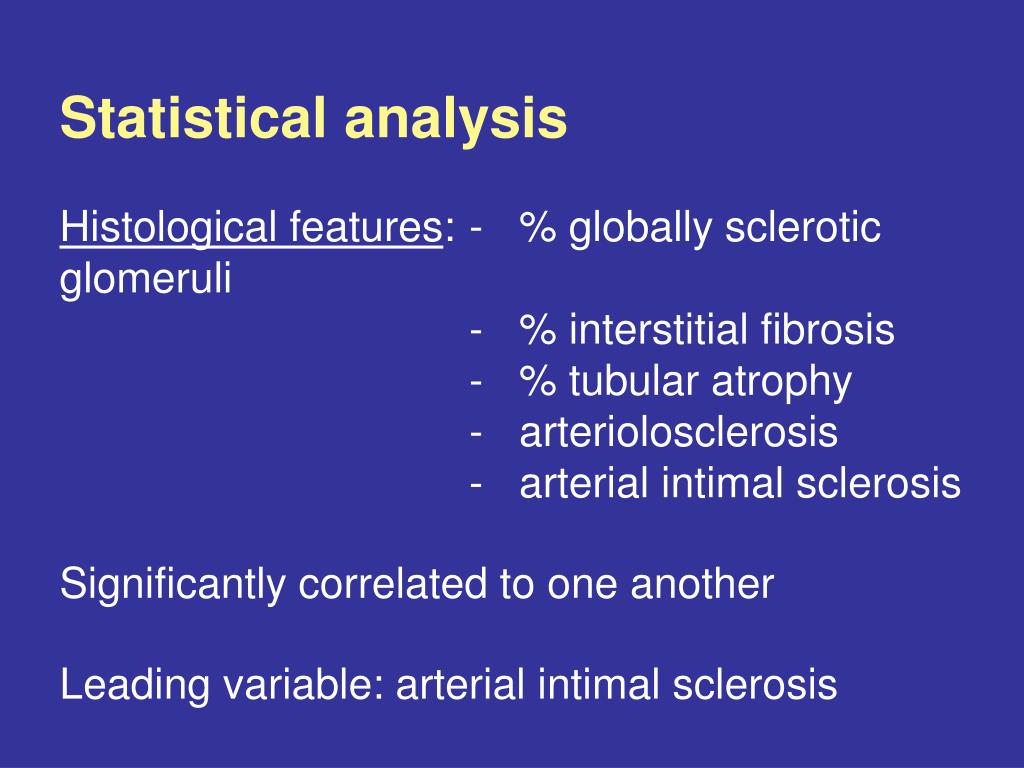

slide17

Statistical analysisHistological features: - % globally sclerotic glomeruli - % interstitial fibrosis - % tubular atrophy - arteriolosclerosis - arterial intimal sclerosis Significantly correlated to one anotherLeading variable: arterial intimal sclerosis

slide18

Statistical analysis: Arterial intimal sclerosisA) Arterial intimal fibrosis is correlated with the age of the donorAge in years ( mean + SD) Scoring 0 27,9 + 12.0 Scoring 1 42,7 + 8.3 Scoring 2 44.7 + 11.9 Scoring 3 46,7 + 6.3 p< 0.0001B) Arterial intimal fibrosis is not correlated with donor organ type, donor sex, donor race

slide19

Statistical analysis **: Arterial intimal sclerosis Arterial intimal sclerosis * Delay. S-Creatinine (mean + SD) Blood pressure( scoring 0-3 ) Funct. 2 1 3 6 12 3 6 12 % Wks m m m m m m mths 0 n=31 13% 1.27 + .321.25+ .33 1 n=14 14% 1.28 + .461.29+ .392 n=7 0% 1.60 + .431.62+ .40 3 n=2 0% 1.25 + .071.35+ .21 ns ns ns ns p<0.04 ns ns ns nsmild (0-1) n=45 13% 1.27+ .361.26+ .34moderate (2-3) n=9 0% 1.52 + .401.55+ .37 nsns ns p<0,04p<0.02 ns ns ns ns* Biopsies fulfilling minimal adequacy criteria only ** Evaluation of functioning renal grafts without rejection during 12 months

slide20

Statistical analysis: ATNA) Acute tubular injury (ATN) is correlated with donor organ typeCadaveric Living donation Scoring 0 4 9 Scoring 1 14 18 Scoring 2 38 10 Scoring 3 11 3 Scoring 4 0 1 p<0.001B) Acute tubular injury (ATN) is not correlated with delayed graft function, acute rejection episodes, arterial hypertension

slide21

Statistical analysis **: ATN Acute tub. injury Delay. Function S-Creatinine (mean + SD) ( scoring 0 - 4 ) 2 1 3 6 12 Wks m m m m 0 n=7 1.13+ 0.29 1 n=16 1.66+ .792 n=27 1.82+ 1.31 (3 and 4) n=6 2.17+ 1.35 ns p<0.05 ns ns ns ns ** Evaluation of functioning renal grafts without rejection during 12 months (total n=54)

slide22

Baseline Renal Allograft Biopsies Purpose: c) Prediction of function / management

Arterial intimal sclerosis: - associated with increased

S-Cr 3 and 6 months post tx

- associated with donor age

ATN: - associated with increased

S-Cr 2 weeks post tx

slide23

Baseline Renal Allograft Biopsies Purpose: a) Diagnosis of (living) donor disease b) Identifying “baseline” histological changesImpact on diagnoses in post transplant allograft biopsies c) Prediction of function / management

slide24

Chronic vascular rejection – versus - pre-existing donor disease

Zero-Hour Biopsy: Intimal sclerosis

Chronic inactive vascular rejection

slide25

Pre-existing donor disease and superimposed vascular rejection:

12 days post transplantation

Banff type II rejection: Endothelialitis

Donor disease: intimal sclerosis

Media

slide26

Pre-existing donor disease and superimposed rejection

5 months post transplantation:

Arterial intimal sclerosis and chronic active vascular rejection

slide27

Calcineurin-inhibitor induced arteriolopathy

  • versus –
  • pre-existing arteriolosclerosis

Zero-Hour Biopsy: arteriolosclerosis

Cyclosporine arteriolopathy

baseline zero hour biopsies
Baseline (Zero-Hour) Biopsies
  • Important for adequate classification of transplant pathology

caveat: fibrosis and atrophy may be donor disease!

active and scarred rejection may be superimposed on donor disease!

  • Prediction on graft function
  • Some help to detect (living) donor disease
  • Help for scientific projects (e.g. gene expression analysis post tx, latent viral load measurements etc)

Specific diagnoses

slide30

Banff “Edition” for reporting Donor Disease1) Strongly recommend adequate baseline implantation biopsies2) Separately score and report donor disease (“D”)Dcv (0-3): arterial intimal fibroelastosis with marked multilayering of elastic lamellaeDah (0-3), Dci (0-3), Dct (0-3)Dcg: percentage of globally sclerotic glomeruli3) Post transplantation: - score Banff lesions as usual - specifically comment on previous “D” scores
