  1. Tektronix EGBU Design Win Randall Rhea March, 2007

  2. Tektronix Deal Profile • Leading manufacturer of test equipment • Tektronix acquired Inet in 2004 • Inet provided telecommunications test equipment • Oracle 10g enterprise deal up for renewal • Wanted to upgrade enterprise systems and network equipment to RAC for high availability • Oracle not currently used in some embedded systems • Ken Wajerski established close relationships with the commercial Oracle sales team • Ed Peek – Sales Director • Ryan Feaver – Account Manager • Deal closed in Q3 • Approx. $1,000,000 of the deal credited to embedded/EGBU • Deal included RAC upgrade and Berkeley DB for embedded systems

  3. Tektronix Network Analysis Products • Problem: Wireless carriers cannot determine cause of network problems • Why are calls getting dropped? • Tektronix Geoprobe • Analyzes all packets in a network • Real-time alarms and troubleshooting • Home-grown database (no Oracle products) • Embedded platform, 2U hardware on Linux • Tektronix Orion and Beamer • Allows carriers to focus on its most profitable customers (such as corporate customers) • Goal is to improve quality-of-service to retain big customers • Larger platform that uses Oracle 10g, wanted RAC upgrade

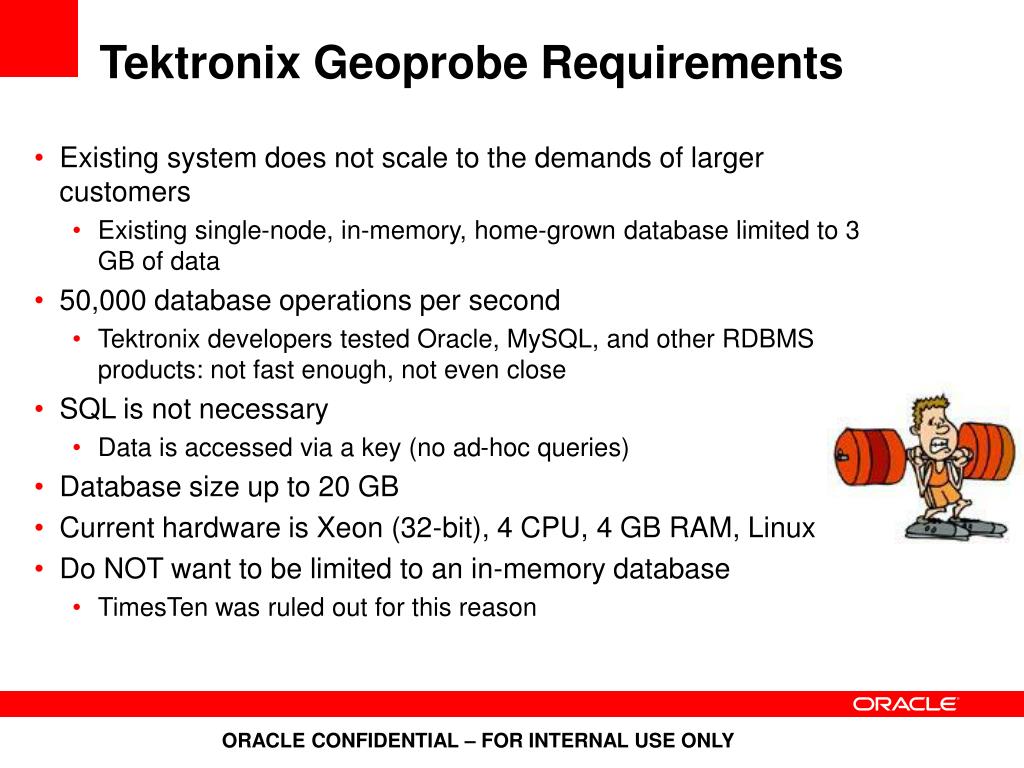

  4. Tektronix Geoprobe Requirements • Existing system does not scale to the demands of larger customers • Existing single-node, in-memory, home-grown database limited to 3 GB of data • 50,000 database operations per second • Tektronix developers tested Oracle, MySQL, and other RDBMS products: not fast enough, not even close • SQL is not necessary • Data is accessed via a key (no ad-hoc queries) • Database size up to 20 GB • Current hardware is Xeon (32-bit), 4 CPU, 4 GB RAM, Linux • Do NOT want to be limited to an in-memory database • TimesTen was ruled out for this reason

  5. Challenges • 64-bit hardware was not available • Geoprobe must use the 32-bit 3GB hardware used in Tektronix’ other products • If disk I/O is required, the queries won’t be fast enough • 15,000 RPM disks can perform about 150 random seeks per second • 20 GB database exceeds RAM on one system (3 GB) • No out-of-the-box solution available • RDBMS like Oracle RAC are not fast enough, even if fully cached • Tektronix considered enhancing their home grown system to provide data distribution and clustering

  6. Sales Approach • Determine appropriate product • Berkeley DB was the only possible option • Determine if Berkeley DB could meet 50,000 TPS requirement • Obtained benchmark from Steve Folkman (The TimesTen TPTBM benchmark re-written for Berkeley DB) • Modified benchmark to better simulate customer’s transaction • Benchmark run on lab systems from TimesTen R&D • If the performance target could be met, propose an architecture to the customer • A combination of Berkeley DB and home-grown code • FUD for keeping existing home-grown database • Particularly with HA (high availability)

  7. Benchmark Results • Performance of 49,000 to 55,000 operations per second on 100% read test • Database was 85% to 100% cached in memory • Consistent performance as database increased in size • Write performance of 40,000 operations per second on a single disk; 75,000 operations per second on a 4-disk array • Conclusion: Meets customer requirement, provided that most of the database is cached • Disk I/O is the bottleneck if the database is not cached • If data was not cached, response time slows down as database size increases due to inherent latency in disk operations

  8. Current Tektronix System • Limitations: • Database size limited to memory on one machine (3 GB, cannot be upgraded on 32-bit machines) • Tektronix must maintain home-grown database software • Tektronix developers should spend time on business logic, not database software Applications Home-Grown TCP/IP interface TCP/IP & Ethernet Home-grown in-memory DB

  9. Architecture Proposal:Distributed/Clustered Cached Database Applications Home-Grown TCP/IP interface In this example, there are four 8 GB nodes, so the capacity is 3x8 = 24 GB Cached Database Cached Database Cached Database Cached Database Cached Database Cached Database Cached Database Cached Database Interconnect (Ethernet)

  10. Challenges in a Clustered System • If a node fails in the cluster, the entire cluster is down • High availability is required • This is usually done with a standby node and replication • This was a key FUD point to discourage customer from keeping home-grown system • Cluster must be managed • This is not easy • Many nodes must be managed – both individually, and how they are working together • It becomes more difficult as you add nodes • Current home-grown system lacks: • HA of any kind • Monitoring capabilities • Caching • Disk persistence • Concurrency

  11. Proposal • A combination of home-grown code and Berkeley DB • Berkeley DB would: • Replace home-grown data manager • Handle basic database I/O, caching, persistence, recovery • Locking, concurrency • Backup, recovery • Home-grown code would: • Distribute the data to multiple nodes by a simple algorithm (a mod function or hash function) • Manage the cluster • Vs. a complete home-grown solution, this reduces the development effort by about 50%

  12. How Berkeley DB Reduces Costs • Berkeley DB is not a distributed database … • However, Berkeley DB can make a distributed database project a lot easier, faster, less expensive, and less risky • With Berkeley DB, the customer would not need to build or maintain low-level database code • Berkeley DB is very flexible: • All in memory • All on disk • On disked and cached in memory

  13. How Berkeley DB Reduces Costs (2) • Berkeley DB has several high availability (HA) options: • Replication allows for a hot standby node: if a node fails, the standby immediately takes over with no downtime • Warm failover allows for quick recovery of a down node’s data on another node – after a short downtime (several seconds), the system is back up and fully operational • Backup and recovery: All database on all nodes can be backed up, in case the entire cluster needs to be recovered • A replica “global” database on disk can provide a backup copy of all data in case a down node needs to be restored, or the entire cluster needs to be re-initialized • HA is very difficult to write and maintain yourself

  14. No high availability?Get ready for a nightmare … • The system is down, you are called to a customer site to fix the system • You need to restore the data on a node, but there is no useable backup • Data is distributed across multiple nodes • There is no single backup with all of the data • The “backup” is several, separate files that are old and don’t contain a consist copy of the database • With no logging, thousands of transactions are lost • Answer: keep a disk-based copy of all the data in Berkeley DB • This acts as a global checkpoint file • If a node needs to be recovered, or the entire cluster restored, you can use the global database to recover it • Each database write would go to an in-memory node and the global replica node

  15. Future Use of Berkeley DB in GeoProbe Geoprobe Applications Home-Grown TCP/IP interface There can be both a full disk-based copy of BDB and in-memory copies. The replica disk database can contain ALL data, and can be used to restore down nodes or re-distribute data when new nodes are added. Home-Grown Cluster Management Restore data to down node Spare Node On disk with all data In Memory In Memory In Memory Interconnect (Ethernet)

  16. Lessons Learned • Sometimes, the customer’s requirements are unique, and no off-the-shelf product can solve the problem • Be creative in proposing a solution that uses an Oracle product • Try to piggyback on top of an Oracle enterprise deal • Berkeley DB alone may not provide enough value to the customer to win a large deal • Establish close relationships with the other Oracle sales teams • The internal sales job is just as important as customer sales job • Make sure other Oracle sales teams are aware that the EGBU can help them • Ask sales managers for a few minutes during staff meetings to present the EGBU story

  17. Q & A
