The New , Advanced

3. The New, Advanced Technology Provides the Earliest, Most Discriminating Fire Detection on the Market Today!

4. TheProvides TIME • SAVE Your Business Without INTERRUPTION!

5. Continuous Air Sampling Actively Draws Air Sample Through Pipe Network

6. Advantages

7. FEATURES Virtually Immune to False Alarms State-of-the-Art Detection Ultra Sensitive Detection EARLY Detection Can SAVE Your Business New Advanced Technology Ensures Optimum Performance & Reliability New Maintenance Friendly Design Equal or Less Requirements when Compared to Other Air-Sampling Detectors

8. FEATURES Single Point Maintenance Minimal Impact On Business Functions Harsh/Industrial Environment Friendly Unaffected by Temperature, Dust or Humidity Remote Detection Inaccessible Spaces & High Ceiling Applications Small, Esthetically Pleasing Sampling Heads Does Not Distract from Architecture or Decor

9. FEATURES Unequalled Sampling Network Engineering Active Detection with Accurate Response Non-Ferrous Sampling Network Does Not Effect, Nor is it Affected by Electronic Environments Industry’s Best Pipe Network Supervision Network Supervision Ensures Sample Integrity Solves Security Concerns Secure Room Access is Not Required for Maintenance

10. Applications

11. Single Point Maintenance Power Plants Ultra Sensitive Detection HVDC HALL Up to 100 Feet Non-Ferrous Sampling Network Does Not Require Access to Sampling Heads Electronic Environment Friendly Does Not Require Multi-Layer Protection Will Detect TRUE Fire Threats, Even Electrical Arcing

12. CogenerationPlants

13. Hydro Generation Facilities

14. Hydro Generator Detection

15. Single Point Maintenance Control Rooms Ultra Sensitive Detection Non-Ferrous Sampling Network Minimal Disruptions to Mission Functions Will Detect Only TRUE Fire Threats Electronic Environment Friendly

16. Coal Conveyors

17. Challenge: • Determine the IFD Cirrus’ ability to detect fire over coal conveyors. • Test the IFD Cirrus’ ability to withstand heavy coal dust environment without false alarming.

18. Installation: • The IFD Cirrus was installed for 13 weeks in a NEMA 4 enclosure. • From here, the piping would run down to the lower level entrance conveyors.

19. Testing: • To conduct the test, temporary air sampling piping was constructed of ½” flexible nylon tubing running the length of the conveyor with air sampling points approx. every 10 ft.

20. Testing: • The IFD Cirrus is outfitted with a filter manifold system that removes coal dust from the air, NOT combustion particles caused by fires.

21. Test Results: • Despite its harsh environment, the IFD Cirrus performed flawlessly throughout the length of the test. • It did NOT FALSE ALARM or have any troubles or faults.

22. High Bay Applications

23. Single Point of Maintenance Esthetically Neutral Sampling Heads High Ceilings Up to 100 Feet Does Not Distract from Architecture or Decor Does Not Require Access to Sampling Heads Does Not Require Multi-Layer Detection

24. Nuclear Facilities

25. Single Point Maintenance Warehouses Up to 100 Feet Inaccessible Areas Maintenance & Operation Friendly Does Not Require Access to Sampling Heads Does Not Require Multi-Layer Protection

26. Air-CooledGenerators

27. Sample Directly From Inside Equipment

28. Earliest Detection Available

29. CLOUD CHAMBER

31. Thermal Particulate Point In Air MATERIAL TEMPERATURE (F°) • PVC Insulation 290 • Motor Oil SAE-30 310 • Pine Board 320 • Silicone Rubber 335 • RTV 340 • Acrylon Carpeting 340 • Wool Carpeting 360 • Vinyl Tile 370 • Polyethylene 410 • Nonmetallic Cable Wire Insulation 420 • Bond Writing Paper 500 • Teflon 610 • Polystyrene 710 109/ sec/cm3 Particle Release Rate

32. How Small Is A Micron Human Hair .0035 inch .0001 inch Micron .000039 inch .001 inch IFD Cirrus Detects 1 500th of a Micron (.002 Micrometers)

33. Cloud Chamber Detects Only True Fire Threats

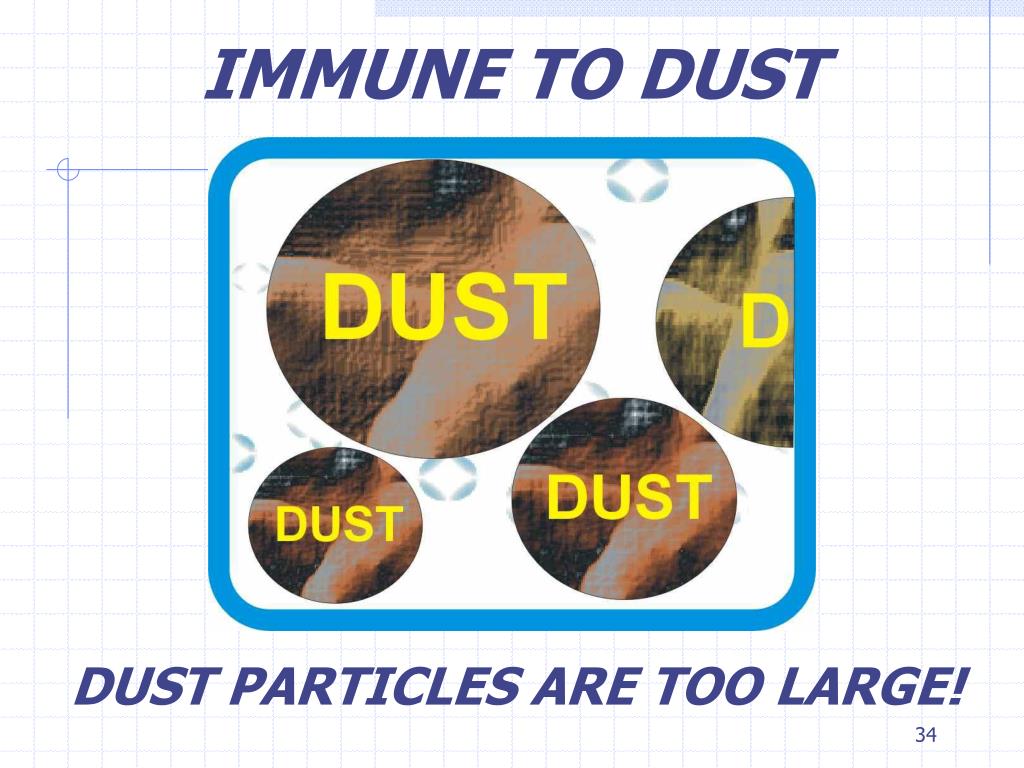

34. IMMUNE TO DUST DUST PARTICLES ARE TOO LARGE!

35. Demonstration

36. Fire Growth Curve Laser Detector Smoke Detector Flame Detector Heat Detector Sprinkler Aspirating Smoke Density TIME

37. Product Features

38. 3 Programmable Alarm Levels Per Zone • 300 Sensitivity Levels Built-In Programmable By Key Pad Continuous Self Monitoring Diagnosis Easy To Read LCD Display Up To 4 Zones From A Single Enclosure PRODUCT FEATURES Up To 43,200 Sq Ft Protection From A Single Panel Continuous Self Monitoring Diagnosis Up To 4 Zones From A Single Enclosure 300 Sensitivity Levels Built-In Fully Programmable 3 Programmable Alarm Levels Per Zone Easy To Read LCD Display

39. PRODUCT FEATURES Common Alarm & Trouble Contacts Common Alarm & Trouble Contacts 100 Event Log 100 Event Log Alarm Data Retention Alarm Data Retention 2 Notification Appliance Circuits Optional 0-10VDC 4-20MA Output Optional 0-10VDC 4-20MA Output

40. PRODUCT FEATURES Fully Engineered Multiple Head Network Fully Engineered Multiple Head Network Precise Zone By Zone Flow Supervision Precise Zone By Zone Flow Supervision Programmable On-Site Or Remotely Programmable On-Site Or Remotely 2 Notification Appliance Circuits 2 Notification Appliance Circuits Serial Communication Interface Serial Communication Interface

41. CirrusNet Network Software

42. Remote Service

43. Hardwire Telephone Network CirrusNet Code Operated Switch Short Haul Modem

44. Remote Monitoring From Anywhere In The World

46. 5915 Stockbridge Drive 105 Monroe, NC 28110 Phone (704) 821-7920 FAX (704) 821-4327 www.safefiredetection.com
