Presentation Transcript

LNG Liquefaction, Storage & Delivery




Topside Facilities

Our 85,000 square foot Complex Located Near Boston, Combines Engineering, Administration & Operations.

Prefabricated & Manufactured M&R Facilities

& Lateral Interconnects

Complete Solutions for Natural Gas, LNG,Gas Storage, SCADA & Power Customers

Engineering, Fabrication, Field Services,

Project Management, Development & Financing.

Distributed Generation

Combined Heat & Power

Gas Storage & Compression

corporate highlights
  • Developed Company with Patented Technology and Complete System Solutions
  • Interconnect Specialists for Business and Technical
  • 41 Facilities and SCADA for PNGTS and Maritimes & Northeast Pipelines
  • Grassroots LNG and Storage Efforts
  • Engineering, Management Consulting and Strategic Planning
  • SCADA, HMI and Back Office Efforts
  • Field Services with OQ Staff
  • 45 GSA’s and Alliance Partnerships for Gas, Storage, LNG and IPP’s
  • Complete Staff of Engineers, Welders, Electricians, Developers & Support Personnel in Our 85,000 Sq. Ft. Engineering/Fabrication Facility.
business strategy
Business Strategy
  • Create Northstar Corporate Resources
  • Set Up Alliance Partnerships, GSA’s & Develop Projects With Clients As a Partner
  • Perform Preliminary Engineering
  • Provide Financing Options & Create Equity Opportunities
  • Perform Final Design, Fabrication & Manufacturing
  • Install, Commission, Train & Project Documentation
  • Provide On-Going Field Services & Engineering
  • GSA’s In-Place:
patented modular gas facilities us patent 6 176 046

Complete City Gate Station

US Patent 6,176,046




HP Gas M&R Room

Single Building Design Delivers 105 MMCFD

Pipeline Integrity




Launchers & Receivers

Fast Track Installation

Patented Modular Gas Facilities US Patent 6,176,046

Pipeline Topside & Interconnect Facilities.

Fabricated Offsite & Installed as Complete Systems

Available as Complete Systems or Individual Modules Filtering & Pigging, Measurement & Flow Control, In-Line Heating, Pressure Control, Odorization & SCADA

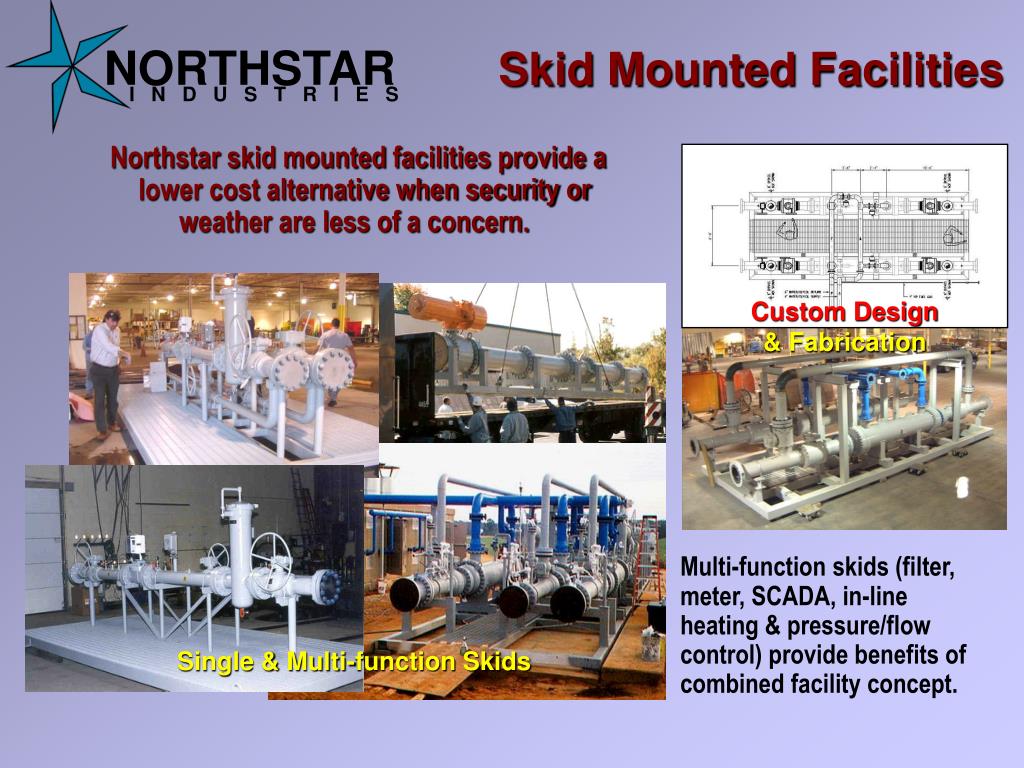

skid mounted facilities

Custom Design

& Fabrication

Single & Multi-function Skids

Skid Mounted Facilities

Northstar skid mounted facilities provide a lower cost alternative when security or weather are less of a concern.

Multi-function skids (filter, meter, SCADA, in-line heating & pressure/flow control) provide benefits of combined facility concept.

liquefied natural gas
Liquefied Natural Gas

Control Building

LNG Process Area

US Patent 6,474,101


Fueling System

Storage, Containment,

Truck Fill/Unload, Vaporization

Phase 1


Based on Patented Modular Gas Facilities

Heat Source, Odorization,

Controls, SCADA, Emergency Power

Phase 2


Modular design allows for fast track EPC & easy expansion.

Vaporization Utilizing Remote Boilers

Patented Designs &

Recent EPC Experience

Project Development & Finance for Regional

LNG Hub Facilities

gas storage and compression
Gas Storage and Compression

Lodi Gas Storage

Scope included SCADA, Compressor Controls, Flow Control, Metering and Regulation for 18 BCF field with 500,000 MCFD interconnection. Developed a unique wireless Ethernet control system that allows operator to remotely manage the field.

  • Gas Compression Scope of Services:
  • Project Development & Financing
  • Pipeline Compressor Optimization Studies
  • Preliminary/Front End Engineering
  • Detail Engineering & Design
  • Construction Management & Construction Services
  • EPC Project Services
engineering scada
Engineering & SCADA

Complete SCADA Solutions from Modular Control Center to Remotely Operated Facilities, combined security, systems, programming, operator stations, power and communications.

Northstar Engineering Team members are from gas pipeline and distribution companies from throughout the USA, and include licensed professional engineers.
