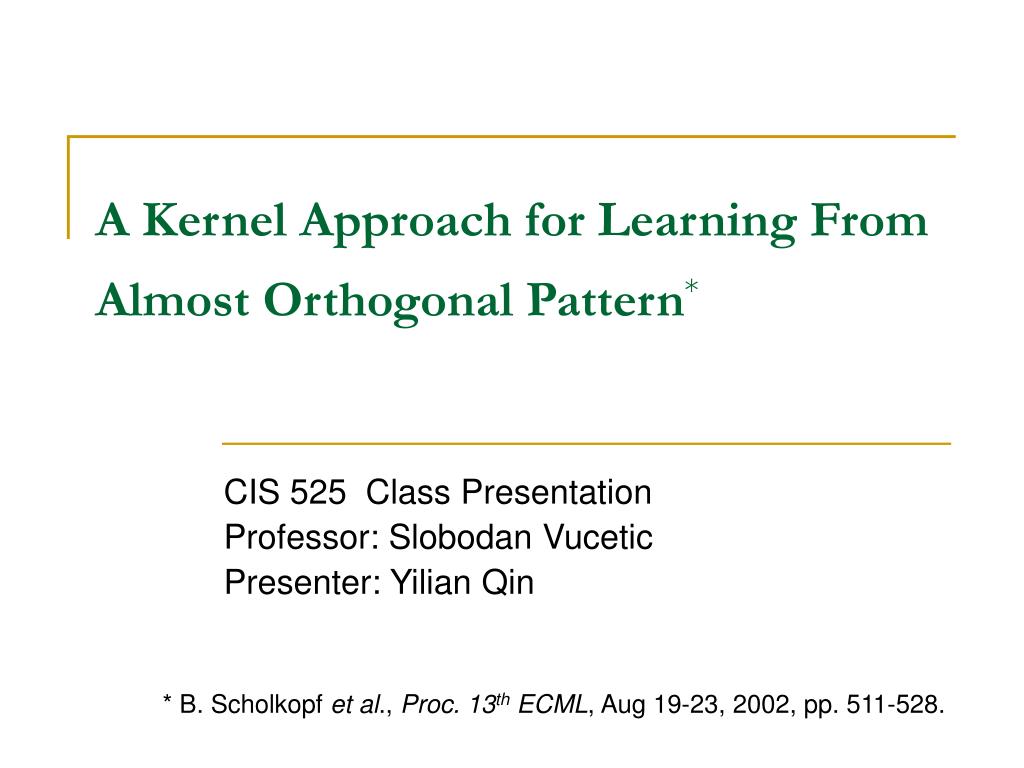

A Kernel Approach for Learning From Almost Orthogonal Pattern*

CIS 525 Class Presentation

Professor: Slobodan Vucetic

Presenter: Yilian Qin

* B. Scholkopf et al., Proc. 13th ECML, Aug 19-23, 2002, pp. 511-528.

presentation outline

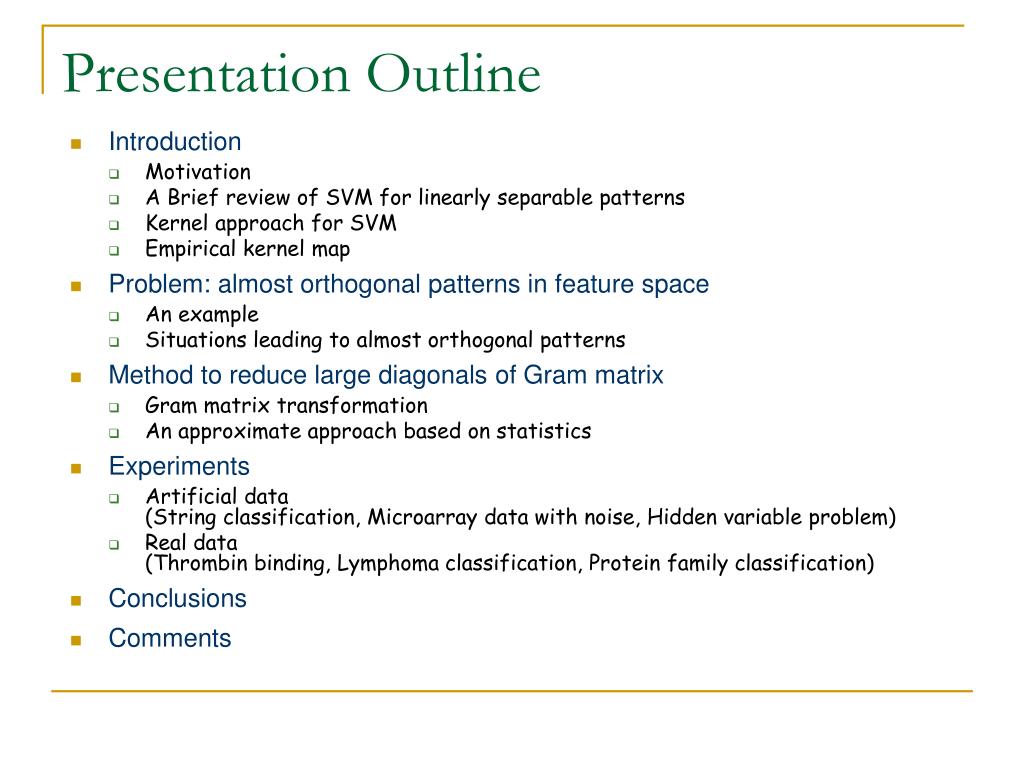

Presentation Outline
  • Introduction
    • Motivation
    • A Brief review of SVM for linearly separable patterns
    • Kernel approach for SVM
    • Empirical kernel map
  • Problem: almost orthogonal patterns in feature space
    • An example
    • Situations leading to almost orthogonal patterns
  • Method to reduce large diagonals of Gram matrix
    • Gram matrix transformation
    • An approximate approach based on statistics
  • Experiments
    • Artificial data (String classification, Microarray data with noise, Hidden variable problem)
    • Real data (Thrombin binding, Lymphoma classification, Protein family classification)
  • Conclusions
  • Comments
motivation

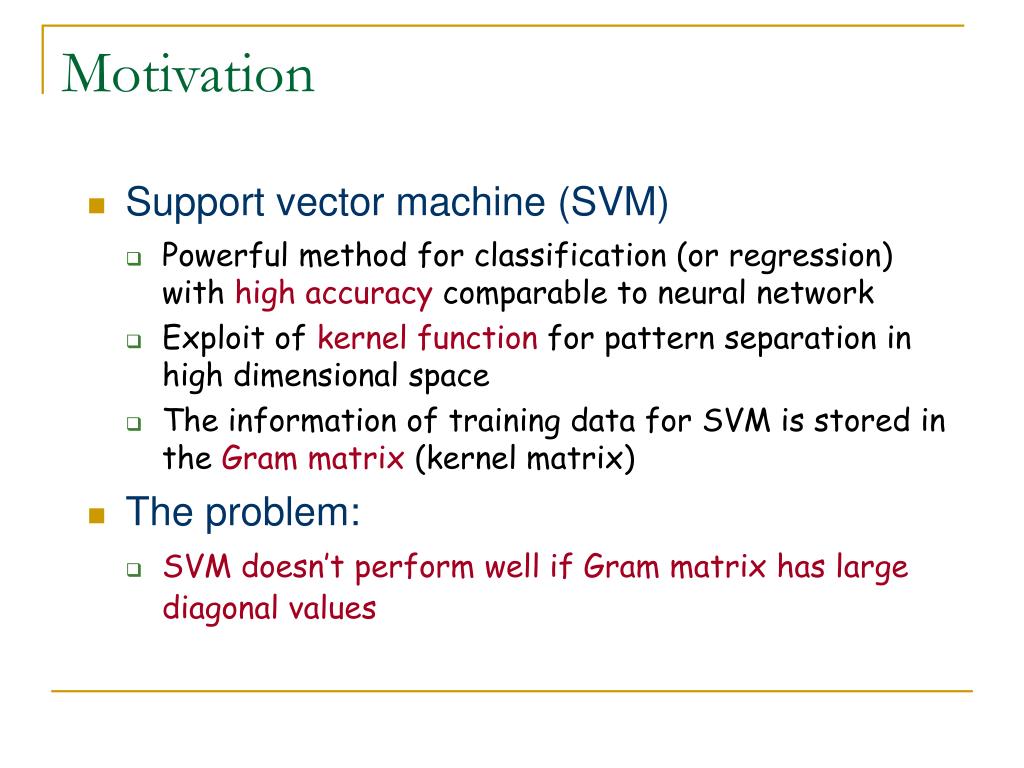

Motivation
  • Support vector machine (SVM)
    • Powerful method for classification (or regression) with high accuracy comparable to neural network
    • Exploit of kernel function for pattern separation in high dimensional space
    • The information of training data for SVM is stored in the Gram matrix (kernel matrix)
  • The problem:
    • SVM doesn’t perform well if Gram matrix has large diagonal values
a brief review of svm

+

+

+

+

depends on closest points

+

+

+

+

margin

A Brief Review of SVM

For linearly separable patterns:

To maximize the margin:

Minimize:

Constraints:

kernel approach for svm 1 3

Minimize:

Constraints:

Kernel Approach for SVM (1/3)
  • For linearly non-separable patterns
    • Nonlinear mapping function (x)H: mapping the patterns to new feature space H of higher dimension
    • For example: the XOR problem
    • SVM in the new feature space:
  • The kernel trick:
    • Solving the above minimization problem requires: 1) Explicit form of 

2) Inner product in high dimensional space H

    • Simplification by wise selection of kernel functions with property: k(xi, xj) = (xi)  (xj)
kernel approach for svm 2 3

Minimize:

Constraints:

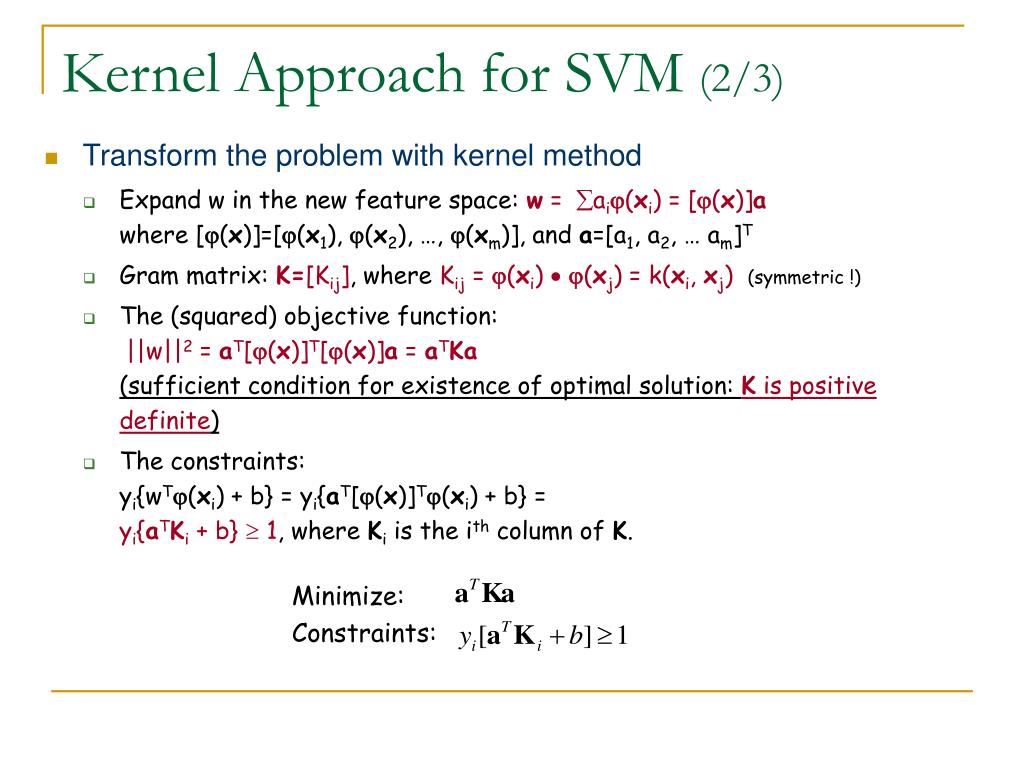

Kernel Approach for SVM (2/3)
  • Transform the problem with kernel method
    • Expand w in the new feature space: w = ai(xi) = [(x)]awhere [(x)]=[(x1), (x2), …, (xm)], and a=[a1, a2, … am]T
    • Gram matrix: K=[Kij], where Kij = (xi)  (xj) = k(xi, xj) (symmetric !)
    • The (squared) objective function:||w||2 = aT[(x)]T[(x)]a = aTKa (sufficient condition for existence of optimal solution: K is positive definite)
    • The constraints:yi{wT(xi) + b} = yi{aT[(x)]T(xi) + b} = yi{aTKi + b}  1, where Ki is the ith column of K.
kernel approach for svm 3 3

Where: a and b are optimal solution based on training data, and m is the number if training data

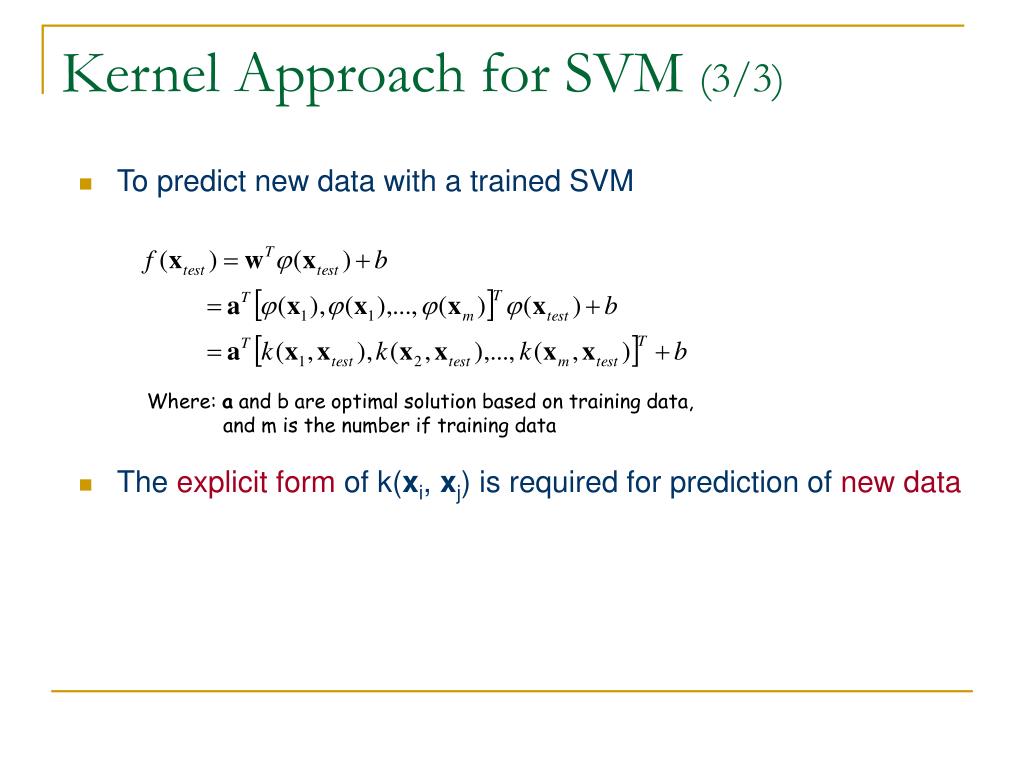

Kernel Approach for SVM (3/3)
  • To predict new data with a trained SVM
  • The explicit form of k(xi, xj) is required for prediction of new data
empirical kernel mapping

Minimize:

Constraints:

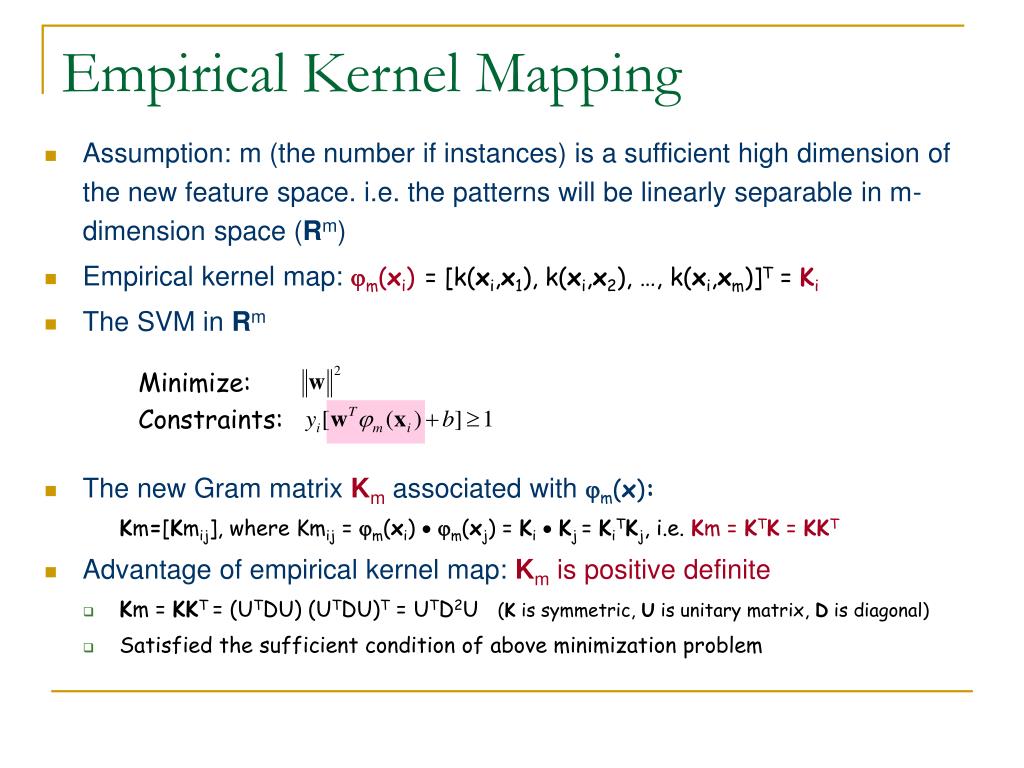

Empirical Kernel Mapping
  • Assumption: m (the number if instances) is a sufficient high dimension of the new feature space. i.e. the patterns will be linearly separable in m-dimension space (Rm)
  • Empirical kernel map: m(xi)= [k(xi,x1), k(xi,x2), …, k(xi,xm)]T =Ki
  • The SVM in Rm
  • The new Gram matrix Km associated withm(x):

Km=[Kmij], where Kmij = m(xi)  m(xj) = Ki  Kj = KiTKj, i.e.Km = KTK = KKT

  • Advantage of empirical kernel map: Km is positive definite
    • Km= KKT = (UTDU) (UTDU)T= UTD2U(K is symmetric, U is unitary matrix, D is diagonal)
    • Satisfied the sufficient condition of above minimization problem
slide10

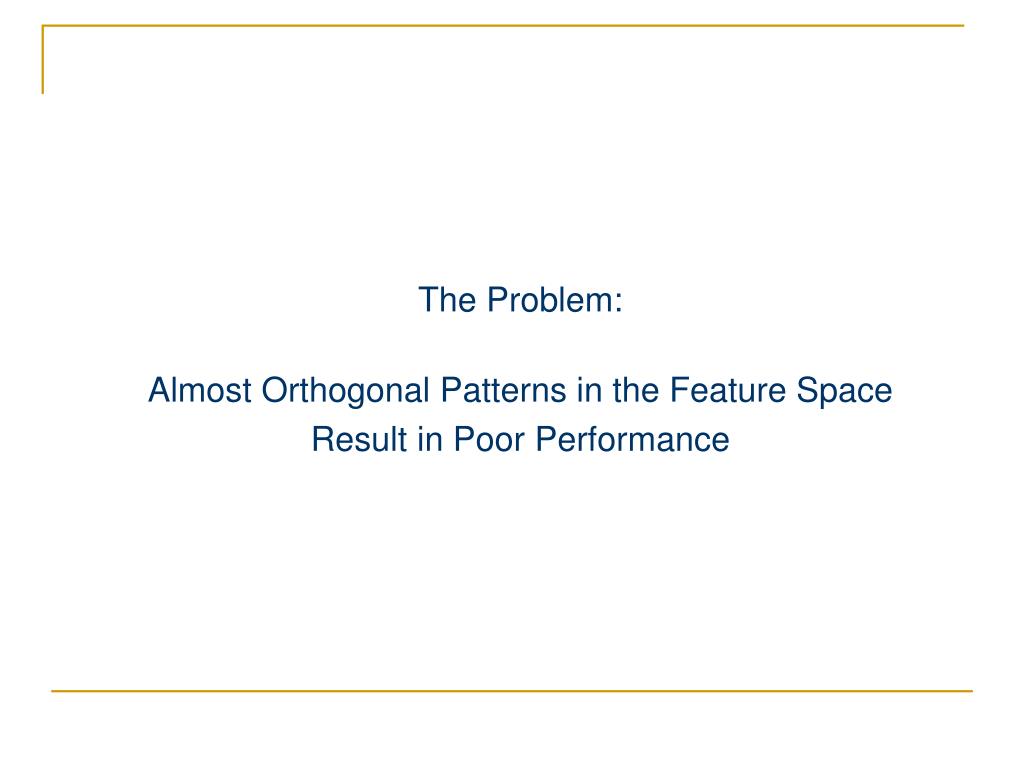

The Problem:

Almost Orthogonal Patterns in the Feature Space

Result in Poor Performance

an example of almost orthogonal patterns

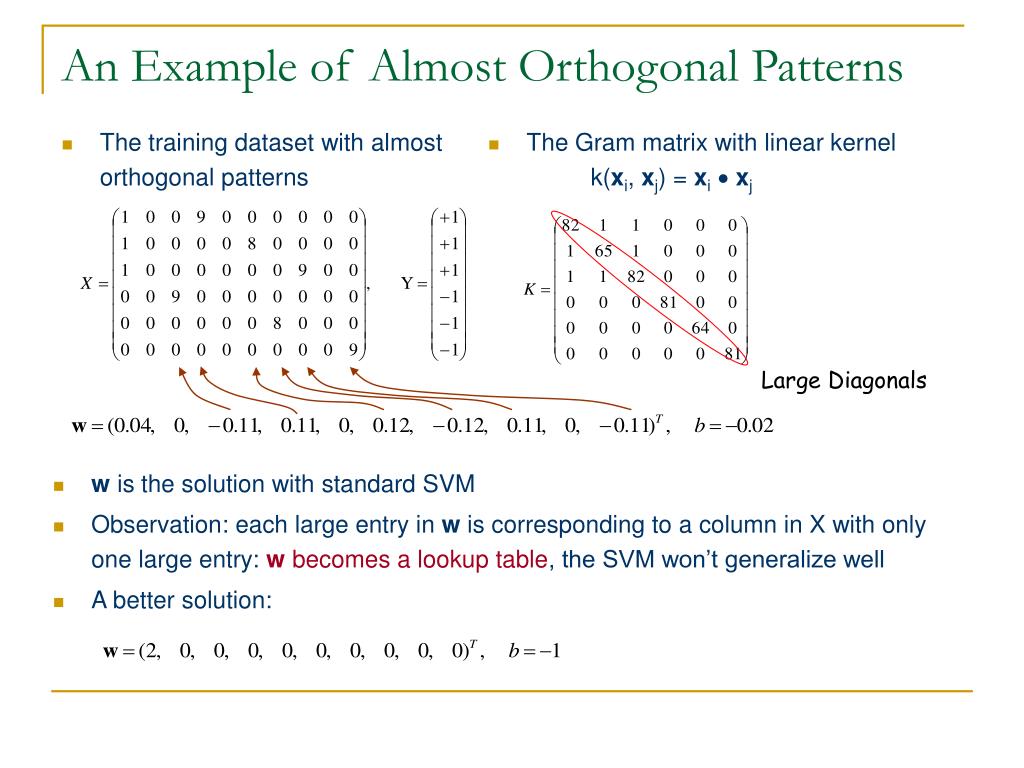

An Example of Almost Orthogonal Patterns
  • The Gram matrix with linear kernel k(xi, xj) = xi xj
  • The training dataset with almost orthogonal patterns

Large Diagonals

  • w is the solution with standard SVM
  • Observation: each large entry in w is corresponding to a column in X with only one large entry: w becomes a lookup table, the SVM won’t generalize well
  • A better solution:
situations leading to almost orthogonal patterns

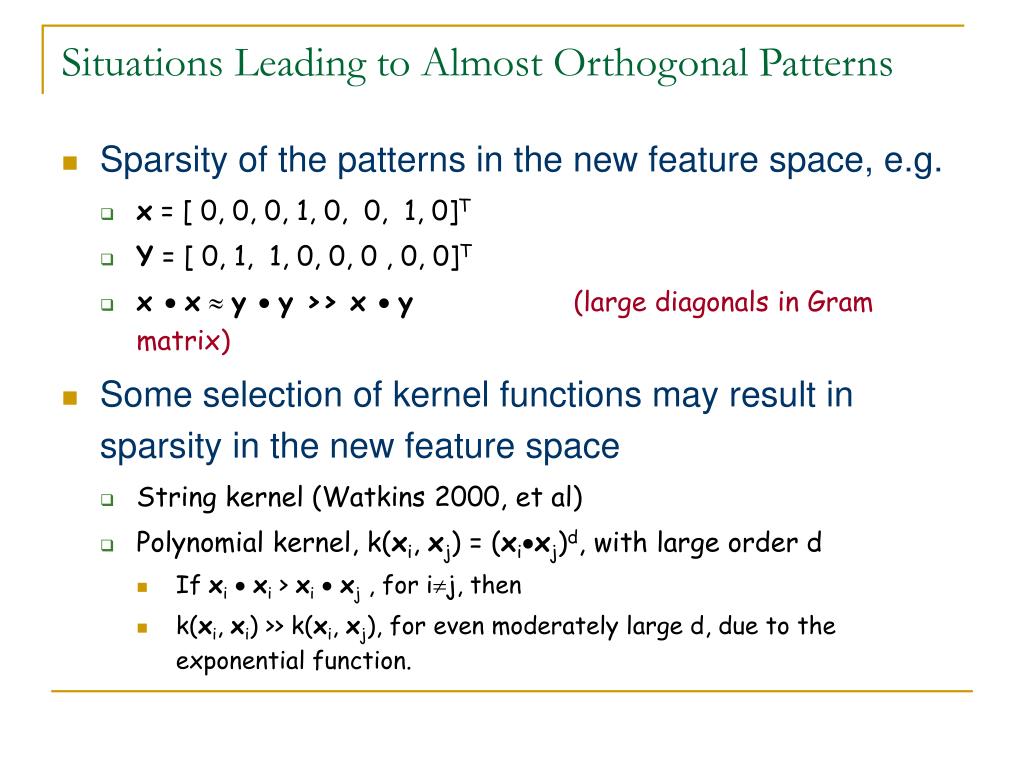

Situations Leading to Almost Orthogonal Patterns
  • Sparsity of the patterns in the new feature space, e.g.
    • x = [ 0, 0, 0, 1, 0, 0, 1, 0]T
    • Y = [ 0, 1, 1, 0, 0, 0 , 0, 0]T
    • x  x  y  y >> x  y (large diagonals in Gram matrix)
  • Some selection of kernel functions may result in sparsity in the new feature space
    • String kernel (Watkins 2000, et al)
    • Polynomial kernel, k(xi, xj) = (xixj)d, with large order d
      • If xi  xi > xi  xj , for ij, then
      • k(xi, xi) >> k(xi, xj), for even moderately large d, due to the exponential function.

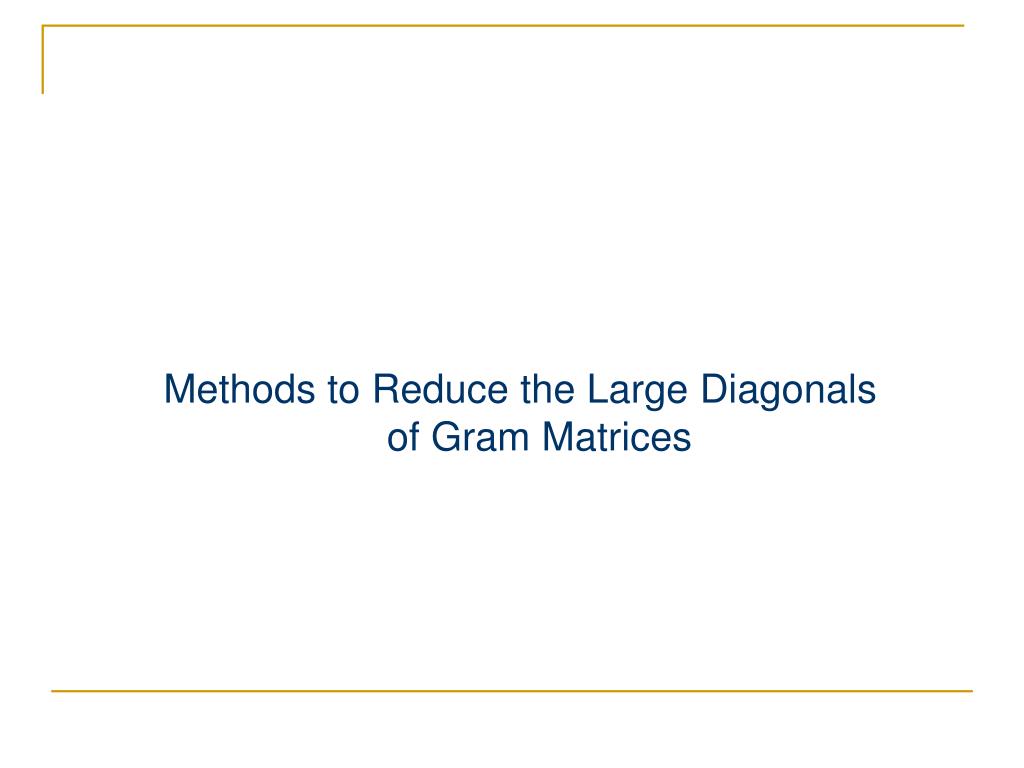

gram matrix transformation 1 2

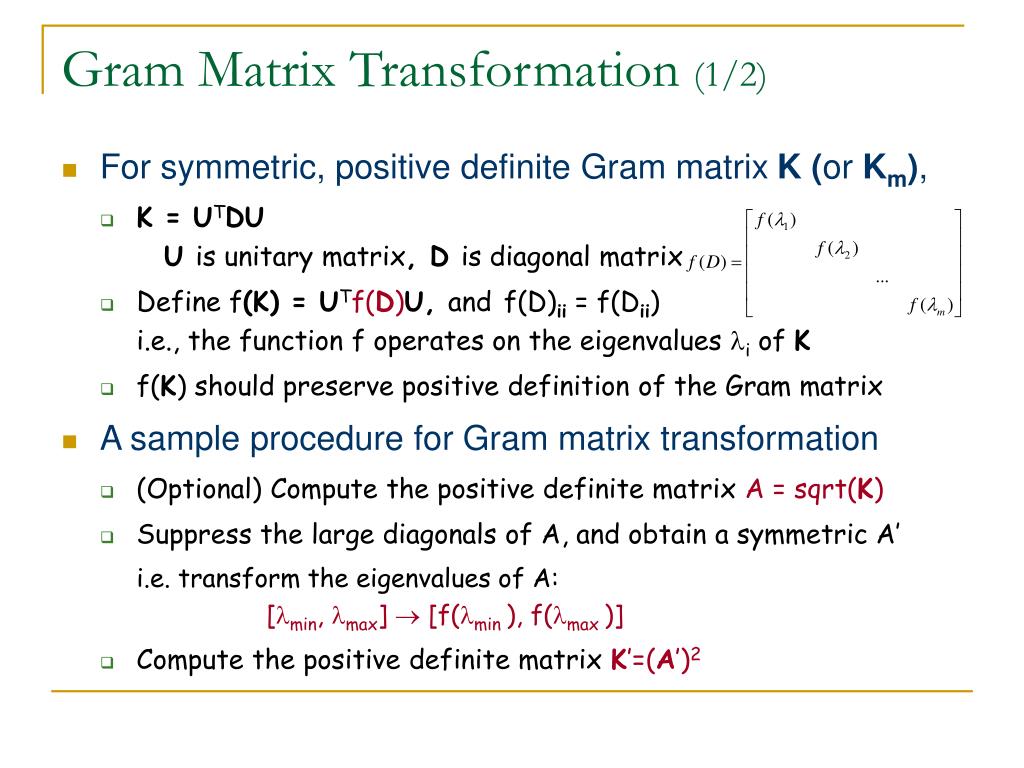

Gram Matrix Transformation (1/2)
  • For symmetric, positive definite Gram matrix K (or Km),
    • K = UTDU U is unitary matrix, D is diagonal matrix
    • Define f(K) = UTf(D)U, andf(D)ii = f(Dii) i.e., the function f operates on the eigenvalues i of K
    • f(K) should preserve positive definition of the Gram matrix
  • A sample procedure for Gram matrix transformation
    • (Optional) Compute the positive definite matrix A = sqrt(K)
    • Suppress the large diagonals of A, and obtain a symmetric A’

i.e. transform the eigenvalues of A:[min, max]  [f(min ), f(max )]

    • Compute the positive definite matrix K’=(A’)2
gram matrix transformation 2 2

k(xi,xj)=

(xi)  (xj)

(x)

K

Implicit transformation

f(K)

’(x)

K’

k’(xi,xj) =

’(xi)  ’(xj)

a’ and b’ from the portion of K’

corresponding to the training data

K’=f(K)

If xi has been used in calculating K’,the prediction on xi can simply use K’i

i= 1, 2,…m+n, where m is the number if training dataand n is the number of testing data

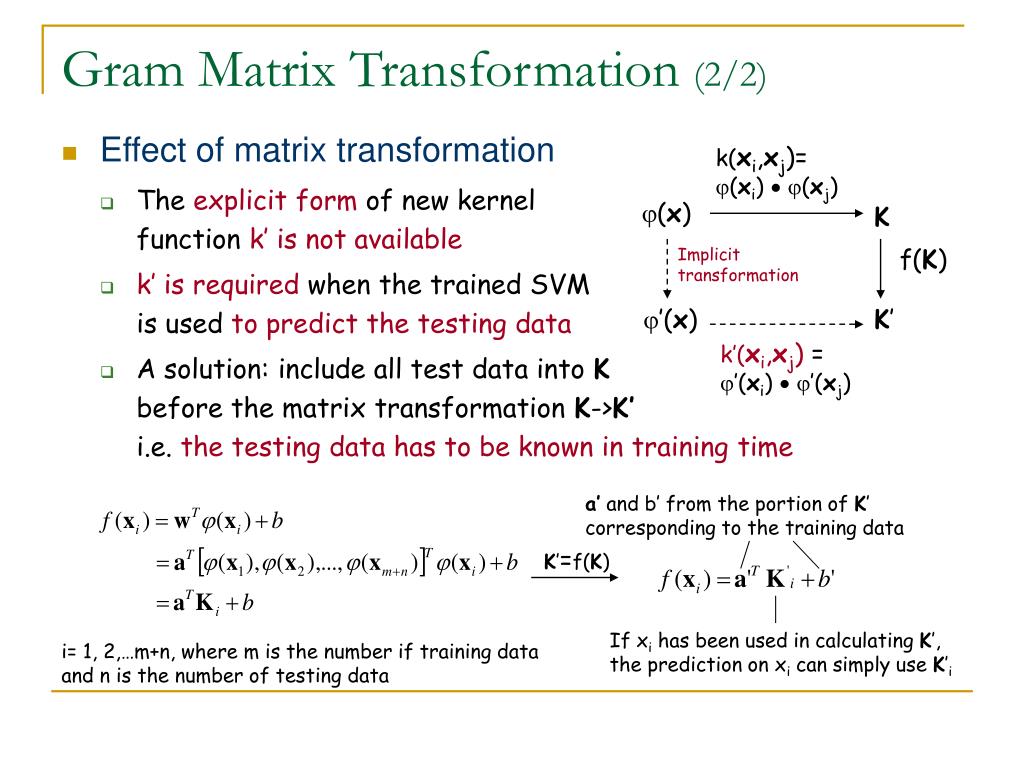

Gram Matrix Transformation (2/2)
  • Effect of matrix transformation
    • The explicit form of new kernel function k’ is not available
    • k’ is required when the trained SVM is used to predict the testing data
    • A solution: include all test data into K before the matrix transformation K->K’i.e. the testing data has to be known in training time
an approximate approach based on statistics

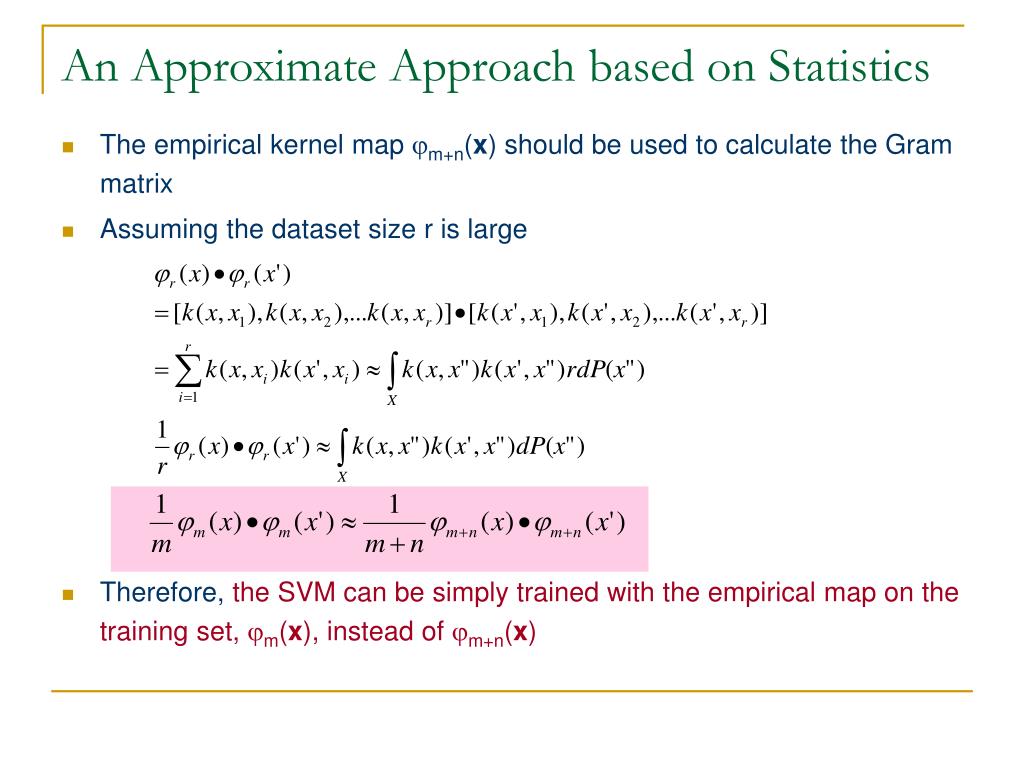

An Approximate Approach based on Statistics
  • The empirical kernel map m+n(x) should be used to calculate the Gram matrix
  • Assuming the dataset size r is large
  • Therefore, the SVM can be simply trained with the empirical map on the training set, m(x), instead of m+n(x)
artificial data 1 3
Artificial Data (1/3)

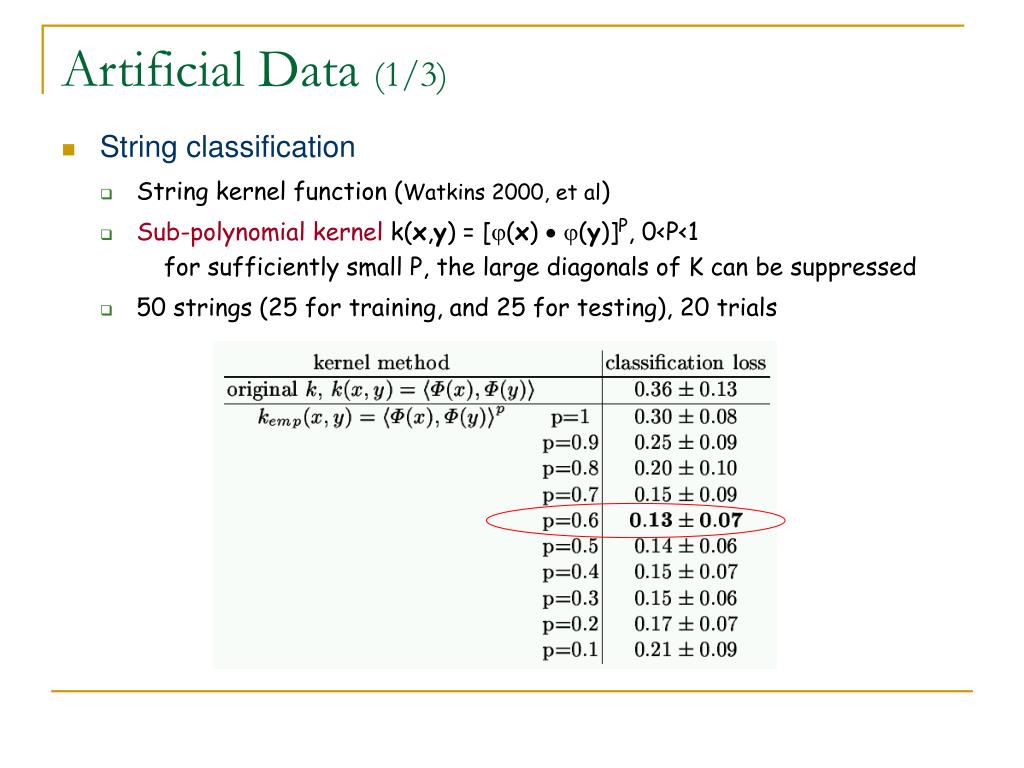

  • String classification
    • String kernel function (Watkins 2000, et al)
    • Sub-polynomial kernel k(x,y) = [(x)  (y)]P, 0<P<1 for sufficiently small P, the large diagonals of K can be suppressed
    • 50 strings (25 for training, and 25 for testing), 20 trials
artificial data 2 3
Artificial Data (2/3)

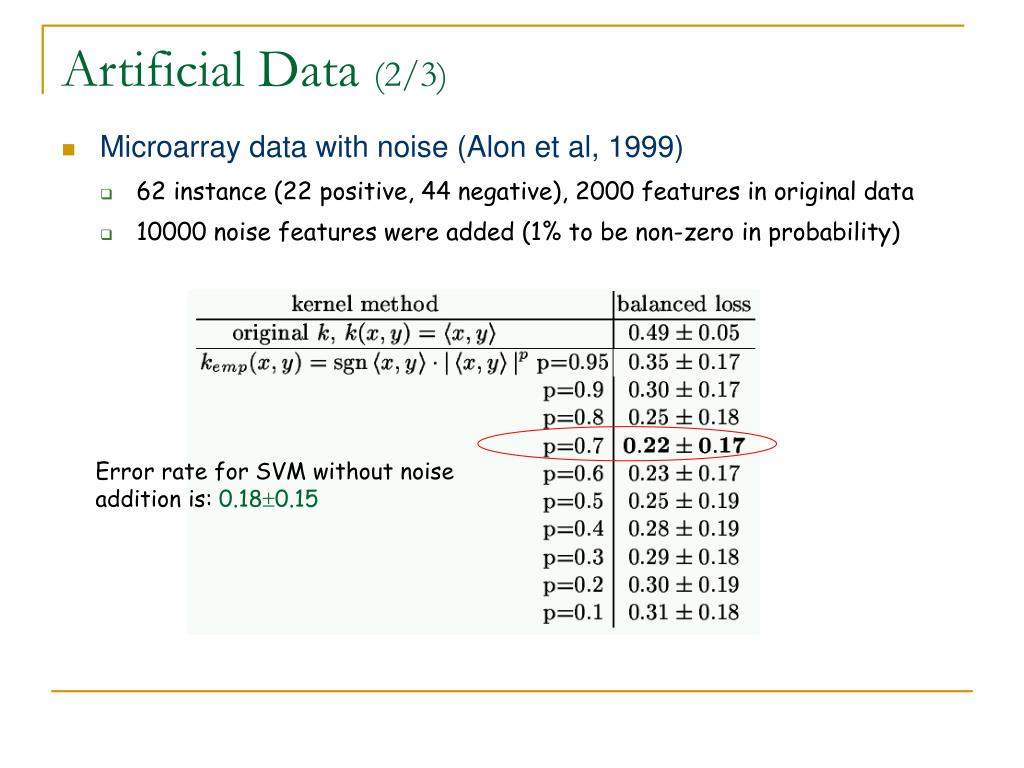

  • Microarray data with noise (Alon et al, 1999)
    • 62 instance (22 positive, 44 negative), 2000 features in original data
    • 10000 noise features were added (1% to be non-zero in probability)

Error rate for SVM without noise addition is: 0.180.15

artificial data 3 3
Artificial Data (3/3)

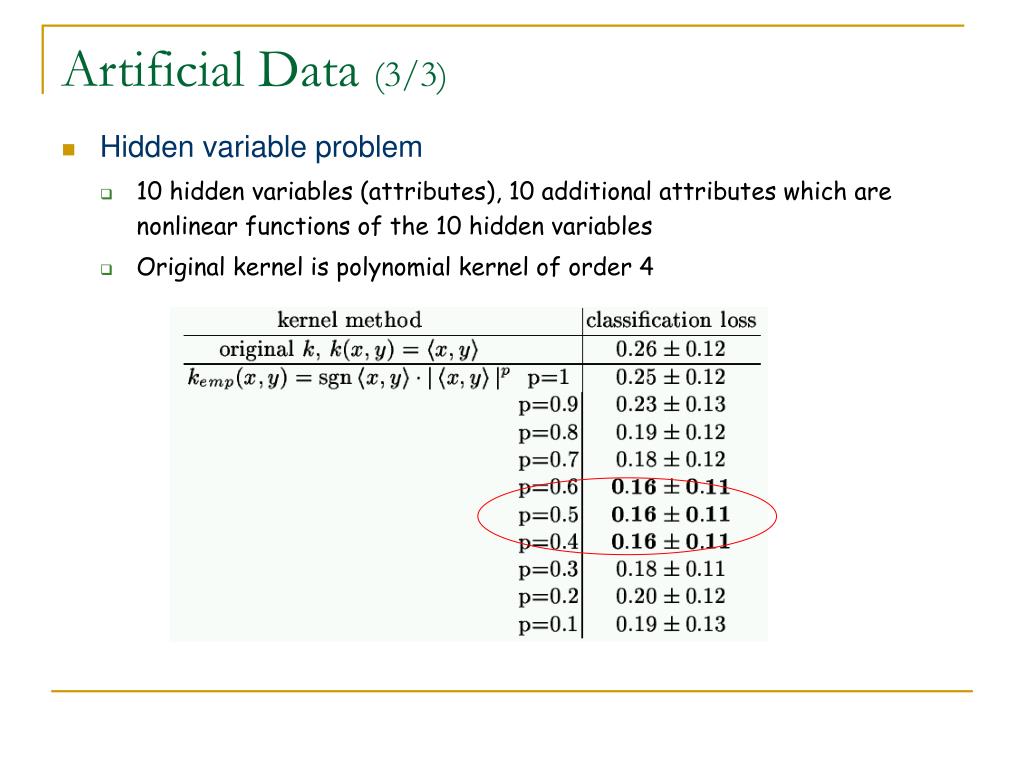

  • Hidden variable problem
    • 10 hidden variables (attributes), 10 additional attributes which are nonlinear functions of the 10 hidden variables
    • Original kernel is polynomial kernel of order 4
real data 1 3
Real Data (1/3)
  • Thrombin binding problem
    • 1909 instances, 139,351 binary features
    • 0.68% entries are non-zero
    • 8-fold cross validation
real data 2 3

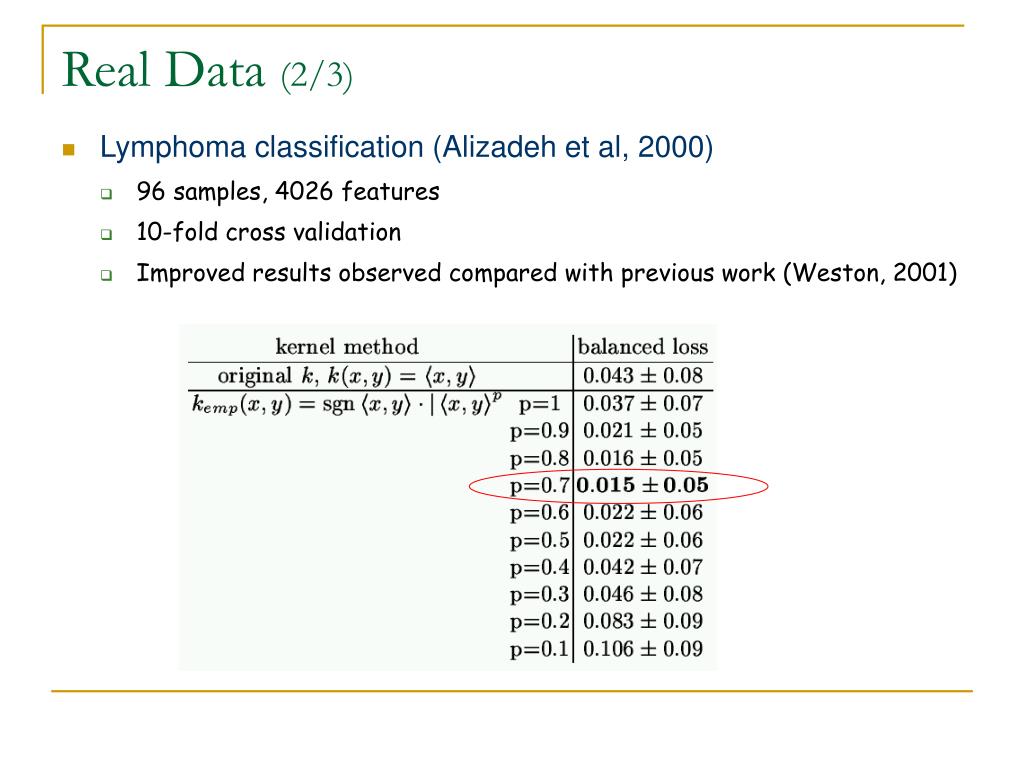

Real Data (2/3)
  • Lymphoma classification (Alizadeh et al, 2000)
    • 96 samples, 4026 features
    • 10-fold cross validation
    • Improved results observed compared with previous work (Weston, 2001)
real data 3 3
Real Data (3/3)

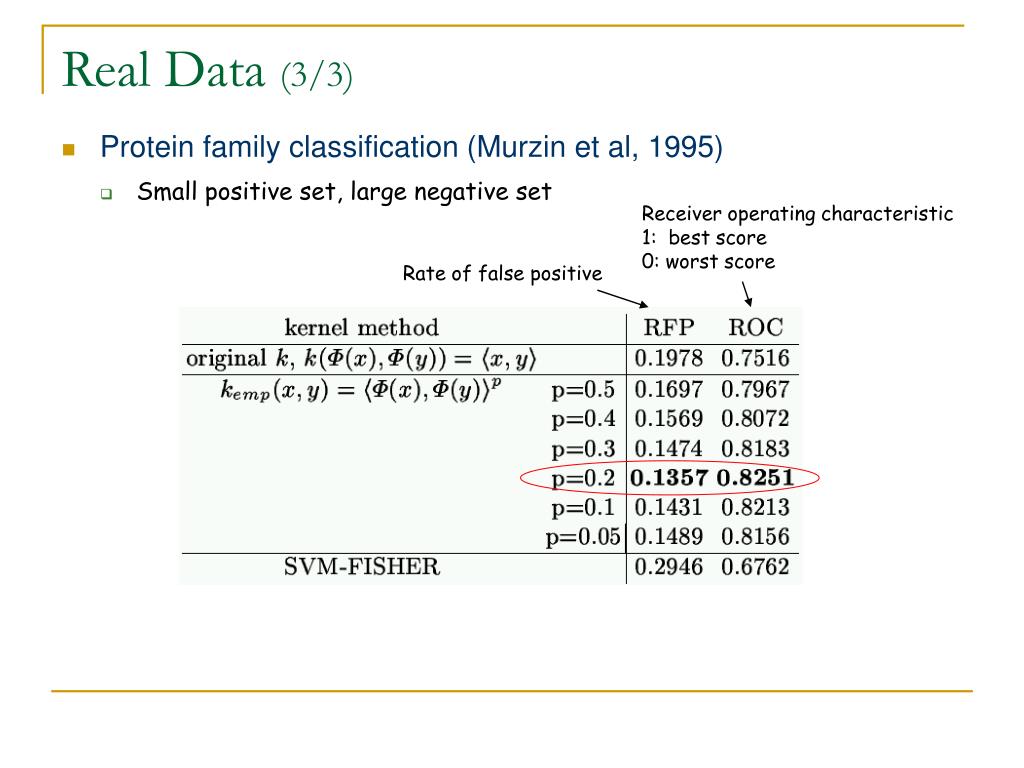

  • Protein family classification (Murzin et al, 1995)
    • Small positive set, large negative set

Receiver operating characteristic

1: best score

0: worst score

Rate of false positive

conclusions

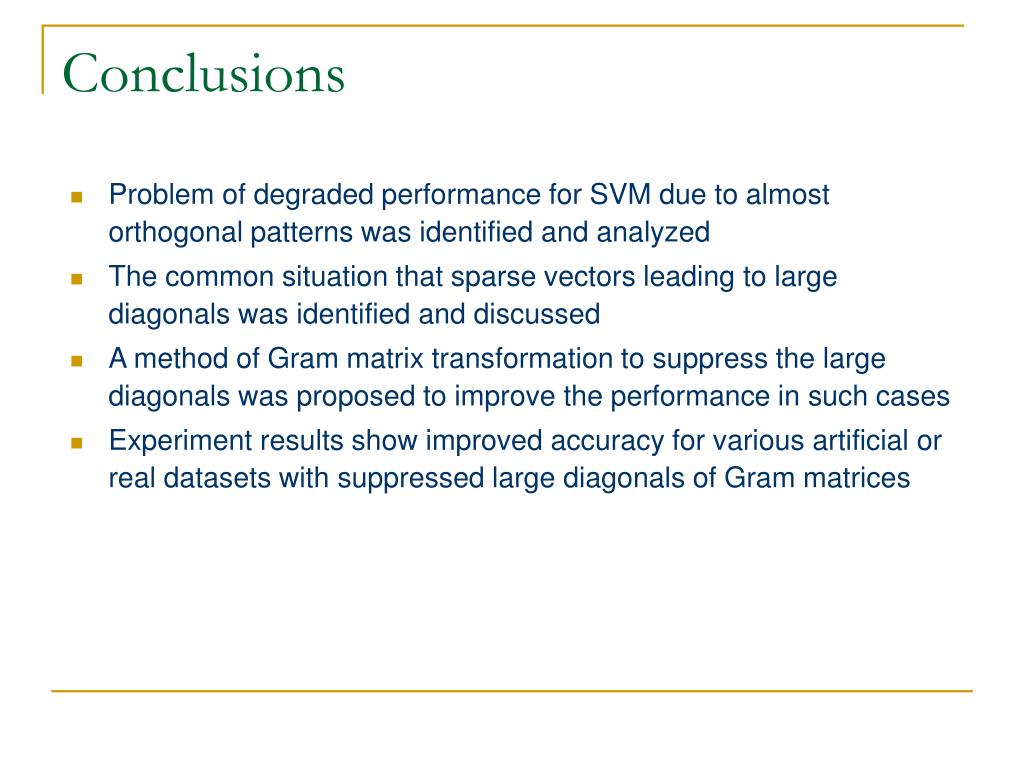

Conclusions
  • Problem of degraded performance for SVM due to almost orthogonal patterns was identified and analyzed
  • The common situation that sparse vectors leading to large diagonals was identified and discussed
  • A method of Gram matrix transformation to suppress the large diagonals was proposed to improve the performance in such cases
  • Experiment results show improved accuracy for various artificial or real datasets with suppressed large diagonals of Gram matrices
comments
Comments
  • Strong points:
    • The identification of the situations leads to large diagonals in Gram matrix, and the proposed Gram matrix transformation method for suppressing the large diagonals
    • Experiments are extensive
  • Weak points:
    • The application of Gram matrix transformation may be severely restricted in forecasting or other applications in which the testing data is not know in training time
    • The proposed Gram matrix transformation method was not tested by experiments directly, instead, transformed kernel functions were used in experiments
    • The almost orthogonal patterns imply that multiple pattern vectors in the same direction rarely exist, therefore, the necessary condition for statistic approach for pattern distribution is not satisfied
