Coupled atom-cavity system. Rabi oscillation: 2-level atom in oscillating electromagnetic field i) stimulated emission |e, n> |G, n+1> ii) absorption |G, n+1> |e, n> coupling energy: ћ g = |Ď•Ē 0 | , 2g = frequency of Rabi cycle. Energy dissipation rates : sources of decoherence

Download Presentation
## Coupled atom-cavity system

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

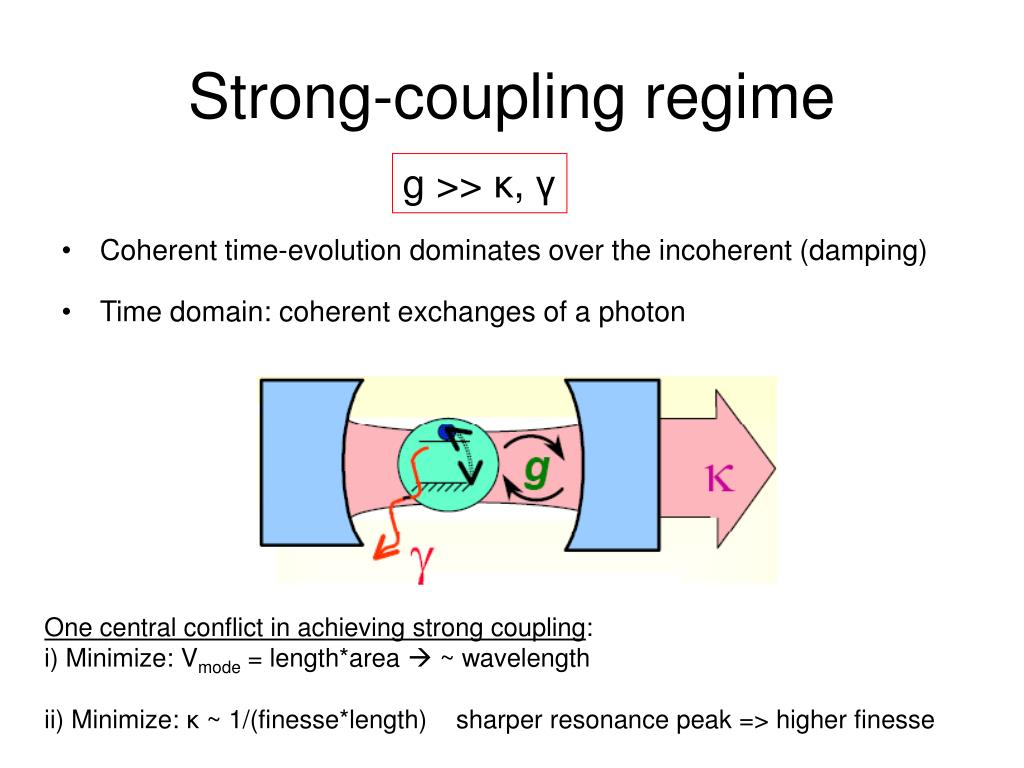

**Coupled atom-cavity system**• Rabi oscillation: 2-level atom in oscillating electromagnetic field • i) stimulated emission |e, n> |G, n+1> • ii) absorption |G, n+1> |e, n> • coupling energy: ћg = |Ď•Ē0| , 2g = frequency of Rabi cycle Energy dissipation rates: sources of decoherence κ = cavity decay rate (“leaking” energy) γ = free-space atomic dipole decay rate (spontaneous emission) Excited State Θ Θ(t) = 2gt Ground State Credit: Caltech Quantum Optics**Strong-coupling regime**g >> κ, γ • Coherent time-evolution dominates over the incoherent (damping) • Time domain: coherent exchanges of a photon One central conflict in achieving strong coupling: i) Minimize: Vmode = length*area ~ wavelength ii) Minimize: κ ~ 1/(finesse*length) sharper resonance peak => higher finesse**Another source of Decoherence**• Motional Effects: • coupling (g) depends on position of atom • Motional degrees of freedom • trapped ions could be useful in CQED • however, hard to fit ion trap in tiny optical-size cavity**Universal Set of Quantum Gates:Conditional Quantum Phase**Gate • Circular Rydberg states: highly excited atom • (g0, κ, γ)/2π ~ (25, 1, 0.03) kHz |e>: natom= 51 Cavity-coupled |g>: natom= 50 atomic qubit: 0a, 1a are |i>, |g> cavity qubit: 0c, 1c are n = 0 or 1 photons | i >: natom= 49 |g, 1> |e, 0> -|g, 1> Full Rabi cycle |i, 0> |i, 1> |g, 0> No phase Change A. Rauschenbeutel et al. 1999**Conditional Quantum Phase Gatefor entanglement**(average nphoton ~ 0.18) Atomic qubit: Field qubit: Phase gate interaction => What good is entanglement in CQED? A. Rauschenbeutel et al. 1999
