Presentation Transcript

  1. LING 388: Language and Computers Sandiway Fong Lecture 17: 10/24

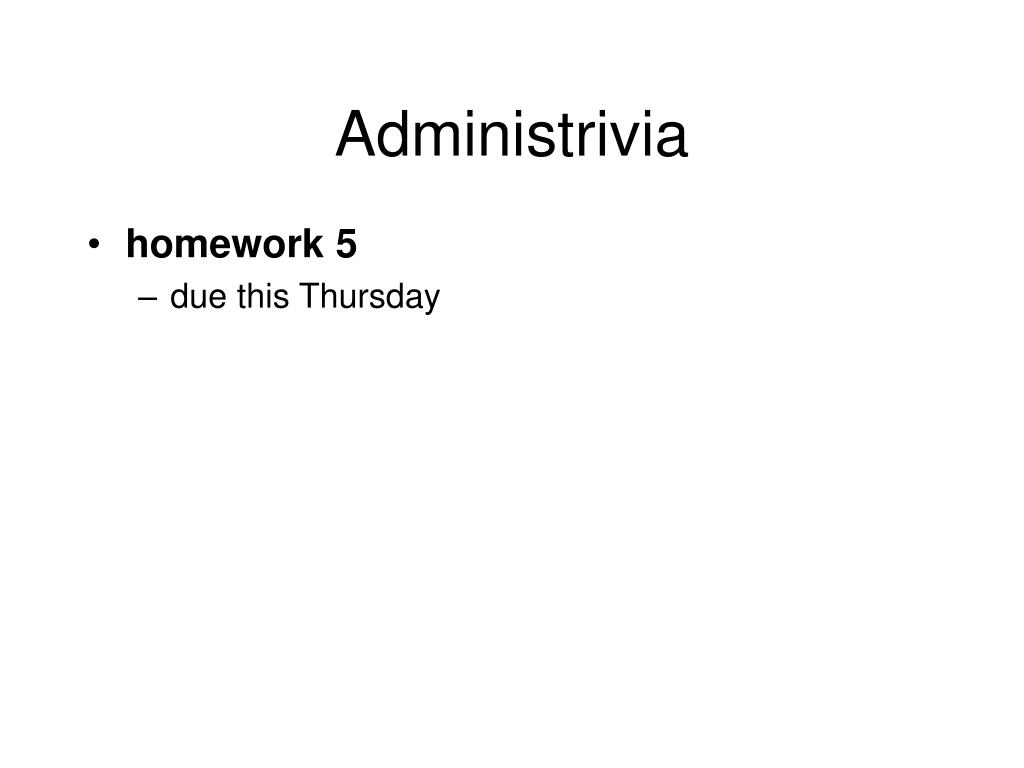

  2. Administrivia • homework 5 • due this Thursday

  3. Administrivia • Computer Lab Class • on Thursday • meet in SS 224 • there will be no homework • just class exercises • (to be assumed in homework 6) • we’ll continue implementing more of the grammar for passivization etc.

  4. Today’s Topic • case study • How to implement the passive construction • verb inflection • constraints between auxiliary and main verbs • subcategorization and adjuncts

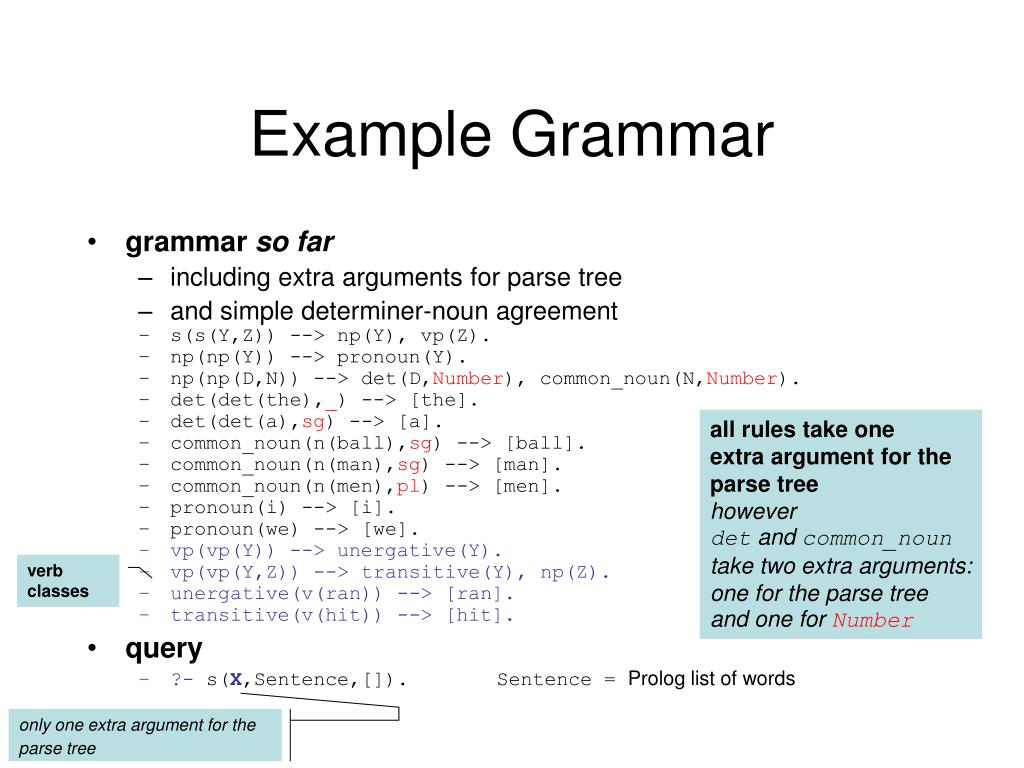

  5. Example Grammar • grammar so far • including extra arguments for parse tree • and simple determiner-noun agreement • s(s(Y,Z)) --> np(Y), vp(Z). • np(np(Y)) --> pronoun(Y). • np(np(D,N)) --> det(D,Number), common_noun(N,Number). • det(det(the),_) --> [the]. • det(det(a),sg) --> [a]. • common_noun(n(ball),sg) --> [ball]. • common_noun(n(man),sg) --> [man]. • common_noun(n(men),pl) --> [men]. • pronoun(i) --> [i]. • pronoun(we) --> [we]. • vp(vp(Y)) --> unergative(Y). • vp(vp(Y,Z)) --> transitive(Y), np(Z). • unergative(v(ran)) --> [ran]. • transitive(v(hit)) --> [hit]. • query • ?- s(X,Sentence,[]). Sentence = Prolog list of words all rules take one extra argument for the parse tree however det and common_noun take two extra arguments: one for the parse tree and one for Number verb classes only one extra argument for the parse tree

  6. in English... passivization applies only to transitive verbs I hit the ball (active) the ball was hit (passive) transitive(v(hit)) --> [hit]. i.e. passivization should only apply to verbs encoded in the grammar using the transitive non-terminal not for unaccusative or unergative verbs I arrived *I was arrived unaccusative(v(arrived)) --> [arrived]. We ran *We were ran/run unergative(v(ran)) --> [ran]. Passivization

  7. s np vp s v np i det n vp hit np ball the aux v det n ball the was hit Passivization • simple phrase structure • I hit the ball (active) • the ball was hit (passive) (non-movement account) • avoiding empty categories for simplicity (can be added): • the ball was hit e • [the ball]i was hit ti

  8. s vp np aux v det n ball the was hit Passivization • phrase structure • the ball was hit (passive) • rules (active sentence) • s(s(Y,Z)) --> np(Y), vp(Z). • vp(vp(Y,Z)) --> transitive(Y), np(Z). • transitive(v(hit)) --> [hit]. • new rules (passive sentence) • vp(vp(A,V)) --> aux(A), transitive(V). • aux(aux(was)) --> [was].

  9. Passivization • query • ?- s(X,[the,ball,was,hit],[]). • computation tree • ?- s(X,[the,ball,was,hit],[]). • ?- np(Y,[the,ball,was,hit],L). • ?- vp(Z,L,[]). • ?- np(Y,[the,ball,was,hit],L). • Y=np(det(the),n(ball)) L=[was,hit] • ?- vp(vp(A,V),[was,hit],[]). • ?- aux(A,[was,hit],L’). • ?- transitive(V,L’,[]). • ?- aux(A,[was,hit],L’). • A=aux(was) L’=[hit] • ?- transitive(V,[hit],[]). • V=v(hit) • X=s(np(det(the),n(ball)),vp(aux(was),v(hit))) s(s(Y,Z)) --> np(Y), vp(Z). np(np(Y)) --> pronoun(Y). np(np(D,N)) --> det(D,Number), common_noun(N,Number). det(det(the),_) --> [the]. det(det(a),sg) --> [a]. common_noun(n(ball),sg) --> [ball]. common_noun(n(man),sg) --> [man]. common_noun(n(men),pl) --> [men]. pronoun(i) --> [i]. pronoun(we) --> [we]. vp(vp(A,V)) --> aux(A), transitive(V). vp(vp(Y)) --> unergative(Y). vp(vp(Y,Z)) --> transitive(Y), np(Z). unergative(v(ran)) --> [ran]. transitive(v(hit)) --> [hit]. aux(aux(was)) --> [was].

  10. Passive Morphology other morphological rules (progressive) be V-ing e.g. was eating (passive+progressive) e.g. was being eaten • verbal inflection • hit eat • hits eats (-s) • hit ate (-ed) • hit eaten (-en) • verbal inflection and passive morphology • rule: (passive) be V-en • was hit (ambiguous between -ed and -en) • *was ate (-ed) • was eaten (-en) • how to implement this restriction? • vp(vp(A,V)) --> aux(A), transitive(V). • idea • use an extra argument to indicate the verb form fortransitive

  11. Passive Morphology • verbal inflection • eat (root) • eats (-s) • ate (-ed) • eaten (-en) • use an argument to signal the inflected form • add rules for eat • transitive(v(eat),root) --> [eat]. • transitive(v(eats),s) --> [eats]. • transitive(v(ate),ed) --> [ate]. • transitive(v(eaten),en) --> [eaten]. • original rule • vp(vp(A,V)) --> aux(A), transitive(V). • modified rule • vp(vp(A,V)) --> aux(A), transitive(V,en). Constraint for -en realized by Prolog pattern-matching

  12. Passive Morphology • grammar rules (partial) • transitive(v(eat),root) --> [eat]. • transitive(v(eats),s) --> [eats]. • transitive(v(ate),ed) --> [ate]. • transitive(v(eaten),en) --> [eaten]. • vp(vp(A,V)) --> aux(A), transitive(V,en). • aux(aux(was)) --> [was]. • query • ?- vp(X,[was,eaten],[]). • computation tree • ?- vp(X,[was,eaten],[]). X=vp(A,V) • ?- aux(A,[was,eaten],L). • ?- transitive(V,en,L,[]). • ?- aux(A,[was,eaten],L). • A=aux(was) L=[eaten] • ?- transitive(V,en,[eaten],[]). • V=v(eaten) example: was eaten

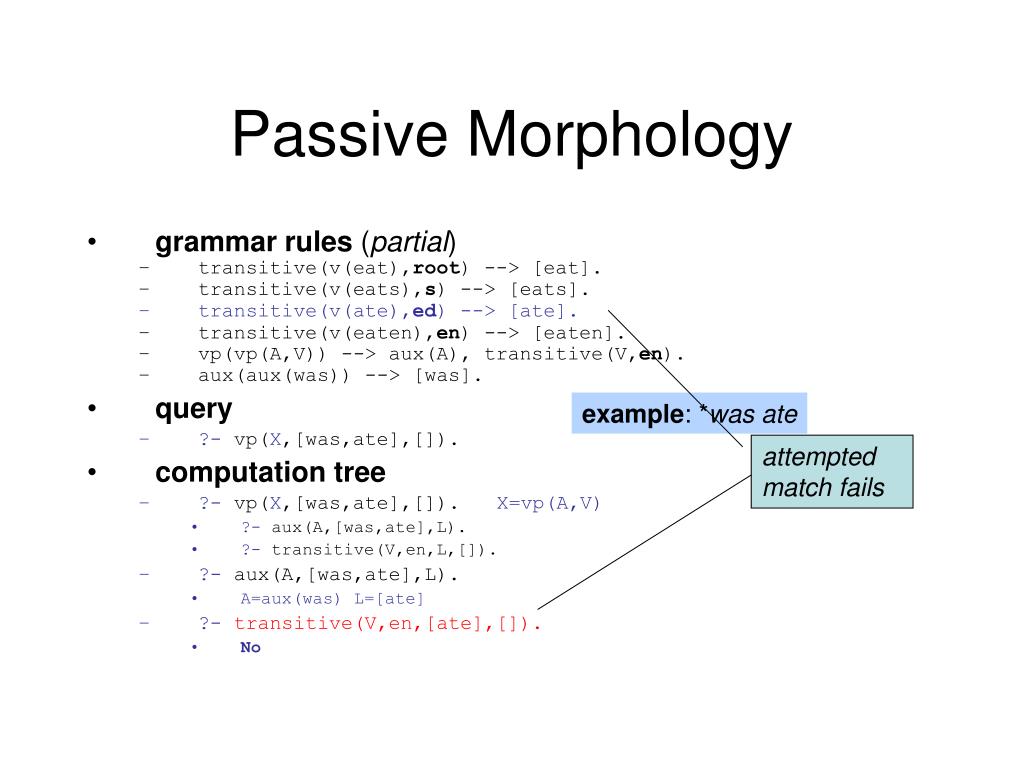

  13. attempted match fails Passive Morphology • grammar rules (partial) • transitive(v(eat),root) --> [eat]. • transitive(v(eats),s) --> [eats]. • transitive(v(ate),ed) --> [ate]. • transitive(v(eaten),en) --> [eaten]. • vp(vp(A,V)) --> aux(A), transitive(V,en). • aux(aux(was)) --> [was]. • query • ?- vp(X,[was,ate],[]). • computation tree • ?- vp(X,[was,ate],[]). X=vp(A,V) • ?- aux(A,[was,ate],L). • ?- transitive(V,en,L,[]). • ?- aux(A,[was,ate],L). • A=aux(was) L=[ate] • ?-transitive(V,en,[ate],[]). • No example: *was ate

  14. s s vp np np vp aux v det n det n vp pp ball the was hit ball the aux v p np was hit by me Subject in By-Phrase • phrase structure • I hit the ball (active) • the ball was hit (passive) • the ball was hit by me (passive + subject in by-phrase) optional prepositional phrase (PP) is adjoined to the verb phrase (VP)

  15. s np vp det n vp pp ball the aux v p np was hit by me Subject in By-Phrase • phrase structure • I hit the ball (active) • the ball was hit (passive) • the ball was hit by me (passive + subject in by-phrase) • add PP rules • pp(pp(P,NP)) --> preposition(P), np(NP). • preposition(p(by)) --> [by]. • add VP adjunction rule • vp(vp(VP,PP)) --> vp(VP), pp(PP). • add pronoun rule • np(np(Y)) --> pronoun(Y). • pronoun(i) --> [i]. • pronoun(we) --> [we]. • pronoun(me) --> [me]. • there is a Case Constraint • (not implemented here) • by me • *by I • *me hit the ball

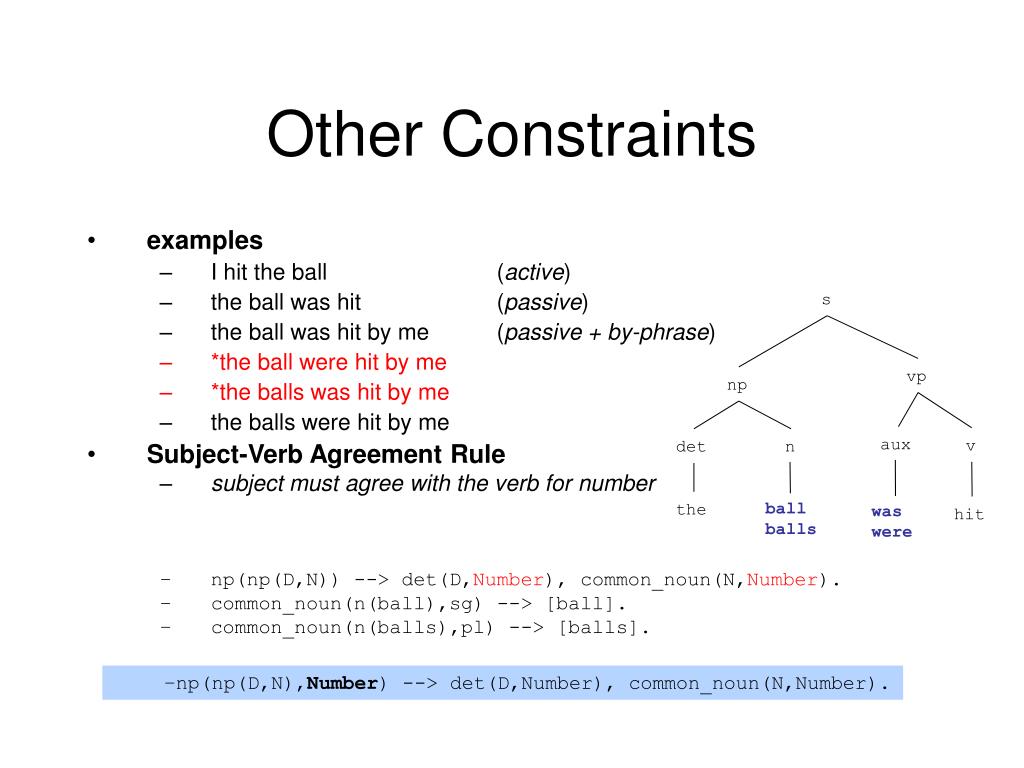

  16. s vp np aux v det n ball balls the was were hit Other Constraints • examples • I hit the ball (active) • the ball was hit (passive) • the ball was hit by me (passive + by-phrase) • *the ball were hit by me • *the balls was hit by me • the balls were hit by me • Subject-Verb Agreement Rule • subject must agree with the verb for number • np(np(D,N)) --> det(D,Number), common_noun(N,Number). • common_noun(n(ball),sg) --> [ball]. • common_noun(n(balls),pl) --> [balls]. • np(np(D,N),Number) --> det(D,Number), common_noun(N,Number).

  17. s number vp np number number number aux v det n ball balls the was were hit Other Constraints • examples • the ball was hit by me (passive + by-phrase) • *the ball were hit by me • *the balls was hit by me • the balls were hit by me • Subject-Verb Agreement Rule • subject must agree with the verb for number • must propagate number feature up the tree! • np(np(D,N),Number) --> det(D,Number),common_noun(N,Number). • common_noun(n(ball),sg) --> [ball]. • common_noun(n(balls),pl) --> [balls]. • s(s(Y,Z)) --> np(Y,Number), vp(Z). number • s(s(Y,Z)) --> np(Y,Number), vp(Z,Number).

  18. Grammar so far • new additions today • verbal inflection and passive morphology • (passive) be V-en • PP by-phrase • “by me” • Subject-Verb Agreement Rule • “the ball/balls was/were” • grammar is still not fully specified • see underscores “-” s(s(Y,Z)) --> np(Y,Number), vp(Z,Number). np(np(Y),_) --> pronoun(Y). np(np(D,N),Number) --> det(D,Number), common_noun(N,Number). det(det(the),_) --> [the]. det(det(a),sg) --> [a]. common_noun(n(ball),sg) --> [ball]. common_noun(n(balls),pl) --> [balls]. common_noun(n(man),sg) --> [man]. common_noun(n(men),pl) --> [men]. pronoun(i) --> [i]. pronoun(we) --> [we]. pronoun(me) --> [me]. pp(pp(P,NP)) --> preposition(P), np(NP,_). preposition(p(by)) --> [by]. vp(vp(VP,PP),_) --> vp(VP,_), pp(PP). vp(vp(A,V),Number) --> aux(A,Number), transitive(V,en). vp(vp(Y),_) --> unergative(Y). vp(vp(Y,Z),_) --> transitive(Y,_), np(Z,_). unergative(v(ran)) --> [ran]. transitive(v(hit),_) --> [hit]. transitive(v(eat),root) --> [eat]. transitive(v(eats),s) --> [eats]. transitive(v(ate),ed) --> [ate]. transitive(v(eaten),en) --> [eaten]. aux(aux(was),sg) --> [was]. aux(aux(were),pl) --> [were].

  19. Grammar so far • ordering of VP rules is critical what happens when rule 15 is moved around for the following query? ?- s(X,[the,balls,were,hit,by,me],[]). • how to block recursion for *the balls were hit by me by the man? ?- s(X,[the,balls,were,hit,by,me,by,the,man],[]). • would ternary branching for VP adjuncts work better computationally? i.e. vp(vp(A,V,PP)) --> aux(A), transitive(V,en), pp(PP). s(s(Y,Z)) --> np(Y,Number), vp(Z,Number). np(np(Y),_) --> pronoun(Y). np(np(D,N),Number) --> det(D,Number), common_noun(N,Number). det(det(the),_) --> [the]. det(det(a),sg) --> [a]. common_noun(n(ball),sg) --> [ball]. common_noun(n(balls),pl) --> [balls]. common_noun(n(man),sg) --> [man]. common_noun(n(men),pl) --> [men]. pronoun(i) --> [i]. pronoun(we) --> [we]. pronoun(me) --> [me]. pp(pp(P,NP)) --> preposition(P), np(NP,_). preposition(p(by)) --> [by]. vp(vp(VP,PP),_) --> vp(VP,_), pp(PP). vp(vp(A,V),Number) --> aux(A,Number), transitive(V,en). vp(vp(Y),_) --> unergative(Y). vp(vp(Y,Z),_) --> transitive(Y,_), np(Z,_). unergative(v(ran)) --> [ran]. transitive(v(hit),_) --> [hit]. transitive(v(eat),root) --> [eat]. transitive(v(eats),s) --> [eats]. transitive(v(ate),ed) --> [ate]. transitive(v(eaten),en) --> [eaten]. aux(aux(was),sg) --> [was]. aux(aux(were),pl) --> [were].
